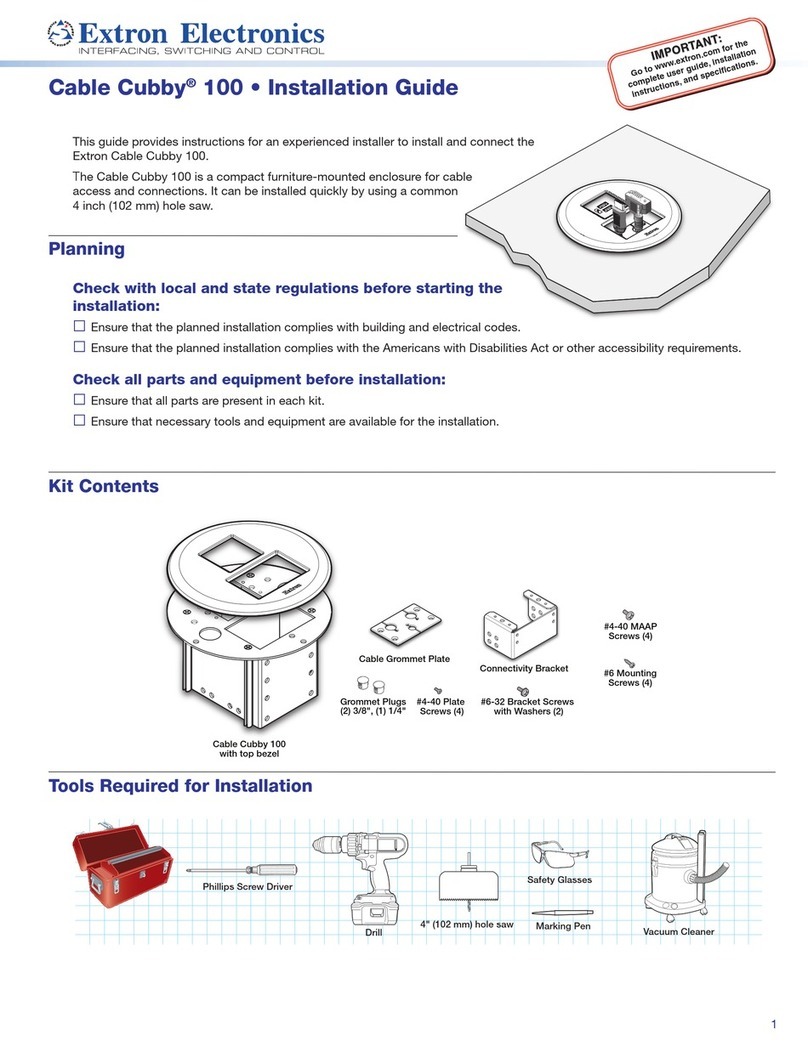

Cable Cubby®100 • Installation Guide
This guide provides instructions for an experienced installer to install and connect the
Extron Cable Cubby 100.
The Cable Cubby 100 is a compact furniture-mounted enclosure for cable
access and connections. It can be installed quickly by using a common
4 inch hole saw.
Planning
Check with local and state regulations before starting the
installation:
Ensure that the planned installation complies with building and electrical codes.
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation:
Ensure that all parts are present in each kit.
Ensure that necessary tools and equipment are available for the installation.
Kit Contents
Tools Required for Installation
Safety Glasses
Phillips Screw Driver
Vacuum Cleaner
Marking Pen
Drill 4" hole saw
Grommet Plugs
(2) 3/8", (1) 1/4"
Connectivity Bracket
Cable Grommet Plate
#4-40 MAAP
Screws (4)
Cable Cubby 100
with top bezel
#4-40 Plate
Screws (4)
#6-32 Bracket Screws
with Washers (2)
#6 Mounting
Screws (4)

Cable Cubby 100 • Installation Guide (Continued)
2
Step 1 - Prepare the Table
Follow the instructions below to cut a hole in the surface where the enclosure will be installed. Read the following information
before making a cut.
Step 1a - Determine the best location for the enclosure.
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
Ensure that there is ample space under the table for cables. Allow at least 36 inches of cable loop for each cable (see
Step 4 –Route and Connect Cables on page 5).
Step 1b - Choose a method for cutting the hole in the table, and cut the hole.
CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION: Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l’oeil.
ATTENTION: The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.
Exercise care to prevent scarring or damaging the furniture.
ATTENTION : L’ouverture dans la table pour le CableCubby devrait être coupée seulement par des artisans autorisés
et qualiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l’endommager.
Choose one of the following methods for cutting the hole:
Power Drill with 4 inch Hole Saw Jigsaw and Paper Cut-Out Template CNC Wood Router
Dimensions and cut-out templates are
available online at www.extron.com.
Cut-Out Template for the Extron
Cable Cubby 100
1. Confirm the product to be installed.
2. Remove the surface cut-out area
(gray) from the template.
3. Measure the cutout and template.
4. Mark the position on the
furniture where the Cable Cubby 1200
will be installed.
5. Cut the opening.
Trim Ring
Lip
Cut-OutRadius:
0.25" (0.6cm)
0.00” (0.00 cm)
0.02 (0.05 cm)
+
P/N 68-2472-01 Rev.A
Page Size: 11" x 17"
Print Scale 1:1
 o not Shrink
Jigsaw
Cut-Out
Out Tem
Ca
Cabl
If using a CNC wood router or
other precise machinery, use the
exact cut-out dimensions.
Cut-Out Dimensions:
4 inch round diameter
NOTE: Insert the Cable Cubby 100 into the hole to test the t. If necessary, carefully enlarge the opening.
Step 1c - Drill the pilot holes into the table.
Follow these steps to drill the pilot holes for the Cable Cubby 100, then proceed to the next section.
1
Insert the Cable Cubby into the hole.
2
Position the Cable Cubby as you wish it to be installed on the table.
With the Cable Cubby in place, mark the four outermost holes
on the top surface.
Remove the Cable Cubby and drill
four pilot holes at the marked locations
on the table.
3

3
Step 2 - Install MAAPs and the Connectivity Bracket
The Cable Cubby can be populated with your choice of MAAPs (Mini Architectural Adapter Plates) and a cable pass-through
assembly. Follow the steps below to populate the Cable Cubby enclosure.
Step 2a — Install a Two-Space MAAP on the MAAP Opening
Follow the steps at the right to install a two-space
MAAP of your choice (see www.extron.com for MAAP
options and wiring instructions). Install the MAAP in the
MAAP opening as shown at right.
1
1
2
2
2
3
Insert cables into
the holes of the
grommet plate.
Use the #4-40 plate screws
to secure the grommet plate
on the connectivity bracket.
Snap the included hole
plugs into any unused
holes.
Insert the assembled module
into the front opening of the
enclosure.
Secure the module at the desired
height using the included #6-32
bracket screws.
Use the included #4-40 MAAP screws
to secure the two-space MAAP on the
enclosure.
USB CHARGER
1
Insert wires through
the opening shown
at the right and
wire the MAAP.
2
S
h
b
NOTE: Using the cap screws that
are included with the MAAP may
1
1
2
2
2
3
Insert cables into
the holes of the
grommet plate.
Use the #4-40 plate screws
to secure the grommet plate
on the connectivity bracket.
Snap the included hole
plugs into any unused
holes.
Insert the assembled module
into the front opening of the
enclosure.
Secure the module at the desired
height using the included #6-32
bracket screws.
Use the included #4-40 MAAP screws
to secure the two-space MAAP on the
enclosure.
USB CHARGER
1
Insert wires through
the opening shown
at the right and
wire the MAAP.
2
S
h
b
NOTE: Using the cap screws that
are included with the MAAP may
1
1
2
2
2
3
Insert cables into
the holes of the
grommet plate.
Use the #4-40 plate screws
to secure the grommet plate
on the connectivity bracket.
Snap the included hole
plugs into any unused
holes.
Insert the assembled module
into the front opening of the
enclosure.
Secure the module at the desired
height using the included #6-32
bracket screws.
Use the included #4-40 MAAP screws
to secure the two-space MAAP on the
enclosure.
USB CHARGER
1
Insert wires through
the opening shown
at the right and
wire the MAAP.
2
S
h
b
NOTE: Using the cap screws that
are included with the MAAP may
Step 2b — Assemble and Install the Connectivity Bracket
Follow the steps below to assemble and install the connectivity bracket with the included cable grommet plate or optional
two-space MAAP module.
To assemble the Cable Grommet Plate (included):
To assemble an optional MAAP module:
1
2
Wire the MAAP.
Use the #4-40 cap scr
ews (included
with the MAAP) to secur
e the MAAP
on the connectivity bracket.
USB CHARGER

4
Step 3 - Mount the Cable Cubby in the Table
Follow the steps below to mount the Cable Cubby on the table.
CAUTION: The anged edges of the top of the surface enclosure are sharp. These edges are also soft and may be easily
nicked or bent. Exercise caution when handling the enclosure to prevent personal injury or damage to the enclosure.
ATTENTION: Les extrémités à brides du haut de la surface du boîtier sont aiguisées. Ces extrémités sont aussi lisses
et peuvent facilement être coupées ou pliées. Soyez prudents lorsque vous manipulez le boîtier an d’éviter de
l’endommager ou de vous blesser.
1
Insert the assembled
Cable Cubby 100
carefully into the
opening on the table.
2
Ensure that the Cable Cubby is fully seated on the
table surface.
Drive four mounting screws (included) through the
outer holes on the bezel and into the pilot holes
on the table to secure the enclosure.
I
nsert t
h
e assem
bl
e
d
C
able
C
ubby 100
care
f
ully into the
open
i
ng on t
h
e ta
bl
e
.
o
n t
USB CHARGER
3
Snap the top bezel on the Cable Cubby.
Snap
the
top
bezel
on
the
Cable
C
ubb
USB CHARGER

5
Cable Cubby 100 • Installation Guide (Continued)
Step 4 - Route and Connect Cables
Follow the steps below to route and connect cables under the table.
1
23
2
3
Secure cables with zip ties
to the holes on the side of
the Cable Cubby.
For cable pass-through applications,
allow at least 36 inches (0.9 m) of cable
loop for each cable.
Connect cables to the AV system.

68-2797-01
Rev. A
08 15
6
