EZ TANKLESS CampChamp User manual

1
PORTABLE GAS WATER HEATER
USER’S MANUAL
CampChamp by EZ Tankless, Inc.
Thank you for purchasing our instant gas water heater. Read this manual before
installing and operating, and keep it for future reference.
Contents
General Safety……….………………………………… ……………….…..………..……….1
Features……………………………………………………………..………………..……..…6
Specifications……………………………………………………….….……………..….……7
Parts Name and Dimensions……………………………………….………………….......…..8
Installation………………………………………………………….… …..…………..….….20
Operation Method…………………………………………………...……………………..…25
Parts Replacement……………………………………………….…............................... …...27
Cleaning………………………………………………….…...….................…………..…....28
Maintenance…………………………………………………..…….…..………….…...…....29
Accessories List………………………………………….……...…….…………………..….29
Trouble Shooting…………………………………………………..………………………....30

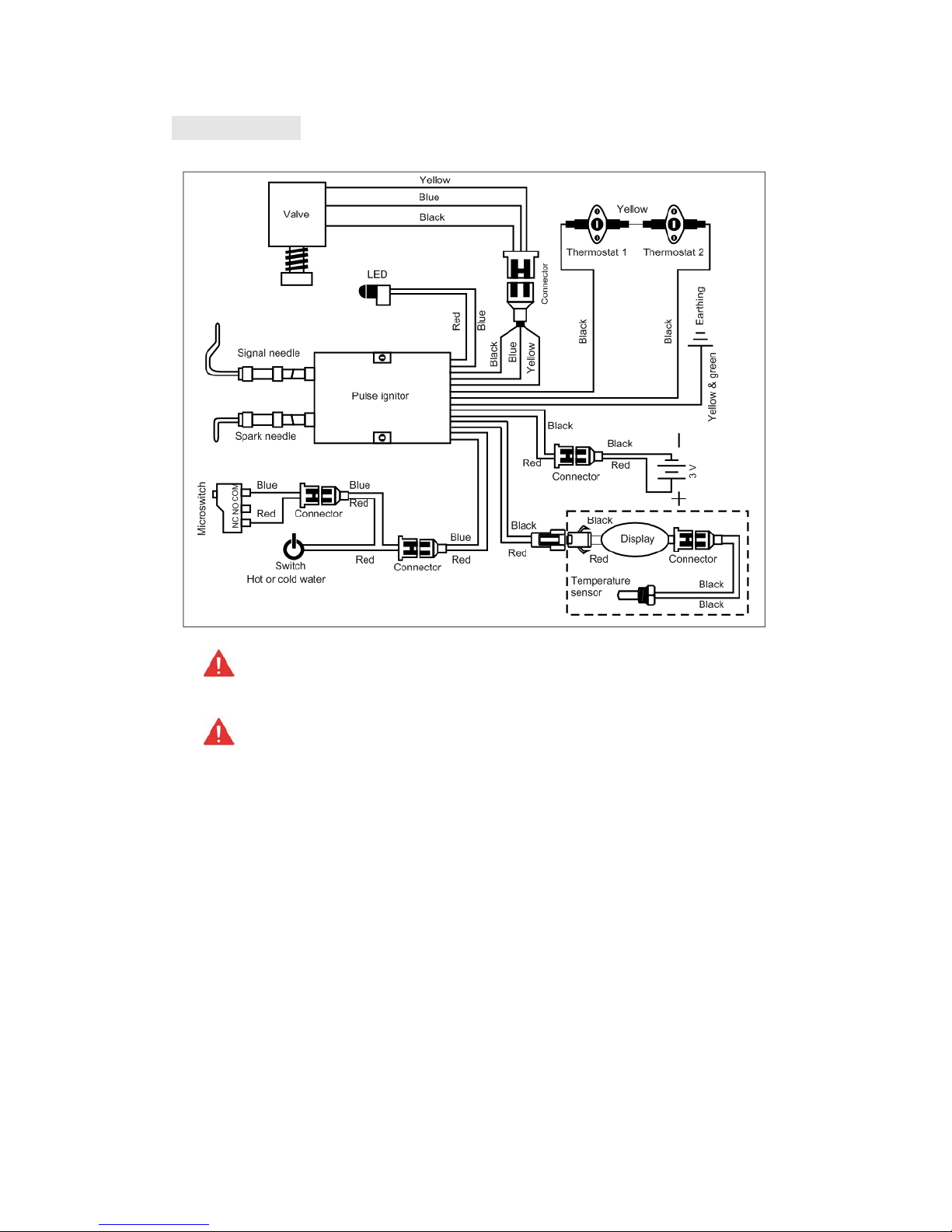

Circuit Diagram……………………………………………………..……….......……..…….31
READ THE SAFETY INFORMATION
All safety messages will follow the safety alert symbol and the words: “DANGER”,“WARNING”,
“CAUTION” or “NOTICE”.
These words mean:
DANGER - An imminently hazardous situation that will result in death or serious injury.
WARNING - A potentially hazardous situation that could result in death or serious injury and/or
damage to property.
CAUTION - A potentially hazardous situation that may result in minor or moderate injury.
NOTICE: Attention is called to observe a specified procedure or maintain a specific condition.

2

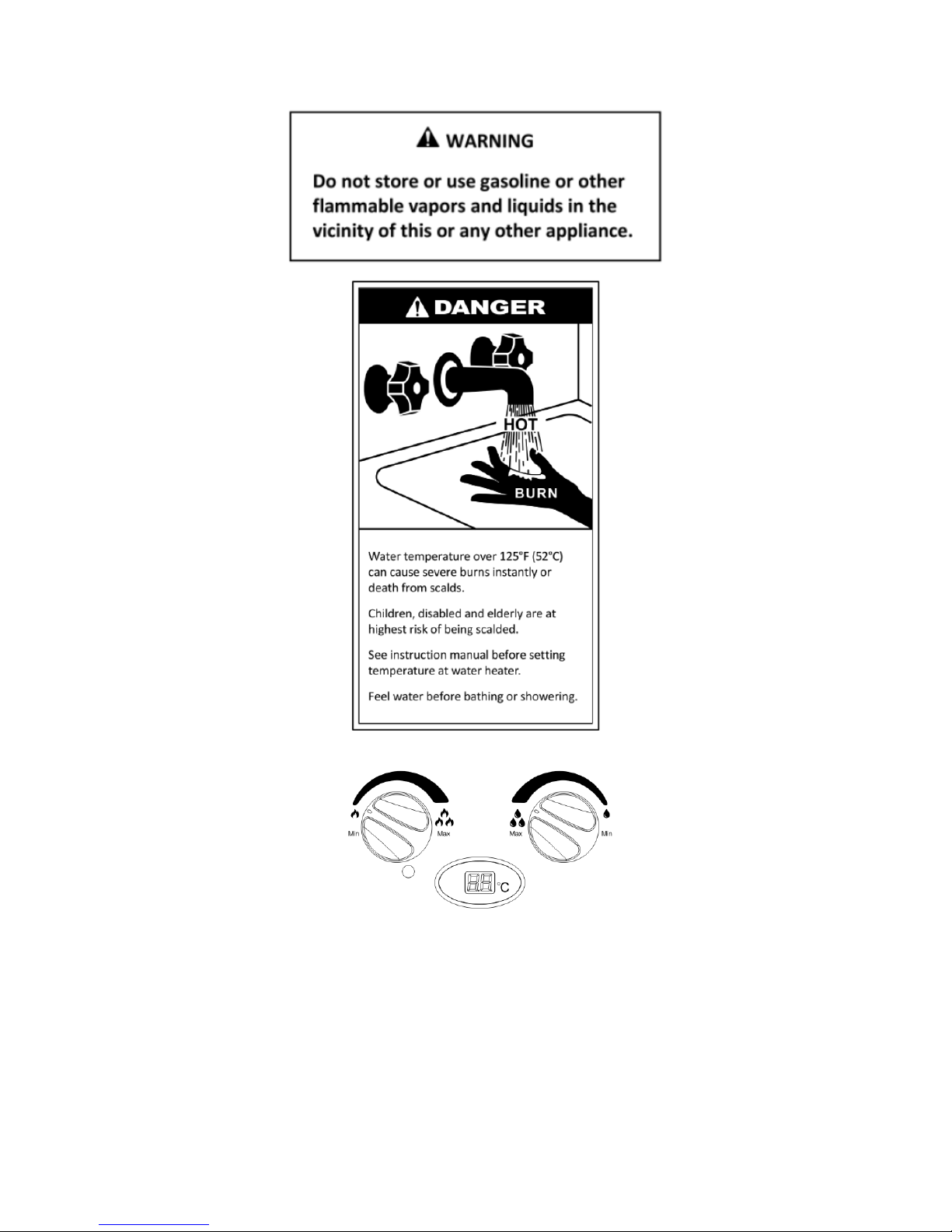

Please noted that the appliance will protect and shut down automatically when
outlet water temperature is
≥
125
℉
（
52
℃）
. Before turning on the appliance, it

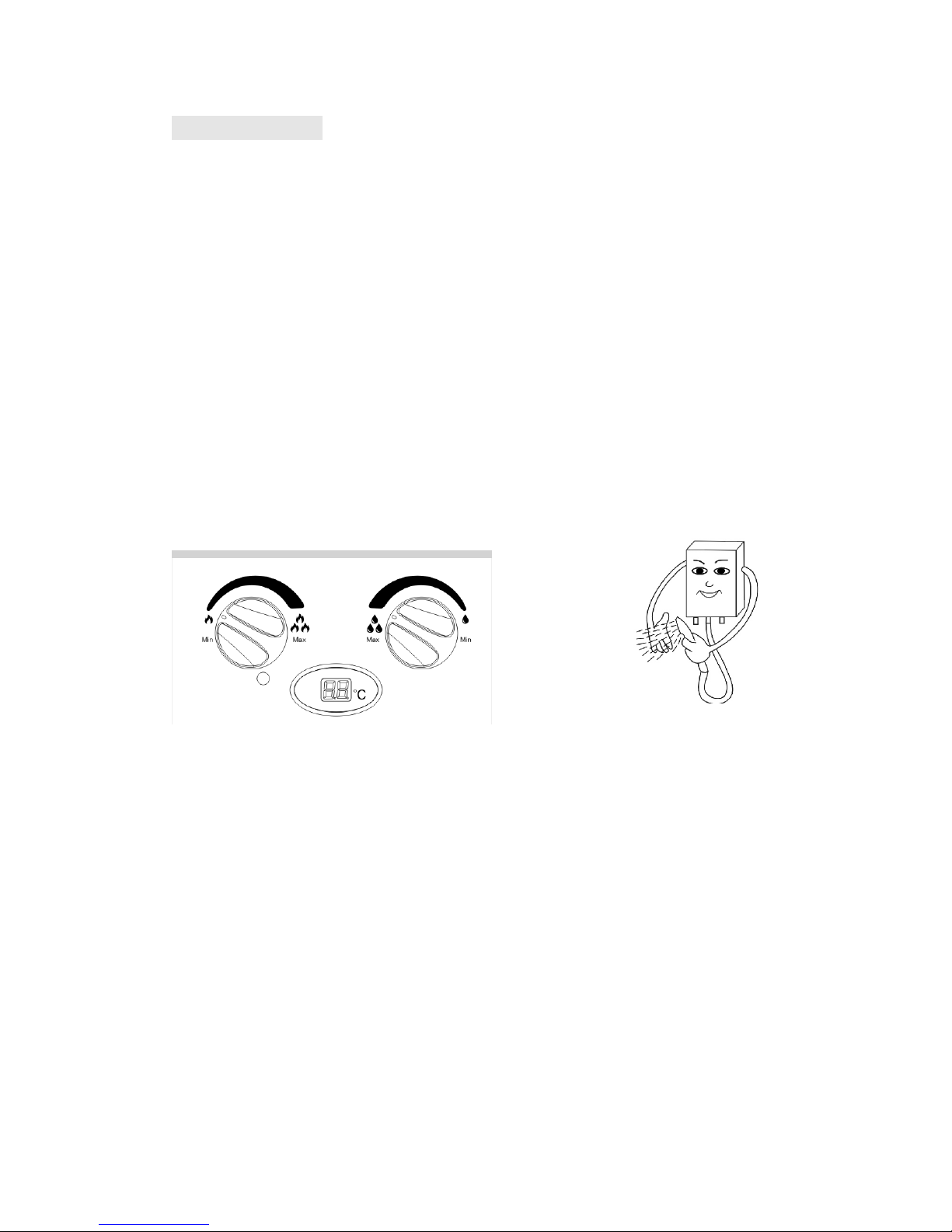

is suggested to rotate the gas knob to MIN and the water knob to MAX (as the
above picture shows). After the outlet water temperature becomes stable, you can
regulate gas knob and water knob gradually so as to achieve your ideal
temperature.

3

4

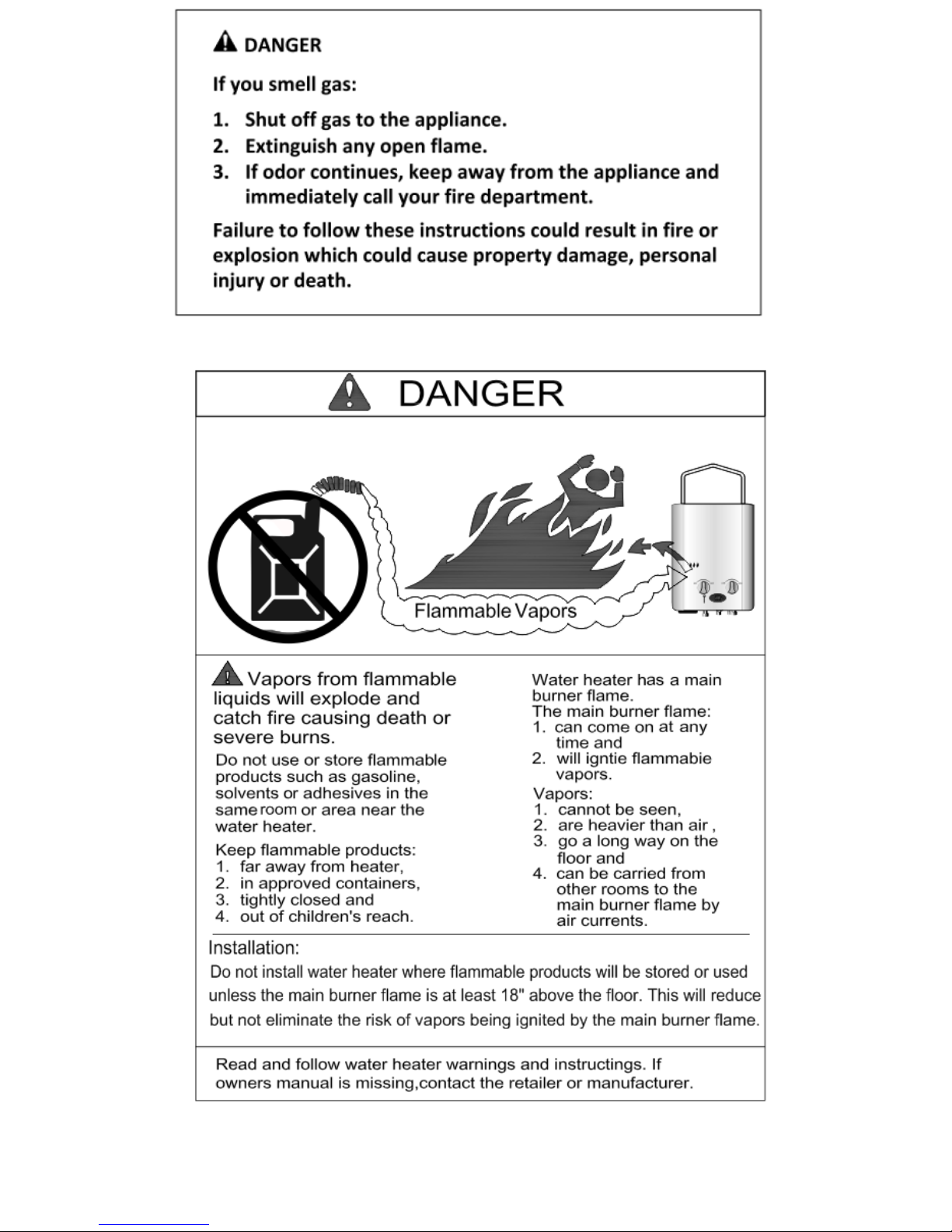

WARNINGS
Do not leave unattended.
The exhaust gas and top of the portable gas water heater is HOT!
Do not place hands or any foreign object near the top of the heater.
Turn off power, gas valve and water valve after use.
If stored indoors, detach and leave cylinder outdoors.
Do not use in high wind conditions.
If the smell of gas is detected, turn off the gas valve at the tank
immediately! Do not use flame for leak detection.
Use only Liquid Propane.
Use only outdoors.
Do not drink the water in the heater.
Do not connect to a remote gas supply
Do not over tighten the gas regulator connection to the portable gas
water heater with a wrench. This may cause a crack in the gas regulator.
This appliance must be protected from rain.
 Gas is supplied from a standard 20 pound propane cylinder (not
included) such as used with
outdoor grills. A regulator with hose is
furnished with the heater.
 LP-gas cylinders must either be designed, fabricated, tested and
marked (or stamped) in accordance with the regulations of the U.S.
Department of Transportation (DOT) or for use in
 Canada, cylinders must be constructed and marked in accordance
with the specifications for cylinders, Spheres, and
Tubes for the Transportation of Dangerous Goods, CSA B339.
 Only cylinders marked with the proper fuel type approved for
the appliance must be used.
 The gas cylinder must disconnected when the water heater is in storage.
Check whether the flame is extinguished after each shower and do not
forget to turn off the gas valve.
Always check all the gas pipe connections with soapsuds to see whether
there is any gas leakage. In case of gas leakage, please shut off the gas
supply. Under such condition, actions such as ignition, switching on/off the
electric power supply are strictly prohibited to avoid explosion and fire.
Keep on using one type of gas, never mixing using them.
Check the gas tube regularly in case of aging or crack after long period
of usage. Replace it if cracked tubes are found.
For users, if the flame of the heater is not stable, it may be caused by
the breakdown of the pressure reduction valve connected to the
outlet of the gas tank. In that case, stop using the heater immediately
and
contact a service technician.
Make sure that the flame of the heater has extinguished after each shower.
Turn off the main gas valve and the water inlet valve in case of water shortage.

5
WARNINGS
The gas must be turned off at the LP-gas supply cylinder when the water heater
is not in use.
When the LP-gas supply cylinder is not disconnected from the water heater ,
the water heater and cylinder
must be stored outdoors, in a well ventilated
space, out of the reach of children, and must not be stored in a building,
garage or any other enclosed area.
Storage of the water heater indoors in permissible only if the cylinder is
disconnected and removed from the water heater.
 Cylinders must be stored outdoors, in a well-ventilated space, out of the
reach of children, and must not be stored in a building, garage or any
other enclosed area.
Should overheating occur or the gas supply fail to shut off, turn off the manual
gas control valve to the appliance.
Make sure that the gas cylinder stands vertically and will not be knocked over when in use.
ADDITIONALWARNINGS
■Prevent Eyes from Getting Hurt
Keep eyes away from the flame indicator window at a minimum safety distance of
300mm during ignition. If the first attempt of ignition fails, wait 10-20 seconds before
the next attempt.
■Prevent No-Water Burning in The Heater
After each shower, make sure that the flame is extinguished when the valve is closed. If
the flame still exists after the water valve is closed, something must be wrong with the
heater. Switch off the gas valve immediately and contact the service center. Otherwise
the heater may be damaged by overheating and then may cause fire accident.
■Do Not Use The Heater Water for Drinking
As there is always residue in the heater, the water supplied by the heater is only for
general usage, not for drinking.
■Dealing With The Abnormal Conditions
Stop the heater when there is strong adverse wind blowing. Otherwise, the heater unable
to operate.
In case of abnormal burning (e.g. flame-back, flameout, yellow flame or black smoke,
etc.), unusual smell, noise or other abnormal situations, keep calm and turn off the gas
valve and contact the service center or the gas dealer.

6
NOTICE
Reduce The Chance of Getting Furred
After shower, please turn off the gas valve and drain out the hot water in the water heater
until cool water is out. Then turn off the water inlet valve.
Freezing Prevention
Under the circumstance of low temperature, please drain the water remaining in the
heater completely after each use. Otherwise the water may freeze and cause damage the
heater.
The following phenomenon are normal:
When the water pressure is lower than 3psi, the heater cannot be ignited.
The drain valve is dripping. When the water pressure is too high, the drain valve will
release water so as to reduce the pressure to protect the heater.
When the heater is supplying hot water to too many points at the same time, the hot
water flow would be reduced, and under exceptional circumstances no hot water will
come out at all.
The gas water is for point of use, for temporary water heating and not for connection to a
permanent inlet water connection or for connection to a water distribution system to
supply multiple outlets.
\
Features
1. Automatic Operation
Turn on the hot water tap, and then hot water will come out. When the tap is
turned off, the flame will automatically go out.
Independent control of water and gas makes it easy to adjust the water
temperature.
2. Innovative Design
Ultra-thin appearance, beautiful design and convenient to install.
Advanced energy-saving combustion technology greatly improves burning
efficiency.
The heater is able to ignite at low water pressure (3psi), which fulfills the needs
of more users.
3. Complete Safety Functions
Sensitive IC flame sensor will cut off the gas supply if flame goes out
unexpectedly.
Insufficient water flow pressure protection.
The gas valve will automatically turn off when dry burning happens.
4. A shower nozzle with on/off switch and multiple spray patterns is included.
5. Ideal operating use with water pressure between 20-120 PSI.

7
Specifications
Name Gas Instantaneous Water Heater
Model CampChamp by EZ Tankless, Inc.
Rated Heat Input
37500BTU
Capacity 1.45GPM
Gas Type Propane
Rated Gas Pressure 11”W.C.
Applicable water pressure 20-120PSI
Power Supply 3V
Waste Air Exhaust Direct discharge
Ignition
Water Control Automatic Ignition
Safety Devices
1.Flame out protection
2.Over heat protection
3. Anti-blockage protection
4.Dry burning protection
Pipe joint
Gas Inlet
G 1 / 2
Cold Water Inlet
G 1 / 2
Hot Water Outlet
G 1 / 2
Warning:
Read the technical instructions before installing the appliance.
Read the use’s instructions before lighting the appliance.
This appliance shall only be installed outdoors.

8

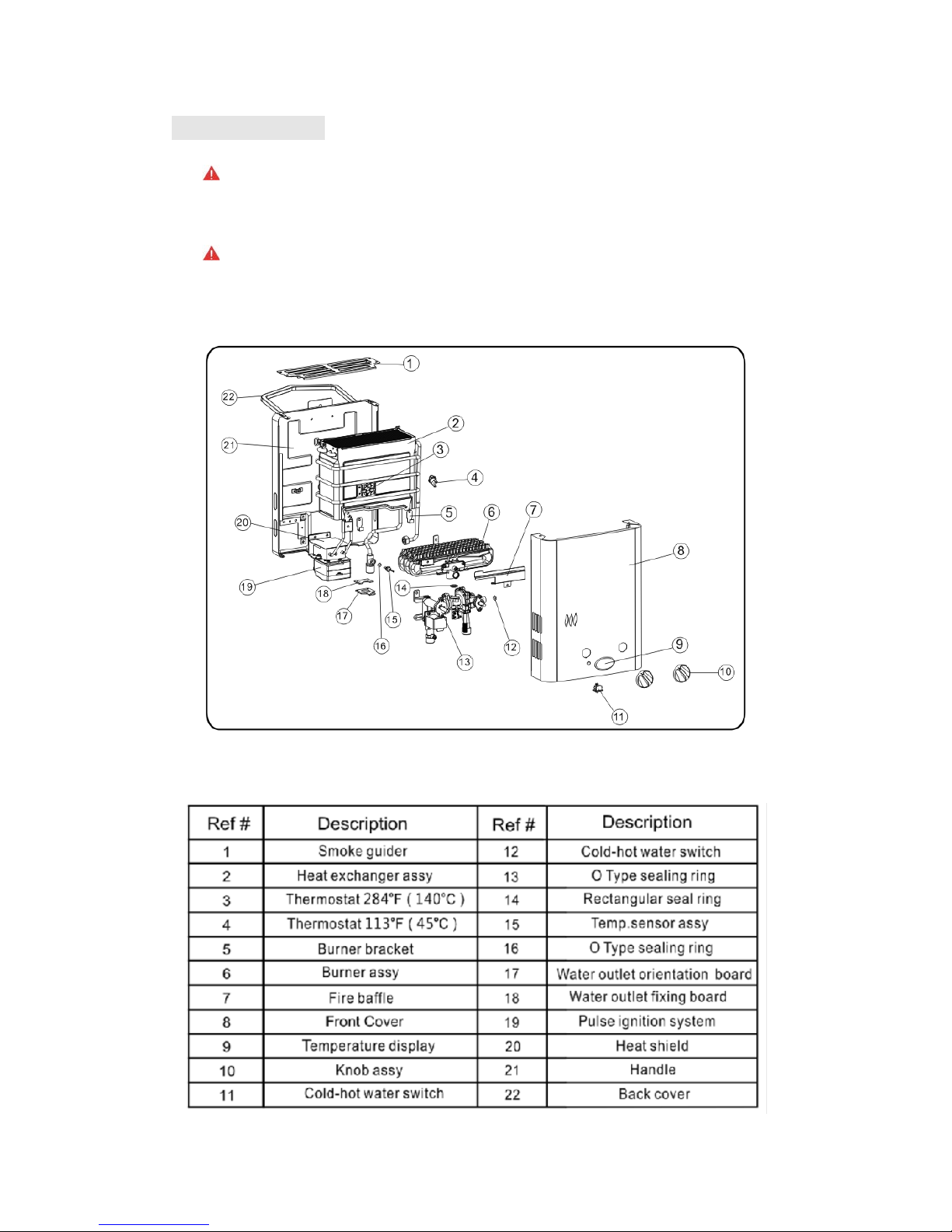

Parts Name and Dimensions
CampChamp by EZ Tankless, Inc.
All dimensions are for reference only. Specifications are subject to the final product.

9
Installation
During using, please keep the heater vertically.
Otherwise, it will affect the safety use of the heater
or even cause damage.
Installation Requirements
The heater should be installed outdoors.
Do not install the water heater in bedroom,
basement, bathroom, or rooms with bad ventilation
condition. (Fig.3)
The heater shall not be installed in the exhaust fan and
the exhaust port of the lampblack machine. (Fig.4)
The flame-check window of the water heater shall be at
the level of eyes (suggested height is about 0.6m above
the floor, Fig.5), in case of any inflammable accidents.
Neither lines nor electric equipment could be put
overhead of the water heater. The heater shall be kept at
least 400mm far from electronics horizontally.
Make sure to keep the safety distance according to Fig. 6
and Fig. 7 when installing the heater, and keep away
from the flammable materials.
Do not install the heater where flammable materials or
liquid will be stored or used. (Fig. 8)
Do not install the heater where strong wind blows, or it
can cause flameout or incomplete combustion.
Do not use the heater when it’s raining
The water heater is for point of use, for temporary water
heating and not for connection to permanent inlet water
connection or for connection to a water distribution system
to supply multiple outlets.

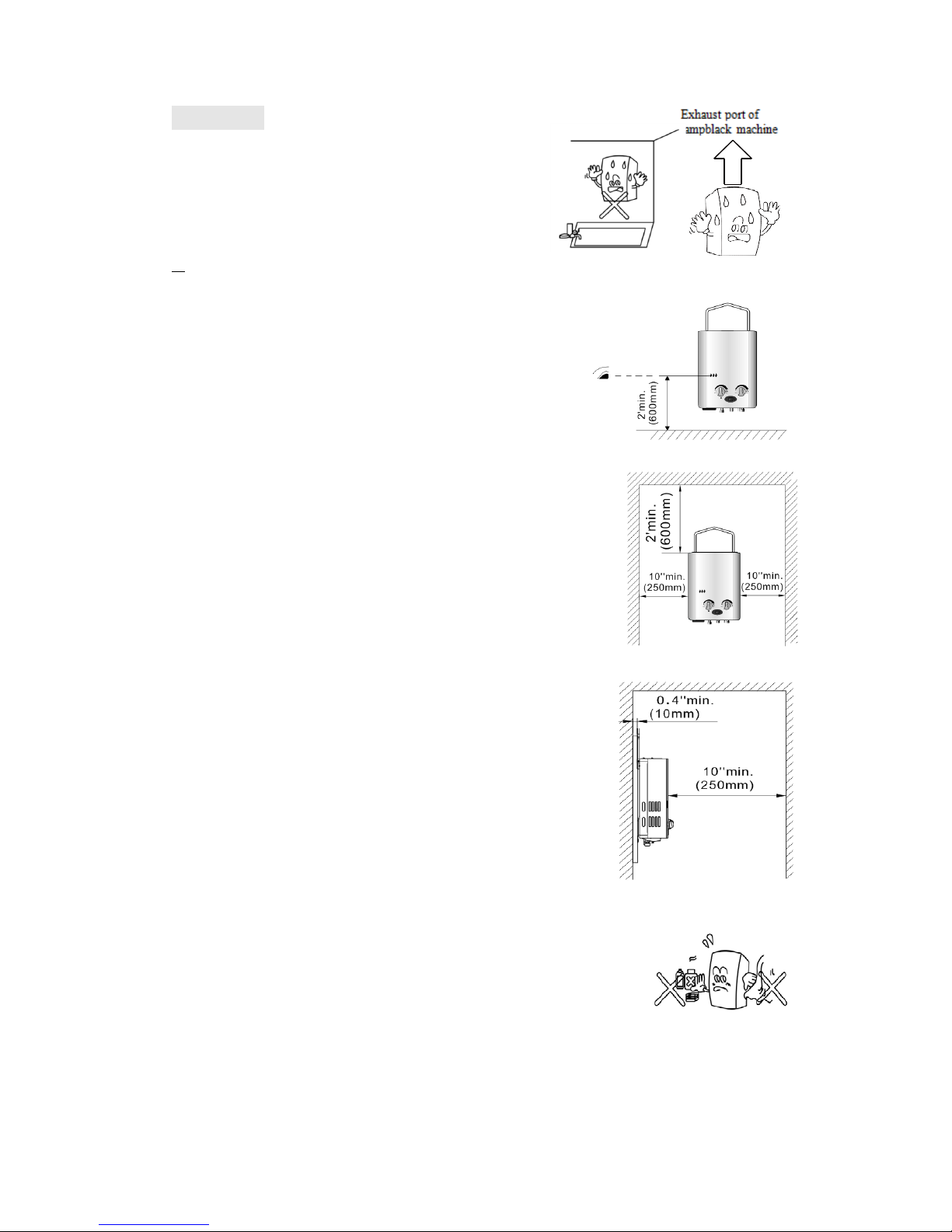

Fig.3
Fig.4
Fig.5
Fig.8
Fig.5
Fig.6
Fig.7

10
Installation Method
Installation
Way 1:
⑴Drill three Φ6mm holes in the wall according to Fig.9 then put three expansion
bolts in the corresponding holes. Put a self-tapping screw into the upper hole and
drill it into the wall and keep 3mm away from the wall.
⑵Mount the heater vertically on the self-tapping screw in upper hole then screw
the remaining two self-tapping screws into the lower holes. Tighten three holes so that
the heater is fixed on the wall. (Fig. 10)
(2) Way 2:
When installing,please pull up the handle and hang the heater in a stable place
which can bear weight at least 30 pounds in order to avoid fall-down. Keep the
product in vertical status.
Piping

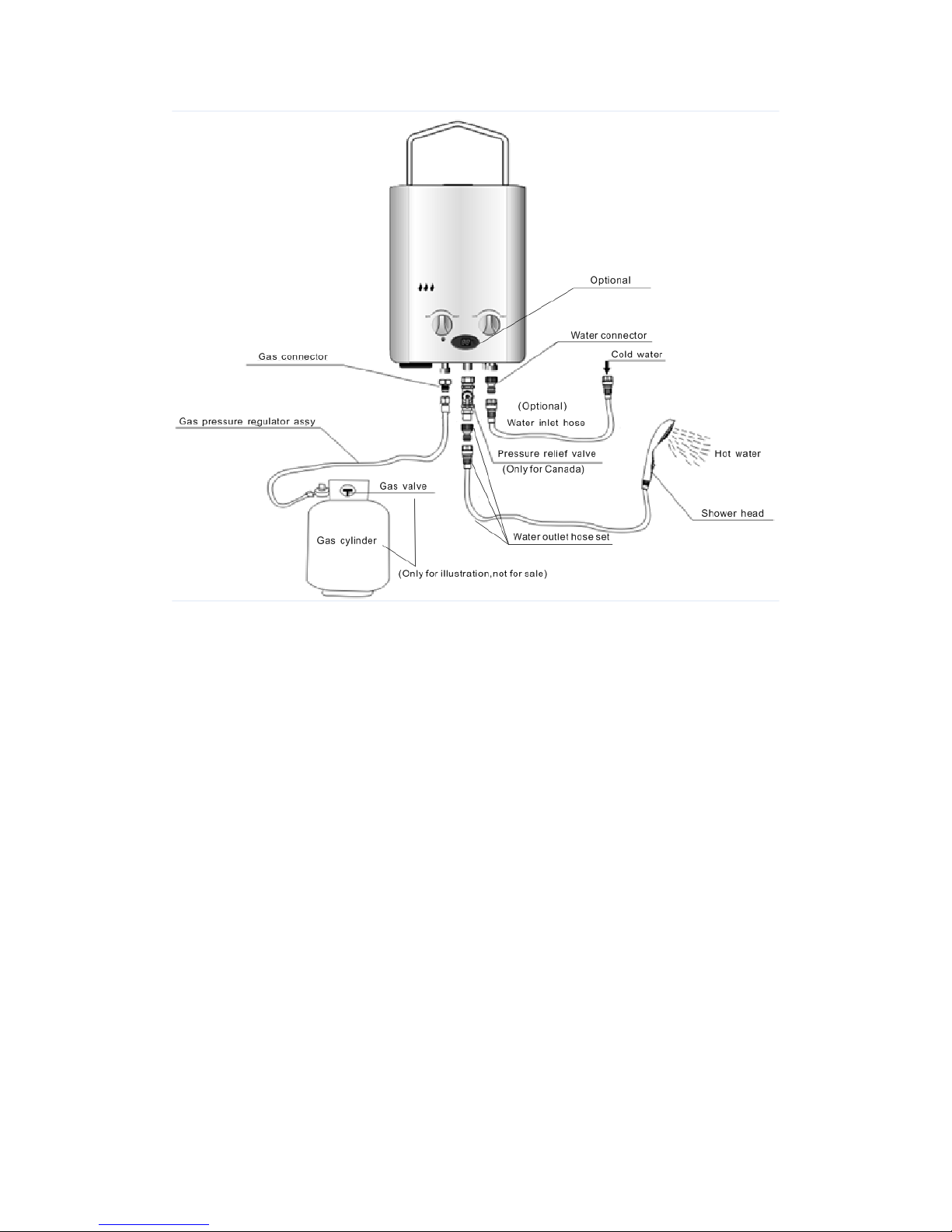

Install the pipes according to Fig. 11.
Fig.9
Fig.10

11
The illustration is based on model with display and only for reference.
Gas Inlet installation
⑴Attach gas regulator with hose to the gas cylinder. Use hand pressure only on the
plastic connector, then, Attach gas regulator with hose to the portable gas water
heater.
⑵After connecting the pipes, please check the connections with soapsuds for gas
leakage.
⑶Gas tube should be oil-proof, anti-corrosion, and not more than 2 meters long as
per gas authority specifications.
Water Inlet installation
There is an accessory of 3/4"NPT fitting for garden hose. It is suggested to use the
fitting to connect the water inlet point and your garden hose as above Fig.11
shows.
Fig.11

12
Hot Water Outlet
⑴It’s suggested to use the providing hose and shower.
⑵Connect water outlet connector and water outlet hose as below (Fig.12)
(3) Remove water outlet hose as below (Fig. 13):
Connection of water outlet tube and shower head (Fig. 14)
Fig.14
Fig.12
Fig.13

13

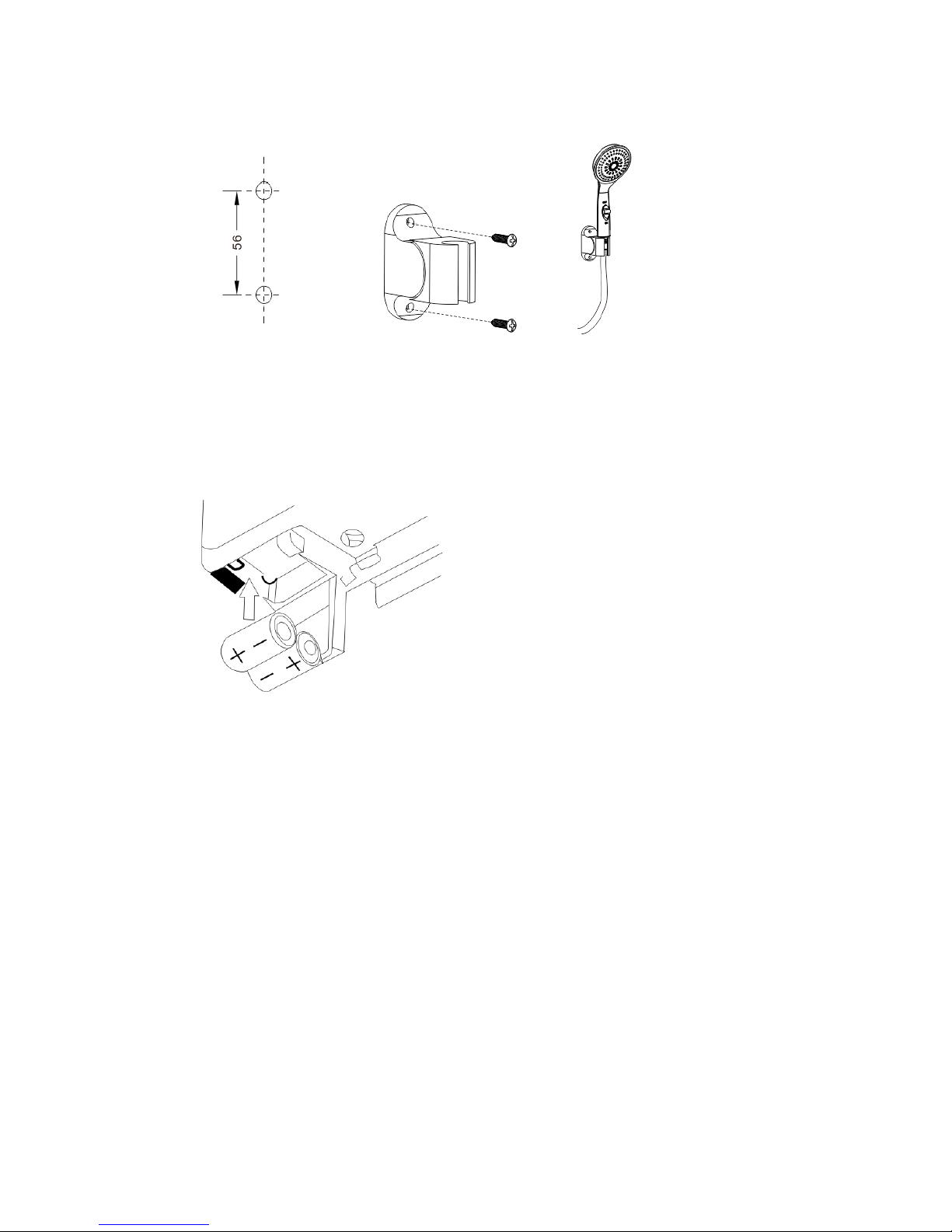

Installation of shower base (Fig. 15)
Fig. 15
Battery Installation
Put 2 pieces of 1.5V size battery into the battery box. Make sure the polarity is
correct. Close the battery cover. (Fig.16)
Fig.16

14
Operation Method
Preparation before Ignition
Make sure the gas type used complies with what stipulated in the label.
Turn on the gas inlet valve.
Turn on the water valve (make sure there is water flowing out of the shower), and
then the water heater with “clicking” ignition sound. The burner is ignited and hot
water flows out instantly. If the water pressure is too low, or the power is not
connected, the water heater will not operate normally.
Check whether there is anything on the exhaust port. If yes, clean it.
After initial installation or change of gas cylinder, air may remain in the gas pipe
and it requires several ignition attempts to push the air out before the gas can be
ignited. If a problem comes up after normal operation, turn off the water
immediately. Try to re-ignite 10-20 seconds later to avoid blast burning.
Water Temperature Control
⑴Turn the water temperature regulator knob to control the water flow and its
temperature. Turn the gas regulator knob to control the flame of the burner thus
controlling the hot water temperature. (Fig. 16)
The illustration is based on model with display and only for reference.
Fig.16 Fig.17
Gas control knob
Turn the gas control knob clockwise to increase the gas supply and anti-clockwise
to decrease the gas supply to main burner.
(2) Turn the water inlet knob to control the water temperature: decreasing the water
flow to make the water temperature higher (Please adjust it slowly, if the flame
extinguished then re-ignite before increasing the water flow), and increasing the water
flow to make the water temperature lower.
Turn off the hot-water outlet valve and the water heater will stop working
automatically, re-start hot water valve, heater will be re-ignite automatically and
start working.
Test water temperature with your hand before shower, so as to avoid
scalding.(Fig.17)
When the water pressure is too low, it’s suggest to turn the water flow control

15
knob to “min” position in order to make the ignition more smoothly. After
working, increasing the water flow in order to get the suitable water temperature.
Turn off the gas valve after each shower.
In cold winter times, the water heater must be drained after each shower as
follows:
⑴Turn off the water heater.
⑵Remove water inlet hose
⑶Turn the water flow control knob to “max” position.
⑷Vertically place the shower head about 300mm below the gas water heater ,then
turn on the shower switch till the water is drained.
⑸Remove water outlet hose and shower head.

16
Parts Replacement
WARNING: For your safety, DO NOT attempt to disassemble, repair, or
replace any portion of this unit. Refer all repairs, service, and or adjustments to
qualified service personnel.
Please call customer support at: [phone] or e-mail us at:
[email protected]
(The illustration is based on model with display and only for reference. If the actual
product you buy is model without display, the model dose not have ref#9,15,16.)

17
Cleaning
WARNING: All cleaning to and around the water heater should only be performed
with the water heater turned off .
Surface Cleaning:
Water Filter Cleaning:
Notice: If you need to clean the injectors, please contact service center for professional
technician

18
Maintenance
Check the gas tube/pipe regularly for any defect. Contact service center for any
doubt.
Clean the water filter regularly.
Check the water leakage regularly.
Keep the water heater area clean and free from combustible materials, gasoline
and other flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Visually check burner flams, with an explanation of proper operating
characteristics.
Clean the water heater, including special surfaces with a non-corrosive cleaning
agents, if necessary.
Contact qualified professionals regularly to check whether the heat exchanger and
burner are clogged.
Installer should be called on to install and adjust the appliance,
forbid any interference with a sealed component.
Appliances should be checked and maintained periodically by a competent
person.

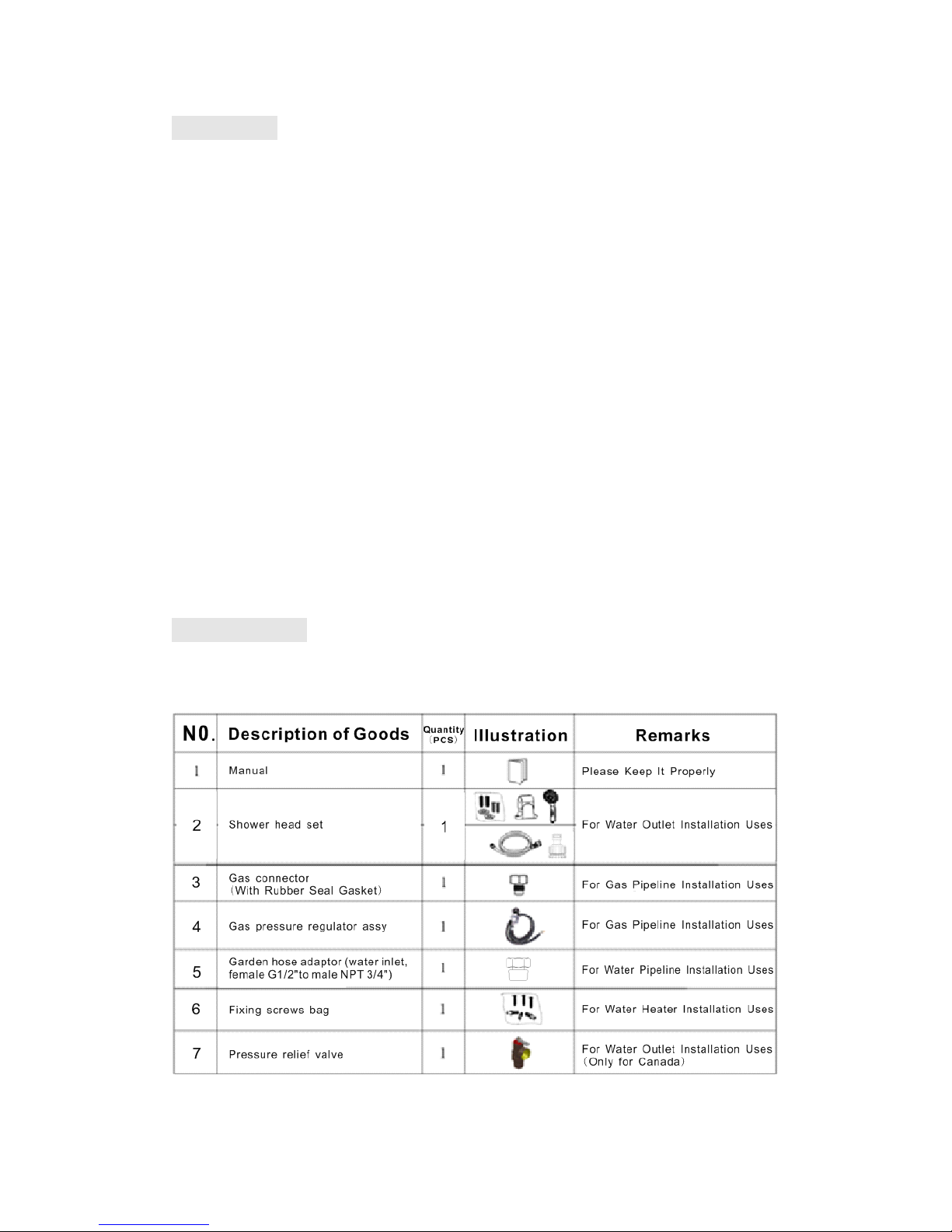

Accessories List
Please remove all packages before installation.
Verify that all included supplied parts are present as shown.

19
Trouble Shooting
Troubles
Reasons
No ignition after opening water valve
Fail to light or stay lit after 10 cycles
The flame goes out during using The water does not get hot enough
When the flame turns from blue to
yellow with black smoke
Burning after closing the water valve
Solutions
Water inlet pipe and
water outlet pipe is on the
wrong position
● Properly connect the water in
let pipe and water outlet pipe
Gas valve not open ●●Turn on the main valve
ON/OFF switch is not
turned on. ●●
The On/Off switch should be
with the”-
” sign pushed
down.
Air in the gas pipe ●●
Several opening the water
inlet valve until ignition
Unsuitable
Pressure Gas
High ●Contact the repairer to check
the gas pressure valve
Low ●●
Water inlet clogged ●●Check and clean the filter
Inadequate water supply ●●Call repairer to check water
pressure
Power shortage ●●●Replace the batteries
Thermostat mistake ●●●Contact the service center
Burner clogged ●●●●Contact the service center
Heat exchanger clogged ●●●●Contact the service center
Water control unit failure ●●●Contact the service center
Solenoid valve failure ●●Contact the service center
Ignition needle movement ●●Contact the service center
NOTE: Please call customer support at: [phone] or e-mail us at:[email protected]

20
Circuit diagram
CAUTION: Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
