EZ TANKLESS PRIME User manual

UserManual
EZPRIME
TanklessGasWaterHeater

1
Contents
Thankyouforbuyingthisenergyefficientwaterheater.Weappreciateyourconfidencein
ourproducts.
Thisinstantaneousgaswaterheaterismanufacturedwithadvancedtechnologyand
equipmentfromJapan,GermanyandSwitzerland,togetherwithourdecades'experience.
Youshouldthoroughlyreadthismanualbeforeinstallationand/oroperationofthiswater
heater.PleasepayparticularattentiontoGeneralSafetyPrecautionsaswellasthe
WARNINGSANDCAUTIONS.
Contents
GeneralSafetyPrecautions................................................................................................2
GeneralCharacter.............................................................................................................6
GeneralIntallationGuidelines............................................................................................9
GeneralOperationGuidelines..........................................................................................13
TroubleShooting..............................................................................................................16

2
GeneralSafetyPrecautions

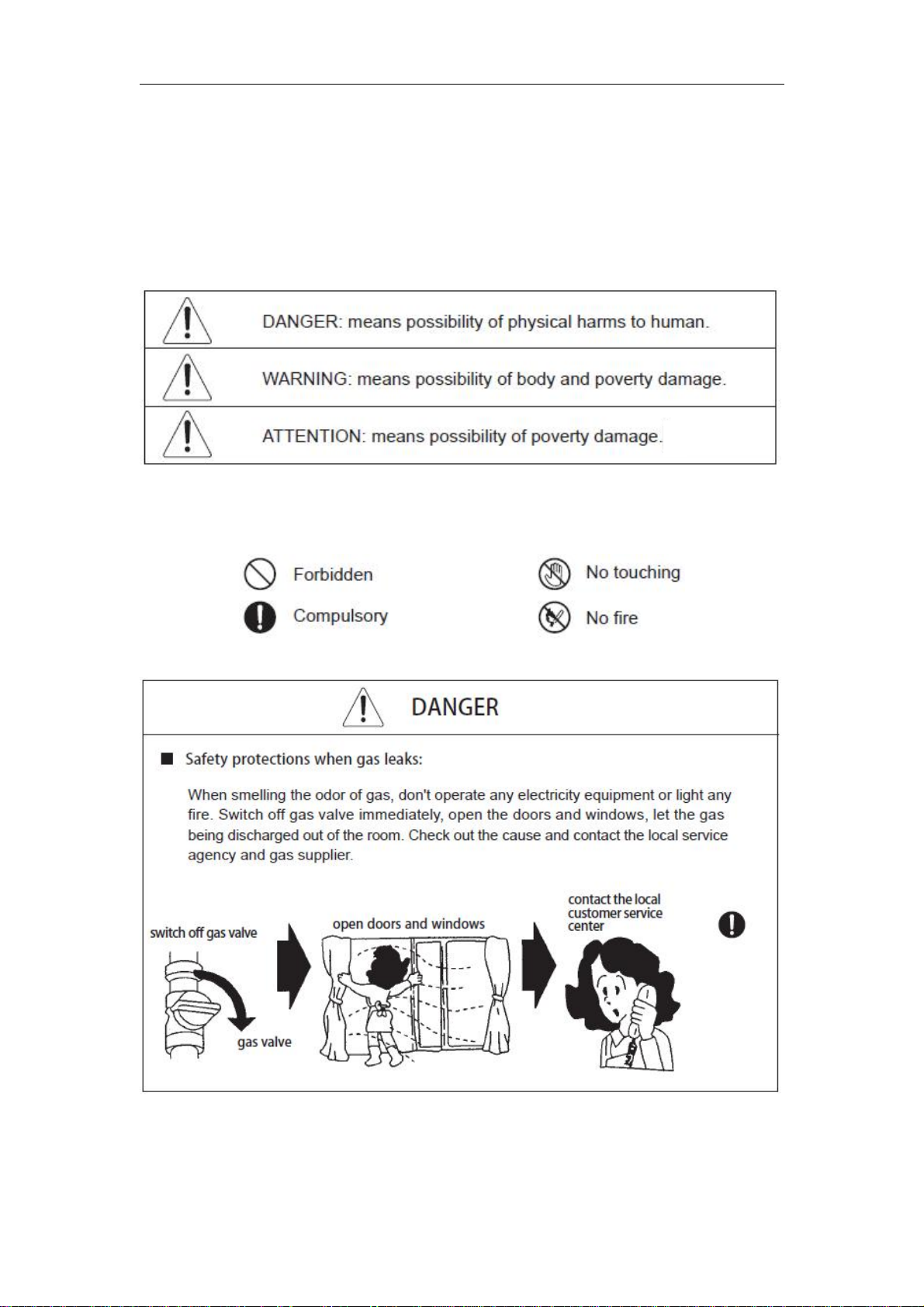

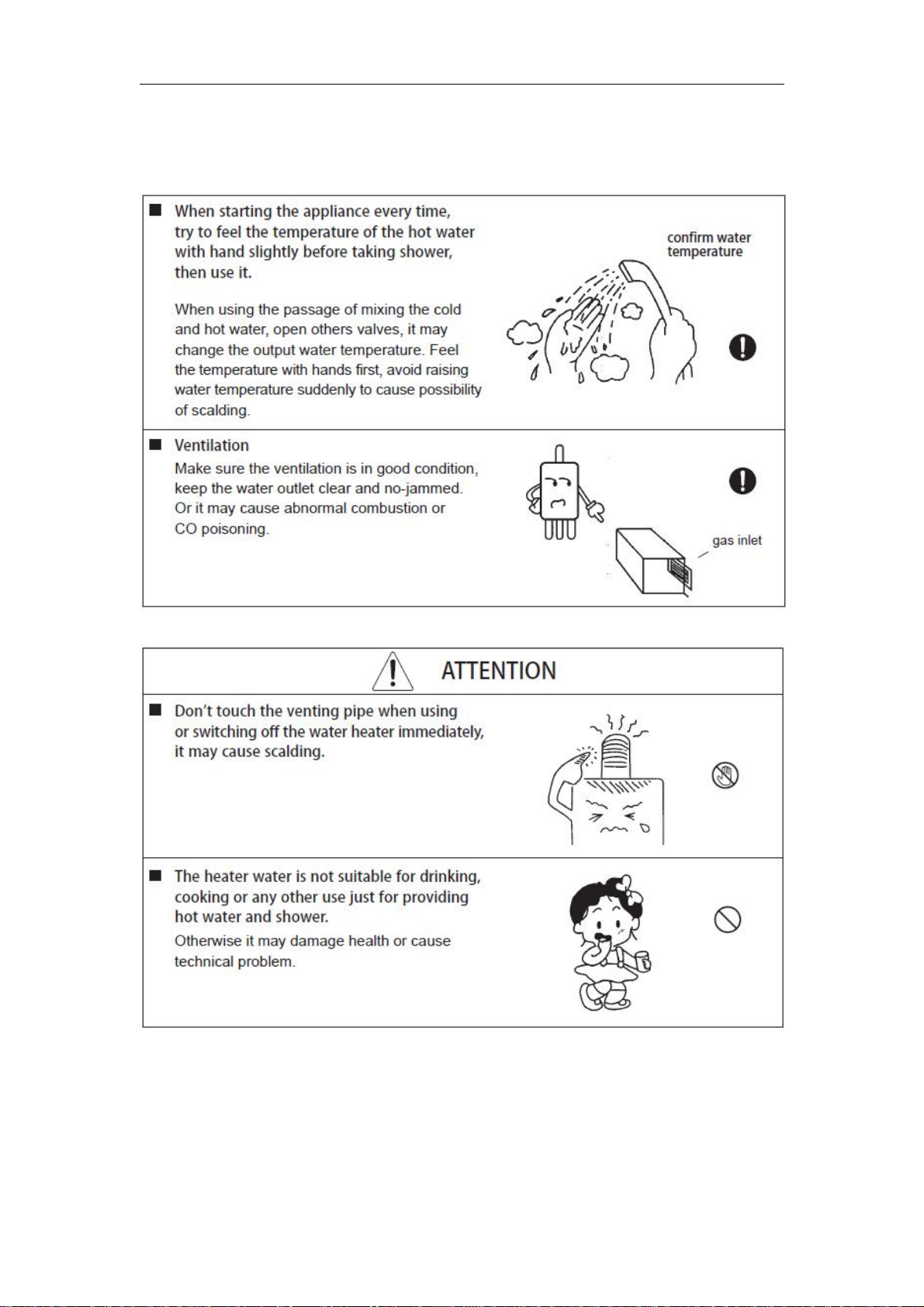

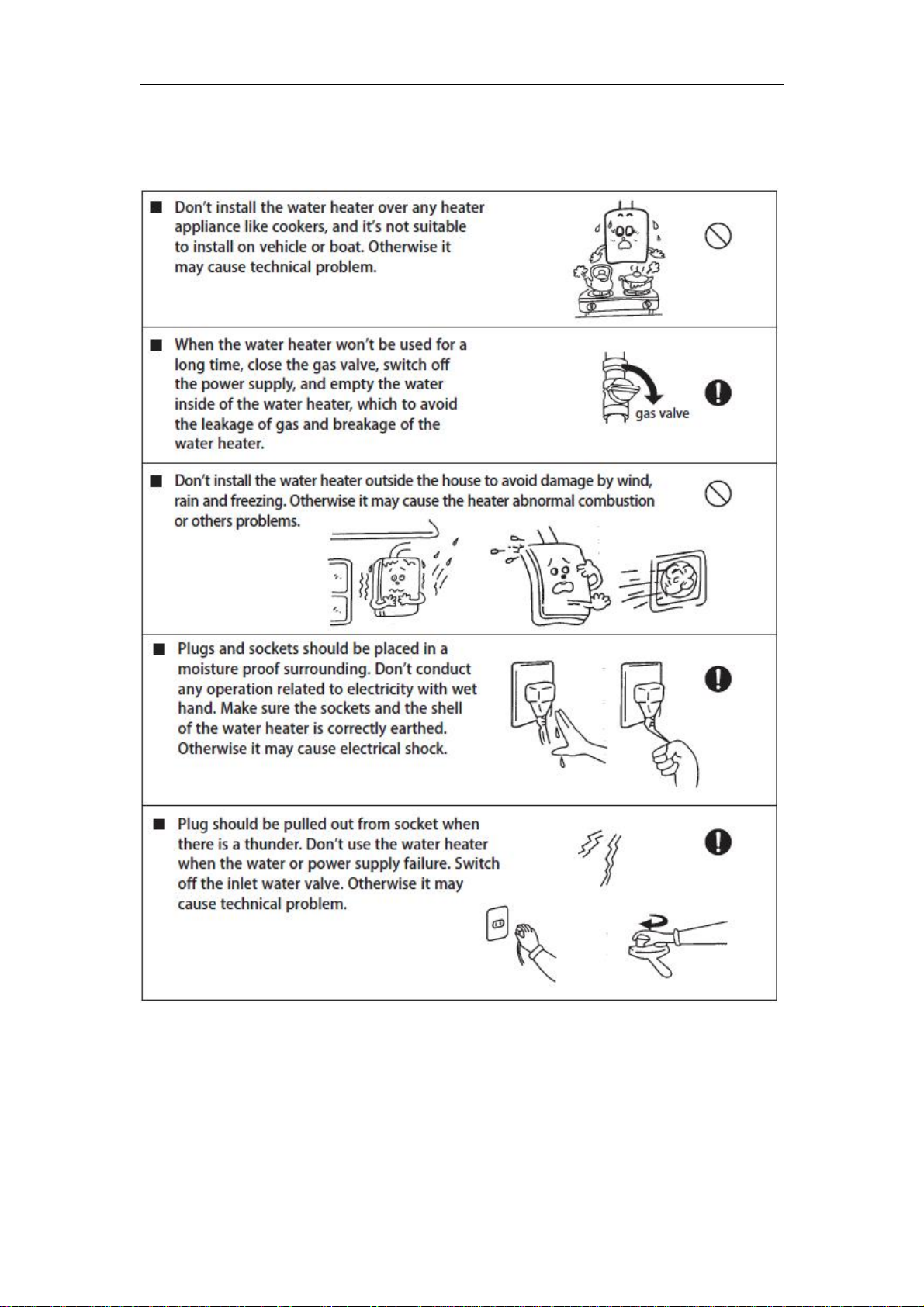

Inordertoavoidanypotentialphysicalharmtohumanandproperty,besureto
followthebelowinstructions.Theyareclassifiedintoafewtypesmarkedwith
differentwarningsigns.
Differentsignsmeans:

3
GeneralSafetyPrecautions

4
GeneralSafetyPrecautions

5
GeneralSafetyPrecautions

6
GeneralCharacter
PartsName

7
GeneralCharacter

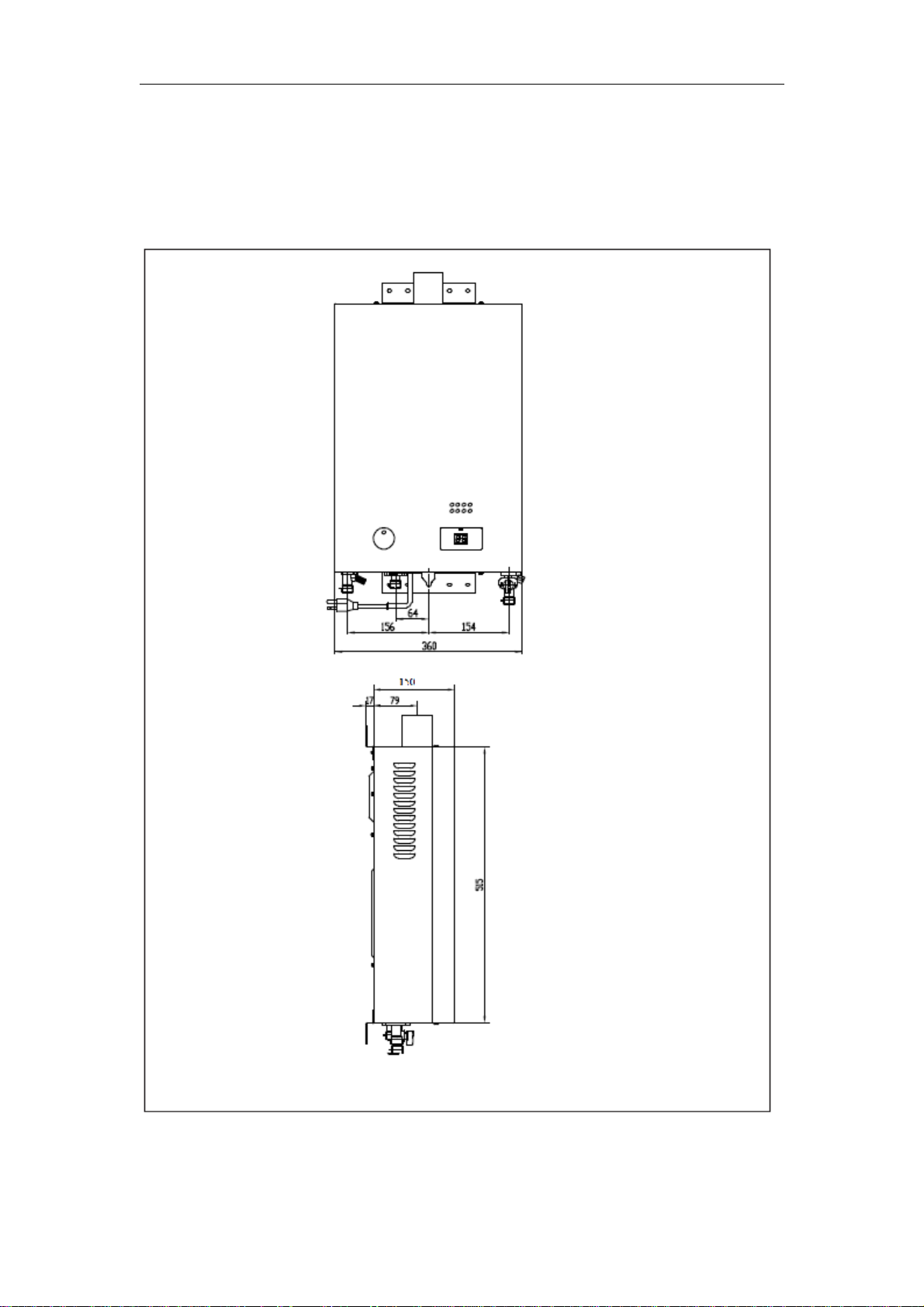

Externaldimensionsillustration

8
GeneralCharacter
Technicalparameter
Name TanklessGasWaterHeater
Model EZPRIME
GasType NG LPG
RatedGasPressure 8 WC 11 WC
UsableWaterPressure 3-100PSI
HotWaterSupply 4.3GPMat45FRise
RatedHeatInput 110,000BTU/h
Voltage AC110V/60Hz
Net/GrossWeight 9.5kg/11.5kg
Dimension 515mmX360mmX150mm
PipeSize
WaterInletConnection 1/2’’ NPT
GasInletConnection 1/2’’ NPT
WaterOutletConnection 1/2’’ NPT
IgnitionMode AutomaticallyContinuous
PulseIgnitionMode
ExhaustedMode ForcedExhaustedMode
SafetyProtection Antiover-heat,antiflueblocked,over
waterpressureetc.

9
GeneralInstallationGuidelines
Installation
•Installationofthewaterheaterbody
*TheHeight
Standardfortheheightoftheheateristhattheheightoftheflameinspectionhole(flame
peepwindow)shouldbehorizontallyatthelevelofyoureyes.
*MounttheHeaterBody
1.Fixtheupperpartoftheheaterwith
asteelexpansionboltoramounting
screw,thenfixtheheaterwithtwo
mountingscrewsattheholesofthe
lowerbracket.
2.Ifthewallforthemountingisof
combustiblematerial,insulationoffire
resistanceisneededbetweenthe
wallandtheheater.Thethicknessof
theinsulationshouldbenotlessthan
10mm.
3.Spacesshouldbeleftbetweenthe
roof/wallandtheheater.(Refertothe
diagram)
4.Twoholesof130cmforairinhaleandexhaustdischargerespectivelyarerequiredfor
theroomtheheaterisinstalled.Thetwoholesshouldbeseparatelyinthevicinityofthe
floorandtheroofandhasaccesstooutdoor.Theholesshouldbefarfromexhaust
dischargepipetoavoidcountercurrent.Whenblindsareusedforairinhaleandexhaust
discharge,theminimumspacebetweentheleafsshouldbenotlessthan8mm.
•ConnectWaterPipes
Thejointsforconnectingof
waterinletandoutletis
screwthreadwithdiameter
of1/2 NPT.Refertothe
diagramfortheconnecting.

10
GeneralInstallationGuidelines
•Installationofthewaterinletpipe
-Connectthemetallichoseandsealwasherenclosedwiththeheaterandwater
supplypipe.
-Awaterinletcontrolvalveisrequiredtobeconnectedwiththewaterinletpipe(thehose).
-Tokeepnormaloperationoftheheater,itisrequiredthattheinputwaterpressureis
higherthanratedinputwaterpressure.
•Connectionofthehotwatersupplypipe
-Hotwatersupplypipecanusetheflexiblemetaltube(asshortaspossible)for
connection,ortherigidwaterpipefordirectconnection.Asshowninthedrawing,ifrigid
waterpipeisusedasthehotwatersupplypipe,ithadbetterbedeoxidizedcopperpipeor
stainlesssteelpipe.
-Ifhotwatersupplyisneededoveralongdistance,thenacontrolvalvehadbetterbe
installedonthehotwatersupplypipe.
-Iftheheightforhotwatervalveishigherthanthatoftheheater,anotherhotwatervalve
hastobeinstalledataplacelowerthantheheatertodrainwaterremainedinthepipeand
topreventfreezing.
-Materialofthehotwaterpipeshouldbehightemperatureresistant.
-Thehotwaterpipeshouldbenottoolongtoreduceheatlossanditisrecommended
thatthesprayerwithlesspressurelossbeused.
•Installationofthegassupplypipe
Thesizeofthejointconnectinggasinletoftheheaterandthehoseis1/2 NPT(screw
thread).
*ConnecttoLPgascylinder

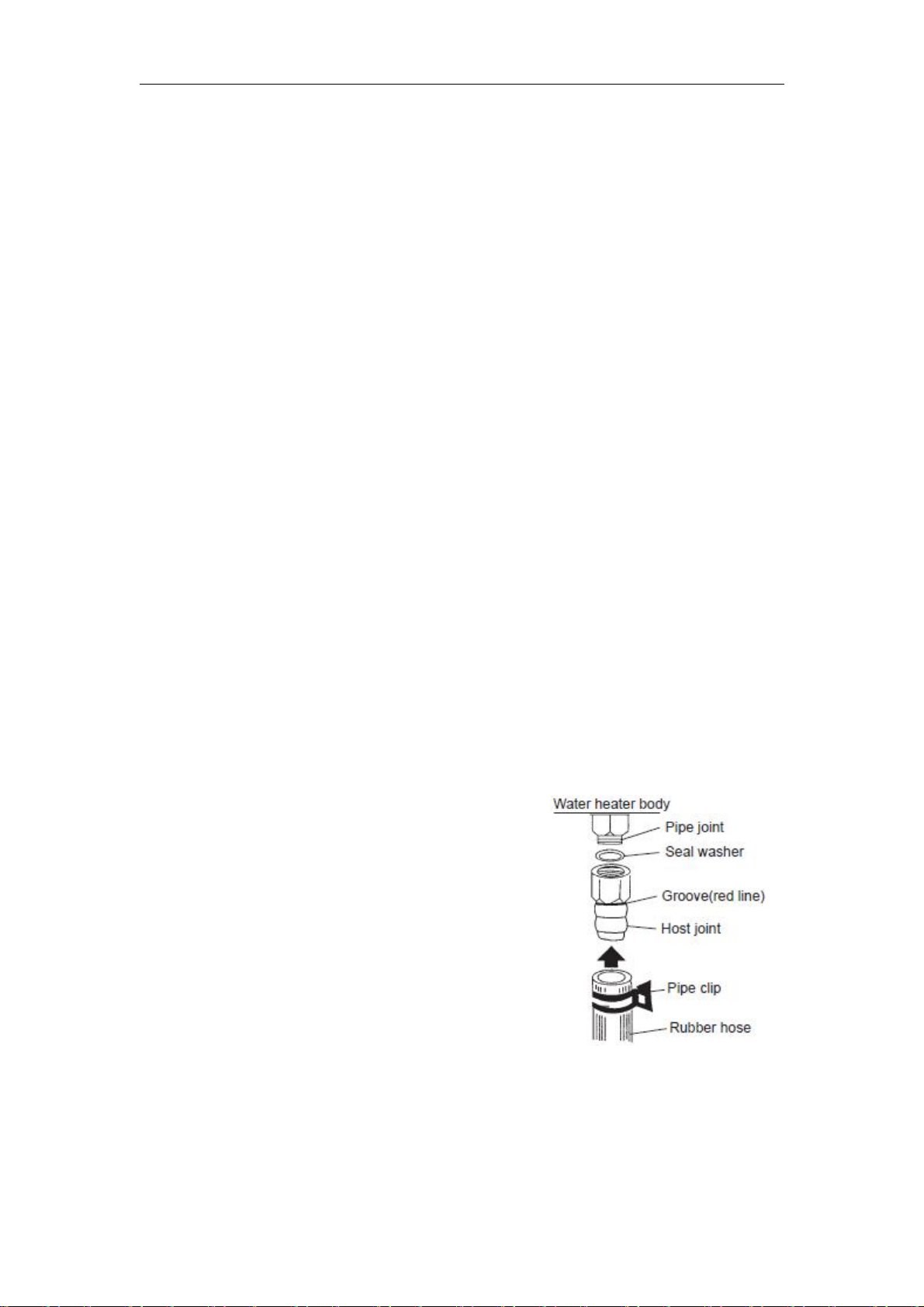

1.Connectthejointenclosedinthepackagetogas
inletoftheheater(makesurethesealwasherbe
installed);thenconnectthejointwithspecializedgas
hose(rubber)of9.55mminnerdiameterasshownin
thediagram.
2.Makesurepropergaspressureregulatorisused
(Standardgaspressureis11 WCforLPgas,8WCfor
NG.Gaspressureregulatorforcommercialuseis
prohibited.
3.AgasvalveshouldbeinstalledatGasInlet.
(Diameterofvalveismorethan9.5mm)
*Connecttopipegas
1.Itisrequiredthatonlyspecializedrubbergashoseormetallicpipeapprovedbygas
supplierbeusedfortheconnecting.
2.AgasvalveshouldbeinstalledatGasInlet.(Diameterofvalveismorethan9.5mm)

11
GeneralInstallationGuidelines
•Installationoftheventingpipe
Onlyventingpipeandtheaccessoriesenclosedinthepackageisallowedthbeusedfor
venting.

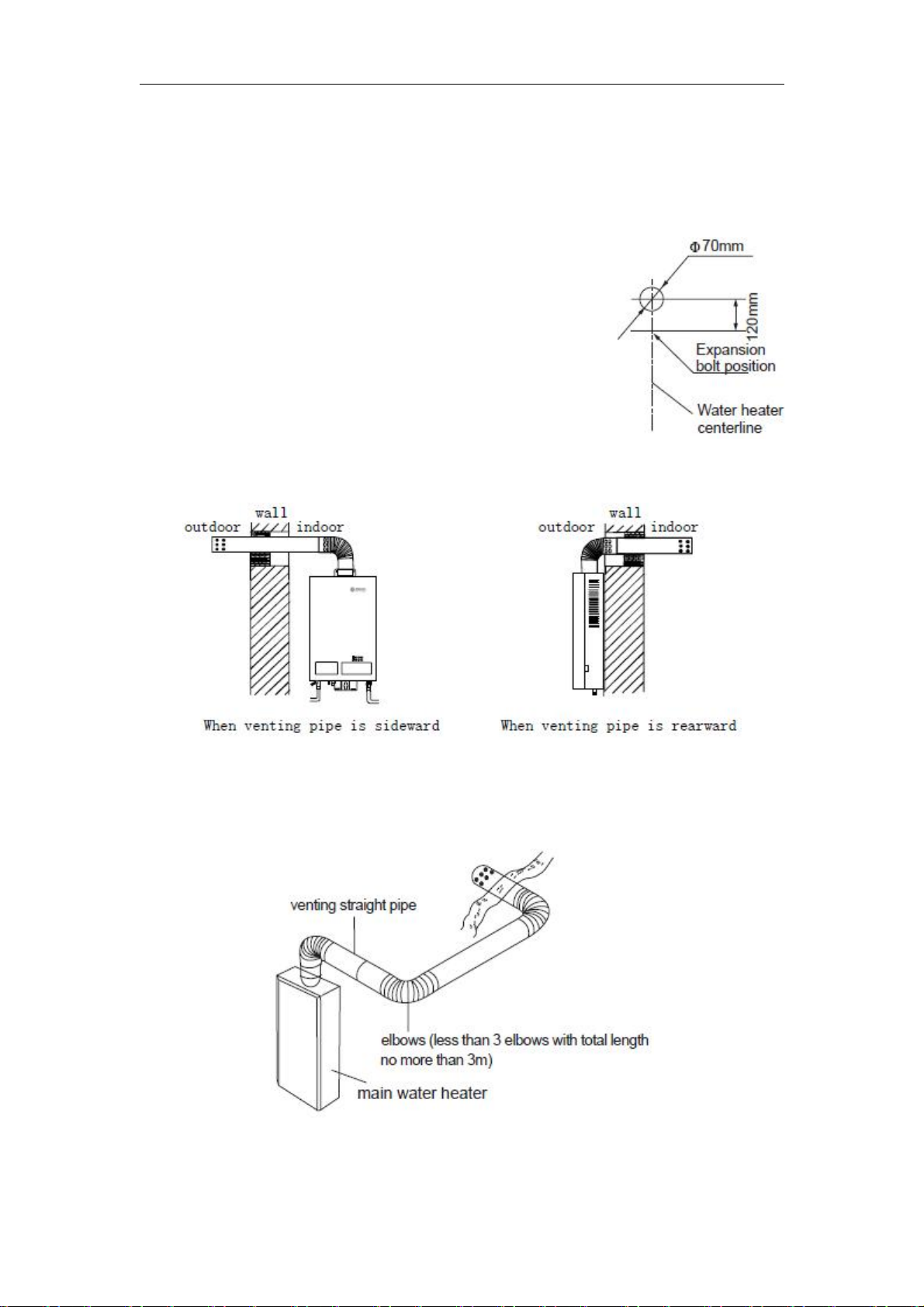

Thediameteroftheventingpipeis90mm,theholeonthe
mountingwallforventingpipeshouldbeattheplace120mm
abovefromtheplaceofexpansionboltforthemountingofthe
waterheater.Diameteroftheholeis70mm.Whentheventing
pipeisproperlyinstalled,sealthejointbysealedband.Andthe
interfacebetweentheventingpipeandthemountingwallshould
besealedwithfireproofmaterialorconcretematerial.Referto
thediagramfortheinstallation.
•Standardinstallationoftheventingpipe
•Installationofprolongedventingpipe
Extraaccessories(elbowandstraightpipe)ofthisinstallationshouldbepurchasedby
user.

12
GeneralInstallationGuidelines
•Attention
-Thefluepipewiththetypeorspecificationotherthanspecifiedoneshouldn'tbe
mountedforthewaterheater,andthefluepipeshouldn'tbemodifiedbyyourself.
-Ifitneedtoprolongthefluepipe,italsoneedtousetherigidpipe(deviceand
specificationasshownasdrawing).Thetotalofthestraightpipeisnomorethan3m,and
thetotaloftheelbowsarenomorethan3m.
-Ventingoutletshouldbenotpointatventingtunnelorchimneyofthebuilding.
-Aslopewithagradeof1shouldberequiredfortheinstallationoftheventingpipeto
dischargethecondensationwater.
-Itshouldcoverthicknessofmorethan20mmwithheatinsulationmaterialwhenfluepipe
crossingtheflammablewall.
-Thespaceismorethan55cmbetweenfluepipeandtheeavesofceiling,flammable
materialsandfurniture.
-You'dbetternotburythefluepipeinsidetheceiling,ifyouhavetodoso,youshould
wrapthepipewithfireretardantandinsulationmaterialswiththecoveringthicknessof
morethan20mm.
-Thegasbetweenthefluepipeandtheholeshouldnotbefilledwithsomethinglike
cement,otherwisetherepairingwouldbecomedifficult.
-Thespacebetweentheventingoutletandthewallofoutdoorandinstallation
precautionsasthefollowingdrawing.

13
GeneralOperationGuidelines
UseYourHeater

14
GeneralOperationGuidelines
•AdjustingWaterTemperature
Rotatinggasregulatortoadjustwatertemperaturebychangingthegasflow.
Duetothemaximalcapabilityoftheheater(16Lwaterheaterisrisingtemperature25k/h,
andthewateroutputis16/min),thefollowingsituationmaycausethetemperatureof
watersupplycannotmeetthesettingwatertemperature:
(1)Whenthewaterinlettemperatureistoohighinsummer,butrequiringthetemperature
ofwateroutletislower.
(2)Whenthewaterinlettemperatureistoolowinwinter,butrequiringthetemperatureof
wateroutletishigher.
Theabovesituationiscompensationadjustingwhenthesettingtemperatureexceedsthe
temperaturewhichtheadjustingisunderthenormalcondition.Itjustneedsonecondition
inaseason,butnottoadjusteverytime.

15
GeneralOperationGuidelines
Dailymaintenance
1.Checkthegassupplypipe(rubberhose)regularlytosee
ifitisingoodcondition,orthereisagingorcrackonthe
hose.Besuretoreplacetheoldhoseregularly.Please
regularlyusesoapwatertocheckthejointsofhosetosee
ifthereisbubble,soastofindoutifthereisgasleakage
onthejoints.Besuretostoptheleakageifitisfound.
2.Pleaseregularlycleansurfaceofwaterheaterbodyto
removedirtordustwithwetcloth,andthenusethedry
clothtowipeoffmoisture.Forthedirtthatisnoteasytoremove,pleaseuseneutral
detergenttowipeoff.Fortheplasticpart,printingsurfacesandsprayingsurfaces,itisnot
suitabletousestrongdetergent,benzeneorgasolinetocleanthem.
3.Keeptheeachsectionoftheexhaustpipeunblockedsoastoensurethesmooth
dischargeofexhaustgas.
4.Whenthehardwaterisused,itiseasytoformthescale.Thescalecanreducetheheat
efficiency,increasetheresistanceforflowingwateranddecreasetheperformanceofthe
heater.Inordertoreducethescale,youcanoperatethewaterheateraccordingtothe
followingmethod:afterusingthewaterheater,switchoffthegasvalveandletallthehot
waterflowoutofwaterheater,andasthecoldwaterflowsoutofthewaterheater,youcan
switchoffthewaterinletvalve.

16
TroubleShooting

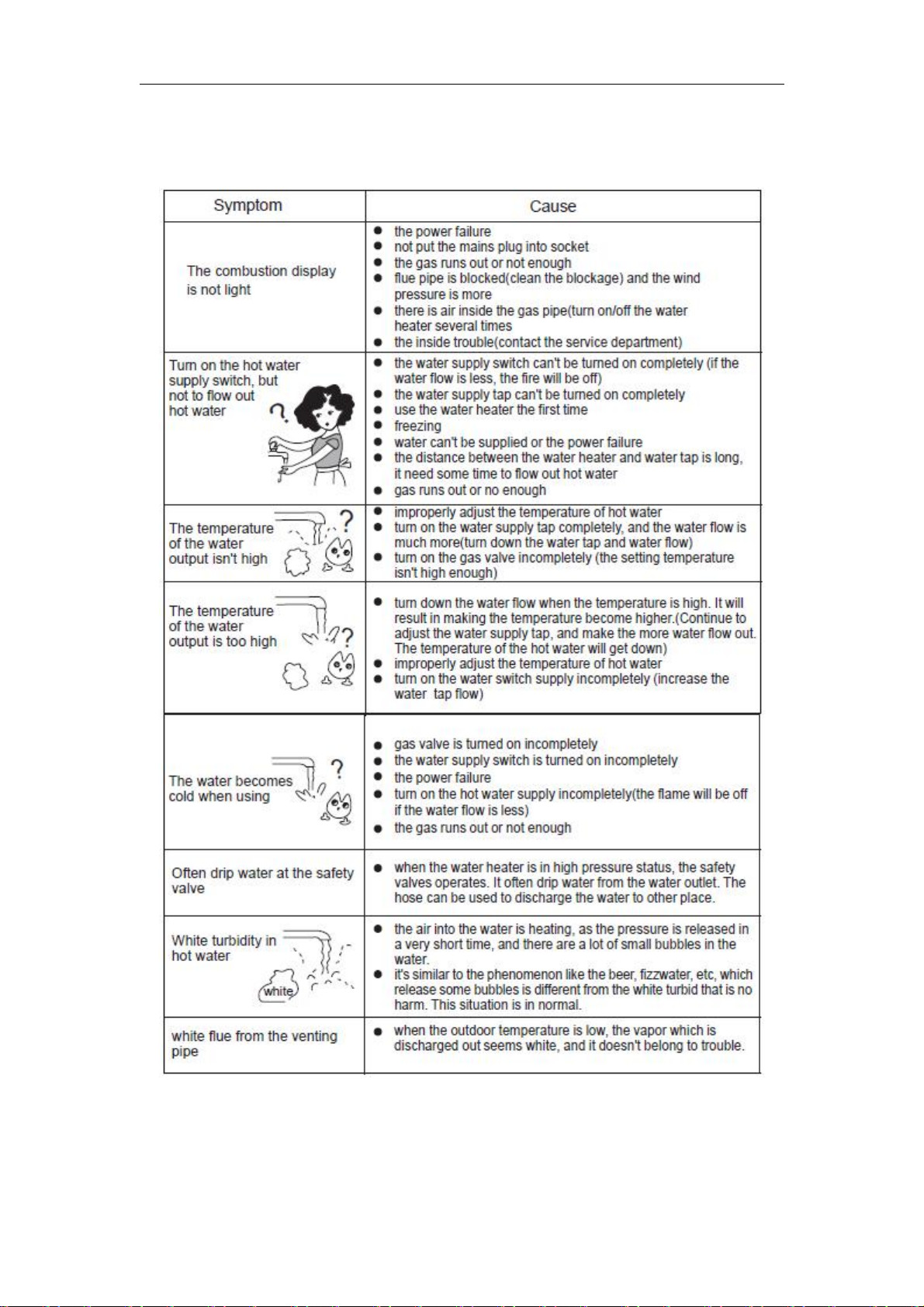

Troubleshooting
Thefollowingarenormalconditionandcan'tberegardedastroubles.
-Thewhiteflueisdischargedoutfromventingpipe:whenthetemperatureofoutdooris
low,thevaporinthedischargedflueisthestateofwhitesmoke,butnottrouble.
-Afterstoppingwateroutput,thefanwon'tstopimmediately:inordertolettheinsideof
waterheatercooldownandmakethewastegastobedischargedcompletely,thefanof
waterheaterneedstooperateawhileafterstoppingprovidingwater.Thisconditionwon't
belongtotrouble.
-Whenthewaterflowcrossingtheheaterislessandtheflowisbelow3L/min,themain
burnercan'tbeignited(orflame-out),whichbelongstothenormalcondition.It'sjustto
increasethewaterflow.
-Thewaterheaterissetthetimerequipment,itwillstopoperatingautomaticallyafter
usingabout30minutes,andthedisplayshowsHE,whichbelongstothenormal
condition.

17
TroubleShooting

18
TroubleShooting
Whenthewaterheaterisintroubleoroperationisimproper,theheaterwillstopoperating
automatically,andthedisplayshowsthetroublesign.Atthemoment,switchoffthewater
outletvalve,thenswitchonit,oradjusttheswitchonthemaincontrolplateto"off",then
adjusttheswitchto"on",sothewaterheatercanbeoperatedagain.Ifitstillhastrouble
display(ornon-display)whenoperatingtheheateragain,pleaseswitchoffthegasand
themainssocket,thencontacttheservicecenter.
