EZCast Pro Box II User manual

EZCast Pro Box II
Advanced Web Setting Manual

Index
Introduction ..................................................................................... 5
1 Link Status ............................................................... 11
2 Conference Control ................................................ 12
3 Device Management ............................................... 13
3.1 Language ................................................................... 13
3.2 Device Name ............................................................. 13
3.3 Resolution: ................................................................. 14
3.4 Display mode: ............................................................ 14
3.5 AirPlay mode: ............................................................ 15
3.6 AirView ....................................................................... 15
3.7 EZNote: ...................................................................... 16
3.8 Castcode control: ...................................................... 16
3.9 Max Connections: ..................................................... 16
3.10 Android audio streaming: ......................................... 17
3.11 ChromeCast: ............................................................. 17
3.12 Miracast: .................................................................... 18

3.13 Legacy Wi-Fi mode ................................................. 18
4 Network Management ............................................ 19
4.1 Connect to 5GHz Wireless Access Point ............... 19
4.2 Remember Wi-Fi ....................................................... 19
4.3 Wi-Fi IP Setting. ........................................................ 20
4.4 LAN IP Setting: .......................................................... 20
4.5 Wi-Fi Password: ........................................................ 21
4.6 Wi-Fi Channel: .......................................................... 21
5 Admin Setting .......................................................... 22
5.1 Admin Password: ...................................................... 22
5.2 Wi-Fi Enterprise: ....................................................... 22
5.3 Host Authority: ........................................................... 23
5.4 Host Control: .............................................................. 23
5.5 Internet Access control ............................................. 24
5.6 SNMP ......................................................................... 24
5.7 My Screen: ................................................................. 25
5.8 Dynamic Wallpaper .................................................. 25

5.9 OTA URL ................................................................... 29
5.10 Connection: ............................................................... 29
5.11 Fixed host: ................................................................. 30
5.12 Upgrade: .................................................................... 30
5.13 Reset to default: ........................................................ 32
6 Reboot ....................................................................... 33
7 About ......................................................................... 33

Introduction
Thank you for choosing EZCast Pro Box II, the most advanced
casting equipment powered by EZCast Pro.
EZCast Pro Box II can support up to four mobile devices as input
sources, casting the screen content to one external screen
simultaneously. Also, EZCast Pro Box II supports Windows,
macOS, Android, and iOS, to truly realize the idea of BYOD.
Configure your EZCast Pro Box II via Web
Browser
With EZCast Pro Box II, user may configure their device via a web
browser interface. Based on different needs and usage scenarios,
in EZCast Pro Box II Web Settings sections, customers may
modify settings including output resolution, preferred language,
max connections, etc.
Connect to EZCast Pro Box II
Please follow the instructions below to connect your phone, tablet,
or laptop to EZCast Pro Box II. We provide user with the following

methods for connection: Direct Connection, Through Wi-Fi or
Through Router.
Connect via Direct Connection
1.1 Connect EZCast Pro Box II to an external USB power
supply.
1.2 Connect EZCast Pro Box II to an external display via
HDMI port.
1.3 Once the EZCast Pro Box II is successfully connected, the
external display will show the landing page below.

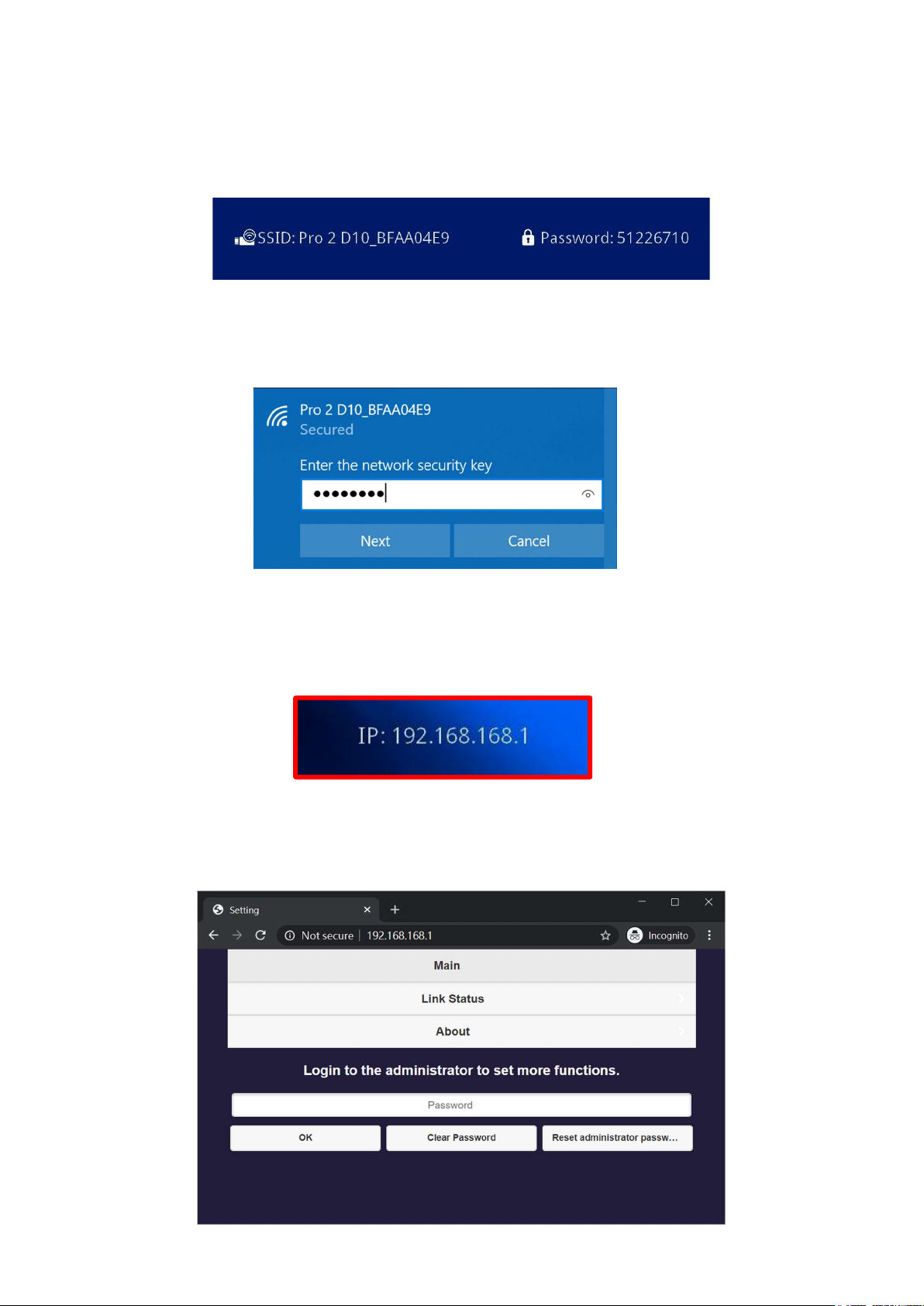

1.4 Please see the upper middle of the landing page for the
SSID and Password.
1.5 Find the SSID on the connecting devices’ Wi-Fi list and
enter the password to connect to EZCast Pro Box II.
1.6 Once the connection is established, enter the IP address
on the bottom left corner of the landing page to your
browser’s URL bar.
1.7 As soon as the page is loaded, the browser will enter the
Web Setting Home Page shown as below.

Connect via External Wi-Fi or Router
2.1 Confirm the connection by checking the Wi-Fi icon on the
upper right of the landing page. The icon will light up as
EZCast Pro Box II connects to external Wi-Fi.
2.2 Enter the IP address on the bottom left corner of the
landing page to your browser’s URL bar. Please be
advised that EZCast Pro Box II and the connecting device
must connect to the same network.
(Since you have connected
EZCast Pro Box II to an
external Wi-Fi network, use
Infrastructure IP to access. If
directly linking to EZCast Pro
Box II’s Wi-Fi, access it through 192.168.168.1.)
2.3 Web Setting Home Page should appear in the browser.
Via External Wi-Fi

Web Setting Home Page
EZCast Pro Box II provides two levels of access: Non-Admin and
Admin. Please log in as administrator for higher level of access.
1 EZCast Pro Box II Settings
1.1 Non-Admin User
Basic access to Link Status and About.
1.2 Admin User
Higher level of access to advanced features and settings.

Login as Admin
1.1 Login as the administrator using your passwords. The
defualt password is 000000.
1.2 For better security, please change the password after
login.

Start Configuring EZCast Pro Box II

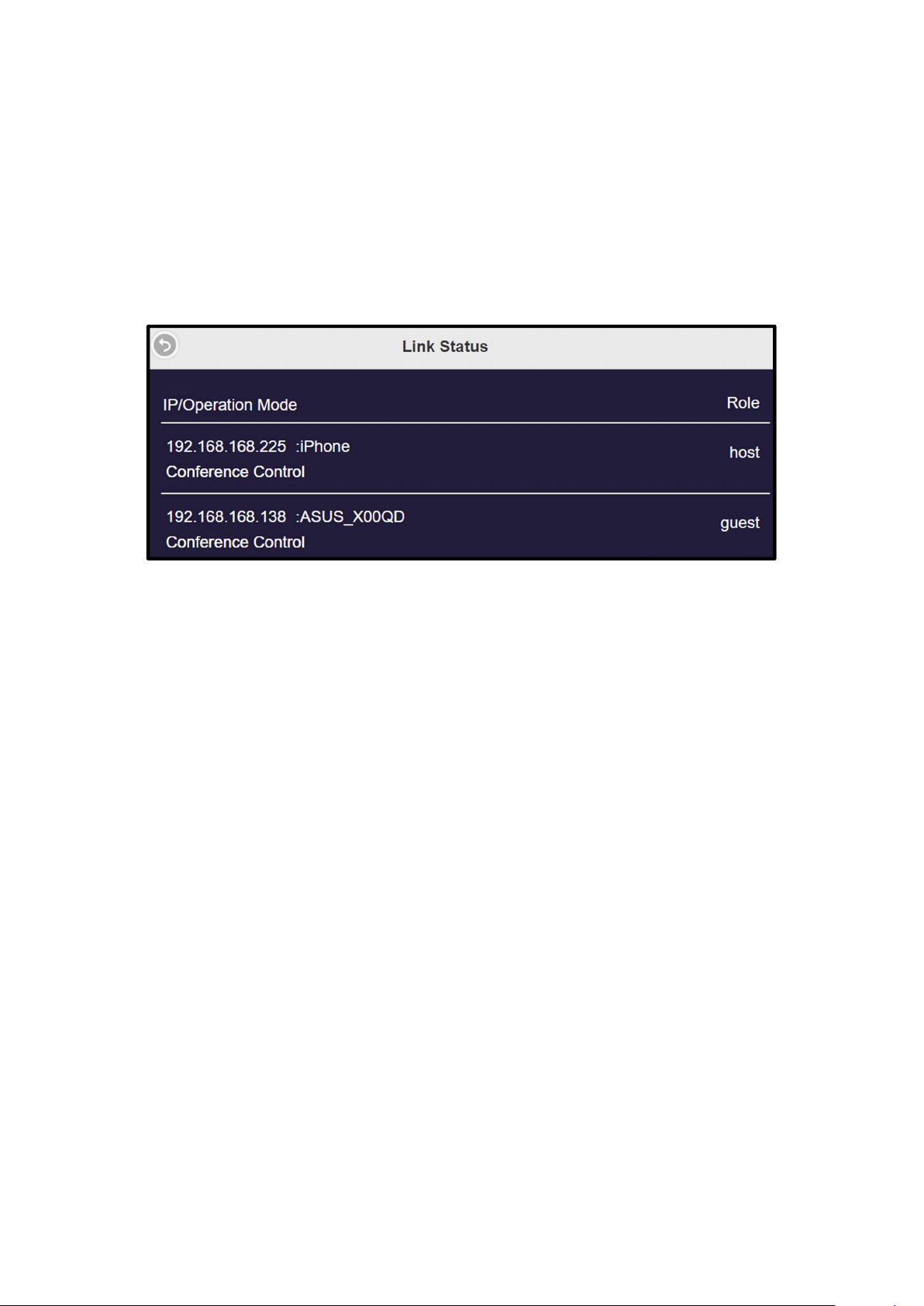

1 Link Status
Displays current link status of EZCast Pro Box II, including
device names, device IP addresses.
 Host: The first device connecting to EZCast Pro Box II will be
assigned as host.
The host user can decide whether a guest user has access to
cast via EZCast Pro Box II.
 Guest: The device connecting to EZCast Pro Box II that isn’t a
host.

2 Conference Control
With conference control, admin user can assign each device to
specific locations on the external monitor.
Block Casting Full Screen
Left Half Right Half
Upper Left Upper Right
Bottom Left Bottom Right

3 Device Management
Please see Device Manage for the options to configure
Language, Resolution, Max Connections, etc.

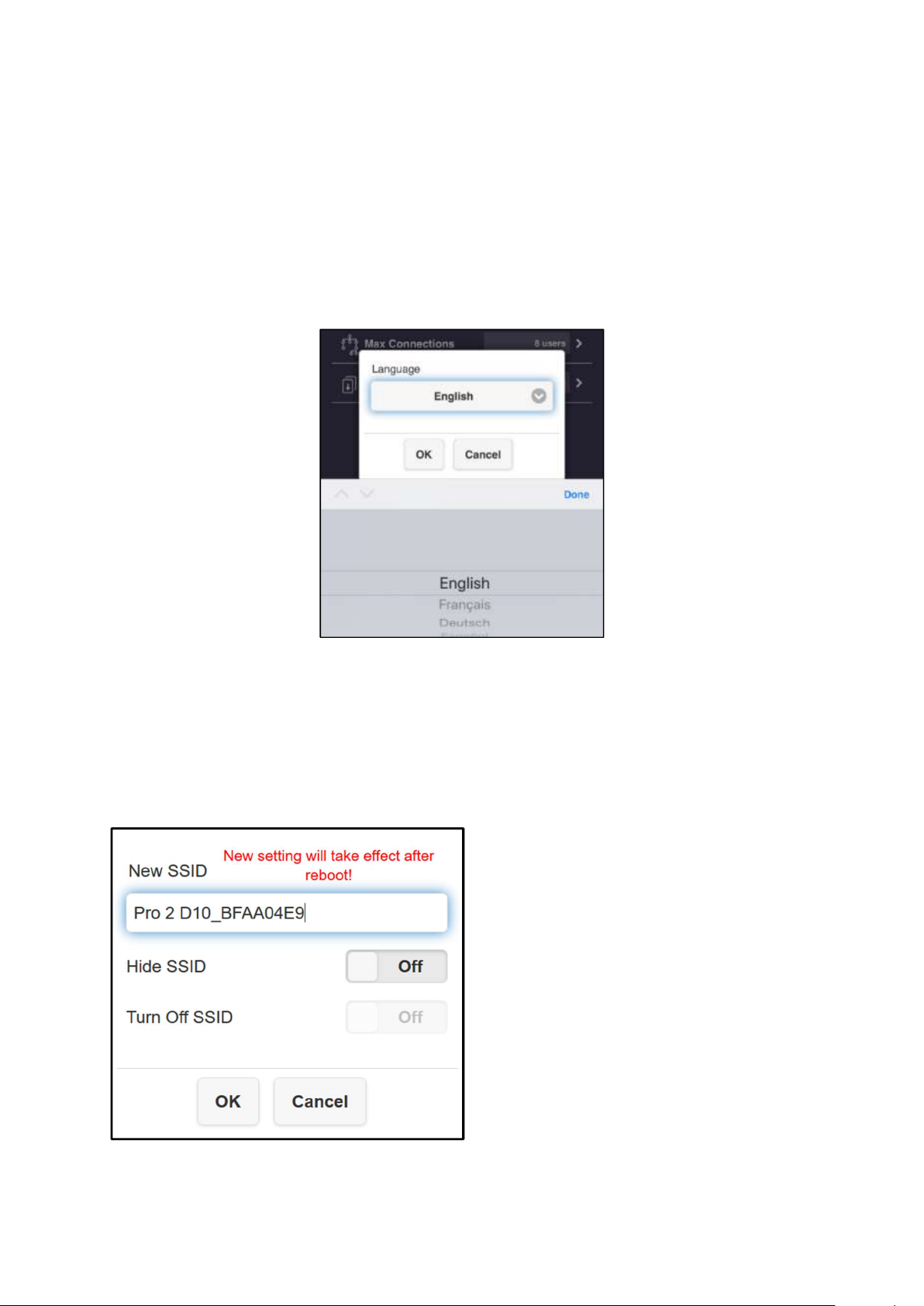

3.1 Language:
Please select the applicable language.
3.2 Device Name:
Rename, hide or turn off SSID.
3.2.1 Hide SSID:
Hide SSID from the landing
page. Please keep a record of
your original SSID in case
you need it later.
3.2.2 Turn Off SSID:
Deactivate the SSID function.
Please make sure the device
is connected online via LAN.

3.3 Resolution:
Please select the applicable resolution for your usage.
EZCast Pro Box II supports up to 4K at 24P frame rate,
while the defaults output resolution is 1920 x 1080_60P.
3.4 Display mode:
EZCast Pro Box II supports the following Display modes:
3.4.1 Fit to screen:
EZCast Pro Box II will keep
video at the original aspect
ratio.
3.4.2 Zoom to screen:
EZCast Pro Box II output
display will be stretched, and
the aspect ratio changed, to fit
the whole screen.

3.5 AirPlay mode:
Screen mirroring via AirPlay for iOS and macOS users.
3.5.1 AirPlay mirroring
ON:
Enable AirPlay.
3.5.2 AirPlay mirroring OFF:
Disable AirPlay.
3.5.3 Mirror only:
Supports screen mirror mode only.
3.5.4 Screen Mirror + Video
Streaming:
Supports both mirror and streaming.
3.6 AirView:
Allows users to receive EZCast Pro Box II output on their
connected devices.
3.6.1 AirView ON:
Turn on AirView.
3.6.2 AirView OFF:
Turn off Airview.
3.6.3 Refresh Rate configuration:
Set refresh rate based on your
preferences. The minimum
setting is 5 seconds.

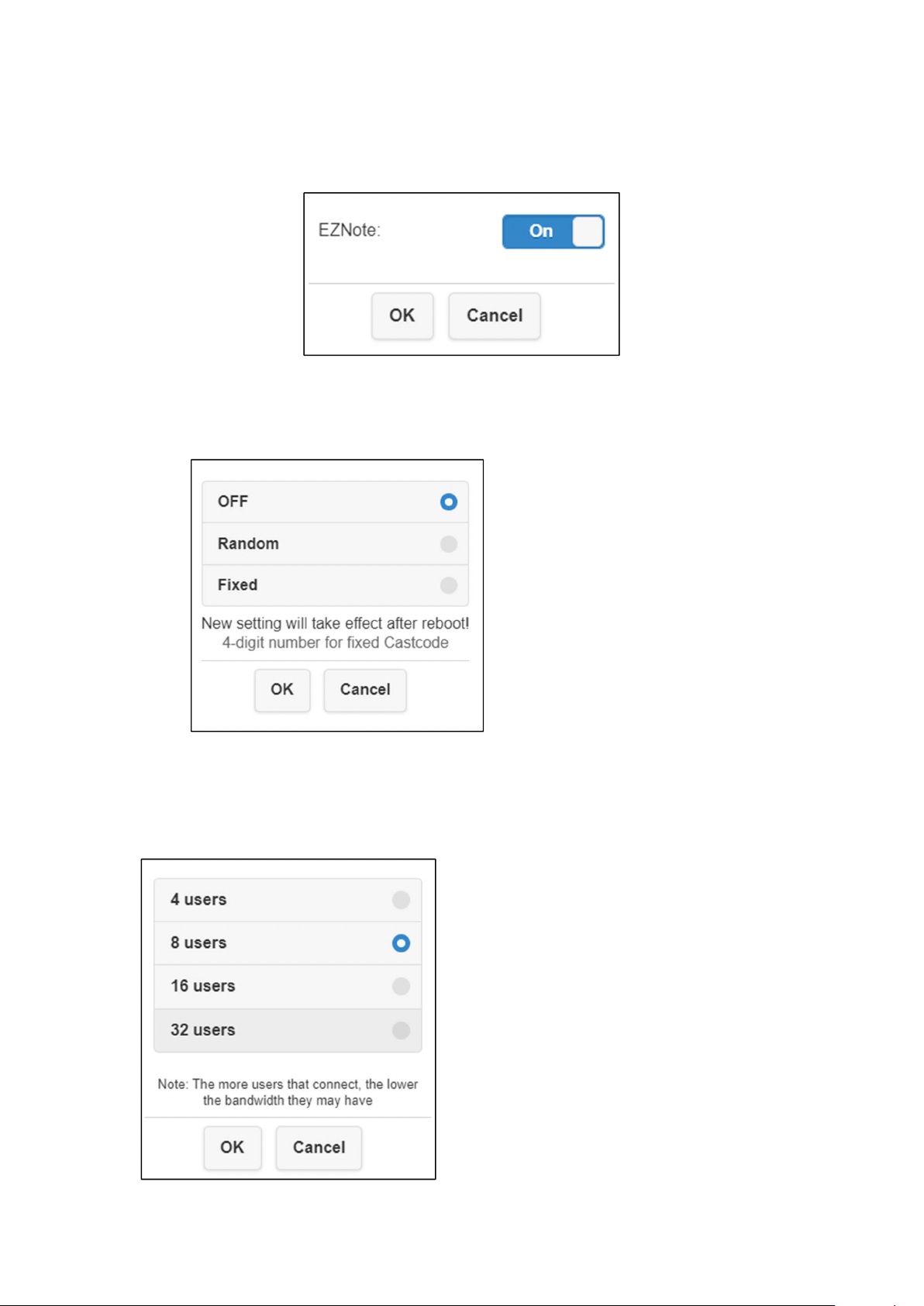

3.7 EZNote:
Users could take note on EZCast Pro app.
3.8 Castcode control:
Use Castcode to prevent unauthorized casting.
3.8.1 OFF:
Deactivate Castcode.
3.8.2 Random:
Random generated Castcode
3.8.3 Fixed:
Set fixed Castcode.
3.9 Max Connections:
Please select the applicable maximum connections for your
usage.
EZCast Pro Box II supports up to
32 users and the default maximum
number of connections is 8 users.
Please be advised that an
increase in number of
connections may lower the
network bandwidth for individual
devices.

3.10 Android audio streaming:
Enable Android users to cast video and audio to the
external display. Please be advised that the default
setting of Android audio streaming is OFF.
3.11 ChromeCast:
Direct casting via Chromecast for Android, Chrome
browser. Please be advised that when casting via
Chromecast, the EZCast Pro Box II must connect to
the internet.

3.12 Miracast:
Direct casting via Miracast for Windows, Android users.
3.12.1 Miracast ON:
Turn on Miracast.
3.12.2 Miracast OFF:
Turn off Miracast.
3.12.3 PIN Code ON:
Enter PIN Code to
connect.
3.12.4 PIN Code OFF:
Users won’t need to
enter PIN Code for
Miracast connections.
3.13 Legacy Wi-Fi mode:
Enable user to connect EZCast Pro Box II to legacy
wireless Wi-Fi routers. Please be advised that the default
setting of Legacy Wi-Fi mode is OFF.

4 Network Management
Connect EZCast Pro Box II to the internet via external Wi-Fi.
For security reasons, please make sure that the Wi-Fi you
wish to connect is 5GHz and encrypted.
4.1 Connect to 5GHz Wireless Access Point:
Once the device is connected to EZCast Pro Box II, enter
the Wi-Fi password to connect to the external Wi-Fi.
The list below contains the
Wi-Fi security certification
EZCast Pro Box II supports:
 WPA/WPA2
 802.1xEAP:
PEAP, PEAP2 (MSCHAPv2),
TLS
4.2 Remember Wi-Fi:
Remember the connected devices after rebooting.
4.2.1 Remember Wi-Fi ON:
Remember Wi-Fi password.
4.2.2 Remember Wi-Fi OFF:
Clear Wi-Fi password after
disconnecting.

4.3 Wi-Fi IP Setting:
Configure Wi-Fi network, including IP address, Gateway,
Netmask, DNS, etc.
4.4 LAN IP Setting:
Configure LAN network, including IP address, Gateway,
Netmask, DNS, etc.
