EZCast Pro Box B02 User manual

EZCast
EZCast
Pro Box
B02

User’s Manual
Rev. 1.02
History:
Revision Change Note Date
V1.00 Initial version 2016/4/14
V1.01 MiscellaneousModification
2016/4/26
V1.02 Function changes 2016/11/20

Introduction
Thanks for choosing EZCastPro Box B02, it is based on popular
EZCast Pro appand adding new dual WiFi to support 2.4Ghz and
5Ghz at the same time. It’s the most advanced WiFi Display device
ever, which supports most Wireless display standardslike Miracast,
DLNA and AirPlay, Multimedia decoding, PDF/Office Viewer, Web
browser, Real object projection (Live camera), as well as our
advanced split screen control. It alsoembedded 10M/100M
Ethernet, which will provide stable connection and easier setup
steps.The USB port supports HID device and USB disk,and the
extended control port helps you to control projectors or other
devices at one time. With the regularly firmware update, it will keep
compatible with latest OS platforms and keep improving features.
This will be the best device for classroom, and conference rooms!!
What’s in Box
EZCast Pro Box x1
Antenna x2

5V-1.5A DC adapter with cable x1
VGA cable x1
HDMI cable x1
Audio out cable x1
UART cable x1
QSG x1
Hardware Installation

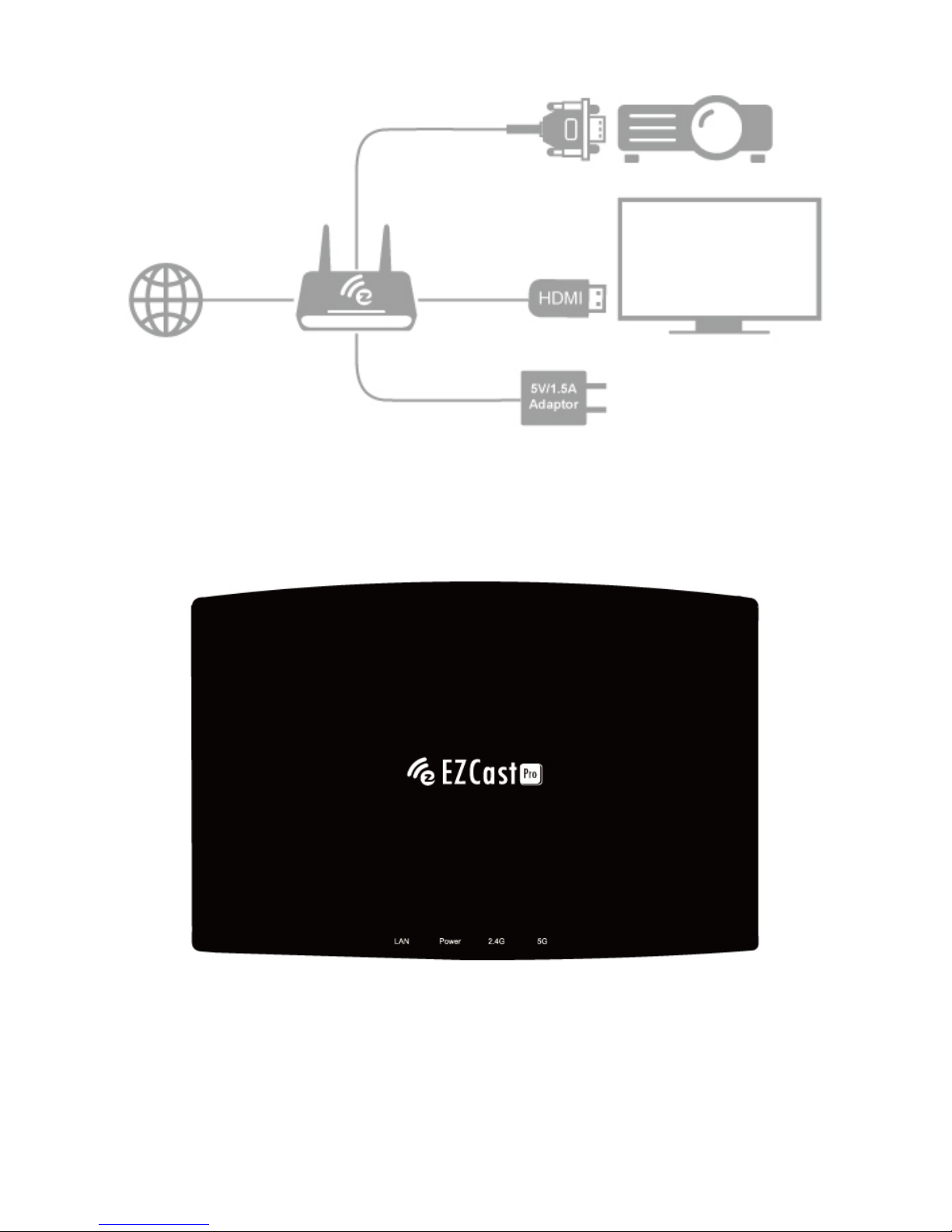

There will be an HDMI cable and USB adapter inside of the box, use
the 5V-1.5A DC adapter to power upEZCastPro Box, and plug HDMI
or VGA cable to your TV or Projector. We also suggest connect
RJ-45 port with your router to simplify setup procedures and get
stable connection.

LED Indication
There will be 4 different LEDs color for different status in front of
EZCast Pro Box, you can refer to it to know the working status:

2.4Ghz: Stays on while 802.11n 2.4Ghz WiFi is working
5Ghz: Stays on while 802.11ac 5Ghz WiFi is working
LAN: Turns on when LAN port is connected
DC:Power on/off indication
App Installation
IOS and Android users:
Please search “EZCast Pro” in Apple’s App Store or Google Play and
install it.
Or Use the QR scanner app to scan the QR code on EZCastPro Box’s
main page.
*Supports iOS9 and Android 4.2 above
Windows and Mac OS users:
Please download it from our official website: www.iezcast.com or
www.iezvu.com
*Supports from Windows 7/8.1/10, and Mac OS 10.10 and after.
*Note: OS support may change along withfuture OS
updatewithoutnotification in advance.

Get Started
Enteryour NB/PC/Smartphone/Tablet’s WiFi setting, find the
SSID (ProBox_xxxxxxxx/ProBox5G_xxxxxxxx, or Pro
B02_xxxxxxxx/Pro B02-5G_xxxxxxxx)and connect with it.
The Dev means device’s host name, you can change it in the
setting later.
You may connect Pro Box’s 2.4Ghz or 5Ghz WiFi with
different devices but they are under differentsubnet.
Open EZCastPro app on your device.Once you’ve connected to
EZCastPro Box, the on-screen link status will beupdated and
show how many devices are linking to it directly.

If there is any new FW available, the updated icon will be shown
on device.
The Miracode is a direct IP link shortcut, you can turn it off in
administrator mode later.
The main screen may change based on different connecting
methods (direct or via router)

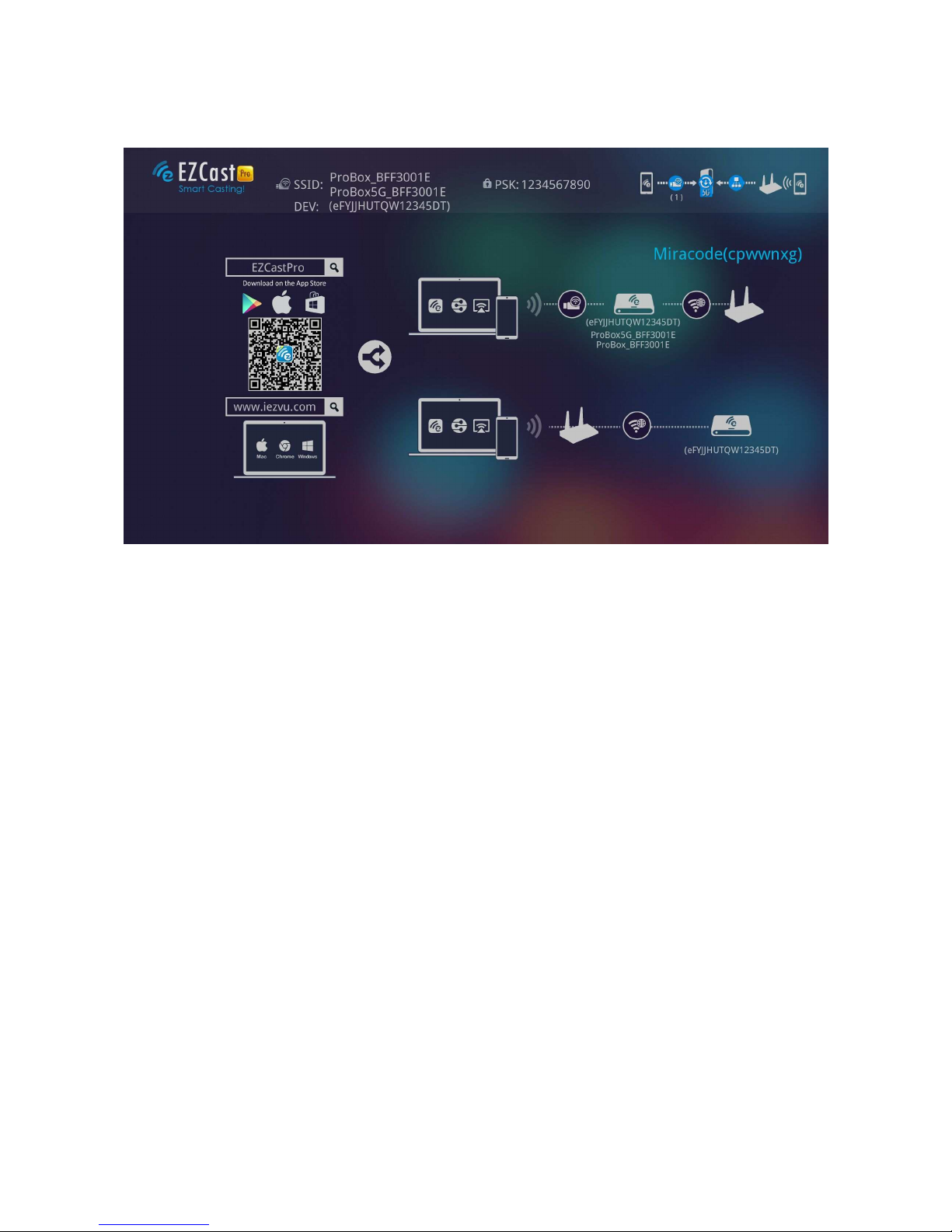

There may be another 4 digits CastCode, which is a display gate
keeper to let users who can see this code to cast content.
App starts (belowphotosarebasedoniosversion)
Discover device
 Input IP or Miracode to link
manually
 Work under offline mode

Click “EZCastPro” icon, the device will be listed, you can select
thedevice you like to cast if there are more than one.
If you are not linking to EZCast Pro, youcan only use several
functions in offline mode.
*Note:EZCastProapponlyworkswithEZCastProhardwarenow,it’snotcompatiblewithnorma
lEZCastproducts.
Important: WiFi Link modeexplanations
EZCast Pro devices allow variousconnection methods, here are
the descriptions:
SoftAP mode: It’s direct linking from PC/MobilePhone/Tablet to
a Pro device, you can link to EZCast Pro’s SSID directly to
discover it, and you can also setup Pro devices’WiFi to link with
your router to keep internet surfing.
*Note: After setting up your internet, sometimes the connection between EZCastPro and
your mobile phone might be disconnected because of different WiFi routerchannel.

Please remember to reconnect again.

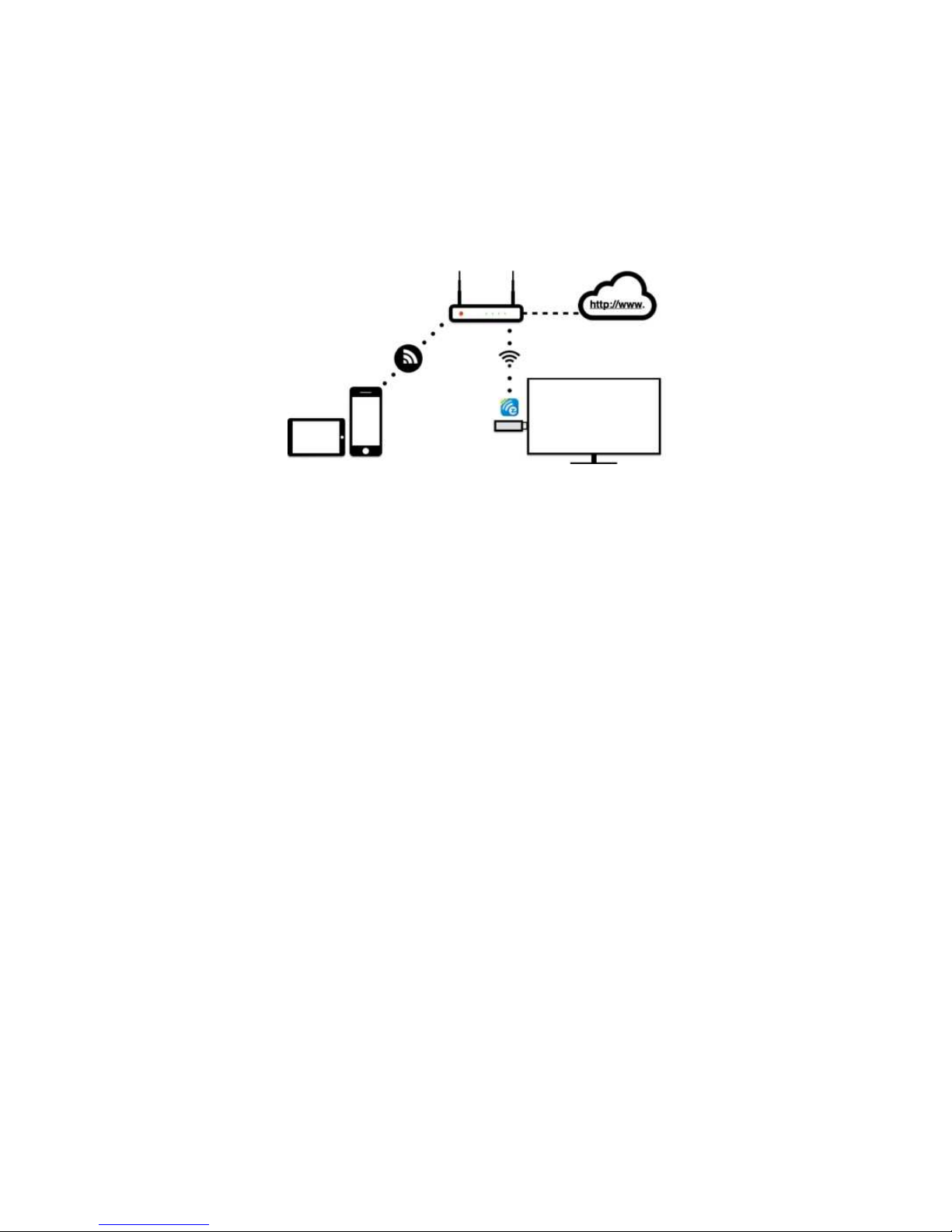

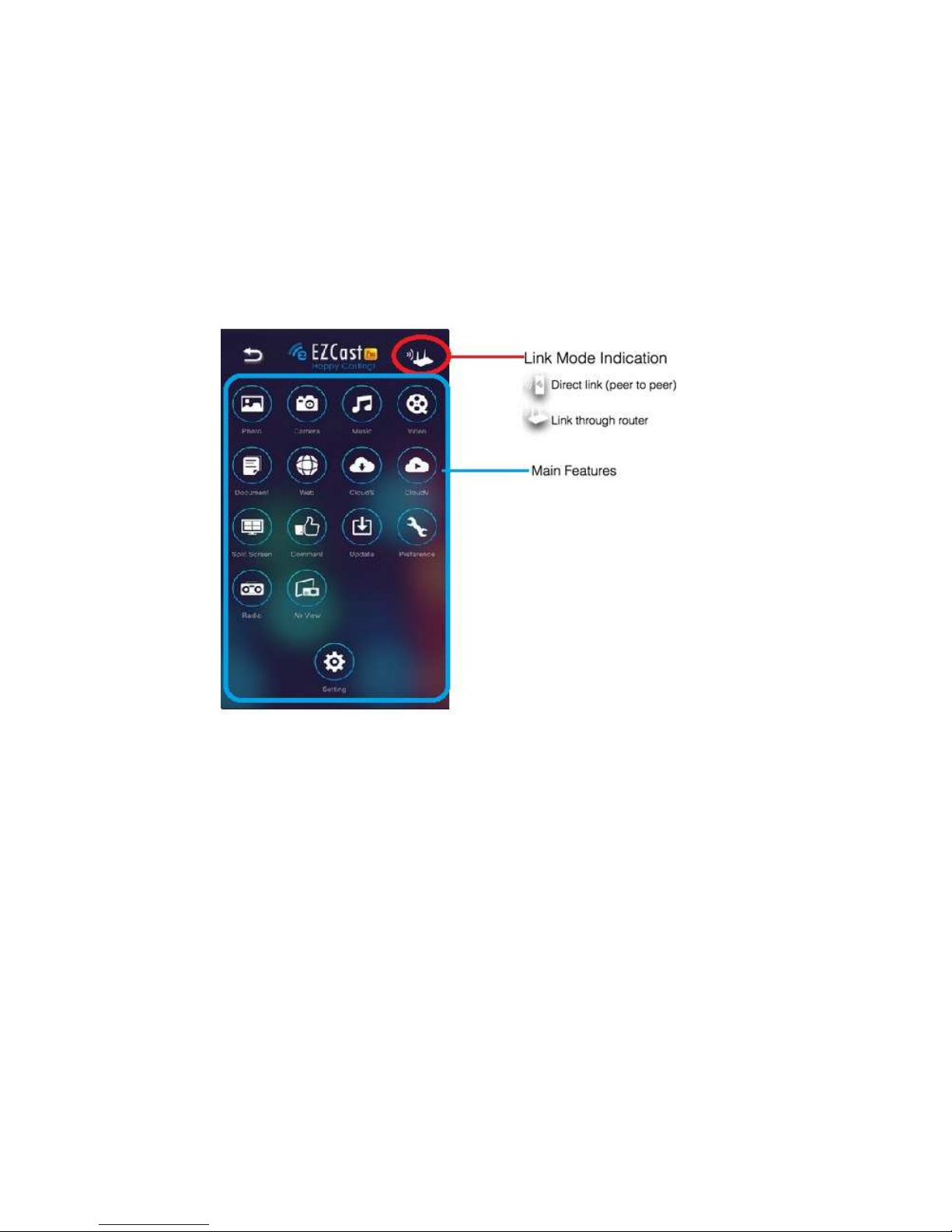

There is another link mode“Infrastructure mode”, which allows
you tolink with EZCast Pro Box through router instead of SoftAP
mode. However, the performance maynot as good as direct link,
and you will need to enter the setting toenable it if need it.
There is 2 special modesfor WiFi connections in our advanced
setting, one is “Direct link only” and the other is“Via Router
only”.
In “Direct Link Only” mode, you will not be able to discover
EZCast Pro through your home router. Under “Via Router Only”
mode, the Pro device will shut down Soft AP (SSID), in this mode
the SSID will be turned off so that no one can search it directly
to prevent some hacker’s attack. Please be careful you will need
to connect device through router under this mode.

Direct Link: This provides
best bandwidth between
your Smart devices/PC
and EZCast Pro
Via Router Allowed: You
will be able to discover
EZCast Pro through
home router if you have
established the
connection with router.
Via Router Only: In this
mode, the SoftAP of
2.4Ghz/5Ghz WiFi will be
turned off, you can use it
under some
particularpurpose so no
one can link to EZCast

Pro directly.
App Tips
You can cast your multimedia data wirelessly now, however,
please be noted some features like cloud video or web will
require internet connection.
Please be noted EZMirror(Miracast) mode will disconnect
current WiFi and you will need to connect to internet by your
phone (3G or WiFi) if you want to keep internet surfing.

App Features (*based on iOS app for your reference)
Photo
You will have to allow EZCast Pro to share your camera roll andenable
the location service before using Photo function.
In Photo viewer, you can select photo and it will be displayed onyour
TV/Projector. You can also use gesture control to zoom in/out
orchange photos.
We developed a practical Sketch tool ,you can drawon the photo you

picked, and save it if you like.
Video
There are 2 sources to video streaming. One is to sync the videoyou
like through iTunes (iTunes File Syncing), or you can selectvideo from
your recorded video (Camera Roll)
Please be noted iOS will compress the recorded video
beforestreaming to save the bandwidth, you can decide if you want
tosave it in EZCast Pro app for future use.
You can also sync subtitle file to EZCast Pro, just make sure
thefilename is the same with your video and sync through iTunes,
itwill be automatically shown with video playing.
＊For subtitle, wesupport srt, smi, ssa and cdg formats with UTF-8 coding.
For subtitle support, please see demo video: http://goo.gl/0yq5Z8

Music
The music player allows you to stream music through WiFi, andwe
can support playlist.

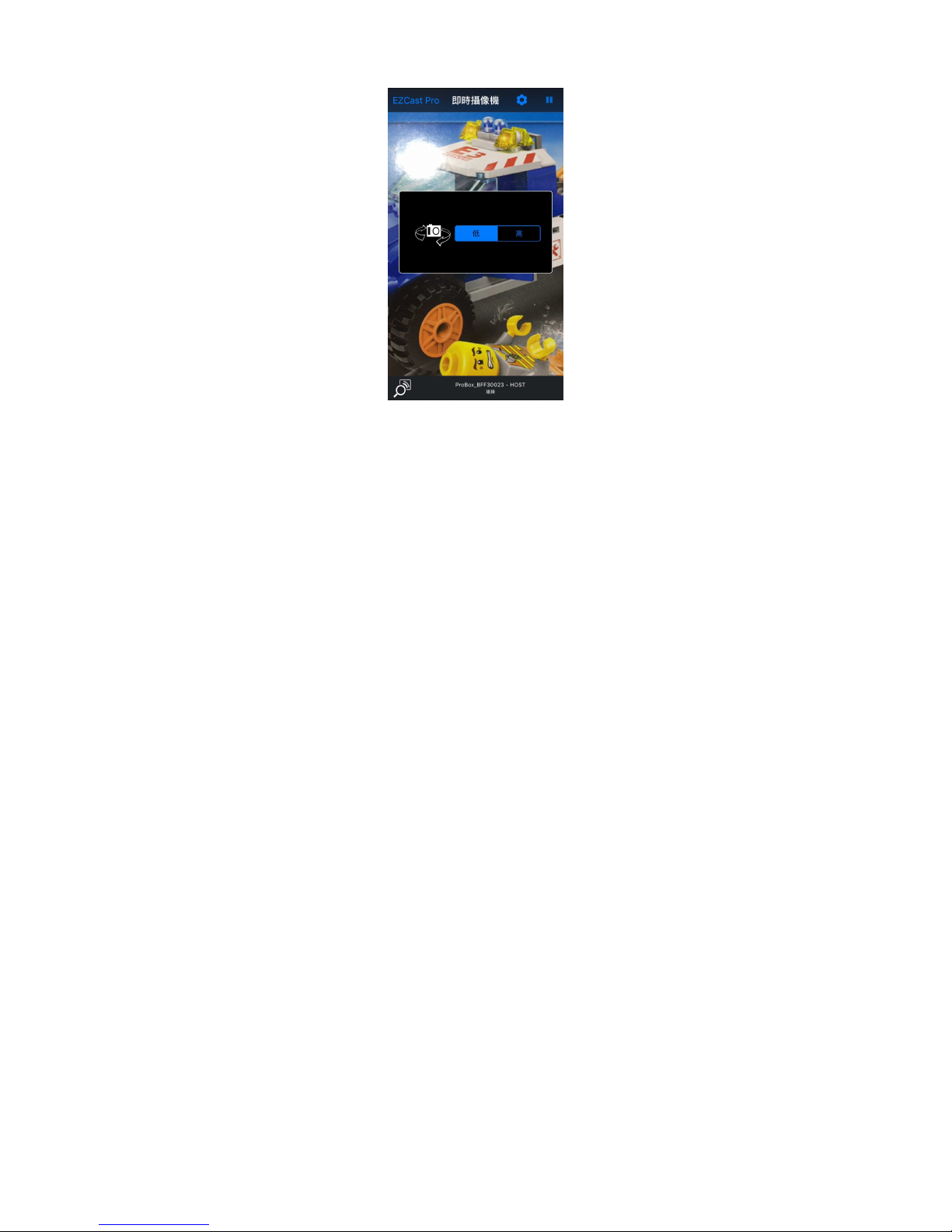

Live Camera
Live camera is a real object camera which allows you to streamthe
image from mobile device’s camera, and take a snap shot toedit.

You can adjust image quality, switch from Front/Rear camera. Youcan
enable Sketch and save the current image to album.

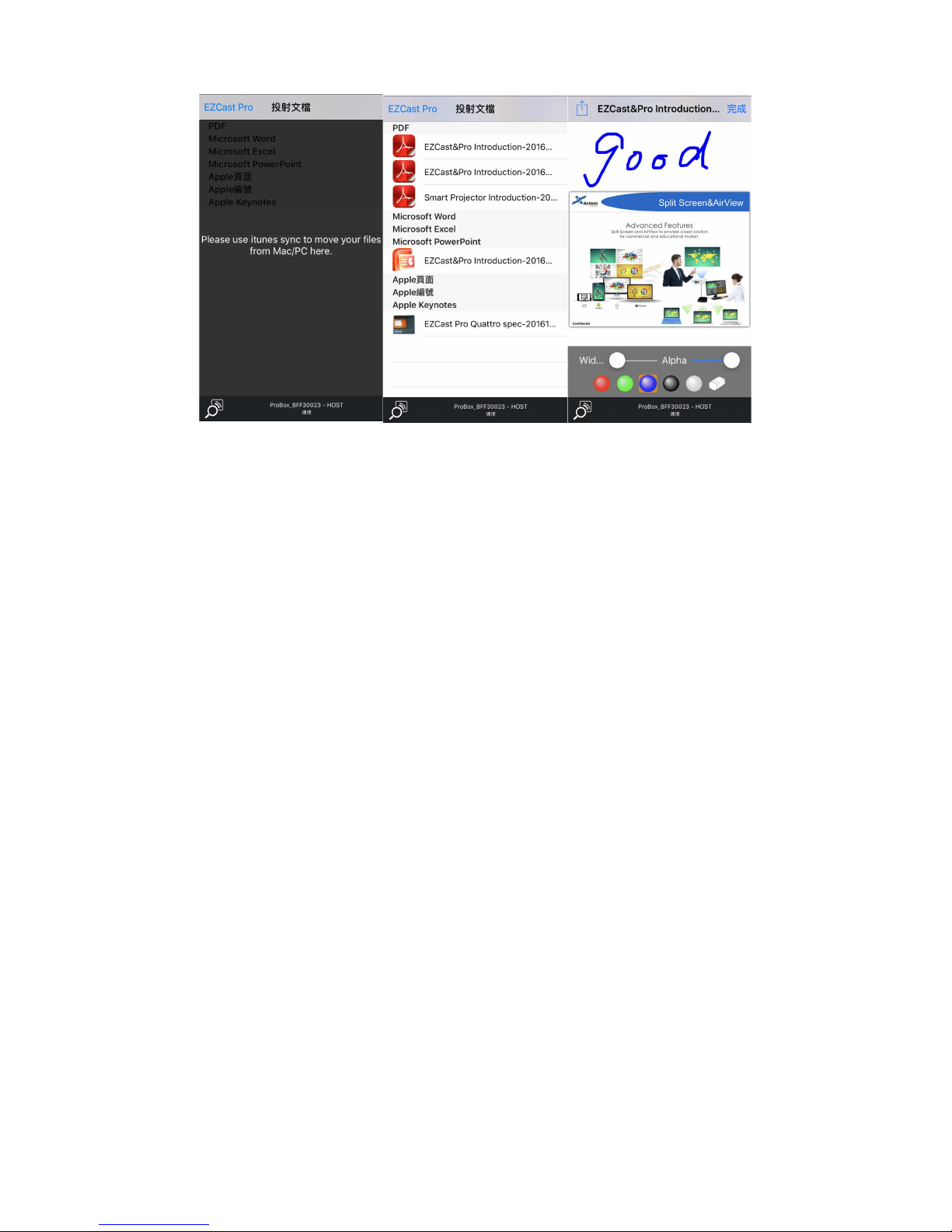

Document
The document viewer can support MS-office, PDF, and Apple’siWorks.
Before you start to cast, please remember to sync thedocument files
to your iOS device through iTunes.


The document viewer supports sketch as well, that means you
canmake some note on the document, and save the page to
cameraroll.
＊
Please be noted some documents may not be displayed the same as shownon PC.

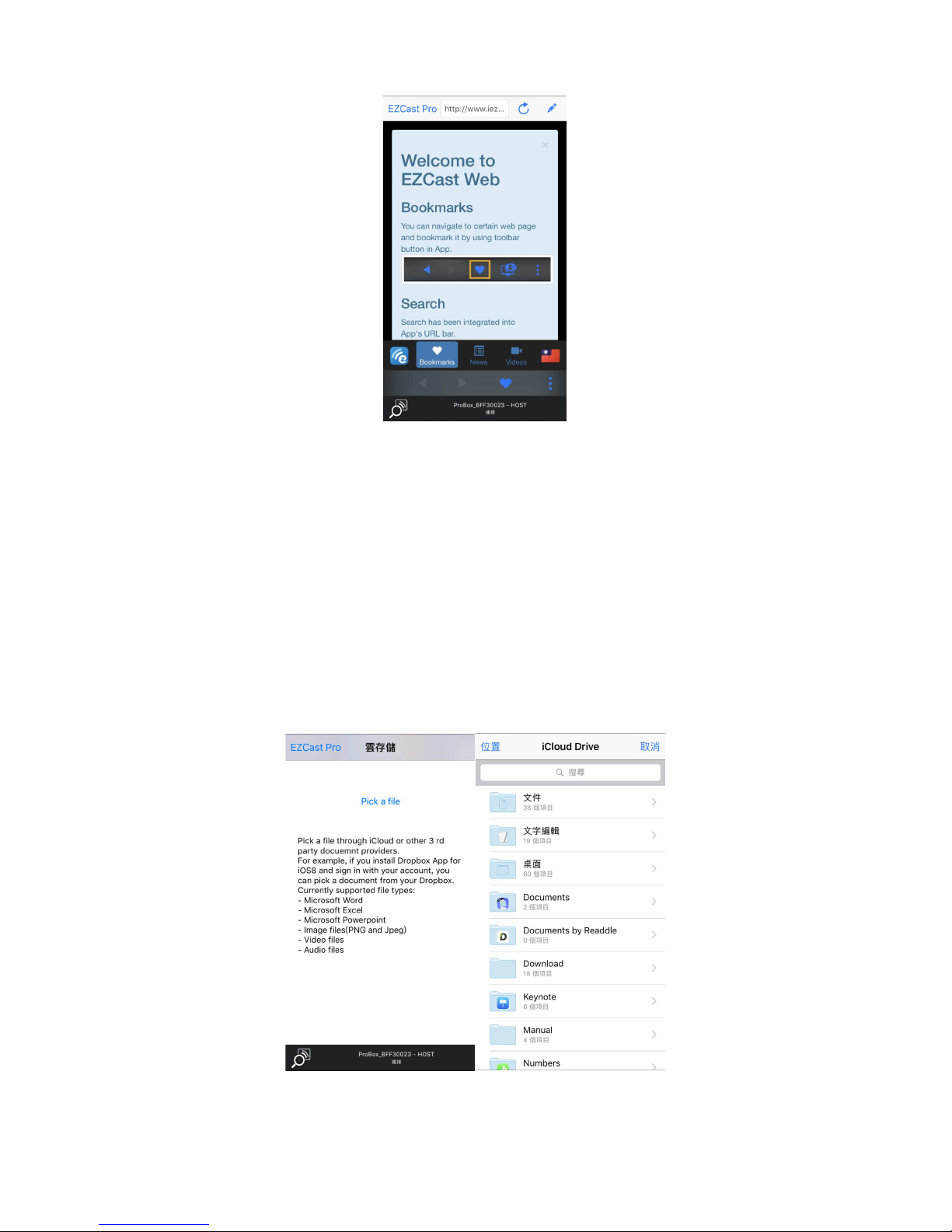

Web
EZCast
Pro comes with a built
categorizeseveral popular websites for you.

The web page will dynamically change with different countrysetting
in your device.

Sketch function is also supported.
The document viewer supports sketch as well, that means you
canmake some note on the document, and save the page to
Please be noted some documents may not be displayed the same as shownon PC.
Pro comes with a built
-
in browser, and we also
categorizeseveral popular websites for you.
The web page will dynamically change with different countrysetting
Sketch function is also supported.
The document viewer supports sketch as well, that means you
canmake some note on the document, and save the page to
Please be noted some documents may not be displayed the same as shownon PC.
in browser, and we also
The web page will dynamically change with different countrysetting

Cloud Storage

We will link to your personal Dropbox and *Google Drive accountto
let you access your cloud storage anywhere. All content will beshown
for you to download and display.

You can enable sketch function if you download and decode
We will link to your personal Dropbox and *Google Drive accountto
let you access your cloud storage anywhere. All content will beshown
for you to download and display.
You can enable sketch function if you download and decode
We will link to your personal Dropbox and *Google Drive accountto
let you access your cloud storage anywhere. All content will beshown
You can enable sketch function if you download and decode

adocument file
Comment
We
treasure your feedback either good or bad, so we created
aninnovative way to communicate with you. You can send
somecomments,
suggestions
inputs will
make our product better.
Split Screen
and Host Control
treasure your feedback either good or bad, so we created
aninnovative way to communicate with you. You can send
suggestions
or even bugs
to us directly, and all the
make our product better.
and Host Control
treasure your feedback either good or bad, so we created
aninnovative way to communicate with you. You can send
to us directly, and all the

When you are the first user link to EZCast Pro and open the app,you
will become the “Host”.
Host has the authority to control the display, that means Host rolecan
use all features without limitation. The next or later coming users will
be treated as “Guest”, somefunctions will be disabled under Guest
