EZiCaddy EZi-5 Digital User manual

EZiCaddy
EZi5 User Manual

Page 2

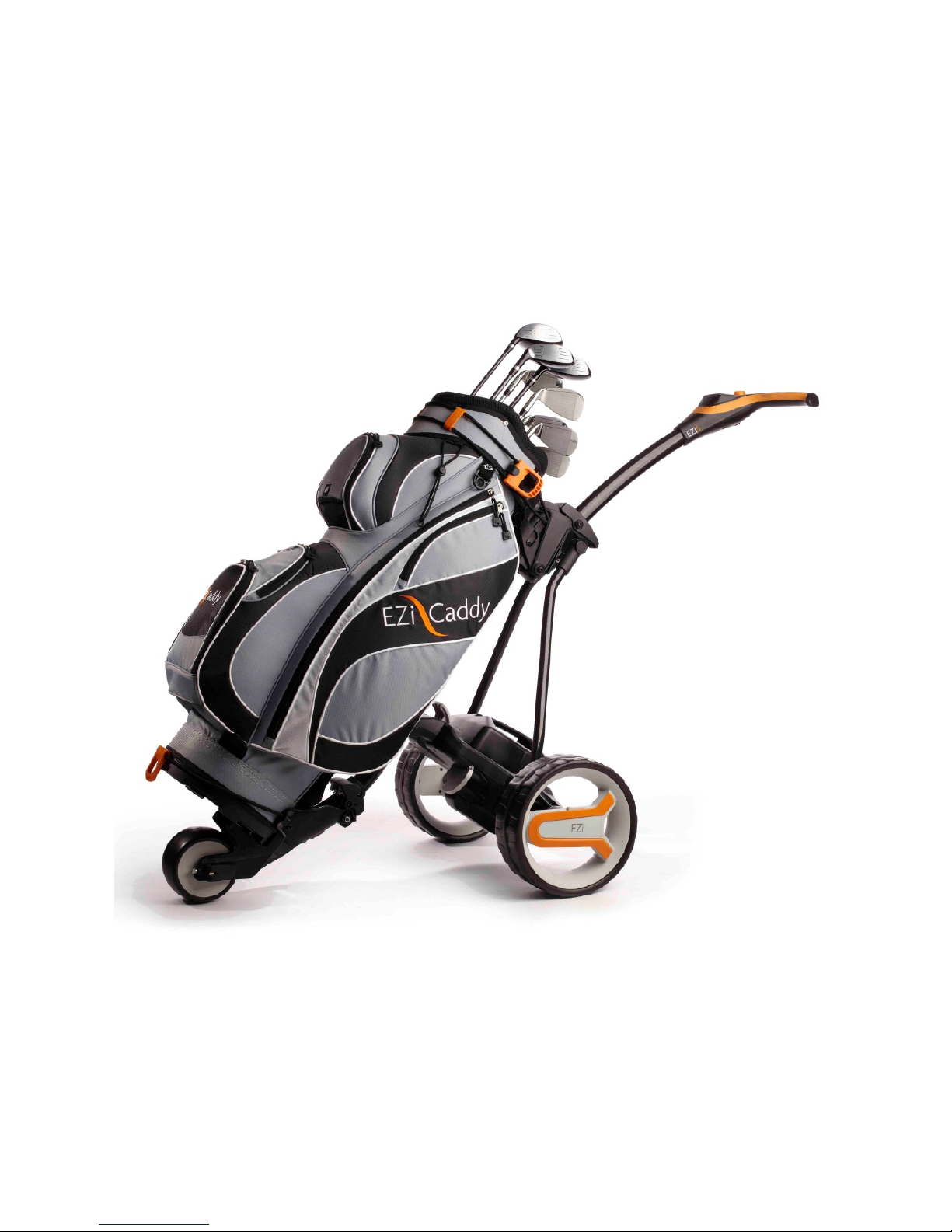

Your EZiCaddy EZi5 Trolley
Identifying the parts of your EZi5
1Front Wheel
2Camlock Lever
3Lower Bungee Strap
4Bottom Bag Stay
5Front Wheel Release Lever (on Right-Hand side of trolley)
6Quick Release Lever for wheel
7Rear Wheel
8Motor
9Battery
10 Unfolding Release Lever and Battery Release Lever (Battery Catch)
11 Lower/Main Spar
12 Upper Bungee Strap
13 Upper Bag Stay
14 Height Adjustment Screw
15 Folding Release Lever
16 Upper Spar
17 Handle, Controls and Display
18 USB Port

Page 3
The new EZiCaddy EZi5
Congratulations on your purchase of the new EZi5 - a brand new powered
trolley from a brand new company. New maybe, but one founded by two of
the most experienced professionals in the business, with over 50 years’
experience in electric golf trolleys between us. From the earliest stages of
development, the mantra has been ‘make it easy’ – easy to open, easy to fold,
easy to carry, easy to manoeuvre, easy plug’n’play battery, easy to operate,
even easy-on-the-eye. Every little detail was designed and engineered to be
‘easy’. We hope you enjoy your new trolley and welcome your feedback and
comments.
Your new cart has also been designed for easy, minimum maintenance. Please
read these instructions carefully, and your new EZiCaddy trolley should give
you many years of faithful service.
Finding your trolley Serial Number
The serial number for your EZi5 trolley can be found on the underside of the
main spar. The same number is on the box you received with your trolley.
Please keep this box for shipping purposes.
Your EZiCaddy trolley is simple to maintain:
•Store in a dry protected place.
•Never jet-wash it or immerse it in water.
•Avoid using detergents, oils or solvents on it.
•Wipe clean whenever it gets wet or wipe with a damp cloth when it
gets dirty.
•Occasionally remove the wheels and apply grease to the axle.

Page 4
Initial Assembly

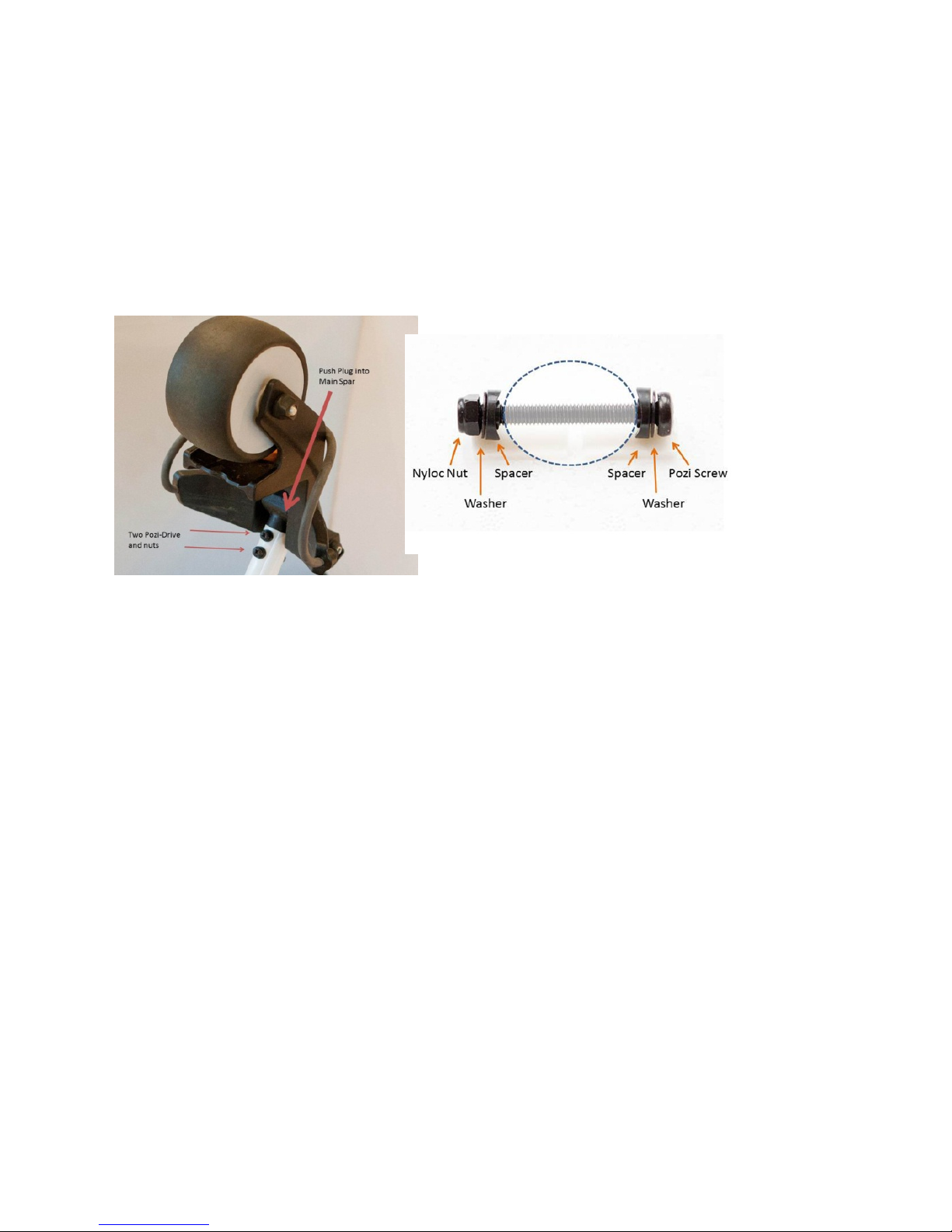

When you first receive your trolley, you will need to attach the front wheel
assembly. Push the plastic plug of the front wheel assembly into the main spar.
Take care to have the bag support plate facing upwards. Then use the spanner
provided and a pozi-drive screwdriver to secure the front wheel assembly to the
main spar using the two nuts and bolts provided. Fully tighten to prevent
movement. Please note the sequence of washers and spacers.
Folding and unfolding your trolley
To unfold the upper section of your trolley, depress the release lever 10 and pull
the handle away from the main spar. Continue unfolding until the upper spar clicks
into place. To unfold the bottom bag-stay section, depress the release lever 5 and
pull the wheel away from the main spar. Continue unfolding until the bottom bag-
stay clicks into place.
To fold your trolley, make sure you have removed your battery. Then depress
lever 15 to release the upper handle section and continue folding until it clicks
closed. Then depress lever 5 to release the front wheel and continue folding until
it clicks into place.
The folded trolley is designed to be stable standing upright or flat on its back.
Never put your trolley into your car boot with the battery plugged in. It could get
switched on.

Page 5
Adjusting the handle height
Your EziCaddy has 6 height adjustment settings. To adjust the handle height, first
fold the trolley. Then unscrew the locking screw 14 by about 6 mm until the
handle adjuster plate can be lifted off the teeth below. This then allows you to
select one of the 6 available handle heights. Move the plate forward to raise the
handle height and backwards to reduce the handle height. Please note that the
adjustment plate cannot be moved if the trolley is open. Finally, re-do screw 14
tightly.
Fitting the plug-n-play battery
To fit the battery, hold it vertically and, from the rear of the trolley, present it base
downwards to the main chassis. The notch in the base of the battery will locate in
the recess of the chassis. The top of the battery can then be pushed firmly
forwards to engage with the battery catch at the top of the battery.
To release the battery, press the battery release lever at the top and pull the
battery out of its docking station.
Always remove the battery before folding your trolley.

Page 6
Adjusting the front wheel.
If the steering of your trolley gets knocked out of alignment, it can usually be
corrected using the front wheel adjustment nut. Tracking / poor steering can
also be affected by the way you load your bag. This is why an anti-twisting
“cart bag” often provides a better driving experience.
Lift the cam-lock lever 2 to release it. Rotate the front wheel adjustment nut
clockwise to make the trolley go more to the right and anticlockwise to get it
to track more to the left. When you are happy that it is tracking correctly,
push back the cam-lock lever 2 to fix it back in position. The cam-lock needs
to grip very firmly to prevent subsequent movement.
Removing the main wheels.
You might occasionally want to take off the main wheels either for cleaning
purposes or to squeeze your trolley into a tighter space.
Press button 6 to allow you to release and pull off the wheel. Replace the
wheel by sliding the wheel into the clutch, align the wheel so that it starts to
engage properly and then push until you hear the engagement click
The upper and lower bag stays
The upper and lower bag stays are designed to accommodate a wide range of
golf-bag shapes and sizes. Ideally, you will be using a “Cart-Bag” with
symmetrically balanced pockets and an anti-twist base.
To lock the base of your bag in place, stretch the bungee strap 3 over the
bottom of the bag. This strap is not adjustable because most bag bases have
the same dimensions.
To hold the top of your bag in place, stretch the upper bungee straps 12 and
clip in place as shown.

Page 7

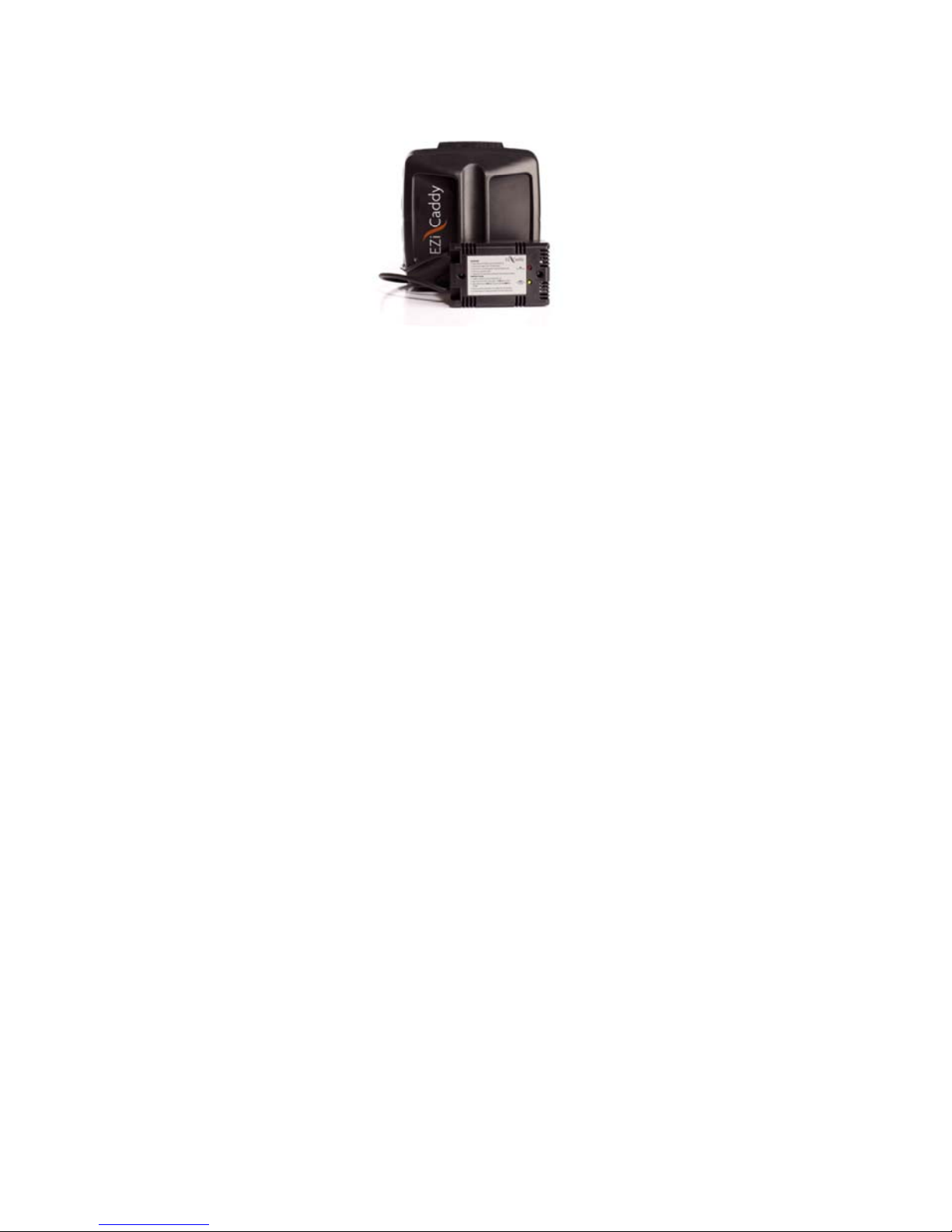

EZiCaddy Charger
Only use this charger with your EZiCaddy Standard battery or EZiCaddy
Lithium battery. It recognises which EZiCaddy battery you are using and
adjusts accordingly. Do not use a non-EZiCaddy charger with your EZiCaddy
battery or vice versa; a mismatch of battery and charger could cause damage.
Your charger should be placed on a hard surface, in a dry, well-ventilated place.
Do not charge in direct sunlight. Unplug it from the mains supply before
connecting or disconnecting the battery.
Do not open the charger casing there are no serviceable components inside
Always check that the charger casing and cables are in a good condition.
1
Connect your battery to your charger when you first receive it and,
thereafter, as soon as possible after use.
2
Plug in and switch on at the mains supply. The red light will come on.
3
After several hours, according to the initial charge on the battery, the
red light will go out and the green light will come on.
4
We recommend that you leave your battery “on charge” until your
next game.
5
Never leave the charger connected to the battery with the mains
supply switched off

Page 8
EZiCaddy Battery
Your EZiCaddy battery is designed to play 18 holes. Avoid exceeding 18 holes
on one charge to maximise battery life. If you regularly want to play more than
18 holes, please buy another battery.
Always remember to charge your battery after use, even if you have only
played a few holes, and then leave it on charge until your next game.

Page 9

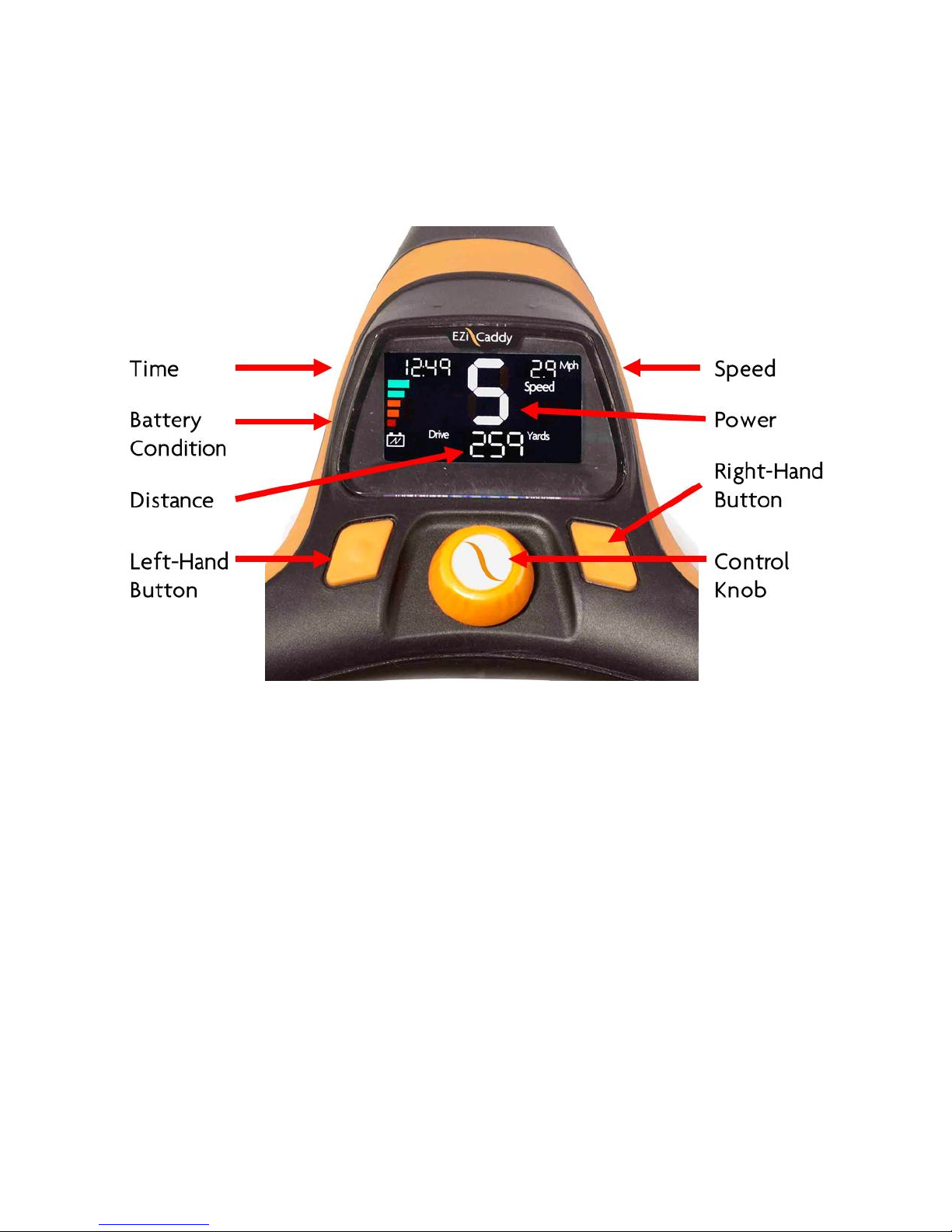

Using your EZiCaddy EZi5
When you have fitted your battery and secured your bag, you are ready to go.
•Depress and release the control knob on the handle to turn on the
power.
•Rotate the control knob clockwise to increase the power. You will see
the Power reading increase and your EZi5 should start moving and
speed up. Your actual speed is shown top right.
•Rotate the control knob anti-clockwise to reduce the power. Your
EZi5 should slow down accordingly.
•Depress and release the control knob on the handle to turn off the
power.

Page 10
•If you turn off the power when moving, the trolley will remember your
power setting and you will see the Power reading flashing. On turning
the trolley back on, it will gradually accelerate back to that power
setting.
•If you have turned off the power when moving and do not want to
start off with the same setting, simply rotate the control knob
anti-clockwise. You will see the flashing power setting reduce.
•Your trolley will always forget its power setting and revert to zero if
you disconnect the battery.
•If the Power reading on your EZi5 is a steady “1” or above, it will be
trying to move and will be consuming battery power. So don’t
inadvertently drain your battery by leaving it in that condition up
against an obstacle.
Distance Readings

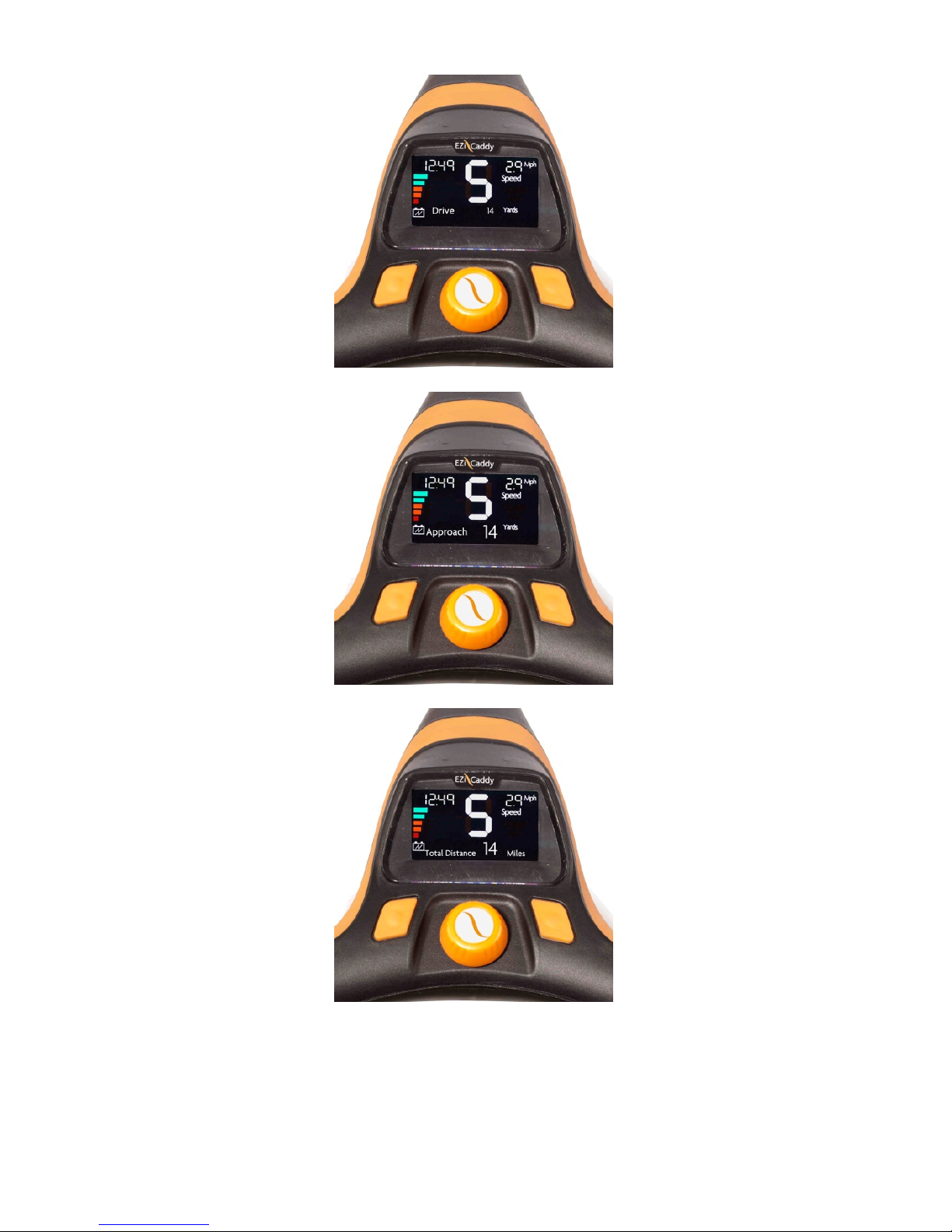

There are three distance read-out options:
1Drive
2Approach
3Total distance
You can toggle between these readings by repeatedly pressing the Left Hand
button.

Page 11

Page 12
Both “Drive” and “Approach” are set to zero on connecting the battery.
To re-set “Drive” to zero, turn off the power to your EZiCaddy by pressing the
Control knob and when the display is already showing “Drive” press and hold
the Left Hand button for about 3 seconds. This also sets “Approach” to zero.
To measure how far you have driven the ball off the tee, zero the “Drive”
reading and walk directly to your golf ball. You will see the “Drive” reading
increase until you reach your ball.
To re-set “Approach” to zero, turn off the power to your EZiCaddy by pressing
Control knob and then when the display is already showing “Approach” press
and hold the Left Hand button for 3 seconds.
To measure how far your approach will be, zero the “Approach” reading as you
go past the nearest Fairway Distance Marker (make a mental note of the
marker distance reading!). Continue walking to your ball and subtract (or add)
the Approach measurement from the Distance Marker (according to whether
your ball is beyond or before that marker) to give you the distance to the
green.

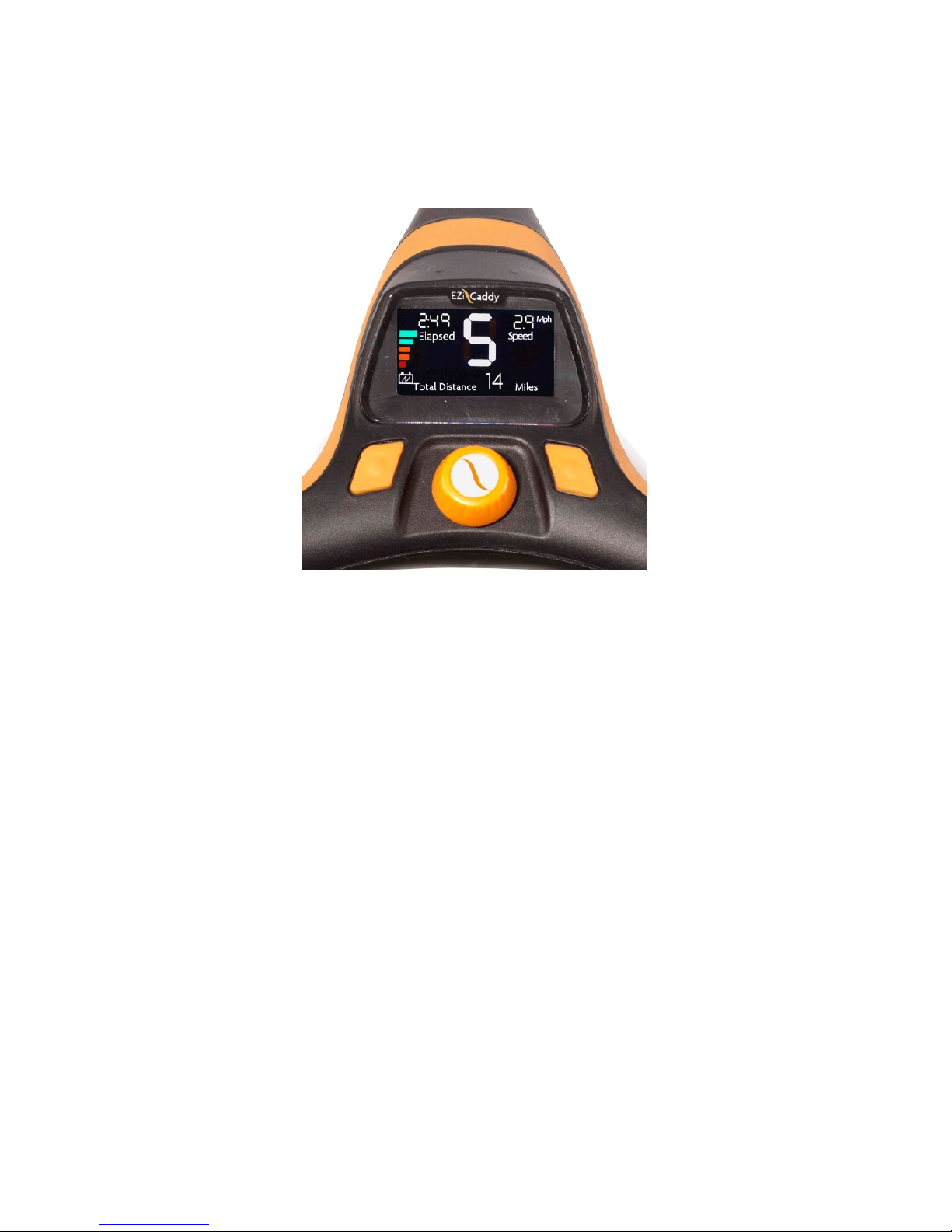

“Total Distance” cannot be re-set, even if you unplug the battery. It simply
displays the lifetime mileage of your EZiCaddy to date including the in-factory
testing.

Page 13
ADF Mode
Your EZi5 features a convenient Automatic Distance Function. This is
particularly useful when you want to, say, send off your trolley by itself
towards the next tee whilst you go on to the green or if you need to play a
bunker shot and want to send on your trolley ahead.
Hold down the control knob for at least 3 seconds until the letters “ADF” light
up in the display and then release it. Rotate the control knob clockwise to
increase the distance (in increments of 5) you want the cart to travel by itself.
Then press the control knob to start off your cart. Your EZi5 will then travel for
the distance you have chosen and stop.
When you return to your EZi5 it will still remember the speed at which you left
it and will accelerate to that speed when you next depress the control knob

Page 14
To Toggle between Clock and Elapsed time
Press the Right Hand Button. The words “Elapsed” will appear and disappear
when your EZiCaddy is displaying the selected time measurement.
To Zero the Elapsed Time
The elapsed time is set to zero when you disconnect the battery.
To set the Clock correctly
•Turn off the power to your EZiCaddy by pressing the control knob.
•Press and hold down both Left Hand and Right Hand buttons
simultaneously for three seconds and the first feature that you can
change (Time) will flash slowly.
•Press the control knob to select Time.
•Rotate the control knob to select the first digit you want.
•Press the control knob to save and move on to the next digit.
•Repeat steps 4 and 5 until you have the correct time flashing.
•To save and exit, press and hold down both Left Hand and Right Hand
buttons simultaneously until the time stops flashing.

Page 15

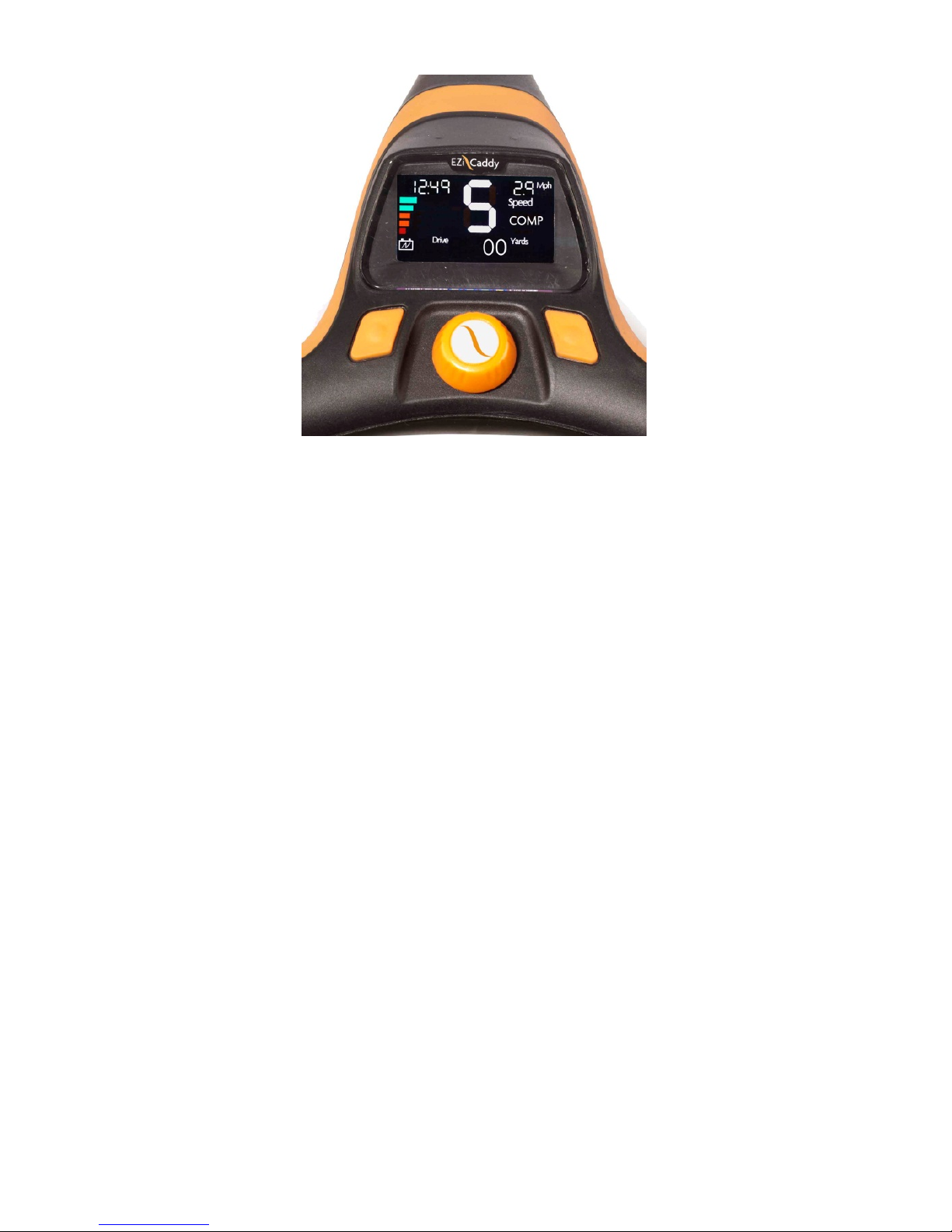

Competition Mode
You can temporarily disable the distance measuring functions should
competition rules dictate.
Indeed, you should always check competition rules before using your EZiCaddy
with the distance readings enabled.
1. Turn off the power to your EZiCaddy
2. Press and hold down both Left Hand and Right Hand buttons
simultaneously for three seconds and the Time will flash slowly.
3. Press the right hand button and you will see a flashing “COMP”
4. Press the control knob to select “ON” or “OFF”.
5. To save and exit, press and hold down both Left Hand and Right Hand
buttons simultaneously until the flashing stops.
6. If Competition mode has been selected, it will display “COMP”. If
Competition mode is not active, that element will be blank.

Page 16
To Enable the Pin Facility
1. The factory default is for there to be no requirement for a PIN before
using your EZiCaddy. The PIN number is not a security device and is
not intended to prevent your EZiCaddy being stolen. It is simply a way
of helping to prevent people from tampering with your personal
settings or, indeed, enabling a PIN on your EZiCaddy without your
knowledge. It is therefore VERY important that you choose a PIN that
you are not going to forget!
2. Turn off the power to your EZiCaddy.
3. Press and hold down both Left Hand and Right Hand buttons
simultaneously for three seconds and the first feature that you can
change (Time) will flash slowly.
4. Press the right hand button and the next feature you can change
(COMP) will flash.
5. Press the right hand button again and the next feature you can change
(PIN) will flash.
6. Press the control knob to and you will be presented with a flashing
first digit.

Page 17
7. Rotate the control knob to the digit of your choice.
8. Press the control knob to save and move on to the next digit.
9. Repeat until you have saved the number.
10. The display will read “PIN” and “ON”
11. To save and exit, press and hold down both Left Hand and Right Hand
buttons simultaneously.
Now, whenever you connect your battery, your display screen will light up
with a flashing “0---“ and you will need to enter your 4 digit PIN as follows:
1. Select the first number of the PIN by rotating the control knob.
2. Push this knob to confirm and move on to the next number.
3. Repeat steps 1 and two for the remaining numbers.
If you get the PIN wrong, the screen will revert to the first digit and you will
not be able to use your EZiCaddy until you enter the correct PIN.
There are no limits to the number of attempts at getting the PIN right.
To Disable the PIN
1. Turn off the power to your EZiCaddy.
2. Press and hold down both Left Hand and Right Hand buttons
simultaneously for three seconds and the first feature that you can
change (Time) will flash slowly.
3. Press the right hand button and the next feature you can change
(COMP) will flash.
4. Press the right hand button again and the next feature you can change
(PIN) will flash.
5. Press the control knob and the PIN will be turned OFF.
6. To save and exit, press and hold down both Left Hand and Right Hand
buttons simultaneously.

Page 18
As a last resort, if you have forgotten your PIN and cannot gain access to your
EZiCaddy, there is a 4 digit PIN printed below:
7921
To have your distances and speeds display in imperial or metric measurements:
1. Turn off the power to your EZiCaddy.
2. Make sure that you are not in competition mode because this mode
stops you from viewing distances.
3. Press and hold down both Left Hand and Right Hand buttons
simultaneously for three seconds and the first feature that you can
change (Time) will flash slowly.
4. Press the right hand button and the next feature you can change
(COMP) will flash.
5. Press the right hand button again and the next feature you can change
(PIN) will flash.
6. Press the right hand button again and the final feature you can change
Yards/Metres will flash.
7. Press the control knob to toggle between “Metres” and “Yards”.
8. To save and exit, press and hold down both Left Hand and Right Hand
buttons simultaneously.

Page 19
Summary
Left Hand Button
Control Knob
Right Hand
Button
Combined
LH & RH
Toggles through
“Drive”,
“Approach”,
“Total Distance”
Press = Start or Stop
your EZiCaddy
Toggles
between
Clock Mode
and Elapsed
Time
Invokes Menu
Mode and allows
you access to:
Hold for 3
seconds (when
on “Drive”) to
zero “Drive” and
zero “Approach”.
Rotate (when
moving) to increase
or decrease the
power
Hold for 3
seconds to
zero elapsed
time
Hold for 3
seconds (when
on “Approach”)
to zero
“Approach”.
Doesn’t affect
“Drive”
Hold for 3 seconds,
when your EZiCaddy
is stationary to
invoke ADF.
Rotate to select
your desired
distance.
Change Clock
Toggle
Competition
mode
Toggle PIN
ON/OFF
Select IMPERIAL
or METRIC
Rotate or press,
when in menu mode,
for scrolling or
selecting.

Page 20
EZiCaddy Contact us via:
Unit 4L Sparrow Way
Freephone 0800 849 1345
Lakesview International Business Park
International [phone]
Canterbury Kent CT3 4JH
eMail: [email protected]
United Kingdom www.ezicaddy.com
EZi5 Manual v 1.06 A5 booklet
