Overview
T36 Wi-Fi Relay is a small form factor 2-channel smart switch with power measurement,
which allows remote control of electric appliances through a mobile phone, tablet, PC, or
home automation system. It can work standalone in a local Wi-Fi network or it can also be
operated through cloud home automation services.
It can be accessed, controlled and monitored remotely from any place where the user has
internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind power buttons and light
switches or other places with limited space.
1� Package Contents
Wi-Fi Relay (x1)
Pin (x1) Regulatory Information (x1) Quick Start Guide (x1)
All device's appearances are subject to the one you have bought.
2
2� Basics
Basic Wiring Diagram

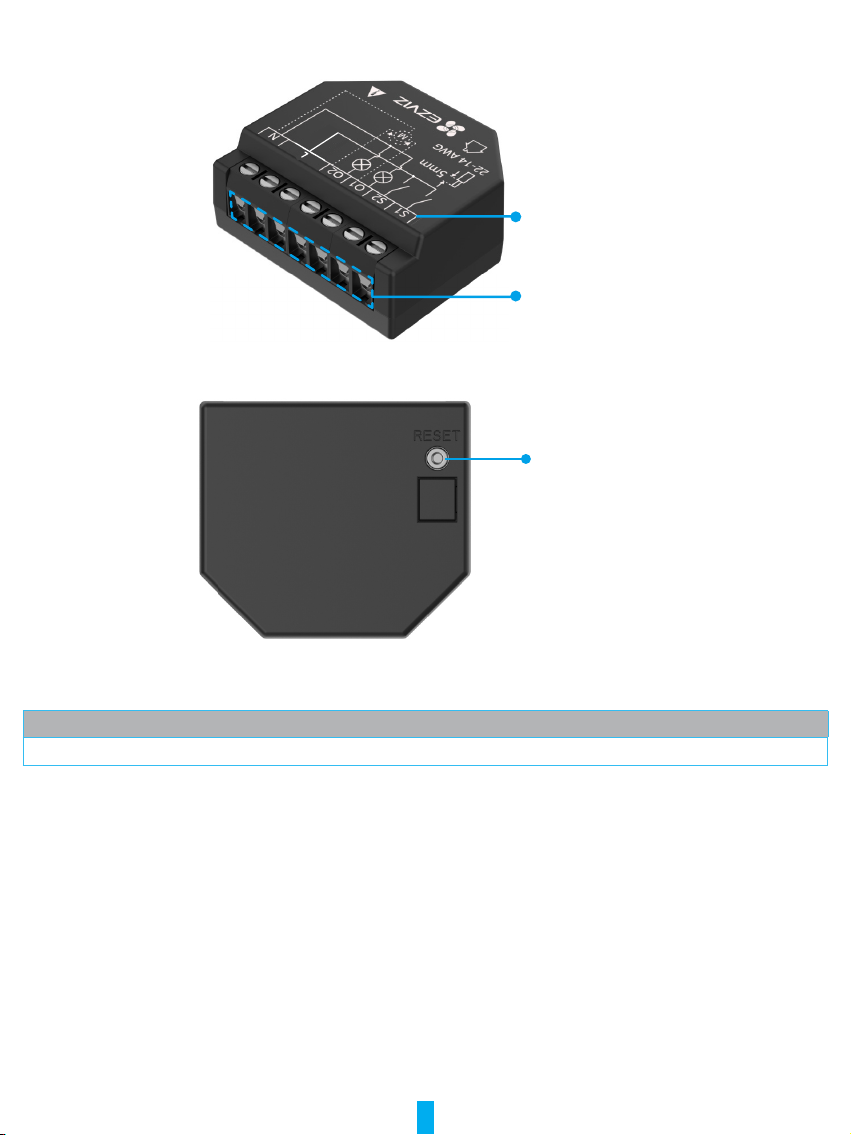

Wiring Terminals
Front View
RESET Button
Back View
* RESET Button
Use the pin to poke the RESET button for 5s, the device will restore to factory settings.
3
Get the EZVIZ App
1. Connect your mobile phone to Wi-Fi (suggested).
2. Download and install the EZVIZ app by searching for “EZVIZ” in the App Store or
Google PlayTM.
3. Launch the app and register an EZVIZ user account.
EZVIZ App
If you have already used the app, please make sure that it is the latest version. To nd out if an
update is available, go to the app store and search for "EZVIZ".
Basic wiring diagram
Terminals Cables
NNeutral Terminal N Neutral Cable
LLive(100-240VAC) Terminals LLive(100V-240VAC) Cables
O1, O2 Load Circuit Output Terminals
S1, S2 Switch Input Terminals
4
Add Your Device to EZVIZ App
1. Log in to your account through EZVIZ app, tap the device adding icon and then the QR
code scanning interface will be displayed.
2. Scan the QR code on the back of the device or on the cover of the user manual.
Scan QR Code
3. Add the device by following the wizard on the App.
After adding successfully, the LED indicator of the device will be solid blue.
5
Device Installation
• Before installation, make sure that there the cable insulation is not damaged.
• Please make sure that the installation should be performed by a qualied electrician.
• Every change in the connections has to be done after ensuring there is no voltage present
at the Device terminals!
• Тhe Device may be connected to and may control electric circuits and appliances only if
they comply with the respective standards and safety norms!
• Do not connect the Device to appliances exceeding the given max load!
• Connect the Device only in the way shown in these instructions. Any other method could
cause damage and/or injury!
• Do not attempt to service or repair the Device yourself!

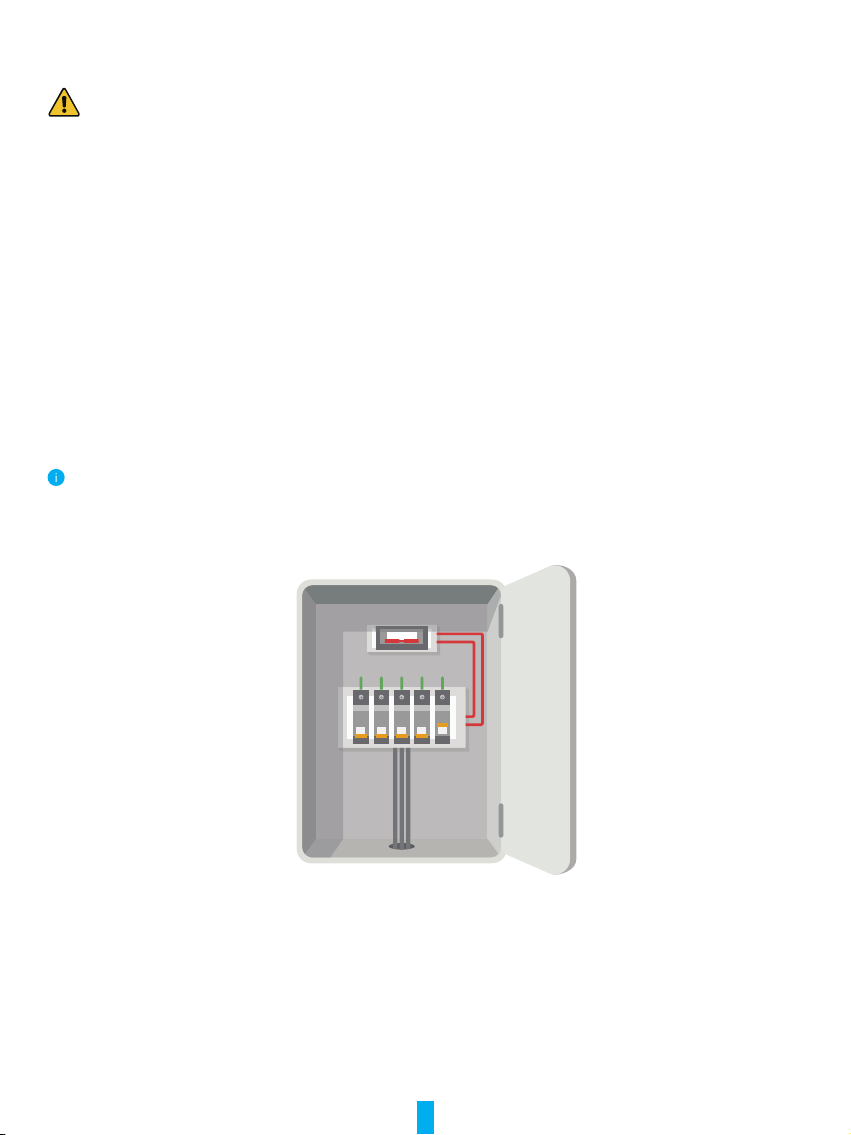

1� Cut the Power Off
Before mounting the device, turn the circuit breakers off, and use a phase tester or
multimeter to check whether there is no voltage on their terminals.
You can only proceed to mount and wire the device when you are sure that there is no voltage
on the device.
6
2� Connect the Wires
As a cover controller, the device can work in 2 modes: detached mode or dual input mode.
In detached mode, the device can be controlled through EZVIZ App only. Even if buttons
or switches are connected to the device, they will not be allowed to control the motor
rotation in detached mode.
For Switch Mode
Detached Mode
1. Connect both L terminals to the Live cable and
the N terminal to the Neutral cable.
2. Connect the rst load circuits to the O1 terminal
and the Neutral cable. Connect the second load
circuits to the O2 terminal and the Neutral cable.
Dual Input Mode
1. Connect both L terminals to the Live cable and
the N terminal to the Neutral cable.
2. Connect the rst load circuits to the O1 terminal
and the Neutral cable. Connect the second load
circuits to the O2 terminal and the Neutral cable.
3. Connect the rst button/switch to the S1 terminal
and the Live cable. Connect the second button/
switch to the S2 terminal and the Live cable.
• If the input is congured as a button in the Device Settings, each button press
cycles open, close, open, close...
• If the input is congured as a switch in the Device Settings, each switch toggle
cycles open, close, open, close...
7
For Motor Mode
Detached Mode
1. Connect both L terminals to the Live cable and
the N terminal to the Neutral cable.
2. Connect the common motor terminal/cable
to the Neutral cable. Connect motor direction
terminals/cables to the O1 and O2 terminals.
Dual Mode
1. Connect both L terminals to the Live cable and
the N terminal to the Neutral cable.
2. Connect the common motor terminal/cable
to the Neutral cable. Connect motor direction
terminals/cables to the O1 and O2 terminals.
3. Connect the rst button/switch to the S1 terminal
and the Live cable. Connect the second button/
switch to the S2 terminal and the Live cable.
In case the inputs are congured as buttons:
• Pressing a button when the motor is static, rotate the motor in the corresponding
direction until the endpoint is reached.
• Pressing the button for the same direction while the motor is rotating, stops the it.
• Pressing the button for the opposite direction, while the cover is rotating, reverses the
cover movement until the endpoint is reached.
In case the inputs are congured as switches:
• Turning a switch on moves the motor in the corresponding direction until an endpoint
is reached.Turning the switch off stops the motor rotation.
• If both switches are turned on, the Device will respect the last engaged switch.
Turning off the last engaged switch stops the motor rotation, even if the other switch
is still on.
• To rotate the motor in the opposite direction, the other switch has to be turned off and
on again.
8

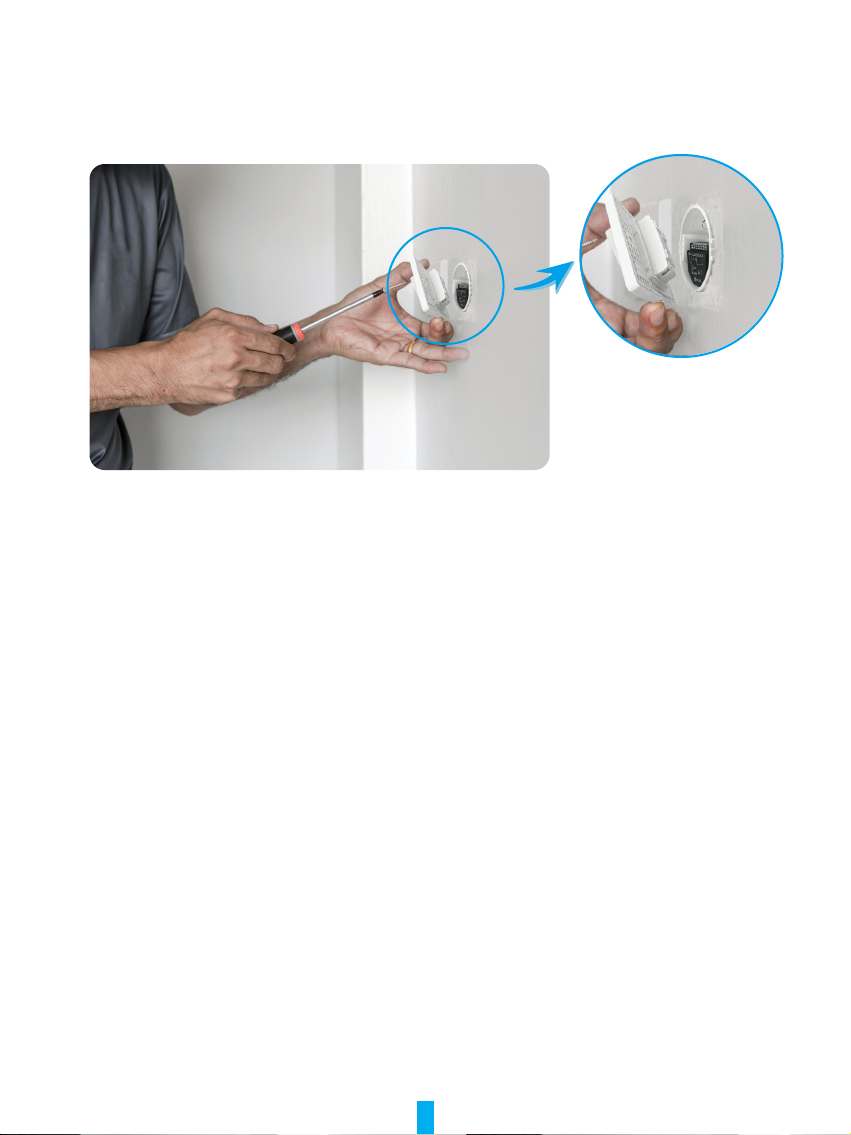

3� Install the Device
After the wiring is nished, install the device behind the switch or button by referring to
the following gure, and then use a screwdriver to tighten the switch or button, and the
installation is completed.
9
Operations on the EZVIZ App
The App interface may be different due to version update, and the interface of the App you
installed on your phone shall prevail.
1� Wi-Fi Relay Page
When you launch the EZVIZ app, you can manage your device as needed.
Icon Description
Settings. View or change the device settings.
Switch Mode. Tap to enter detailed page for switch mode. For detailed
information, please refer the following Switch Mode Page.
Motor Mode. Tap to enter detailed page for motor mode. For detailed
information, please refer the following Motor Mode Page.
10

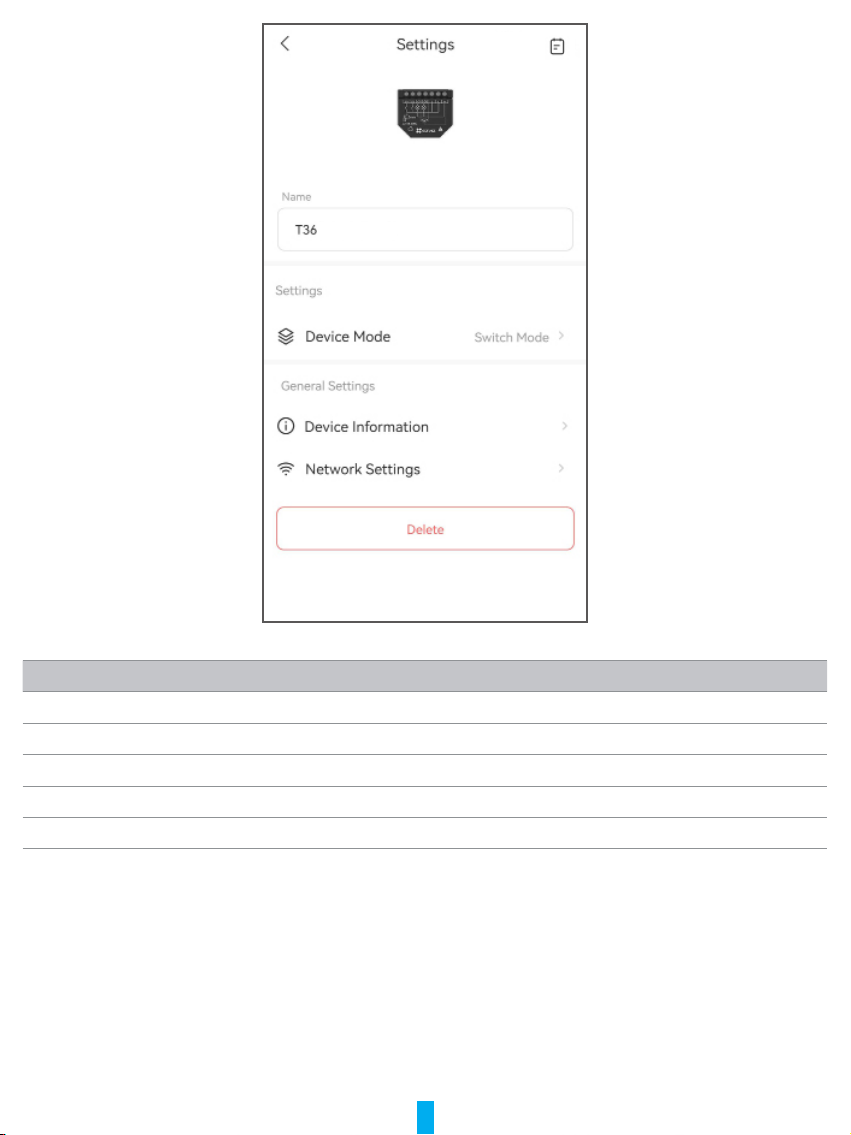

Parameter Description
Device Name Customize the name of your device.
Device Mode Select device mode for your device.
Device Information You can see the device information here.
Network Settings View the Wi-Fi your device connected.
Delete Tap to delete the device from EZVIZ App.
11
2� Switch Mode Page
Icon Description
Share. Share your device with anyone you want.
Settings. View or change the device settings.
Switch. Tap to Open/close the light.
Timer. Tap to set a scheduled plan.
Power Meter. Tap to view the power meter.
12
Parameter Description
Device Name Customize the name of your device.
Reverse Delay-
action Switch The device will be reversed automatically with a little time delay.
Device Type
Settings Set device input type and related parameters.
Security Settings Set power protection, voltage protection, current protection and the
max value of them.
Export History Data Tap to export history data to your email box.
Device Information You can see the device information here.
Share Device You can share the device to your family members or guests.
Delete Tap to delete the gateway from EZVIZ App.
13

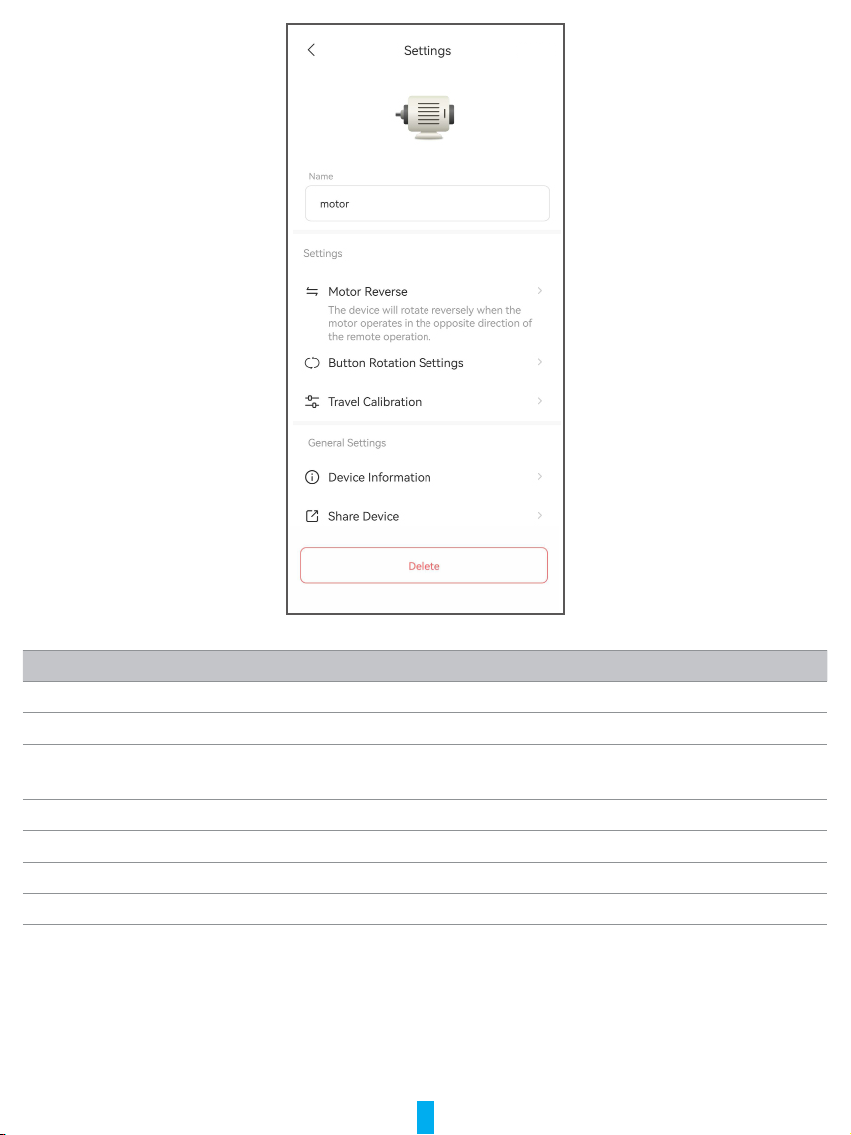

3� Motor Mode Page
Icon Description
Share. Share your device with anyone you want.
Settings. View or change the device settings.
Forward. Tap to control the motor to rotate forward.
Reverse. Tap to control the motor to reverse.
Pause. Tap to pause the rotation of the motor.
Timer. Tap to set a scheduled plan.
14
Parameter Description
Device Name Customize the name of your device.
Motor Reverse Tap to reverse the operation direction of the motor.
Button Rotation
Settings Set the execute operations for two buttons.
Travel Calibration The motor will calibrate once with one auto-rotation.
Device Information You can see the device information here.
Share Device You can share the device to your family members or guests.
Delete Tap to delete the device from EZVIZ App.
15
EZVIZ Connect
1� Use Amazon Alexa
These instructions will enable you to control your EZVIZ devices with Amazon Alexa. If
you run into any difculties during the process, please refer to Troubleshooting.
Before you start, make sure that:
1.EZVIZ devices are connected to the EZVIZ app.
2.In the EZVIZ app, turn off the "Video Encryption" and turn on the "Audio" in the Device
Settings page.
3.You have an Alexa-enabled device (i.e Echo Spot, Echo-Show, All-new Echo-Show, Fire TV
(all generations), Fire TV stick (second generation only), or Fire TV Edition smart TVs).
4. The Amazon Alexa app is already installed on your smart device, and you have created
an account.
To Control EZVIZ devices with Amazon Alexa:
1.Open the Alexa app and select "Skills and Games" from the menu.
2.On the Skills and Games screen, search for "EZVIZ", and you will nd "EZVIZ" skills.
3.Select your EZVIZ device's skill, then tap ENABLE TO USE.
4. Enter your EZVIZ username and password, and tap Sign in.
5.Tap the Authorize button to authorize Alexa to access your EZVIZ account, so that Alexa
can control your EZVIZ devices.
6.You will see "EZVIZ has been successfully linked", then tap DISCOVER DEVICES to allow
Alexa to discover all your EZVIZ devices.
7.Go back to Alexa app menu and select "Devices", and under devices you will see all your
EZVIZ devices.
Voice Command
Discover a new smart device via the "Smart Home" menu in the Alexa app or the Alexa
Voice Control function.
Once the device is found, you can control it with your voice. Speak simple commands to
Alexa.
Your device's name for example: "show xxxx camera," can be changed in the EZVIZ app. Each time
you change the name of the device, you will need to discover the device again to update the name.
Troubleshooting
What should I do if Alexa fails to discover my device?
Check if there are any Internet connecting problems.
Try to restart the smart device and re-discover the device on Alexa.
Why the device's status is "Offline" on Alexa?
Your device might have been disconnected from the network. Restart the smart device
and re-discover on Alexa.
Check if your router is connected to the Internet and try again.
For details about countries where Amazon Alexa is available, see Amazon Alexa's ofcial website.
16
2� Use Google Assistant
With the Google Assistant, you can activate your EZVIZ device and watch live by
speaking Google Assistant voice commands.
The following devices and apps are required:
1.A functional EZVIZ app.
2.In the EZVIZ app, turn off the "Video Encryption" and turn on the "Audio" in the Device
Settings page.
3.A TV with functional Chromecast connecting to it.
4. The Google Assistant app on your phone.
To get started, follow the steps below:
1.Set up the EZVIZ device and make sure it works properly on the app.
2.Download the Google Home app from the App Store or Google Play StoreTM and log into
your Google account.
3.On the Myhome screen, tap “+” on the upper-left corner, and select "Set up device" from
the menu list to go to the Set up interface.
4. Tap Works with Google, and search for "EZVIZ", where you will nd "EZVIZ" skills.
5.Enter your EZVIZ username and password, and tap Sign in.
6.Tap the Authorize button to authorize Google to access your EZVIZ account, so that
Google can control your EZVIZ devices.
7.Tap Return to app.
8.Follow the above steps to complete the authorization. When synchronization is completed,
EZVIZ service will be listed under your list of services. To see a list of compatible devices
under your EZVIZ account, tap on the EZVIZ service icon.
9.Now try some commands. Use the name of the camera that you created when you set
up the system.
Users can manage devices as a single entity or in a group. Adding devices to a room
allows users to control a group of devices at the same time using one command.
See the link for more information:
https://support.google.com/googlehome/answer/7029485?co=GENIE.
Platform%3DAndroid&hl=en
Amazon Alexa and Google Assisstant are not available for the device under Motor mode.
17
SPECIFICATION
Parameters Descriptions
Product Size(H*W*D) 43.8 ×38.5 ×18.5mm
Power Supply 100-240 VAC, 50/60 Hz
Power Metering Support
Electrical Consumption <1.5W
Working Temperature -10°C - 45°C
Controlling Elements 2 relays
Controlled Elements 2 circuits or a bi-directional AC motor
Max Switching Voltoge 250V AC
Max Cuurent Per Channel 10A
Total Max Current 16A
Wi-Fi Support
Radio Protocol Wi-Fi 802.11b/g/n
18
INFORMATION FOR PRIVATE HOUSEHOLDS
1. Separate collection of waste equipment: Electrical and electronic equipment that has become
waste is referred to as waste equipment. Owners of waste equipment must dispose of it separately
from unsorted municipal waste. In particular, waste equipment does not belong in household waste,
but in special collection and return systems.
2. Batteries and rechargeable batteries as well as lamps: Owners of waste equipment shall, as a rule,
separate waste batteries and rechargeable batteries that are not enclosed in the waste equipment,
which can be removed from the waste equipment without being destroyed, from the waste equipment
before handing them in at a collection point. This does not apply if waste equipment is prepared for
reuse with the participation of a public waste management authority.
3. Options for returning waste equipment: Owners of waste equipment from private households can
return it free of charge to the collection points of the public waste management authorities or to the
take-back points set up by manufacturers or distributors within the meaning of the Electrical and
Electronics Equipment Law. Stores with a sales area of at least 400 m² for electrical and electronic
equipment and those grocery stores with a total sales area of at least 800 m² that offer electrical
and electronic equipment several times a year or on a permanent basis and make it available in
the market are required to take it back. This also applies in the case of distribution using means of
distance communication, if the storage and shipping areas for electrical and electronic equipment
are at least 400 m² or the total storage and shipping areas are at least 800 m². Distributors shall, in
principle, ensure take-back by providing suitable return facilities at a reasonable distance from the
respective end user. The possibility of returning waste equipment free of charge exists for distributors
who are obliged to take it back, among other things, if a new similar device that essentially fullls the
same functions is delivered to an end user.
4. Privacy Notice: Waste equipment often contains sensitive personal data. This applies in particular
to devices of information and telecommunications technology such as computers and smartphones.
In your own interest, please note that each end user is responsible for deleting the data on the waste
equipment to be disposed of.
5. Meaning of the symbol “crossed-out wheelie bin”: The symbol of a crossed-out wheelie bin
regularly depicted on electrical and electronic equipment indicates that the respective device is to be
collected separately from unsorted municipal waste at the end of its service life.
Table of contents
