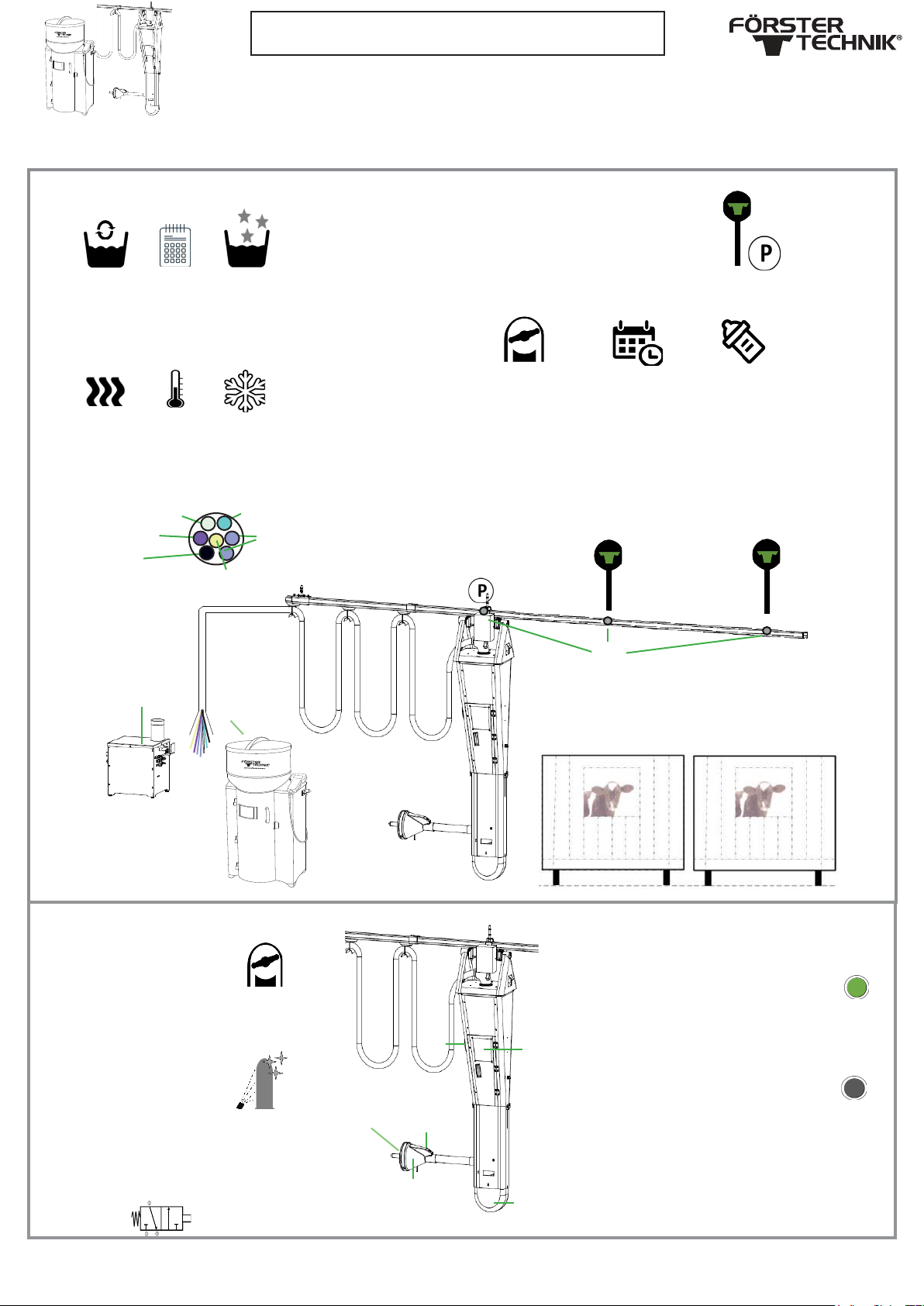

QUICK START GUIDE
CalfRail
7.1 Description of functions and feeding procedures
This checklist refers to the basic equipment of the CalfRail. Not all available functions can be shown.
For detailed information and valid warnings as well as safety instructions, please refer to the instructions manual. (Status 23/01)
This document offers a quick overview of the most important functions and processes.
Calf Feeder
Water heating CalfRail
Supplies the heating line with heated water
CalfRail
Guide rail CalfRail
Keeps hoses
warm
Heats the
system up
Frost protection
Prepared
freshly
Control &
Manage
Cleaning
Transports the
fresh feed
at xed feeding
times
Feeds all calves
one after another
Magnets mark calf positions where the
CalfRail stops for feeding as well as the
parking position of the CalfRail
Hose package
Feeding supply line Return line for cleaning
Heating line (supply and return line)
Line for cleaning the outside of the teat
CAN-Bus cable
Electricity cable
includes all necessary cables and lines
Transports the fresh feed
and cleaning liquids
Hose pump
The pump sprays the teat
down with water between
the feeding of each calf
Teat cleaning
1. to the teat during a feeding
2. to the return line for rinsing or
cleaning
3/2 directional valve switches
Runs the pump to help new calves
with their rst drinking attempts. In-
dicates by ashing when entitlement
is used up.
Feed button
Enables the move on to the next calf
before the waiting time is over
Continue button
Operated by the calf sucking on the teat
and starts the pump to deliver the feed
Suction sensor

12
13
14
This checklist refers to the basic equipment of the CalfRail. Not all available functions can be shown.
For detailed information and valid warnings as well as safety instructions, please refer to the instructions manual. (Status 23/01)
This document offers a quick overview of the most important functions and processes.
Process of CalfRail feeding
Feeding time Heats up the system
and hoses with warm
water
Prepares the feed
freshly and lls the
suction hose
Drives to rst calf Begins the feeding
Prepares new por-
tions interruption
free.
End of feeding
when the portion
is drunk or the
time is over.
Continues to
the next calf and
cleans the teat
inbetween
Feeds the next calf Prepares new por-
tions interruption
free
Feeding ends after
last calf Drives back to the
parking position
Calf Feeder rinses
all hoses with
water
When the last calf‘s entire
portion has been mixed, the
feeder only mixes water to keep
the hoses lled and transport
the last portion of milk to the
calf.
Automatic hose cleaning
Cleaning
time Prewash:
The calf feeder rinses
the lines with warm
water
Main rinse:
The lines are cleaned via
circulation cleaning and
detergent
Rinse:
The lines are cleaned
with clear water
(Option)
Good to know
Independent of the CalfRail cleaning,
the hoses are automatically lled with
rinsing water after each cleaning of
the machine.
The water bath heater not only keeps
the hoses warm. It also prevents the
system from freezing. Thanks to the
temperature sensor, the heater can
work independently.
