H&S Top Shot 5215 User manual

Manufactured By
H&S MANUFACTURING CO.,INC.
2608 S. HUME AVE. MARSHFIELD, WI 54449
[phone] | hsmfgco.com
WARNING
HSMFG1218 Part #79845
Revision #01
5215 Starting Serial #912TS15011
READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.
5215
OPERATOR’S MANUAL
Top Shot

CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . .13
Cap Screw Torque Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Set-Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-19
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-25
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-34
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-40
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Specications . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover

-1-

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.

(Remove Copy At Perforation)
-3-

Intentionally Left Blank
-4-

H&S DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
After the Top Shot has been completely set up, check to be certain it is in correct operating order
before delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item
as you have made the proper adjustments and found the item operating satisfactorily.
Top Shot was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
All bolts and fasteners are tight.
Top Shot has been correctly assembled according to instructions in this manual.
Wheel nuts and all other fasteners are tightly secured.
All grease ttings have been lubricated. Gearboxes are lled to proper levels if
applicable. See Lubrication Chapter of this manual for details.
Hoses and ttings are properly attached and there are no visible leaks.
Guards and shields are secure.
Wheels are properly mounted.
Tires are inated to correct pressure.
Chain tension is properly adjusted. See Adjustment Chapter of this manual.
Decals are in place and legible.
Connect the Top Shot onto a proper horsepower 540 RPM or 1000 RPM (if applicable)
tractor and attach the PTO. Connect the lights. Run the Top Shot and make sure all
components operate properly.
PTO guard turns freely.
Discharge door operates smoothly.
Main Auger operates up and down smoothly.
Hydraulic system does not leak under pressure.
Lights and wiring functioning properly.
Electronic Scale (if provided) operates properly.
Implement and all components are functioning properly.
-5-
(Remove Dealer File Copy At Perforation)
Inspection Date____________________ Model Number ______________________________
Serial Number______________________________________________
Dealer’s Name ________________________________________________________________
Signature of Pre-Delivery Inspector _______________________________________________

-6-
Intentionally Left Blank

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
This checklist that follows is an important reminder of valuable information that should be
passed on to the customer at the time this machine is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed assures the customer that the
Pre-Delivery Service was satisfactorily performed.
Explain to the customer that the Pre-Delivery Inspection was made.
Explain to the customer all the safety precautions they must exercise when operating this
unit.
Explain to customer that regular lubrication is required for proper operation and long life of
machine. Show customer the Lubrication Chapter of the Operator’s Manual.
Give the customer the Operator’s Manual and make sure they read and understand all
operating and service instructions.
Have customer sign a completed “Warranty Registration” and mail it promptly.





(Remove Dealer File Copy At Perforation)
-7-
H&S DEALER DELIVERY CHECKLIST
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.
Date Delivered __________________________________
Dealer’s Name _______________________________________________________________
By _________________________________________________________________________
Signature of Original Buyer _____________________________________________________

-8-
Intentionally Left Blank

BE
ALERT! YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS
MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
-9-
H&S MANUFACTURING CO., INC.
SAFETY INFORMATION

-10-
RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A single word - DANGER, WARNING, or CAUTION - is used
with the safety alert symbol. DANGER identies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

-11-

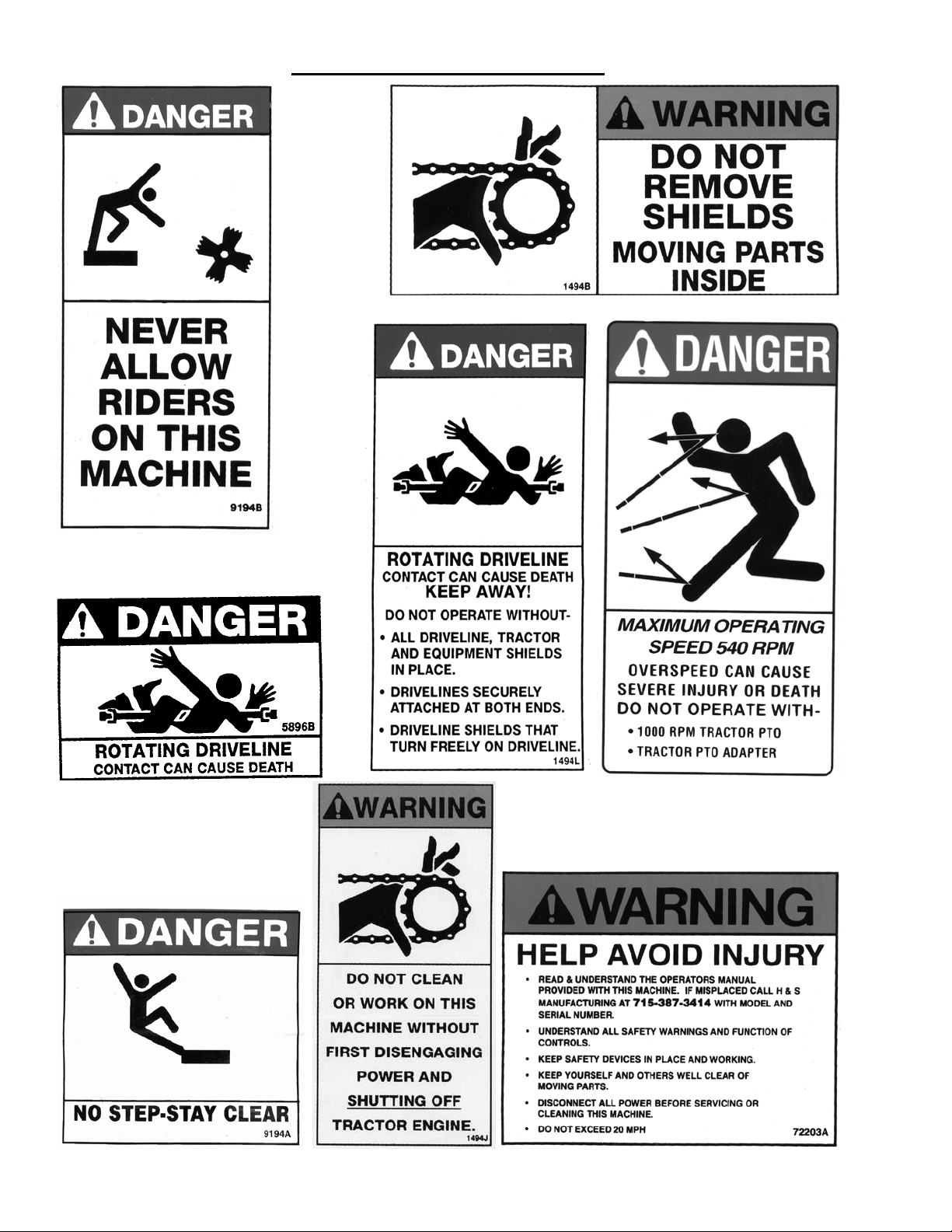

SAFETY INFORMATION

SAFETY INFORMATION
-12-

TRACTOR:
This Operators Manual uses the term “Tractor” when identifying the power source.
WARNING
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.
H&S Mfg. Co. always takes the operator and their safety into consideration and guards exposed moving
parts for their protection. However, some areas cannot be guarded or shielded in order to assure proper
operation. In addition, the Operators Manual and decals on the Top Shot itself warn you of further
danger and should be read and observed closely.
-13-
KNOW HOW TO STOP MACHINE BEFORE STARTING IT.
If the machine becomes clogged or needs servicing, stop the tractor engine, remove the ignition key,
and allow all mechanisms to stop. Before cleaning or working on the machine, detach the PTO shaft,
and completely disengage the tractor hydraulics.
DO NOT attempt to perform maintenance or repair with tractor running, and PTO, and hydraulic hoses
connected to the tractor.
DO NOT step up on the Top Shot at any time while in operation.
NEVER manually feed material into the expeller.
DO NOT allow minors to operate or be near the Top Shot.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE Top Shot.
STAY CLEAR of discharge expeller when in operation.
Keep hands, feet, and clothing away from all moving parts when the Top Shot is in operation.
Loose or oppy clothing should not be worn by the operator.
Be sure the Top Shot is clear of people, tools, and other objects before engaging PTO.
DO NOT step over PTO shaft: Stay clear of PTO at all times.
NEVER start the Top Shot until all guards and safety shields are secured in place.
NEVER operate the Top Shot with a PTO speed greater than the recommended PTO RPM.
STAY CLEAR of hydraulic lines as they may be under extreme pressure or heat.

-14-

WHEELS & TIRES
The Top Shot may be shipped without the wheels/tires installed.
1. Attach the wheels with tires using the lug nuts furnished, and torque the mounting hardware to
the appropriate torque listed in the Service Chapter. Check wheel bolts periodically thereafter.
2. Inate the tires to the appropriate pressure listed in the Service Chapter.
3. Check the Top Shot for proper assembly and adjustment and make sure that all bolts are
tightened.
4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.
5. Lubricate the Top Shot completely.
SET-UP & ASSEMBLY
-15-
WARNING: Some photographs used in the following pages show guards or
shields removed for clarication. Never operate machine until these guards or
shields are in proper operating position.
NOTE: Determine right or left side of the Manure Spreader by viewing it from the rear. If instructions
or parts lists call for hardened bolts, refer to the Cap Screw Torque Value page to identify.

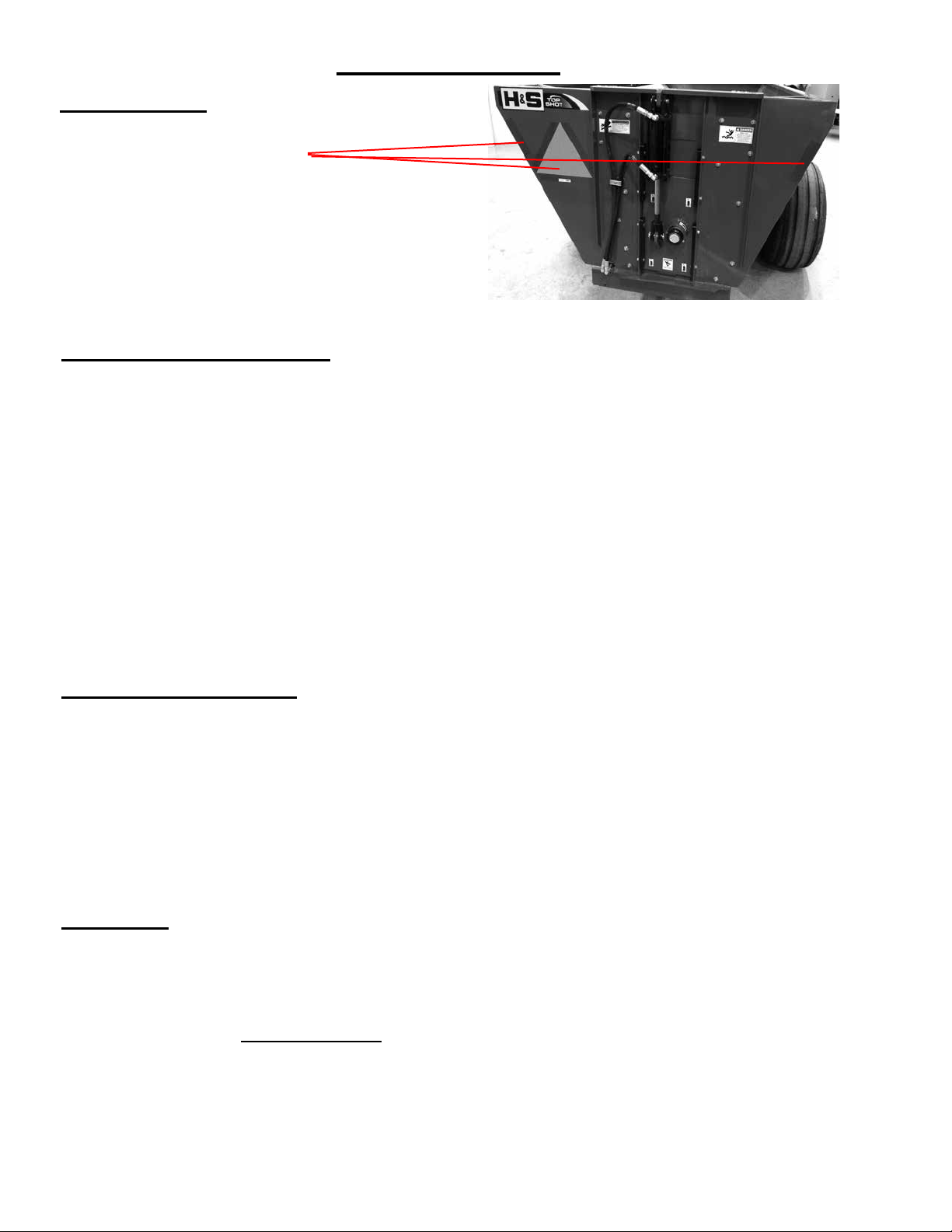

REFLECTORS
TRANSPORTING
SAFETY CHAIN (Optional)
Follow state and local regulations regarding use of a safety chain and transport lighting when towing
farm equipment on public highways. A proper safety chain should be used to retain the safety connection
between the towing and towed machines in the event of separation of the primary attaching system. Check
with local law enforcement agencies for your own particular regulations. Unless otherwise prohibited,
use a slow-moving vehicle emblem. Never tow the Top Shot on a public highway at a speed greater than
20 mph (32 kph).
As required or when desired, the Top Shot can be equipped with a safety chain for travel on public highways.
1. Chain has su󰀩cient slack to allow turns and movements of either the tractor or the Top Shot
without placing tension on the chain.
2. Chain is of su󰀩cient strength to hold the decoupled implement (and its load) and tow it to the
shoulder.
TOWING ON HIGHWAY
To view beyond the back of the larger trailer-mounted Top Shot when transporting the unit on a public
highway, consider obtaining and installing a rearview mirror on your tractor with a wide load mounting
bracket.
Red reective safety decals and an SMV sign are
on the rear of the tank for safety.
STORAGE
Because the Top Shot is likely to be used year-round, it should be in ready-to-operate condition at
all times. Several provisions have been designed into the Top Shot to enable it to be used in cold,
moderate, and warm outside temperatures. The most important factor for continuous proper operation
is lubrication. When operating the Top Shot in freezing temperatures, the unit should be stored inside,
if possible. Refer to the Operation Chapter for special operating procedures in freezing temperatures.
-16-

PREPARING FOR OPERATION
Proper operation of a loaded Top Shot requires a tractor with su󰀩cient horsepower to run the PTO and
proper size to counterbalance the weight of a loaded Top Shot.
Before loading material, adjust the hitch clevis to your tractor in order to obtain a level or forward
position of the Top Shot tank. The hitch clevis mounting plate has several sets of mounting holes to
level theTop Shot for proper material delivery to the expeller. If additional positioning is required, turn the
clevis assembly upside-down to obtain additional adjustment. If theTop Shot is going to be operated in
freezing temperatures, review and comply with recommendations in the Operation Chapter, under the
Winter Operation section.
PREPARING TOP SHOT
Properly lubricate the Top Shot, check automatic oiler level and ll if necessary before operating. Refer
to Lubrication Section of this Operator’s Manual for locations.
-17-

PREPARING FOR OPERATION
TRACTION CONNECTIONS
Tractor Hitch
1. The hitch of the Top Shot is designed for a standardized tractor hitch. Adjust the drawbar so that it
is 13 to 17 inches above the ground.
2. Extend or shorten it so that the horizontal distance from the end of the tractor power takeo󰀨 shaft to
the center of the hitch pin hole is 14 inches for 540 RPM PTO and 15-3/4” for 1000 RPM PTO as
shown in drawing. An improperly located hitch point may cause damage to the universal joints of the
power takeo󰀨.
3. Secure the drawbar so that the hitch pin hole is directly below the power drive line. Fasten the
Top Shot to the tractor drawbar with an appropriate hitch pin with safety locking device. After the
connection is made, remove the hitch jack and secure it to the “Storage Position” on the left side of
the Spreader.
If the Top Shot is attached to a tractor with a clevis
hitch (hammer-strap) style drawbar, the hammer-strap
must be removed to prevent damage to the IID guard-
ing and the IID telescoping members. [SeeFigure1]
If the Top Shot is attached to a tractor with an oset
in the drawbar, be certain it is in the down position
to prevent damage to the IID guarding and the IID
telescoping members. [See Figure 2]
-18-
