FAAC DOMOLINK User manual

6
1) ATTENTION! To ensure the safety of people, it is important that you read
all the following instructions. Incorrect installation or incorrect use of
the product could cause serious harm to people.
2) Carefully read the instructions before beginning to install the product.
3) Do not leave packing materials (plastic, polystyrene, etc.) within reach
of children as such materials are potential sources of danger.
4) Store these instructions for future reference.
5) This product was designed and built strictly for the use indicated in this
documentation. Any other use, not expressly indicated here, could
compromise the good condition/operation of the product and/or be a
source of danger.
6) FAAC declines all liability caused by improper use or use other than that
for which the automated system was intended.
7) Do not install the equipment in an explosive atmosphere: the presence
of inflammable gas or fumes is a serious danger to safety.
8) The mechanical parts must conform to the provisions of Standards EN
12604 and EN 12605.
For non-EU countries, to obtain an adequate level of safety, the Standards
mentioned above must be observed, in addition to national legal
regulations.
9) FAAC is not responsible for failure to observe Good Technique in the
construction of the closing elements to be motorised, or for any
deformation that may occur during use.
10) The installation must conform to Standards EN 12453 and EN 12445.
For non-EU countries, to obtain an adequate level of safety, the Standards
mentioned above must be observed, in addition to national legal
regulations.
11) Before attempting any job on the system, cut out electrical power and
disconnect the batteries (if provided).
12) The mains power supply of the automated system must be fitted with an
all-pole switch with contact opening distance of 3mm or greater. Use
of a 6A thermal breaker with all-pole circuit break is recommended.
13) Make sure that a differential switch with threshold of 0.03 A is fitted
upstream of the system.
14) Make sure that the earthing system is perfectly constructed, and connect
metal parts of the means of the closure to it.
EC DECLARATION OF CONFORMITY FOR MACHINES
(DIRECTIVE 98/37/EC)
Manufacturer: FAAC S.p.A.
Address: Via Benini, 1 - 40069 Zola Predosa BOLOGNA - ITALY
Declares that: DOMOLINK mod. operator
• is built to be integrated into a machine or to be assembled with other machinery to create a machine under the
provisions of Directive 98/37/EC;
• conforms to the essential safety requirements of the following EEC directives:
73/23/EEC and subsequent amendment 93/68/EEC.
89/336/EEC and subsequent amendment 92/31/EEC and 93/68/EEC
and also declares that it is prohibited to put into service the machinery until the machine in which it will be
integrated or of which it will become a component has been identified and declared as conforming to the
conditions of Directive 98/37/EC.
Bologna, 01 January 2004
The Managing Director
A. Bassi
15) The automated system is supplied with an intrinsic anti-crushing safety
device consisting of a torque control. Nevertheless, its tripping threshold
must be checked as specified in the Standards indicated at point 10.
16) The safety devices (EN 12978 standard) protect any danger areas
against mechanical movement Risks, such as crushing, dragging,
and shearing.
17) Use of at least one indicator-light (e.g. FAACLIGHT 12VDC) is
recommended for every system, as well as a warning sign adequately
secured to the frame structure, in addition to the devices mentioned
at point “16”.
18) FAAC declines all liability as concerns safety and efficient operation
of the automated system, if system components not produced by
FAAC are used.
19) For maintenance, strictly use original parts by FAAC.
20) Do not in any way modify the components of the automated system.
21) The installer shall supply all information concerning manual operation
of the system in case of an emergency, and shall hand over to the
user the warnings handbook supplied with the product.
22) Do not allow children or adults to stay near the product while it is
operating.
23) Keep remote controls or other pulse generators away from children,
to prevent the automated system from being activated involuntarily.
24) Transit is permitted only when the automated system is idle.
25) The user must not attempt any kind of repair or direct action whatever
and contact qualified personnel only.
26) Do not short-circuit the poles of the batteries and do not try to recharge
the batteries with power supply units other than those provided with the
equipment (in the battery—powered version).
27) Do not throw exhausted batteries into containers for other waste but
dispose of them in the appropriate containers to enable them to be
recycled. Disposal costs have already been paid for by the
manufacturer (in the battery—powered version).
28) Maintenance: check at least every 6 months the efficiency of the
system, particularly the efficiency of the safety devices (including,
where foreseen, the operator thrust force) and of the release devices.
29) Anything not expressly specified in these instructions is not permitted.
WARNINGS FOR THE INSTALLER
GENERAL SAFETY OBLIGATIONS

7
These instructions apply to the following model:
FAAC DOMOLINK
The DOMOLINK automated system can automate residential swing gates with leaves of up to 1.8 m in length with 120° max.
opening.
It consists of non-reversing electro-mechanical articulated operators, powered by 12 Vdc, and each operator is coupled to a
control unit. The non-reversing system guarantees the gate will automatically lock when the motor is not operating. A release
system enables the gate to be moved by hand in case of malfunction.
The DOMOLINK automated system was designed and built for controlling vehicle access. Do not use for any other purpose.
DOMOLINK automated system
MODEL DOMOLINK battery DOMOLINK transformer
Power supply 12Vdc
Rated absorbed power (W) 48
Max torque (Nm) 70
Max load-free angular speed (°/sec) 23 (0.4 rad/sec)
Use frequency (cycles/hour) 5(1) 15 (2)
Consecutive cycles ~15 (1) 30 (2)
Recovery time ~10' for each completed cycle(1) 2' for each completed cycle(2)
Type of reduction gear epicycloid
Operating ambient temperature (°C) -20 ÷ +55
Operator weight (Kg) 2.8
Protection class IP 44
Leaf max length (m) 1.80
Leaf max weight (kg) 250
Operator overall dimensions LxHxD (mm) see fig.2
Length of operator power cable (m) 0.7 (CANNOT BE MODIFIED)
Tab. 1 - Technical specifications of DOMOLINK operator
3. TECHNICAL SPECIFICATIONS
(1) The 5 cycles/hour are just a reference value for maintaining full efficiency of batteries. 15 consecutive cycles can be averagely
performed with charged battery. The recovery time (battery recharge) is approx. 10' each cycle performed. The consecutive cycles
could be reduced by over 50% at low temperatures (< 0°C).
Fig. 1
1. DESCRIPTION 2. DIMENSIONS
a DOMOLINK operator
b Rear fitting
c Front fitting
d Release




Fig. 2
• Dimensions in mm
DOMOLINK
OPERATOR
(2) The 15 cycles/hour are just a reference value for maintaining full efficiency of motorisation. 30 consecutive cycles can be performed
with software thermal protection. Recovery time is 2' each cycle performed.

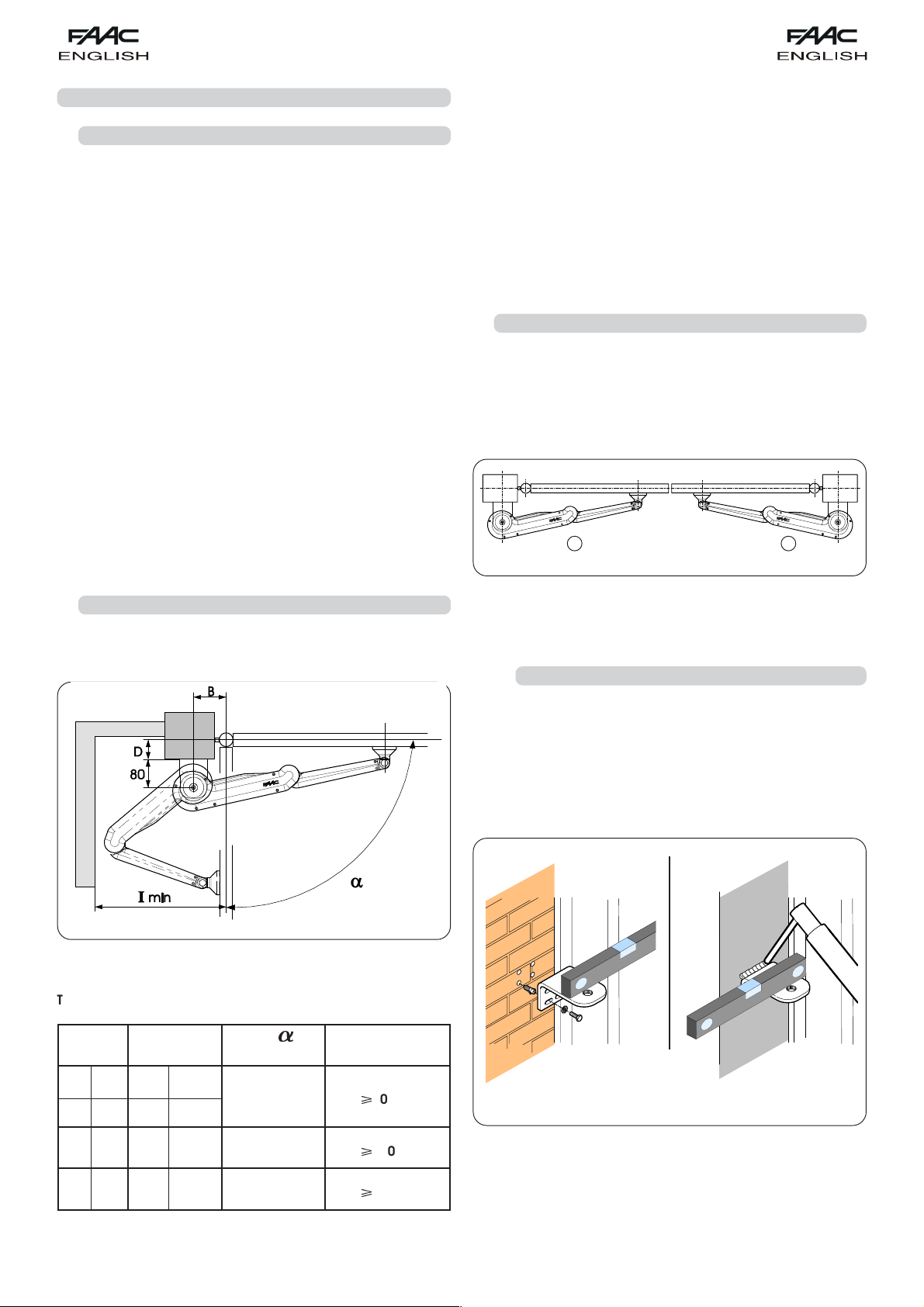

8
LH
Fig. 4
RH
4.3. Installation sequence
The DOMOLINK operator is available in 2 versions, designed for
installation according to leaf opening direction:
RIGHT DOMOLINK for right side installation (Fig. 4 - RH)
LEFT DOMOLINK for left side installation (Fig. 4 - LH)
4.2. Installation dimensions
Establish the installation position of the operator by referring to
Fig. 3 and Table 2.
4. INSTALLATION
4.1. Preliminary checks
To ensure safety and an efficiently operating automated system,
make sure the following conditions are observed:
•The enclosures of the control boards (see relevant
instructions) should be installed at a distance from the
operators not requiring the motor cable to be extended.
•The structure of the gate must be suitable for being
automated. In particular, check that the structure is
sufficiently strong and rigid, and that its dimensions and
weight conform to those indicated in the technical
specifications.
•Make sure that the leaves move uniformly and correctly,
without any irregular friction during their entire travel.
•Make sure that the hinges are in good condition.
•Check if the mechanical stops of the limit-switches are
fitted.
•Remove any locks and lock bolts.
We advise you to have any metalwork carried out before the
automated system is installed.
To select the dimensions, we advise you to measure dimension
D first and then position the rear fitting, using dimension B
among those indicated in Table 2.
Note: Carefully check that the distance between the leaf
hinge and any obstacles (wall, fencing, etc.) is greater
than or equal to min dimension I (Fig. 3) referring to the
selected opening angle, so that it does not interfere
with the opening movement of the operator.
Fig. 3
• Dimensions in mm
Dimension D Dimension B Angle a Dimension Imin.
from to from to
30 160 100 160
90° O 400
160 200 100 110
30 80 160 200 110° O 500
30 50 180 200 120° O 560
Tab. 2 - Installation dimensions
• Dimensions in mm
Fig. 5
4.3.1 Installing the rear fitting
Secure the rear fitting to the pillar by welding or using suitable
expansion plugs (Fig. 5), observing the dimension as shown in
Fig. 3 and Table 2 and checking if the fitting is perfectly
horizontal.
Ü The rear fitting must never be cut and must face
downwards.

9
4.3.7 Locking the operators
Re-lock the operators as shown in Fig. 11, making sure that the
three rotation points are well aligned (see Fig. 8).
Fig. 11
LOCKS LOCKS
Fig. 10
Fig. 9
Fig. 6
LH RH
The fitting can be either welded directly to the leaf, or screwed
on, using the threaded inserts (Fig. 9).
4.3.5 Installing the front fitting
4.3.4 Positioning the front fitting
•Take the leaf to its closed position.
•Temporarily secure the front fitting to the fully extended
operator with the 3 rotation points aligned (Fig. 8). Rest the
fitting on the leaf and mark out the fixing points. Check if the
operator and fitting are perfectly horizontal.
4.3.3 Releasing the operators
Release the operator as shown in Fig. 7.
Secure the operator to the rear fitting, with the nut and washer
(Fig. 6) tafking care to fit the toothed part correctly.
ÜThe rear fitting must never be cut and it must face
downwards with its pillar fixing points.
4.3.2 Installing the operator-rear fitting
Fasten the operator to the front fitting as shown in Fig. 10.
4.3.6 Installing the operator-front fitting
Fig. 7
RELEASES RELEASES
Fig. 8

10
6. RESTORING NORMAL OPERATION MODE
If you wish to relock the gate, use the release/locking device
as follows:
Fit the supplied Allen wrench and turn anti-clockwise until
it stops (Fig. 12 Ref.). Put back the protective cap.
5. MANUAL OPERATION
If the gate has to be moved manually due to a malfunction of
the automated system, use the release/locking device as
follows:
•Remove the protective cap from the release screw, fit the
supplied Allen wrench and turn clockwise until it stops (Fig. 12
Ref ).
•Pull in the operator’s ‘elbow’ zone and open the gate (Fig. 12
Ref. ).
Fig. 12
RELEASES LOCKS RELEASES LOCKS
a
b
a
LH RH
b

User’s guide
Read the instructions carefully before using the product and
store them for future use
GENERAL SAFETY REGULATIONS
If correctly installed and used, the DOMOLINK automated
system ensures a high degree of safety.
Some simple rules concerning behaviour can prevent
accidental trouble:
- Do not pass through the leaves while they are moving.
Wait for the leaves to open fully before passing through.
- Do not, on any account, stand between the leaves.
- Do not stand near the automated system or allow children,
persons or things to stand or lie there, especially while it is
in use.
- Keep remote controls or other pulse generators away
from children, to prevent the automated system from
being activated involuntarily.
- Do not allow children to play with the automated system.
- Do not willingly obstruct leaf movement.
- Prevent any branches or shrubs from interfering with leaf
movement.
- Keep indicator-lights efficient and easy to see.
- Do not attempt to activate the leaves by hand unless you
have released them.
- In the event of a malfunction, release the leaves to allow
access and wait for qualified technical personnel to do
the necessary work.
- Before attempting any job on the system, cut out electrical
power and disconnect the batteries (if provided).
- Do not in any way modify the components of the
automated system.
- Do not attempt any kind of repair or direct action whatever
and contact qualified personnel only for the purpose.
- At least every six months: arrange a check by qualified
personnel of the automated system, safety devices and
accessories.
DESCRIPTION
These instructions apply to the following models:
FAAC DOMOLINK
The FAAC DOMOLINK automated system for residential
swing gates consists of non-reversing electro-mechanical
linear operators, powered by 12 Vdc, through battery or
transformer. Each operator is coupled to an electronic
control unit ensuring correct operation
If using the battery-powered version, it should be considered
that this is a work battery (not a back-up battery) therefore
when the battery is discharged, the automated system has
to allow for its recharge in order to resume operation.
The operators are controlled by an electronic control unit
(one for each motor), housed in an enclosure with adequate
degree of protection against atmospheric agents.
The leaves are normally in closed position.
When the electronic control unit receives an opening
command via the remote control or any other pulse
generator, it activates the operator to rotate the leaves
until they reach the opening position allowing access.
If automatic operating mode was set, the leaves closes
automatically after selected pause time has elapsed.
If the semi-automatic operating mode was set, a second
pulse must be sent to close the gate again.
A stop pulse (if supplied) always stops movement.
For details on the behaviour of the automated system in
different function logics, consult the installation Technician.
Automated systems may include safety devices that prevent
the leaves from moving when there is an obstacle in the
area they protect.
The DOMOLINK automated system is provided with an
adjustable anti-crushing device which reverses leaf
movement in case of contact with an obstacle.
The warning-light indicates that the leaves are moving.
MANUAL OPERATION
If the gate has to be moved manually due to a malfunction of
the automated system, use the release/locking device as
follows:
•Remove the protective cap from the release screw, fit the
supplied Allen wrench and turn clockwise until it stops (Fig.1
Ref. ).
•Pull in the operator’s ‘elbow’ zone and open the gate (Fig. 1
Ref. ).
RESTORING NORMAL OPERATION MODE
•Fit the supplied Allen wrench and turn anti-clockwise until
it stops (Fig. 1 Ref. ). Put back the protective cap.
DOMOLINK AUTOMATED SYSTEM
Fig. 1
RELEASES LOCKS RELEASES LOCKS
a
b
a
LH RH
b
