Faber e-MatriX 800 User manual

7216170100R01
e-MatriX 800/650 (32" x 26")
1, 2, 3-Sided Electric Fireplace
Models FEF3226L1, FEF3226L2L, FEF3226L2R, FEF3226L3
Owner’s Manual
IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting to install or
use the e-MatriX Electric Fireplace. Always comply with the warnings and safety instructions
contained in this manual to prevent personal injury or property damage.
To view the full line of Faber products, visit www.faberre.com

2 www.faberre.com
Table of Contents
Conventions used in this manual:
!NOTE: Procedures and techniques considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage
to the equipment.
WARNING: Procedures, precautions, and techniques which, if not carefully followed, will expose
the user to the risk of re, serious injury, or death.
Welcome ................................................................................................................ 3
IMPORTANT INSTRUCTIONS ............................................................................ 4
Specications ......................................................................................................... 5
Installation .............................................................................................................. 8
Operation .............................................................................................................. 17
Maintenance ......................................................................................................... 19
Troubleshooting .................................................................................................... 23
Electrical ...............................................................................................................24
Warranty ............................................................................................................... 27
Technical Support ................................................................................................. 28
SAVE THESE INSTRUCTIONS

3
CAUTION: Read all instructions and warnings
carefully before starting installation. Failure to
follow these instructions may result in a possible
electric shock or re hazard and will void
the warranty. Only have the fireplace installed by
a qualified installer according to local water and
electric safety regulations.
Thank you for purchasing the Faber e-MatriX
Electric Fireplace. Please use our convenient online
registration page to record your model and serial
numbers for future reference at:
www.faberre.com/register
Model and serial numbers
are found under the logset
Welcome
Before installation, check the e-MatriX fireplace for
transport damage and report immediately to your
supplier. Make sure all items below are included:
• Control box
• Remote
• Decoration material (artificial ash and chips)
• Suction cups (2x)

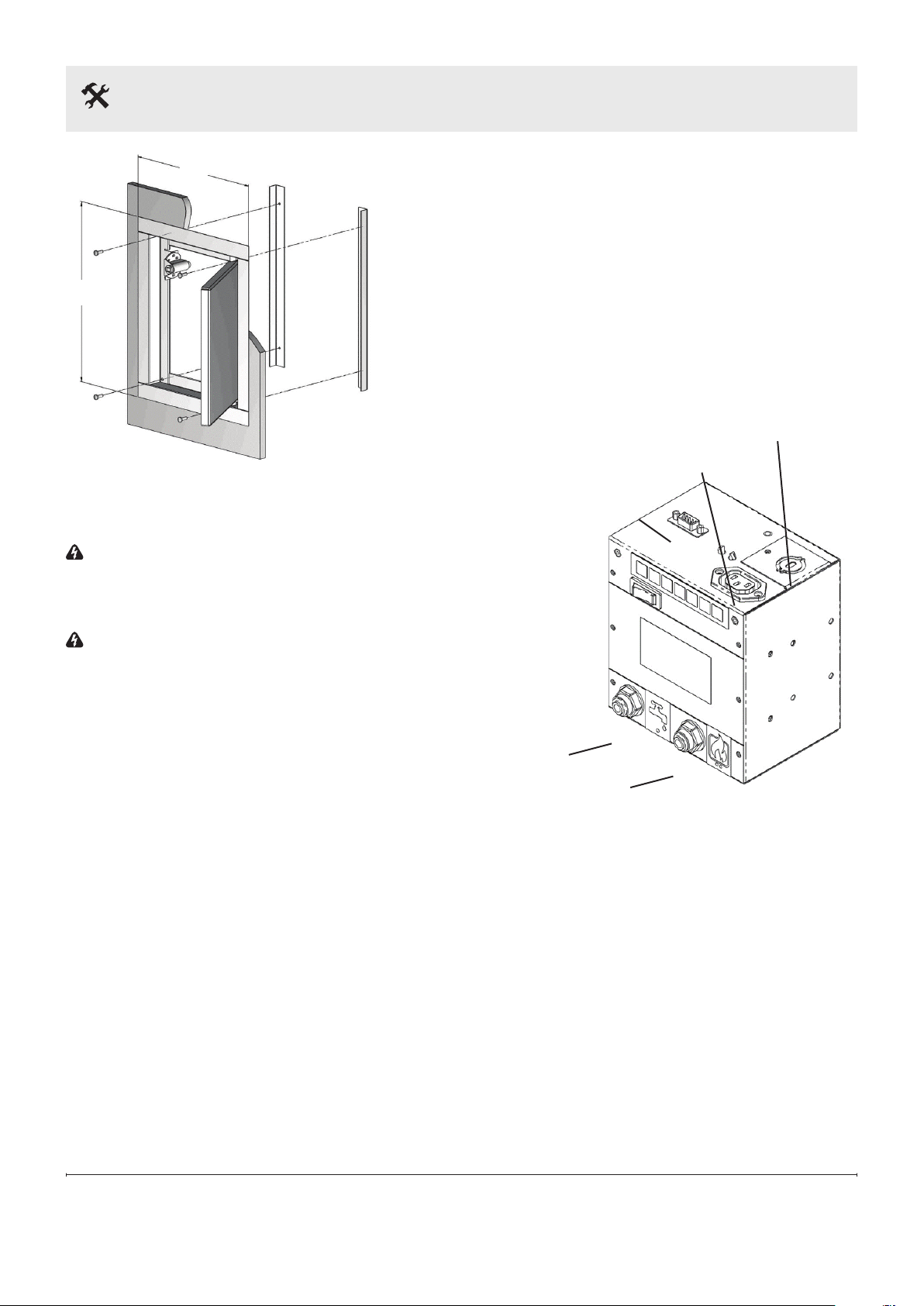

• Service door
• Spare transducers (2x)
• Absorption pill
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at:  www.faberre.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
In order to better serve you, please have your model and serial numbers ready.
270 W, 120 V ~, 60 Hz
AIR HEATER
CHAUFFE-AIR
CALENTADOR DE AIRE
146Y
E71416
FOR USE IN INDOOR DRY LOCATION ONLY
POUR USAGE DANS DES ENDROITS SECS A L'INTERIEUR SEULEMENT
PARA EL USO EN LOCALIZACIONES SECAS DE INTERIOR SOLAMENTE
0011911GDB 001
71229400400R01
THIS PRODUCT MAY BE COVERED BY ONE OR MORE U.S. PATENTS OR PENDING PATENT APPLICATIONS. SEE WWW.DIMPLEX.COM/PATENTS
FOR DETAILS.
CE PRODUIT PEUT ÊTRE PROTÉGÉ PAR UN OU PLUSIEURS BREVETS AMÉRICAINS OU DES APPLICATIONS DE BREVET EN ATTENTE. VISITEZ
WWW.DIMPLEX.COM/PATENTS POUR PLUS D'INFORMATIONS.
ESTE PRODUCTO PUEDE ESTAR CUBIERTO POR UNA O MÁS PATENTES DE ESTADOS UNIDOS O SOLICITUDES DE PATENTES PENDIENTES.
VER WWW.DIMPLEX.COM/PATENTS PARA OBTENER MÁS DETALLES.
MOD

4 www.faberre.com
For your safety, always comply with all warnings and
safety instructions contained in this manual to prevent
personal injury or property damage.
When using any electrical appliance, basic
precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons. These
precautions include:
!NOTE: For the purposes of certication the
replace is considered a heater. The heat output
is minimal and should not be consider a source of
supplemental heat.
① Read all instructions before using the unit.
② Do not operate any unit if the unit has been dropped
or damaged in any manner. Contact Technical
Service at 1-888-346-7539.
③ Do not use outdoors.
④ Extreme caution is necessary when any heater is
used by or near children or invalids and whenever
the heater is left operating and unattended.
⑤ Do not operate any heater after it malfunctions.
Disconnect power at service panel and have heater
inspected by a reputable electrician before reusing.
⑥ To disconnect the unit, turn the controls OFF,
disconnect power at the service panel.
⑦ Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or re.
⑧ To prevent a possible re, do not block air intakes or
exhaust in any manner.
IMPORTANT INSTRUCTIONS
⑨ All electrical heaters have hot and arching or
sparking parts inside. Do not use in areas where
gasoline, paint, or ammable liquids are used
or stored.
⑩ Do not modify the unit. Use it only as described in
this manual. Any other use not recommended by the
manufacturer may cause re, electric shock or injury
to persons.
⑪ Do not burn wood or other materials in the unit.
⑫ Always use a certied electrician should new circuits
or outlets be required.
⑬ Disconnect the power supply before performing any
cleaning, maintenance or relocation of the unit.
⑭When transporting or storing the unit, keep in a dry
place, free from excessive vibration and store so as
to avoid damage.
⑮ Do not modify this fireplace. Use it only as
described in this manual. Any other use may
cause fire, electric shock, or injury to persons.
WARNING: Remote control contains small batteries.
Keep away from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery backwards,
charge, put in re, or mix with used or other battery
types may explode or leak causing injury.
!NOTE: Changes or modications not expressly
approved by the party responsible for compliance
could void user's authority to operate the equipment.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS

5
The e-MatriX Electric Fireplace offers an alternative to
a wood or gas fireplace.
Electrical
Volts 120 V
60 Hz
Amps 2.25 A @ 25o C
Watts 270 W @ 25o C
Wiring Hardwire
Bulb Type LED
Approvals
Batteries Remote (2x) 1.5V AA
Water Consumption 0.30 l/hr
Inlet Water Pressure 8-110 psi
Water Connection ¼" water line or
¾" female
NOTE: A 15 A circuit is required. A dedicated
circuit is preferred, but not essential in all cases.
A dedicated circuit will be required if, after
installation, the circuit breaker trips or the fuse
blows on a regular basis when the heater is
operating. Additional appliances on the same
circuit may exceed the current rating of the
circuit breaker.
!
Product Dimensions
Four models are available for the Faber e-MatriX
Electric Fireplace:
• FEF3226L1
• FEF3226L2L
• FEF3226L2R
• FEF3226L3
Specications
FCC Compliance
CAUTION: This unit has been tested and found
to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This unit generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio or television
reception, which can be determined by turning the
unit OFF and ON, the user is encouraged to try
to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and the
receiver.
• Connect the unit into an outlet on a circuit di󰀨erent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This unit complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This unit may not cause harmful interference, and
(2) this unit must accept any interference received,
including interference that may cause undesired operation.
FCC CAUTION: Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
this equipment.
Important Instructions

6 www.faberre.com
Dimensions of the four models follow:
FEF3226L1
31.50
800
25.59
650
18.37
466.5
37.80 37.01
960
940
6.69 5.91
170 150
27.28
693
1.97
50
31.97
812
35.08
891
32.76
832
FEF3226L2L
33.68
855.5
1.89
48
32.33
821
25.59
650
32.76
832
1.16
29.5
3.29
83.5
1.56
39.5
6.69
5.91
170
150
26.06
662
13.81
351
1.97
50
18.37
466.5
37.80
37.01
960
940
Specications

7
FEF3226L2R
33.68
855.5
1.89
48
25.59
650
32.35
822
37.80
37.01
960
940
6.69
5.91
170.0
150.0
26.06
662
18.37
466.5
1.97
50
13.81
351
3.29
83.5
32.76
832
1.16
29.5
1.56
39.5
FEF3226L3
35.39
899
1.89
48
1.89
48
33.19
843
500 /
25.59
650
36.02
915
33.39
848
37.80
37.01
960
940
26.06
662
6.69
5.91
170
150
18.37
466
1.97
50
13.81
351
17.44
443
32.76
832
3.29
83
Specications

8 www.faberre.com
Installation Requirements
Power supply
A 15 A, 120 VAC grounded dedicated circuit is
recommended, but not essential in all cases.
Additional appliances on the same circuit may exceed
the available current.
A dedicated circuit will be required if, after installation,
the circuit breaker trips or the fuse blows on a regular
basis when the fireplace is operating.
Water supply
• Water connection ¼” copper or flexible plastic
line, ½" plastic or copper pipe at an accessible
location that can be pierced with the piercing
value, or ¾” hose connection placed at an
accessible location.
• Water pressure between 8-110 psi. Where
required, use a pressure reducing valve.
!NOTE: Normal tap water can be used in the
e-MatriX if the tap water is not considered to
be hard water. For hard water, use softened or
ltered water.
Unpacking the Fireplace
1. Make sure all packing materials are removed.
2. Remove the transport screw on the front of
the unit.

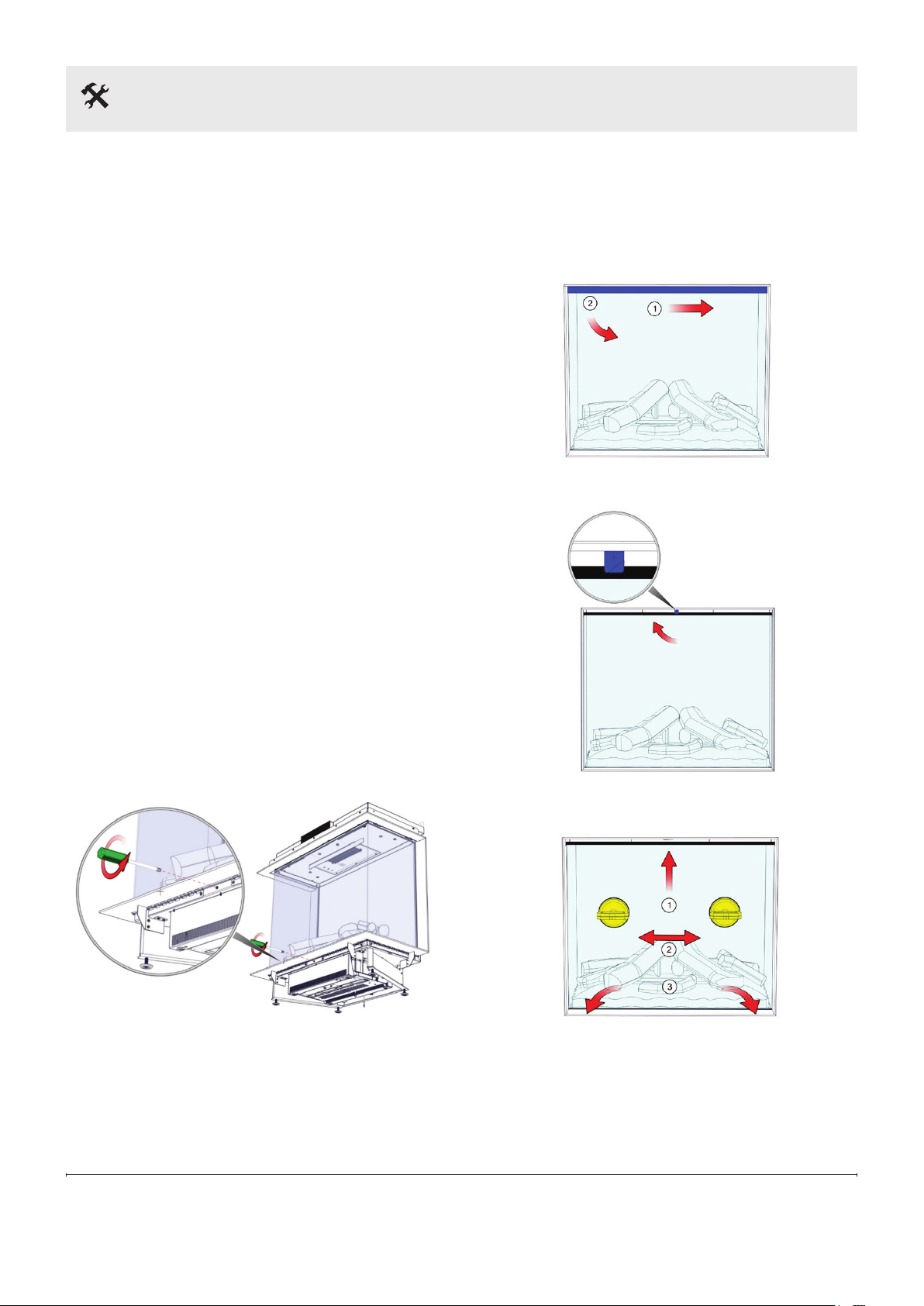

Preparing the Fireplace for Placement
Remove front glass
(FEF3226L1)
1. Remove the cover strip.
2. Rotate the glass clamp clockwise.
3. Place suction cups and remove the front glass.
Installation

9
Remove front glass
(FEF3226L2L, FEF3226L2R, and FEF3226L3)
1. Rotate the glass clamp clockwise.
2. Place suction cups and remove the front glass.
Remove the fuel bed
CAUTION: Never lift the fuel bed without using the
supplied handles.
1. Remove the front glass.
2. Cover the frame to avoid scratches.
3. Screw the handles in the fuel bed.
4. Lift the fuel bed carefully and disconnect the
electrical plug.
5. Store the fuel bed in a safe place.
Installation

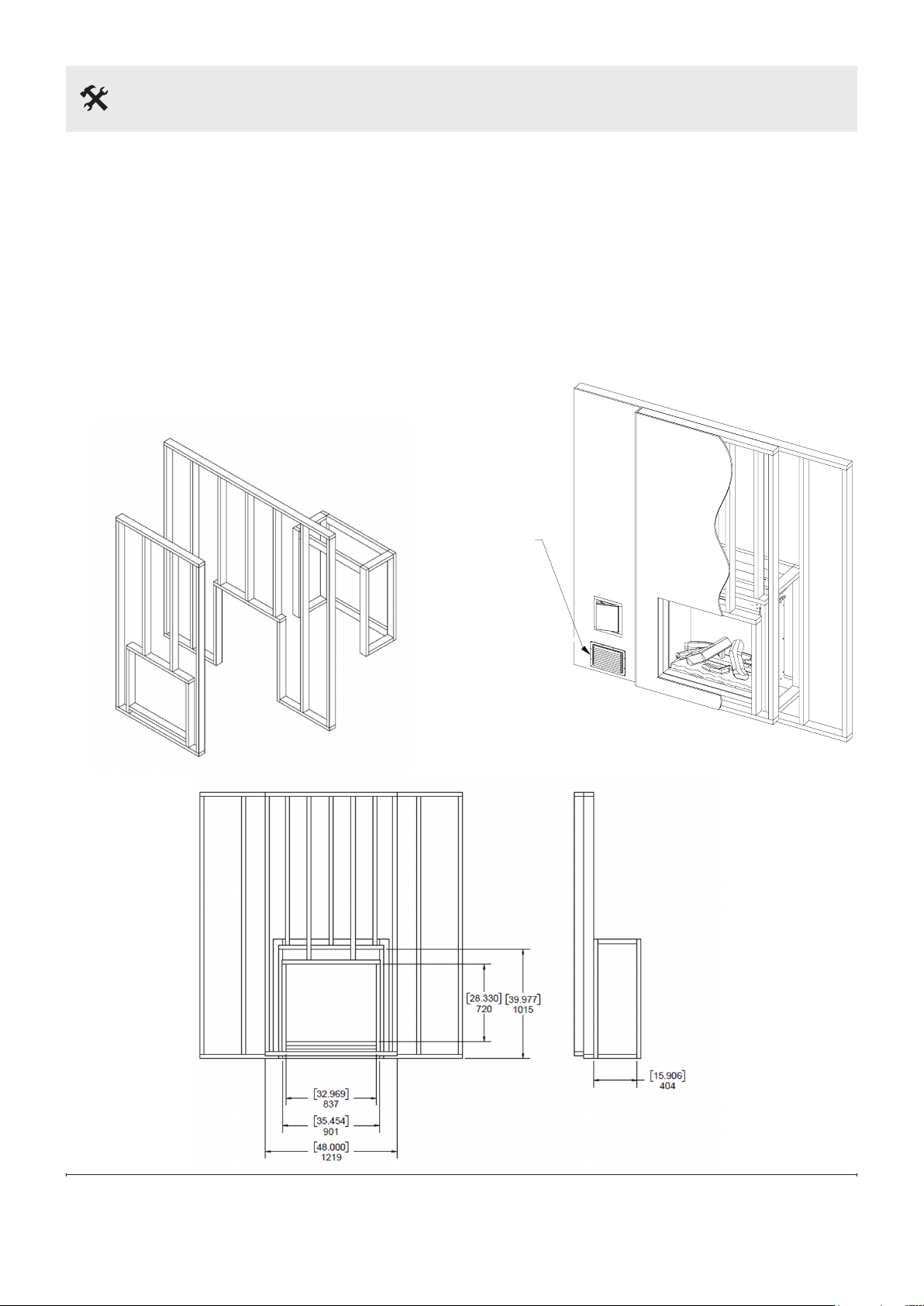

Frame

10 www.faberre.com
Framing the Fireplace
The following instructions are suggested framing
options and are to be used as a guide (2x4 construction
is shown). Please refer to the specications section for
replace dimensions to create custom framing.
!NOTE: The e-MatriX needs a minimum intake
ventilation of 40 in2 (258 cm2) below the replace.
The intake must allow for air to reach the underside
of the unit.
FEF3226L1 – Framing Option 1
Installation
Intake if no gap is
left between floor
and hearth

11
Installation
FEF3226L2/L3 – Framing Option 1
EXISTING WALL
26.63
677
.87
22
GAP FROM
FLOOR FOR VENTING
8.87
225
21.50
546
19.50
495
37.40
950
42.37
1076
Intake if no
clearance is left
between oor and
hearth

12 www.faberre.com
FEF3226L2/L3 – Framing Option 2
Intake if no
clearance is left
between oor
and hearth
Installation

13
Placing the Control Box
!NOTE: The control box requires an opening 8.3"
(210 mm) by 10.6" (270 mm) and a minimum
depth of 7.5" (190 mm). The opening must have
access to water and electrical connections.
!NOTE: From the center of the replace, the
control box must be located NO MORE than 59"
(1.5 m) to the left and 39 ⅜" (1.0 m) to the right of
the replace.
To install the control box:
1. Mount the control box on 2 screws (not included)
on the back wall of the opening. Use screws
appropriate for the weight of the control box and
the wall material.
2. Install the control box cover door.
Installation
Placing the Fireplace
1. Place the fireplace into the opening. Level with
adjustable feet and if additional adjustment is
required shims can be used.
2. Place the fireplace at the right position and attach
it to the wall.
!NOTE: If the replace is going into an existing
opening and used with the trim accessory, locate
the replace as needed for the best appearance.
The e-MatriX needs a minimum of 2" (50 mm) free
space above the replace.
CAUTION: The e-MatriX needs a minimum
intake ventilation of 40 in2 (258 cm2) below the
replace. The intake must allow for air to reach
the underside of the unit.
[8.3”]
210
[10.6”]
270

14 www.faberre.com
Installation
[9.8]
250
[11.8]
300
Connect the Electric Supply
WARNING: Do not attempt to wire your own
circuits. To reduce the threat of re, electrical
shock or injury to persons, always used a licensed
electrician.
WARNING: Make sure the power is o󰀨 to the
circuit on which the replace is to be installed until
installation is complete.
1. Use a 2-conductor with ground (3 wires total)
power supply cable from the circuit break to the
control box.
2. Allow suitable cable length so that the control box
can be connected prior to mounting.
3. Remove the knockout panel from the control box.
4. Feed the power supply wire through the knock out
hole and secure using ½" strain relief.
5. Connect the black wire from the control box to the
live (L1) wire from the power supply.
6. Connect the white wire from the control box to the
neutral (N) wire from the power supply cable.
7. Connect the green wire from the control box to the
ground wire (G) from the power supply cable.
8. Re-install the knockout panel on the control box.
9. Connect the control box to the fireplace using the
AC supplied extension cable.
10. Connect the control box DC connection to the
fireplace using the supplied DC cable.
11. Mount the control box as described in the
previous section.
!NOTE: Maximum cable length from the center of
the replace to the right of the replace is 3.3 ft
(1.0 m) and to the left is 4.9 ft (1.5 m).
Knockout for
Hardwire Connection
Electrical Plug
Connection
DC Cable
Connection
Inlet
Outlet

15
Installation
Connect the Water Supply
The e-MatriX replace is equipped with the following
water overow protections:
• Electromechanical valve in the control
box activated by an overflow sensor in the
water tank.
• Absorption valve activated by an overflow sensor
in the water sump.
To connect the water supply:
1. Connect all water supply components according
to the diagram shown below. All parts are included
with the product.
2. Place the water filters at an accessible location
in correct alignment. Follow the “flow” direction
markings on the filters and control box.
!NOTE: Check all connections for water leakage
before placing the fuel bed and front glass.
Check Water Connections for Leaks
1. Make sure all ball valves are open.
2. Turn on the water supply.
3. Press the Main switch [ ] on the control box to
the ON position.
• If the water level is high enough, the flames will
automatically start after 45 sec.
• If the water level is not high enough the LEDs will
blink twice after 45 sec. Press the Main switch to
the OFF position, wait 5 sec and repeat the step
above. (This process may need to be repeated
several times).
4. Make sure all water connections are tight and do
not leak.
e-MatriX Engine
A = Mains Water E = To be cut from ¼” 1m pipe I = ¼” 1.5m Pipe
B = ½ or ¾” Connector F = Mesh Filter J = e-MatriX engine
C = ¼” 1m Pipe G = In-line Filter K = Absorption Valve. User does not need to connect.
Reference for service only.
D = Ball Valve H = Control Box L = Fill Cap. User does not need to connect.
Reference for service only.
1 = Safety Clips (11x) 2 = In-line Filter Brackets (2x) 3 = Elbows (4x)

16 www.faberre.com
Installation
Placing the Fuel Bed
CAUTION: Never lift the fuel bed without using the
supplied handles.
1. Lift the fuel bed carefully by the handles.
2. Connect the electrical plug and sit the fuel bed in
place.
3. Unscrew the handles from the fuel bed and keep
them for future use.
4. Place suction cups and replace the front glass.
Front glass only
Rotate the clamp counter-clockwise to lock the
glass into position.
2- or 3-sided glass
Rotate the glass clamp counter-clockwise to lock
the glass into position. .
Place Decoration Material
The supplied articial ash and chips can be used to
personalize your re!
CAUTION: Keep decoration material away from
children, persons with reduced physical or mental
capabilities, and animals.
General
Do not place decorative
material in the center
area.

17
WARNING: The e-MatriX replace must be
installed properly before it is used.
CAUTION: Except for installation and cleaning
described in this manual, an authorized service
representative should perform any other servicing.
First Time Water Fill
1. Make sure all ball valves are open.
2. Turn on the water supply
3. Press the Main button [ ] on the control box to
the ON position.
• If the water level is high enough, the flames will
automatically start after 45 sec.
• If the water level is not high enough the LEDs will
blink twice after 45 sec. Press the Main switch to
the OFF position, wait 5 sec and repeat the step
above. (This process may need to be repeated
several times).
Manual Control Panel
The manual controls for the e-MatriX fireplace are
located on the front of the control box (located behind
the access door after installation). Touch an icon
to activate.
Icon Description
AO| Main switch: Toggle ON/OFF.
(1 beep will be heard.)
1Press to activate (ON).
(1 beep will be heard.)
Press again to turn OFF.
2Press to activate remote pairing.
The replace will start to beep and
LED will ash. To pair the remote
press any button on the remote
during this time. Pairing is compete
when the replace turns OFF.
3Maintenance: For use by service
technician.
4Press multiple times to reduce the
ame height.
5Press multiple times increase the
ame height.
6Press multiple times to reduce the
re crackling sound.
7Press multiple times to increase the
re crackling sound.
Operation

18 www.faberre.com
Remote Control
A multi-function remote control is included. The
remote control has a maximum range of 30 ft (9 m).
Icon Description
1O| Main switch: Toggle ON/OFF.
(1 beep will be heard.)
2Press to activate (ON).
(1 beep will be heard.)
Press again to turn OFF.
3Press multiple times to reduce the
ame height.
4Press multiple times increase the
ame height.
5Press multiple times to reduce the
re crackling sound.
6Press multiple times to increase
the re crackling sound.
Pairing Remote
Connect (pair) the remote control to the control box
and use the remote to turn the replace ON/OFF,
adjust the ame height, and adjust the re crackling
sound volume.
To pair the remote and control box:
1. Turn the main switch on the control box to the ON
position. (The control box beeps once.)
2. Press the Main button [ ] on the control box to
start the fire. (The control box beeps once.)
3. Press the pairing button [ ] on the control box
to start the fireplace. (The control box beeps once
and the icon LEDs blink on and off.)
4. Press the Main button [ ] on the remote control
to turn the fireplace off.
When the remote control is paired, check if all the
remote control functions are available from the
desired distance.
5. If needed, move the receiver to a different
position inside or outside the construction.
!NOTE: The receiver is located at the back inside
of the replace unit. The receiver has a cable
length of 4.4 ft (1.4 m).
Operation

19
Battery Replacement
To replace the battery:
1. Loosen screw on back of remote and slide battery
cover open.
2. Install two 1.5V AA batteries.
3. Slide battery cover closed and tighten screw.
Battery must be recycled or disposed of
properly. Check with your Local Authority or
Retailer for recycling advice in your area.
Getting the Desired Flame Effect
!NOTE: The replace always starts with minimum
ame setting.
1. Press the increase ame button [ ] for higher
ames, or the decrease ame button [ ] for
lower ames. Give the ame generator time to
react to the change.
!NOTE: Increasing the ame height can lead to
condensation on the glass.
2. Press the increase sound button [ ] for higher
crackling sound or the decrease sound button
[ ] for lower crackling sound. The minimum
volume of this sound is OFF.
If the fireplace is either turned to standby or switched
off entirely, it will always revert to the minimum flame
setting. The sound level will remain the same as the
last sound level set.
Maintenance Schedule
The maintenance interval depends on the water
quality and/or the running hours and therefore can
di󰀨er from the following recommendations.
• Clean the water sump and air filter, and replace
the transducers every 3 months for commercial
use or every 12 months for residential use.
• Clean the mesh lter every 3 months and replace
the in-line lter every 12 months for commercial
use and every 24 months for residential use.
Cleaning the Water Sump
WARNING: Always press the Main switch to the
OFF position and disconnect the power supply
before cleaning the water sump.
CAUTION: Never use abrasive cleaners.
To clean the water sump:
1. Remove the front glass (see the instructions in the
section "Preparing the Fireplace for Placement"
on page 8).
2. Remove the fuel bed (see the instructions in the
section "Preparing the Fireplace for Placement"
on page 8).
3. Disconnect the ll cap (turn the cap clockwise).
Operation Maintenance

20 www.faberre.com
4. Disconnect the 2 connectors, located on the right
side of the water sump.
5. Release the 2 clips on both sides and remove
the nozzle.
6. Gently lift up the water sump without spilling
any water.
7. Remove the transducers and empty the water
sump.
8. Clean and rinse the sump and transducers:
• Put a small amount of liquid detergent into the
sump.
• Use a soft brush to clean the sump.
• Clean the transducers, including the discs
underneath the cone. Remove the cone by
turning it clockwise.
• Thoroughly rinse the water sump with clean
water to remove all traces of detergent.
9. Clean the nozzle with a soft brush and flush out
thoroughly with water.
10. Reverse the steps to reassemble.
Cleaning Air Filter
1. Gently slide the air filter upwards out of its
plastic holder
2. Gently rinse with water in the sink and dry with
fabric towel before returning.
3. Replace the filter making sure that the coarse
black filter is facing the front of the fire.
4. Place the fuel bed and the front glass (see the
instructions in the section "Preparing the Fireplace
for Placement" on page 8).
Maintenance
