Faber MatriX 450 Series User manual

MatriX 450-serie
40011653-1728 MatriX 450 ENG

Installation Instructions
2
1.2 1.3
1.0 1.1

Installation Instructions
3
1.4 1.5
1.6 1.7
D E
1.8

Installation Instructions
4
2.0
2.1
F
G
1.9

Installation Instructions
5
2.2
2.3 2.4
H
H
I
I

Installation Instructions
6
J
L
K
H
H
2.7
2.5
2.6

Installation Instructions
7
2.9
2.8

Installation Instructions
8
B
A
C
3.0 3.1
1
2
3
3
1C
2
3
4
3
3.2 3.3

Installation Instructions
9
3.4
1
2
3.5

Installation Instructions
10
4.0
4.1

Installation Instructions
11
4.2
4.3
4.4

Installation Instructions
12
1 Dear user
Congratulations on purchasing your Faber product, a quality
product that will provide you with the warmth and atmosphere for
many years. Please read the user manual before using the re.
Should a malfunction occur despite the careful nal checks, then
you can always contact your Faber dealer.
Please note:
The data of your re is available in the user manual.
1.1 Introduction
Only have the appliance installed by a qualied installer according
to the gas safety regulations.
Read this installation manual properly.
1.2 Please check
Check the re for transport damage and report any damage
immediately to your dealer.
1.3 CE Declaration
Glen Dimplex Benelux certies that this Faber re complies with the
essential requirements of the gas appliances directive.
Product: gas room heater
Model: MatriX 450/500-I/IIL/IIR/III
MatriX 450/650-I/IIL/IIR/III
Applicable EC directives: 90/396/EEC
Harmonized standards applied: NEN EN 613:2000 and NEN EN
613/A1:2003
This declaration is invalid, if without the written permission of Glen
Dimplex Benelux:
• Changes are made to the appliance.
• The re is connected to other exhaust materials than
specied.
2 Safety instructions
• The unit must be installed and subsequently serviced every
year and maintained in accordance with these instructions
and the applicable national and local regulations.
• Ensure that the data on the type label matches the local gas
type and pressure.
• The settings and the construction of the re must not be
changed!
• Do not place extra imitation wood or other smoldering
material on the burner or in the combustion chamber.
• The appliance is for atmosphere and heating purposes. This
means that all surfaces, including the glass, can be very hot
(over 100°C). Exceptions to this are the bottom of the re
and the control elements.
• Do not place any combustible materials within 0,5m of the
radiation area of the re.
• Through the natural air circulation of the re moisture and
uncured volatile components from paint, building materials
and carpeted oors, etc. are attracted. These parts can settle
as soot on cold surfaces. Therefore do not light the re
shortly after installation.
• Light the re for the rst time and run for several hours on the
highest setting, so that the paint can cure. Provide adequate
ventilation, so that any fumes can disperse; we recommend
vacating the room during this process.
> Please note:
1. All transport packaging is removed.
2. No children and pets in the room present.
3 Installation requirements
3.1 Fire
• This device can be built into an existing or new chimney.
• For devices with exible gas pipes, the gas regulator block is
mounted on the right side of the re for transport reason (g
1.6). The gas regulator block with the receiver and the I.T.C.
must be placed on a distance of max. 30cm behind a service
door.
When desired, there are 2 metres burner pipes
(To prevent damage to cables and pipes during transport,
these are tied together with tie-wraps.
Remove it to ensure the proper functioning of the appliance).
3.2 False chimney breast or other structure
• The false chimney should be of non-combustible material.
• The space above the re should always be ventilated using
the supplied grids or a similar alternative with minimal free
passage of 200cm² per grid.
• The false chimney breast and its construction may not rest on
the appliance.
• It is not permitted to start directly on the device with
concentric cut down pipe material.
The air supply could then possibly be closed.
3.3 Flue pipe and terminal requirements
• For the supply of the combustion air and the discharge of the
combustion gases you should always use the Flue materials
specied by Faber. Only when using these materials can
Faber guarantee the safe and proper operation of the
appliance.
• The outside of the concentric ue material can heat up to
+/-150°C. Ensure, when penetrating a ammable wall or
ceiling, construction with proper insulation and protection.
And ensure respective distance.
• Ensure for great discharge lengths that the concentric
discharge material is supported every 2m, so that the weight
of the material is not supported by the re.
• It is not permitted to start directly on the device with
concentric cut down pipe material.
The air supply could then possibly be closed.

Installation Instructions
13
3.4 Terminals
The combined supply and discharge can be done both via wall or
through the roof or through an existing chimney. Verify if the
position of the terminal meets the local regulations regarding
ventilation openings.
The ue outlet can end on an external wall or a roof. Check
whether the outlet desired by you complies with local requirements
concerning good function and ventilation systems.
> Please note:
For a proper functioning the terminal should be at least 0,5m. away
from:
• Corners of the building
• Roof overhangs and balconies
• Eaves (with the exception of the roof ridge, see Chapter 15)

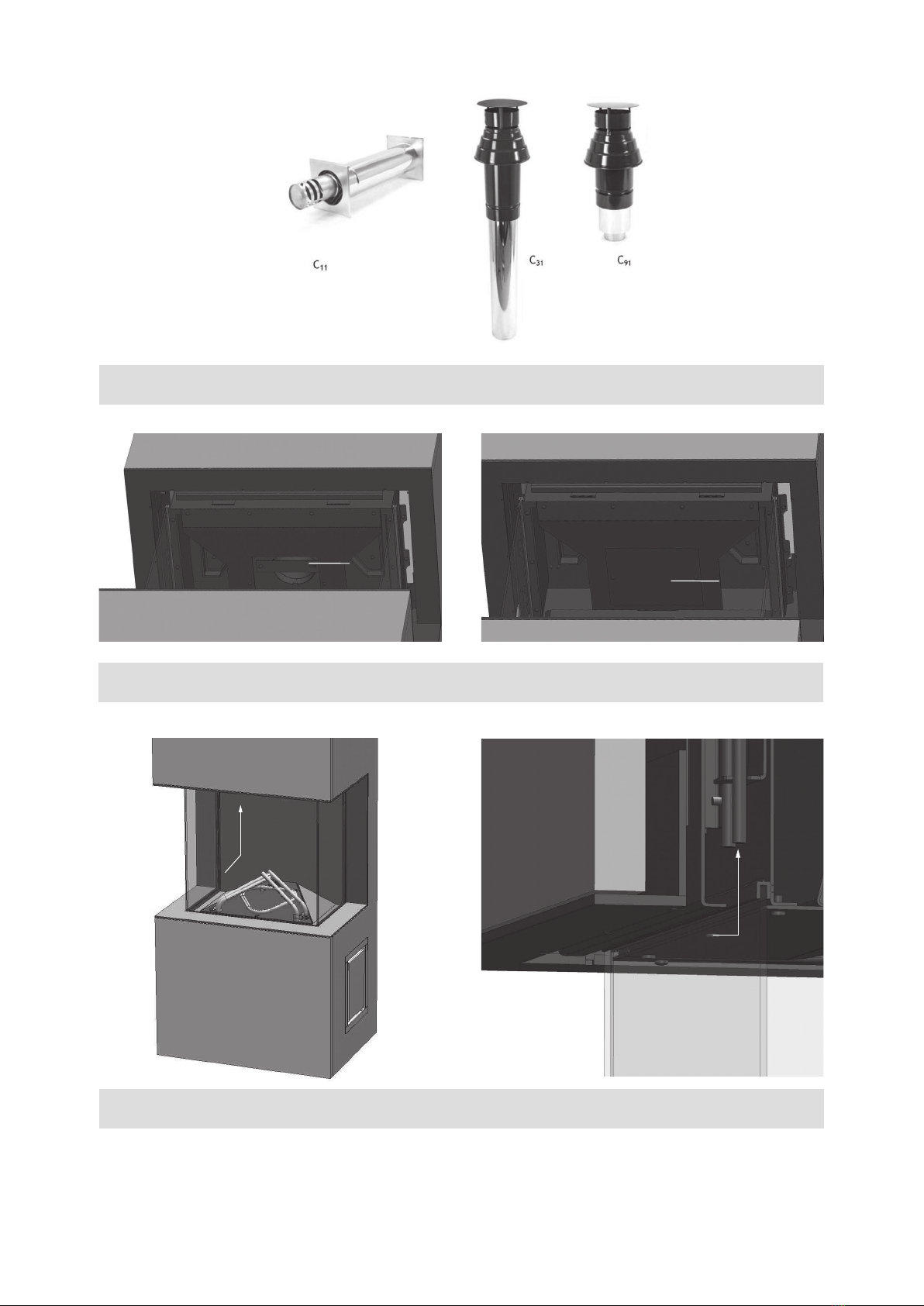

3.4.1 C11, wall terminal
For a facade or wall outlet use a wall terminal (see g. 1.9 C11).
Depending on the calculation this can be a diameter of
130/200mm or 100/150mm.
3.4.2 C31, roof terminal
For a at or pits roof outlet use a long roof outlet with a diameter of
100/150mm (see g. 1.9 C31).
3.4.3 C91, existing chimney
For an existing chimney use the short chimney outlet with a
diameter of 100/150mm (see g. 1.9 C91).
In this case the existing chimney acts as air inlet an inserted exible
stainless steel pipe discharges the ue gas. The top and the bottom
should be airtight.
Depending on the calculated outlet diameter, use a exible
stainless steel tube of Ø100mm or Ø130mm with CE marking
for 600°C.
> Please note:
The minimum chimney diameter for a 130mm exible stainless
steel pipe must 200x200mm. and for a 100mm exible stainless
steel pipe 150x150mm.
3.5 Existing chimney
You can also connect to an existing replace chimney. The existing
chimney functions then as air supply and a exible stainless steel
tube drawn through the chimney carries the ue gases. The exible
stainless steel tube of Ø100mm must have a CE mark have up to
600°C.
The chimney must have the following conditions:
• The channel of the chimney must be at least 150x150mm.
• There should be no more than one device on a chimney.
• The chimney must be in good condition:
- no leakage
- well cleaned
For more information about connections to existing chimneys, ask
the installation manual “chimney connection set”.
4 Preparation and installation
instructions
4.1 Gas connection
The gas connection must comply with the applicable local
standards.
We advise using a Ø 15mm gas connection directly from the gas
meter to the appliance, with a shut-off valve in the proximity of the
appliance, which must always be freely accessible.
Position the gas connection so that it is easily accessible at all
times for service, and that the burner unit can be disassembled.
4.2 Electrical connection
The power supply must comply with the applicable local standards.
A wall socket 230VAC/50Hz must be installed near the re.
For power supply make use of the included plug adapter.

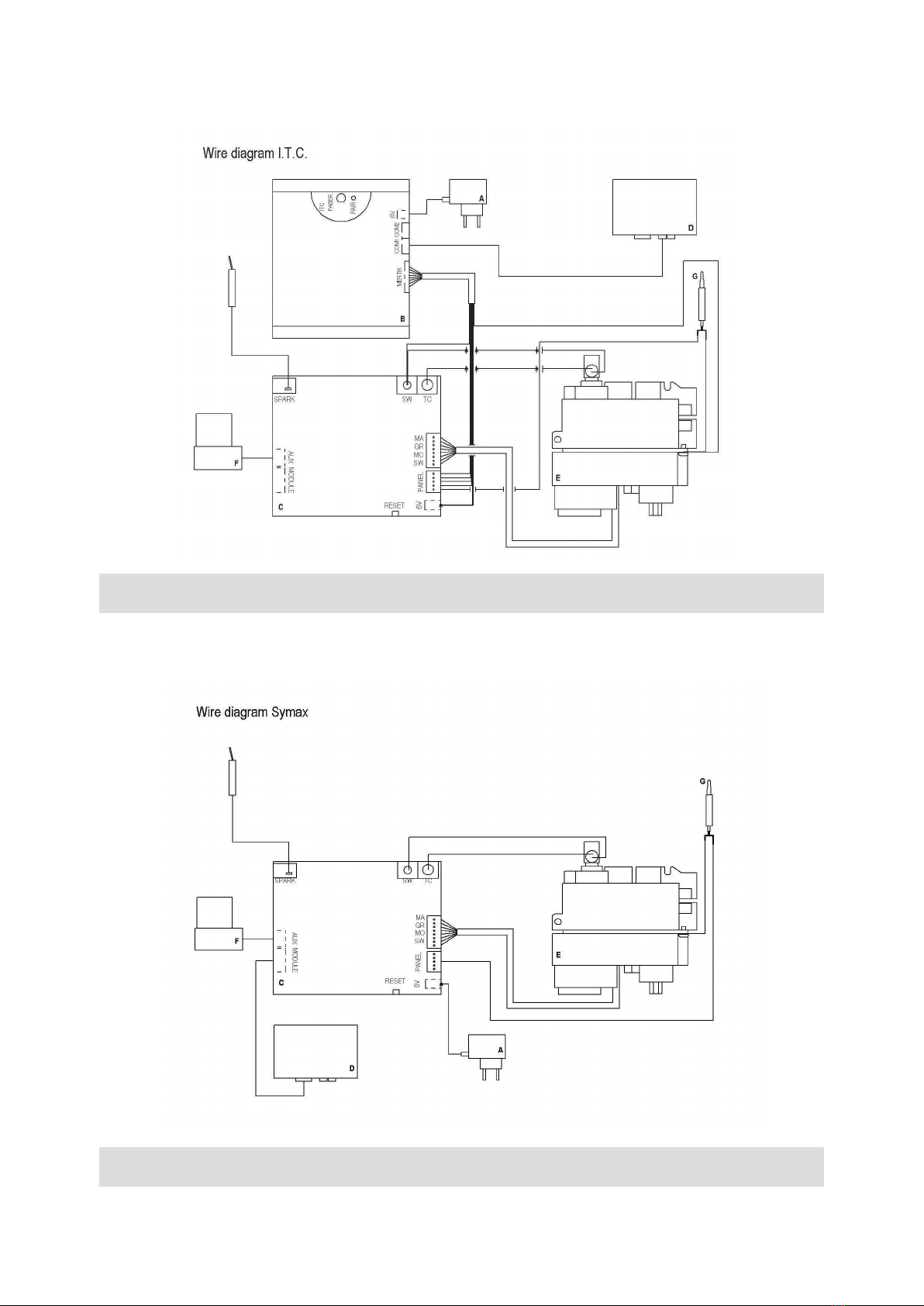

See g 2.8 or 2.9 for the wiring diagram of this connection and the
LED Symbio module.
A = plug adapter
B = control unit
C = receiver
D = LED Symbio module
E = control block
F = magnet valve
G = 2nd thermocouple
4.2.1 Smart-Home installation
You can connect the control unit to the receiver with an external
source, such as a Domotica home automation system, using the
5-wire pin connector.
(Part G60-ZCE/1000, art.no.: 06022950). The total length of the
cable may not exceed 8m. Signal relay (gold-plated contacts) or
opto-couples are recommended!
4.2.2 Faber ITC (Intelligent Technical Controller)
The ITC gives you more options, such as ECO control, control,
error messages, maintenance advice and such.
For further information see the ”ITC” user manual.
4.3 Preparing the re
• Remove the re from its packaging. Ensure that the gas
supply pipes under the appliance are not damaged.
• Remove frame and glass and take the packaged parts from
the re.
• Store frame and glass in a safe place.
• Prepare the gas connection on the regulator.
4.4 Positioning the re
Take the installation requirements into account (see Chapter 3).
Place the appliance in the right position and set the height with the
(optional) leg levelers.
Height adjustment and levelling of the appliance (see point C, g.
1.1).
Rough height adjustment:
• With the extendable (optional) leg.
Fine adjustment:
• With the adjustable feet.

Installation Instructions
14
4.4.1 Hanging on the wall 450/500-650-IIL, -IIR and -III
The appliance can be wall-mounted with the optional wall bracket
(see g. 1.8).
4.5 Installing the ue materials
• When penetrating a non-combustible wall or ceiling the
opening must be at least 5mm larger than the diameter of the
discharge material. At a combustible wall or ceiling is this
100mm larger than the diameter of the drainage material.
• Horizontal sections should be installed with a slope towards
the re (3 degrees).
• Build the system from the re. If this is not possible you can
make use of an extendable adapter section.
• For truing up the exhaust system use the 0,5m. pipe, which
can be shortened and ensure that the inner pipe is always
2cm longer than the outer pipe.
• Parts, which are shortened, must be secured with a
self-tapping screw.
• Wall and roof terminals can also be cut.
• Do not insulate but ventilate built-in ue material (approx.
100cm²).
4.6 Constructing the false chimney
If possible, carry out a performance test at the re before nally
nishing the installation.
4.6.1 False chimney
* Construct the false chimney of non-combustible material in
combination with metal proles or of masonry/concrete
blocks.
* Be aware of ventilation grids and service door (see g. 1.0 to
1.5). Place above the ventilation grids a screen plate made of
non-combustible material (see g. 1.1, 1.3 or 1.5)
* Always use a lintel or reinforcing bars while bricking the
outlet. They should not be placed directly on the re.
* Built the false chimney against the appliance (see g. 1.0 to
1.5). Keep a minimum distance of 2mm between the false
chimney and the appliance, because of the extension of the
appliance.
4.6.2 Installation and nishing
For installation and nishing the following points are of interest:
H = moldings (g. 2.4 and 2.7)
I = distance prole (g. 2.4)
J = upper side ange combustion chamber (g. 2.5)
K = distance holder/glass support (g. 2.6)
L = distance holder/glass support (g. 2.6)
> Please note:
Ensure that the re is not load-bearing with regard to the false
chimney breast.
4.6.3 Method I with cover strip (g. 2.2)
Build the false chimney breast or plateau against the moldings H
and distance proles I (see g. 2.4 and 2.7).
Keep a minimum distance of 2mm between the false chimney and
the appliance, because of the extension of the appliance. Take into
account the thickness of the nish!
4.6.4 Method II with built-in strip (g. 2.3)
Remove the distance proles “I” (see g. 2.4).
Make sure that the screws of the front distance prole “I” will be
replaced, in order to ensure the air tightness of the appliance.
Build the plateau against the glass supports K and L (see g. 2.6).
Keep a minimum distance of 2mm because of the extension of the
appliance.
For the height of the plateau see point “J” (g. 2.5).
5 Removing the glass
5.1 Removing the glass from the front

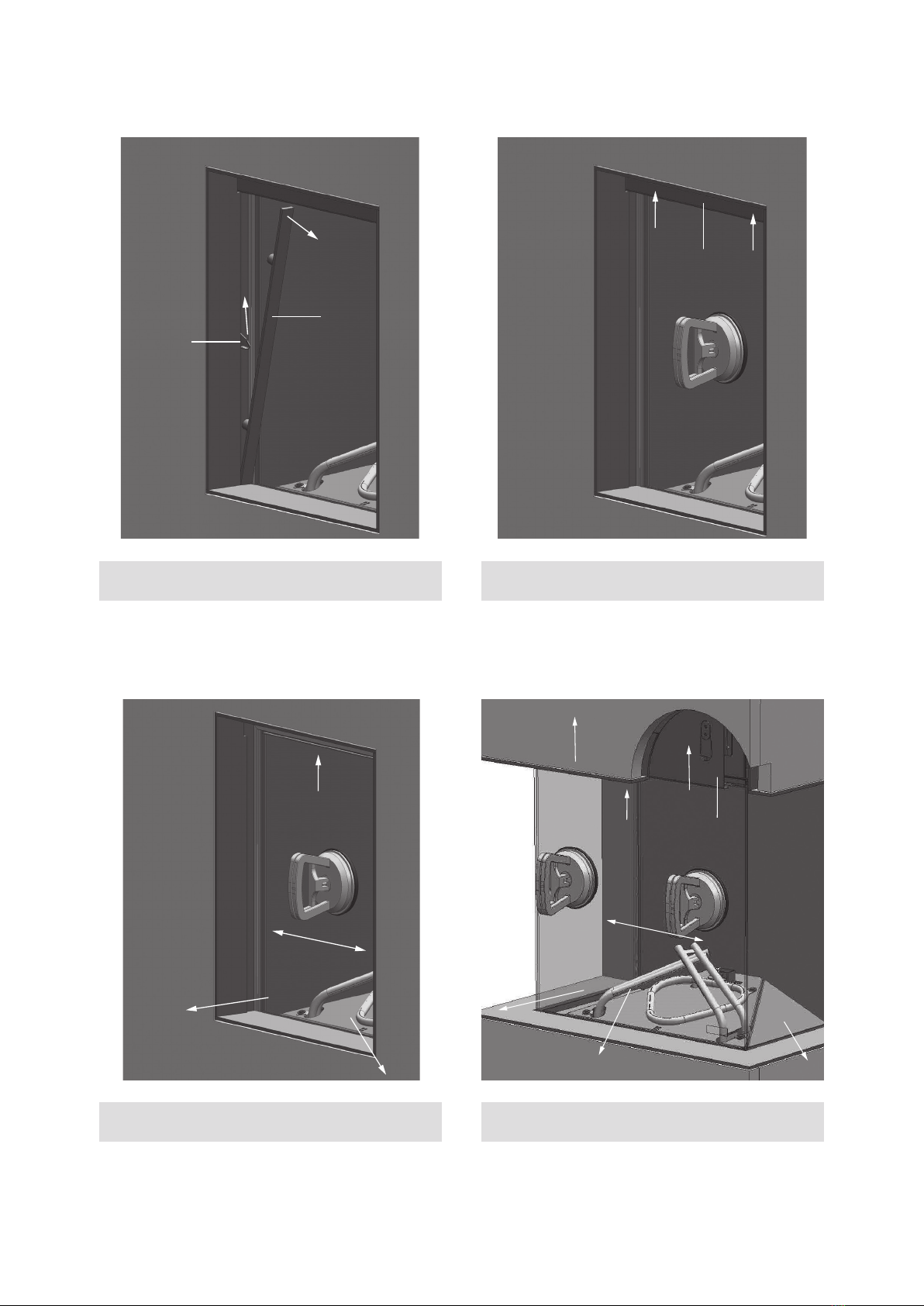

MatriX 450-I:
• Remove the moldings “A” left and right (g. 3.0).
• Turn the left and right side clamps “B” up (g. 3.0).
• Place the suction cups on the glass and slide the upper list
“C” up (g. 3.1).
• See g. 3.2, number:
1. Slide the glass to the top so that the bottom will
release.
2. Now, carefully slide the glass to the left.
3. Get the released side towards to you and put the glass
on a safe place.
MatriX 450-II:
• Remove molding “A” left or right (g. 3.0).
• Turn the left or right side clamps “B” up (g. 3.0).
• Place the suction cups on the glass and slide the upper list
“C” up (g. 3.3).
• See g. 3.3, number:
1. Slide the glass to the top so that the bottom will
release.
2. Now, carefully slide the glass to the left or to the right.
3. Get the released side towards to you and put the glass
on a safe place.
MatriX 450-III:
• Place the suction cups on the glass and slide the upper list
“C” up (g. 3.3).
• See g. 3.3, number:
1. Slide the glass to the top so that the bottom will
release.
4. Get the released side towards to you and put the glass
on a safe place.

Installation Instructions
15
5.2 Removing the glass from the side
It is not necessary to take out the glass from the side to place the
log set or for maintenance.
MatriX 450-II en -III:
• First, remove the front glass (see Chapter 5.1).
• Remove the left or right clamp strip on the top (g. 3.4).
• Place the suction cups on the glass (g. 3.5).
• See g. 3.5, number:
1. Slide the glass towards to you and to the top so the
bottom and back side will release.
2. Now, carefully get the underside towards to you and
put the glass on a safe place.
> Please note:
Replace the glass in reverse order.
Clean all ngerprints on the glass; otherwise they will burn in once
the re is used.
6 Placing the decoration material
It is not permitted to use other or to add more material in the
combustion chamber.
Keep the pilot light always free of decoration material!

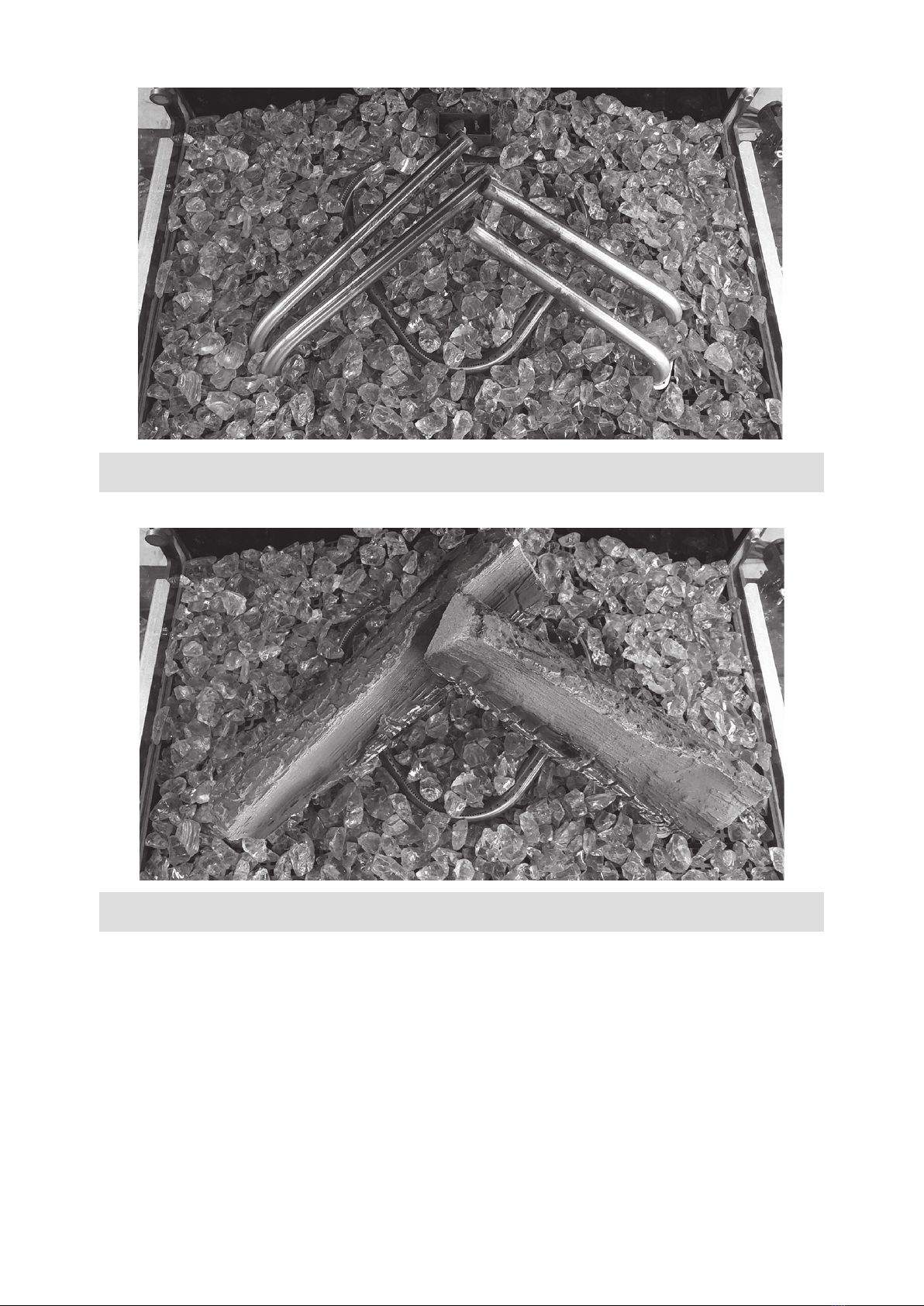

See g. 4.0 to 4.5 or the included log set card:
• Divide the glass granulate on the perforated bottom plate.
• Place the 2 large wood blocks and make sure there is no
glass granulate underneath.
• Place the other wood blocks.
• Divide the chips on the glass granulate and the perforated
bottom plate.
• Start the re as described in the user manual.
• Assess whether the ame distribution and the Symbio-effect
is good. Move or remove any chips/glass granulate to a good
Symbio-effect.
• Replace the glass (Chapter 5) and check the re image.
7 Checking the installation
7.1 Checking the main burner ignition, pilot ame
Ignite the re as described in the user manual.
• Check that the pilot ame is well above the main burner and
not covered by chips.
• Check the ignition of the main burner on full and small
setting. (Ignition must be smooth and quiet).
7.2 Checking for gas leaks
Check with a gas leak nder or spray all connections and pipes for
gas leakage.
7.3 Checking the burner pressure and primary
pressure
Check that the burner pressure and primary pressure match with
the information listed in the manual, Chapter 14 “Technical
specications”.
Measuring the primary pressure:
• Close the shut-off valve.
• Turn measuring nipple B (see g. 1.7) some turns open and
connect a measuring hose to the gas regulator.
• Take this measurement at highest setting of the re and when
the re is set to pilot light.
• Do not connect the unit if the pressure is too high.
Measuring the burner pressure:
Check the burner pressure only with proper primary pressure.
• Turn measuring nipple A (see g. 1.7) some turns open and
connect a measuring hose to the gas regulator.
• The pressure must correspond to the value indicated in the
technical specications of this manual. In case of deviation contact
the manufacturer.
> Please note:
Close all pressure measuring nipples and check for gas leakage.
7.4 Checking the ame image
Let the re burn for at least 20 minutes at highest setting and check
the ame for:
* Flame distribution
* Color of the ames
If one or both points are not acceptable then check:
• The log set layout and/or the amount of glass granulate/chips
on the bottom plate.
• The pipe connections for leaks (in case of blue ames).
• Whether the correct ue restrictor is tted. (see g, 2.0 F, rst
remove hatch “G”).
• The outlet.
- Wall terminal right side up
- Roof terminal on the right position
- If the maximum horizontal ue lengths is not exceeded.
7.5 Flue gas analyzer
If you are in possession of a CO/CO2 ue gas analyzer, then it is
possible to check the supply air and the combustion gases.
There are two measuring pipes at the front of the re between the
mounting frame and the glass (g. 2.1).
The ratio CO2 and CO must not be greater than 1:100.
Example:
CO2 is 4% and CO is 400ppm, measured at the highest point.
If the ratio is greater than 1:100 or exhaust gases are measured in
the supply air, then also check above points.

Installation Instructions
16
8 Instructions for client
• Recommend that the unit should be checked annually by a
qualied specialist to ensure the safe use and to guarantee a
long service life.
• Give advice and instructions on care and cleaning of the
glass. Highlight the danger of burnt-in ngerprints.
• Instruct the customer on the operation of the appliance and
the remote control, including setting the receiver.
• Hand over to customer:
- installation manual
- user manual
- log set instruction card
- suction cups
9 Annual maintenance
9.1 Checking and cleaning:
* Check and clean if necessary after verication:
- the pilot light
- the combustion chamber
- the glass
- the logs for breakage
- the outlet
* Replace, if necessary:
- chips/glass granulate
9.2 Cleaning the glass
Most deposits can be removed with a dry cloth. Clean the glass
with a ceramic hob cleaner.
> Please note:
Avoid ngerprints on the glass. These are no longer removable
after they are burnt in!
Now carry out check-up as described in Chapter 7 “Checking after
installation”.
10 Conversion to other gas type
The conversion to a different gas type may only be performed by a
qualied installer/dealer.
10.1 Conversion from natural gas to propane
(or vice versa)
This can only be done by replacing the burner. To do so, please
contact your dealer.
Specify with your order always the type and serial number of the
device.
11 Flue calculation
A simple way to calculate whether the exhaust conguration is
possible in combination with your re, use the free “Faber Flue App”
and download it from:
INTERNET:
BlackBerry, Android, PC (with Google Chrome browser)
APP store:
iPhone, iPad and Mac.
Google Play:
Android smartphones and Android tablets.
Alternatively use the exhaust calculation table (see chapter 13).
The alternatives of outlet lengths and any restrictors are set out in
the restrictor table. In the table we work with start length (STL), total
vertical height (TVH) and total horizontal length (THL).
• Start length (STL):
This is the rst part that is placed on the re and represents a
certain value (g. 12.1, 12.2 and 12.3 A, N and F). This value is in
the top row of the table (see restrictor table 11.1 and 11.2).
• Total vertical height (TVH):
TVH is the difference in height measured from the top of the unit to
the outlet; it can be measured or determined from the building plan.
For clarication see the TVH indication in the drawings (g. 12.1,
12.2 and 12.3).
• Total horizontal length (THL):
THL is the total horizontal length and consists of elbows and pipes
which are entirely in the horizontal plane. Elbows I, K and Q and
the elements H, J, L, M, P and R (g. 12.1 and 12.2).
• Length horizontal plane:
The horizontal length consists of the elements H, J, L, M, P and R
(g. 12.1 and 12.2).
• Elbows 90° in the horizontal plane:
Horizontal bends are bends which are entirely in the horizontal
plane (g. 12.1, 12.2 and 12.3 I, K and Q).
• Bends 45° or 30° in the horizontal plane:
Horizontal bends are bends which are entirely in the horizontal
plane.
• Elbows 90° vertical to horizontal plane:
These are 90° elbows, which proceed from horizontal to vertical
(g. 12.2 and 12.3 G, O and S).
• Bends 45° or 30 °vertical to horizontal plane:
These are 30° or 45° bends with a vertical offset of less than 45°
(g.12.1 B and D).

Installation Instructions
17
• Pipes under a tilt angle:
These are pipes which are vertically ascending at an angle of 30°
or 45° (g. 12.1 C). Fill in only in combination with at least 2x 30 or
45° bends in the vertical part.
• Restrictor table:
See the restrictor table at the right vertical (TVH) and horizontal
length (THL).
For “x” and if the values are outside the table, then the combination
is not allowed. Only then adjust the TVH or THL.
If a value is indicated, check that the calculated STL value is not
lower than indicated in the table. In this case STL must be adjusted.
The found value indicates the width of the restrictor (“0” means no
restrictor). Standard is a restrictor of 30mm installed (see g, 2.0 F,
rst remove hatch “G”).

Installation Instructions
18
0,1 0,2 0,5 0,5 1 1 1
0 1 2 3 4 5 6 7 8 9 10
0xxxxxxxxxxx
0,5 30,0 x x x x x x x x x x
140,0 0,0 0,5 0,5 0,5 x x x x x x
1,5 40,0 0,0 0,0 0,0 0,0 0,5 0,5 x x x x
245,0 0,0 0,0 0,0 0,0 0,0 0,0 x x x x
350,0 30,0 0,0 0,0 0,0 0,0 0,0 x x x x
450,0 30,0 30,0 0,0 0,0 0,0 0,0 x x x x
550,0 40,0 30,0 30,0 0,0 0,0 0,0 x x x x
660,0 40,0 40,0 30,0 30,0 0,0 0,0 x x x x
760,0 50,0 40,0 40,0 30,0 30,0 0,0 x x x x
860,0 50,0 50,0 40,0 40,0 30,0 0,0 x x x x
9
60,0 50,0 50,0 50,0 40,0 30,0 30,0 x x x x
10 60,0 60,0 50,0 50,0 40,0 30,0 30,0 x x x x
11 60,0 60,0 60,0 50,0 40,0 40,0 30,0 x x x x
12 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
13 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
14 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
15 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
16 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
17 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
18 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
19 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
20 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
21
60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
22 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
23 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
24 60,0 60,0 60,0 50,0 50,0 40,0 30,0 x x x x
25 60,0 60,0 60,0 50,0 50,0 40,0 x x x x x
26 60,0 60,0 60,0 50,0 50,0 x x x x x x
27 60,0 60,0 60,0 50,0 x x x x x x x
28
60,0 60,0 60,0 x x x x x x x x
29 60,0 60,0 x x x x x x x x x
30 60,0 x x x x x x x x x x
STL
THL
TVH
11.1 Restrictor table (100/150) NG MatriX 450/500 – 450/650
Starting length (STL), Vertical (TVH) and Horizontal (THL)

Installation Instructions
19
fig. 12.1 fig.12.2
fig. 12.3
12 Examples ue materials

Installation Instructions
20
Value
0,2
0,5
1
1,5
2
0,1
0,2
1
0
……………………..
rounded value
……………. meter
Part number xvalue result
Total Length in meters ……… x1……………..
90° Bend, vertical to
horizontal
……… x0,4 ……………..
45° Bend, vertical to
horizontal
……… x0,2 ……………..
90° Bend in horizontal
direction
……… x1,5 ……………..
45° Bend in horizontal
direction
……… x1……………..
flue pipes at an angle
in meters
……… x0,7 ……………..
……………+ ………………….. meter
Value
Starter length (STL)
First part on top of the appliance
Flue length from 0,1m till 0,45m
Flue length from 0,5m till 0,90m
Flue length from 1m till 1,4m
Flue length from 1,5m till 2m
Flue length 2m or more
Bend 90°
Bend 45°, 30° or 15°
Roof terminal
Wall terminal
Calculation
Total
rounded value
Total Vertical Height (TVH)
measured height
…………………………………………………… meter
Total Horizontal Length (THL)
13 Calculation sheet
