Faber 630000815 User manual

island canopy rangehood
sleek styling
600 cfm PRO motor
Silent Kit noise reduction
4 halogen lights
3 speed control
integrated control panel
stainless steel baffle filters
modified pro depth
convertible to ductless*
adjustable mounting system
Easy Cube motor access
sone range: 3.5 - 6.5
6” round duct
Size/Color/Model #
36 x 29 Stainless
48 x 29 Stainless
Axia Isola
a sophisticated silhouette
°
°
°
°
°
°
°
°
°
°
°
°
°
°
630000815
630001068
accessories
Includes: • Lower Chimney with hole for
ducting • Ductless Diverter Assembly •Vent
Grate • Charcoal Filter
Ductless Conversion Kit
Stainless 620000042
Replacement Charcoal Filter 620000041
* it is highly recommended that professional
style cooking always be vented to the
outside.
Mounting Support
Template
The hole in the ceiling for the ductwork should not be centered over the exact center of the cooking surface as the
duct work that runs up inside the chimney and through the ceiling is not in the exact center of the chimney.
The slim stainless steel and glass
profile of the Axia Isola is per-
fect for the sleek and modern
kitchen. The quiet, 600 cfm PRO
motor is located in the chimney,
allowing for an ultra thin canopy
and room for a view. Part of
the designer collection, the Axia
Isola looks and performs equally
well over professional or Euro-
pean style cooking surfaces.
p.o. box 435 • Wayland, MA 01778 • tel: [phone] • fax: [phone] • e-mail: [email protected] • www.faberonline.com
Designer Collection

upper
chimney
cover
ductless
lower
chimney
cover
canopy
cabinet base
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
also consult cooktop
manufacturer's recommendation
1" min
7" max
31"
36”
x
min & max ceiling height examples
x = 30"
min
8'
4 5/8"
max
8'
10 5/8"
x = 28"
min
8'
2 5/8"
max
8'
8 5/8"
x = 26"
min
8'
5/8"
max
8'
6 5/8"
x = 24"
min
7'
10 5/8"
max
8'
4 5/8"
20"
2 5/8”
33/4”
upper
chimney
cover
lower
chimney
cover
canopy
cabinet base
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
also consult cooktop
manufacturer's recommendation
3 3/8” min
14
3/8” max
23
5/8”
2 5/8”
36”
x
min & max ceiling height examples
x = 30"
min
7'
11 5/8"
max
8'
10 5/8"
x = 28"
min
7'
9 5/8"
max
8'
8 5/8"
x = 26"
min
7'
7 5/8"
max
8'
6 5/8"
x = 24"
min
7'
5 5/8"
max
8'
4 5/8"
Rev.06/08
WARNING! Product specications are subject to change without notication. Consult the installation instructions
before you begin installing this rangehood.
Pre-Planning Your Ductwork Ductless Installations*
For installations where ductwork is im-
possible or highly impractical, a ductless
conversion kit is available. A charcoal
lter, which attaches under the blower
assembly, absorbs smoke and odors. A
ductless diverter assembly directs the air
out to a lower chimney with a vent grate
cut into the back.
Make your ductrun as straight and short as possible. The ductrun should
not exceed 35 equivalent feet if ducted with the required minimum of 6”
round duct. Count 45º angles as 3 feet, 90º elbows as 5 feet, and 90º at
elbows as 12 feet.
For best results, use no more than three 90° elbows. Make sure that
there is a minimum of 24” of straight duct between elbows if more
than one is used. Do not install two elbows together. If you must
elbow right away, do it as far away from the hood’s exhaust opening
as possible.
Ducted
* it is highly recommended that professional style cooking always be vented to the outside.
Ductless

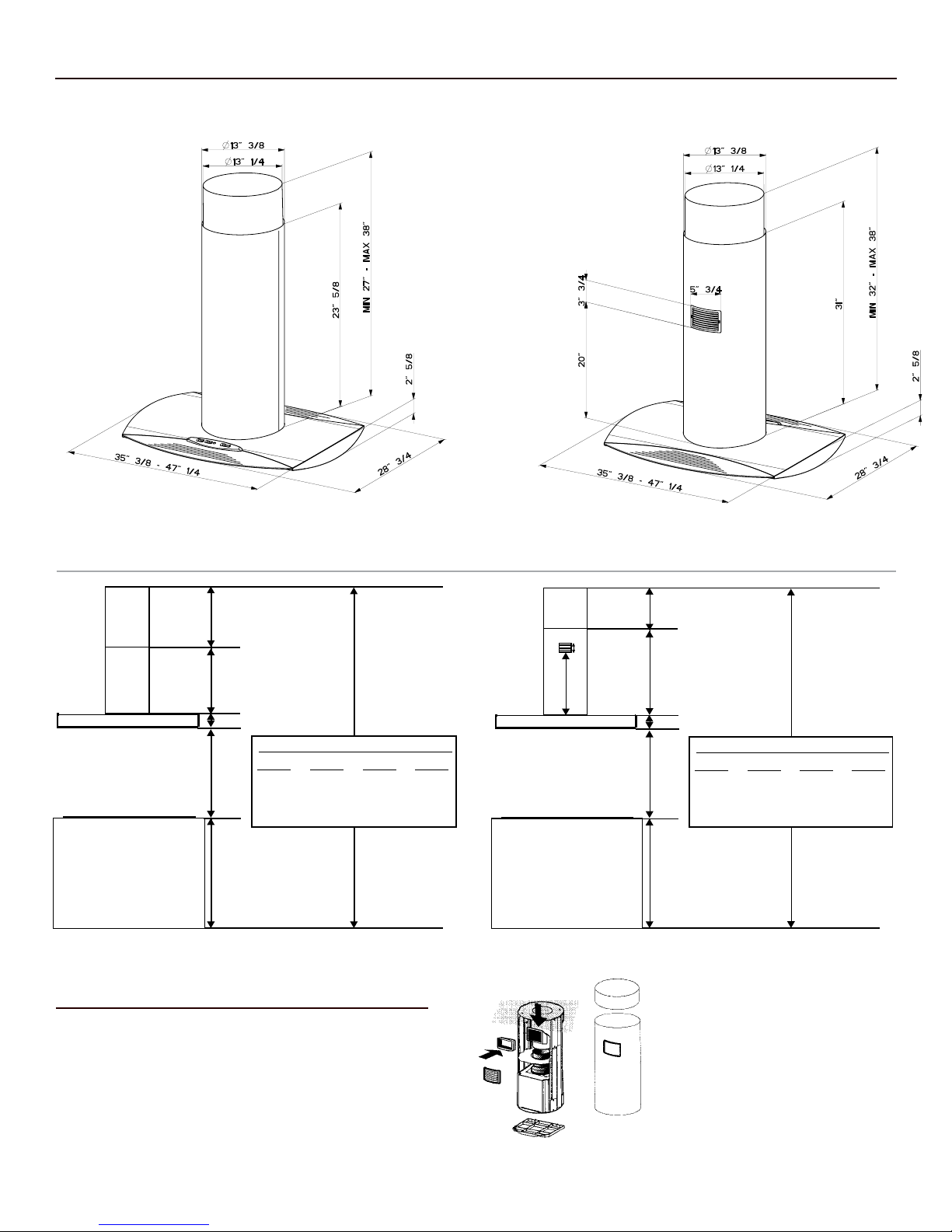

Dimensional Diagrams
Pre-Planning Your Installation - Important: Consult the installation instructions before you begin installing this rangehood.
Note: The Ductless
Vent Grate exhausts
toward the rear of the
chimney.
Ducted Ductless
The ducted Axia Isola chimney can be adjusted for ceilings between 7’ 5 5/ 8” and 8’ 10 5/ 8” depending on the distance between the bottom of the hood and the
cooktop (distance x in above DUCTED diagram). The ductless Axia Isola chimney can be adjusted for ceilings between 7’ 10 5/ 8” and 8’ 10 5/ 8” depending on the
distance between the bottom of the hood and the cooktop (distance x in above DUCTLESS diagram).
