upper
chimney
cover
ductless
lower
chimney
cover
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
10" min
16 1/8” max
21 1/4"
2 3/8"
36”
19 9/32"
x
also consult cooktop
manufacturer's recommendation
min & max ceiling height examples
x = 30"
min
8' 3 5/8"
max
8' 9 3/4"
x = 28"
min
8' 1 5/8"
max
8' 7 3/4"
x = 26"
min
7' 11 5/8"
max
8' 5 3/4"
x = 24"
min
7' 9 5/8"
max
8' 3 3/4"

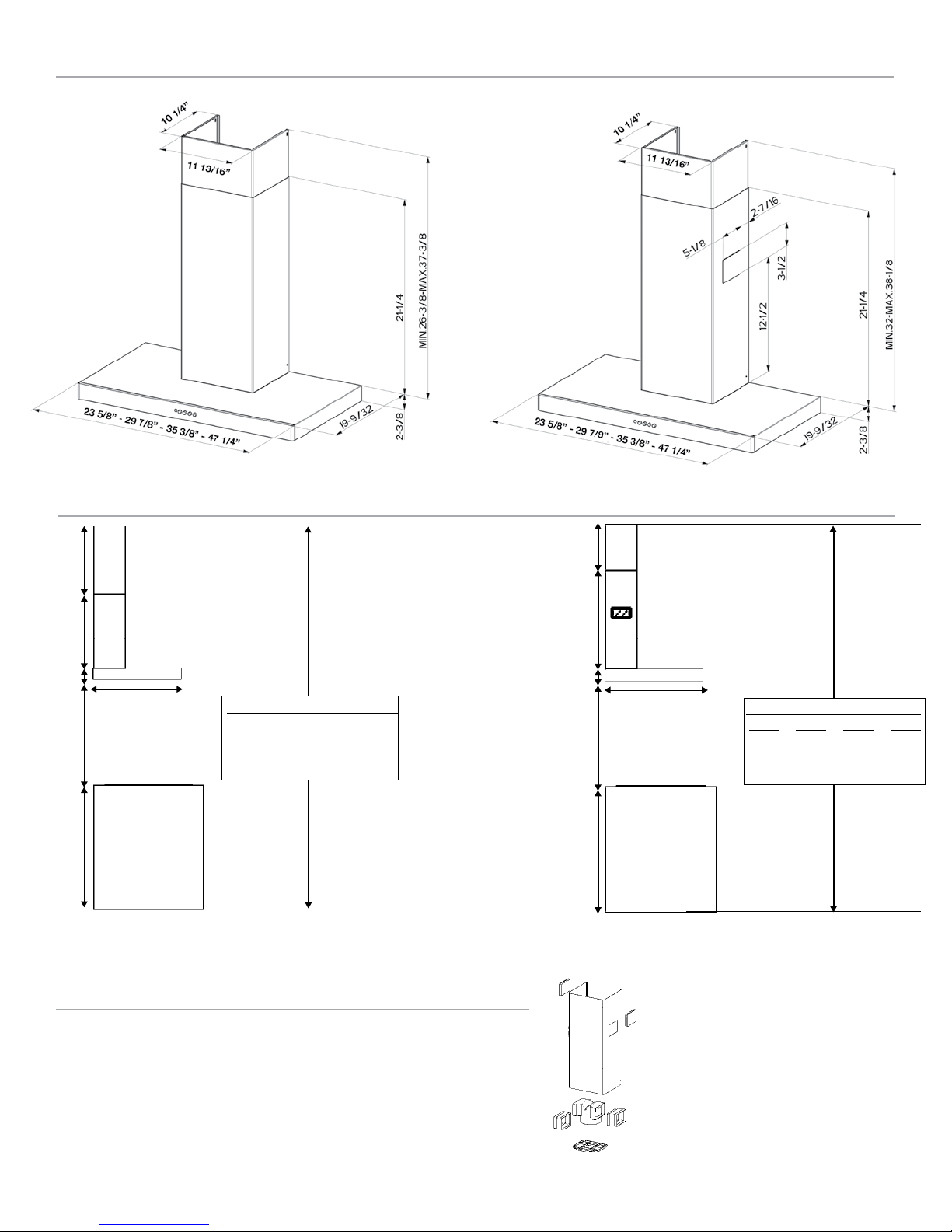

Dimensional Diagrams
upper
chimney
cover
lower
chimney
cover
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
5 1/8” min
16 1/8” max
21 1/4”
2 3/8"
36”
19 9/32"
x
also consult cooktop
manufacturer's recommendation
min & max ceiling height examples
x = 30"
min
7' 10 3/4"
max
8' 9 3/4"
x = 28"
min
7' 8 3/4"
max
8' 7 3/4"
x = 26"
min
7' 6 3/4"
max
8' 5 3/4"
x = 24"
min
7' 4 3/4"
max
8' 3 3/4"
Note: If 24” or 30” High Backsplash is being installed, the distance between the bottom of the hood and the cooktop (distance x in diagram) is equal
to the height of the Backsplash.
Ductless
For ducted installations, the
chimneys can be adjusted for
ceilings between 7’ 4 3/4” and
8’ 9 3/4” depending on the
distance between the bottom
of the hood and the cooktop
(distance x in Ducted
diagram).
For ductless installations, the
chimneys can be adjusted
for ceilings between 7’ 9
5/8” and 8’ 9 3/4” depending
on the distance between
the bottom of the hood and
the cooktop (distance x in
Ductless diagram).
For shorter ceilings, have
the chimney cover(s) cut at
a sheet metal shop. For
higher ceiling installations,
the High Ceiling Chimney
Kit includes a new 40” upper
chimney which would replace
the 16 1/8” upper chimney
that came with the hood.
Ducted
DuctlessDucted
* it is highly recommended that
professional style cooking always be
vented to the outside.
WARNING! Product specications are subject to change without notication. Consult the installation instructions before you begin installing this rangehood.
Pre-Planning Your Installation - Important: Consult the installation
instructions before you begin installing this rangehood.
Ductless Installations*
For installations where ductwork is impos-
sible or highly impractical, a Ductless
Conversion Kit is available. A charcoal
lter, which attaches under the blower
assembly, absorbs smoke and odors. A
ductless diverter assembly directs the air
out to a lower chimney with vent grates cut
into the sides.
Make your ductrun as straight and short as possible. The ductrun should not exceed
35 equivalent feet if ducted with the required minimum of 6” round duct. Count 45º
angles as 3 feet, 90º elbows as 5 feet, and 90º at elbows as 12 feet.
For best results, use no more than three 90° elbows. Make sure that there is a
minimum of 24” of straight duct between elbows if more than one is used. Do
not install two elbows together. If you must elbow right away, do it as far away
from the hood’s exhaust opening as possible.
Pre-Planning Your Installation - Important: Consult the installation instructions before you begin installing this rangehood.
