Faber Diamante Isola User guide

island canopy rangehood
sleek styling
600 cfm PRO motor
Silent Kit noise reduction
4 halogen lights with dimmer
4 Speed LED display control
30 minute auto off timer
stainless steel baffle filters
modified pro depth
convertible to ductless*
Easy Cube motor access
sone range: 3.5 - 6.5
6” round duct
Uses 25% less energy than old model
Size | Color Model #
36 x 28 Stainless
°
°
°
°
°
°
°
°
°
°
°
°
°
°
DIAMIS36SS
* it is highly recommended that professional
style cooking always be vented to the
outside.
A streamlined shape combined with traditional
styling makes the Diamante Isola an updated
alternative in canopy ventilation. To add subtle
sparkle, the corners of the canopy and the chimney
are angled in a diamond-like cut. The quiet, 600
cfm PRO motor is located inside the chimney,
allowing for a lower profile canopy and room for a
view.
Includes: • Lower Chimney with holes for
ducting • Ductless Diverter Assembly • Vent
Grates • Charcoal Filter
Ductless Conversion Kit
Stainless DUCTDIAMIS
Replacement Charcoal Filter
FILTER2
High Ceiling Chimney Kit
Extends the island chimney for high
ceilings
Stainless HIGHDIAMIS
Diamante Isola
a brilliantly cut gem
Designer Collection
p.o. box 435 • Wayland, MA 01778 • tel: [phone] • fax: [phone] • e-mail: [email protected] • www.faberonline.com
a
c
c
e
s
s
o
r
i
e
s
NOW WITH A NEW LED DISPLAY WITH
ELECTRONIC TOUCH CONTROLS, 2 LEVEL
LIGHTING, 30 MINUTE AUTO SHUT OFF, AND 10
MINUTE INTENSIVE SPEED CONTROL

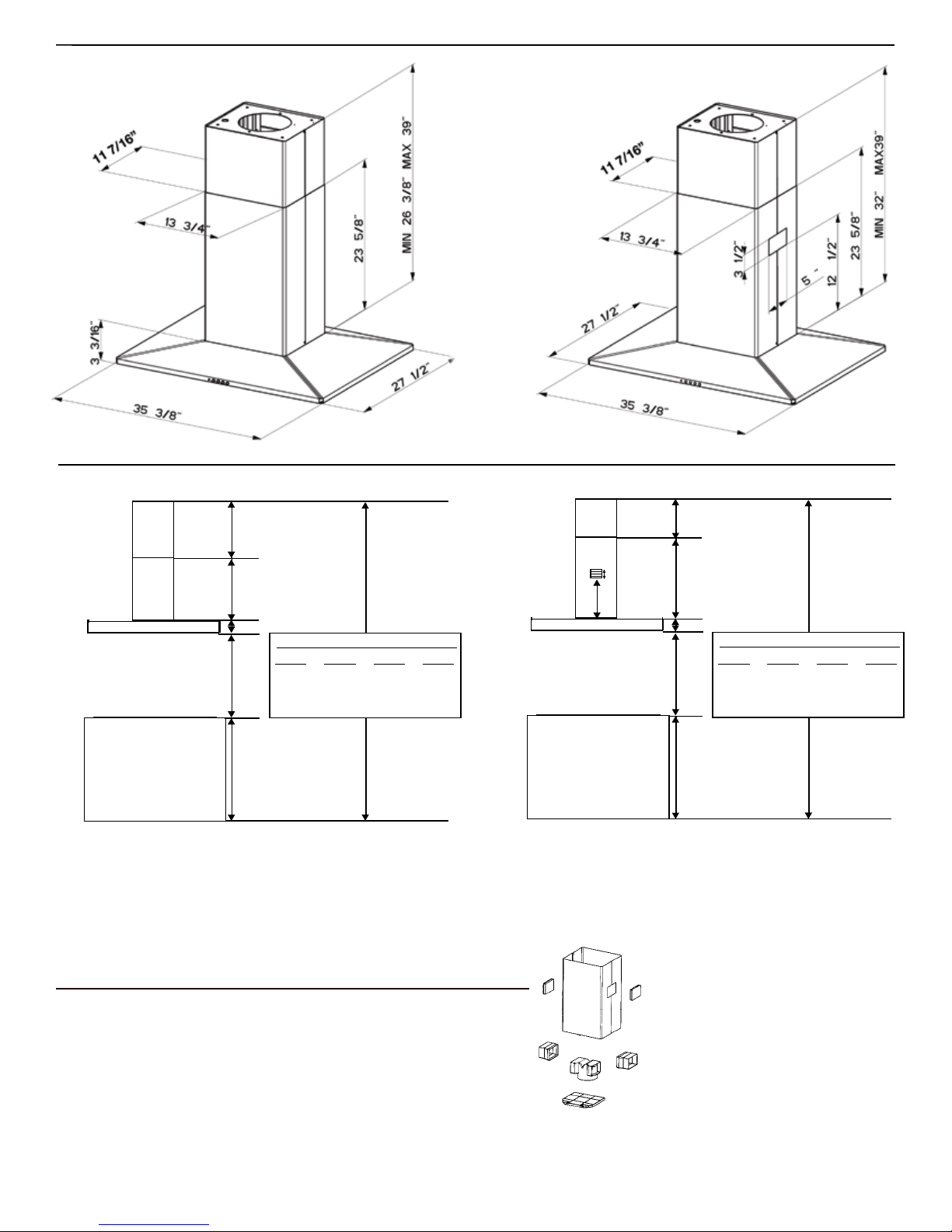

Dimensional Diagrams
upper
chimney
cover
lower
chimney
cover
canopy
cabinet base
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
also consult cooktop
manufacturer's recommendation
2 3/4” min
15 3/8” max
23 5/8”
3 3/16”
36”
x
min & max ceiling height examples
x = 30"
min
7' 11 9/16"
max
9' 3/16"
x = 28"
min
7' 9 9/16"
max
8' 10 3/16"
x = 26"
min
7' 7 9/16"
max
8' 8 3/16"
x = 24"
min
7' 5 9/16"
max
8' 6 3/16"
upper
chimney
cover
ductless
lower
chimney
cover
canopy
cabinet base
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
also consult cooktop
manufacturer's recommendation
8 3/8” min
15
3/8” max
23
5/8”
36”
x
min & max ceiling height examples
x = 30"
min
8'
5 3/16"
max
9'
3/16"
x = 28"
min
8'
3 3/16"
max
8'
10 3/16"
x = 26"
min
8'
1 3/16"
max
8'
8 3/16"
x = 24"
min
7'
11 3/16"
max
8'
6 3/16"
12 1/2"
3 3/16”
3 1/2”
The ducted Diamante Isola chimney can be adjusted for ceilings between 7’ 5 9/16” and 9’ 3/16” depending on the distance between
the bottom of the hood and the cooktop (distance x in above DUCTED diagram). The ductless Diamante Isola chimney can be
adjusted for ceilings between 7’ 11 3/16” and 9’ 3/16” depending on the distance between the bottom of the hood and the cooktop
(distance x in above DUCTLESS diagram). For higher ceiling installations, the High Ceiling Chimney Kit includes an additional
support structure which adds 27 1/2" to the various ceiling heights in the gures above.
Ducted
Ducted Ductless
1
Ductless
* it is highly recommended that
professional style cooking always be
vented to the outside.
WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.
Pre-Planning Your Installation - Important: Consult the installation
instructions before you begin installing this rangehood.
Ductless Installations*
For installations where ductwork is
impossible or highly impractical, a Ductless
Conversion Kit is available. A charcoal
filter, which attaches under the blower
assembly, absorbs smoke and odors. A
ductless diverter assembly directs the air
out to a lower chimney with vent grates cut
into the sides.
Make your ductrun as straight and short as possible. The ductrun should not exceed
35 equivalent feet if ducted with the required minimum of 6” round duct. Count 45º
angles as 3 feet, 90º elbows as 5 feet, and 90º at elbows as 12 feet.
For best results, use no more than three 90° elbows. Make sure that there is a
minimum of 24” of straight duct between elbows if more than one is used. Do
not install two elbows together. If you must elbow right away, do it as far away
from the hood’s exhaust opening as possible.
Rev. 07/11
