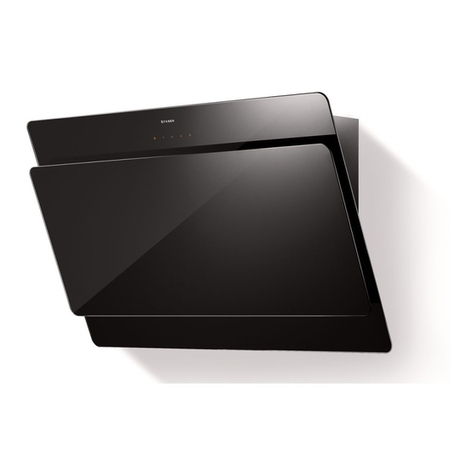

Faber COCKTAIL User manual

Faber

Faber COCKTAIL User manual

Faber PIXEL BK A60 User manual

Faber

Faber PIXEL BK A60 User manual

Faber BELA30SS600-B User manual

Faber

Faber BELA30SS600-B User manual

Faber STILO ISOLA/SP User manual

Faber

Faber STILO ISOLA/SP User manual

Faber T-shelf User manual

Faber

Faber T-shelf User manual

Faber 5470827 User manual

Faber

Faber 5470827 User manual

Faber NICE X/V A90 User manual

Faber

Faber NICE X/V A90 User manual

Faber Flexa NG HIP AM/X A60 User manual

Faber

Faber Flexa NG HIP AM/X A60 User manual

Faber GLASSY IS 36" Owner's manual

Faber

Faber GLASSY IS 36" Owner's manual

Faber CHLOE CHLO36BK600 User manual

Faber

Faber CHLOE CHLO36BK600 User manual

Faber A120/2 User manual

Faber

Faber A120/2 User manual

Faber 991.0536.838 User manual

Faber

Faber 991.0536.838 User manual

Faber Diamante DIAM36SS User manual

Faber

Faber Diamante DIAM36SS User manual

Faber BREVA PRO BREV308SS600 User manual

Faber

Faber BREVA PRO BREV308SS600 User manual

Faber DVB5960HB User manual

Faber

Faber DVB5960HB User manual

Popular Ventilation Hood manuals by other brands

Gorenje S3 IHGC963S4X manual

Gorenje

Gorenje S3 IHGC963S4X manual

KOBE ISX2136SQB-1 Installation instructions and operation manual

KOBE

KOBE ISX2136SQB-1 Installation instructions and operation manual

U.S. Products ADVANTAGE-100H Information & operating instructions

U.S. Products

U.S. Products ADVANTAGE-100H Information & operating instructions

Kuppersberg DUDL 4 LX Technical Passport

Kuppersberg

Kuppersberg DUDL 4 LX Technical Passport

Framtid HW280 manual

Framtid

Framtid HW280 manual

Thermador HGEW 36 FS installation manual

Thermador

Thermador HGEW 36 FS installation manual

Electrolux LFT769X user manual

Electrolux

Electrolux LFT769X user manual

AEG X69453MVO UK user manual

AEG

AEG X69453MVO UK user manual

Broan B5836SS manual

Broan

Broan B5836SS manual

Heinner HDCH-6060RGBK quick start guide

Heinner

Heinner HDCH-6060RGBK quick start guide

Baumatic AS35SS instruction manual

Baumatic

Baumatic AS35SS instruction manual

Franke FTF 604 XS V2 Instructions for use and installation

Franke

Franke FTF 604 XS V2 Instructions for use and installation

Best UCB3I30SBW installation instructions

Best

Best UCB3I30SBW installation instructions

Gram EFU 503-90 X instruction manual

Gram

Gram EFU 503-90 X instruction manual

CIARRA CBCS6803 Installation and user manual

CIARRA

CIARRA CBCS6803 Installation and user manual

sauter SHG501 Instructions for installation and use

sauter

sauter SHG501 Instructions for installation and use

Franke 392-17 User instructions

Franke

Franke 392-17 User instructions

FALMEC Polar Black 35 Instruction booklet

FALMEC

FALMEC Polar Black 35 Instruction booklet

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

The Pro Magnum offers a good value
in the professional ventilation
category. Top or direct rear venting
and three chimney options make the
Pro Magnum the most versatile and
easy to install Pro hood on the market.
wall canopy rangehood
professional styling
3 chimney options
600 cfm for 30” & 36”
1200 cfm for 48”
3 halogen lights for 30” & 36”
4 halogen lights for 48”
3 speed control panel
stainless steel baffle filters
convertible to ductless with a kit*
top or direct rear venting
built-in mounting system
sone range: 4.5 - 7.0
3 1/4” x 10” duct for 30” & 36”
2 - 3 1/4” x 10” ducts for 48”
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
Pro Magnum
a professional performer
30 Stainless
36 Stainless
48 Stainless
6059890
6059891
6059892
For 48” model only, transitions two 3 1/4” x
10” openings to one 10” round opening
Duct Transition Kit
Galvanized Steel 6000002
6093034
Replacement Filters
24” wide, extends to accomodate 8 - 9 foot
ceilings
Telescopic Chimney Cover
24 Stainless
Note: The Pro Magnum comes standard
WITHOUT A CHIMNEY. A telescopic
chimney kit or full width duct cover is
available separately.
6097336
12” high, extends full width of the hood
Full Width Duct Cover
30 Stainless
36 Stainless
48 Stainless
6097337
6097338
6097339
For recirculating installations, high quality, heavy
duty filters ensure the removal of smoke and
odors from the kitchen. For 48” model, you
must order two of part #6093034, one kit for
each motor
.
There isn’t a ductless kit available
for 48” hood.
Professional Collection
p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: [email protected] • www.faberonline.com
Size/Color/Model #
* it is highly recommended that
professional style cooking always be
vented to the outside.
a
c
c
e
s
s
o
r
i
e
s
A 4” high stainless steel vent grate which
is installed below the cabinet to recirculate
the air back into the kitchen when
ducting outside is impossible or
impractical. Includes the stainless grate,
installation hardware and charcoal filters
Ductless Vent Grate Kit
30” / DUCTGRT30
36” / DUCTGRT36
Size / Model #
25"
25"
WITH TELESCOPIC CHIMNEY KIT WITH FULL WIDTH DUCT COVER
25
"
25
"
Dimensional Diagrams
Rev.01/11
Pre-Planning Your Ductwork - Important: Consult the installation instructions before you begin installing this rangehood.
For 48” model, use two 3 1/4” by 10” rectangular duct runs or use the optional Duct Transition Kit shown here. This kit cannot be used
with the Telescopic Chimney Cover because it is too large to fit behind the cover. The Duct Transition Kit will fit behind the Full Width
Duct Cover.
30” AND 36” MODELS
Hole for Wiring Cable
Hole for Wiring Cable
Hole for Wiring Cable
48” MODEL
The Pro Magnum can be vented to the top or directly out the back.
Make your ductrun as straight and short as possible. The ductrun
should not exceed 35 equivalent feet if ducted with 3 1/4” by 10”
rectangular duct or 55 equivalent feet if ducted with 10” round
ductwork (when using Duct Transition Kit 6000002 for 48” model
only). Count 45º angles as 3 feet, 90º elbows as 5 feet, and 90º at
elbows as 12 feet.
For best results, use no more than three 90° elbows. Make sure
that there is a minimum of 24” of straight duct between elbows
if more than one is used. Do not install two elbows together. If
you must elbow right away, do it as far away from the hood’s
exhaust opening as possible.
OPTIONAL DUCT TRANSITION KIT DIMENSIONS (48”MODEL ONLY)
1/2 ”
3/8 ”
3
1/2 ”
1/4 ”
22
1/4 ”
23
1/2 ”
3/8 ”
4
Rectangular Hole which fits over the two 3 1/4” x 10”
exhaust openings on the rangehood
4”
3/8 ”
3
1/2 ”1/2 ”
14”
5/8 ”
2
3/4 ”
9
WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.
