Facina VKFCEDVH User manual

INTRODUCTION
Congratulations on your purchase of this FACINA
product. This VKFCEDVH is a high quality day night
camera with LED illumination, varifocal lens, & a sturdy
mounting bracket.
The camera can be used indoors or outdoors & can
be wall or ceiling mounted.
Please read this instruction manual carefully before
installation to ensure correct use of the product.

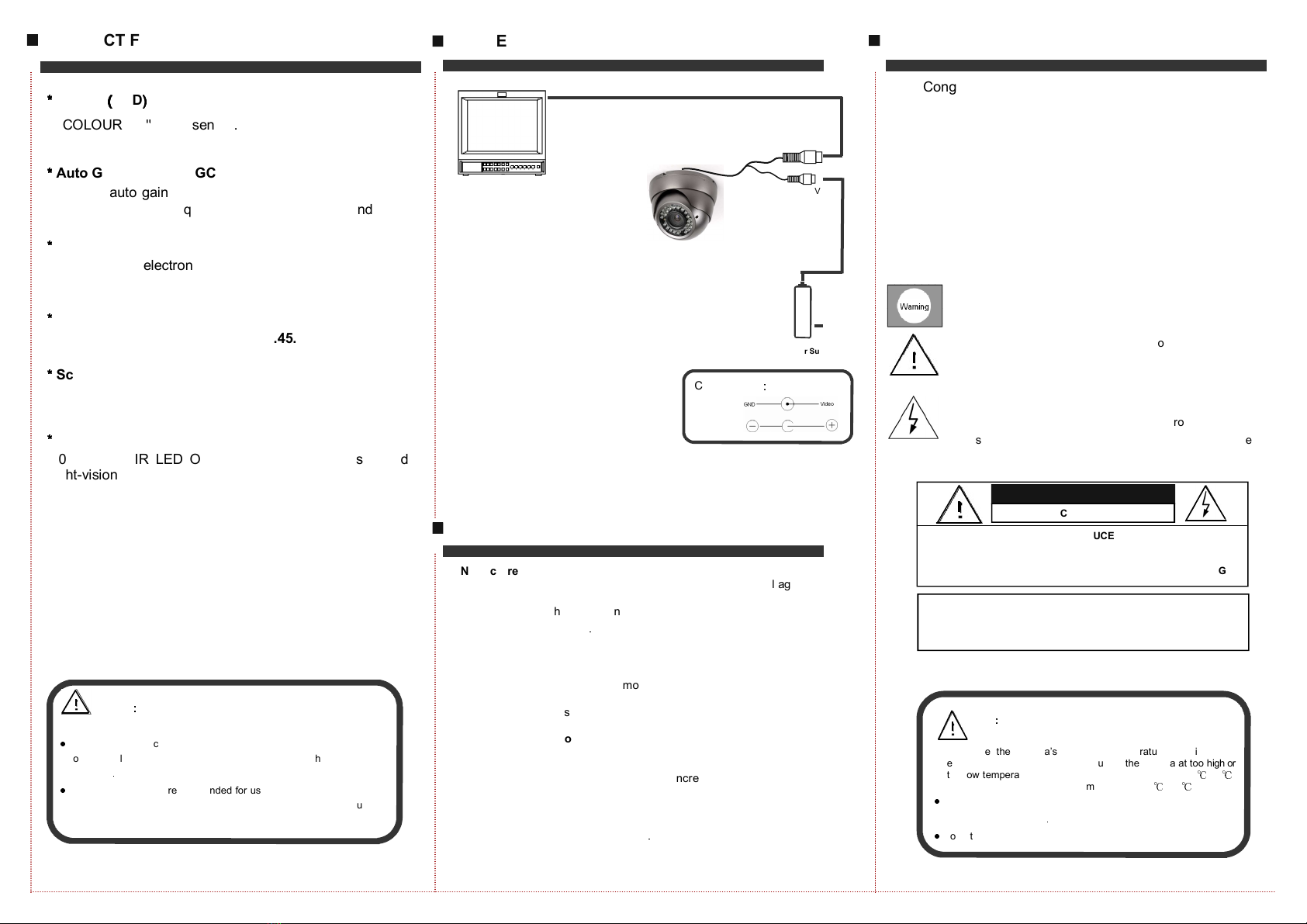

CONNECTIONS
PRODUCT FEATURES
*
* *
* Sensor (
((
( CCD )
))
)
COLOUR 1 4 " CCD sensor.
*
* *
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The colour cam-
era can achieve high quality images in low Lux conditions
*
* *
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The colour
camera’s AES speed can reach 1/1 , s.
*
* *
* Gamma Characteristic
Camera Gamma characteristic is .45.
*
* *
* Scanning Mode
NTSC or PAL mode.
*
* *
* Night-time Vision
0 Lux with IR LED ON. High quality IR LED’s provide
night-vision effect.
DC12V Power Supply
Monitor
VKFCEDVH
TROUBLE SHOOTING
Cable Cores ：
Power
Video
Note :
: :
:
Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -10 ℃ -50 ℃ .
(Recommendatory operating temperature is -5 ℃ --40 ℃ .)
● Never position the camera to face the sun or bright object. This
may damage the CCD .
● Do not mount the camera by a radiator or heater.
1. No Picture after providing power
. May be the power supply. please check the power supply voltage and polar-
ity.
. Please check all the connecting cables to monitoring equipment, especially
the ‘BNC’ connectors .
2. The picture shows ’rolling’ interference ripples
. May be caused by induced AC voltage on to video cables. Check for AC
cables near video cables & move as necessary.
. Check the earth potentials at monitor and peripheral equipments positions.
Earth potentials should be the same at each position.
3. The picture background colour changes continuously
. The fluorescent lamp’s electromagnetic field causes colour roll. This is a
normal phenomenon of the camera.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps.
4. The picture ‘smear’s’
. The power supply’s voltage unstable .
. Cables not connected correctly or have high impedance.
To prevent fire or shock hazarded. Do not immerse the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
into water.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Notes ：
：：
：
● Please ensure the correct specification power supply is used. Check
voltage, polarity and operating temperature match the camera’s re-
quirement .
● Lightning protection is recommended for use with camera equipment. If
not installed, in electrical storms, camera equipment should be
disconnected.
Video
12V DC
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BANCK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION:
To prevent electric shocks and risk of fire hazards,
do NOT use other than specified power source.

VKFCEDVH
Aluminum Dome Day & Night IR
Colour Camera
Specification
Model
VKFCEDVH
Pick Up Element COLOUR 1 4
″ CCD
Effective Picture
Elements ( H*V ) 795x596
Horizontal Resolution
540 TV Lines
S/N Ratio
Clock Frequency (MHZ) PAL:28.375
Scanning System
2:1 interlace
Minimum Illumination
0 Lux (with IR LED ON)
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
1 50s~1 100,000s
Gamma Characteristic
0.45
Video Output
1Vpp,75 Ω
Auto Gain Control
Auto
Power /
//
/ Current 12VDC(+ -10%) 400mA
Lens
4-9mm
Dimension (mm)
￠ 119×82.5
Weight (g) 580
Storage Temperature
-30~ +60 ℃
Operating Temperature
-10~ +45 ℃
More than 48dB
IR Project Distance
Up to 20 Meters ( with 36 Unit Infrared LED)
IR Status
Under 10 LUX by CDS
IR Power On
CDS Auto Control
Packing List
No Name Model Number
2. User Guide 1
1. Aluminum Dome Day&Night IR Color
Camera
VKFCEDVH 1
Distributed by
Audio Visual Security
4 Arkwright Court
Fylde Industrial Estate
Blackpool
FY4 5DR
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.audiovisualsecurity.org.uk
Notes :
: :
: Please read this User Guide in
detail prior to installation
Do not attempt to disassemble the camera.
If the camera does not function correctly,
please contact our technical helpline on Tel:
01253 792898
