Factor HD-AUDIO-BREAKOUT User manual
2
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
3
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
Table of Content
Introduction............................................................................................................. 4
Features................................................................................................................... 4
Panel Description.................................................................................................... 5
RS232 API Commands............................................................................................ 7
Application Diagram ............................................................................................... 8
Specifications.......................................................................................................... 9
Package Contents................................................................................................... 9
Maintenance .......................................................................................................... 10
Warranty Policy..................................................................................................... 10
Limitations of Warranty ........................................................................................ 10
Exclusive Remedies.............................................................................................. 11
RMA Policy ............................................................................................................ 11
Standard Replacement.................................................................................... 11
Once you have obtained an RMA number....................................................... 12
Please note ..................................................................................................... 12
4
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
Introduction
The HD-AUDIO-BREAKOUT is a HDMI 2.0 Audio Extractor and Embedder, which can work in
two modes, one mode for extracting the audio via L/R output from HDMI input source, and the
other mode for removing the original audio of HDMI source and embedding auxiliary audio via
L/R input to the HDMI output. It also features embedded pre-set EDID’s as testing device in
the video signal chain.
Features
Supports 4K@50Hz/60Hz 4:4:4, HDR and full 3Dformat
HDCP 2.2/HDCP 1.x and DVI compliant
Smart CSC technology supports outputting 6G or 3G (4K@60Hz 4:2:0) video depends on
sink device capacity
Audio embed to HDMI output
Audio de-embedded from HDMI input
Supports EDID management
Supports HDCP management
CEC and ARC passthrough
Supports RS-232 API control commands
Relock and enhance output signal quality
All PCM, Dolby and DTS audio formats pass through
With ESD protection
5
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics

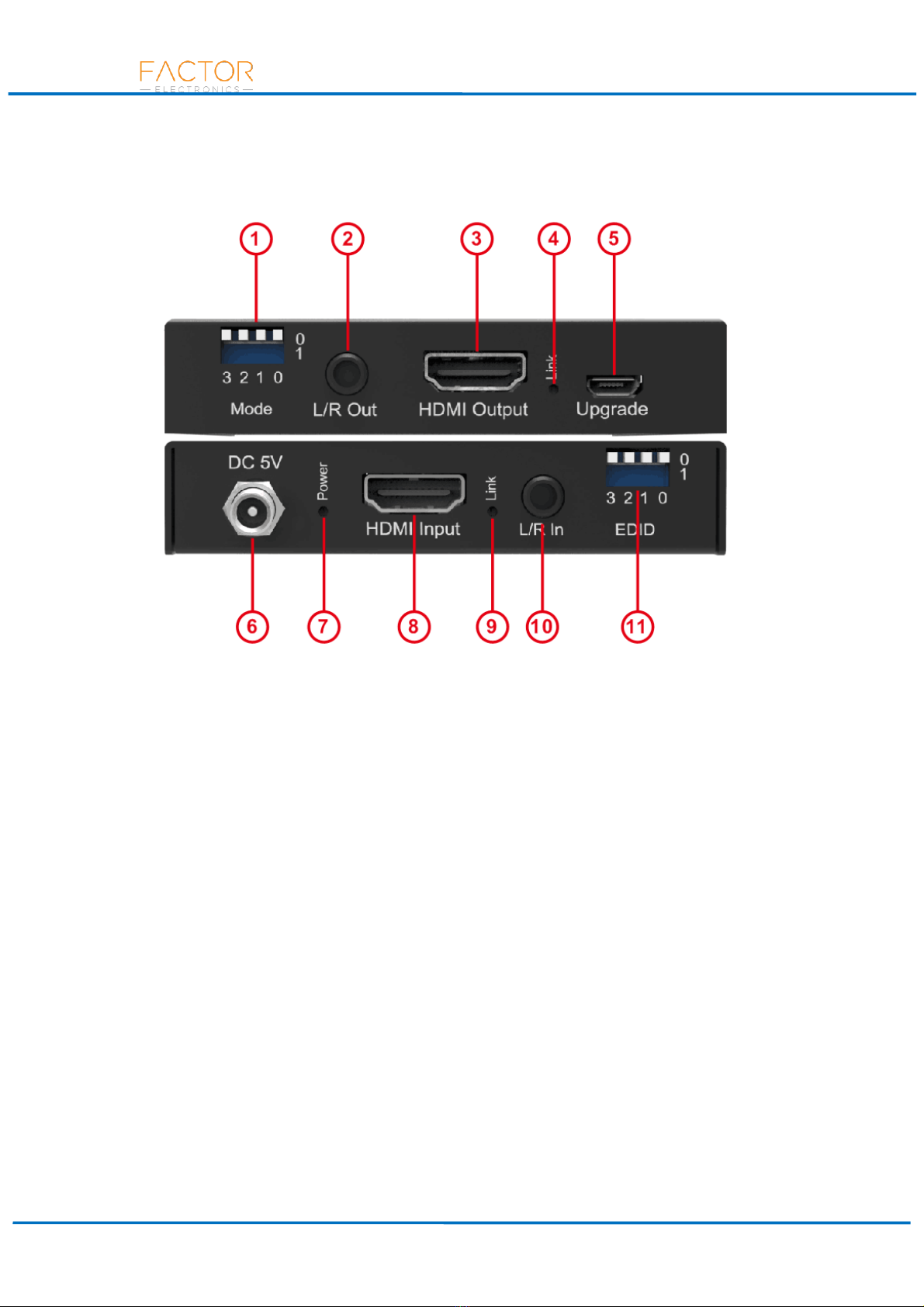

Panel Description
①Mode DIP Switch -- 4 pin (UP=0, DOWN=1). The HD-AUDIO-BREAKOUT can be
configured to perform various tasks using the mode DIPswitches. Detailed settings please
see below:
A. Under control by DIP switch, the position of DIP Switch-0 should be UP (0).
DIP Switch-3 -- Selectable to convert HDMI signal to output.
Position=0 (UP) -- Auto convert 6G (4:4:4) Format to 3G (4:2:0) when detect sink not
support 6G (4:4:4).
Position=1 (DOWN) -- Always convert 6G (4:4:4) format to 3G (4:2:0).
DIPSwitch-2 -- HDCP management.
Position=0 (UP) -- HDCP follow sink.
Position=1 (DOWN) -- HDCP follow source.
DIP Switch-1 -- Audio embedding and bypass.
Position=0 (UP) -- Audio bypass.
Position=1 (DOWN) -- Audio embedding (L/R input added to the HDMI Output).
B. Under control by serial USB mode, the position of DIP Switch-0 should be DOWN (1).
DIP Switch-1/2/3 -- reserved or not in use.
②L/R Out -- Extract the audio from the HDMI input
③HDMI Output -- Connect to HDMI sink device
6
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
④LED Link for HDMI output -- Lit when detecting HDMI signal
⑤Upgrade -- Micro USB port for F/M upgrade and terminal API control
⑥DC Power Input -- Screw locking connector, use the included 5V/1A DC adapter to power
the unit
⑦LED Indicator for Power -- Lit blue light when getting power
⑧HDMI Input -- Connect to HDMI source device
⑨LED Indicator for HDMI Input -- Lit when detecting HDMI signal
⑩L/R In -- Embed the audio to HDMI output
⑪DIP Switcher -- EDID management
3
2
1
0
EDID type
Combination of DIP positions
0
0
0
0
Copy EDID from output
0
0
0
1
1080P 2.0CH
0
0
1
0
1080P 5.1CH
0
0
1
1
1080P 7.1CH
0
1
0
0
1080i 2.0CH
0
1
0
1
1080i 5.1CH
0
1
1
0
1080i 7.1CH
0
1
1
1
4K60Hz 4:2:0 2.0CH
1
0
0
0
4K60Hz 4:4:4 2.0CH,
1
0
0
1
4K60Hz 4:4:4 7.1CH
1
0
1
0
4K30Hz 4:4:4 2.0CH
1
0
1
1
4K30Hz 4:4:4 5.1CH
1
1
0
0
4K30Hz 4:4:4 7.1CH
1
1
0
1
DVI 1280x1024
1
1
1
0
DVI 1920x1080
1
1
1
1
DVI 1920x1200
7
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
RS232 API Commands
Command
Action
?
Print Help Information
HELP
Print Help Information
STATUS
Print System Status And Port Status
AUD EXT/INS
Set Audio Extract Or Insert
OUT ON/OFF
Set OUTPUT On Or Off
OUT CSC xx
Set OUTPUT Color Space Convert Mode
xx=OFF: Disable Convert Function
xx=OFF: Disable Convert Function
xx=420: Always Convert 6G 444 Format To 3G 420
xx=AUTO: Auto Convert 6G 444 Format To 3G 420
When Detect Sink Not Support 6G 444
FHPD ON/OFF
Set Force HPD On Or Off
RESET
Reset System To Default Setting
(Should Type "Yes" To Confirm, "No" To Discard)
8
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics

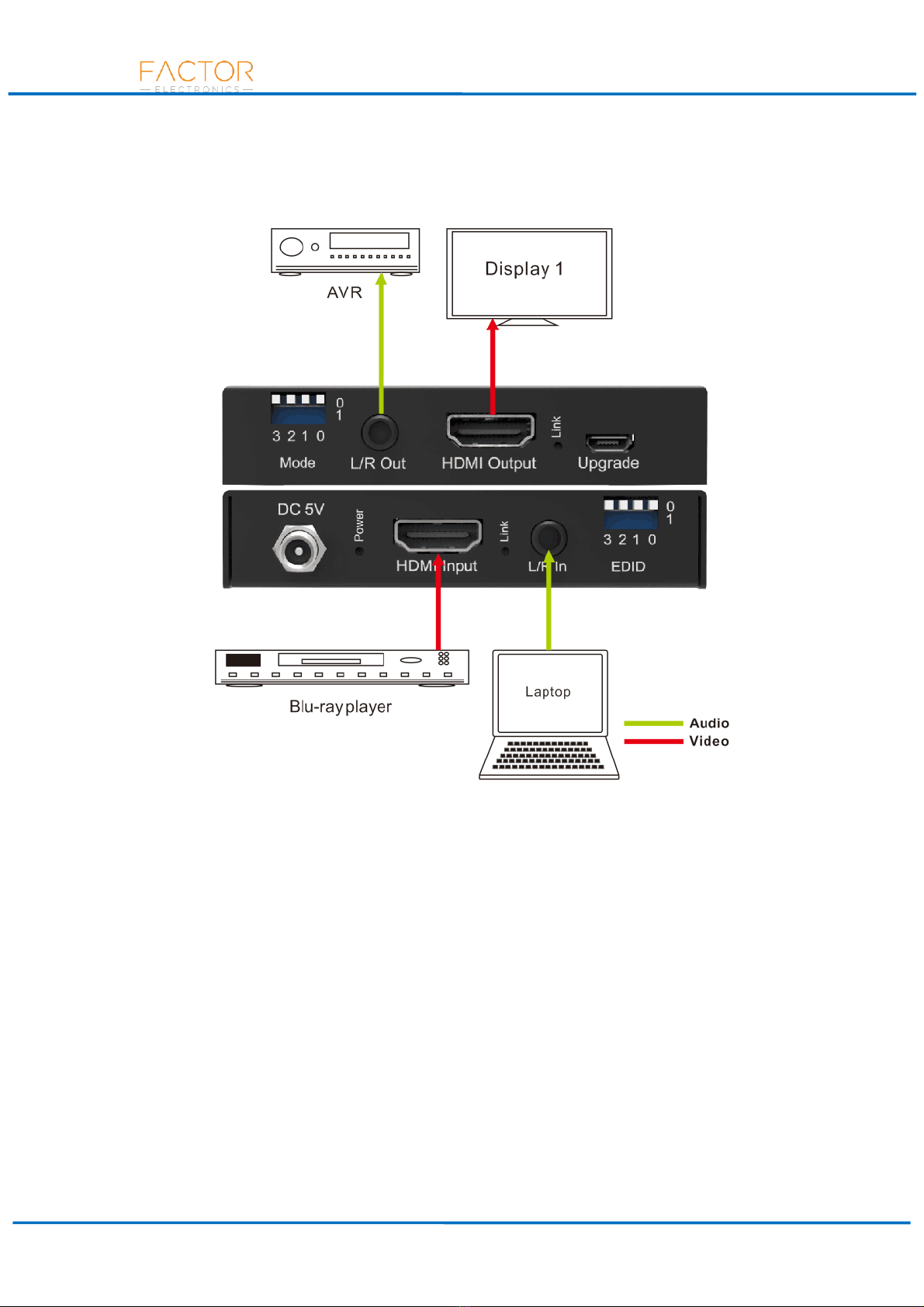

Application Diagram
9
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
Specifications
Bandwidth
18Gbps
Video Input Connectors
1x HDMI Type A, 19-pin, female
Audio Input Connectors
1x 3.5mm stereo earphone jack (L/R)
Video Output Connectors
1x HDMI Type A, 19-pin, female
Audio Output Connectors
1x 3.5mm stereo earphone jack (L/R)
EDID
4-pin DIP Switcher
Mode
4-pin DIP Switcher
Dimensions(W x D x H)
83mm x 83mm x 17mm, without feet
Shipping Weight
0.3KG
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
- 4°F to 140°F (- 20°C to 60°C)
Power Supply
5V/1A DC
Package Contents
1) 1x HD-AUDIO-BREAKOUT
2) 1x 5V/1A Power Supply
3) 1x Pair of Rack-mount Ears
10
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Warranty Policy
Factor Electronics products are warranted against defects in material and workmanship for two
years from the date of shipment. During the warranty period, Factor Electronics will, at its
option, repair or replace products that prove to be defective. Repairs are warranted for the
remainder of the original warranty or a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to Factor Electronics and all
related customs, taxes, tariffs, insurance, etc. Factor Electronics is responsible for the freight
charges only for return of the equipment from the factory to the owner. Factor Electronics will
return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was
sent to Factor Electronics.
All equipment returned for warranty repair must have a valid RMA number issued prior to
return and be marked clearly on the return packaging. Factor Electronics strongly
recommends all equipment be returned in its original packaging.
Factor Electronics obligations under this warranty are limited to repair or replacement of failed
parts, and the return shipment to the buyer of the repaired or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed, altered, repaired,
or misused in any way that, in the opinion of Factor Electronics, would affect the reliability or
detracts from the performance of any part of the product, or is damaged as the result of use in
a way or with equipment that had not been previously approved by Factor Electronics.
The warranty does not apply to any product or parts thereof where the serial number or the
serial number of any of its parts has been altered, defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of the product.
11
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
The warranty does not cover replacement or repair necessitated by loss or damage from any
cause beyond the control of Factor Electronics, such as lightning or other natural and weather
related events or wartime environments.
The warranty does not cover any labor involved in the removal and or reinstallation of
warranted equipment or parts on site, or any labor required to diagnose the necessity for repair
or replacement.
The warranty excludes any responsibility by Factor Electronics for incidental or consequential
damages arising from the use of the equipment or products, or for any inability to use them
either separate from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all equipment returned for
warranty repair where Factor Electronics cannot identify the cause of the reported failure.
Exclusive Remedies
Factor Electronics warranty, as stated is in lieu of all other warranties, expressed, implied, or
statutory, including those of merchantability and fitness for a particular purpose. The buyer
shall pass on to any purchaser, lessee, or other user of Factor Electronics products, the
aforementioned warranty, and shall indemnify and hold harmless Factor Electronics from any
claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its
agents, or employees have made additional warranties or representations as to product
preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies. Factor
Electronics shall not be liable for any direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any other legal theory.
RMA Policy
When returning product to Factor Electronics for any reason, the customer should fill out the
official RMA form to obtain a RMA number. Without the permission or approval, Factor
Electronics will be no responsible for any return. This can be initiated by emailing or calling
your related sales. All requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to Factor Electronics first, a Standard
Replacement option is available.
12
www.factorelectronics.com
HD-AUDIO-BREAKOUT
User Manual
Factor Electronics
An RMA numbermust first be issued by sales. This RMA number will need to be referenced on
the outside of the return shipment.
Upon receipt of the defective product, Factor Electronics will, at its discretion, either repair or
replace the product and ship it out in the most expeditious manner possible. Subject to
availability, the replacement product will be shipped on the business day following receipt of
the defective product.
In the event the product returned to Factor Electronics has been discontinued (i.e. the product
is no longer being manufactured by Factor Electronics but is still under warranty), Factor
Electronics will, at its discretion, either repair or replace with recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from Factor Electronics, you must send the product - freight
prepaid - to Factor Electronics Technology Co., Ltd. The Factor Electronics RMA number must
be prominently displayed on the outside of your package. If you send your product to Factor
Electronics without the RMA number prominently displayed on the outside of the package, it
will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. Factor Electronics
does not accept responsibility for any lost shipments unless proof of delivery to Factor
Electronics is provided.
Please note
Product shipped to Factor Electronics must be properly packaged to prevent loss or damage in
transit.
Shipping your RMA to Factor Electronics using regular mailing envelopes is not acceptable, as
they do not protect the product from damage during shipping.
Factor Electronics will not repair or replace a module that is shipped in such a way that the
product is not properly protected.
Factor Electronics will not accept any product that has been damaged as a result of accident,
abuse, misuse, natural or personal disaster, or any unauthorized disassemble, repair or
modification.
Table of contents
