Fagor 9701 User manual
The information described in this manual may be subject to variations due to
technicalmodifications.
FAGOR AUTOMATION, S. Coop. Ltda. reserves the right to modify the
contentsofthismanualwithoutpriornotice.
Section Page
INTRODUCTION
Declaration of conformity ...................................................................................... 3
Safety Conditions .................................................................................................. 4
WarrantyTerms ...................................................................................................... 7
Material Returning Terms ...................................................................................... 8
Additional Remarks ............................................................................................... 9
Chapter1CONFIGURATION
1.1 Front Panel ............................................................................................................. 1
1.2 Rear Panel .............................................................................................................. 2
1.2.1 Connectors and connections.................................................................................. 3
1.2.1.1 Connector X1 ......................................................................................................... 3
1.2.1.2 Connector X2 ......................................................................................................... 5
1.3 Dimensions and installation .................................................................................. 7
Chapter2CONNECTIONTOACPOWERANDTOTHECNC
2.1 Connection to ac power ......................................................................................... 1
2.2 Connection to the CNC.......................................................................................... 2
2.2.1 General considerations........................................................................................... 2
2.3 Start-up ................................................................................................................... 4
2.3.1 Configuration of the work mode ............................................................................ 4
2.4 General considerations for the floppy disk unit..................................................... 5
Chapter3OPERATION WITH 8010/20/25/30 CNC
3.1 Errors when working with 8010/20/25/30 CNC .................................................... 2
3.2 General considerations for operation with the CNC .............................................. 3
INDEX
Section Page
Chapter4OPERATIONWITH8050CNC
4.1 Application structure ............................................................................................. 1
4.2 File nomenclature .................................................................................................. 2
4.2.1 Part-programs ......................................................................................................... 2
4.2.2 Parameter tables ..................................................................................................... 2
4.2.3 User customized page files..................................................................................... 3
4.2.4 User customized symbol files................................................................................. 3
4.3 Machine parameters for the CNC serial ports......................................................... 4
4.4 CNC features .......................................................................................................... 6
4.5 Errors when working with 8050 CNC .................................................................... 7
4.6 General considerations for operation with 8050 CNC ........................................... 8
APPENDICES
Technical characteristics........................................................................................ 2
Maintenance........................................................................................................... 3
Introduction - 3
DECLARATION OF CONFORMITY
Manufacturer: Fagor Automation, S. Coop.
Barrio de San Andrés s/n, C.P. 20500, Mondragón -Guipúzcoa- (ESPAÑA)
We hereby declare, under our responsibility that the product:
Floppy
meets the following directives:
SAFETY:
EN 60204-1 Machine safety. Electrical equipment of the machines.
ELECTROMAGNETICCOMPATIBILITY:
EN 50081-2 Emission
EN 55011 Radiated. Class A, Group 1.
EN 55011 Conducted. Class A, Group 1.
EN 50082-2 Immunity
EN 61000-4-2 Electrostatic Discharges.
EN 61000-4-4 Bursts and fast transients.
EN 61000-4-11Voltage fluctuations and Outages.
ENV 50140 Radiofrequency Radiated Electromagnetic Fields.
ENV 50141 Conducted disturbance induced by radio frequency fields.
As instructed by the European Community Directives: on Low Voltage 73/23/EEC,
on Machine Safety 89/392/CEE and 89/336/CEE on Electromagnetic Compatibility.
In Mondragón, on April 1st, 1996
Introduction - 4
SAFETY CONDITIONS
Read the following safety measures in order to prevent damage to personnel, to
this product and to those products connected to it.
This unit must only be repaired by personnel authorized by Fagor Automation.
Fagor Automation shall not be held responsible for any physical or material
damage derived from the violation of these basic safety regulations.
Precautions against personal damage
Use proper Mains AC power cables
To avoid risks, use only the Mains AC cables recommended for this unit.
Avoid electrical overloads
Inordertoavoidelectricaldischargesandfirehazards,donotapplyelectricalvoltage
outside the range selected on the rear panel of the unit.
Ground connection
In order to avoid electrical discharges, connect the ground terminals of all the
modulestothemaingroundterminal.Beforeconnectingtheinputsandoutputsofthis
unit, make sure that all the grounding connections are properly made.
Before powering the unit up, make sure that it is connected to ground
In order to avoid electrical discharges, make sure that all the grounding connections
are properly made.
Do not work in humid environments
In order to avoid electrical discharges, always work under 90% of relative humidity
(non-condensing) and 45º C (113º F).
Do not work in explosive environments
In order to avoid risks, damage, do no work in explosive environments.
Precautions against product damage
Working environment
ThisunitisreadytobeusedinIndustrialEnvironmentscomplyingwiththedirectives
and regulations effective in the European Community
Fagor Automation shall not be held responsible for any damage suffered or caused
when installed in other environments (residential or homes).
Install the unit in the right place
It is recommended, whenever possible, to instal the unit away from coolants,
chemical product, blows, etc. that could damage it.
This unit complies with the European directives on electromagnetic compatibility.
Nevertheless, it is recommended to keep it away from sources of electromagnetic
disturbance such as.
Introduction - 5
-Powerful loads connected to the same AC power line as this equipment.
-Nearby portable transmitters (Radio-telephones, Ham radio transmitters).
-Nearby radio / TC transmitters.
-Nearby arc welding machines
-Nearby High Voltage power lines
-Etc.
Enclosures
Themanufacturerisresponsibleofassuringthattheenclosureinvolvingtheequipment
meets all the currently effective directives of the European Community.
Avoid disturbances coming from the machine tool
The machine-tool must have all the interference generating elements (relay coils,
contactors, motors, etc.) uncoupled.
Ambient conditions
The working temperature must be between +5° C and +45° C (41ºF and 113º F)
The storage temperature must be between -25° C and 70° C. (-13º F and 158º F)
Main AC Power Switch
This switch must be easy to access and at a distance between 0.7 m (27.5 inches) and
1.7 m (5.6 ft) off the floor.
Protections of the unit itself
Power Supply Module
It carries two fast fuses of 2Amp./ 250V. to protect the mains AC input.
Precautions during repair
Do not manipulate the inside of the unit
OnlypersonnelauthorizedbyFagorAutomationmaymanipulatethe
inside of this unit.
Do not manipulate the connectors with the unit connected to AC
power.
Before manipulating the connectors (inputs/outputs, feedback, etc.)
make sure that the unit is not connected to AC power.
Introduction - 6
Safety symbols
Symbols which may appear on the manual
WARNING. symbol
It has an associated text indicating those actions or operations may hurt
people or damage products.
Symbols that may be carried on the product
WARNING. symbol
It has an associated text indicating those actions or operations may hurt
people or damage products.
"Electrical Shock" symbol
It indicates that point may be under electrical voltage
"Ground Protection" symbol
It indicates that point must be connected to the main ground point of the
machine as protection for people and units.
Introduction - 7
WARRANTY TERMS
WARRANTY
All products manufactured or marketed by Fagor Automation has a warranty period
of 12 months from the day they are shipped out of our warehouses.
The mentioned warranty covers repair material and labor costs, at FAGOR facilities,
incurred in the repair of the products.
Withinthewarrantyperiod,Fagorwillrepairorreplacetheproductsverifiedasbeing
defective.
FAGOR is committed to repairing or replacing its products from the time when the
firstsuchproductwaslaunched upto8yearsaftersuchproducthas disappearedfrom
the product catalog.
It is entirely up to FAGOR to determine whether a repair is to be considered under
warranty.
EXCLUDING CLAUSES
The repair will take place at our facilities. Therefore, all shipping expenses as well
as travelling expenses incurred by technical personnel are NOT under warranty even
when the unit is under warranty.
This warranty will be applied so long as the equipment has been installed according
to the instructions, it has not been mistreated or damaged by accident or negligence
and has been manipulated by personnel authorized by FAGOR.
If once the service call or repair has been completed, the cause of the failure is not to
be blamed the FAGOR product, the customer must cover all generated expenses
according to current fees.
No other implicit or explicit warranty is covered and FAGOR AUTOMATION shall
not be held responsible, under any circumstances, of the damage which could be
originated.
SERVICECONTRACTS
Service and Maintenance Contracts are available for the customer within the
warranty period as well as outside of it.
Introduction - 8
MATERIAL RETURNING TERMS
When returning the floppy disk, pack it in its original package and with its original
packaging material. If not available, pack it as follows:
1.- Getacardboardboxwhosethreeinsidedimensionsareatleast15cm(6inches) larger
than those of the unit. The cardboard being used to make the box must have a
resistance of 170 Kg (375 lb.).
2.- When sending it to a Fagor Automation office for repair, attach a label indicating the
owner of the unit, person to contact, type of unit, serial number, symptom and a brief
description of the problem.
3.- Wrap the unit in a polyethylene roll or similar material to protect it.
4.- Pad the unit inside the cardboard box with poly-utherane foam on all sides.
5.- Seal the cardboard box with packing tape or industrial staples.
Introduction - 9
ADDITIONAL REMARKS
*Mountthefloppydiskawayfromcoolants,chemicalproducts,blows,etc.whichcould
damage it.
*Before turning the unit on, verify that the ground connections have been properly
made. See Section 2.2 of this manual.
*To prevent electrical shock, use the proper mains AC connector at the Power Supply
Module. Use 3-wire power cables (one for ground connection)
*Beforeturningtheuniton,verifythattheexternalAClinefuse,ofeachunit,istheright
one.
*In case of a malfunction or failure, disconnect it and call the technical service. Do not
manipulate inside the unit.
Page
Chapter: 1 Section: 1
CONFIGURATION FRONT PANEL
1. CONFIGURATION
Atention:
The Fagor floppy disk unit is ready to be used in industrial environments.
The FAGOR floppy disk unit is a peripheral device for storing data in 3.5" floppy disks
of 720Kb or 1.44Mb of memory capacity.
It permits data exchange with the FAGOR CNC models: 8010, 8020, 8025, 8030 and
8050.
It is also possible to send computer generated programs, tables and files from a computer
out to a floppy disk and from here to the CNC or directly from the computer to the CNC
through the FAGOR floppy disk unit.
The data exchange will be managed by the corresponding CNC and communication can
be established via the two available serial ports, RS-232 and RS-422.
1.1 FRONT PANEL
This unit has no keyboard since all its commands are handled via serial lines.
Itonlyhas a green color LED to indicate whether the unit is ONor OFFas wellas the slot
for inserting 3.5" format floppy disks.
Section:
CONFIGURATION
Chapter: 1
2
Page REAR PANEL
1.2 REAR PANEL

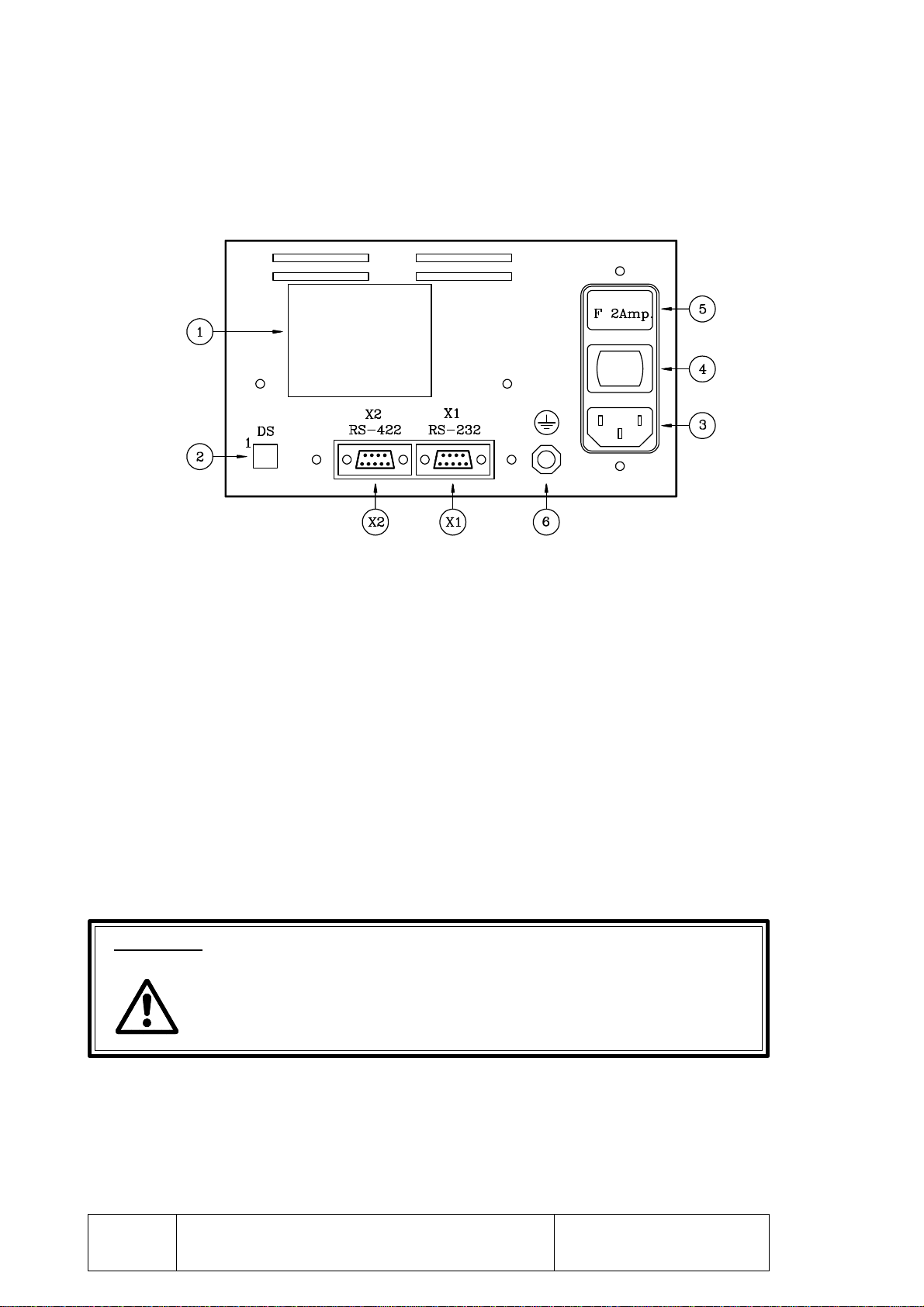

The rear panel of this unit has the following elements:
1.- Unit identification label.
2.- DIP-SWITCHES for unit configuration.
3.- 3-prong unit for A.C. and ground connection.
4.- Power ON/OFF switch.
5.- Main AC fuse: It has two 2 Amp./250V main AC fuses.
6.- Main machine ground connecting terminal. Metric 6mm.
X1- SUB-D type 9-pin male connector for serial port: RS-232.
X2- SUB-D type 9-pin female connector for serial port: RS-422
Atention:
Do not manipulate the connectors with the unit connected to main AC
power
Before manipulating these connectors (inputs/outputs, feedbach, etc)
make sure that the unit is not connected to main AC power
Page
Chapter: 1 Section: 3
CONFIGURATION
1.2 .1 CONNECTORS AND CONNECTIONS
1.2.1 .1 CONNECTOR X1
It is a SUB-D type 9-pin male connector for the RS-232 serial port: RS-232.
The cable shield must be connected to pin 1 of the connector at both ends of the cable.
SUGGESTIONS FOR THE RS-232C INTERFACE
*Cable length
The EIA RS232C standard specifies that the cable capacitance must not exceed
2500pF; therefore, since a typical cable for this application usually has a capacitance
from 130 to 170pF/m, the maximum length will be limited to 15m (50 ft).
Itisrecommendedtouseshieldedtwisted-paircablesinordertominimizeinterference
thus avoiding poor communications over great lengths.
Itis recommended to use 7-conductor cables with a minimumsection of0.14mm²per
conductor and overall shield.
Atention:
Do not manipulate the connectors with the unit connected to main AC
power
Before manipulating these connectors (inputs/outputs, feedbach, etc)
make sure that the unit is not connected to main AC power
PIN SIGNAL FUNCTION
1FG Shield
2RxD Receive data
3TxD Transmit data
4DTR Data terminal ready
5GND Ground conection
6DSR Data send ready
7RTS Request to transmit
8CTS Clear to send
9---- Not connected

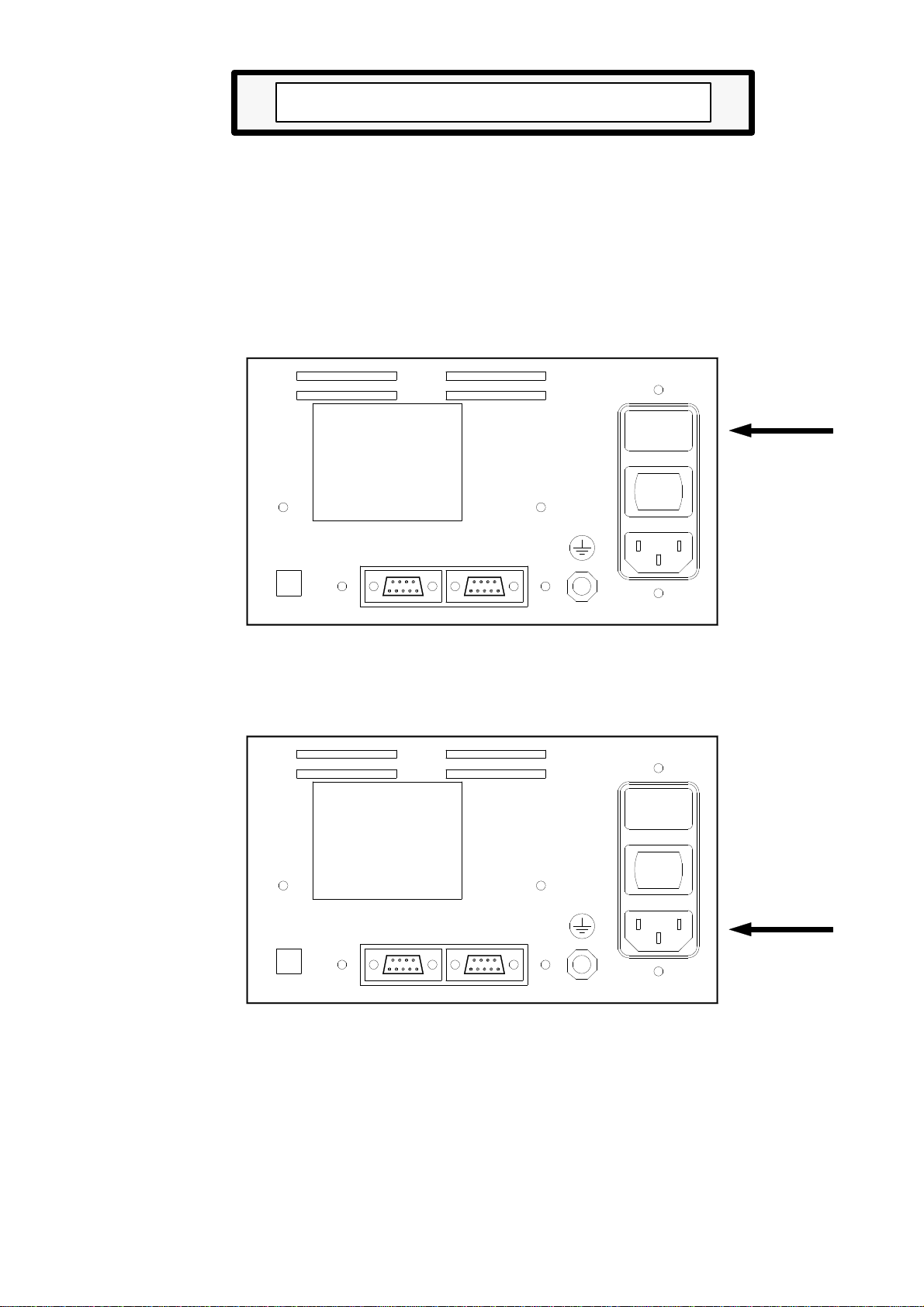

REAR PANEL
Section:
CONFIGURATION
Chapter: 1
4
Page
RECOMMENDED CONNECTION
*Connection/disconnection of a peripheral device
ThefloppydiskunitmustbeturnedoffwhenconnectingordisconnectingtheCNCvia
connector X1 (RS232C interface).
*ConnectingcablebetweentheFLOPPYDISKUNITandtheFAGORCNCviatheRS-
232 interface.
When connecting a FAGOR FLOPPY DISK UNIT with a FAGOR 8050 CNC, the
simplified connection below may also be used.
REAR PANEL
Page
Chapter: 1 Section: 5
CONFIGURATION
1.2.1.2 CONNECTOR X2.
It is a SUB-D type 9-pin female connector for the RS-422 serial port connection.
The cable shield must be connected to pin 1 of the connector at both ends of the cable.
CONSIDERATIONS FOR THE RS-422 INTERFACE
It uses two separate cables for each signal. This presents the following advantages:
-It increases noise immunity.
-It allows data transmission over greater distance for the same baudrate.
-It reduces problems due to different ground potentials and interference between
signals.
The RS422 standard does not define the communications protocol to be used. It can be
used together with the RS499 standard.
A line terminating resistor must be installed between pins 3 and 8 (transmit data) as well
as between pins 4 and 5 (receive data). These resistors must be placed at both connectors
and its value must match the characteristic impedance of the cable.
Typical value : 120 Ohms 1/4W.
Atention:
Do not manipulate the connectors with the unit connected to main AC
power
Before manipulating these connectors (inputs/outputs, feedbach, etc)
make sure that the unit is not connected to main AC power
PIN SIGNAL FUNCTION
1FG Shield
2---- No connected
3/TxD Transmit data
4/RXD Receive data
5RXD Receive data
6---- No connected
7GND Ground signal
8TxD Transmit data
9---- No connected
REAR PANEL
Section:
CONFIGURATION
Chapter: 1
6
Page
RECOMMENDED CABLE FOR THE RS422 INTERFACE.
TECHNICAL CHARACTERISTICS
BUÑOFLES COMPUTER PAR 3x2x0,34mm²
Individual shield + overall shield (Polyester/aluminum)
SPECIFICATIONS
Type: 7x0,25mm (twisted pair)
Conductor Material: tin-plated copper
Resistance: 52 Ohms/Km
Insulation Material: Solid polyethylene
Shield Shield: Polyester/aluminum
Stranded tin-plated copper 7x0,25mm²
Outside cover Material: grey PVC, metal exterior
Capacitance Between conductors: 91,7pF/m at 1KHz
Between a conductor and the rest connected
to the shield: 180pF/m at 1KHz
Impedance 50 Ohms
RECOMMENDED CONNECTION
* Connection/Disconnection of the peripheral device
The floppy disk unit must turned off when connecting or disconnecting
the CNC via connector X2 (for the RS-422).
*ConnectionCablebetween the 8050 CNCandtheFLOPPYDISKUNIT
via RS422 interface.
REAR PANEL
Page
Chapter: 1 Section: 7
CONFIGURATION
1.3 DIMENSIONS AND INSTALLATION
The FAGOR floppy disk unit is designed to be mounted on the operator panel of the
machine.
It can be mounted by means of the 4 holes located on its front panel making sure that
enough room is left for proper ventilation of the unit.
DIMENSIONS AND
INSTALLATION
Section:
CONFIGURATION
Chapter: 1
8
Page
INSTALLATION ON THE OPERATOR PANEL
Atention:
For proper ventilation of the floppy unit, it is recommended to maintain an
air gap of more than 15mm (0.6 inch) on each side of the floppy unit.
DIMENSIONS AND
INSTALLATION
Table of contents
