Fagor FA-4812 Manual

32
33
34
40
51
53
56
MISES EN GARDE ET CONSIGNES
DE SÉCURITÉ
SPÉCIFICATIONS
INSTALLATION ET MONTAGE
UTILISATION DE L’APPAREIL
ET CONSEILS PRATIQUES
ENTRETIEN ET NETTOYAGE
DE L’APPAREIL
SÉCURITÉ ET DÉPANNAGE
MISES EN GARDE CONCERNANT
L’ENVIRONNEMENT
6
7
8
14
25
27
30
WARNINGS AND SAFETY
INSTRUCTIONS
SPECIFICATIONS
INSTALLATION AND SETUP
MACHINE OPERATION
AND USEFUL TIPS
MAINTENANCE AND
CLEANING
SAFETY AND TROUBLESHOOTING
ENVIRONMENTAL WARNINGS
washing machine
table of contents
laveuse
table des matières

58
59
60
66
77
79
82
ADVERTENCIAS E INSTRUCCIONES
DE SEGURIDAD
ESPECIFICACIONES
INSTALACIÓN Y MONTAJE
USO DEL APARATO
Y CONSEJOS PRÁCTICOS
MANTENIMIENTO
Y LIMPIEZA DEL APARATO
SEGURIDAD Y SOLUCIÓN DE PROBLEMAS
ADVERTENCIAS SOBRE
EL MEDIO AMBIENTE
lavadora índice

5
thank you for placing your trust in us
ALWAYS WITH INNOVATION IN MIND
LCD displays.
• Continuous display of washing cycles and
times.
Detergent dispenser designed for
maximum ease of use.
• Easy removal for cleaning.
• Allows the use of liquid detergents.
The new line of washing machines is designed to make your life easier:
ALWAYS KEEPING YOUR COMFORT IN
MIND
Large door.
Maximum opening.
• Higher than a standard axle and a tilted
drum for maximum ergonomics.
• Maximum opening makes loading clothes
easier.
Easy-access filter.
• Easy cleaning and maintenance.
ALWAYS WITH SAVINGS IN MIND
7 kg - 15.43 lb capacity.
• Fewer wash cycles means greater savings.
Timer delays.
• Takes advantage of energy rates.

6
safety instructions
Under certain conditions, hydrogen gas
may be produced in a hot-water system that
has not been used for two weeks or more.
Hydrogen gas is explosive. If the hot-water
system has not been used for two weeks or
more, turn on the hot-water faucets and let
water flow for a few minutes before operating
the washing machine. This will cause any
built-up hydrogen gas to dissipate. Since
the gas is flammable, do not smoke or keep
an open flame on while the faucets are
running.
Do not allow children to play over or inside
the machine. Strict supervision is required
when using the machine around children.
The door must be removed before the
machine is disposed of or taken out of
service.
Do not access the inside of the machine
if the drum or the agitator are moving.
warnings
The washing machine comes with a
manual, which includes installation, operation,
and maintenance instructions. Please read
all instructions carefully before using the
washing machine.
Do not wash garments that have been
previously cleaned, washed, soaked or
treated with gasoline, dry-cleaning solvents,
or other flammable or explosive substances.
They could give off vapors that may ignite
or explode.
Do not add gasoline, dry-cleaning solvents
or any other flammable or explosive
substances to the wash water, since these
give off vapors that may ignite or explode.
Do not attempt to repair the machine,
replace any of its components, or service it
in any way, unless it is recommended in the
maintenance instructions included in the
manual.
Do not climb over the machine or lean on
the open door.
Do not use an extension or adapter to
connect the washing machine to the wall
outlet.
The machine may only be used for its
intended purposes.
Follow the washing instructions
recommended by the garment manufacturer.
Before operating the machine, ensure that:
• It has been installed according to the
installation instructions.
• All water lines, drain tubes, electrical
connections and ground lines are
connected according to local laws and/or
other applicable regulations.
To avoid fire hazards, electric shocks, personal injury, or other types of damage, take the
following precautions when using your washing machine:

7
washing machine
Water inlet hose
specifications
Drain hose
Top surface
Power
supply cable
Control
panel
Detergent
dispenser
Stainless
steel wash
drum Filter
Baseboard
Door
Back plugs
Open-end wrench
Drain tube bender
Leveling
feet
ACCESSORIES LOCATED
INSIDE THE DRUM

8
washing machine
aThere are 3 locking screws located at
the back of the washing machine.
bUsing the wrench provided, loosen the
3 screws and remove them completely,
along with the metal washer and the
black rubber and plastic tubes which
make up the locking system.
cInsert the 3 plastic plugs provided in the
holes from which you removed the
locking screws.
installation and setup
Keep the locking screws in case you
need to move the machine in the future.
Important!
aRemove the base, corner protectors,
and the top cover.
1UNPACKING AND
UNLOCKING THE
WASHING MACHINE
UNLOCKING
UNPACKING

CONNECTING
DRAINAGE SYSTEM
9
CONNECTING WATER AND
DRAINAGE SYSTEM
The water inlet tube is located inside the
drum:
aConnect the elbow end of the tube to
the threaded intake of the electro valve
located at the back of the machine.
bConnect the other end of the tube to
the water intake. Once you have
completed this operation, tighten the
connecting bolt firmly.
installation and setup
The elbow part of the drain tube must
be firmly connected to the outlet, so it
does not fall off, in order to avoid the
risk of flooding.
If your washing machine has an inlet for
hot water, connect the red threaded
tube to the hot water faucet, and to the
electro valve with a red filter.
The washing machine must be
connected to the water inlet system
using the new inlet tubes provided with
the machine. The previously used water
inlet tubes must not be used.
For the washing machine to function
properly, the water pressure should be
0.05-1MPa (0.5-10 kg/cm2/ 1.10-22.05
psi).
aIt is recommended to have a fixed drain
outlet, 50-70cm/19.69-27.56in from the
floor.
The supplied elbow should be used to
prevent the drain tube from being too
tight, bent or pinched.
2
Important!
max.
70 cm.
27,56” min.
50 cm.
19,69”
CONNECTING
WATER SYSTEM

Important!
10
LEVELING THE WASHING MACHINE AND CONNECTING
THE POWER SYSTEM installation and setup
3
Before making any electrical connections, refer
to the data indicated on the specifications
label attached to the machine’s door. Make
sure that the voltage supplied to the plug’s
base is the one indicated on the label.
Do not remove the specifications label, as the
information on it is important.
ELECTRICAL CONNECTION
LEVELING THE MACHINE
The washing machine must be connected
to a properly grounded power outlet.
The electrical installation, plug, outlet, fuses,
or automatic switch and counter must be
adjusted to the maximum power indicated
on the specifications label.
Do not insert the machine’s plug into the
outlet with wet or moist hands.
To remove the cable from the outlet, pull
out the pin body, do not pull from the cable.
If the power supply cable is damaged, it
must be replaced with a special cable or
assembly supplied by the manufacturer or
after-sales service department.
On recessed washing machines, the outlet
pin must be accessible after installation.
Connect to individual branch circuit.
aWe recommend seating and
leveling the back first. Once these
are well seated, firmly fix the metal
locknut to the top section.
bPlace the washing machine in the
recess. A wet floor may help you
drag the machine to its final
location.
cLevel and fix the front feet in the
same manner as the back feet.
Be sure to keep the supplied
wrench, you might need it again.
Important!

tone button
Now that you have successfully installed the
washing machine, we recommend you set the
configuration menu with a series of general
functions, such as:
- Language selection
- Tone selection
- Message end tone
- Time setting
aPress the ON/OFF button.
11
SETTING THE
CONFIGURATION MENU
4
CONFIGURATION MENU
aPress the Menu button. A language
name appears on the display located
on the control panel.
bTurn the selector knob until the desired
language is selected.
cThe language name appears.
dPush the selector knob to accept the
language selected.
LANGUAGE SELECTION
a“Tone YES” appears on the display panel.
bTurn the selector knob until the desired
option is selected:
- Tone YES
- Tone NO
- Button press tone
- Control tone
cPush the selector knob to accept the
tone option selected.
TONE SELECTION
ESPANOL
tone
installation and setup
ESPANOL

12
installation and setup
a“Message End Tone” appears on the
display panel.
bTurn the selector knob until the desired
option is selected:
- No tone
- 1 min. tone
- 5 min. tone
- 10 min. tone
- 15 min. tone
cPush the selector knob to accept the
option selected.
MESSAGE END SETTING
a“Clock Time” appears on the display
panel.
bTurn the selector knob to set the time.
First, the hour is set and then the
minutes.
cPush the selector knob to accept the
time selected.
CLOCK TIME SETTING
end tone 5 min
message end tone
clock time 11:30
clock time
To exit the configuration menu, press
the Menu button on any of the screens.
Important!

13
installation and setup
We recommend that you pre-clean the washing
machine.
This is meant to check the installation,
connections and drainage system, as well as
to fully clean the inside of the machine before
starting a wash cycle (see operation instructions
on the following pages).
aSelect cotton hot, program 3, at
60ºC/140ºF, by turning the selector knob.
The program appears on the display
panel.
bPress the Start/Pause button.
BEFORE WASHING CLOTHES
3.COTTON hot
PRE-CLEANING
5

14
washing machine
operating the machine and useful tips

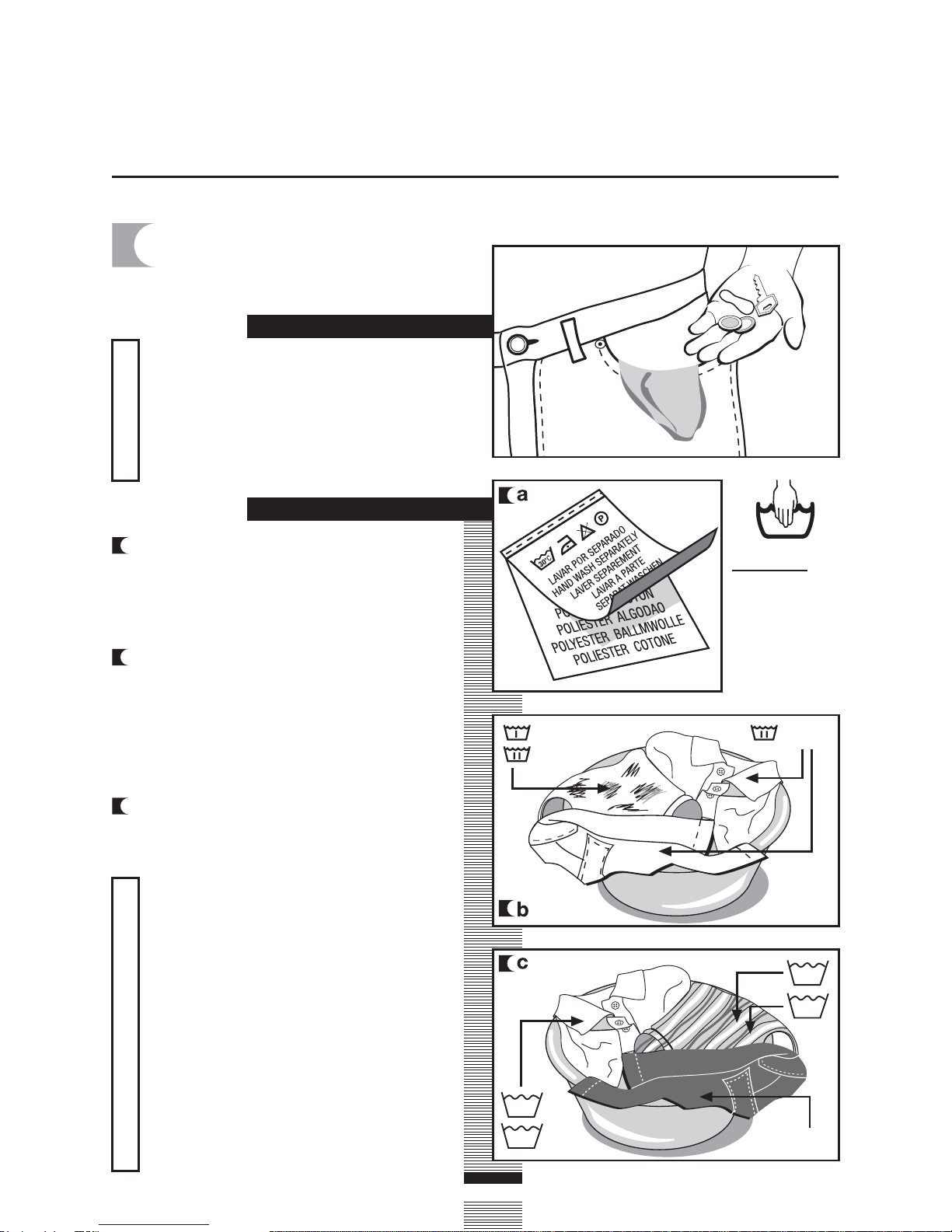

PREPARING CLOTHES
aSort clothes by fabric or type.
We recommend the use of gentle cycles
for delicate garments. Wool garments
may be washed with a special cycle for
wool fabrics.
bSort clothes by degree of soiling.
•Use a short cycle time for slightly soiled
garments.
•Use a cycle time without pre-cleaning
for medium soiled garments.
•You may use a long cycle time with
pre-cleaning for heavily soiled garments.
cSort clothes by color.
Wash white clothes and colored clothes
separately.
Important!
Before washing
your wool
garments,
confirm that they
can be machine-
washed.
Before loading clothes into the drum,
make sure that all pockets are empty.
Small objects may obstruct the water
discharge motor pump.
Pre-washing
Washing
Washing
1CHECKING
CLOTHES BEFORE
WASHING
Cold
Important!
We recommend you load the machine
to its maximum capacity. That way you
will save water and energy.
Whenever possible, we recommend
you wash different-sized garments on
the same wash cycle, in order to
maximize the washing action. This also
helps to distribute the clothes inside
the drum during the spin cycle, so the
machine works more quietly.
It's useful to put smaller garments in
a wash bag.
SORTING CLOTHES
Important!
40ºC
104ºF
90ºC
194ºF
30ºC
86ºF
60ºC
140ºF

15
2USING DETERGENT
AND ADDITIVES operating the machine and useful tips
environmental notice
Keep in mind that some concentrated
detergents are friendlier to nature and the
environment.
Using more detergent does not help
improve wash results,
and, besides being more expensive, it
adversely affects the environment.
Therefore, we recommend you follow the
detergent manufacturer’s instructions.
aYour washing machine’s detergent
dispenser has three compartments:
washing, softener and pre-washing
compartments.
bIf you’re using liquid detergent, you
should close the door to the washing
compartment. Using two fingers, pick
the blue tab that protrudes from the
bottom of that compartment and pull
outwards completely. Release the flip
top lid so it is in a horizontal position.
This will prevent the liquid detergent from
leaking out. To use powdered detergent,
this lid should be open. Place it on a
vertical position by pressing the top tab
with one finger, and push it backwards
completely.
cBefore starting the wash cycle, pour
liquid or powdered detergent, or additive,
in the appropriate compartment.
The level of liquid must never exceed
the MAX reference mark stamped on
the dispenser wall.
Remember that the amount of detergent to
be used always depends on the following:
Amount of clothes to be washed.
Degree of soiling.
Water hardness (you can obtain information
on the degree of water hardness through the
corresponding local authorities).
We recommend you use a lime-treating
product if water hardness in your area
is high.
Important!
Important!
DETERGENT
AND ADDITIVES
WASHING PRE-WASHINGSOFTENER

16
3SELECTING THE
WASH CYCLE operating the machine and useful tips
Once you have programmed the
configuration menu, you should follow these
steps to select the wash cycle:
aUsing the ON/OFF button, turn on the
machine.
bSelect the wash cycle (see table of
cycles) by turning the selector knob.
selector/
push
knob
start/
stop
button
menu button
ON/
OFF
button
display

17
operating the machine and useful tips
When selecting the program, you will see the
following information:

Wash cycle stages:
Wash
Rinse
Spin

Number of revolutions
Cycle number
Cycle duration
General functions:
Tone
Clock time
Stop time
Child lock
Door open
Additional functions:
Anti-wrinkling
Easy ironing
Extra rinsing
Intensive washing
There are 3 types of cycles available:
Normal cycles
Delicate cycles
Special cycles
Whenever possible, we recommend you
choose the right cycle to avoid pre-washing.
That way you will save money and help protect
the environment.
environmental notice




Additional
functions
General
functions
1.COTTON/COLD
Normal Delicate Special
PROGRAMS
Cotton cold
Cotton warm
Cotton hot
Intensive hot
Prewash hot
1
2
3
4
5
Quick cold
Quick warm
Rinse
Spin
Drain
12
13
14
15
16
Synthetic cold
Synthetic warm
Synthetic hot
Delicate warm
Handwash cold
Handwash warm
6
7
8
9
10
11

18
Cotton/Linen
delicate colors
very light soil
Cotton/Linen
delicate colors
light soil
Cotton/Linen
fast colors
medium soil
Cotton/Linen
fast colors
heavy soil
Cotton/Linen
fast colors
heavy soil
Synthetic
delicate colors
very light soil
Synthetic
delicate colors
light soil
Synthetic
delicate colors
medium soil
Curtains/wool mix
white/color
very light soil
Wool/wool mix
white/color
light soil
Wool/wool mix
white/color
light soil
Synthetic/mix cotton
white/fast colors
very light soil
Synthetic/mix cotton
white/fast colors
light soil
Cotton/cotton mix
Synthetic/Delicate
Wool/wool mix
Cotton/cotton mix
Synthetic/Delicate
Wool/wool mix
Cotton/cotton mix
Synthetic/Delicate
Wool/wool mix
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Cotton cold
Cotton warm
Cotton hot
Intensive hot
Prewash hot
Synthetic cold
Synthetic warm
Synthetic hot
Delicate warm
Handwash
cold
Handwash
warm
Quick cold
Quick warm
Rinse
Spin
Drain
Normal programmes
Delicate programmes
Special programmes
YES NO
YES NO
YES
YES NO
Extra rinse Intensive wash
Easy-iron
Spin speed selection No spin
Anti-crease
Program
Fabric type
c
Possible option buttons
—
—
—
YES
YES
YES NO
YES
YES NO
YES
YES NO

19
NOTE: the programme durations may vary depending on the type and amount
of clothes, mains water pressure, etc.
_
Anti crease
Wash
product
compartment
Program
description
Approx. duration
(minutes)
Max.
load of
clothes (kg/lb)
50
60
60
90
90
50
55
55
50
33
50
30
35
21
10
2
7/15,43
7/15,43
7/15,43
7/15,43
7/15,43
3,5/7,72
3,5/7,72
3,5/7,72
3,5/7,72
2/4,41
2/4,41
2/4,41
2/4,41
7/15,43
7/15,43
7/15,43
_
Normal wash, rinses,
automatic additive absorption
if desired and long final spin
Prewash, normal wash, rinses,
automatic additive absorption
if desired and long final spin
Delicate wash, rinses,
automatic additive
absorption if desired
and gentle final spin
WOOL wash, rinses,
automatic additive
absorption if desired
and gentle final spin
SHORT wash, one rinse,
automatic additive absorption
if desired and final long spin
Rinses, automatic
additive absorption if
desired and long final spin
Final long spin
Drain

20
4SELECTING
OPTIONS operating the machine and useful tips
Once you have selected the wash cycle, you
may activate a series of options, depending on
the chosen cycle.
To activate options:
- Push the selector knob.
- Turn the selector knob to choose the desired
option.
- Push the selector knob again to enable/disable
that option.
Options:
- Stop time
- Spin selection
The wash options must always be selected
after choosing the wash cycle. Any change in
the cycle during the selection overrides the
previously selected options.
aThe selected cycle is associated with spin
revolutions, in this example it is 900, as
shown in the display.
bTo change a aselected option, turn the
selector knob until the desired revolutions
appear on the display. The number of
revolutions will decrease in intervals of
100 revolutions, up to 400. Push the
selector knob to validate the option.
STOP TIME
A time delay of up to 24 hours can be selected.
The time delay should be selected after
choosing the wash cycle.
Turn the selector knob to select the time delay
periods. The setting is in half-hour intervals.
Canceling the time delay
To cancel the time delay, press and hold the
ON/OFF button until you exit the options menu.
SPIN CYCLE
STOP TIME
SPIN CYCLE
