WASHING MACHINE
INSTALLATION AND ASSEMBLY

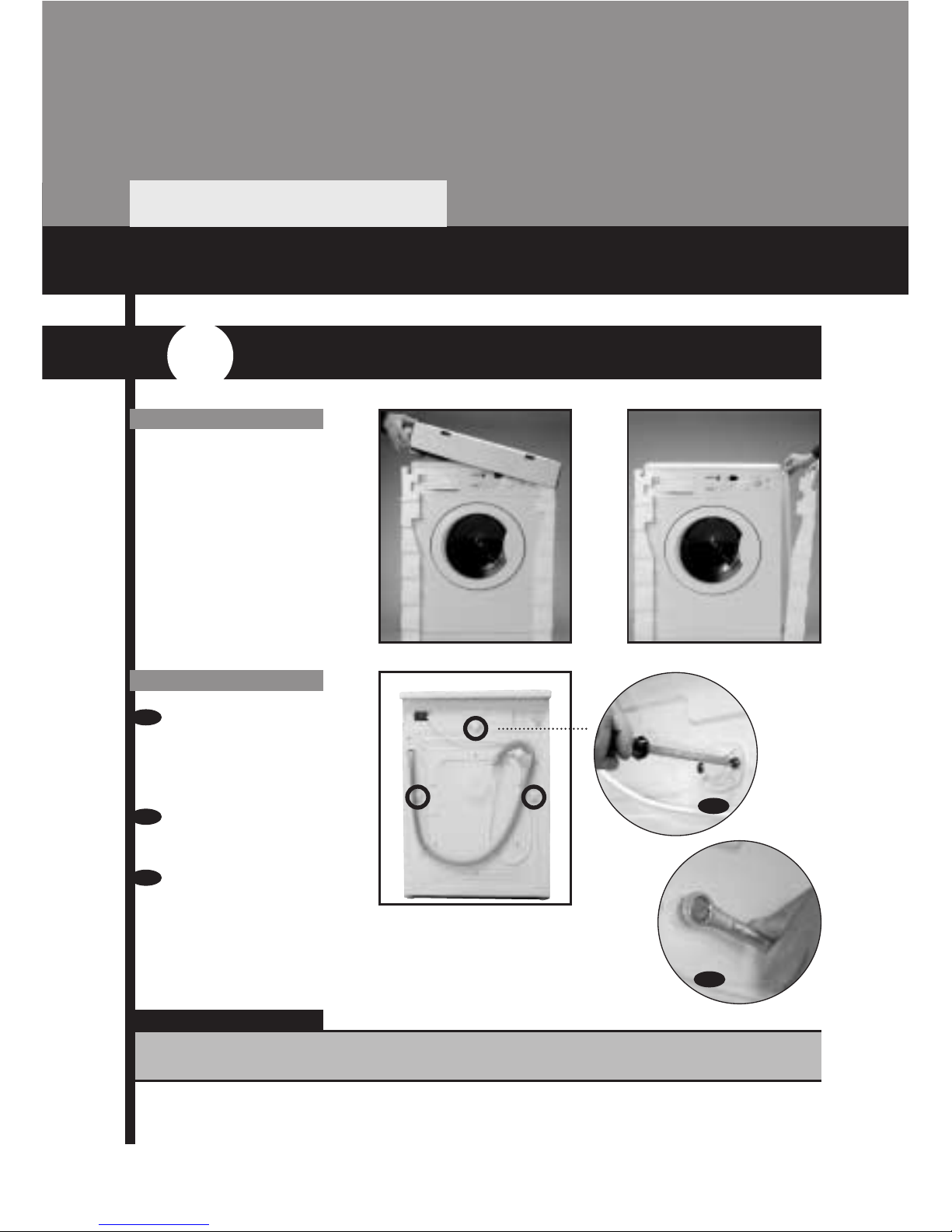

1UNPACKING AND UNLOCKING THE WASHING MACHINE
UNPACKING
UNLOCKING
IMPORTANT
aLoosen the
screws that hold
the plastic boards
at the back of the
machine.
bLoosen and remove
the blocking
screws.
cCover the holes
with the previously
removed plastic
boards.
Keep the blocking screws safely for future use IÓN A LA WATER MAINS
a/c
b

53
English

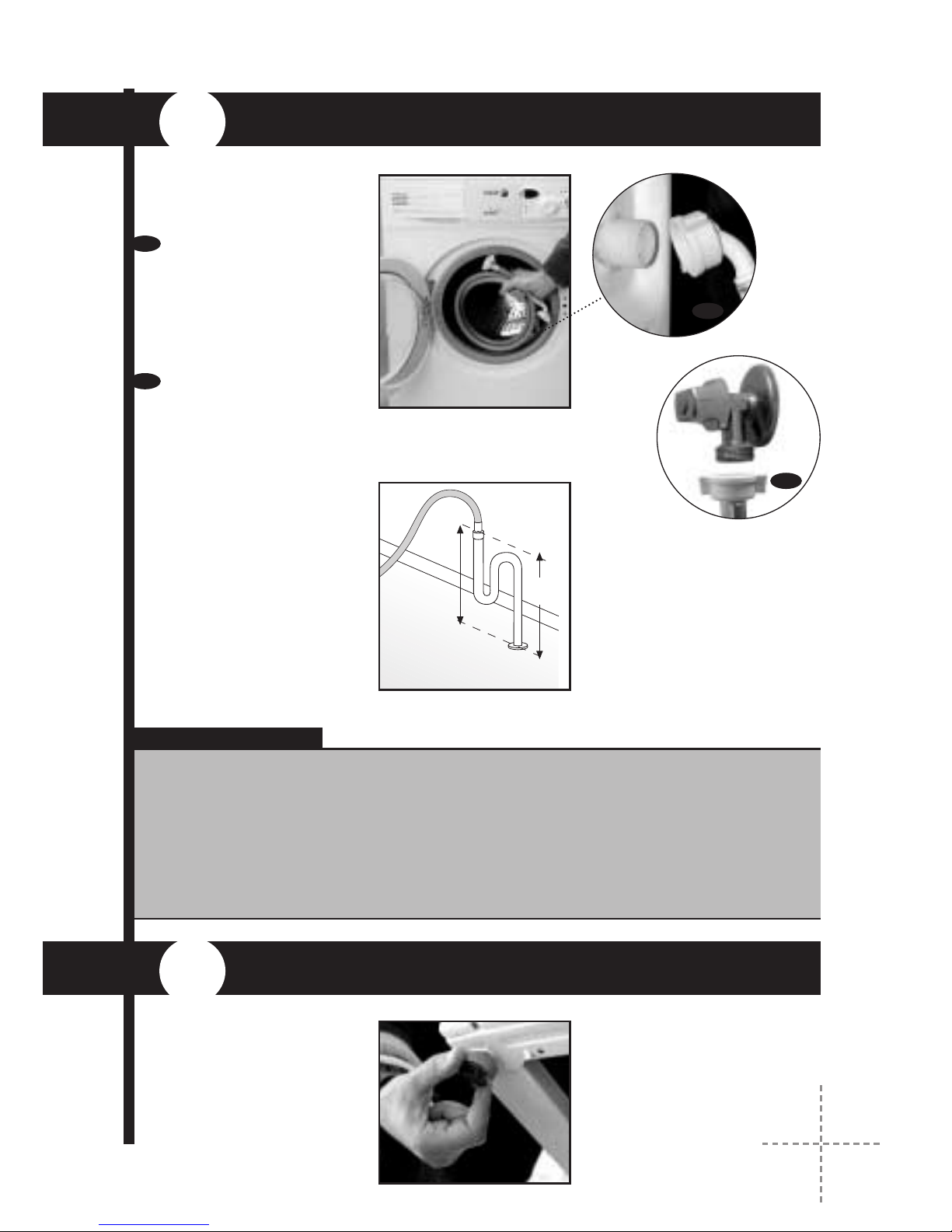

2CONNECTION TO THE WATER MAINSLEVELATION
3LEVELLING
You will find the water-
input pipe inside the
drum:
aConnect the bent
end of the pipe at
the screw entrance
of the electrically
operated valve situa-
ted at the back of
the machine.
bConnect the other
end of the tube to
the water supply.
Tighten the connec-
tion nut well.
We recommend you
have a fixed drainage
exit at a distance of bet-
ween 50 and 70 cm
from the floor.
Ensure that the drainage
pipe is not too tight and
that there are no folds or
bottlenecks.
Level the washing
machine by using the
adjustable feet. This will
reduce the noise level
and ensure that the
machine will not move
when in operation.
max.
70 cm
min.
50 cm
IMPORTANT
It is important that the elbow of the pipe is properly fixed at the exit so that it doesn’t fall,
with the consequent risk of flooding.
If your washing machine has an input for hot water, connect the tube with the red threa-
ding to the hot water tap and to the electrically operated valve with the red filter.
The washing machine is to be connected to the water supply network using the new supply
pipes provided with the appliance. The old water supply pipes are not to be used.
For correct functioning of the washing machine, the water network pressure must be bet-
ween 0.05 and 1 MPa (0.5 - 10 Kgrf/cm2).
a
b

Do not remove the
characteristics panel.
It contains important
information.

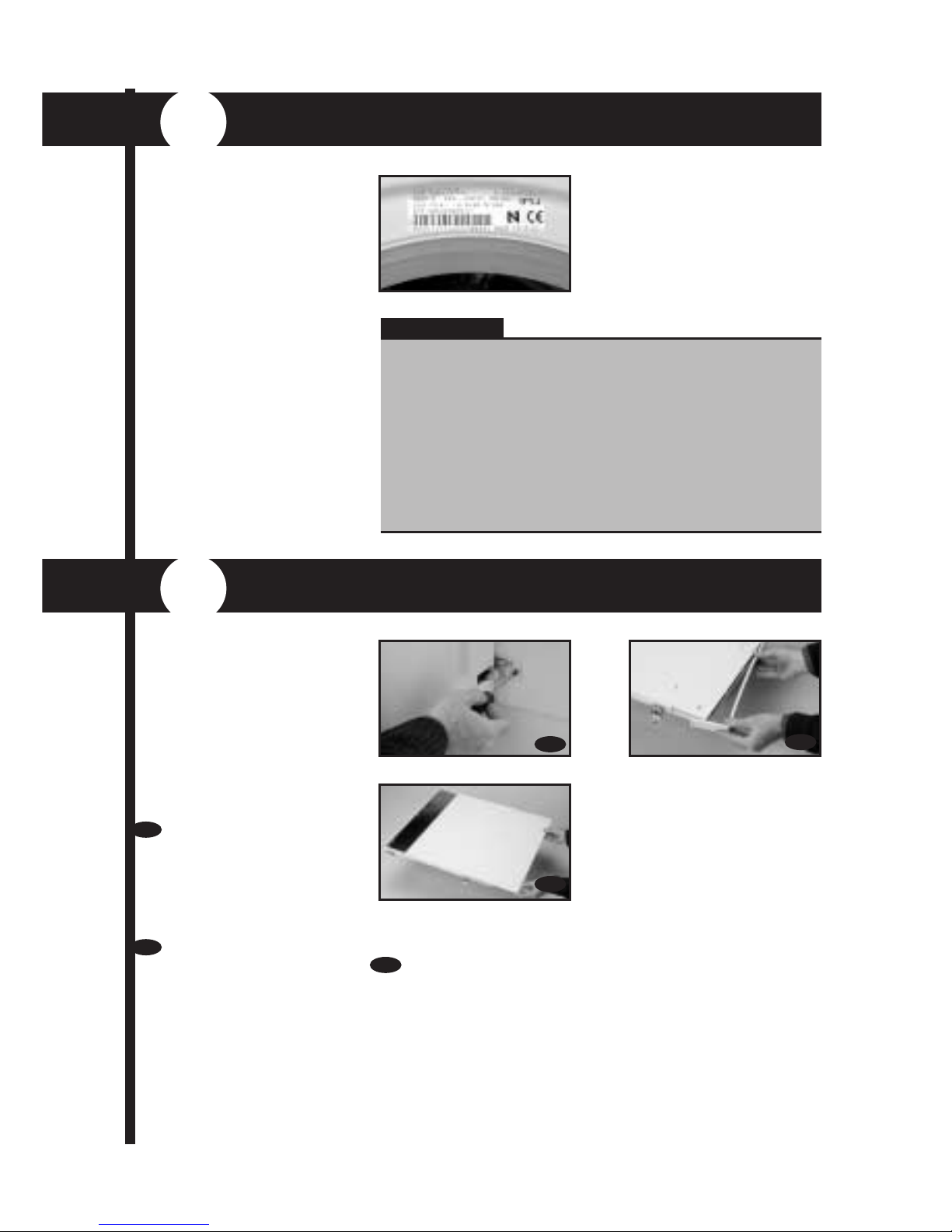

4ELECTRICAL CONNECTION
5PANELLING
Consult the characteris-
tics panel situated on
the porthole door of the
washing machine before
making the electrical
connections. Ensure that
the voltage available at
the base of the socket is
the same as the voltage
indicated on the panel.
It is easy
to change the coating
of the washing
machine panels
to match your kitchen
furniture. These coa-
ting panels may
not be thicker than 5
mm.
aLoosen the
screws of the hin-
ges and dismantle
the door of
the washing
machine.
bRemove the lower
protection frame,
loosening the
screws.
Extract the panel
that was supplied
with the washing
machine.
IMPORTANT
It is very important to earth the washing machine properly.
The electrical fittings, socket, plug, fuses or automatic
switch and meter must be scaled for the maximum power
indicated on the characteristics panel.
If the power cord is damaged, it must be replaced by one
with the same reference number, only available from an
authorised service centre.
On built-in washing machines, the mains plug must be
accessible after installation.
b
c
a
cIf the new panel is 3
mm. thick or more,
you will not need to
leave the original
panel. If it is less than
3 mm. thick, place it
over the panel origi-
nally supplied with the
washing machine.
In order to assemble the
door with the new decora-
tive panel, repeat the steps
given in points a, b, c.

55
English

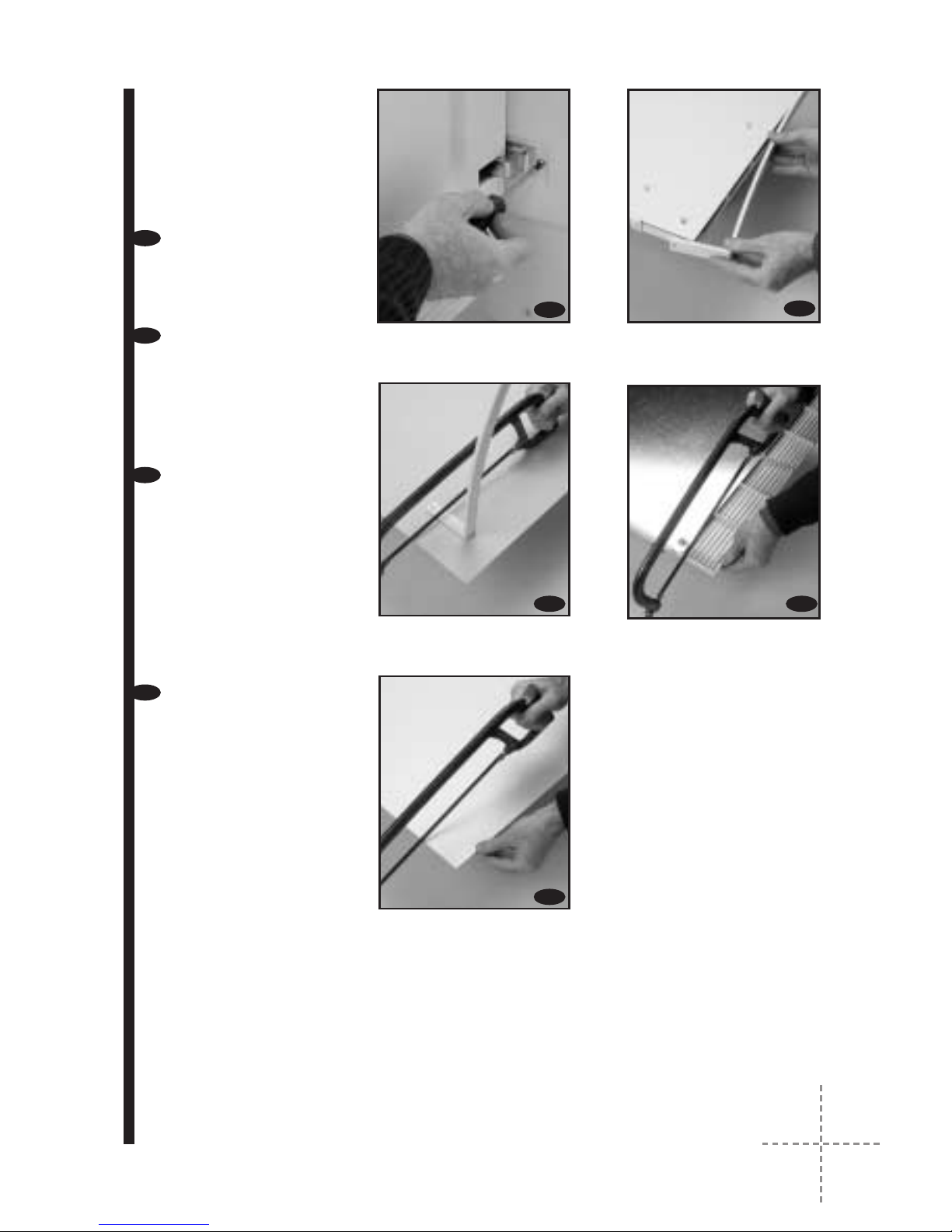

It is also possible to
adjust the height of
the decorative
door in order to align
it with the rest of the
kitchen furniture and
fittings.
aLoosen the screws
of the hinges and
dismantle the door
of the washing
machine.
bRemove the lower
protection frame,
loosening the
screws and extract
the panel that was
supplied with the
washing machine.
cThe lower part of
the door and the
lower protection
frame are divided
into 7x10 mm.
Sections. depen-
ding on your needs,
divide and adapt
the decorative
panel to the new
dimensions.
dReplace the deco-
rative panel and the
lower protection
frame and assem-
ble the door again.
a
c
c
c
b

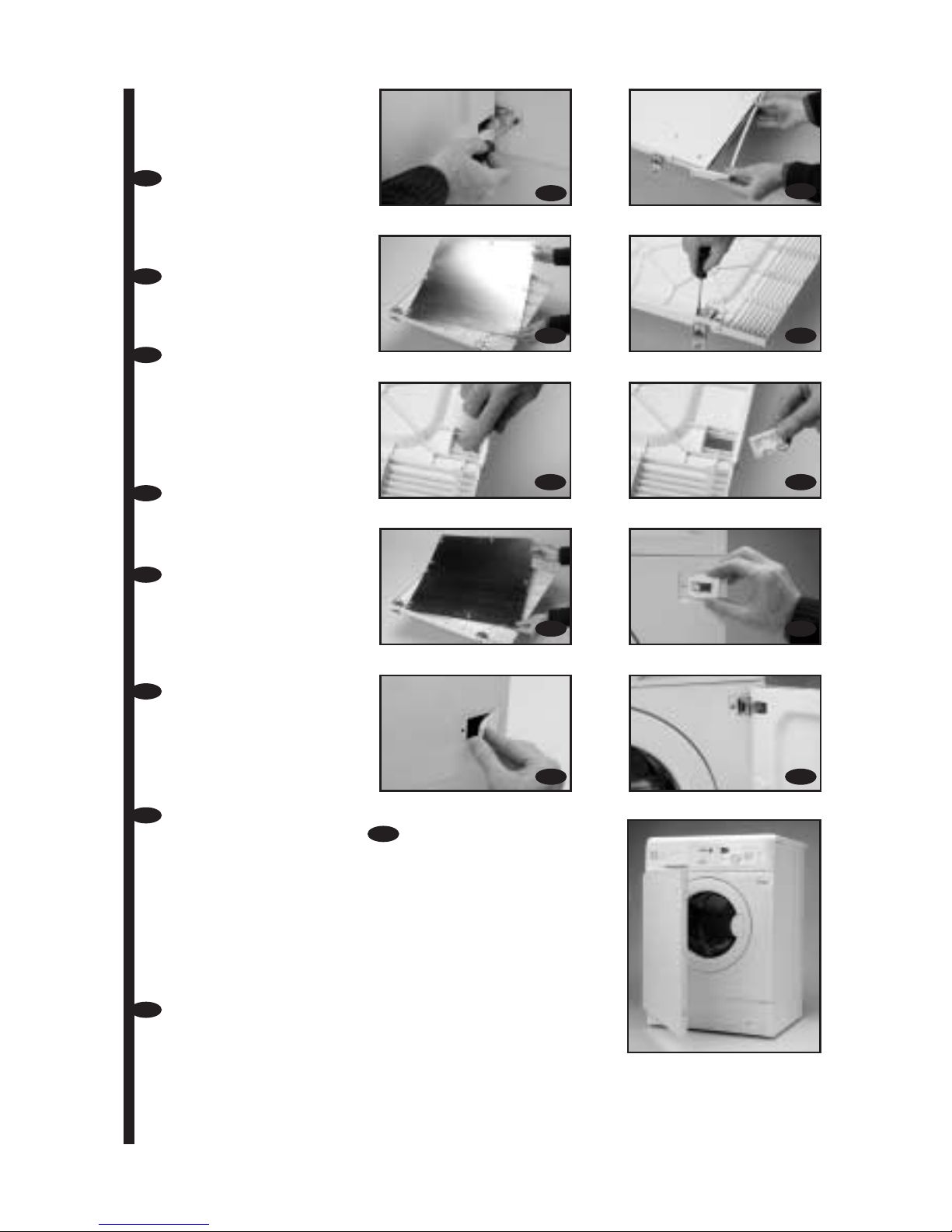

Fagor washing machi-
nes also allow you to
change the direction in
which the door opens.
aLoosen the screws
of the hinges and
dismantle the door
of the washing
machine.
bRemove the lower
protection frame,
loosening the
screws. .
cExtract the panel
that was supplied
with the washing
machine and the
internal panel, loo-
sening the screws
that hold it together.
dExtract the hinges
and insert them on
the other side of the
door.
eLoosen the protecti-
ve cover on the
door and place it
on the opposite
side where the hin-
ges were.
fReplace the plate
again, the door
panel and the lower
protection frame.
Then hang the door
again.
gExtract the fastener
situated at the front
of the washing
machine unit, by loo-
sening the corres-
ponding screw. Now
place the fastener in
the spot where the
upper hinge used to
be
hRemove the protec-
tive buffer and
place it in the spot
where the lower
hinge used to be.
ab
h i
c d
e
f g
e
iHang the door by
lightly pushing and
inserting the hinges
in their new location.
Adjust the screws.

57
English
7
6INSTALATION OF THE WASHING MACHINE UNDER THE
KITCHEN WORKTOP
Now that you have satis-
factorily installed your
washing machine, we
recommend that you run
programme 5 at 60ºC,
without inserting any
laundry or detergent.
This is in order to
check the installation,
the connections and
the drainage system,
as well as to fully clean
the inside before run-
ning a wash program-
me in the washing
machine.
It is possible to place
the washing machine
under the kitchen
worktop.
If you need to change
the worktop of the was-
hing machine, please
ask the Technical
Support Service, for the
guard plate and follow
these steps:
aDismantle the work-
top of your washing
machine by loose-
ning the side screws
and lightly knocking
the worktop back-
ward in order to
extract it.
bRemove the fasteners
that hold the worktop
in place by loosening
the screws.
cPlace and screw in
the guard plate on
the washing machine
in order that you may
introduce it in the
intended spot.
Select
programme 5 at 60ºC
Press the
On/ Off button
a b
c
PRIOR CLEANING

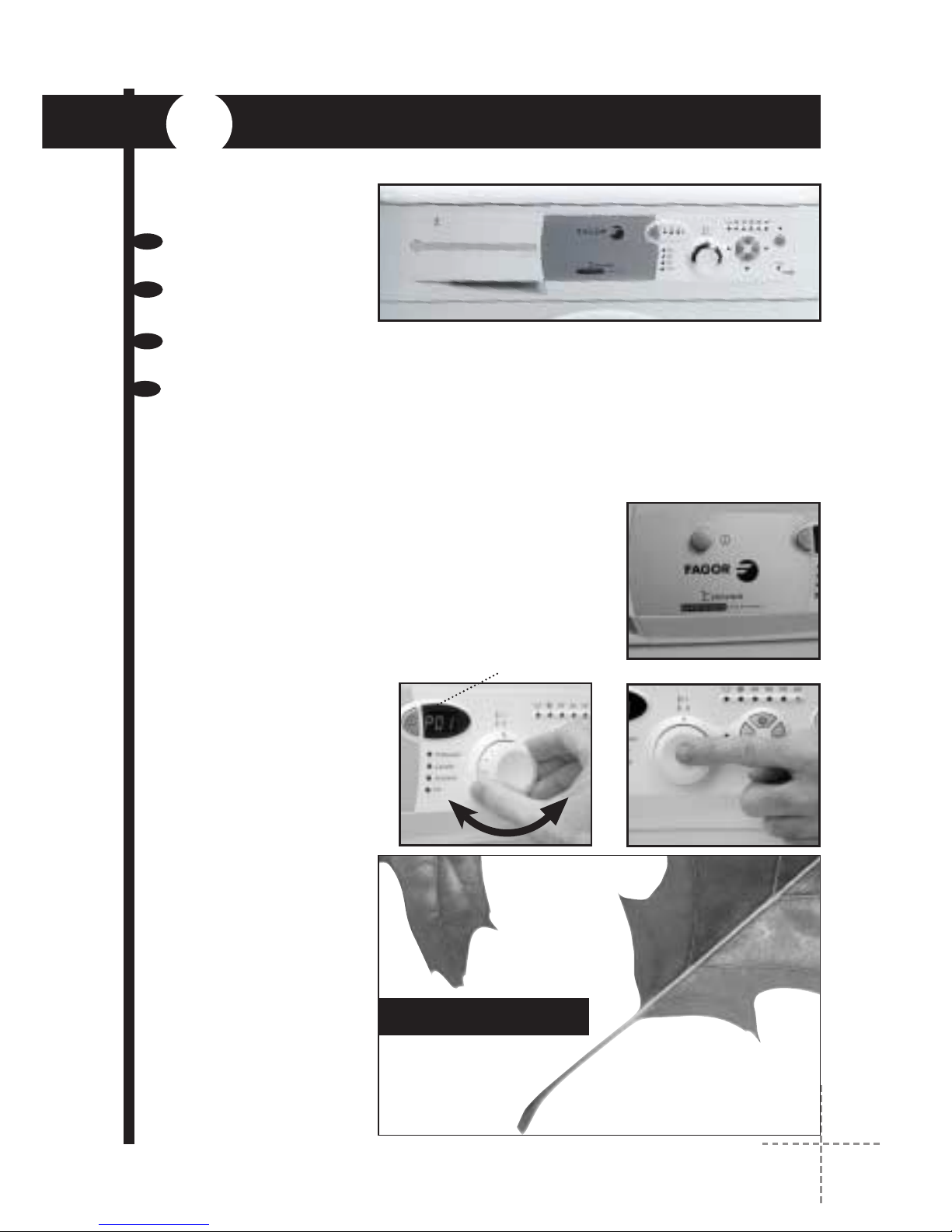

HOW TO USE THE MACHINE. PRACTICAL TIPS
PREPARING THE LAUNDRY BEFORE A WASH
WASHING MACHINE
Sort your laundry
according to
material or make-
up. We recommend
you use delicate pro-
grammes for delicate
garments. Woollens
may be washed in a
special wool program-
me.

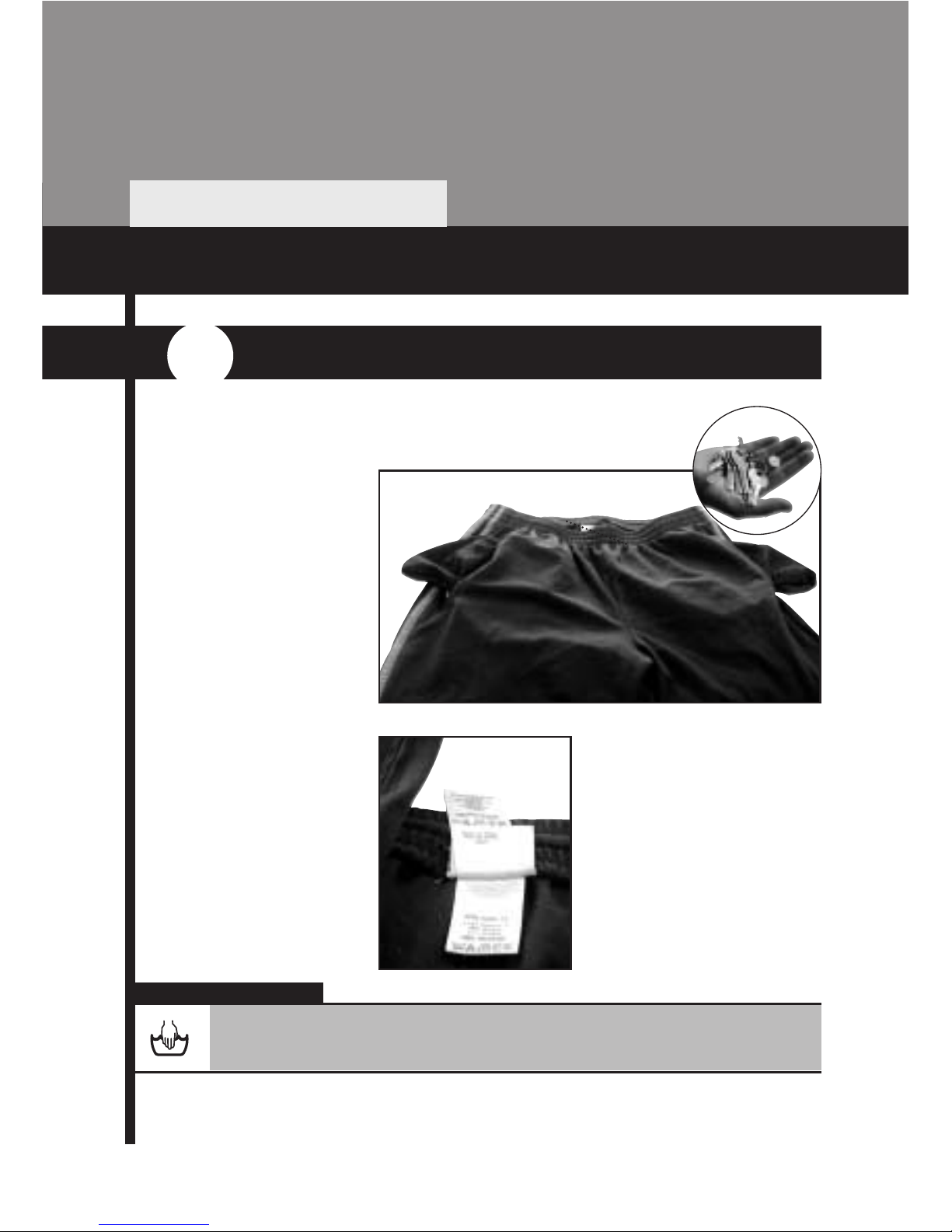

1
Before putting the
laundry in the drum,
ensure that all the poc-
kets are empty. Small
objects can obstruct
the motor pump for
water discharge.
IMPORTANTEIMPORTANT
Please ensure that your woollen garments are machine washable before run-
ning the wool programme.
