Fairland IDHR60 Instruction Manual

R32 Full-inverter Dehumidifier
INSTALLATION & USER MANUAL

SUMMARY
1. GENERAL INFORMATION 1
1. 1. Name of Parts 1
1.2. Spare Part Lists 2
1.3. Dimension 2
2. OPERATION 3
2.1.Instruction for Controller 3
3. TECHNICAL SPECIFICATION 6
1. Installation and Maintenance 7
1.1.Notice before installation 7
1.2 Instruction 10
1.3 Trail after Installation 15
1.4.Daily Maintenance Notice 15
2.TROUBLE SHOTTING FOR COMMON FAULTS 16
3.FAILURE CODE 17
PLEASE READ CAREFULLY AND SAVE FOR USE.
THIS MANUAL GIVES YOU THE NECESSARY INFORMATION FOR OPERATION AND
MAINENANCE.
For users …………………………………………………………………. P.1-P.6
For installers and professionals …………………………………… P.7-P.17

1

1
FOR USER
1.GENERAL INFORMATION
1. 1. Name of Parts
No.
Name
1
Controller
2
Feet
3
Air Outlet
4
Air Inlet(on the bottom)
5
Hanging Strip on Wall
6
Pad

2
FOR USER
1.2. Spare Part Lists
Padx3，Feetx4，Drain-pipe x1(2m)，Hanging Stripx1，Manual
1.3. Dimension
IDHR60
IDHR96
IDHR120
A
B
C
D
E
H
Model
Dimension（Unit:mm）

3
FOR USER
2.OPERATION
2.1.Instruction for Controller
SYMBOL
DESIGNATION
FUNCTION
ON/OFF
Press to power on or off the dehumidifier
Mode
1. For dehumidifier with dehumidifying function only, press “ ” to select Smart
/Silence mode.
2. For dehumidifier both with dehumidifying and heating functions (dehumidifier with
optional electric heater), press the " " button for 3 seconds to select the mode:
"Heating"
"Dehumidification"
"Heating + Dehumidification"
Timer
Press to set the time to switch on and off
Up and Down
Adjust the value of the required parameters
1. When the dehumidifier it’s on, press any button to light the keyboard and operate it.
When it’s off, press to light the keyboard and operate it.
2. Mode Button
(1) Dehumidifying Function only: Press one time，it can transfer or mode. Default is smart

4
FOR USER
mode
(2) Both Dehumidifying and Heating Function:
Press for 3 seconds, the or or + will flash, before it stops flashing, press to choose
or or + circularly, which means “Heating”“Dehumidifying”“Heating + Dehumidifying”
A．Dehumidifying Function: Press one time，it can transfer the mode between and .
Default is mode
B. Dehumidifying and Heating Function: Press one time，it can transfer the mode between
and . Default is smart mode
3. Humidity/Temperature Setting
(1) Dehumidifying Function only:
Press or to set the humidity. The humidity setting range is 30-95%. The default is 70%
(2) Both Dehumidifying and Heating Function:
A. Under the dehumidifying mode, press or to set the humidity. The humidity setting range is
30-95%. The default is 70%
B. Under the heating mode, press or to set the temperature. The temperature setting range
is 18~35°C. The default is 26 ° C
C. Under the heating + dehumidifying mode, press the for the first time, the humidity number
flashes, press or to set the desired humidity. Automatically confirm and exit after 5
seconds without button operation. Press , the temperature number flashes, press or to
set the desired temperature before the flashing stops and automatically confirm and exit after 5
seconds without the button operation.
4. The symbol will be displayed on the screen when the electric heater is turned on. Under the
heating + dehumidifying mode, the priority dehumidification function is preferred, and the electric
heating run when compressor operating frequency is below 50%. (Remark: heating function is
available only with electric heater)
(Note: When the outlet temperature is ≥65°C, enter the air outlet overheat protection system to
stop (compressor and electric heating will stop). When the outlet temperature is ≤50°C, the
protection will be withdrawn and normal operation will resume)

5
FOR USER
5. Timer Setting
(1) Timer ON setting: When the dehumidifier is on or off, press the “ ” to enter the timer setting;
Meanwhile, the symbol light and the are flashing to enter the Timer ON setting. Press the
and to adjust Timer ON hour setting, then press , you can adjust the minute
setting by pressing or , then press the for three times, the will keep lighted,
Timer on setting completely. (If you haven’t pressed or to adjust the time, timer setting
failed then withdrawal automatically.)
(2) Timer OFF setting: When the dehumidifier is on or off, press the to enter the timer setting;
Meanwhile, the symbol light and the are flashing. Press two times to enter the Timer
OFF setting, the is flashing, you can adjust the hour setting by pressing the and , then
press again the , then you can adjust the minute setting by pressing or , and press
the , the will keep lighted, the Timer OFF setting completed. (If you haven’t pressed
or to adjust the time, time setting failed then withdrawal automatically.)
(3) Timer ON & OFF setting: When the dehumidifier is on or off, press the to enter the timer
setting; Meanwhile, the symbol light and the are flashing to enter the Timer ON setting.
Press the and to adjust Timer ON hour setting, then press , you can adjust the
minute setting by pressing or . Press the to enter timer off setting, the is
flashing, you can adjust the hour setting by pressing the and , then press again the ,
then you can adjust the minute setting by pressing or , press to confirm the status
then exit, the and will keep lighted all the time.
(4) Method of cancelling timer function: Press the to enter the timer setting. After Timer ON or
Timer OFF setting, you can press directly the without adjusting the setting time in order to
cancel timing function setting.

6
FOR USER
3.TECHNICAL SPECIFICATION
Model
IDHR60
IDHR96
IDHR120
Advised pool surface (㎡) *
≤25
≤40
≤50
Advised room size (㎡) *
120
200
240
Operating air temperature (℃)
10~38
Capacity (l/h) (Air 30℃，RH 80% ) *
2.5
4.0
5.0
DER (l/h.kW) (Air 30℃，RH 80% ) *
4.00~3.40
4.53~4.05
4.50~3.68
Capacity (l/h) (Air 30℃，RH 70% ) *
2.1
3.3
4.2
DER (l/h.kW) (Air 30℃，RH 70% ) *
3.34~3.00
4.00~3.50
3.86~3.25
Heat recovered (kW)
2.4
3.3
4.4
Electric heater optional (kW)
2
2
2
Rated power (kW) (Air 30℃，RH 80% ) *
0.11~0.73
0.17~0.99
0.22~1.36
Rated current (A) (Air 30℃，RH 80% ) *
0.48~3.17
0.74~4.30
0.96~5.91
Power supply
230V/1Ph/50Hz
Sound pressure at 1 m dB(A)
35.3~45.6
35.6~46.1
35.9~46.4
Air flow (m³/h)
600
800
1000
Net dimension (mm)
850×291×850
1120×291×855
1220×291×855
Net weight
52
65
70
1. The temperature of this products can only work normally within the range of 10 °C ~ 38 °C.
If it exceeds this range, the performance will not be guaranteed; please note that the
performance parameters of the dehumidifier will be different under different working
conditions;
2. Due to the technical improvement of the product, the relevant parameters will be adjusted
by steps without prior notice. Please refer to their nameplate for more details.

7
FOR INSTALLERS AND PROFESSIONALS
1. Installation and Maintenance
This product must be installed by a professional team. The users are not qualified to
install by themselves, otherwise the dehumidifier might be damaged and risky for users’
safety.
1.1.Notice before installation
The product is only used for dehumidification of the swimming pool and must ensure
sufficient air circulation, otherwise the dehumidification function will be ineffective or have
little effect.
1.1.1 When storing or moving the equipment, it should be at the upright position
1.1.2.The equipment is a general dehumidification product, NEVER use it for other
flammable and turbid gases.
1.1.3. Set the temperature and humidity appropriately to get a comfortable environment.

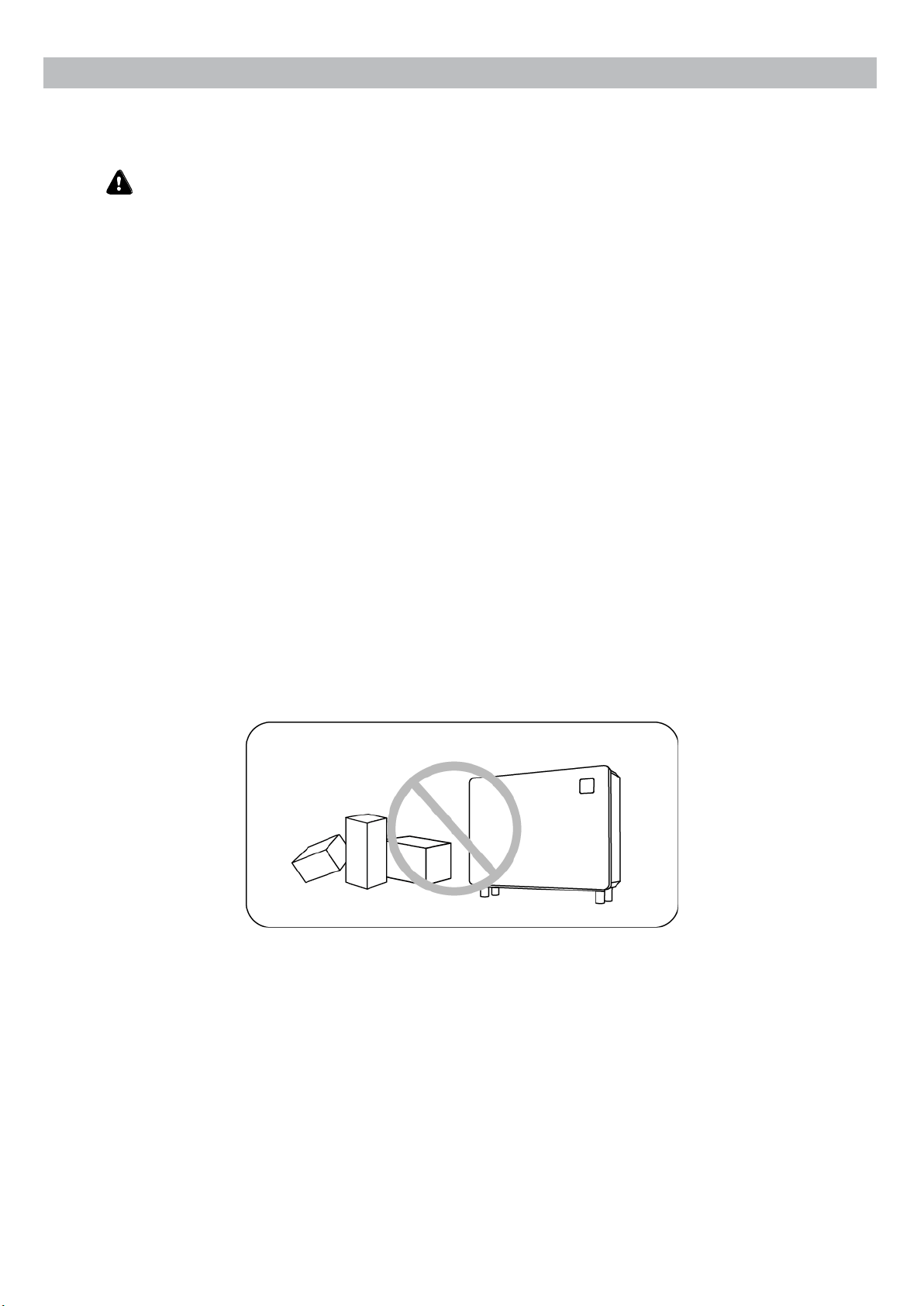

1.1.4. Do not place objects that block the airflow nearby the air inlet or the air outlet,
because it will reduce the effect of the equipment and even stop the equipment.
1.1.5. Do not put the hands or other objects such as sticks into the air inlet and outlet of the
dehumidifier, and do not remove its appearance. Otherwise, the high speed running
wind wheel may cause injury to you.

8
FOR INSTALLERS AND PROFESSIONALS
1.1.6. It is strictly forbidden to use or store flammable gases or liquids such as hair spray,
paint, gasoline, etc. near the dehumidifier, otherwise a fire may occur.
1.1.7. If any abnormal conditions such as abnormal noise, odor, smoke, leakage, etc., are
found, the power should be cut off immediately and contact the local dealer, and do
not repair the equipment yourself.
。

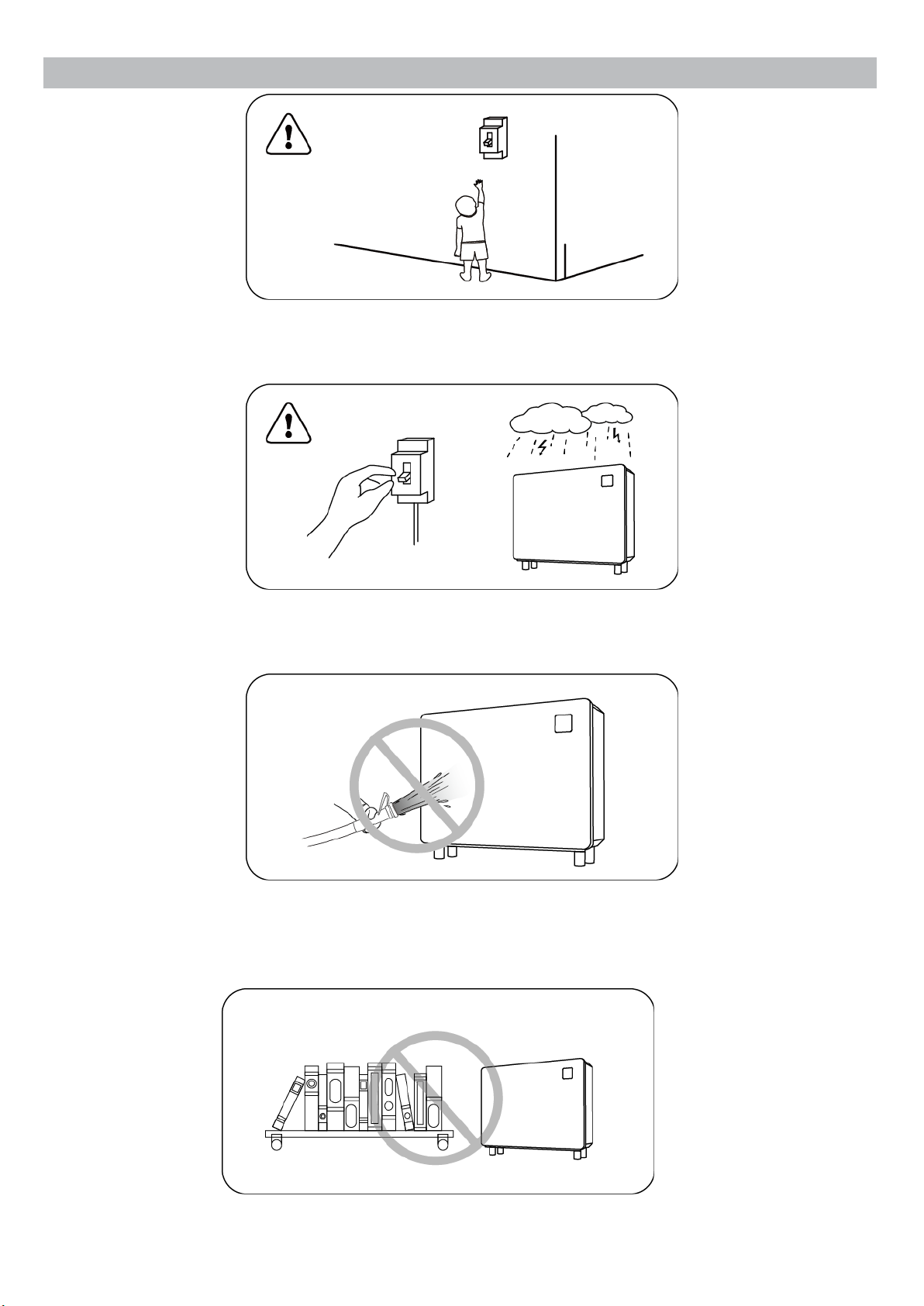

1.1.8. The main power switch should be located in a position that the child cannot reach, to
prevent children from playing with the main power switch in danger.

9
FOR INSTALLERS AND PROFESSIONALS
1.1.9. In thunderstorms, disconnect the main power switch, otherwise the lightening might
damage the unit
1.1.10. Do not wash the equipment directly with water.
1.1.11. Do not use for special purposes such as the preservation of fine arts or academic
materials (Otherwise, the quality of the preservation may be reduced).

10
FOR INSTALLERS AND PROFESSIONALS
1.2 Instruction
This product should be installed in a well-ventilated place
1.2.1.Installation
1.The dehumidifier may be placed on the ground or installed on the wall;
2. When installing on the wall, be sure to use M6 pull-out screws to fix the bracket, the
concrete foundation of the selected wall should be firm and strong, and the bracket should
be strong enough and rust-proof;

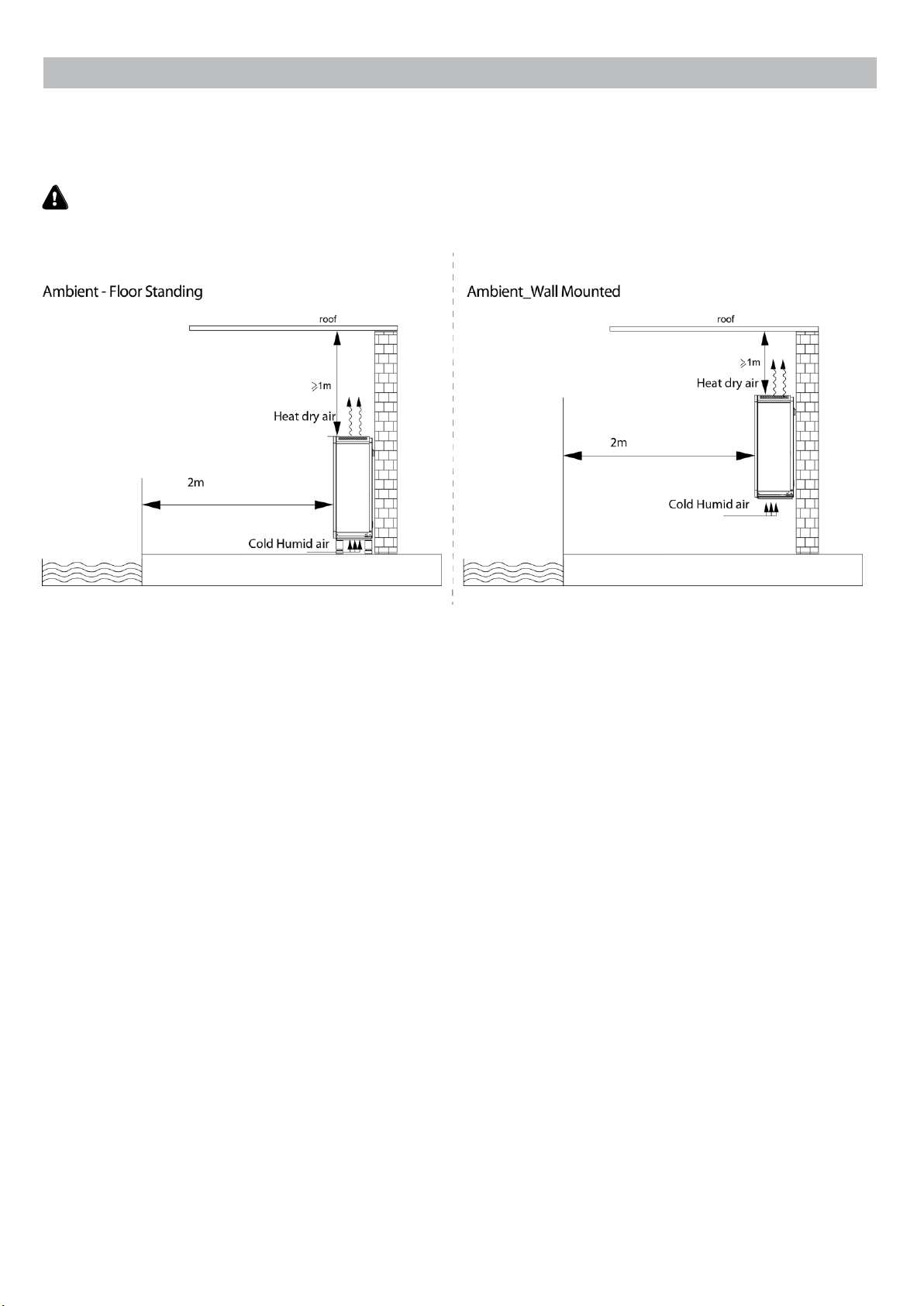

3. Please ensure that the dehumidifier and the swimming pool are kept at a distance of
200cm or more. Do not place objects which block the airflow near the air inlet or air outlet.
Do not set any obstacles within 100cm in front of the air outlet. Otherwise, the efficiency of
dehumidification will be reduced, or even the system will stop running.
4. When the dehumidifier is running, there will be condensed water discharged from the
bottom board, please pay attention; put the drainage kit firmly into the drain hole of the
bottom board, and then connect the drain pipe to drain away the condensed water
smoothly.

11
FOR INSTALLERS AND PROFESSIONALS
Steps to install the foot and place it on the ground:

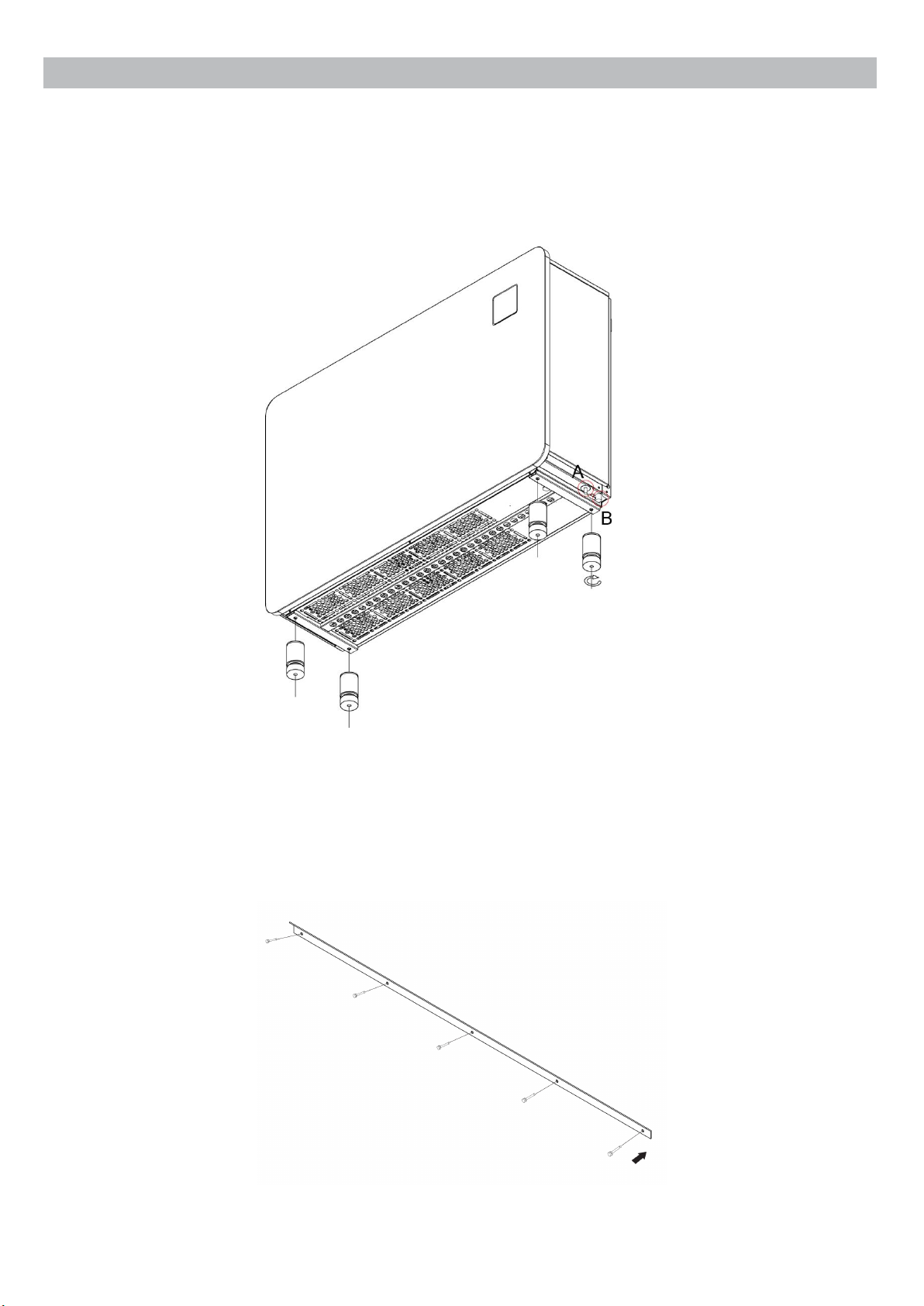

1. Align the foot to the mounting hole of the dehumidifier chassis and screw it in the
clockwise direction (do not flip the equipment to install!).
A：Power Cord；B：Drain Outlet(Connected with drain pipes)
2. Connect the drain pipe and connect the power cord according to the cable
diagram.
Steps of installation on the wall：
1. On the appropriate wall, mount the bracket to the wall by attaching five φ6mm pull-out
screws to the holes in the wall bracket.

12
FOR INSTALLERS AND PROFESSIONALS
2. Place the pad on the wall-mounting platform behind the equipment
3. Hang the hanging strip on the back of the equipment on the bracket.

13
FOR INSTALLERS AND PROFESSIONALS
After hanging the bracket, gently put the equipment until the pad of the bottom
rests against the wall.
4. Connect the drain pipe, and connect the power cord according to the wiring diagram
A: Power cord;
B: Drain outlet( connect the drain pipes)

14
FOR INSTALLERS AND PROFESSIONALS
1.2.2. Electrical installation wiring
1）Connect to appropriate power supply, the voltage should comply with the rated voltage
of the products.
2）Dehumidifier must be well grounded.
3）Wiring must be connected by professional technician according to the circuit diagram.
4）According to the requirements of relevant electrical equipment technical standards of
the local country of the user, set up leakage protection devices (leakage operating current
≤30mA)
5）The layout of power cable and signal cable should be orderly and not affecting each
other; considering the environmental condition (ambient temperature, direct sunlight, rain,
power grid voltage, cable length etc)
6）The cross-sectional area of the cable can be appropriately increased.
7）Completed all the wiring, must be checked carefully then connect the power.
Electric wiring diagram
Note: Above date is adapted to power cord ≤10m.If power cord ≥10m, wire diameter must be increased.
Model
IDHR60
IDHR96
IDHR120
Breaker
Rated current A
Rated residual Action
Current mA
Fuse A
Power cord （mm2）
Power Supply
230V/50Hz

15
FOR INSTALLERS AND PROFESSIONALS
1.3 Trail after Installation
Please check all the wirings carefully before turning on the dehumidifier.
1.3.1. Inspection before use
1. Check if the dehumidifier is vertically or horizontally placed on the ground or hung on the wall,
connected with drain pipe;
2. Check the electric wiring according to the electrical wiring diagram and earthing connection;
3. Make sure that the main power is well connected;
4. Make sure that setting the appropriate humidity;
5. Check if there is any obstacle in front of the air inlet and outlet of the dehumidifier.
1.3.2. Trail
The user should open the power switch firstly then connect the power.
To protect the dehumidifier, it is equipped with start delay function; When starting the dehumidifier, the
fan will firstly start to run in 3 minutes, then the compressor will start running.
After dehumidifier starts up, check for any abnormal noise from the dehumidifier.
1.4.Daily Maintenance Notice
The maintenance should be carried out per year by qualified professional technician.
Cut off power supply of the dehumidifier before inspection;
Please cut off the power supply when not be used, and cover the plastic sheet use the cloth to prevent
dust from entering.
Please clean the dehumidifier with the household detergents or clean water, NEVER use Volatile oil,
gasoline, thinner or sassafras powder.

16
FOR INSTALLERS AND PROFESSIONALS
2.TROUBLE SHOTTING FOR COMMON FAULTS
Failure
Reason
Solution
Dehumidifier doesn’t
run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but
insufficient heating
Evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but
no dehumidification
The set humidity too low
set proper humidity
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact professional installer with model number and detailed
information.
Don’t try to repair it yourself.
ATTENTION! Please don’t try to repair the dehumidifier by yourself to avoid
any risk.
