Fairland IPH15 Instruction Manual

Thank you for choosing Fairland Full-inverter heat pump
INSTALLATION & USER MANUAL

SUMMARY
1. GENERAL INFORMATION 1
1.1. Contents: 1
1.2. Operating conditions and range: 1
1.3. Advantages of different modes: 2
1.4. Kind reminder: 2
2. OPERATIONS 4
2.1. Notice before using 4
2.2. Operation instructions 4
2.3. Daily maintenance and winterizing 6
3. TECHNICAL SPECIFICATION 7
1. TRANSPORTATION 8
2. INSTALLATION AND MAINTENANCE 8
2.1. Notice before installation：8
2.2. Installation instruction 9
2.3. Trial after installation 12
2.4. Maintenance and winterizing 13
3. TROUBLE SHOOTING FOR COMMON FAULTS 13
4. FAILURE CODE 14
APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) 15
APPENDIX 2: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) 16
APPENDIX 3: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) 17
5. WI-FI SETTING 19
PLEASE READ IT CAREFULLY AND KEEP IT FOR SUBSEQUENT USE
This manual provides you necessary information for optimal use and maintenance
For users ………………………………………………………………………………. P. 1-P.7
For installers and professionals ………………………………………………… P. 8-P. 24

1
FOR USER
1. GENERAL INFORMATION
1.1. Contents:
After unpacking, please check if you have all the following components.
NOTICE:
Please do not install wrong direction of the water union.
1.2. Operating conditions and range:
ITEMS
RANGE
Operating range
Air temp
-7℃～43℃
Temp. setting
Heating
18℃～40℃
The heat pump will have ideal performance in the operation range Air 15℃～25℃.
STEP 1
STEP 2
STEP 3

2
FOR USER
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under different conditions.
1.4. Kind
reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat pump will
restart automatically.
1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other
flammable or turbid liquid.
1.4.2. Don’t lift the water union when moving the heat pump since the titanium heat exchanger
inside the heat pump will be damaged.
1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump.
MODE
RECOMMENDATION
ADVANTAGES
Smart mode
As standard
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Silence mode
Use at night
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Smart mode.

3
FOR USER
1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or even
stopped.
1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire.
1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and
leakage of electricity, switch off the main power immediately and contact your local
dealer. Don’t try to repair the heat pump by yourselves.
1.4.7. The main power switch should be out of the reach of Children.
1.4.8. Please cut off the power in the lightning storm weather.

4
FOR USER

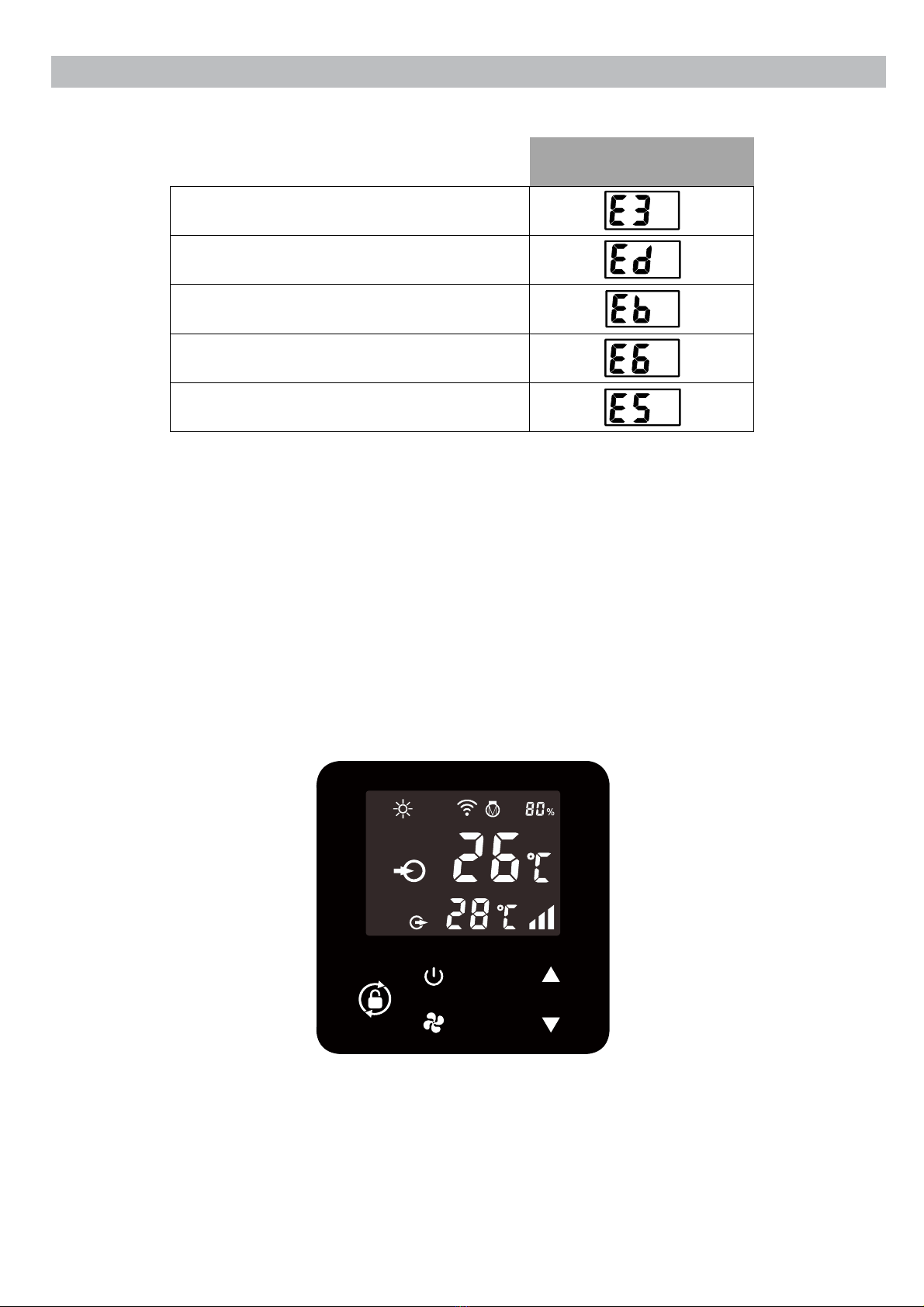

1.4.9. Please note that following codes are not failure.
CODES
No water flow
Anti-Freezing Reminder
Out of the operating range
Insufficient water flow or pump blocked
Power abnormal
2. OPERATIONS
2.1. Notice before using
2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and
water pump is off after heat pump is off.
2.1.2. Ensure no water leakage on piping system, then unlock screen and power on heat pump.
2.2. Operation instructions

5
FOR USER
SYMBOL
DESIGNATION
FUNCTION
ON/OFF
1. Power On/Off
2. Wi-Fi setting
Unlock
Press it for 3seconds to unlock/lock screen
Speed
Select Smart/Silence mode
Up / Down
Adjust set temperature
Note:
① Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.
c. Press for 3 seconds to lock screen and it will be dark
② Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. Only after screen is unlocked, any other buttons can be functioned.
Heating
Heating capacity percentage
Wi-Fi connection
Water inlet
Water outlet
Water inlet
temperature
Water outlet
temperature
Smart/Silence
mode

6
FOR USER
1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump.
2.Adjust Set Temperature: When screen is unlocked, press or to display or adjust the set temperature.
3.Smart/Silence mode selection:
a. Smart mode as default will be activated when heat pump is on, and screen shows .
b. Press to enter Silence mode, and screen shows .
(Suggestion: select Smart mode for initial heating.)
4.Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop flashing.
b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds to start
compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for
more than 10 minutes.)
5. Temperature display conversion between ℃and ℉:
Press " " and " " together for 5 seconds to switch
6. Wi-Fi setting
Please kindly check the last page.

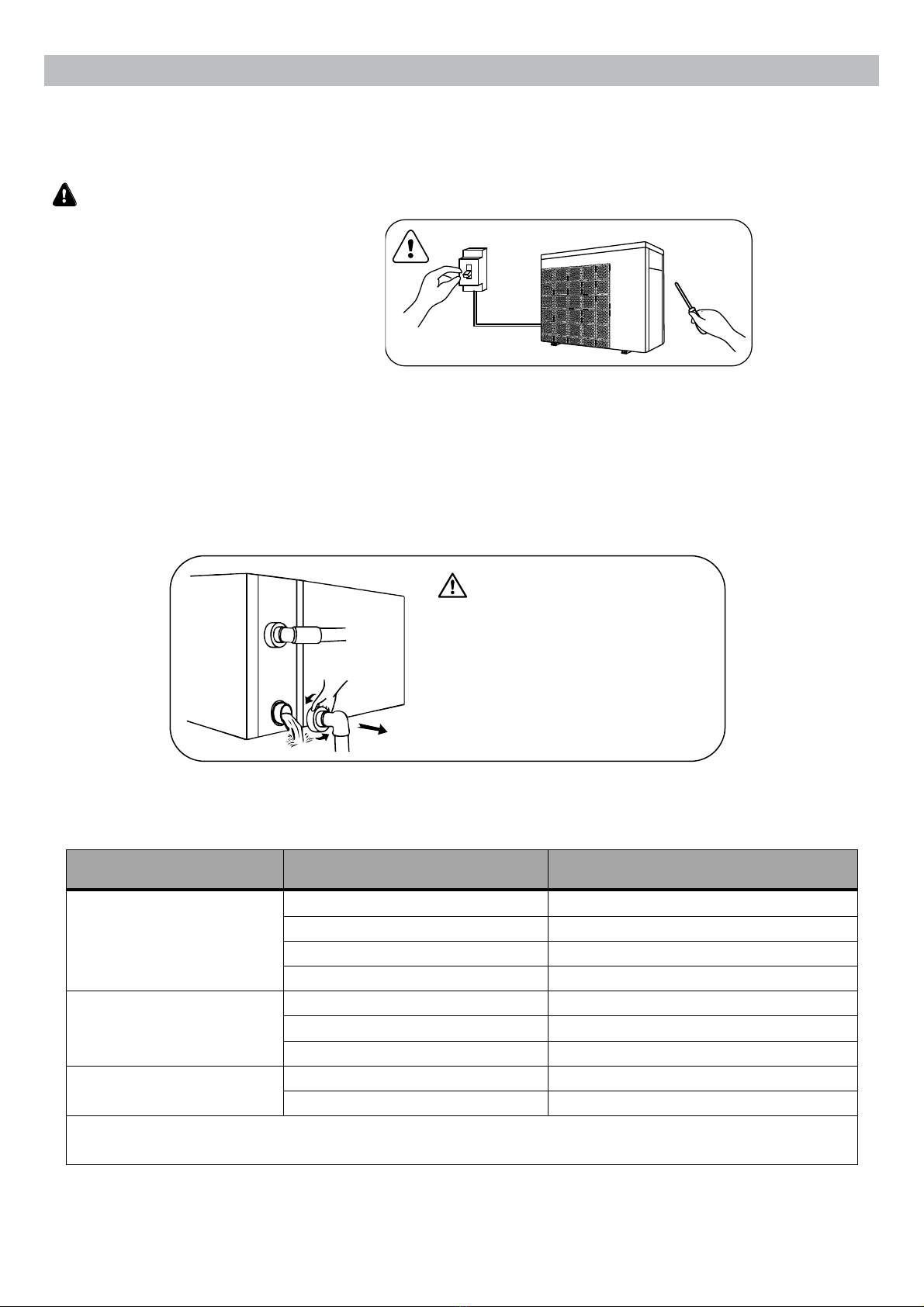

2.3. Daily maintenance and winterizing
2.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
➢Please clean the evaporator with household detergents or clean water, NEVER use gasoline,
thinners or any similar fuel.
➢Check bolts, cables and connections regularly.
2.3.2. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of the
heat pump. When using the heat pump under 2℃, make sure there is always water flow.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

7
FOR USER
3. TECHNICAL SPECIFICATION
Model
IPH15
IPH20
IPH25
IPH30
IPH35
IPH45
IPH55
IPH70
IPH70T
IPH100T
Advised pool
volume (m3)
15~30
20~40
25~45
30~55
35~65
40~75
50~95
65~120
65~120
90~160
Working air temp
(℃)
-7~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity
(kW)
6.5
8.1
10.0
12.1
13.5
17.5
21.0
27.5
27.3
35.5
C.O.P
15.8~7.4
15.5~7.4
16.2~7.3
15.6~6.0
16.3~6.7
16.6~6.2
16.1~6.0
16.2~6.5
16.1~6.5
16.5~5.8
C.O.P at 50%
capacity
11.3
11.2
11.3
10.8
11.2
11.4
11.0
11.5
11.5
11.2
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity
(kW)
4.8
6.0
7.0
8.1
9.5
11.5
14.5
18.0
18.0
24.2
C.O.P
8.1~4.8
7.7~5.0
8.1~4.8
7.8~4.5
8.2~4.6
8.2~4.5
8.1~4.4
8.5~4.8
8.5~4.8
8.4~4.7
C.O.P at 50%
capacity
7.0
6.8
7.0
6.5
6.8
6.6
6.5
7.0
7.0
7.2
Rated input
power(kW) at air
15°C
0.12~0.94
0.16~1.2
0.21~1.4
0.24~1.8
0.27~2.1
0.3~2.6
0.36~3.3
0.53~3.8
0.53~3.9
0.63~5.15
Rated input
current(A) at air
15°C
0.52~4.1
0.7~5.2
0.91~6.1
1.04~7.8
1.17~9.1
1.3~11.3
1.57~14.3
2.3~16.5
0.76~5.6
0.91~7.4
Power supply
230V/1 Ph/50Hz
400V/3 Ph/50Hz
Advised water
flux (m³/h)
2~4
2~4
3~4
4~6
5~7
6.5~8.5
8~10
10~12
10~12
12~18
Sound pressure
1m dB(A)
37.8~47.2
38.8~48.2
38.6~49.9
42.1~50.7
41.3~54.0
43.1~53.8
40.9~54.2
43.5~54.9
43.5~54.9
42.6~54.7
Sound pressure
10m dB(A)
17.8~27.2
18.8~28.2
18.6~29.9
22.1~30.7
21.3~34.0
23.1~33.8
20.9~34.2
23.5~34.9
23.5~34.9
22.6~34.7
Water pipe in-out
Spec (mm)
50
Net Dimension
LxWxH (mm)
894×359×
648
894×359×
648
894×359×
648
954×359×
648
954×359×
648
954×429×
648
954×429×
755
1084×429×
948
1084×429×
948
1154×539×
948
Net Weight
(kg)
43
45
49
50
52
63
68
90
93
117
The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration system
running at least 15 hours a day.
Related parameters are subject to adjustment periodically for technical improvement without further notice. For
details please refer to nameplate.

8
FOR INSTALLERS AND PROFESSIONALS
1. TRANSPORTATION
1.1. When storing or moving the heat pump, the heat pump should be at the upright
position.
1.2. When moving the heat pump, do not lift the water union since the titanium heat
exchanger inside the heat pump will be damaged.
2. INSTALLATION AND MAINTENANCE
The heat pump must be installed by a professional team. The users are not qualified to install by
themselves, otherwise the heat pump might be damaged and risky for users’ safety.
2.1. Notice before installation：
2.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be
connected with hard pipes!
2.1.2. In order to guarantee the heating efficiency, the water pipe length should be ≤10m between
the pool and the heat pump.

9
FOR INSTALLERS AND PROFESSIONALS
2.2. Installation instruction

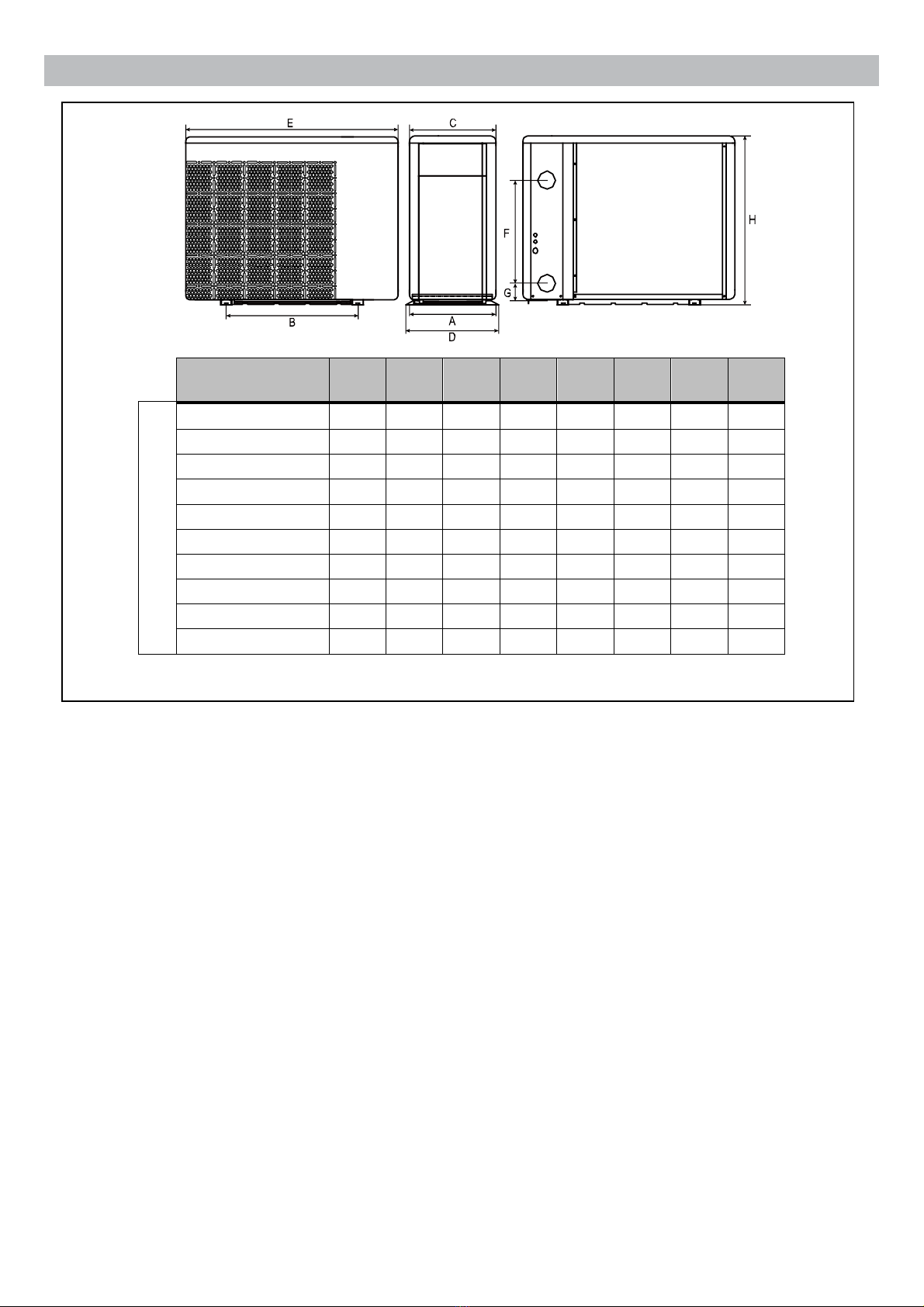

2.2.1. Location and size
The heat pump should be installed in a place with good ventilation
* MINIMUM DISTANCE
Filter
Water processor
Water switch

10
FOR INSTALLERS AND PROFESSIONALS
※ Above data is subject to modification without notice.
2.2.2. Heat pump installation.
➢The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete
foundation must be solid; the bracket must be strong enough and anti-rust treated;
➢The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
➢When the heat pump is running, there will be condensation water discharged from the bottom,
please pay attention to it. Please insert the drainage tube (accessory) into the hole and clip it
well, then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
➢Connect to appropriate power supply, the voltage should comply with the rated voltage of the
products.
➢Well earth the heat pump.
➢Wiring must be connected by a professional technician according to the circuit diagram.
➢Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
➢The layout of power cable and signal cable should be orderly and not affecting each other.
UNIT=MM
A
B
C
D
E
F
G
H
MODEL
IPH15
334
590
318
359
894
250
74
648
IPH20
334
590
318
359
894
250
74
648
IPH25
334
590
318
359
894
290
74
648
IPH30
334
590
318
359
954
280
74
648
IPH35
334
590
318
359
954
340
74
648
IPH45
404
590
388
429
954
390
74
648
IPH55
404
590
388
429
954
460
74
755
IPH70
404
720
388
429
1084
620
74
948
IPH70T
404
720
388
429
1084
620
74
948
IPH100T
514
790
498
539
1154
650
74
948

11
FOR INSTALLERS AND PROFESSIONALS
1. Connecting your power wire
NOTE: Please open the back panel for power connection. The operation is the same as above.

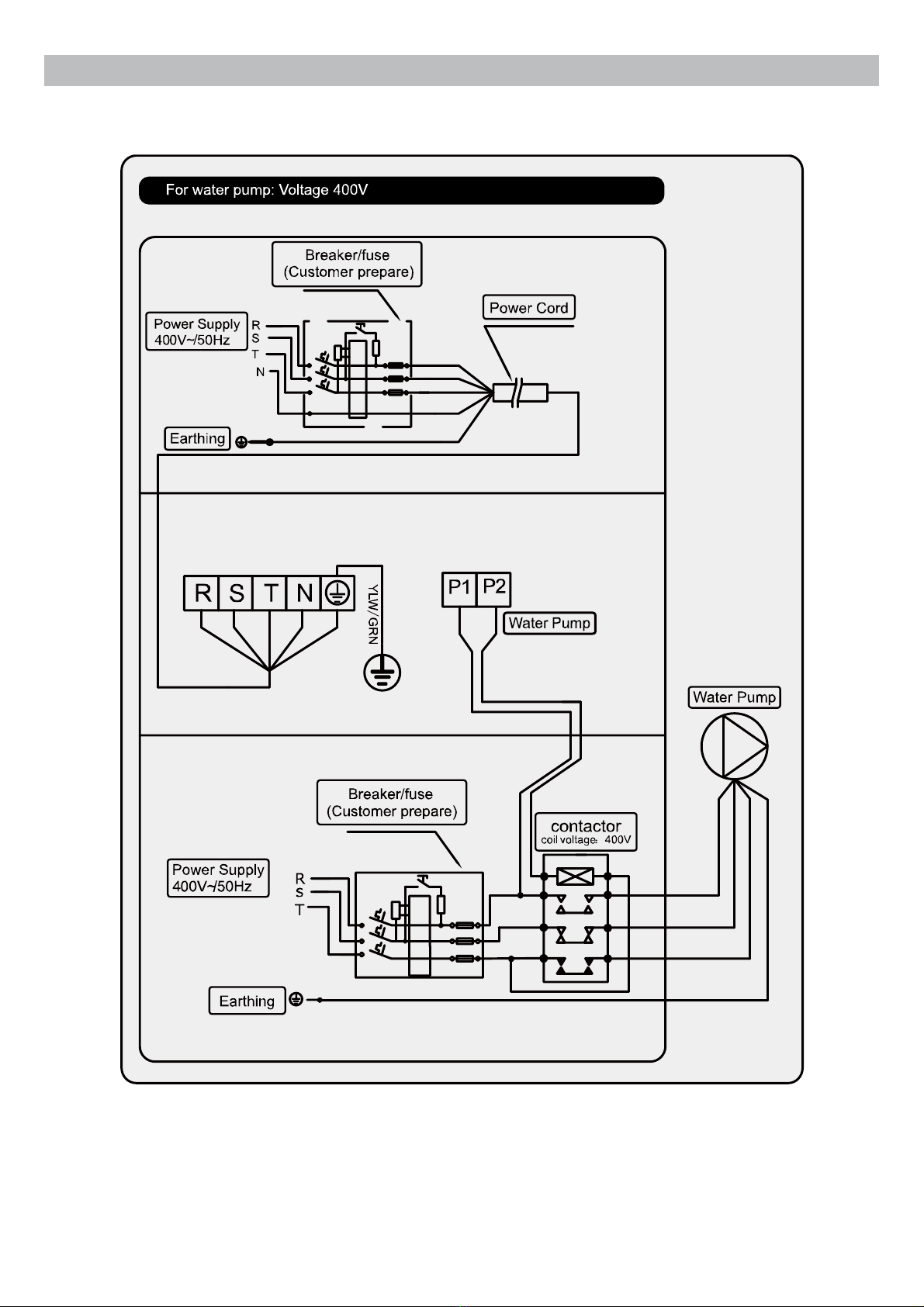

2. Wiring diagram
Please use cross screwdriver to take off the
2 screws at the bottom of the right side
panel. Take off the lower half of the panel.
Unscrew the 3 screws on the cover of the
electrical box.
Connect the terminals according to the
electrical diagram.
A. For power supply: 230V 50Hz
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50Hz
Breaker
B. For power supply: 400V 50Hz
Earthing
Earthing
Fuse
Fuse

12
FOR INSTALLERS AND PROFESSIONALS
NOTE:
Must be hard wired, no plug allowed (In Australia, IPH15~IPH30 has plug for optional).
For your safe use in winter, it’s strongly recommended to equip heating priority function.
For the detailed wiring diagram, please refer to Appendix 1.
3. Options for protecting devices and cable specification
MODEL
IPH15
IPH20
IPH25
IPH30
IPH35
IPH45
IPH55
IPH70
IPH70T
IPH100T
Breaker
Rated Current
A
9.0
9.0
10.5
13.0
13.5
16.0
21.0
24.0
9.0
12.0
Rated Residual
Action Current
mA
30
30
30
30
30
30
30
30
30
30
Fuse A
9.0
9.0
10.5
13.0
13.5
16.0
21.0
24.0
9.0
12.0
Power Cord（mm2）
3×1.5
3×1.5
3×2.5
3×2.5
3×2.5
3×2.5
3×4
3×6
5×2.5
5×2.5
Signal cable（mm2）
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
NOTE: The above data is adapted to power cord ≤ 10m. If power cord is ＞ 10m, wire diameter must be
increased. The signal cable can be extended to 50m at most.
2.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
2.3.1．Inspection before use
➢Check installation of the whole heat pump and the pipe connections according to the pipe
connecting drawing;
➢Check the electric wiring according to the electrical wiring diagram and earthing connection;
➢Make sure that the main power is well connected;
➢Check if there is any obstacle in front of the air inlet and outlet of the heat pump
2.3.2．Trial
➢The user is advised to start the water pump before the heat pump, and turn off the heat pump
before the water pump for long life circle.
➢The user should start the water pump, and check for any leakage of water; Power on and press
the ON/OFF button of the heat pump, and set desired temperature in the thermostat.
➢In order to protect the heat pump, the heat pump is equipped with start delay function. When
starting the heat pump, the fan will start to run in 3 minutes, in another 30 seconds, the
compressor will start to run.
➢After pool heat pump starts up, check for any abnormal noise from the heat pump.
➢Check the temperature setting.

13
FOR INSTALLERS AND PROFESSIONALS
2.4. Maintenance and winterizing
2.4.1 Maintenance
The maintenance should be carried out once per year by qualified professional technician.
➢Cut off power supply of the
heat pump before cleaning,
examination and repairing .
Do not touch the electronic
components until the LED
indication lights on PCB turn off.
➢Please clean the evaporator with household detergents or clean water, NEVER use gasoline,
thinners or any similar fuel.
➢Check bolts, cables and connections regularly.
2.4.2 Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of the heat
pump. When using the heat pump under 2℃, make sure there is always water flow.
3. TROUBLE SHOOTING FOR COMMON FAULTS
FAILURE
REASON
SOLUTION
Heat pump doesn’t run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but no
heating
Set temp. too low
Set proper heating temp.
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model number.
Don’t try to repair it yourself.
ATTENTION！Please don’t try to repair the heat pump by yourself to avoid any risk.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

14
FOR INSTALLERS AND PROFESSIONALS
4. FAILURE CODE
NO.
DISPLAY
NOT FAILURE DESCRIPTION
1
E3
No water protection
2
E5
Power supply excesses operation range
3
E6
Excessive temp difference between inlet and outlet water(Insufficient water flow
protection)
4
Eb
Ambient temperature too high or too low protection
5
Ed
Anti-freezing reminder
NO.
DISPLAY
FAILURE DESCRIPTION
1
E1
High pressure protection
2
E2
Low pressure protection
3
E4
Phases lack protection (three phase model only)
4
E7
Water outlet temp too high or too low protection
5
E8
High exhaust temp protection
6
EA
Evaporator overheat protection (only at cooling mode)
7
P0
Controller communication failure
8
P1
Water inlet temp sensor failure
9
P2
Water outlet temp sensor failure
10
P3
Gas exhaust temp sensor failure
11
P4
Evaporator coil pipe temp sensor failure
12
P5
Gas return temp sensor failure
13
P6
Cooling coil pipe temp sensor failure
14
P7
Ambient temp sensor failure
15
P8
Cooling plate sensor failure
16
P9
Current sensor failure
17
PA
Restart memory failure
18
F1
Compressor drive module failure
19
F2
PFC module failure
20
F3
Compressor start failure
21
F4
Compressor running failure
22
F5
Inverter board over current protection
23
F6
Inverter board overheat protection
24
F7
Current protection
25
F8
Cooling plate overheat protection
26
F9
Fan motor failure
27
Fb
Capacitor no charging protection
28
FA
PFC module over current protection

15
FOR INSTALLERS AND PROFESSIONALS
APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL)

16
FOR INSTALLERS AND PROFESSIONALS
APPENDIX 2: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL)

17
FOR INSTALLERS AND PROFESSIONALS
APPENDIX 3: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL)
