Fairland Rapid RIC55 Instruction Manual

Thank you for choosing Rapid by Fairland Inverter-Plus heat pump.
INSTALLATION & USER MANUAL
EN-CZ-DE-HR

Summary
1. General information: .............................................................................................................................. - 3 -
1.1. Contents: .............................................................................................................................................. - 3 -
1. . Operating conditions and range: ...................................................................................................... - 3 -
1.3. Advantages of different modes: ........................................................................................................ - 4 -
1.4. Kind reminder: ..................................................................................................................................... - 4 -
. Operations ............................................................................................................................................... - 6 -
.1. Notice before using ............................................................................................................................. - 6 -
. . Operation instructions ........................................................................................................................ - 6 -
.3. Daily maintenance and winterizing ................................................................................................... - 8 -
3. Technical specification ........................................................................................................................... - 9 -
1. Transportation ....................................................................................................................................... - 10 -
. Installation and maintenance ............................................................................................................. - 10 -
.1. Notice before installation： ............................................................................................................. - 10 -
. . Installation instruction ...................................................................................................................... - 11 -
.3. Trial after installation ..................................................................................................................... - 14 -
.4. Maintenance and winterizing ........................................................................................................ - 15 -
3 . Trouble shooting for common faults ................................................................................................. - 15 -
4. Failure code ........................................................................................................................................... - 16 -

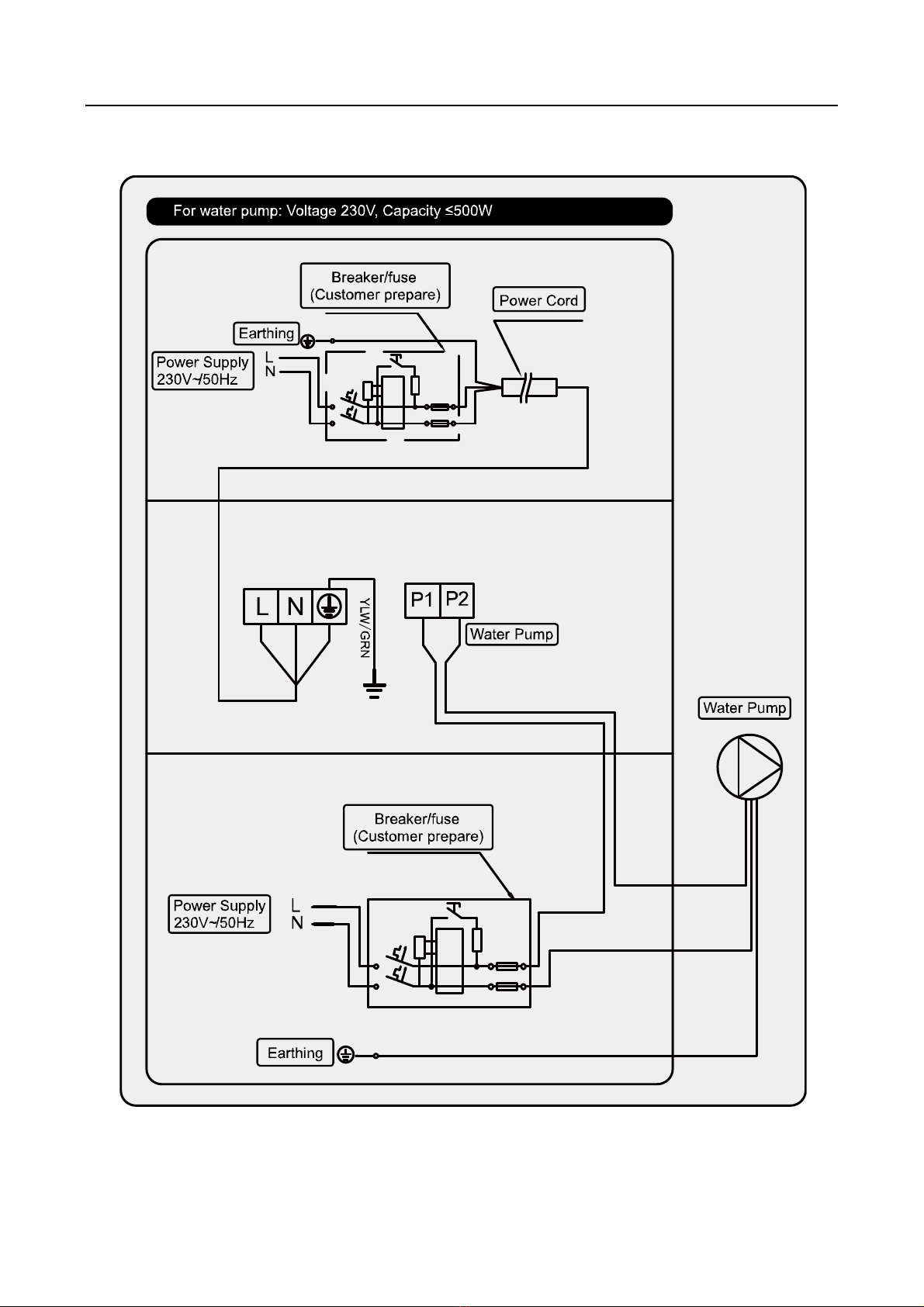

APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) ................................................. - 17 -
APPENDIX : HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) ................................................. - 18 -
APPENDIX 3: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) ................................................. - 19 -
5. Wifi setting ............................................................................................................................................. - 21 -
For users ………………………………………………………………
..
……………….
P.
3
-
P.
9
For installers and professionals
…………
……………………………
..
…
……
P.
10
-
P.
26

For users
- 1 -
Warning：
a. Please read the following tips before installation, use and maintenance.
b. Installation, removal and maintenance must be carried out by Professional in
accordance with the instructions.
c. Gas leakage test must be done before and after installation.
1. Use
a. It must be installed or removed by professionals, and it is forbidden to dismantle and
refit without permission.
b. Don’t put o stacles efore the air inlet and outlet of the heat pump.
2. Installation
a. This product must be kept away from any source of fire.
b. The installation can’t be in a closed environment or indoors, and must be kept well
ventilated.

For users
- 2 -
c. Vacuum completely before welding, field welding is not allowed, welding can only be
performed by professional personnel in professional maintenance center.
d. Installation must be stopped if any gas leakage, and the unit must be returned to
professional maintenance center.
3. Transportation & Storage
a. Sealing is not allowed during transportation
b. Transporting goods at a constant speed is needed to avoid sudden acceleration or
sudden braking, so as to reduce the collision of goods.
c. The unit must be far away from any source of fire.
d. Storage place must be bright, wide, open and good ventilation, ventilation equipment is
required.
4. Maintenance Notice
a. If maintenance or scrap is required, contact an authorized service center nearby
b. Qualification requirement
All operators who dispose gas must be qualified by valid certification which issued by
professional agency.
c. Please strictly comply with the requirement from manufacturer when maintenance or
filling gas. please refer to the technical service manual.

For users
- 3 -
1. General information:
1.1. Contents:
After unpacking, please check if you have all the following components.
NOTICE:
Please do not install wrong direction of the water union.
1. . Operating conditions and range:
ITEMS RANGE
Operating range Air temp -7℃～43℃
Temp. setting heating
18℃～40℃
cooling 1 ℃～30℃
The heat pump will have ideal performance in the operation range Air 15℃～5℃
STEP
1
STEP
2
STEP 3

For users
- 4 -
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under
different conditions
1.4. Kind reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat
pump will restart automatically.
1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat
other flammable or turbid liquid.
1.4. . Don’t lift the water union when moving the heat pump since the titanium heat
exchanger inside the heat pump will be damaged.
1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump.
MODE RECOMMENDATION ADVANTAGES
Smart
mode
As standard
Heating capacity: 0% to 100% capacity
Intelligent optimization
Fast heating
Silence mode
Use at night
Heating capacity: 0% to 80% capacity
Sound level: 3dB (A) lower than Smart mode.

For users
- 5 -
1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be
reduced or even stopped.

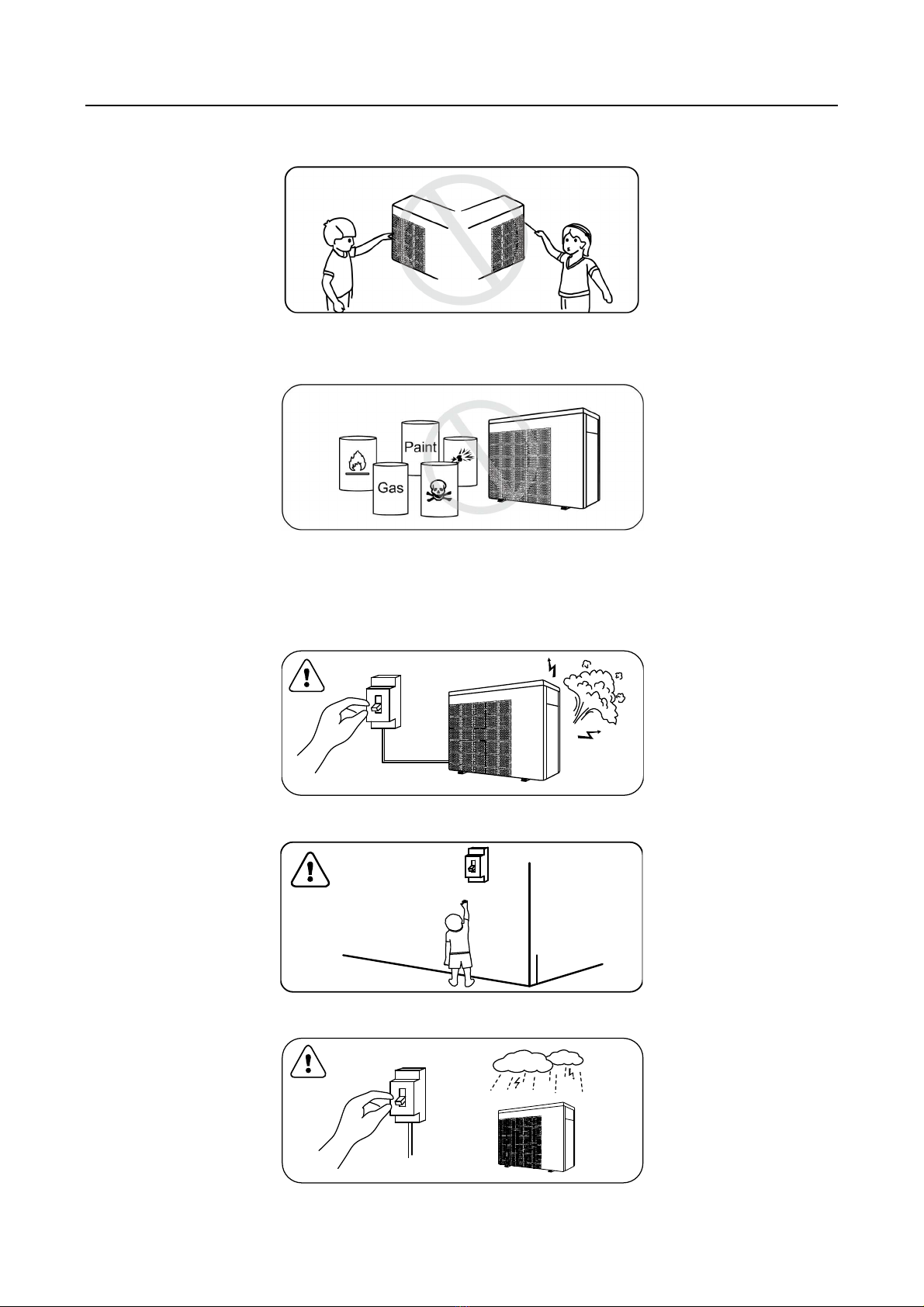

1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid
fire.
1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and
leakage of electricity, switch off the main power immediately and contact your local
dealer. Don’t try to repair the heat pump by yourselves.
1.4.7. The main power switch should be out of the reach of Children.
1.4.8. Please cut off the power in the lightning storm weather.

For users
- 6 -
1.4.9. Please note that following codes are not failure.
Codes
No water flow
Anti-Freezing Reminder
Out of the operating range
Insufficient water flow or pump
blocked
Power abnormal
. Operations
.1. Notice before using
① For longer service life, please ensure water pump is on before heat pump is on, and
water pump is off after heat pump is off.
② Ensure no water leakage on piping system, then unlock screen and power on heat
pump.
. . Operation instructions

For users
- 7 -
SYMBOL DESIGNATION FUNCTION
ON/OFF 1. Power On/Off
. Wifi setting
Lock/Unlock
Mode Selection
1. Press it for 3 seconds to unlock/lock screen
. After screen is unlocked, press it to select mode.
Auto (1 ~40℃) Heating (18~40℃) Cooling (1 ~30℃)
Speed Select Smart/Silence mode
Up / Down Adjust set temperature
Note:
① Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.
c. Press for 3 seconds to lock screen and it will be dark
② Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. Only after screen is unlocked, any other buttons can be functioned.
Auto
Heating
Cooling
Heating capacity percentage
Wifi connection
Water inlet
Water outlet
Water inlet
temperature
Water outlet
temperature Smart/Silence
mode

For users
- 8 -
1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump.
.Adjust Set Temperature: When screen is unlocked, press or to display or adjust the set
temperature.
3. Mode Selection: Press to select mode.
a. Auto : adjustable temperature range 1 ~40℃
b. Heating : adjustable temperature range 18~40℃
c. Cooling : adjustable temperature range 1 ~30℃
4. Smart/Silence mode selection:
① Smart mode as default will be activated when heat pump is on, and screen shows .
② Press to enter Silence mode, and screen shows .
(Suggestion: select Smart mode for initial heating)
5. Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop
flashing.
b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds to start
compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for
more than 10 minutes.)
6. Temperature display conversion between ℃ and ℉:
Press " " and " " together for 5 seconds to switch
7. Wifi setting
Please kindly check the last page.
.3. Daily maintenance and winterizing
.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
 Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
 Check bolts, cables and connections regularly.
.3. . Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out
of the heat pump. When using the heat pump under ℃, make sure there is always
water flow.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine free es in
winter season, the titanium heat
exchanger may be damaged.

For users
- 9 -
3. Technical specification
Model
IPHCR15 IPHCR 0 IPHCR 6 IPHCR33 IPHCR40 IPHCR45 IPHCR55 IPHCR70 IPHCR70T IPHCR100T
Advised pool volume (m
3
) 15~30 0~40 5~45 30~55 35~65 40~75 50~95 65~1 0 65~1 0 90~160
Working air temp (℃) -7~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW)
6.5 8.5 10.5 13.0 15.0 17.5 0.5 7.5 7.3 35.8
C.O.P 14.7~6.0 14.8~7.4 15.0~7.4 15.4~7.3 15.5~6.7 15.8~6. 15.3~6.0 15.4~6.5 15.3~6.5 15.6~5.8
C.O.P at 50% speed 10.5 10.9 11.0 11.0 10.9 11.1 10.7 11. 11. 10.9
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
4.8 6.3 7.3 9.0 10.5 11.5 14.0 18.0 18.0 4.5
C.O.P 7.3~4.5 7.4~5.0 7.7~4.8 7.7~4.8 7.8~4.6 7.8~4.5 7.7~4.4 8.1~4.8 8.1~4.8 8.0~4.7
C.O.P at 50% speed 6.3 6.6 6.8 6.8 6.6 6.4 6.3 6.8 6.8 7.0
Performance Condition: Air 35°C, Water 28°C, Humidity 80%
Cooling capacity (kW) 3.0 4.0 4.6 5.6 6.8 7.8 10.0 1 . 1 . 16.5
Rated input power(kW) at
air 15°C 0.13~1.06
0.17~1. 0.19~1.5 0. 3~1.81 0. 7~ . 0.30~ .6 0.36~3.18 0.55~3.8 0.55~3.9 0.61~5.
Rated input current(A) at
air 15°C 0.56~4.60
0.74~5. 0.83~6.5 1.00~7.87 1.17~9.6 1.3~11.3 1.57~13.8 .4~16.5 0.79~5.6 0.88~7.4
Power supply 230V/1 Ph/50Hz 400V/3 Ph/50Hz
Advised water flux (m³/h) ~4 ~4 3~4 4~6 5~7 6.5~8.5 8~10 10~1 10~1 1 ~18
Sound pressure 1m dB(A) 37.8~47. 38.8~48. 38.6~49.9 4 .1~50.7 41.3~55.0 43.1~53.8 40.9~54. 43.5~54.9 43.5~54.9 4 .6~54.7
Sound pressure 10m dB(A) 17.8~ 7. 18.8~ 8. 18.6~ 9.9 .1~30.7 1.3~35.0 3.1~33.8 0.9~34. 3.5~34.9 3.5~34.9 .6~34.7
Water pipe in-out Spec
(mm) 50
Net Dimension LxWxH
(mm)
894×359
×
648
894×359
×
648
894×359
×
648
954×359
×
648
954×359
×
648
954×4 9
×
648
954×4 9
×
755
1084×4 9
×
948
1084×4 9
×
948
1154×539
×
948
Net Weight (kg) 4 45 49 50 5 63 68 90 93 1 0
1. The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration
system running at least 15 hours a day.
. Related parameters are subject to adjustment periodically for technical improvement without further
notice. For details please refer to nameplate.

For installers and professionals
- 10 -
1. Transportation

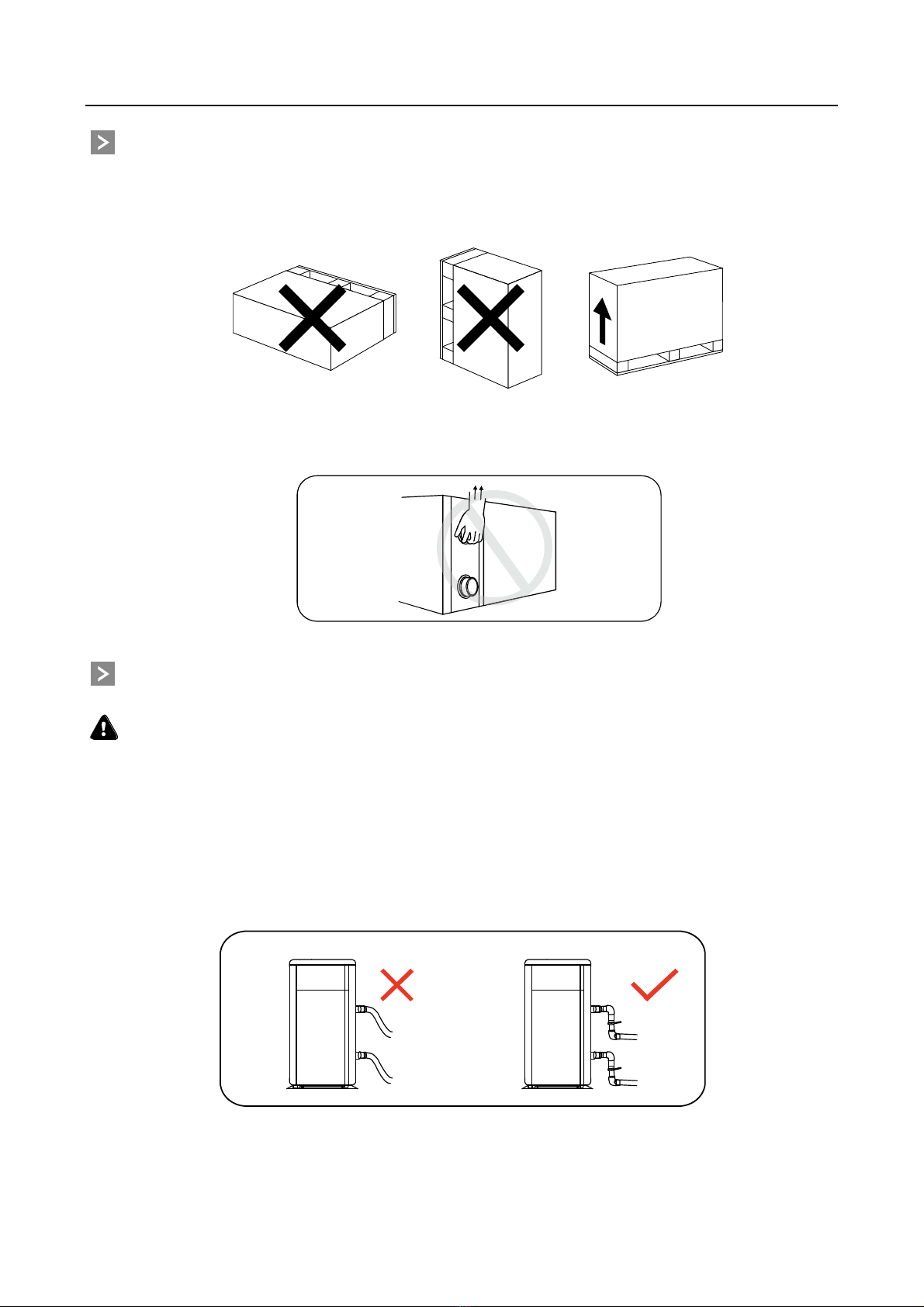

1.1. When storing or moving the heat pump, the heat pump should be at the upright
position.
1. . When moving the heat pump, do not lift the water union since the titanium heat
exchanger inside the heat pump will be damaged.
. Installation and maintenance
The heat pump must be installed by a professional team. The users are not qualified to
install by themselves, otherwise the heat pump might be damaged and risky for users’
safety.
.1. Notice before installation：
.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump
must be connected with hard pipes!
.1. ．In order to guarantee the heating efficiency, the water pipe length should be ≤10m
between the pool and the heat pump.

For installers and professionals
- 11 -
. . Installation instruction
. .1. Location and size
The heat pump should be installed in a place with good ventilation
* MINIMUM DISTANCE
Filter
Water processor
Water switch

For installers and professionals
- 12 -
※ Above data is subject to modification without notice.
. . . Heat pump installation.
 The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid; the bracket must be strong enough and anti-rust
treated;
 The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
 When the heat pump is running, there will be condensation water discharged from the
bottom, please pay attention to it. Please insert the drainage tube (accessory) into the
hole and clip it well, then connect a pipe to drain off the condensation water.
. .3. Wiring & protecting devices and cable specification
 Connect to appropriate power supply, the voltage should comply with the rated voltage
of the products.
 Well earth the heat pump.
 Wiring must be connected by a professional technician according to the circuit diagram.
 Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
 The layout of power cable and signal cable should be orderly and not affecting each
other.
UNIT=MM A B C D E F G H
MODEL
IPHCR15 334 590 318 359 894 50 74 648
IPHCR20 334 590 318 359 894 50 74 648
IPHCR26 334 590 318 359 894 90 74 648
IPHCR33 334 590 318 359 954 80 74 648
IPHCR40 334 590 318 359 954 340 74 648
IPHCR45 404 590 388 4 9 954 390 74 648
IPHCR55 404 590 388 4 9 954 460 74 755
IPHCR70 404 7 0 388 4 9 1084 6 0 74 948
IPHCR70T 404 7 0 388 4 9 1084 6 0 74 948
IPHCR100T 514 790 498 539 1154 650 74 948

For installers and professionals
- 13 -
1. Connecting your power wire
Note: For IPHCR15-33 model, please open the back panel for power connection. The operation is the
same as above.
. Wiring diagram
①
Please use cross screwdriver to take off
the 2 screws at the bottom of the right side
panel. Take off the lower half of the panel.
② Unscrew the 3 screws on the cover of
the electrical box.
③ Connect the terminals according to the
electrical diagram.
A. For power supply: 230V 50Hz
Distribution Box(Customer prepare)
Power Cord Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50H
Breaker
Distribution Box(Customer prepare)
Power Cord Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50H
Breaker
B. For power supply: 400V 50Hz
Earthing
Earthing
Fuse
Fuse

For installers and professionals
- 14 -
NOTE:
Must be hard wired, no plug allowed
 For your safe use in winter, it’s strongly recommended to equip heating priority function.
 For the detailed wiring diagram, please refer to Appendix 1.
3．Options for protecting devices and cable specification
MODEL
IPHCR
15
IPHCR
20
IPHCR
26
IPHCR
33
IPHCR
40
IPHCR
45
IPHCR
55
IPHCR
70
IPHCR
70T
IPHCR
100T
Breaker
Rated Current
A 9.0 10.5 1 .0 14.5 16.5 18.0 1.0 4.0 9.0 1 .0
Rated
Residual
Action Current
mA 30 30 30 30 30 30 30 30 30 30
Fuse A 9.0 10.5 1 .0 14.5 16.5 18.0 1.0 4.0 9.0 1 .0
Power Cord（mm
2
） 3×1.5 3× .5 3× .5 3× .5 3× .5 3×4 3×4 3×6 5× .5 5× .5
Signal ca le（mm
2
） 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5
NOTE: The above data is adapted to power cord ≤ 10m .If power cord is ＞10m, wire diameter must be
increased. The signal cable can be extended to 50m at most.
.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
.3.1．Inspection before use
 Check installation of the whole heat pump and the pipe connections according to the
pipe connecting drawing;
 Check the electric wiring according to the electrical wiring diagram and earthing
connection;
 Make sure that the main power is well connected;
 Check if there is any obstacle in front of the air inlet and outlet of the heat pump
.3. ．Trial
 The user is advised to start the water pump before the heat pump, and turn off the heat
pump before the water pump for long life circle.
 The user should start the water pump, and check for any leakage of water; Power on
and press the ON/OFF button of the heat pump, and set desired temperature in the
thermostat.
 In order to protect the heat pump, the heat pump is equipped with start delay
function. When starting the heat pump, the fan will start to run in 3 minutes, in another
30 seconds, the compressor will start to run.
 After pool heat pump starts up, check for any abnormal noise from the heat pump.
 Check the temperature setting

For installers and professionals
- 15 -
.4. Maintenance and winterizing
.4.1 Maintenance
The maintenance should e carried out once per year y qualified professional
technician.
 Cut off power supply of the
heat pump before cleaning,
examination and repairing .
Do not touch the electronic
components until the LED
indication lights on PCB turn off.
 Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
 Check bolts, cables and connections regularly.
.4. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of
the heat pump. When using the heat pump under ℃, make sure there is always water
flow.
3 . Trouble shooting for common faults
FAILURE REASON SOLUTION
Heat pump doesn’t run
No power Wait until the power recovers
Power switch is off Switch on the power
Fuse burned Check and change the fuse
The breaker is off Check and turn on the breaker
Fan running ut with
insufficient heating
evaporator blocked Remove the obstacles
Air outlet blocked Remove the obstacles
3 minutes start delay Wait patiently
Display normal, ut no
heating
Set temp. too low Set proper heating temp.
3 minutes start delay Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model number.
Don’t try to repair it yourself.
ATTENTION！Please don’t try to repair the heat pump y yourself to avoid any risk.
Important:
Unscrew
the water union of inlet pipe
to let the water flow out.
When the water in machine free es in
winter season, the titanium heat
exchanger may be damaged.

For installers and professionals
- 16 -
4. Failure code
NO. DISPLAY NOT FAILURE DESCRIPTION
1 E3 No water protection
E5 Power supply excesses operation range
3 E6 Excessive temp difference between inlet and outlet water(Insufficient water flow
protection)
4 E Ambient temperature too high or too low protection
5 Ed Anti-freezing reminder
NO. DISPLAY FAILURE DESCRIPTION
1 E1 High pressure protection
E2 Low pressure protection
3 E4 Phases lack protection (three phase model only)
4 E7 Water outlet temp too high or too low protection
5 E8 High exhaust temp protection
6 EA Evaporator overheat protection (only at cooling mode)
7 P0 Controller communication failure
8 P1 Water inlet temp sensor failure
9 P2 Water outlet temp sensor failure
10 P3 Gas exhaust temp sensor failure
11 P4 Evaporator coil pipe temp sensor failure
1 P5 Gas return temp sensor failure
13 P6 Cooling coil pipe temp sensor failure
14 P7 Ambient temp sensor failure
15 P8 Cooling plate sensor failure
16 P9 Current sensor failure
17 PA Restart memory failure
18 F1 Compressor drive module failure
19 F2 PFC module failure
0 F3 Compressor start failure
1 F4 Compressor running failure
F5 Inverter board over current protection
3 F6 Inverter board overheat protection
4 F7 Current protection
5 F8 Cooling plate overheat protection
6 F9 Fan motor failure
7 F Capacitor no charging protection
8 FA PFC module over current protection

For installers and professionals
- 17 -
APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL)
