Fairland IPHC150T User manual

Thank you for choosing Fairland Full-inverter heat pump.
This manual provides you necessary information for optimal
use and maintenance, please read it carefully and keep it for
subsequent use.
INSTALLATION AND
USER MANUAL

SUMMARY
1. GENERAL INFORMATION 1
1.1. Contents 1
1.2. Operating conditions and range 1
1.3. Advantages of different modes 2
1.4. Kind reminder 2
2. OPERATIONS 5
2.1. Notice before using 5
2.2. Operation instructions 6
2.3. Daily maintenance and winterizing 8
3. TECHNICAL SPECIFICATION 9
1. TRANSPORTATION 11
2. INSTALLATION AND MAINTENANCE 12
2.1. Notice before installation：12
2.2. Installation instruction 12
2.3. Trial after installation 18
2.4. Maintenance and winterizing 19
3. TROUBLE SHOOTING FOR COMMON FAULTS 20
For users ………………………………………………………………………………. P.1-P.10
For installers and professionals ………………………………………………… P.11-P.20

1
FOR USER
1. GENERAL INFORMATION
1.1. Contents:

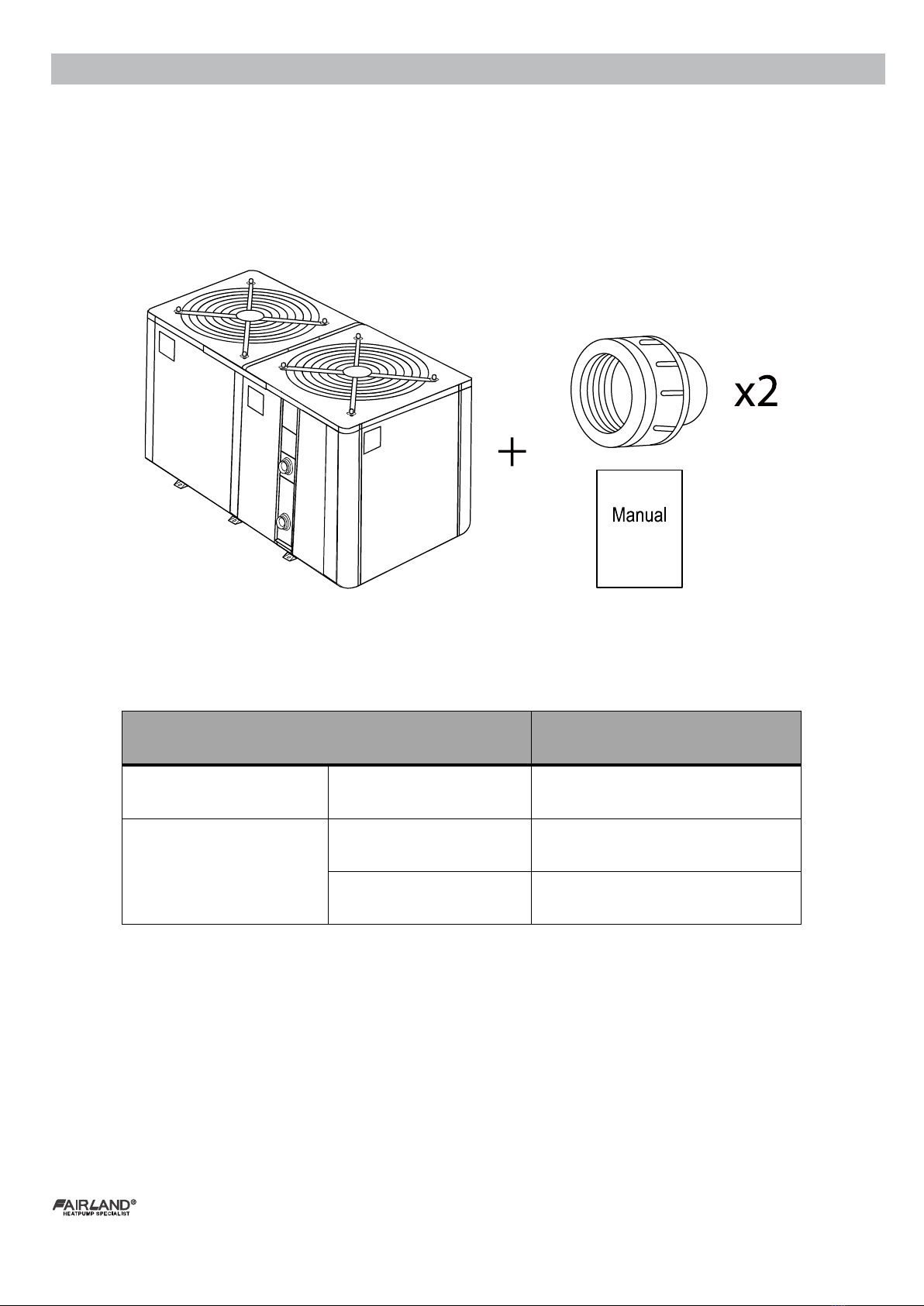

After unpacking, please check if you have all the following components.
1.2. Operating conditions and range:
ITEMS
RANGE
Operating range
Air temp
-7℃～43℃
Temp. setting
heating
18℃～35℃
cooling
12℃～30℃
The heat pump will have ideal performance in the operation range Air 15℃～25℃.

2
FOR USER
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under different conditions.
1.4. Kind reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat pump
will restart automatically.
1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other
flammable or turbid liquid.
1.4.2. Don’t lift the water union when moving the heat pump since the titanium heat exchanger
inside the heat pump will be damaged.
MODE
RECOMMENDATION
ADVANTAGES
As standard
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Use at night
Heating capacity: 20% to 80% capacity

3
FOR USER

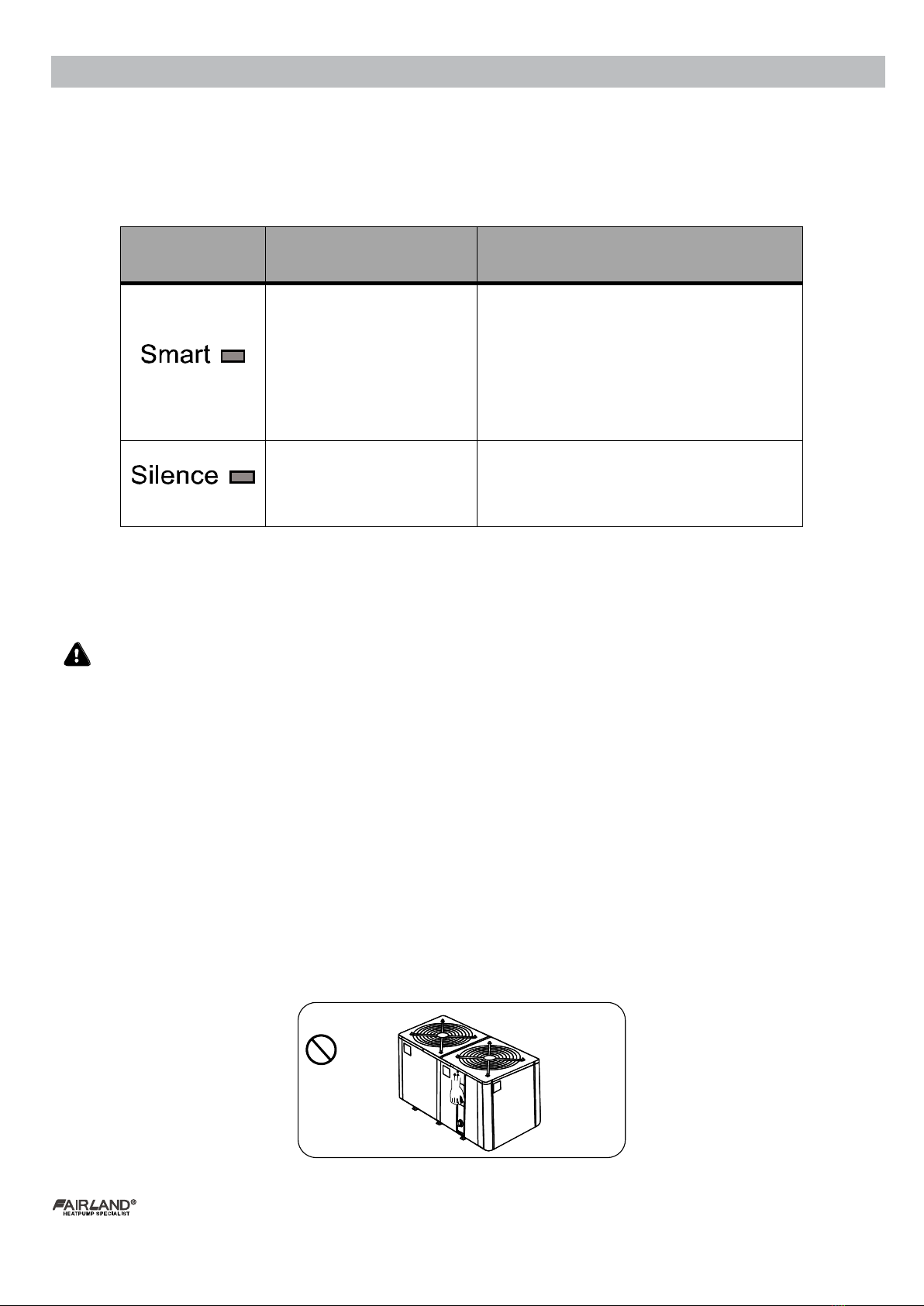

1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump.
1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or
even stopped.
1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire.
1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and
leakage of electricity, switch off the main power immediately and contact your
local dealer. Don’t try to repair the heat pump by yourselves.

4
FOR USER

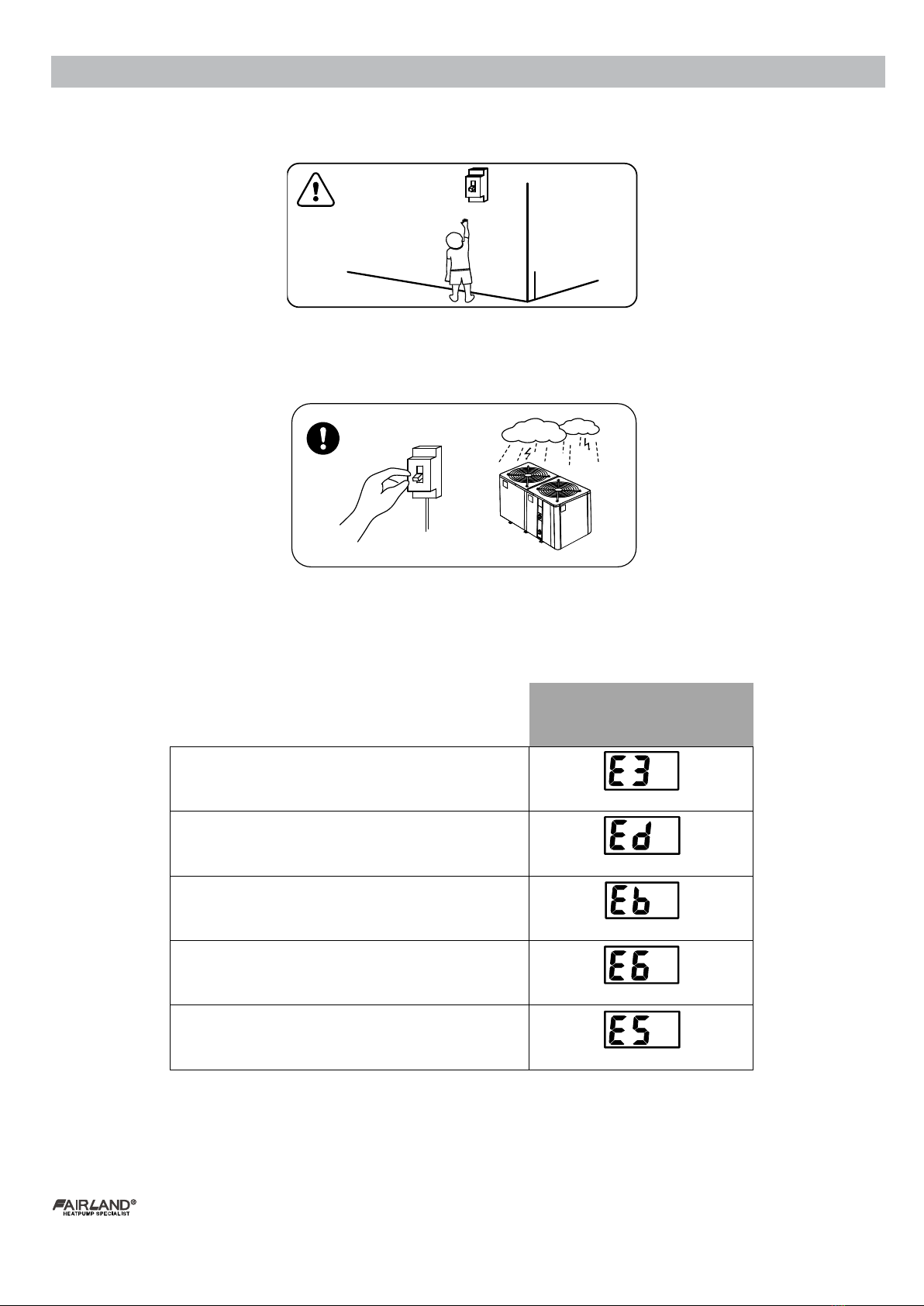

1.4.7. The main power switch should be out of the reach of Children.
1.4.8. Please cut off the power in the lightning storm weather.
1.4.9. Please note that following codes are not failure.
CODES
No water flow
Anti-Freezing Reminder
Out of the operating range
Insufficient water flow or pump blocked
Power abnormal

5
FOR USER
2. OPERATIONS
2.1. Notice before using
2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and
water pump is off after heat pump is off.
2.1.2. Ensure no water leakage on piping system, then unlock screen and press to power on
heat pump.
2.2. Operation instructions
SYMBOL
DESIGNATION
FUNCTION
ON/OFF
Power On/Off
Unlock / Mode
1. Press it for 3 seconds to unlock/lock screen
2. After screen is unlocked, press it to select mode.
Auto (12~35℃) Heating (18~35℃) Cooling (12~30℃)
Speed
Select Smart/Silence mode
Up / Down
Adjust set temperature

6
FOR USER
2.2.1. Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.
c. Press for 3 seconds to lock screen and it will be dark
2.2.2. Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. Only after screen is unlocked, any other buttons can be functioned.
Auto
Heating
Cooling
Compressor
Heating capacity percentage
Smart/Silence
mode
Water inlet
temperature
Water outlet
temperature

7
FOR USER
1. Power On: Press for 3 seconds to light up screen, then press to power on heat pump.
2. Adjust Set Temperature: When screen is unlocked, press or to display or adjust the
set temperature.
3. Mode Selection: Press to select mode.
a. Auto : adjustable temperature range 12~35℃
b. Heating : adjustable temperature range 18~35℃
c. Cooling : adjustable temperature range 12~30℃
4. Smart/Silence mode selection:
①Smart mode as default will be activated when heat pump is on, and screen shows .
②Press to enter Silence mode, and screen shows .
(Suggestion: select Smart mode for initial heating)
5. Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will
stop flashing.
b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds
to start compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for more than 10
minutes.)

8
FOR USER
2.3. Daily maintenance and winterizing
2.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
Please clean the evaporator with household detergents or clean water, NEVER use gasoline,
thinners or any similar fuel.
Check bolts, cables and connections regularly.
2.3.2. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of the
heat pump. When using the heat pump under 2℃, make sure there is always water flow.
5
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

9
FOR USER
3.TECHNICAL SPECIFICATION
Model
IPHC150T
IPHC300T
Advised pool volume (m3)
130~260
260~520
Operating air temperature (℃)
-7~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW)
60.0
110.0
COP at 50% capacity
10.1
10.0
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
40.0
81.0
COP at 50% capacity
6.8
6.8
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)
26.5
54.0
Compressor
DC inverter
Heat exchanger
Spiral titanium tube in PVC
Casing
Aluminum-alloy
Fan direction
Vertical
Power supply
400V/3 Ph/50Hz
Rated input power at air 15°C (kW)
2.25~8.89
4.69~17.6
Rated input current at air 15°C (A)
3.25~12.8
6.77~25.4
Max input current (A)
20.0
40.0
Circuit breaker (A)
25.0
48.0
Advised water flux (m³/h)
20~25
40~50
Water pipe in-out size (mm)
75
110

10
FOR USER
Net dimension LxWxH (mm)
1000x1110x1260
2100×1090×1280
Net weight (kg)
165/185
330/370
 The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration system
running at least 15 hours per day.
 Related parameters are subject to adjustment periodically for technical improvement without further notice. For
details please refer to nameplate.

11
FOR INSTALLERS AND PROFESSIONALS
1. TRANSPORTATION

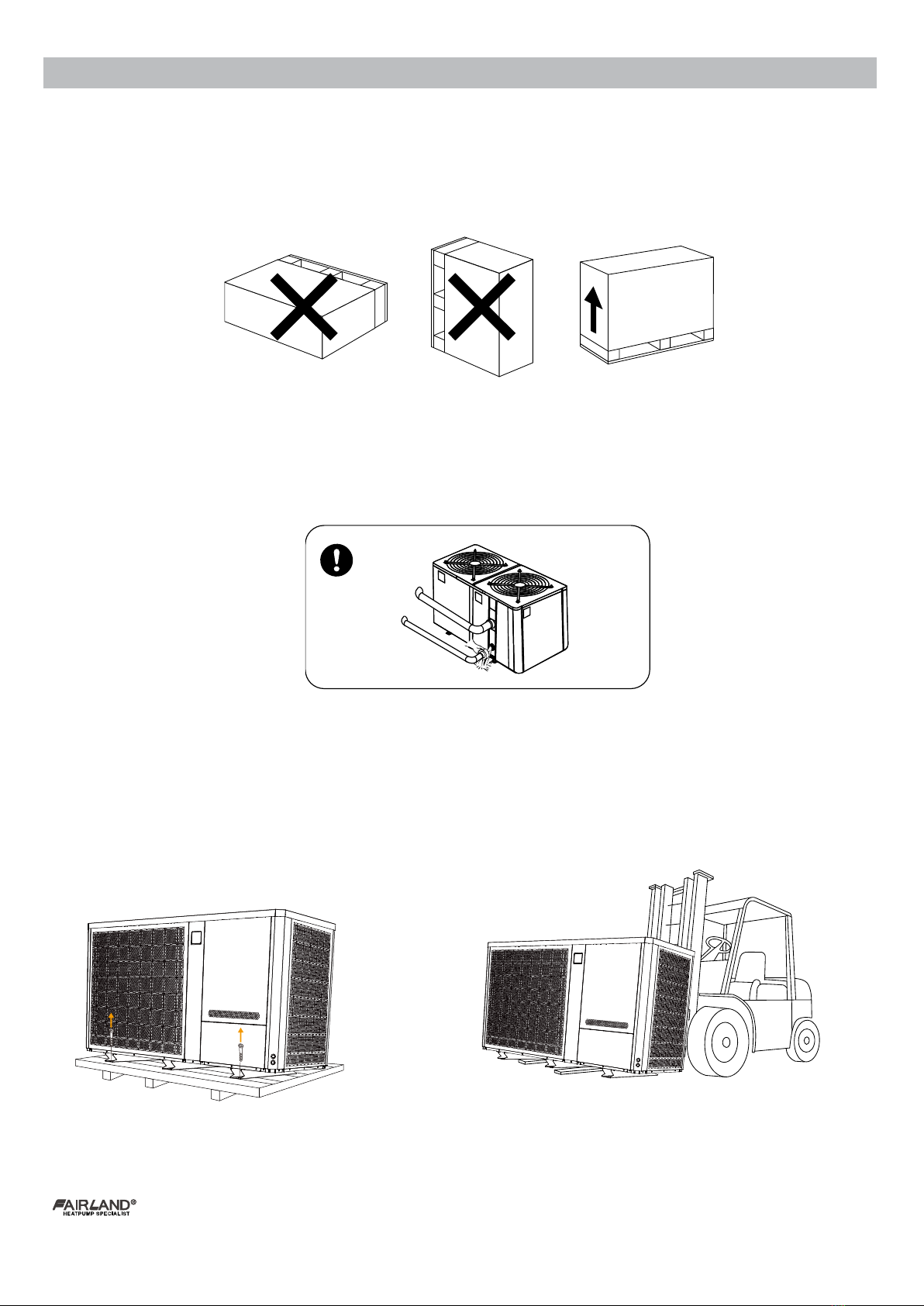

1.1. When storing or moving the heat pump, the heat pump should be at the upright
position.
1.2. When moving the heat pump, do not lift the water union since the titanium heat
exchanger inside the heat pump will be damaged.
1.3. Before moving the Commercial inverter, remove the screws which fixed on the
pallet and remove the pallet.
1. Remove the screws which fixed on the pallet
2. Deliver with fork lift

12
FOR INSTALLERS AND PROFESSIONALS
2. INSTALLATION AND MAINTENANCE
The heat pump must be installed by a professional team. The users are not qualified to install by
themselves, otherwise the heat pump might be damaged and risky for users’ safety.
2.1. Notice before installation：
2.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be
connected with hard pipes!
2.1.2．In order to guarantee the heating efficiency, the water pipe length should be ≤10m between
the pool and the heat pump.
2.2. Installation instruction
2.2.1. Location and size
The heat pump should be installed in a place with good ventilation
* MINIMUM DISTANCE
Filter
Water processor
Water switch

13

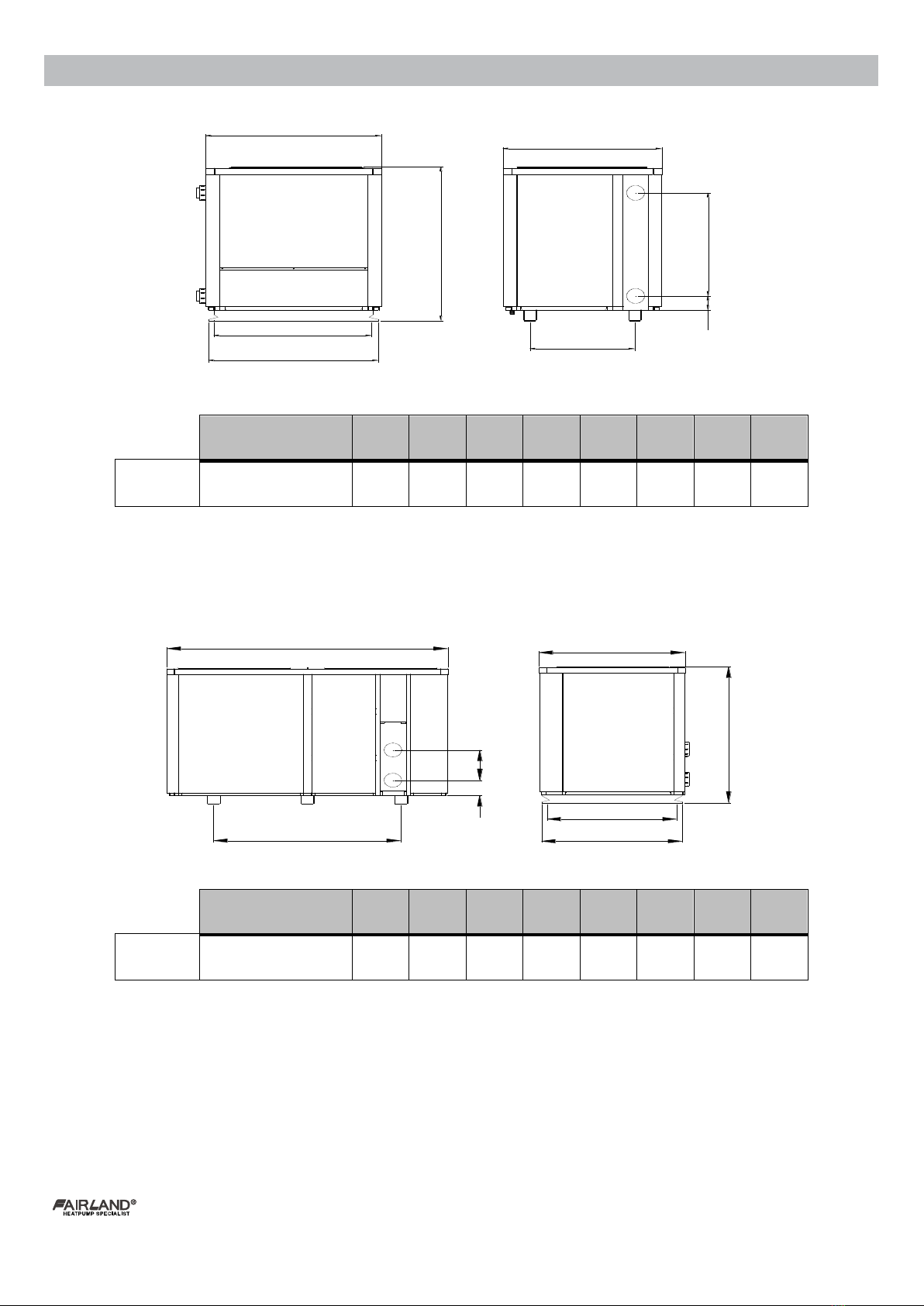

FOR INSTALLERS AND PROFESSIONALS
B
F
G
E
H
A
D
C
D
A
B
H
EC
F
G
※ Above data is subject to modification without notice.
UNIT=MM
A
B
C
D
E
F
G
H
Model
IPHC150T
1000
660
1110
1070
1000
780
105
1260
UNIT=MM
A
B
C
D
E
F
G
H
Model
IPHC300T
514
790
498
539
1154
650
74
948

14
FOR INSTALLERS AND PROFESSIONALS
2.2.2. Heat pump installation.
The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete
foundation must be solid; the bracket must be strong enough and anti-rust treated;
The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
When the heat pump is running, there will be condensation water discharged from the bottom,
please pay attention to it. Please insert the drainage tube(accessory) into the hole and clip it well,
then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
Connect to appropriate power supply, the voltage should comply with the rated voltage of the
products.
Well earth the heat pump.
Wiring must be connected by a professional technician according to the circuit diagram.
Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
The layout of power cable and signal cable should be orderly and not affecting each other.

15
FOR INSTALLERS AND PROFESSIONALS
1. How to connect to the terminal board of IPHC300T
Step 1. open the maintenance panel
Remove three screws outside
Open the panel
Remove two screws inside
Open the internal

16
FOR INSTALLERS AND PROFESSIONALS

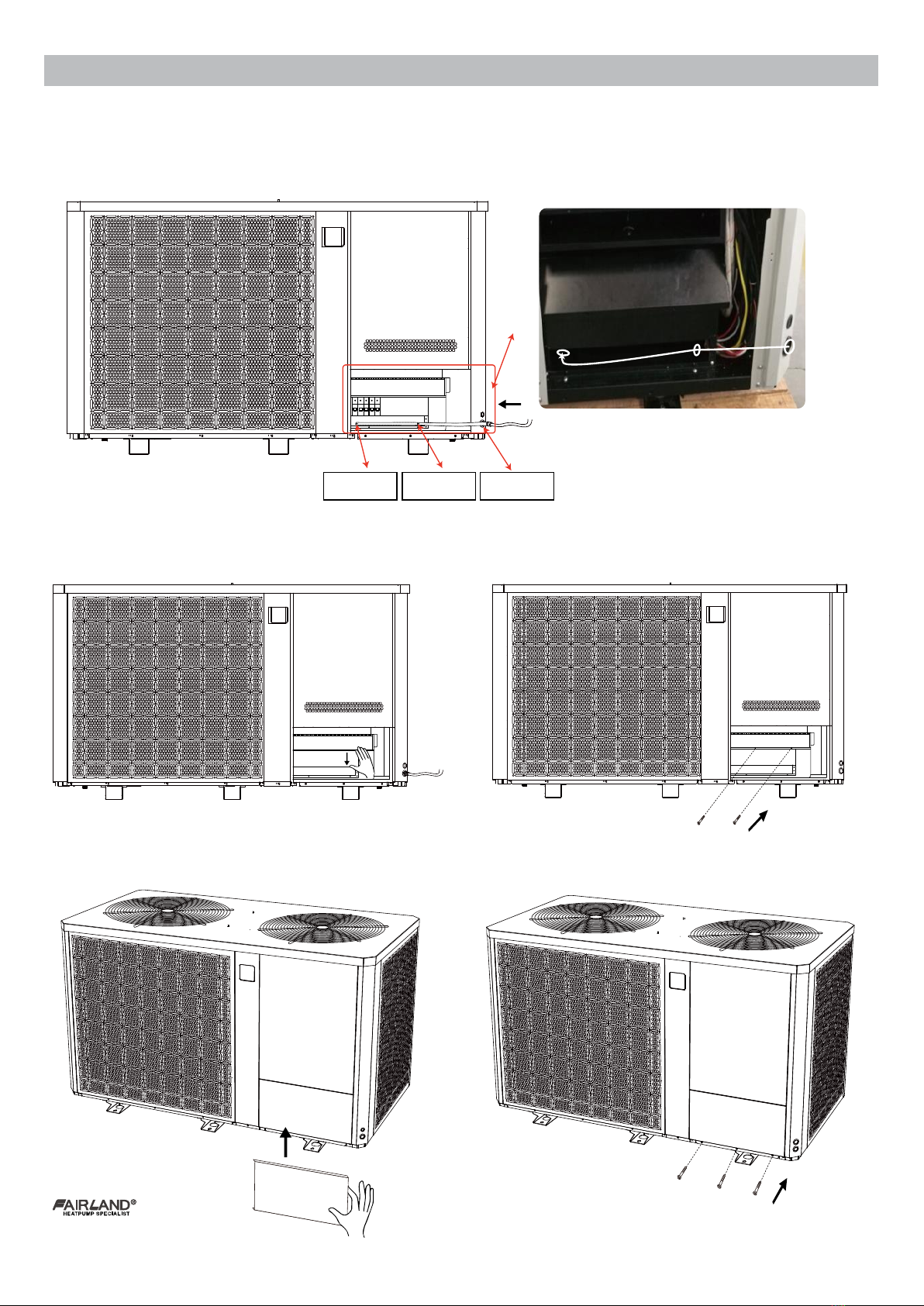

Step 2. Power cord must be passed through below 3 holes
Connect the wire through three holes
Restore the internal panel
Fix the internal panel by two screws
Restore the panel
Fix the panel by three screws
Hole1
Hole2
Hole3

17
FOR INSTALLERS AND PROFESSIONALS

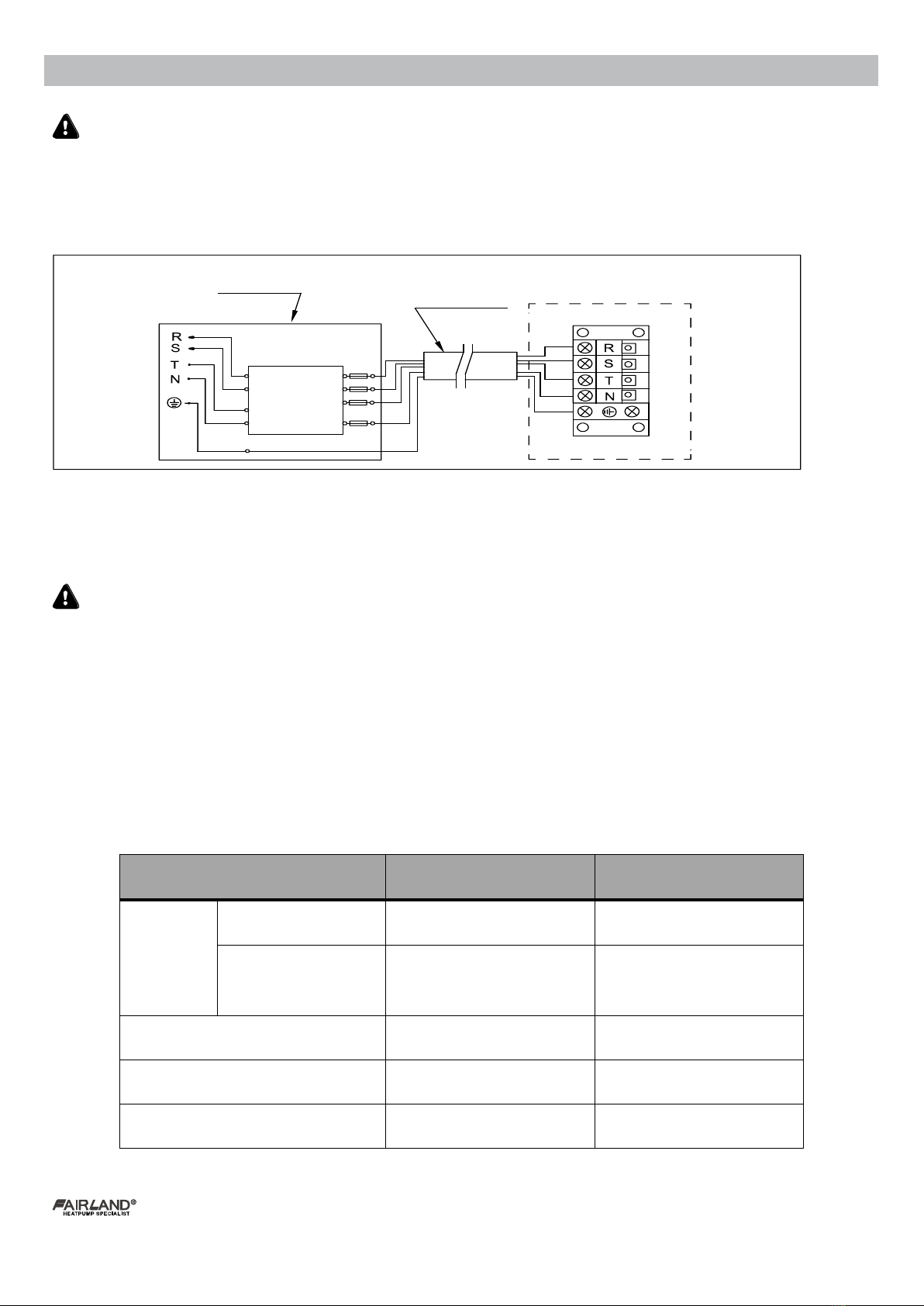

2. Wiring diagram
NOTE:
Must be hard wired, no plug allowed
For your safe use in winter, it’s strongly recommended to equip heating priority function.
For the detailed wiring diagram, please refer to Appendix 1.
3. Options for protecting devices and cable specification
MODEL
IPHC150T
IPHC300T
Breaker
Rated Current A
25
48
Rated Residual
Action Current mA
30
30
Fuse A
25
48
Power Cord（mm2）
5×6
5×16
Signal cable（mm2）
3×0.5
3×0.5
Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
For power supply: 400V 50Hz
Earthing
Fuse

18
FOR INSTALLERS AND PROFESSIONALS
NOTE: The above data is adapted to power cord ≤ 10m. If power cord is ＞10m, wire diameter must
be increased. The signal cable can be extended to 50m at most.
2.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
2.3.1．Inspection before use
Check installation of the whole heat pump and the pipe connections according to the pipe
connecting drawing;
Check the electric wiring according to the electrical wiring diagram and earthing connection;
Make sure that the main power is well connected;
Check if there is any obstacle in front of the air inlet and outlet of the heat pump
2.3.2．Trial
The user is advised to start the water pump before the heat pump, and turn off the heat pump
before the water pump for long life circle.
The user should start the water pump, and check for any leakage of water; Power on and press
the ON/OFF button of the heat pump, and set desired temperature in the thermostat.
In order to protect the heat pump, the heat pump is equipped with start delay function. When
starting the heat pump, the fan will start to run in 3 minutes, in another 30 seconds, the
compressor will start to run.
After pool heat pump starts up, check for any abnormal noise from the heat pump.
Check the temperature setting.
