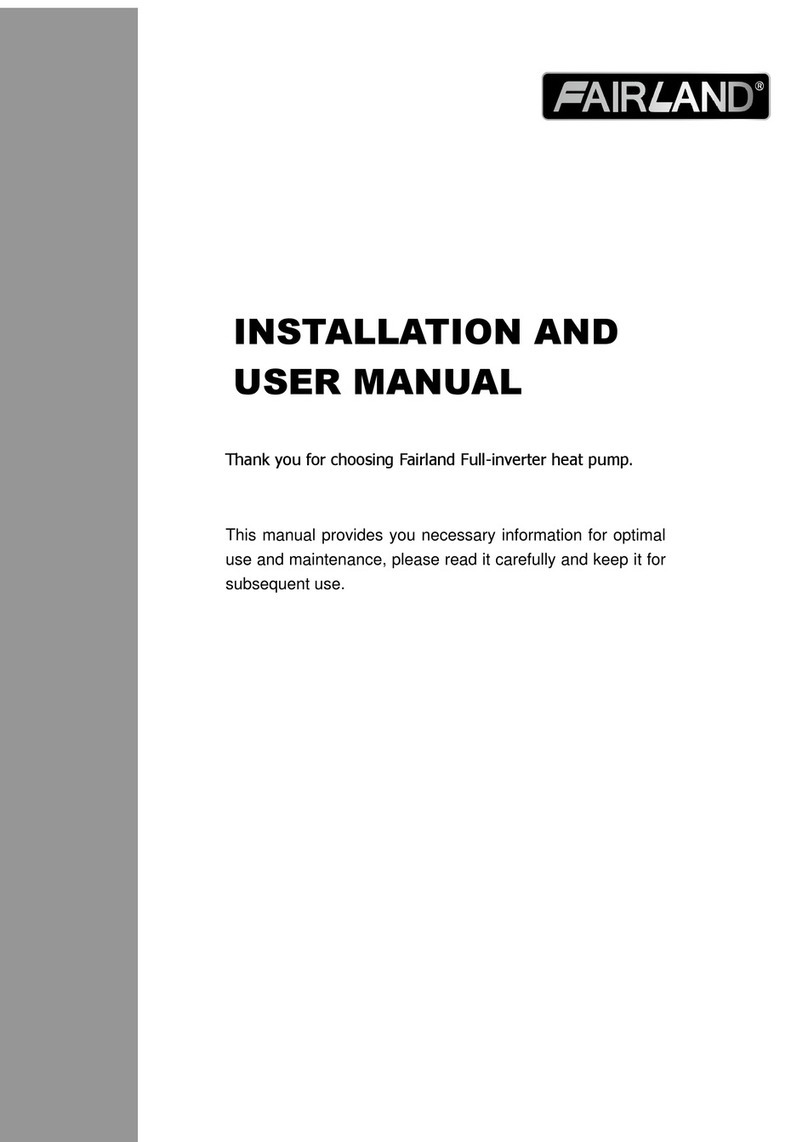

Fairland IPHC150T Instruction Manual

1
Please read this user’s manual carefully to ensure proper use, installation and maintenance
Ithomis Str. 6, Chalandri, GR-15231, Athens - Greece
Τel: [phone] / [phone]/ [phone]
Fax: [phone]
Website: www.ecofer.com.gr
INSTALLATION & USER MANUAL
COMMERCIAL INVERTER
POOL HEAT PUMPS

Installation and user manual
2

Installation and user manual
3
CONTENTS
1. GENERAL INFORMATION 4
1.1. Contents: 4
1.2. Operating conditions and range: 4
1.3. Advantages of different modes: 4
2. OPERATIONS 7
2.1. Notice before using 7
2.2. Operation instructions 8
2.3. Daily maintenance and winterizing 10
3. TECHNICAL SPECIFICATION 11
4. TRANSPORTATION 12
5. INSTALLATION AND MAINTENANCE 12
5.1. Notice before installation：13
5.2. Installation instruction 13
5.3. Trial after installation 18
5.4. Maintenance and winterizing 18
6. TROUBLE SHOOTING FOR COMMON FAULTS 19
7. FAILURE CODE 19
APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) 21
8. Wifi setting 23

Installation and user manual
4
1. GENERAL INFORMATION
1.1. Contents:
After unpacking, please check if you have all the following components.
1.2. Operating conditions and range:
ITEMS
RANGE
Operating range
Air temp
-10℃～43℃
Temp. setting
heating
18℃～40℃
The heat pump will have ideal performance in the operation range Air 15℃～25℃.
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under different
conditions.
MODE
RECOMMENDATION
ADVANTAGES
Smart mode
As standard
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Silence mode
Use at night
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Smart mode.

Installation and user manual
5
Kind reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat pump will
restart automatically.
1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or
turbid liquid.
2. Don’t lift the water union when moving the heat pump since the titanium heat exchanger inside the heat
pump will be damaged.
3. Don’t put obstacles before the air inlet and outlet of the heat pump.
4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or even
stopped.

Installation and user manual
6
5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire.
6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity,
switch off the main power immediately and contact your local dealer. Don’t try to repair the heat
pump by yourselves.
7. The main power switch should be out of the reach of Children.
8. Please cut off the power in the lightning storm weather.

Installation and user manual
7
9. Please note that following codes are not failure.
CODES
No water flow
Anti-Freezing Reminder
Out of the operating range
Insufficient water flow or pump blocked
Power abnormal
2. OPERATIONS
2.1. Notice before using
2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and water
pump is off after heat pump is off.
2.1.2. Ensure no water leakage on piping system, then unlock screen and press to power on heat
pump.

Installation and user manual
8
2.2. Operation instructions
SYMBOL
DESIGNATION
FUNCTION
ON/OFF
Power On/Off
Unlock
Press it for 3seconds to unlock/lock screen
Speed
Select Smart/Silence mode
Up / Down
Adjust set temperature
Note:
① Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.
c. Press for 3 seconds to lock screen and it will be dark
② Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. Only after screen is unlocked, any other buttons can be functioned.

Installation and user manual
9
Heating
Heating capacity percentage
Wi-Fi connection
Water inlet
Water outlet
1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump.
2.Adjust Set Temperature: When screen is unlocked, press or to display or adjust the set
temperature.
3.Smart/Silence mode selection:
① Smart mode as default will be activated when heat pump is on, and screen shows .
② Press to enter Silence mode, and screen shows .
(Suggestion: select Smart mode for initial heating.)
Water inlet
temperature
Water outlet
temperature
Smart/Silence
mode

Installation and user manual
10
4.Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop
flashing.
b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds to start
compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for
more than 10 minutes.)
5.Wifi setting
Please kindly check the last page.
2.3. Daily maintenance and winterizing
2.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
➢Please clean the evaporator with household detergents or clean water, NEVER use gasoline, thinners or
any similar fuel.
➢Check bolts, cables and connections regularly.
2.3.2. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of the heat
pump. When using the heat pump under 2℃, make sure there is always water flow.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

Installation and user manual
11
3. TECHNICAL SPECIFICATION
Model
IPHC150T
IPHC300T
Advised pool volume (m3)
130~260
260~520
Operating air temperature (℃)
-10~43
Performance Condition: Air 28°C, Water 26°C, Humidity 80%
Heating capacity (kW)
63,6
116,6
COP at 50% capacity
10,7
10,6
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
40,0
81,0
COP at 50% capacity
6,8
6,8
Sound pressure at 1m dB(A)
54.0~62.0
56.0~65.0
Sound pressure of 50% capacity at 1m
dB(A)
56,0
58,0
Sound pressure at 10m dB(A)
34.0~42.0
36.0~45.0
Compressor
DC-inverter
Heat exchanger
Spiral titanium tube in PVC
Casing
Aluminum-alloy
Fan direction
Vertical
Power supply
400V/3 Ph/50Hz
Rated input power at air 15°C (kW)
2.20~8.03
4.69~17.6
Rated input current at air 15°C (A)
3.17~11.59
6.77~25.4
Advised water flux (m³/h)
20~25
40~50
Water pipe in-out size (mm)
75
110
Net dimension LxWxH (mm)
1000x1110x1260
2100×1090×1280
Net weight (kg)
212
459
Gas （g）
5500
11000
GWP
2088
CO2 equivalent (tonnes)
11,48
22,97
The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration system running at
least 15 hours a day.
Related parameters are subject to adjustment periodically for technical improvement without further notice. For details
please refer to nameplate.

Installation and user manual
12
4. TRANSPORTATION
4.1. When storing or moving the heat pump, the heat pump should be at the upright position.
4.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the
heat pump will be damaged.
4.3 Before moving the Commercial inverter, remove the screws which fixed on the pallet and remove the
pallet.
1. Remove the screws which fixed on the pallet
2. Deliver with fork lift
5. INSTALLATION AND MAINTENANCE
The heat pump must be installed by a professional team. The users are not qualified to install by
themselves, otherwise the heat pump might be damaged and risky for users’ safety.

Installation and user manual
13
5.1. Notice before installation：
5.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be
connected with hard pipes!
5.1.2. In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool
and the heat pump.
5.2. Installation instruction
5.2.1. Location and size
The heat pump should be installed in a place with good ventilation
* MINIMUM DISTANCE
Filter
Water processor
Water switch

Installation and user manual
14
B
F
G
E
H
A
C
E
B
F
G
D
A
H
C
※ Above data is subject to modification without notice.
5.2.2. Heat pump installation.
➢The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation
must be solid; the bracket must be strong enough and anti-rust treated;
➢The heat pump needs a water pump (Supplied by the user). The recommended pump specification-flux:
refer to Technical Parameter, Max. lift ≥10m
UNIT=MM
A
B
C
D
E
F
G
H
Model
IPH150T
1000
660
1110
1070
1000
780
105
1260
UNIT=MM
A
B
C
D
E
F
G
H
Model
IPH300T
1000
1630
1090
1050
2100
515
140
1280

Installation and user manual
15
5.2.3. Wiring & protecting devices and cable specification
➢Connect to appropriate power supply, the voltage should comply with the rated voltage of the products.
➢Well earth the heat pump.
➢Wiring must be connected by a professional technician according to the circuit diagram.
➢Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
➢The layout of power cable and signal cable should be orderly and not affecting each other.
1. Connecting the terminal board
Step 1. open the maintenance panel
Remove three screws outside
Open the panel
Remove two screws inside
Open the internal

Installation and user manual
16
Step 2. Power cord must be passed through below 3 holes
Connect the wire through three holes
Restore the internal panel
Fix the internal panel by two screws
Restore the panel
Fix the panel by three screws
Hole1
Hole2
Hole3

Installation and user manual
17
2. Wiring diagram
NOTE:
Must be hard wired, no plug allowed
For your safe use in winter, it’s strongly recommended to equip heating priority function.
For the detailed wiring diagram, please refer to Appendix 1.
3. Options for protecting devices and cable specification
MODEL
IPH150T
IPH300T
Breaker
Rated Current A
23
45
Rated Residual
Action Current mA
30
30
Fuse A
23
45
Power Cord（mm2）
5×6
5×16
Signal cable（mm2）
3×0.5
3×0.5
NOTE: The above data is adapted to power cord ≤ 10m. If power cord is ＞ 10m, wire diameter must be increased. The
signal cable can be extended to 50m at most.
For power supply: 400V 50Hz
Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
Earthing
Fuse

Installation and user manual
18
5.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
5.3.1．Inspection before use
➢Check installation of the whole heat pump and the pipe connections according to the pipe connecting
drawing;
➢Check the electric wiring according to the electrical wiring diagram and earthing connection;
➢Make sure that the main power is well connected;
➢Check if there is any obstacle in front of the air inlet and outlet of the heat pump
5.3.2．Trial
➢The user is advised to start the water pump before the heat pump, and turn off the heat pump before
the water pump for long life circle.
➢The user should start the water pump, and check for any leakage of water; Power on and press the
ON/OFF button of the heat pump, and set desired temperature in the thermostat.
➢In order to protect the heat pump, the heat pump is equipped with start delay function. When starting
the heat pump, the fan will start to run in 3 minutes, in another 30 seconds, the compressor will start to
run.
➢After pool heat pump starts up, check for any abnormal noise from the heat pump.
➢Check the temperature setting.
5.4. Maintenance and winterizing
5.4.1 Maintenance
The maintenance should be carried out once per year by qualified professional technician.
➢Cut off power supply of the
heat pump before cleaning,
examination and repairing .
Do not touch the electronic
components until the LED
indication lights on PCB turn off.
➢Please clean the evaporator with household detergents or clean water, NEVER use gasoline, thinners or
any similar fuel.
➢Check bolts, cables and connections regularly.
5.4.2 Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of the heat pump.
When using the heat pump under 2℃, make sure there is always water flow.

Installation and user manual
19
6. TROUBLE SHOOTING FOR COMMON FAULTS
FAILURE
REASON
SOLUTION
Heat pump doesn’t run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but no
heating
Set temp. too low
Set proper heating temp.
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model number. Don’t
try to repair it yourself.
ATTENTION！Please don’t try to repair the heat pump by yourself to avoid any risk.
7. FAILURE CODE
NO.
DISPLAY
NOT FAILURE DESCRIPTION
1
E3
No water protection
2
E5
Power supply excesses operation range
3
E6
Excessive temp difference between inlet and outlet water(Insufficient water flow protection)
4
Eb
Ambient temperature too high or too low protection
5
Ed
Anti-freezing reminder
NO.
DISPLAY
FAILURE DESCRIPTION
1
E1
High pressure protection
2
E2
Low pressure protection
3
E4
3 phase sequence protection (three phase only)
4
E7
Water outlet temp too high or too low protection
5
E8
High exhaust temp protection
6
EA
Evaporator overheat protection (only at cooling mode)
7
EC
System communication failure
8
P0
Controller communication failure
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

Installation and user manual
20
9
P1
Water inlet temp sensor failure
10
P2
Water outlet temp sensor failure
11
P3
Gas exhaust temp sensor failure
12
P4
Evaporator coil pipe temp sensor failure
13
P5
Gas return temp sensor failure
14
P6
Cooling coil pipe temp sensor failure
15
P7
Ambient temp sensor failure
16
P8
Cooling plate sensor failure
17
P9
Current sensor failure
18
PA
Restart memory failure
19
F1
Compressor drive module failure
20
F2
PFC module failure
21
F3
Compressor start failure
22
F4
Compressor running failure
23
F5
Inverter board over current protection
24
F6
Inverter board overheat protection
25
F7
Current protection
26
F8
Cooling plate overheat protection
27
F9
Fan motor failure
28
Fb
Power filter plate No-power protection
29
FA
PFC module over current protection
30
FC
AC fan motor overcurrent protection
31
Fd
AC fan motor overheat protection
32
FE
AC fan motor phase protection
