fakro ZWP10 User manual

www.fakro.com
ZWP10 Z-Wave Controller
User Manual
14.04.24 NC851-EN
ENGLIS
All manuals and user guides at all-guides.com
all-guides.com

2
ZWP 1 0
Dear Sir/Madam! Thank you for purchasing product from FAKRO Company. We
do hope that it will meet your expectations. To provide appropriate functioning of the
product, please read this ser Manual.
Information about the product ...........................................................................................3
Packaging content..................................................................................................3
Technical data.........................................................................................................3
Product description.................................................................................................3
Control modes........................................................................................................4
General information about the Z-Wave system ................................................................5
General information................................................................................................5
Basic functions of the Z-Wave system....................................................................5
Sample scheme of the Z-Wave network.................................................................5
Preparing controller for programming ..............................................................................6
Controller programming – quick configuration ...............................................................7
Adding device to the controller and buttons of movement......................................7
Controller programming – basic functions ......................................................................8
Adding device to the controller – INCLUDE............................................................8
Adding device only to buttons of movement - ASSOCIATE...................................8
Adding another controller to the Z-Wave network - LEARN MODE.......................9
Removing device from the controller - EXCLUDE................................................1 0
Restoring the controller to factory settings - DEFAULT........................................1 0
Removing one device from buttons of movement - DELETE...............................11
Removing group of devices from given buttons of movement - DELETE.............11
Controller programming – additional functions .............................................................12
Adding remote device to the Z-Wave network - ASSIGN A ROUTE.....................1 2
Associating Z-Wave devices - ASSOCIATE DEVICE...........................................1 3
Copying group of devices - COPY GROUP..........................................................13

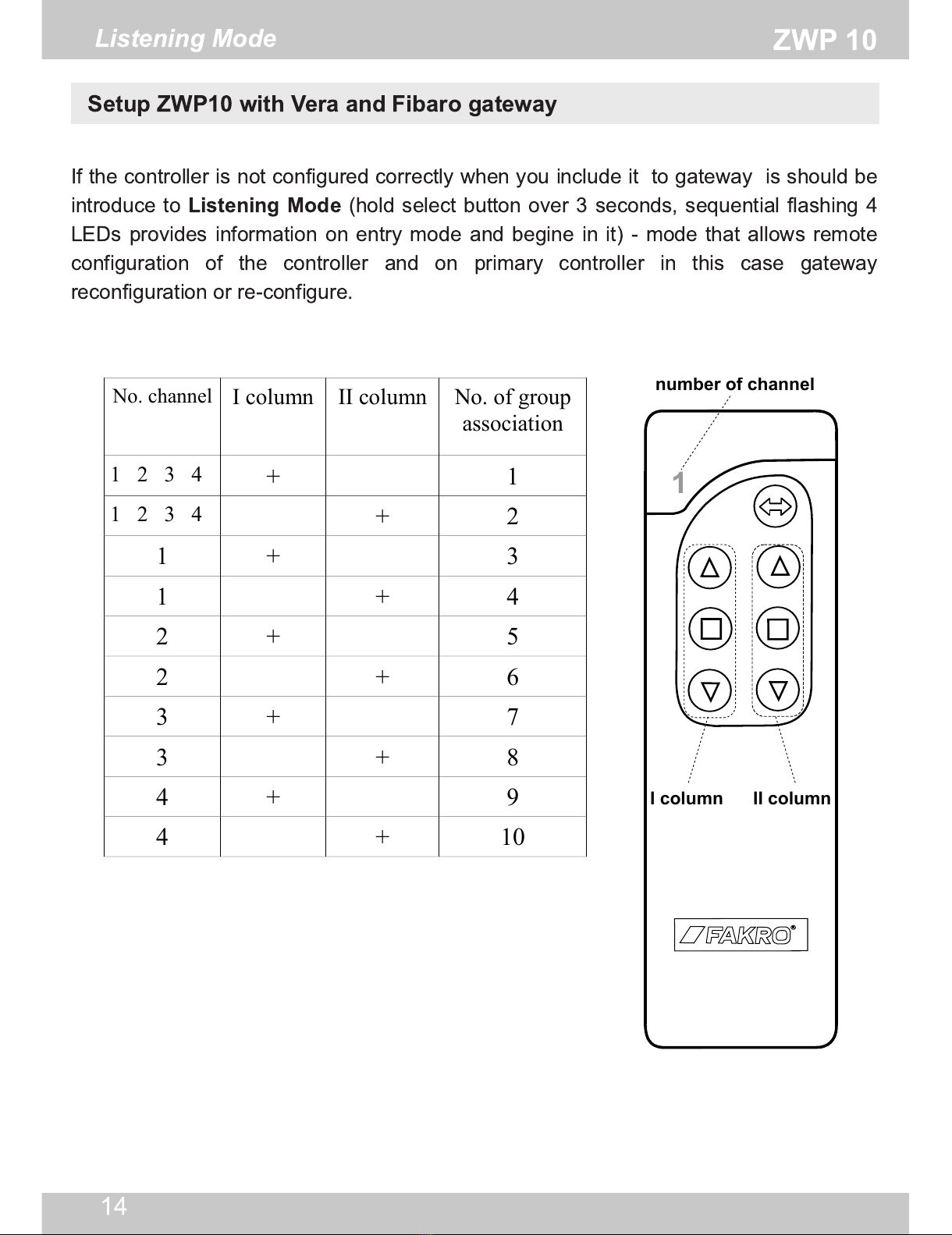

Listening Mode ..................................................................................................................14
Warranty .............................................................................................................................15
Contents
Contents
All manuals and user guides at all-guides.com

3
ZWP 1 0
2
1
3
2
3
www.fakro.c om
ZWP1 0
ITALIANO
adiocoman do Z-Wave
Istru zione d' uso
13.06. 03 NC851-IT
4
4
1
5
5
Remote control
Magnetic wall holder
User manual
Batteries 2 x AAA 1 ,5V
Mounting screws
3V DC, Battery 2xAAA 1 ,5 V
Operation temperature (+5°C) to (40°C)
Range of operation in the open space up to 40 [m]
Wireless Protocol
Operation frequency 868,4[Mhz] (EU); 921 ,42[M z] (AS/NZ);
908,4[M z] (US/Canada)
Power supply
Sizes (length/width/height) 1 57 / 38 / 1 9 [mm]
Packaging content
Product description
Technical Data
The ZWP1 0 controller enables radio control of FAKRO electrical accessories and of other
manufacturers that are compatible with the Z-Wave system. The ZWP1 0 controller operates up to
1 0 devices, separately on 5 channels (2 devices for 1 channel). It also allows for creation of 1 0
independent groups. Each group can include several devices operated simultaneously.
Controller's memory can contain up to 231 devices.
The ZWP1 0 controller is equipped with a two-way Z-Wave radio communication module
exploiting radio wave frequency (frequency depending on the country for which the product is
intended). It can be used as the basic controller – PRIMARY as well as an additional –
SECONDARY. PRIMARY controller allows for integration of many devices into one radio network
while SECONDARY is used as an additional controller in already existing network (see LEARN
MODE function).
In addition to Basic Mode of operation: OPEN, STOP, CLOSE, the ZWP1 0 controller offers
Multilevel Mode allowing for e.g. smooth dimming of the light.
Informat on about the product
All manuals and user guides at all-guides.com

4
ZWP 1 0
5
1
2
3
4
5
1
234
2
3
4
1
Informat on about the Z-Wave
LEDs signalling active channel:
1 - channel 1
2 - channel 2
3 - channel 3
4 - channel 4
1 ,2,3,4 - channel 5
Button of SELECT channel choice
Buttons of MOVEMENT – operate single
device or group of devices
OPEN, STOP, CLOSE
Groups of controlled devices:
group 1 ,2 – channel 1
group 3,4 – channel 2
group 5,6 – channel 3
group 7,8 – channel 4
group 9,1 0 – channel 5
Programming button IN/EX under back
cover of the remote control
Basic – press button of movement  or 
within 0.5 sec. in order to cause the device to
move and press  in order to stop the device.
Multilevel – press button  or  and hold until
the device reaches desired position and then
release the button.
Control modes
All manuals and user guides at all-guides.com

5
ZWP 1 0
5
H om e ID A A A
Delete
Primary
Learn Mode
Default
Assciate
Include
Exclude
Primary
Secondary
NodeID
002
Z-Wave I
NodeID
000
ARZ Z-Wave
ARZ Z-Wave
ZWP10
ZWG3
ZWG3
001
NodeID
NodeID 003
Z-Wave II
H om e ID
A A A
1
234
2
3
4
1
Fig.1
Informat on about the Z-Wave
Operation of FAKRO products is based on radio communication protocol Z-Wave. To enable the
controller to operate FAKRO Z-Wave electrical accessories, it is necessary to configure them
appropriately into one Z-Wave radio network. For this purpose there are used appropriate
commands performed on the controller. Each network has its address ( omeID) and each device
in the network has its number (NodeID). All devices in the Z-Wave network are divided into
operating devices – controllers and devices controlled (e.g. servo-motors). Single controlled
device can operate only within one network (single omeID) and one network can include only
one basic PRIMARY controller (overriding). In order to add second controller, it must be set as
SECONDARY (subordinate). When configuring devices to operation in the network, address
( omeID) is assign to them and Node ID appropriate in order (fig. 1 ).
Basic functions of the Z-Wave system
Sample scheme of the Z-Wave network
Include - adding device to the network
Associate - adding device to buttons of movement (group)
Delete - removing device from buttons of movement (group)
Exclude - removing device from the network
Learn Mode - adding another controller
Default - restoring controller to factory settings
To simplify configuration, some of above procedures were joined what will be explained in the
chapter concerning programming.
All manuals and user guides at all-guides.com

6
ZWP 1 0
1
2
3
!
Attach holder to the remote control in a location that is convenient for you.
Put batteries in the controller
Prepare device which is to be operated (see Product User Manual)
Screw holder firmly to the
wall with the use of anchor
pins.
Put the washer on the
holder.
Check whether the remote control is
firmly located in magnetic washer.
Make sure that the device is appropriately installed and plugged in to power supply.
Make sure that you have physical access to programming button and device manual
operating button.
Make sure that the device operates appropriately by pressing manual operating button.
Make sure that the network status LED on the device which is to be added to controller
lights up. If the network status LED does not emit light it means that the device is not
plugged in to power supply (manual operation does not work) or it has already been
assigned to the same or other controller.
Note! In devices powered by photovoltaic panel (AMZ Z-Wave Solar awning blind, ARZ Z-
Wave Solar roller shutter) the network status LED should light up for 5 sec. after pressing P
button what means readiness to assign device to the network.
Prepar ng controller for programm ng
All manuals and user guides at all-guides.com
all-guides.com

7
ZWP 1 0
!
1
234
1
4
x1
1
23
x 1
I N / E X
123
234
x1
1
2
3
Attach holder to the remote control in a location that is convenient for you. Choose one of 5 channels on which the device is
to be assigned by pressing SELECT button.
Press IN/EX button on the back of the controller. If
LEDs 1 and 4 light up, then press one of
movement buttons of a given group until LEDs
change for 1 ,2,3.
Within 1 0 sec. press P button on the device until
the network status LED is off (see device
programming manual).
- Controller signals device correct adding by
lighting of LEDs 2,3,4
- Controller signals device incorrect adding by
blinking of LEDs 1 ,2,3 and the procedure should
be performed again from point 2.
After the above steps to ensure proper operation of
the device, wait 1 0sec.
Now controller is ready to operate.
Note! If one omits step 2, that is pressing button of
movement, the device will be added only to the
network (see INCLUDE function). Then, to be able
to operate the device, it is necessary to add it to
buttons of movement with the use of ASSOCIATE
function.
Controller programm ng – qu ck confgurat on
In order to add another device to the same or other
group, it is necessary to perform above procedure again.
If device has not been purchased with the controller in
a set, it should be programmed. If the network is
configured again, it is necessary to reset the controller
to factory settings (DEFAULT function) and then follow
below presented steps in appropriate time intervals.
Adding device to the controller and buttons of movement
All manuals and user guides at all-guides.com

8
ZWP 1 0
1
2
3
1
2
1
234
123
234
x1
x1
1
23
x 1
t<1s
I N / E X
x1
4
1
I N / E X
23
1
4
x1
Adding device only to buttons of movement - ASSOCIATE
Choose one of 5 channels on which the device is
to be assigned.
Within 1 ,5 sec. press once IN/EX button and once
button of movement of a given group to which
device is to be added. LEDs 1 ,2,3 will light up.
Within 1 0 sec. press P button on the device (see
device programming manual).
- Controller signals correct adding to group by
lighting of LEDs 2,3,4
- Controller signals incorrect adding by blinking of
LEDs 1 ,2,3 and the procedure should be
performed again from point 2.
If device has already been assigned to the controller
for buttons of movement (group) it can be added to
another group with the use of ASSOCIATE function.
Controller programm ng – bas c funct ons
Adding device to the controller - INCLUDE
Adding device only to the controller's memory is
required if the user wants device to be in the Z-Wave
network and operated e.g. only by subordinate
controller (SECONDARY).
Press once IN/EX button on the controller.
LEDs 1 and 4 will light up.
Within 1 0 sec. press P button on the device until
the network status LED is off (see device
programming manual).
- Controller signals device correct adding by
lighting of LEDs 2 and 3.
- Controller signals device incorrect adding by
blinking of LEDs 1 and 4 and the procedure
should be performed again.
All manuals and user guides at all-guides.com

9
ZWP 1 0
1
2
!
x3
3
1
I N / E X
234
2
PRIMARY SECONDARY
x1
4
1
I N / E X
Function is used for copying information about devices
from basic controller (PRIMARY) to additional and
making it a SECONDARY controller. After performing
LEARN MODE on the controller, it is also necessary to
assign device to buttons of movement with the use of
ASSOCIATE function. It is better to perform LEARN
MODE function after adding all devices to basic
controller or after modification of the network.
Press once IN/EX button on basic remote control.
LEDs 1 and 4 will light up.
Within 1 0 sec. press three times IN/EX button on
additional remote control until lighting of LEDs 1
and 3.
Within 1 0 sec. on basic remote control LEDs 2
and 3 will light up and on additional 2 and 4 will
light up.
If the sequence does not occur, perform the
procedure from the beginning.
Note! With the use of an additional controller –
SECONDARY it is not possible to add device to
the network (INCLUDE) and remove device from
the network (EXCLUDE). owever, it is possible
to perform ASSOCIATE and DELETE functions.
PRIMARY and SECONDARY function of the
controller can be performed by controllers from
different companies complying with Z-Wave
protocol.
To set the SECONDA Y controller as
P IMA Y again, perform the DEFAULT
function.
Controller programm ng – bas c funct ons
Adding another controller to the Z-Wave network – LEA N MODE
All manuals and user guides at all-guides.com

1 0
ZWP 1 0
1
2
!
1
x2
23
t<1s
I N / E X
23
1
4
x1
x2
x 1
t<1s
I N / E X
23
1
4
emoving device from the controller - EXCLUDE
Press twice IN/EX button within 1 sec. LED's 2
and 3 will light up.
Within 1 0 sec. press P button on the device and
hold until the network status LED lights up (see
device programming manual).
- Controller signals device correct removing
from the network and group by lighting of LEDs 1
and 4.
- Controller signals incorrect removing by
blinking of LEDs 2 and 3 and the procedure
should be performed again from point 1 .
Note! With the use of EXCLUDE function it is
also possible to remove (reset) devices assigned
to other networks.
If the user wants to completely remove device from
the Z-Wave network (reset omeID) e.g. in order to
assign to another controller, below presented procedure
must be performed. But one should bear in mind that
this procedure will remove device from buttons of
movement and controller's memory.
Controller programm ng – bas c funct ons
Resetting the controller will cause removing of all
devices from its memory and the change of unique
omeID network address for a new one.
Removing devices from the controller will not cause
reset of devices themselves. If the user wants to add
them once again to the Z-Wave network (controller's
memory) it is necessary to perform EXCLUDE
procedure on devices and assign them again.
estoring controller to factory settings - DEFAULT
Within 1 sec. press twice IN/EX button and once
SELECT button until LEDs 2,3-1 ,4-2,3 blink.
- If a given sequence of LEDs does not occur it is
necessary to perform procedure again.
DEFAULT function will set the SECONDA Y
controler again as the P IMA Y controller.
All manuals and user guides at all-guides.com

11
ZWP 1 0
1
2
3
1
2
3
x2
x 1
t<1s
4
23
I N / E X
23
23
1
4
x1
1
234
x2
x 1
t<1s
4
23
I N / E X
x 1
23
1
1
234
Choose channel on the controller from which the
device is to be removed.
Within 1 .5 sec. press twice IN/EX button and
once one of buttons of movement of a given
group. LEDs 1 ,2,3 will light up.
Within 1 0 sec. press P button on the device and
hold until LEDs on the controller change into
1 ,2,3.
- Controller signals error by blinking of LEDs 2,3,4
and procedure must be performed again.
Function is used for removing particular device from
buttons of movement without removing it from the
network.
This function is used for removing all devices from
buttons of movement of a given group without removing
them from the network.
Choose channel on the controller from which
group of devices is to be removed.
Within 1 ,5 sec. press twice IN/EX button and
once any button of movement of a given group
until LEDs 1 ,2,3 light up.
Within 1 0 sec. confirm removing devices by
pressing STOP button of a given group.
- LEDs 1 ,2,3 will light up on the controller.
Otherwise procedure must be performed again.
emoving one device from buttons of movement - DELETE
emoving group of devices from buttons of movement - DELETE
Controller programm ng – bas c funct ons
All manuals and user guides at all-guides.com
all-guides.com

1 2
ZWP 1 0
1
2
3
x1
2
1
t<1s
x1
I N / E X
4
3
x1
1234
In/Ex Select
1234
In/Ex Select
t<1s
1
4
234
In/Ex Select
1
23
PRIMARY
SECONDARY
Controller programm ng – add t onal funct ons
Adding remote device to the Z-Wave network - ASSIGN A OUTE
Function allows for adding already installed Z-Wave
device to SECONDARY controller, permanently
installed (e.g. ZWMP or ZWMA weather module) via
PRIMARY controller (transferring Node INFO). Such
situation occurs when device (SECONDARY controller
and controlled device) are not in direct contact with
each other or time to perform ASSOCIATE procedure is
too short.
Within 1 sec. press IN/EX button and once
SELECT button on PRIMARY controller.
LEDs 1 and 2 will light up.
Within 1 0 sec. press P button on the device until
LEDs on the controller change into 3 and 4.
On the target controller – SECONDARY (e.g.
ZWMA module) within 60 sec. choose channel
and perform ASSOCIATE function – within 1 sec.
press IN/EX button and button of movement of a
given group until LED's 1 ,2,3 light up.
-Target controller signals accepting the Node
INFO by the change of LEDs for 2,3,4 and on
PRIMARY controller LEDs 1 ,2,3,4 light up.
- If a given sequence of LEDs does not occur, it is
necessary to perform procedure again.
All manuals and user guides at all-guides.com

1 3
ZWP 1 0
1
2
3
1
4
234
In/Ex Select
1
23
PRIMARY
SECONDARY
x1
2
1
t<1s
x1
I N / E X
4
3
x1
234
1
x1
1
2
3
x1
1
23
x 1
t<1s
I N / E X
x 1
4
3
234
1II
I
234
x3
1
3
I N / E X
Controller programm ng – add t onal funct ons
Function allows for such configuration of devices within
one Z-Wave network that one controlled device launch
another device, not assigned to controller's buttons of
movement. An example is launching of one servo-motor
with the use of another servo-motor equipped with a
rain sensor.
On PRIMARY controller within 1 sec. press once
IN/EX button and once SELECT button.
LEDs 1 and 2 will light up.
Within 1 0 sec. press P button on the device which
is to be controlled until LEDs on the controller
change into 3 and 4.
Within 60 sec. press P button on the device which
is to be operated (see device manual) until LEDs
on the controller change into 1 ,2,3,4.
- If a given sequence of LEDs does not occur, it is
necessary to perform procedure again.
This function allows for copying group of devices from
PRIMARY controller to SECONDARY controller and
conversely within one network.
Associating Z-Wave devices - ASSOCIATE DEVICE
Copying group of devices - COPY G OUP
Choose channel and within 1 ,5 sec. press IN/EX
button 3 time on the controller no. I.
LEDs 1 and 3 will light up.
Within 1 0 sec. press STOP button the group
copied, until LEDs change to 3,4
Within 1 0 sec. choose channel and perform
ASSOCIATE function on the target controller (no.
II) by pressing IN/EX and STOP button of a group
to which device is to be copied. LEDs change to
2,3,4 and on the controller no. I to 1 ,2,3,4.
- If a given sequence of LEDs does not occur, it is
necessary to perform procedure again.
All manuals and user guides at all-guides.com

1 4
ZWP 1 0
Setup ZWP1 0 with Vera and Fibaro gateway
L sten ng Mode
1
I column
number of channel
II column
No. channel I column II column No. of group
association
1 2 3 4 + 1
1 2 3 4 + 2
1 + 3
1 + 4
2 + 5
2 + 6
3 + 7
3 + 8
4 + 9
4 + 10
If the controller is not configured correctly when you include it to gateway is should be
introduce to Listening Mode (hold select button over 3 seconds, sequential flashing 4
LEDs provides information on entry mode and begine in it) - mode that allows remote
configuration of the controller and on primary controller in this case gateway
reconfiguration or re-configure.
All manuals and user guides at all-guides.com

1 5
ZWP 1 0
Warranty
Warranty
The manufacturer guarantees correct device functioning. It also undertakes to repair or replace
the device if its defects result from material or structural faults. The warranty period is 24 months
from the purchase date, fulfilling the following conditions:
• Installation has been performed by an authorised individual, as per manufacturer
recommendations.
• Seals remain intact and no unauthorised structural changes have been made.
• The device has been used in accordance with its intended use as per user manual.
• Damage is not a result of improperly made electrical system or atmospheric phenomena.
• The manufacturer is not liable for damage which occurred as a result of improper use or
mechanical damage.
In case of failure, the device must be submitted for repair with a Warranty Card. Defects revealed
within the warranty period will be removed free of charge no longer than 1 4 days after accepting
the product for repair. Warranty and post-warranty repairs are performed by the manufacturer i.e.
FAKRO PP. Sp. z o.o. .
Quality Certificate:
Device
Model......................................................................
Serial Number.........................................................
Seller.......................................................................
Address...................................................................
Date of Purchase.....................................................
.............................................................
Signature (stamp) of installing person
1
I column
number of channel
II column
All manuals and user guides at all-guides.com

FAK O PP Sp. z o.o.
ul. Wegierska 1 44A
33-300 Nowy Sacz
Polska
www.fakro.com
tel. [phone]
fax. [phone]
1 4.04.24 NC851 -EN ©201 6 FAKRO
All manuals and user guides at all-guides.com
all-guides.com
