FalkenOhr 118 Genium Line User manual

118
M u c h m o r e t h an j u s t a H i - F i r a c k.

1
Table of contents
3
Overview 118 –Klangmöbel1and Klangbasen2–Standard and optional
equipment
KLANGMÖBEL1GENIUM LINE und PURE LINE
4
Genium Line
6
Pure Line
8
Basic models with prices
8
Genium Line
8
Pure Line
9
Standard equipment
9
Technology
10
Equipment Sound-core and Functional-body
13
Cladding
13
Accessories
14
Optional equipment
14
Equipment Sound-core and Functional-body
15
Cladding
15

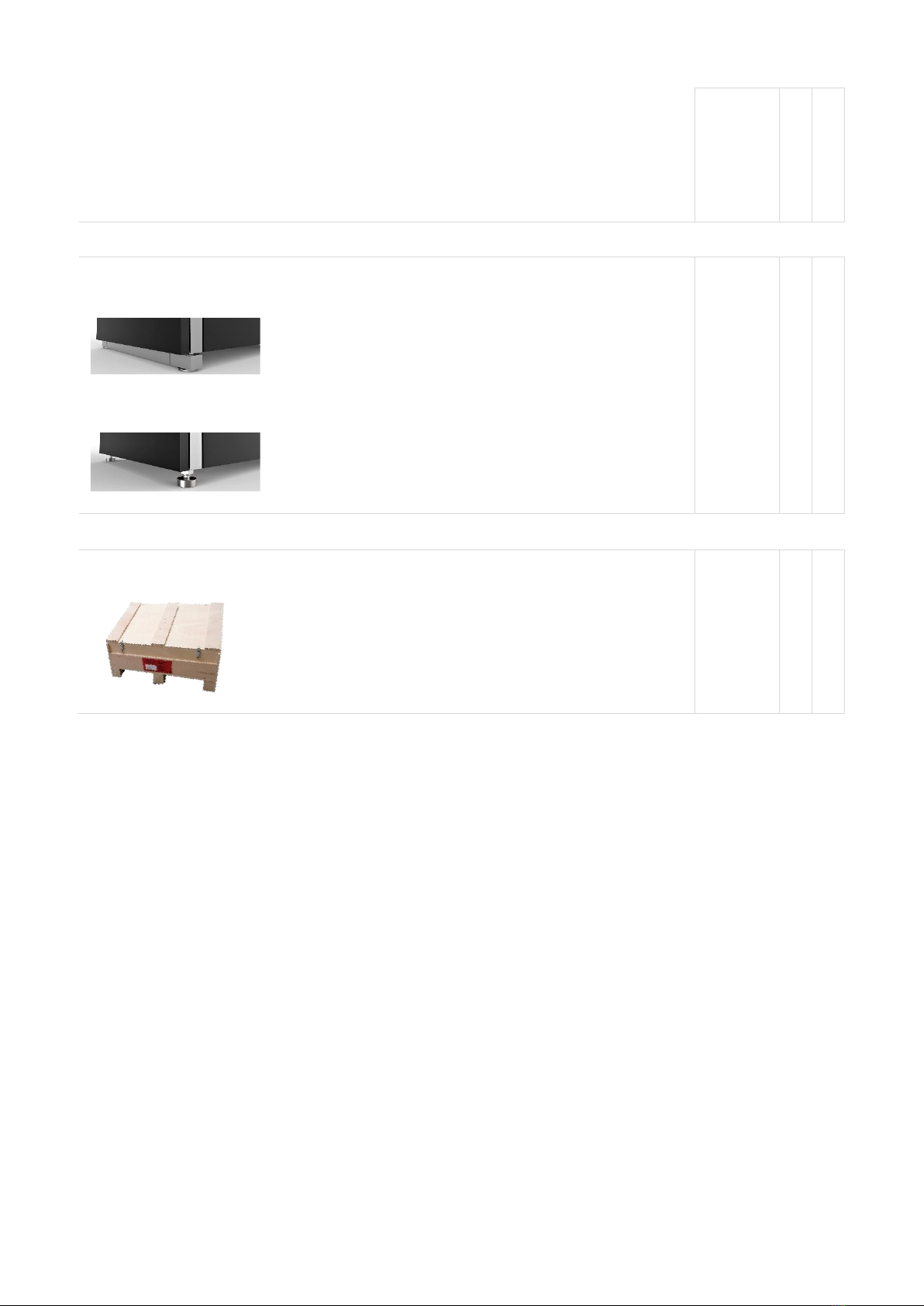

Packaging
16
Surface finishing

2
16
Shelves
17
Cladding
18

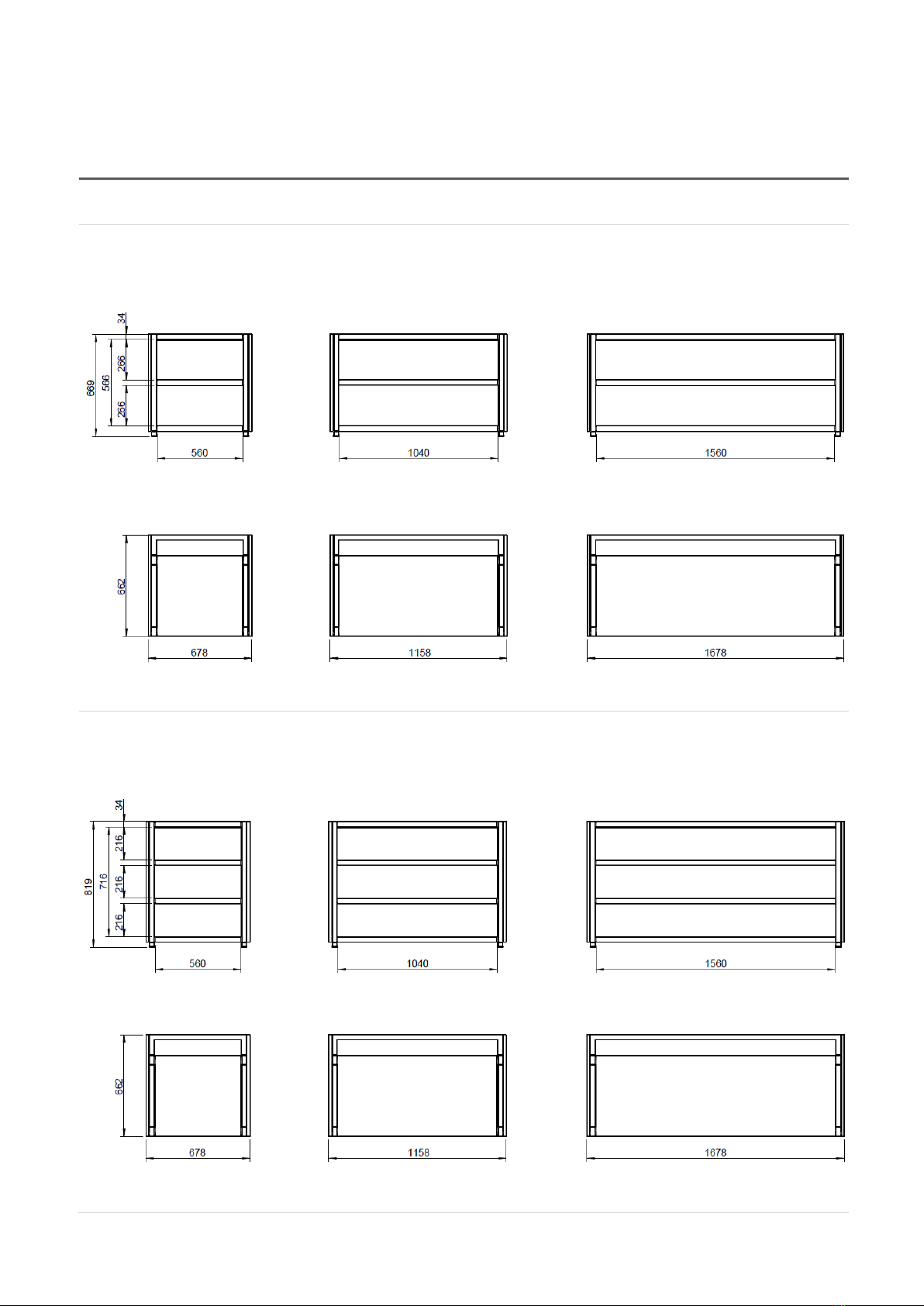

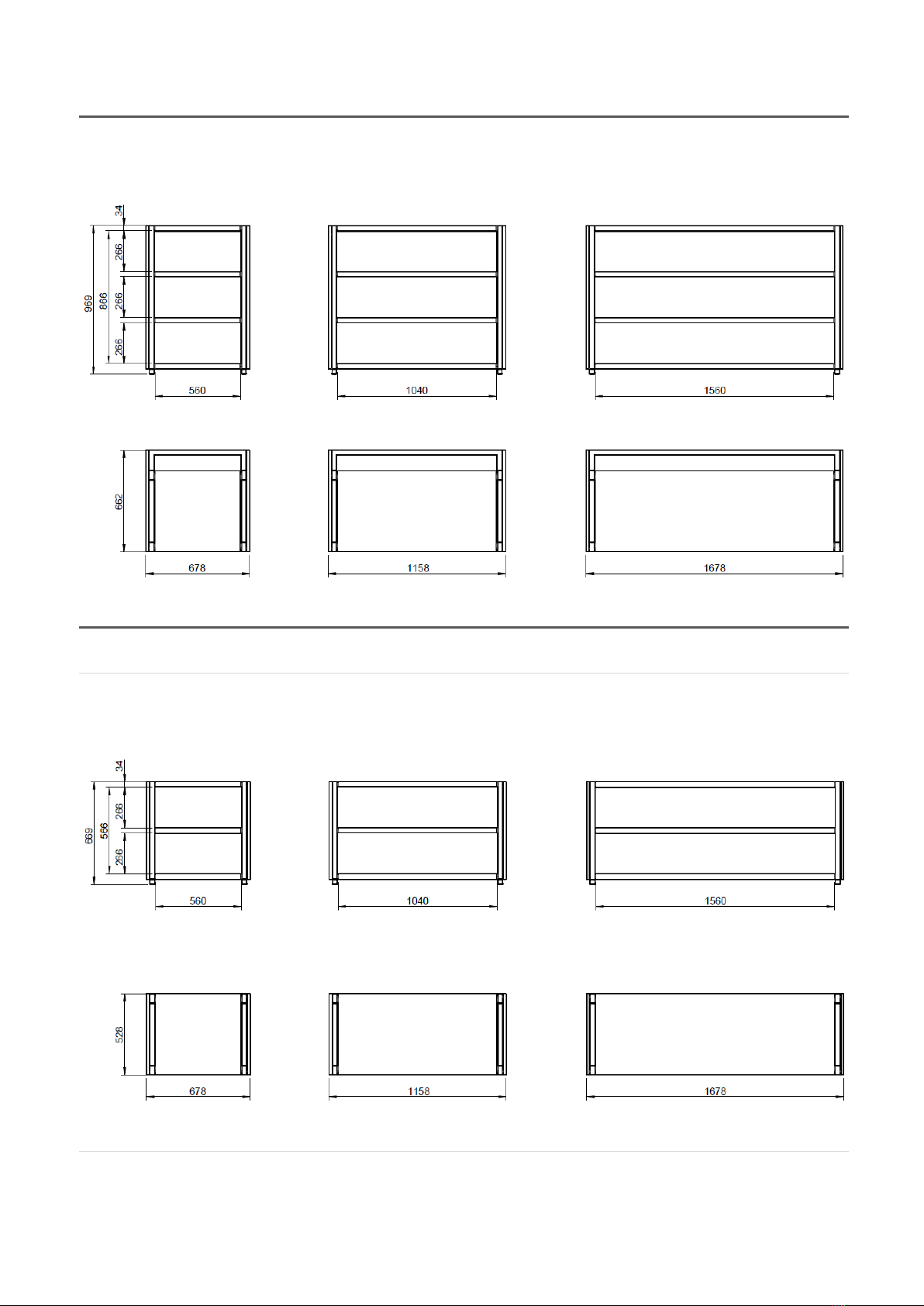

Dimensions
18
Genium Line
19
Pure Line
KLANGBASEN2BASE LINE
21
Base Line
22
Basic models with prices
22
Base Line
23
Standard equipment
23
Technology
24
Equipment Sound-Core and Stability-Core
25
Cladding
25
Accessories
26
Optional equipment
26
Cladding
26
Packaging
27
Surface finishing
27
Shelves
28
Cladding
29
Dimensions
29
Base Line
30
Warranty
31
Explanations

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
3
Overview 118
Standard and Extras
Genium Line
Pure Line
Base Line
WIDTH
Single width3
○
○
○
Double width3
○
○
-
Triple width3
○
○
-
DESIGN HEIGHT
118 mm
-
-
○
700 mm
○
○
-
850 mm
○
○
-
1000 mm
○
○
-
TECHNOLOGIE
Compound shelves
○
○
○
3D/1O Technology –vibrations decoupling
○
○
○
3D/1O Technology –electromagnetic decoupling
○
○
○
Sound adjustment
○
○
○
Adjustable shelves
○
○
-
Decoupling of the functional parts
○
○
○
Stability core with damping concrete
-
-
○
Modular extensible
○
○
-
Stackability
●
●
-
EQUIPMENT
Drawer
●
●
-
Rollers
-
-
-
Cable installation area with strain relief and cable inlet
○
-
-
Pluggable rear panel
○
-
-
Decoupled Base
●
●
-
Assembly tools and instruction manual
○
○
○

4

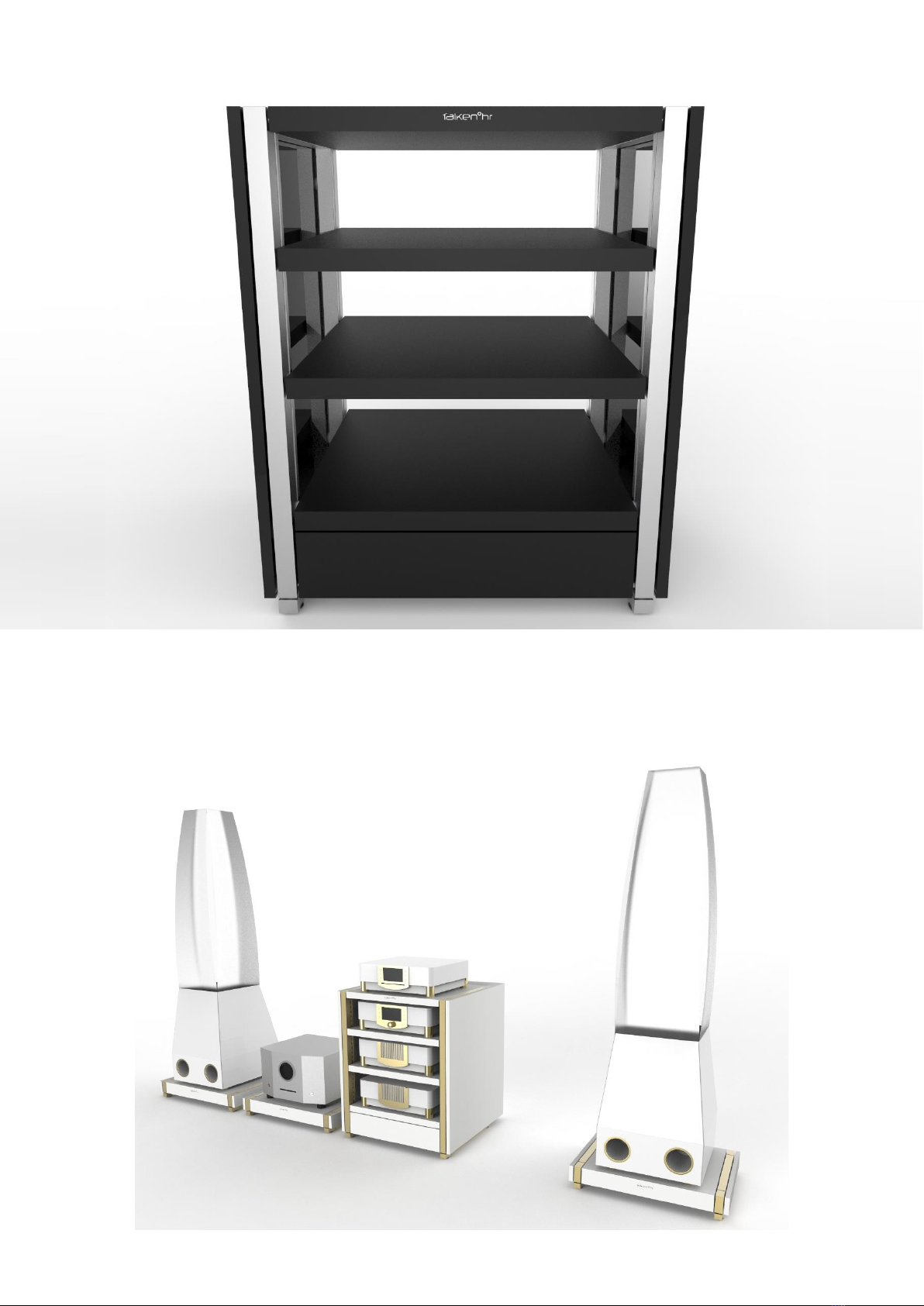

Genium Line
Designed for consummate listening enjoyment in a residential setting. The Genium Line has it all,
high-quality sound, a sophisticated design –and features never before seen in audio furniture. The
world of FalkenOhr for true audiophiles

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
5

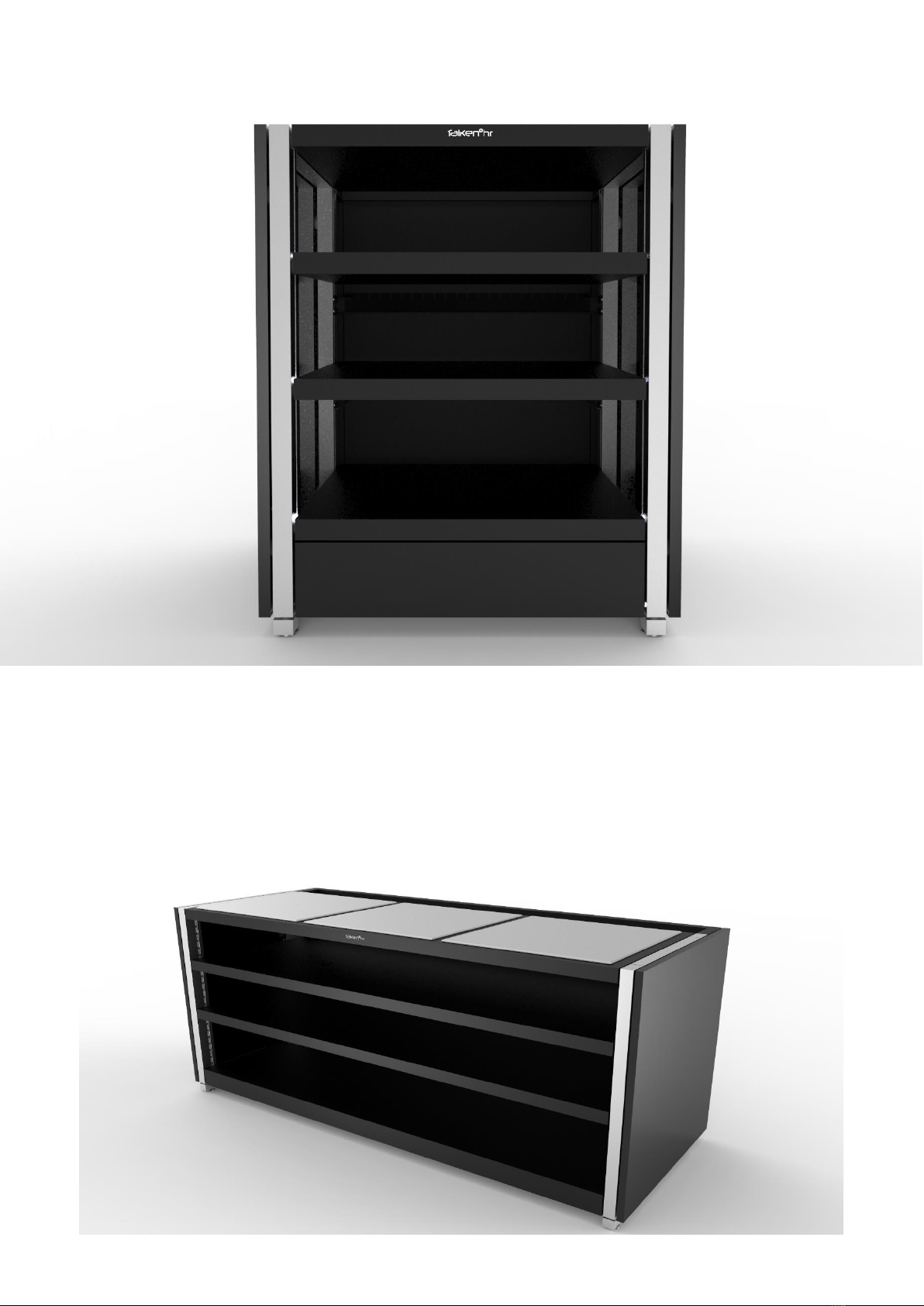

Genium Line
Equipped with a cable installation area, claddings, a rear panel, and an optional drawer.
design
2 ○Bases incl. Spikes
and spike shoes
3 ○Claddings
4 ○Drawer with TIP-on
5 ○Cable Installation Area
6 ○Cable entry from above
with brush and cover
7 ○Plugable Rear Wall
8 ○Pendulum flaps
9 ○Intermediate profiles
10 ○Strain Relief
11 ●Power strip integrated
1
2
5
4
6
7
8
3
1 ○Shelf
2 ○Stands incl. spikes
and spike shoes
3 ○Cladding
4 ●Drawer
5 ○Installation area
6 ○Top side cable inlet
with cover and
brushes
7 ○Hinged and
pluggable rear panel
8 ○Strain relief

6

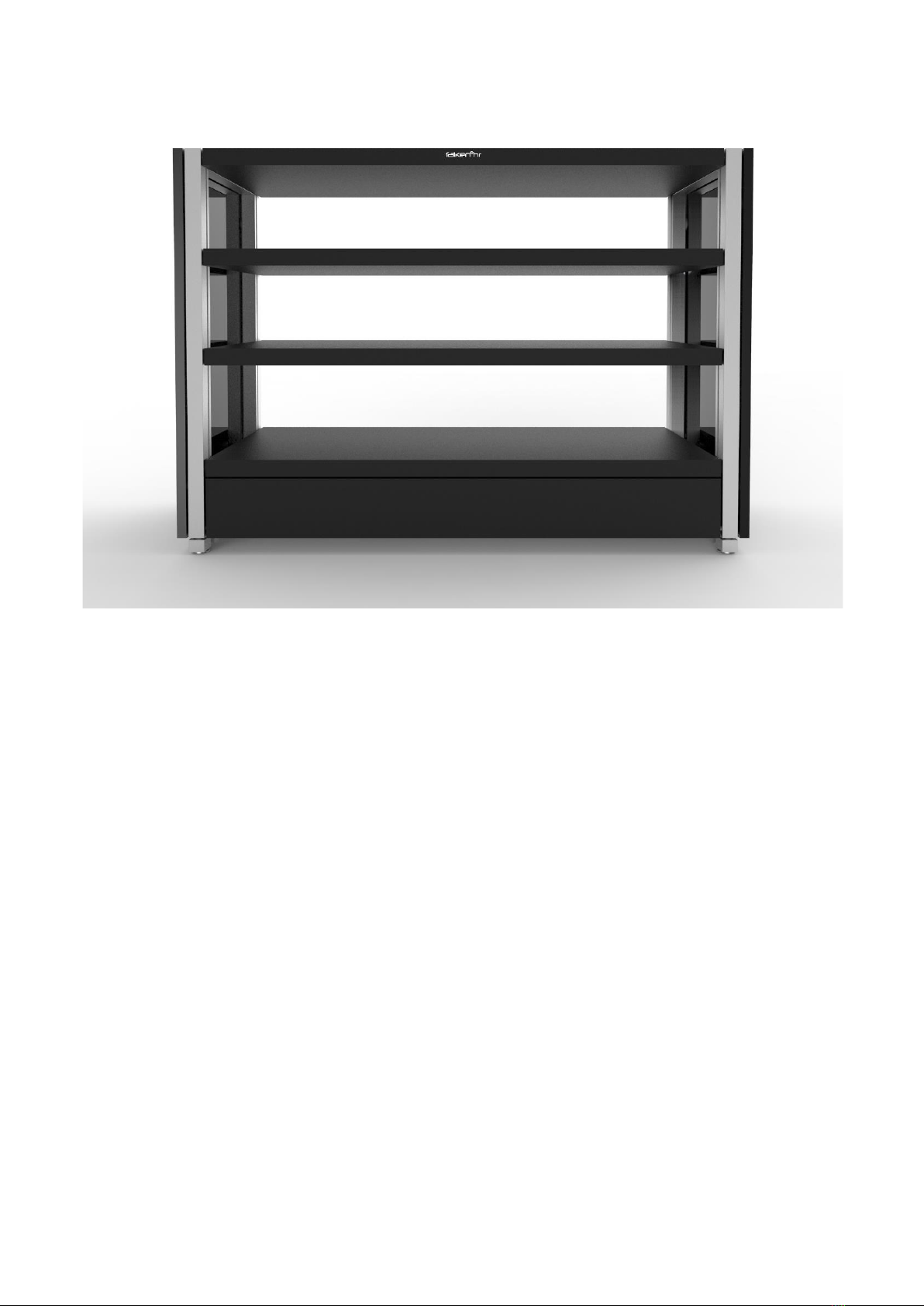

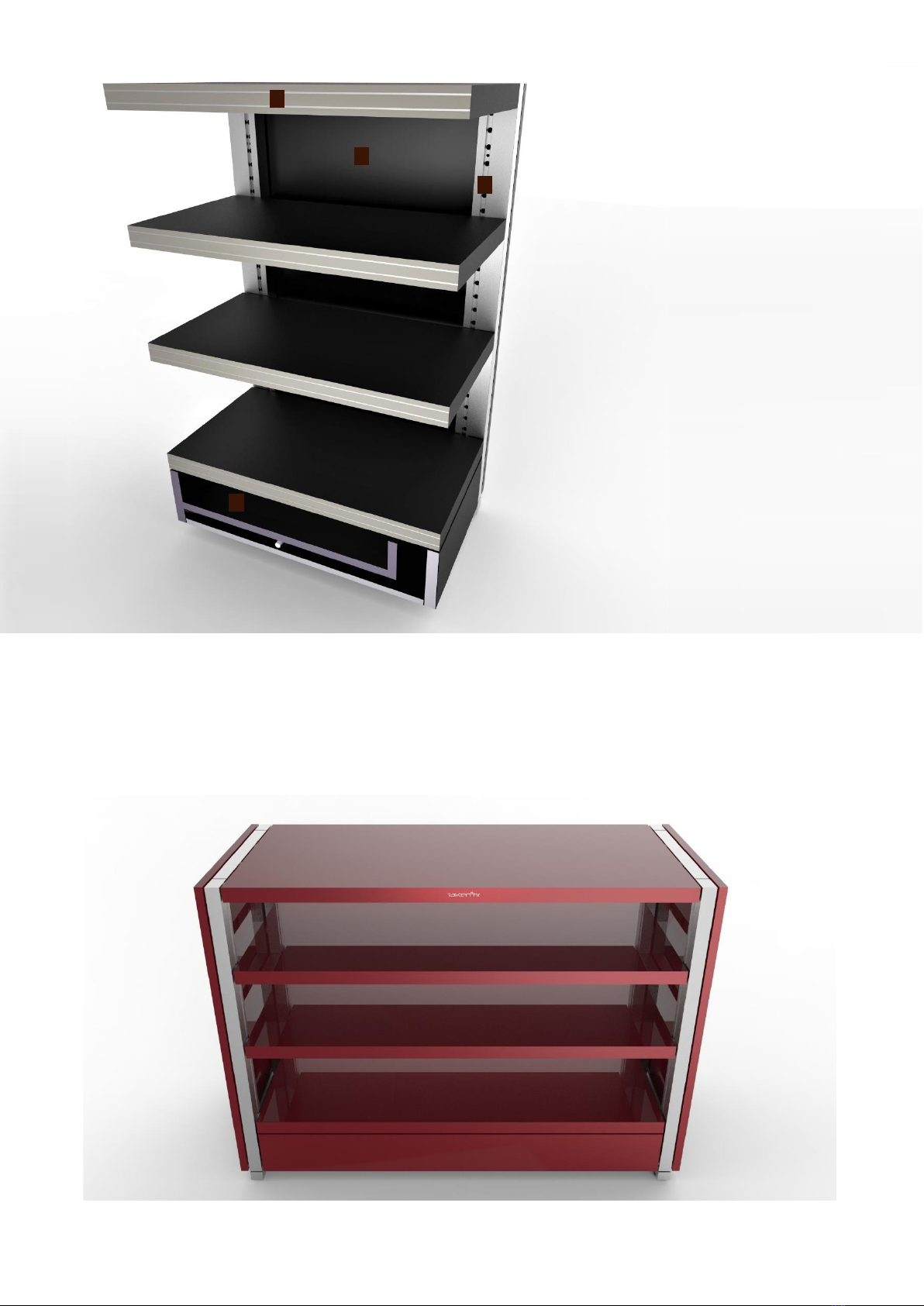

Pure Line
Made for purists. The focus is on sound and design. Reduced to their essence.

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
7
Pure Line
Equipped with cladding and an optional drawer.
1
2
4
3
1 ○Shelf
2 ○Stands incl. spikes
and spike shoes
3 ○Cladding
4 ●Drawer

8
Basic models 118
Genium Line and Pure Line
Height
in mm
Design-
width
Width
in mm
Shelf-width
in mm
Shelves
in pcs
Weight4
in kg
List price5
Euro excl. VAT
118 Genium Line
700
single width
698
560
3
67,0
6.371,00 €
850
single width
698
560
3
74,0
6.676,00 €
1000
single width
698
560
3
81,0
6.929,00 €
700
double width
1178
1040
3
95,0
7.357,00 €
850
double width
1178
1040
3
103,0
7.678,00 €
1000
double width
1178
1040
3
110,0
7.944,00 €
700
triple width
1698
1560
3
127,0
8.315,00 €
850
triple width
1698
1560
3
137,0
8.650,00 €
1000
triple width
1698
1560
3
147,0
8.935,00 €
118 Pure Line
700
single width
698
560
3
59,0
5.204,00 €
850
single width
698
560
3
64,0
5.409,00 €
1000
single width
698
560
3
70,0
5.585,00 €
700
double width
1178
1040
3
84,0
6.055,00 €
850
double width
1178
1040
3
89,0
6.262,00 €
1000
double width
1178
1040
3
95,0
6.440,00 €
700
triple width
1698
1560
3
112,0
6.842,00 €
850
triple width
1698
1560
3
117,0
7.052,00 €
1000
triple width
1698
1560
3
123,0
7.232,00 €

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
9
Standard equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line
TECHNOLOGY
Compound-Shelves
Multi-layer structure made of MDF and aluminum with a special
adhesive.
○
○
3D/1O Technology –
vibrations decoupling
For us, the art of a dynamic sound image lies in deriving micro-
vibrations in the best possible way and damping them as little as
possible. The new, innovative connections of the FalkenOhr
shelves to the stands are either damping or conductive. This
enables the micro-vibrations generated by the audio devices in
one shelf to be dissipated without disturbing the other levels.
Your benefit: The micro-vibrations of the electronics are
dissipated in a targeted and extremely fast manner and the
devices are decoupled from each other, this leads to a highly
dynamic and precise sound image.
○
○
3D/1O Technology –
electromagnetic
decoupling
The aluminum layers make it possible to discharge and shorten
the voltage induced by the electromagnetic fields of the audio
components. Therefore, the electromagnetic interference between
two layers is drastically reduced.
Your benefit: The reduced interferences lead to a significant
increase in precision and clarity of sound.
○
○
Sound adjustment -
analytic/warm
Adjustment of the sound image to your acoustic preferences and
conditions by adjustable damping of the spike shoes. Stone floors,
certain audio components, or living room conditions can create a
too hard, rigid, or even over-analytical sound. Therefore, it is
possible to insert a plastic ring into the floor plate. Otherwise, the
stainless-steel floor plate rests directly on the floor. The damping
can be adjusted individually for each stand and this results in a
different damping/coupling for each shelf.
○
○
Shelves can be
rearranged in a grid of
25 mm
Each shelf can be rearranged individually at any time in a 25 mm
grid.
○
○

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
10
Standard equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line
Clear structure
FalkenOhr sound furniture has a clear structural separation into
three main structural components. These are independently
mounted and decoupled from each other.
SOUND CORE
The heart of your sound furniture. Designed for an extremely clear,
powerful, and spatial sound image.
FUNCTIONAL BODY
More than just a rack, the additional possibilities, and functionality
for your sound furniture. Developed for your living area and your
high-end audio components.
CLADDING
The beautiful cover for your sound furniture
○
○
Decoupling of
attachments
All parts attached to the sound core are made of damping material
on the one hand and are decoupled by a specially molded
thermoplastic material as a connecting element on the other hand.
This plastic, which is also used especially in mechanical
engineering, is characterized by its high degree of homogeneity
and thus uniform damping properties with high strength.
○
○
Modular extensible
Klangmöbel of the same or different heights can also be arranged
together as desired.
Your benefit: Absolutely free design options for the home of your
electronics.
○
○
Stackability
The models in the 118 series can also be stacked on request. The
shelf decoupling technology works independently for each of the
two racks.
Your benefit: Full technology for confined space conditions.
●
●

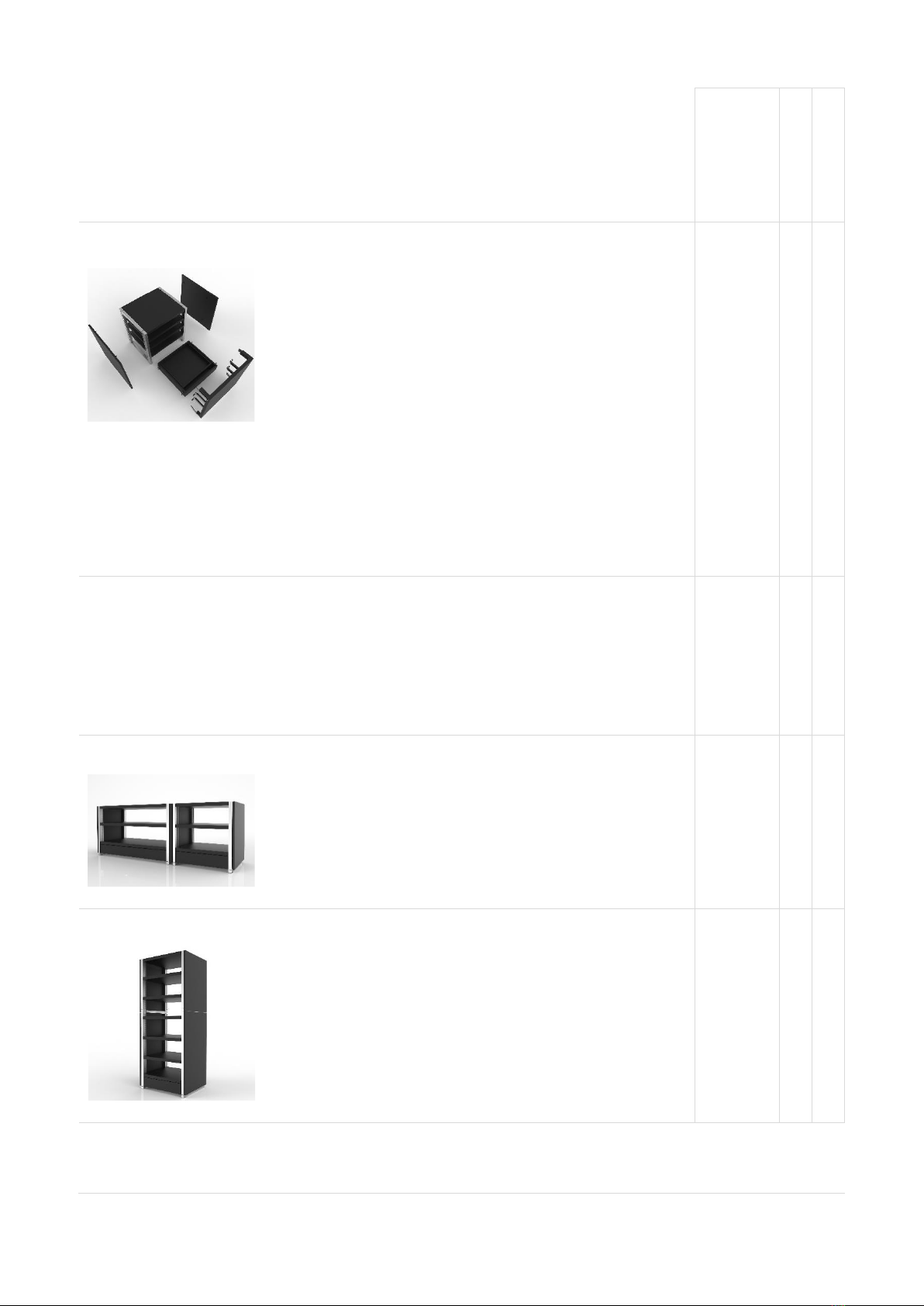

EQUIPMENT

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
11
Standard equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line
SOUND-CORE
Stands incl. spikes
4 pcs.
Made of highly homogenous, cast aluminum EN AW-5083 in
natural E6 / C0 anodized.
Raw aluminum is rather soft and therefore absorbs resonances
well and can distribute and transmit them very evenly due to its
ordered microstructure. When the surface is finished with
anodizing, a hard layer is created which makes the aluminum
resistant and at the same time very conductive to sound. This
enables extremely fast transmission of vibrations and resonances
and at the same time a certain and desired damping This
combination cannot be found in any other material in such a
balanced way.
Spikes made of stainless steel 1.4305
○
○
Shelves
3 pcs.
Composite shelves with innovative integrated connection
technology.
A shelf is conductively connected to exactly one stand and
insulated with the other 3 stands, thereby vibrations from one shelf
cannot influence any other shelves. This leads to the perfect
transmission of the micro-vibrations created by the electronics and
to the high stiffness of the sound-core
○
○

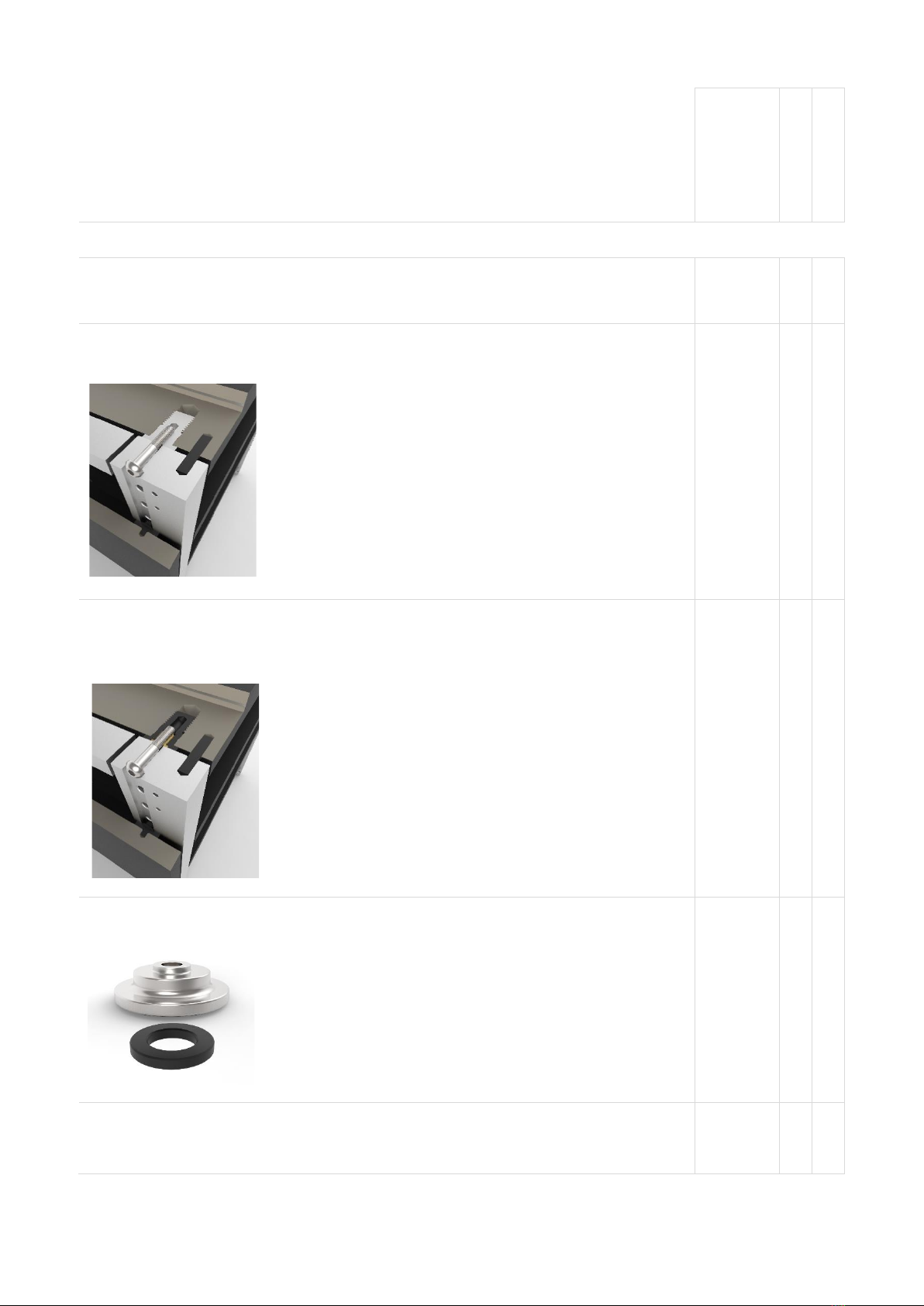

Spike shoes
4 pcs.
Ground plate milled out of stainless steel 1.4305. Optional plastic
ring made of highly damping molded polyamide which has a high
mechanical load capacity and good damping characteristics
○
○
FUNCTIONAL-BODY

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
12
Standard equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line

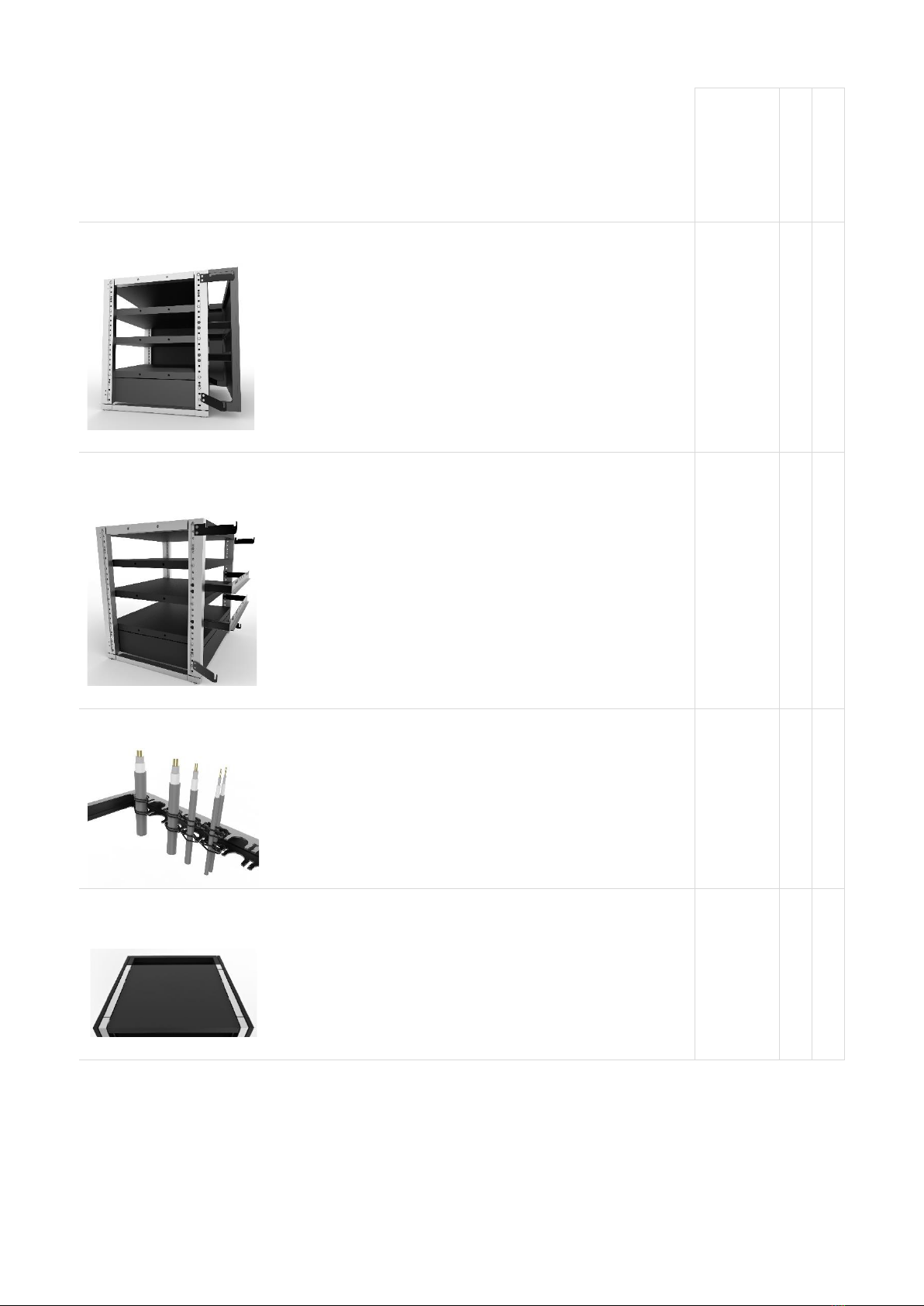

Cable-Installation-Area
Separate, easily accessible room for your cable installation.
Designed for orderly arrangement and mounting of the signal and
electrical cables. Suitable for cable diameters up to 20 mm and
plug diameters up to 42 mm. Completely decoupled from the
sound core.
Your benefit: "Invisible" cable installation, protection against dust,
and easy cleaning.
○
-
Strain relief rails
2 pcs.
Strain relief rails made of anodized aluminum within the installation
level for fixing the cables. The strain relief rails can be
implemented in a grid of 25 mm without tools.
Your benefit: Clean and orderly cable installation. Decoupled
from the sound core.
○
-
Decoupling the cables
For cable diameters of 6-20 mm. O-rings for fixing the cables. The
cables can vibrate freely in this bracket and are also decoupled
from external mechanical oscillations and vibrations.
Your benefit: minimizing external interference on the cabling and
thus a clear improvement in the sound quality of your electronics.
○
-
Cable inlet from the top
This recess in the rear panel enables cable routing from the top of
the rack to the installation area.
○
-

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
13
Standard equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line

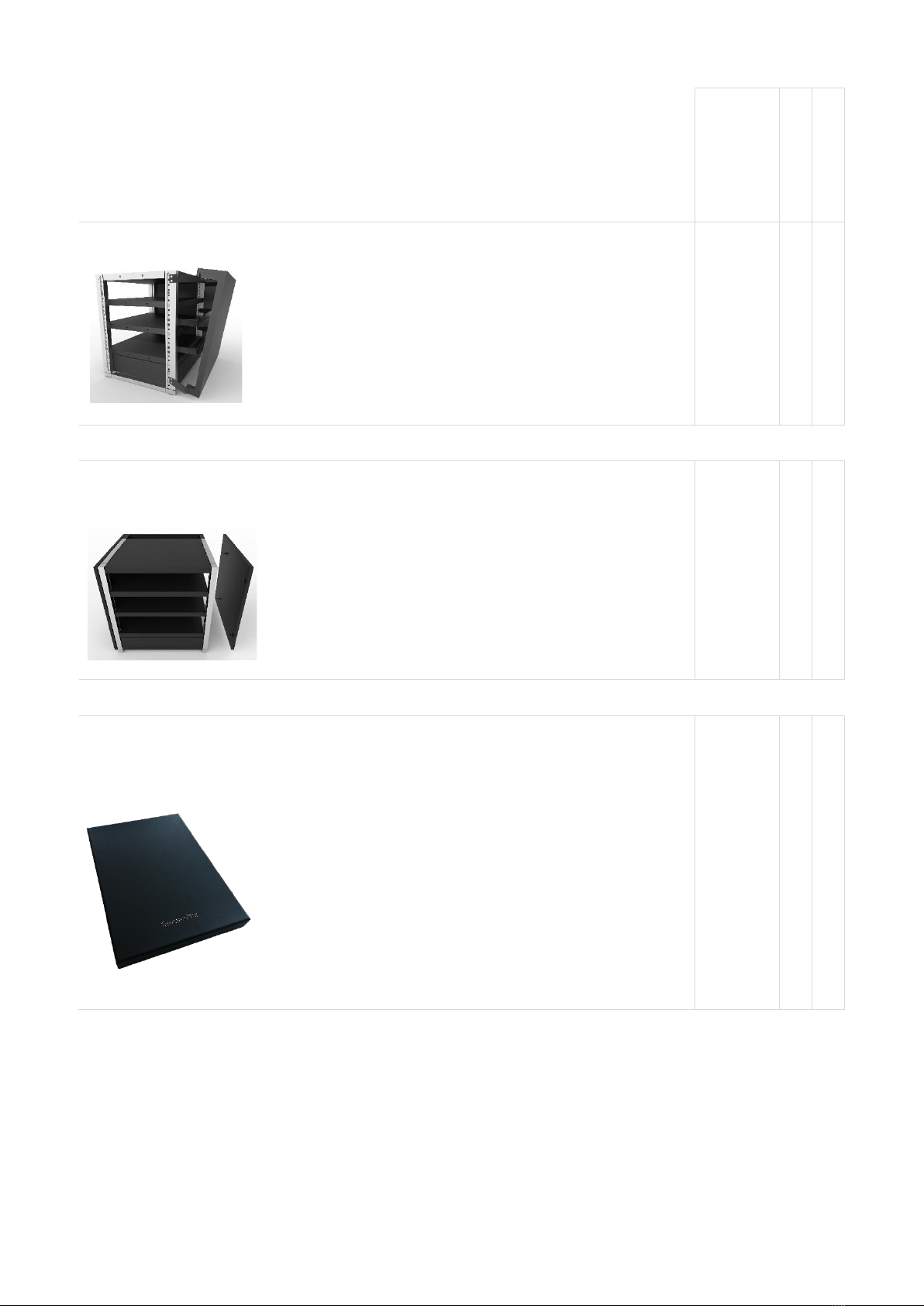

Rear-Panel
The back wall can be hinged or simply removed completely.
Therefore, you have complete access to the installation of your
electronics. Mounted, the back wall is the perfect cover and shield
for your wiring.
Your benefit: Perfect protection for your cabling and a high-quality
visual impression from the front of the furniture.
○
-
CLADDING
Cladding incl.
decoupling
Made of damping MDF.
The beautiful cover for your sound furniture. Designed to complete
the visual delight. Apart from the aesthetic appearance, the clarity
of the sound is further enhanced due to the mass and the shielding
of the audio devices from external influences.
•Decoupled from the sound core.
○
○
ACCESSORIES
Assembly tools and
instruction manual
Complete accessories for perfect installation and optimization of
your sound furniture. Range depending on the model selected:
•4 pcs. spike shoes
•4 pcs. Plastic inserts for ground plate
•1 pc. Open-end wrench 22
•1 pc. Open-end wrench 13
•1 pc. circular bubble
•Allen wrench
•O-Rings
•White cotton gloves
•Instruction manual
○
○

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
14
Optional equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line

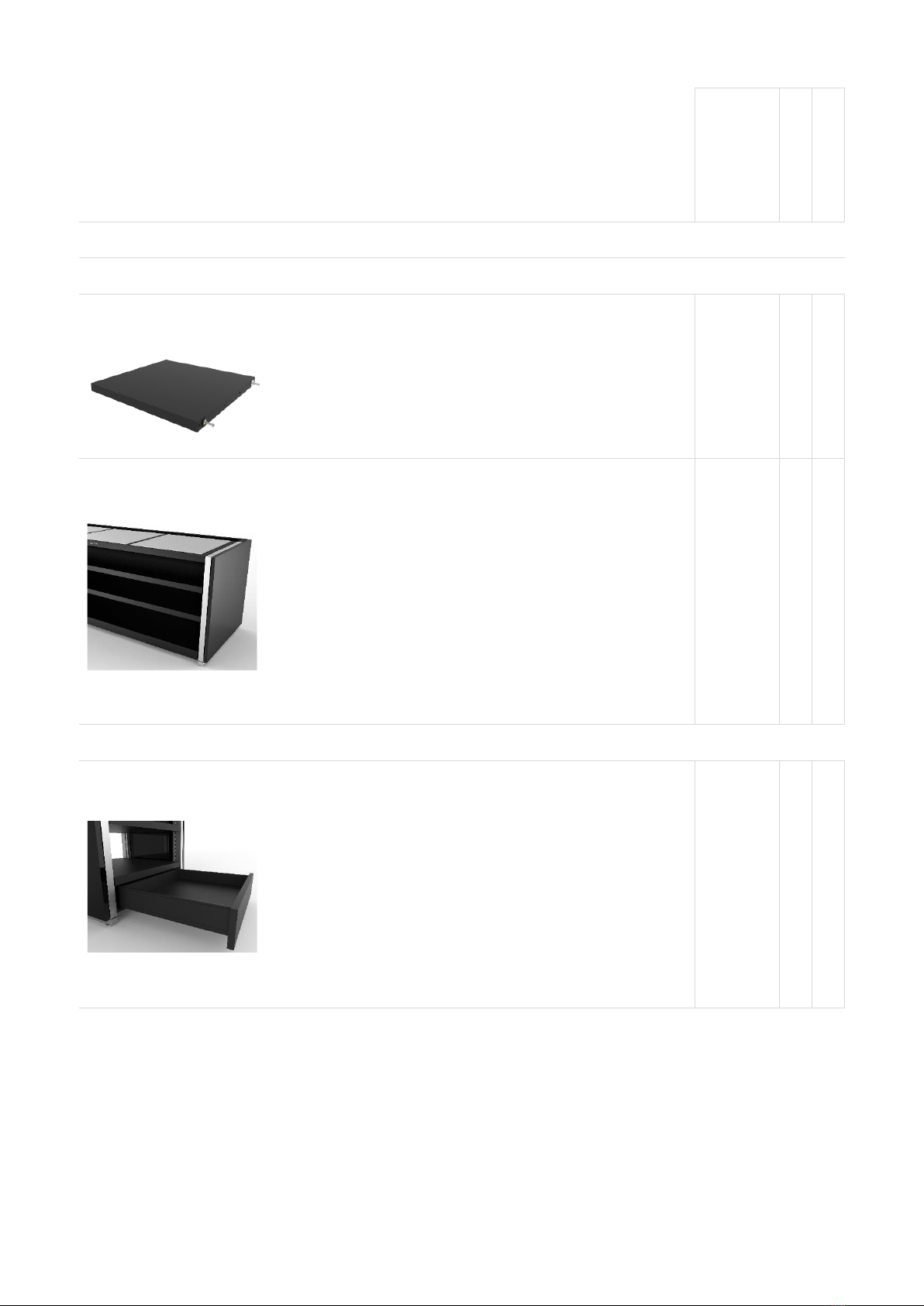

EQUIPMENT
SOUND-CORE
Additional shelf
1 pc.
Composite shelves with innovative integrated
connection technology.
Single width
Double width
Triple width
696,00 €
980,00 €
1.265,00 €
●
●
Decoupled Base
1 pc.
For each desired position a 12 mm thick aluminum plate (EN AW-
5083, natural E0/C6 anodized) is inserted into the shelf and
supported on 3 spikes with spike shoes. These are made of
stainless steel 1.4305.
The maximum sound solution through additional mass and
decoupling, optionally for one or more levels.
Your benefit: Maximum decoupling of the electronics from the
environment and each other. Therefore you get the highest
possible precision in sound.
718,00 €
Additional
charge per
each
Base!!
●
●
FUNCTIONAL-BODY
Drawer
1 pc.
Drawer, as optimal storage space for your Hifi
accessories. This drawer can be mounted
anywhere below a shelf. The drawer opens
and closes quietly and effortlessly with a gentle
tap. Vibration technically decoupled from the
sound core.
•TIP-ON BLUMOTION6fittings
•Drawer made of MDF
•exclusive flocked inlay mat against shifting
Single width
Double width
Triple width
1.080,00 €
1.327,00 €
1.669,00 €
●
●

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
15
Optional equipment 118
Genium Line and Pure Line
List price5 Euro excl. VAT.
Genium Line
Pure Line
CLADDING
Design element incl.
decoupling
without design element
Plugged design element for covering the spikes and the spike-
shoes. Made of aluminum (EN AW-5083, natural E0 / C6
anodized).
•Decoupled from the sound core
432,00 €
●
●
PACKAGING
Packaging
Packed in a high-grade wooden box made of
light, strength, and resistant Ceiba plywood.
The lid of the box is clipped and removable.
Single width
Double width
Triple width
260,00 €
260,00 €
360,00 €
●
●

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
16
Surface finishing 118
Genium Line and Pure Line
Extra charge5per shelf Euro excl. VAT single-width
Extra charge5per shelf Euro excl. VAT double-width
Extra charge5per shelf Euro excl. VAT triple-width
Genium Line
Pure Line
SHELVES
Lacquered finishes
Black 8
□matt G30, slightly structured
□semi-gloss G70
0,00 €
22,00 €
0,00 €
33,00 €
0,00 €
44,00 €
○
●
○
●
Black 8
□high gloss G100
□high gloss G100, polished
630,00 €
805,00€
980,00 €
-
●
-
●
Arctic grey 8
□matt G30, slightly structured
□semi-gloss G70
0,00 €
22,00 €
0,00 €
33,00 €
0,00 €
44,00 €
●
●
●
●
Arctic grey 8
□high gloss G100
□high gloss G100, polished
22,00 €
545,00 €
33,00 €
718,00 €
44,00 €
870,50 €
●
●
●
●
Real wood veneers
Maple 8
□matt G30
□semi-gloss G70
66,00 €
66,00 €
79,00 €
79,00 €
195,00 €
195,00 €
●
●
●
●
Maple 8
□high gloss G100
□high gloss G100, polished
66,00 €
609,00 €
79,00 €
796,00 €
195,00 €
1.067,00 €
●
●
●
●
Pear 8
□matt G30
□semi-gloss G70
131,00 €
131,00 €
184,00 €
184,00 €
325,00 €
325,00 €
●
●
●
●
Pear 8
□high gloss G100
□high gloss G100, polished
131,00 €
675,00 €
184,00 €
899,00 €
325,00 €
1.198,00 €
●
●
●
●
Makassar
replica 8
□matt G30
□semi-gloss G70
131,00 €
131,00 €
184,00 €
184,00 €
325,00 €
325,00 €
●
●
●
●
Makassar
replica 8
□high gloss G100
□high gloss G100, polished
131,00 €
675,00 €
184,00 €
899,00 €
325,00 €
1.198,00 €
●
●
●
●
Makassar 8
□matt G30
□semi-gloss G70
212,00 €
212,00 €
334,00 €
334,00 €
476,00 €
476,00 €
●
●
●
●
Makassar 8
□high gloss G100
□high gloss G100, polished
212,00 €
755,00 €
334,00 €
1052,00 €
476,00 €
1.349,00 €
●
●
●
●
Teak 8
□matt G30
□semi-gloss G70
212,00 €
212,00 €
334,00 €
334,00 €
476,00 €
476,00 €
●
●
●
●
Individual surface finishing
Your desired finish8on request
xxx,--
xxx,--
xxx,--
●

● = available as optional equipment ○= standard equipment - = not available Explanations of the footnotes –page 31
17
Surface finishing 118
Genium Line and Pure Line
Extra charge5 Euro excl. VAT Complete Cladding
Genium Line
Pure Line
CLADDING
Lacquered finishes
Black 8
□matt G30 - soft touch
□semi-gloss G70
0,00 €
130,00 €
○
●
○
●
Black 8
□high gloss G100
□high gloss G100, polished
1.070,00 €
-
●
-
●
Pure white 8
□matt G30 –soft touch
□semi-gloss G70
0,00 €
130,00 €
○
●
○
●
Pure white 8
□high gloss G100
□high gloss G100, polished
130,00 €
850,00 €
●
●
●
●
Metallic finishes
Silver metallic 8
□matt G30 –soft touch
305,00 €
●
●
Silver metallic 8
□high gloss G100
□high gloss G100, polished
305,00 €
1.150,00 €
●
●
●
●
Arctic grey metallic 8
□matt G30 –soft touch
305,00 €
●
●
Arctic grey metallic 8
□high gloss G100
□high gloss G100, polished
305,00 €
1.150,00 €
●
●
●
●
Crystal Red metallic 8
□matt G30 –soft touch
305,00 €
●
●
Crystal Red metallic 8
□high gloss G100
□high gloss G100, polished
305,00 €
1.150,00 €
●
●
●
●
Deep Crystal Blue metallic 8
□matt G30 –soft touch
305,00 €
●
●
Deep Crystal Blue metallic 8
□high gloss G100
□high gloss G100, polished
305,00 €
1.150,00 €
●
●
●
●
Individual surface finishing
Your desired finish8on request
xxx,--
●
●

18
Dimensions 118
Single width
Double width
Triple width
118 Genium Line
Design height 700 mm
Usable height 566 mm. The shelves can be adjusted in height in a grid of
25 mm. Shelf-thickness 34 mm. Max. 4 shelf levels.
Design height 850 mm 9
Usable height 716 mm. The shelves can be adjusted in height in a grid of
25 mm. Shelf-thickness 34 mm. Max. 5 shelf levels.

19
Single width
Double width
Triple width
Design height 1000 mm 9
Usable height 866 mm. The shelves can be adjusted in height in a grid of
25 mm. Shelf-thickness 34 mm. Max. 5 shelf levels.
118 Pure Line
Design height 700 mm
Usable height 566 mm. The shelves can be adjusted in height in a grid of
25 mm. Shelf-thickness 34 mm. Max. 4 shelf levels.
