FAME Hybrid Pro User manual

FAME
Hybrid Pro Sound Module
ENGLISH
Bedienungsanleitung
Users Manual
DRU0039596-000 / DRU0039078-000
06/2021
11/2020

2
ENGLISH
Congratulations on your new FAME Hybrid PRO sound module!
Thank you for choosing a FAME product. Thanks to efficient development and economical production,
FAME makes high-quality products at a fantastic price possible.
Please read these operating instructions carefully to be informed about all functions of this product
and keep them for future reference.
Have fun with your new product!
Your FAME Team
Guarantee:
The current general terms and conditions and guarantee
conditions of Music Store professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions,
please contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-Nr. DE 41617453
Tel: [phone]
Fax: [phone]
[email protected]
Intended use:
The product FAME Hybrid PRO sound module was designed for use as an external electronic
sound generator for drums. By connecting drum pads or drum triggers, an artificial drum sound is
simulated in various forms and optionally played back via headphones or external speakers. The
device may only be operated for this purpose and in accordance with the operating instructions. Other
purposes, as well as operation under other operating conditions, are expressly not intended and can
lead to damage to property or personal injury! No liability is assumed for damages resulting from
improper use. It must be ensured that the device is operated exclusively by trained and expert users
who are in full possession of their mental, physical and sensory abilities. Use of other persons is
expressly permitted only at the request of a person responsible for their safety who instructs or
supervises the use.
Content
Amount
Hybrid Pro sound module
1
Module holder
1
Pad wiring harness
1
TRS-MIDI cabel
2
Power supply with multi-
adapter worldwide
1
Cable velcro black
10
Manuals
3
FAME Sticker
1

3
ENGLISH
Please note: These instructions are generally valid for the Fame Hybrid Pro Module and describe the
functions in full. With the Fame Hybrid Pro e-drum set, you may not be able to use all functions to the
full, because you may have to use pads from other manufacturers, for example.
Important safety instructions! Please read before connection!
ATTENTION! MUST BE OBSERVED
Please tighten the mesh heads properly after assembly!
(Valid with purchase of DRU0039078-000 / Fame Hybrid Pro E-Drum Set)
CAUTION! (Electro magnetic interferences)
The normal function of the product may be disturbed by Strong Electro
Magnetic Interference. If so, simply reset the product to resume normal operation
by following the owner‘s manual. In case the function could not resume,
please use the product in other location.
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must
be kept out of the reach of babies and children due to the danger of suffocation.
Make sure that children never use the device unattended! In addition, make
sure that children do not remove (small) parts from the device, as they could
suffocate by swallowing parts!
DANGER! (Electric shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the
device. Inside the unit there are components which are under high electrical
voltage.
Before each use, check the device for damage or the absence of components,
protective devices or housing parts. If this is the case, do not use the device!
Leave maintenance and repair work to a qualified service workshop or contact
your dealer.
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is
damaged, it must be replaced immediately with an original spare part from the
manufacturer. Failure to do so may result in fire or death due to electric shock!
WARNING! (Damage to hearing)
The unit may generate volumes that may cause temporary or permanent hearing
loss. Over time, even seemingly uncritical levels can cause hearing damage.
Reduce the volume immediately if ear noise or hearing loss occurs. If this
is not possible, keep a greater distance or use adequate hearing protection.
HINT! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a place with adequate ventilation, out of the
reach of direct heat sources, naked flames and combustible materials and
liquids.

4
ENGLISH
The ventilation slots of the device must not be taped or covered.
HINT! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation
(IP20). Never expose the device to rain, moisture or liquids as this may cause
damage.
Vibrations, dust or solar radiation can also lead to damage, avoid them!
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the instrument. If this happens,
remove the electric plug from the outlet. Then have the instrument
inspected by qualified service personnel.
Disconnect all cables before moving the instrument.
HINT! (Power supply)
It is essential that you check that the device voltage matches your local mains
voltage. It is highly recommended that you fuse your mains socket with a
residual current circuit breaker (FI).
Please connect the designated AC adaptor to an AC outlet.
If you do not use your device for a longer period of time, disconnect it from
the power supply in order to minimize danger. The same applies to storm
conditions such as thunderstorms, floods, etc.
HINT! (Use of racks - when purchasing DRU0039078-000 /FAME Hybrid Pro)
As soon as the device is mounted on a rack, always ensure that it is securely and firmly
fixed in place.
HINT! (Commissioning)
All connections of the device should be made before switching on.
Use only high-quality cables for the connections.
HINT! (Installation)
Always check the device for damage before using it. Ideally use the original packaging or
suitable transport or storage packaging to protect the product optimally from influences
such as dust or moisture, etc. when not in use.
HINT! (Possible damage due to magnetic fields)
Loudspeakers generate a static magnetic field. Please keep an appropriate distance
from other equipment that may be affected or damaged by an external
magnetic field.
HINT! (Possible interference with other electrical devices)
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
If this equipment does cause harmful interference to radio or television reception,

5
ENGLISH
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Symbols on device and packaging:
The lightning flash symbol warns the user about non-insulated current and the
risk of electrocution
The exclamation mark symbol warns the user about important maintenance
and operating instructions in the manual
Intended for indoor use
Read manual

6
ENGLISH
Table of Contents
1. Main Features / Introduction......................p. 7
2. Basic Know-How.........................................p. 9
2.1 Operation....................................p. 9
2.2 Menu Structure...........................p. 10
2.3 Drag&Drop (USB Modus).............p. 10
2.4 File System…..............................p. 11
2.5 User-Kit-Bank and User-Kit-File p. 12
2.6 Channel Overview.......................p. 13
3. Connection.......…......................................p. 14
4. Control Elements.......................................p. 16
5. Hi-Hat Setup & Calibration……..........…...p. 18
6. Menu Structure..........................................p. 21
7. Saving….....................................................p. 23
8. MIXER-UNIT Menu.....................................p. 26
8.1 MIX...........................................p. 26
8.2 TRIG*.......................................p. 27
8.3 HCAL.........................................p. 31
8.4 HSET.........................................p. 32
8.5 SPEC.........................................p. 32
8.6 INTF*........................................p. 33
8.7 OUT..........................................p. 35
8.8 METR........................................p. 37
8.9 MIDI.........................................p. 37
8.10 PREF.......................................p. 38
8.11 MEM.......................................p. 39
8.12 INFO......................................p. 40
9.4
9. PROGRAMM Menu................…….....….p. 41
9.1 PROG.......................................p. 41
9.2 EQ...........................................p. 42
9.3 ACMP.......................................p. 43
9.4 KFNC*.....................................p. 45
10. CHANNEL Menu...................................p. 45
11. SOUND Menu........................................p. 46
11.1 DRUM*..................................p. 46
12. SPECIAL Menu.....................................p. 47
12.1 ENV*.....................................p. 47
12.2 CFNC*...................................p. 49
12.3 VOL*.....................................p. 50
13. Signal Flow & Routing Options………p. 51
14. Technical Data…...........………............p. 56
15. Update...................................................p. 57
16. FAQs.....................................................p. 57
17. Contact & Support...............................p. 58
18. Cleaning….............................................p. 59
19. Environmental Protection....................p. 59

7
ENGLISH
1. Main Features / Introduction
Thank you for choosing a FAME Hybrid PRO sound module. You have made the right choice. Your
new instrument offers you first-class sound quality and maximum flexibility. The FAME Hybrid PRO
sound module has an open sound architecture and offers you 12 independent trigger channels, 4
audio outputs and 4 GB sound memory.
Trigger
The FAME Hybrid PRO sound module has an ultra-fast and precise trigger interface and allows you
to play practically latency-free with a very wide dynamic range. Depending on the pad used, different
sounds can be triggered via different zones. The snare channel has 2 zones ( head, rim, cross stick),
the tom channels of the FAME Hybrid sound module have 1 zone, whereas the cymbal channels
offer 2 different sound zones (edge, bow and bell). In addition, the cymbal channels have a choke
function, which allows the manual muting of sounds like a conventional cymbal.
Sounds
The soundso f the FAME Hybrid PRO sound module impress with an absolutely natural sound
experience. This is achieved by a complex multi-layer process. Drums and cymbals were recorded in
hi-end sound studios with multiple microphones at different distances. Some sounds were rather "dry"
and others with clearly audible room acoustics ("Ambience") were mixed in stereo.
"Multi-Layer" at Fame means that each instrument is recorded at many different volume levels. This
means that not only the volume, but also the sound and frequency characteristics change with
different beat intensity. Some of the factory sounds consist of up to 128 individual layers. The result is
an absolutely natural sound behaviour and an outstanding authenticity of the samples.
You can assign any sound to each drum channel. However, there are instruments with several (sound)
zones, which are only completely available if they are also controlled by a suitable pad (e.g. cymbal
sounds with 3 zones: edge, surface, crest). Each drum sound is saved as a single file and clearly
sorted in folders. This way you always have an overview and can easily organize your sounds.
In addition, the Hybrid Pro features exclusive sounds by Simon Phillips and Marco
Minnemann. Both belong to the best drummers worldwide and have recorded their
own drum-set exclusively for the Fame Hybrid Pro.

8
ENGLISH
Memory spaces (Kits)
The FAME Hybrid PRO sound module provides you with 4 GB of sound storage with 100 memory
locations, 40 of which are empty, i.e. user kits. With the FAME Hybrid PRO all kits are pre-
configured from the factory and can still be changed and saved according to your wishes. Of course
you can also rename and re-sort the kits, which makes them easier to access and handle on stage. To
be able to save, the SAVE function must be activated on the page MIXER-UNIT-PREF. (chapter 8.10)
Play-Along-Function
If you like to practice to songs or recorded playbacks, you can load normal WAV files in CD quality
(stereo, 16 bit/44.1 kHz) into the module via USB and then assign them to a kit. Alternatively, you can
connect a player/smartphone to the line-in jack. Naturally you can also feed in other instruments or a
monitor mix via this input (live or studio respectively).
Metronome
With the built-in metronome you can not only practice and refine your technique, but also use it for
live performances. You can save an individually programmed metronome per kit. You have a variety of
time signatures and sounds at your disposal and can set the tempo precisely to your specifications.
The metronome can also be used as a one- or two-bar single counter: in matching mode the click
stops automatically.
PC/Mac-Editor
With the editor software of the FAME Hybrid PRO you can comfortably manage your module from
your computer and even create your own sounds. Once the FAME Hybrid PRO is connected to your
computer (Mac or PC) via USB. Now start the editor and access the module. Now you can organize
and manage the internal kits. Assign sounds from the extensive internal library and make your
personal settings (tuning, volume, pan). You can listen to the sounds comfortably on your computer
and edit the settings effortlessly. Furthermore you can create your own sounds in a special format.
Create your own multi-layer sound files from WAV files, e.g. from recordings of your acoustic set or
sounds from sample libraries.
The FAME-Editor is available as a free download on our website www.musicstore.com

9
ENGLISH
2. Basic Know-How
2.1 Operation

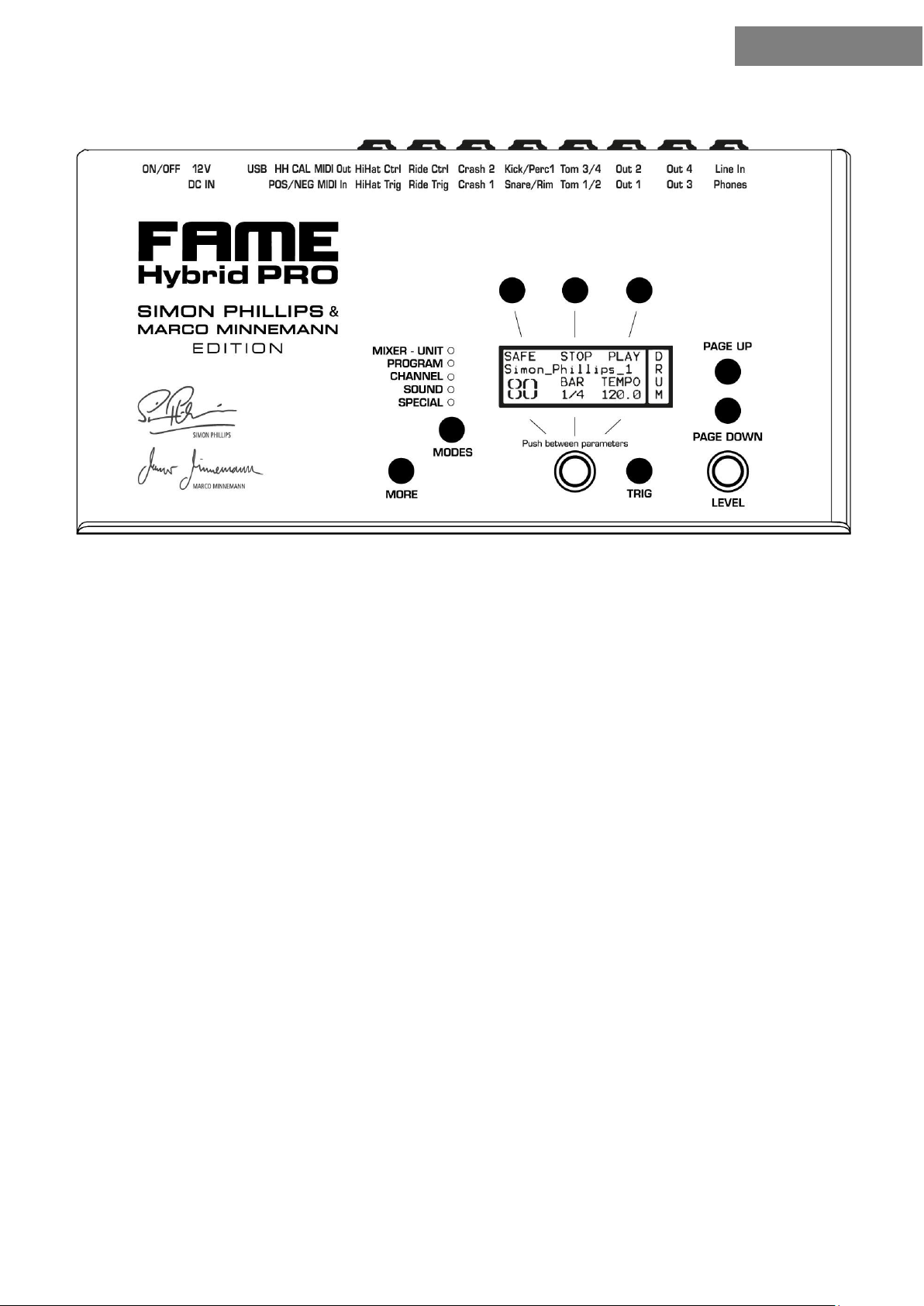

The operation of the module is simply structured and is done intuitively via 5 menu items (MIXER-
UNIT/PROGRAM/CHANNEL/SOUND/SPECIAL) with various sub-pages. These sub-pages can be
selected in sequence by pressing the PAGE UP or PAGE DOWN buttons respectively. There are no
second levels and no hidden menu items.
The main display is divided into six different sections. With the three DATA buttons above the display
you control the values or functions respectively in the upper half of the display. Press the respective
button directly above the desired field to change values or start functions. The three lower fields, on
the other hand, are operated by the central rotary knob. With this knob you can change the values of
the currently selected parameter placed above it. To select another parameter in the lower row, all
you have to do is press the rotary knob. The flashing of the parameter heading indicates which
parameter is activated.

10
ENGLISH
2.2 Menu Structure
The FAME Hybrid PRO module is characterised by a simple and intuitive menu structure. There are
five general menu areas, which can be easily accessed with the MODE button.
MIXER-UNIT
PROGRAMM
CHANNEL
SOUND
SPECIAL
Each menu area has different pages, on which the individual functions are grouped according to topic.
There are pages that contain global settings and others that allow separate settings for each drum
channel. Use PAGE UP and PAGE DOWN to scroll through each menu to access the desired page.
2.3 Drag & Drop (USB Modus)
If you connect the FAME Hybrid PRO to your computer (PC or Mac) via USB and start it in USB
mode, it will be recognised and displayed as a "normal" memory drive. The module now behaves
exactly like an external USB hard drive or card reader. For example, you can transfer, move and copy
sound files between your computer and your FAME module by drag and drop. This makes the
management of FAME sounds as easy and unproblematic as the handling of digital photos, MP3s or
Office files. To start the FAME Hybrid PRO in USB mode, simply press and hold the left DATA button
above the display while you turn on the device.
If the module is correctly connected to the computer, "R" (under "Stat") symbolises the read mode
and "W" the write mode. Please note that errors may occur in the file system if you disconnect the
USB connection while the module is in read (R) or write (W) mode.
Back Up
If you have connected the Fame Hybrid Pro module to your computer via USB, you can easily create a
backup of the module content and save your sound files from accidental loss. Copy the files 1:1 to
your computer or use a conventional backup programme.
You can change the folder structure according to your own ideas and preferences in order to structure
your file storage system according to your individual needs. With regard to the display size of the
Fame Hybrid Pro module, it is recommended not to use long folder names and not to create too many
layers for the sake of clarity.
