Fantasea Line
NP-FW50 Cradle A (Cat. No. 6581)
Instruction Manual
The NP-FW50 Cradle A allows connecting an additional NP-FW50
battery to the camera, thereby providing extended battery life. The
cradle unit connects to the camera Micro USB port and can be
mounted on the camera hot-shoe mount for a secure position inside
the housing. For compatibility information, please visit
www.fantasea.com
IMPORTANT NOTICES
* Images provided in this instruction manual feature the Sony a6500 camera. However, the NP-FW50 Cradle A can be
used with other cameras that are equipped with a Micro USB port and enable operation when connected to a
charger.
** Images provided in this instruction manual feature the Fantasea FA6500 Housing. However, the NP-FW50 Cradle
A can be used with other housing models offering sufficient space to accommodate the cradle, either when mounted
on the camera hot-shoe or secured elsewhere in the housing.
*** The NP-FW50 Cradle A blocks the camera hot-shoe connection if mounted on the camera hot-shoe. Depending
on the housing model, the cradle can be secured elsewhere and without blocking the camera hot-shoe if sufficient
space is available.
**** NP-FW50 battery not included.
SPECIFICATIONS
Material: Polycarbonate
Main unit dimensions (L x W x H): 55 x 37 x 25 mm / 2.16 x 1.46 x 0.98 inch
Weight: 20 g / 0.7 oz
Manufacturer’s warranty
INSTRUCTIONS FOR USE
1. Install a fully charged NP-FW50 battery inside the cradle by gently sliding it in. Make sure the battery is
installed with the electrical socket opposite the cradle plug (Fig.1).
2. Gently push the battery all the way in, until the cradle plug is fully inserted inside the battery electrical
socket (Fig.2). Do not use any force in order to avoid distortion of the plug.
Fig.1
Fig.2

2NP-FW50 Cradle A Instruction Manual 20171201
3. To make sure that the battery has been properly installed
inside the cradle, turn the cradle on using the power switch.
If a charged battery has been properly installed, the
indicator light will turn on (Fig.3).
4. If possible, it is recommended to mount the cradle on the
camera hot-shoe in order to secure it within a fixed position
and to ensure all camera and housing functions are
accessible. To do so, hold the cradle opposite the camera
hot-shoe with the cradle hot-shoe connector pointed down
and the cable pointed leftwards and towards the Micro USB port of the camera (Fig.4). Then gently slide the
cradle hot-shoe connector forwards all the way through the camera hot-shoe mount until reaching a point of
minimal resistance (Fig.5).
5. If the cradle cannot be mounted on the camera hot-shoe since the hot-shoe is already being used with a
different accessory or since there is no sufficient space inside the housing to accommodate the cradle in this
position, the cradle can be secured elsewhere inside the housing. Either way, when positioning and securing
the cradle, make sure it doesn’t interfere with housing and camera operation and that it doesn’t interrupt
the watertight seal of the housing.
6. Open the camera connections slot cover (Fig.6).
7. Connect the cradle cable to the camera Micro USB port (Fig.7). Make sure you’re inserting the cable into the
port in the correct direction and do not use any force. If exists, the camera charge lamp (or any other
indication of charging on the camera) should turn on a few seconds after the cable has been connected and
the cradle has been turned on (see example on Fig.8).
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8

3NP-FW50 Cradle A Instruction Manual 20171201
8. Turn the camera on and look for a charging icon or any other indication that usually appears on your camera
when connected to a charger (see example on Fig.9). Note that occasionally, such icons disappear after a few
seconds and should appear again if depressing the shutter release halfway.
9. Install the camera inside the camera housing following the instructions provided with the housing (Fig.10).
Make sure the cradle and cable do not interrupt with proper installation of the camera.
10.If the cradle isn’t mounted on the camera hot-shoe, secure it within a position that does not interrupt with
proper operation of camera and housing controls, as well as the watertight seal of the housing.
11.Prior to closing the housing, roll and fold the cable to make sure it
doesn’t get caught in the way of the housing seal (Fig.11).
12.Make sure the cradle is turned on and close the camera housing
following the instructions provided with the housing.
13.Upon installing the battery cradle and prior to the dive, it is important
to test the watertight seal of the housing in a shallow body of water to
make sure that the housing is properly sealed.
14.To remove the battery cradle from the housing, simply turn it off
using the power switch, disconnect the cable from the camera
and slide the cradle backwards and out of the camera hot-shoe
mount Fig.12).

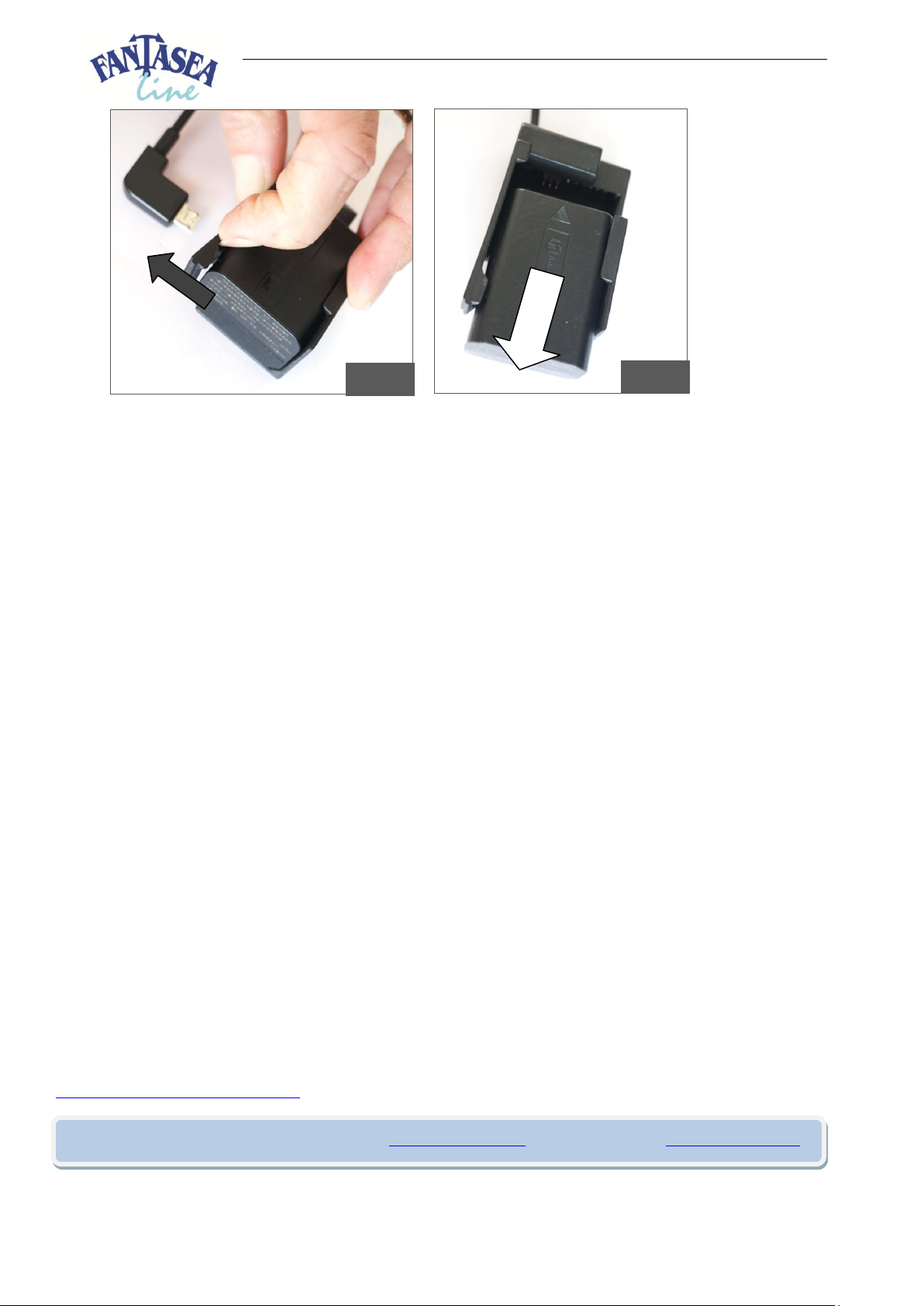

15.To remove the battery from the cradle, first gently pull the rear
dentate panel backwards (Fig.13 on the following page) and then
slide the battery outwards (Fig.14 on the following page). Note
that the battery can be removed from the cradle to be charged
without removing or disconnecting the cradle from the camera.
Fig.9
Fig.10
Fig.11
Fig.12
IMPORTANT NOTICE
When the battery cradle is connected to the camera and turned
on, the camera battery power indicator (usually displayed on the
. That is toboth batteriesLCD screen) refers to power provided by
say that at any given moment, the battery power indicator
. Power is obviouslyboth batteriespower left ontotalreflects the
drained much slower than when using a single battery.
Fig.11

4NP-FW50 Cradle A Instruction Manual 20171201
CARE & MAINTENANCE
1. Please use the utmost care and do not use excessive force when assembling and disassembling the different
parts, in order not cause any damage to the products.
2. Keep the battery cradle away from extreme high temperatures, as under direct sunlight.
3. Keep the battery cradle away from water. After the dive and prior to opening the housing, make sure to dry
it well in order to prevent water from dripping on the cradle once the housing has been opened.
4. Do not clean the battery cradle with any chemical solvents or other materials, which might cause damage to
the product.
5. When storing the battery cradle and during transportation, make sure that it is properly protected in order
to prevent any damage to the product.
6. Do not store the battery cradle in presence of chemicals, solvents or fuels.
FANTASEA PRODUCT CONSUMER LIMITED WARRANTY
“Fantasea” warrants this Fantasea Line branded product against defects in materials and workmanship under reasonable
use for a period of ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer).
This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original
end-user purchaser (“Warranty Period”). This warranty does not cover any commercial use of the product. If a product
defect arises and a valid claim is received within the Warranty Period, at its option, Fantasea, or its authorized service
facilities will either (1) repair the product defect at no charge, (2) exchange the product with a product that is new or which
has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product.
The warranty will not extend beyond the original warranty period. Your Fantasea Product should be registered within 30
days of purchase. You must keep the proof of purchase which indicates the date on which the purchase was made; as you
may be required to show proof of purchase if you need warranty service. The following conditions apply:
1. This warranty extends to the original purchaser only. It is not assignable or transferable. 2. The warranty does not cover
damage resulting from misuse, abuse, negligence, or accidents. Proper maintenance of the Product is the responsibility of
the owner. 3. The warranty does not cover damage directly or indirectly resulting from the use of unauthorized replacement
parts or service performed by unauthorized facilities. 4. This warranty does not cover any damage to any other product
used in conjunction with the Fantasea product, including cameras and lenses, and resulting from any defect in the product
materials or workmanship. 5. The cost of sending the product back to Fantasea or its authorized service facilities is the
responsibility of the customer. 6. The warranty does not cover any incidental damages resulting from any defects in the
product. This expressly includes any travel reimbursements or any other costs associated with the purchaser’s optional use
of the product. The conditions of this warranty are expressly in lieu of all other expressed warranties, including the payment
of consequential or incidental damages for the breach of any warranty. Please register your product on line at this URL:
http://www.fantasea.com/registration.
Fig.13
Fig.14
