Farmi Forest FT9 Guide

PROFI
STANDARD
FT9
FOREST TRAILER
OPERATION, MAINTENANCE
AND SPARE PARTS MANUAL
PLEASE READ THE OPERATING AND MAINTENANCE
INSTRUCTIONS BEFORE YOU OPERATE THE MACHINE.
FROM MACHINE: YH5FT009JB000087
TRANSLATION OF THE INSTRUCTION MANUAL
C-EN-301219-ER

FT9 3
When ordering spare parts, please indicate machines type from the machine plate, spare parts order num-
ber, description and quantity required. Example. FT9, 44081760, pin, 1 pc
TABLE OF CONTENTS
PRODUCT WARRANTY 5
GENERAL DESCRIPTION AND INTENDED USE OF THE TRAILER 6
ACCESSORIES 7
GENERAL SAFETY INSTRUCTIONS 8

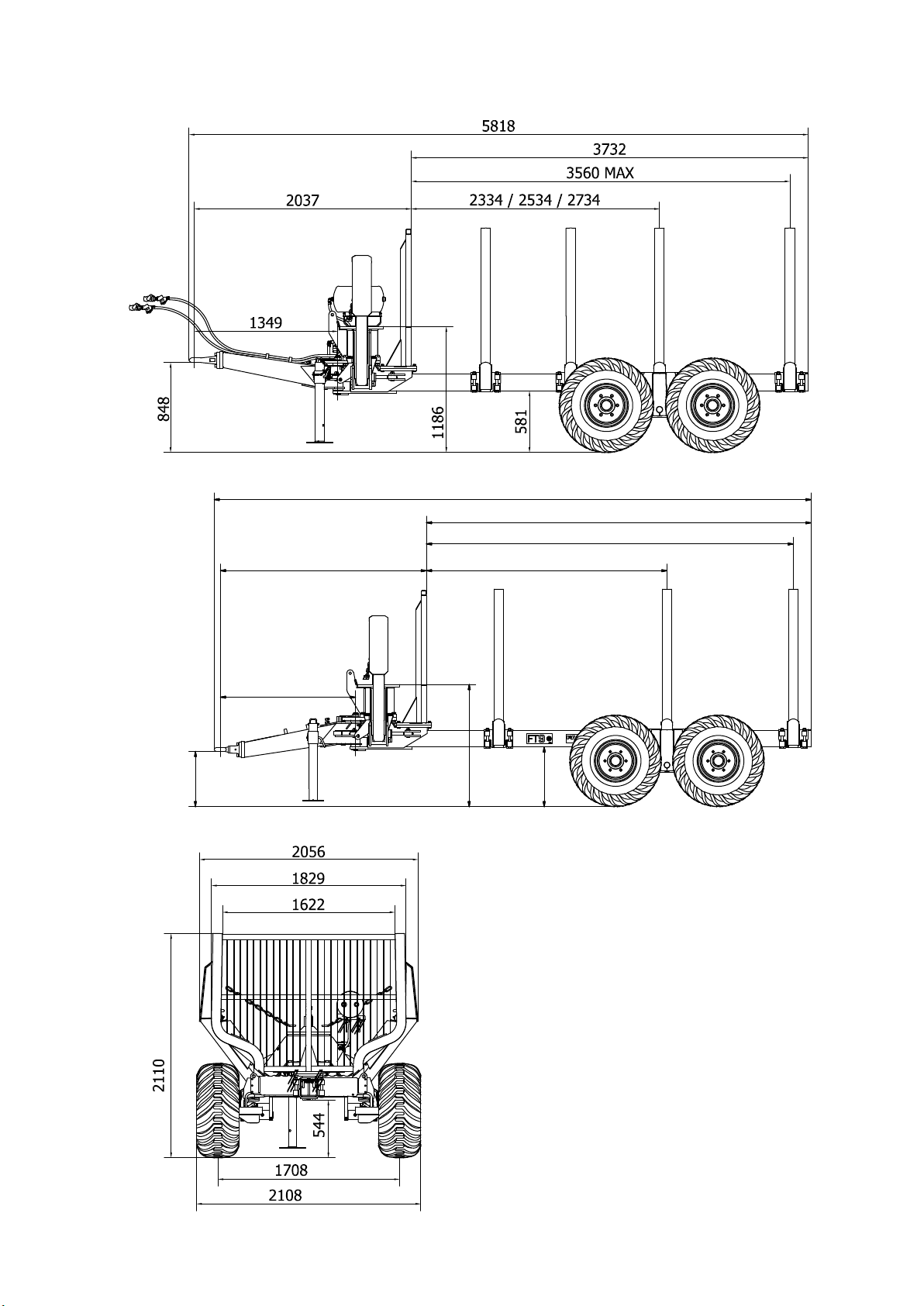

TECHNICAL DATA 12
STICKERS AND PLATES 14
ASSEMBLY 17
INSTRUCTIONS FOR USE 17
CHECKS TO PERFORM BEFORE OPERATION 17
DRIVING 17
MOUNTING, DISMOUNTING AND PARKING OF TRAILER/CRANE COMBINATION 18
HYDRAULIC STEERING 19
INSTRUCTIONS FOR MOVING THE BOGIE BOLSTER 20
INSTRUCTIONS FOR MOVING THE BOLSTER SET 20
WORKING INSTRUCTIONS 21
MAINTENANCE 23
TROUBLESHOOTING TABLE 25
LUBRICANT RECOMMENDATIONS 25
200002703 FT9 26
200002704 DRAWBAR, D-MODULE 28
200002705 DRAWBAR, U-MODULE 29
200002706 DRAWBAR, O-MODULE 30
24083280 HYDRAULIC STEERING 32
200003114 SCREEN 34
200004067 BOLSTER SET 35
200004194 BOGIE BOLSTER SET 36
200002740 BOGIE AXLE, WITHOUT BRAKES, FT9/FT10, XX-MODULE 39
200003340 BRAKE PARTS FT9/FT10, JX-MODULE 40
14082670 BRAKE PARTS FT9/FT10, PX-MODULE 42
14084570 BRAKE PARTS FT9/FT10, PP-MODULE 44
200002741 BRAKE PARTS FT9, OX-MODULE 46
200002742 BRAKE PARTS FT9, OH-MODULE 48
200002744 BRAKE PARTS FT9, HX-MODULE, FRANCE 50
14082680 BRAKE PARTS FT9/FT10, HX-MODULE 52
14084090 BRAKE PARTS FT9/FT10, HH-MODULE 54
200003341 BRAKE PARTS FT9/FT10, JJ-MODULE 56
54839930 HUB, WITHOUT BRAKE, 6-BOLTS, RINNER 58
54839940 HUB, WITH BRAKES, 6-BOLTS, RIGHT, RINNER 60
54839950 HUB, WITH BRAKES, 6-BOLTS, LEFT, RINNER 60
200002596 TYRE SET 400/60-15.5 62
200002597 TYRE SET 500/50-17 62
PRODUCT REGISTRATION FORM 64

FT94
Manufacturer:
Farmi Forest Corporation
Ahmolantie 6, FIN-74510 IISALMI, Finland
Person authorized to compile the technical documentation:
Name: Petri Pelkonen
Address: Ahmolantie 6, FIN-74510 IISALMI, Finland
Commercial name:
Farmi
Machine denomination:
Forest trailer
Machine type:
FT9
Machine series number:
Herewith, we declare that the machine brought into circulation conforms with
the pertinent requirements of the Machinery Directive 2006/42/EC.
The following harmonized standards have been applied for the conceptional design of the machine:
SFS EN ISO 12100, SFS-EN ISO 4254-1
Iisalmi 30.12.2019
(Place) (date)
Ilkka Kuuramaa
EC DECLARATION OF CONFORMITY
Original declaration of conformity

FT9 5
WARNING
IMPORTANT
ATTENTION
WARNING SYMBOLS IN THIS MANUAL
• imminent danger which could cause serious personal injury or death
• danger which could cause personal injury
• conditions or misuse that could damage equipment or machinery
• reminders, such as for performing checks or carrying out maintenance or repair
procedures
INTRODUCTION
This manual includes the information and maintenance instructions required for operating the machine in the optimal
manner.
Although you have experience in using this kind of machinery, read the operation and maintenance instructions careful-
ly since they include information enabling ecient and safe operation. Regular maintenance is the best way to guarantee
the ecient and economical performance of the machine.
Each and every operator must read, understand, and follow all safety instructions and
procedures.
CUSTOMER FEEDBACK
We are happy to receive your opinions and suggestions for improvements by mail or e-mail.
All implemented suggestions for improvements will be rewarded.
PRODUCT WARRANTY
Farmi provides a 12-months warranty on all Farmi products.
Register on our home page farmiforest./en/products/ within 30 days after the receipt of the product to get full product
warranty and additional information on your product. If it is not possible for you to register via internet, please register
as follows: Complete the registration form on the last pages of this manual and return it to us within 30 days after the
receipt of the product.
ATTENTION

FT96
GENERAL DESCRIPTION AND
INTENDED USE OF THE TRAILER
FT9 is a forest trailer with repositionable bolsters and
bogie to allow a stable load for dierent timber lenghts.
A variety of hydraulic and pneumatic brakes are available.
The standard drawbar steering provides improved ma-
nouverability.
TECHNICAL REQUIREMENTS FOR THE TOWING
TRACTOR
• Hitch mechanical properties: vertical load >1700 kg,
horizontal load >10300 kg.

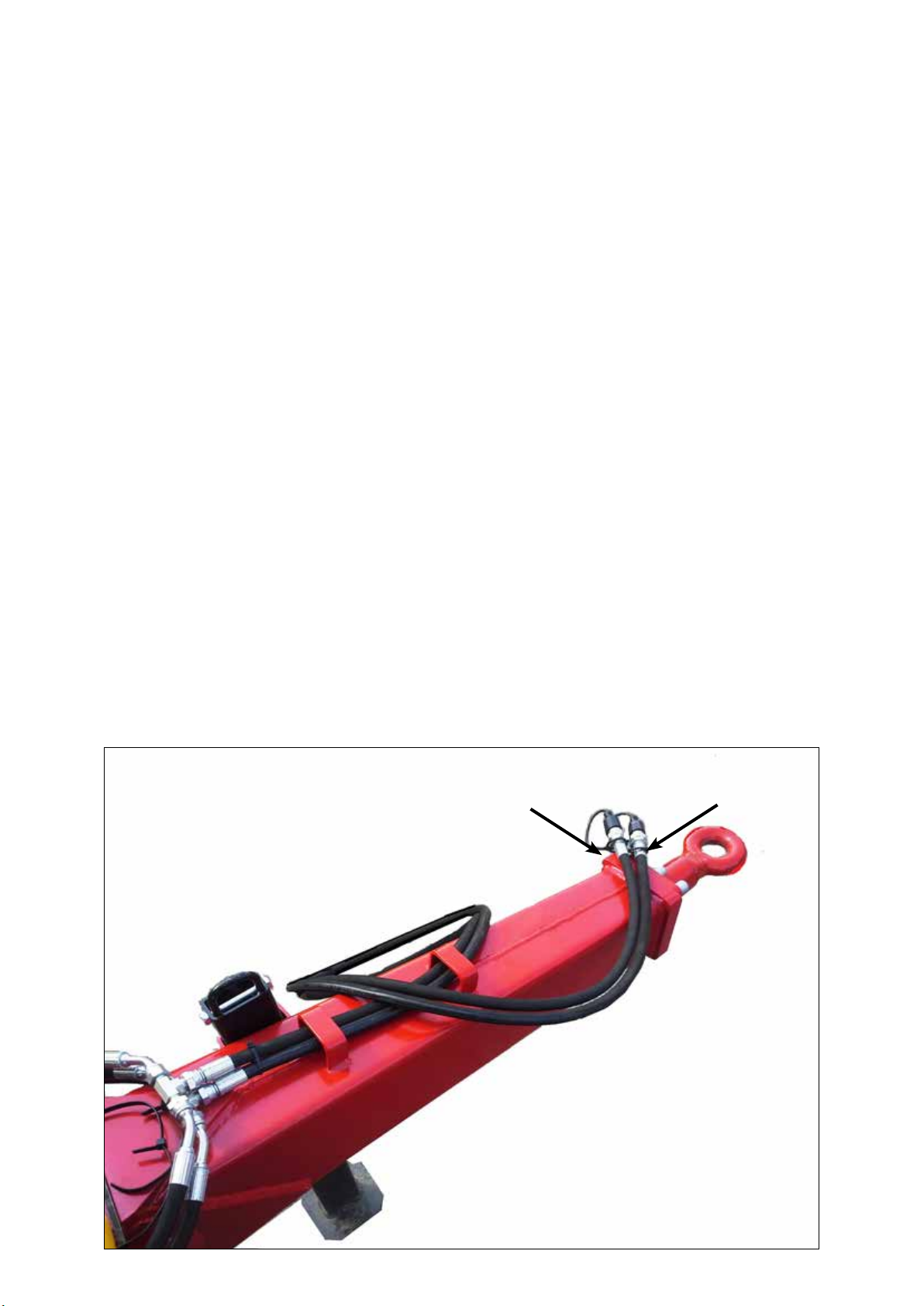

• Two-way directional control valve for hydraulic draw
bar steering (max pressure 200 bar).
• Light connector for trailer lights (7 pole connector
or similar).
• Recommended tractor power 100 HP.
OPTIONAL REQUIREMENTS
• Hydraulic brake valve or one-way directional control
valve for operating the hydraulic brake system
• Pneumatic brake valve for controlling the pneumatic
brake system.

FT9 7
ACCESSORIES
LED rear light series , TÜV approved
(order no 200003345)
LED rear light series , (order no 200003231)
Operator stand (order no 200000381)
• Operator and control valve platform to be mounted
on the trailer drawbar
Frame extension
(FT9 order no 200003157,
FT10 order no 200003160)
• Metre-long extension provides extra space for the
load
• To be mounted to the rear of the trailer
Rack for chain saw, axe and combi tank (order no
200002622)
• Fastened to the forest trailer safety screen
Biomass box (order no 200002001)
• for brances
• easy to install in three parts

FT98
GENERAL SAFETY
INSTRUCTIONS
These safety instructions are meant for the owners of
FARMI machine, as well as those who operate, service or
repair it.
The instructions help with:
• using the machine safely, appropriately and eecti-
vely.
• identifying, avoiding and preventing potentially dan-
gerous situations.
The manufacturer supplies an operation manual, which
must always be available at the place of operation of the
machine. Each user must read the safety, maintenance and
operating instructions before operating the machine, and
comply with these instructions at all times.
Ensure that every operator of the
machine is familiar with the content
of the operation manual and situ-
ation-specic safety instructions,
and has been suitably trained before
operating the machine.
The machine complies with technical requirements and
applicable safety regulations. However, incorrect use,
maintenance or repair of the machine may cause risks.
In addition to the operation manual, remember to comply
with regulations of the local occupational health and safe-
ty authorities, and with your country’s laws and decrees.
The manufacturer is not liable for damages caused
by:
• incorrect, negligent or inappropriate use of the pro-
duct.
• non-original spare parts.
• normal wear and tear.
• misuse caused by an untrained person’s improper
actions.
• alterations made without the manufacturer’s permis-
sion.
Written authorization must be
requested from the manufacturer for
any alterations to the machine.
STARTING
Please read the operating instruc-
tions carefully before using, main-
tenance or repairing the machine.
Observe all operating and safety
instructions when-ever using the
machine.
1. Familiarize yourself thoroughly with the use,
operation and controls of the machine and its equip-
ment before starting.
2. Familiarize yourself with the capacities and
limitations of the machine and its equipment.
3. Do not use the machine unless you are completely fami-
liar with its operation.
4. Be aware of the machine’s danger zones.
5. During operation, prevent bystanders from entering the
danger zone. If necessary, work must be stopped.
6. Ensure that each operator has the necessary safety equip-
ment, such as a helmet, safety goggles, work safety
boots and suitable protective clothing.
7. Never wear loose clothing around moving parts.
Protect long hair!
8. Ensure that work is carried out according to the
stipulations of applicable occupational health and sa-
fety legislation.
9. Before starting up or using the machine, ensure that it
cannot cause a risk to other people or property.
10. Perform a safety check on the machine before every use.
If you observe any faults or deciencies, repair the
machine immediately.
11. Before operating the machine, ensure that there are no
foreign articles in it.
12. Place the machine on a hard, level surface for operation.
In the winter avoid working in slippery areas.
13. Before mounting and using the machine, check the PTO
drive shaft for correct condition and attachment.
14. Never use a faulty or decient machine.
15. Using the tractor lower link arms to mount the top link
is prohibited. The top link is to be mounted by ad-
justing its length.
ATTENTION
ATTENTION
ATTENTION

FT9 9
TRANSPORT
1. Before driving with the machine, ensure the safe
mounting of the machine. Make sure that the jour-
nals are seating correctly and that the pins are tight.
Check the tension of the lower link stabilizers.
2. Before driving with the machine, make sure that
the required lamps and reectors as well as the slow
moving vehicle sign are attached correctly. Moreover,
the lamps should be checked for correct functioning.
3. Before driving with the attached machine, make sure that
the hydraulic unit of the machine is depressurized
(unless otherwise instructed in the operating instruc-
tions).
4. When driving on public roads, always observe the valid
trac regulations. The travel speed must be adapted
to the specic conditions.
5. When driving, please take into consideration the
additional mass resulting from the machine’s weight.
It may aect the reactions, the steerability and the
braking function of the tractor.
6. Please note that the machine rear sways when
turning.
7. Pay attention to the machine’s height near bridges or ot-
her height restricting objects.
8. When backing o, the machine may obstruct the rear
view. Exercise extreme caution. If necessary, ask
a agman to help you; he can indicate the required
distances.
9. It is prohibited for other people to ride on the
machine.
OPERATION
Many occupational accidents take
place in abnormal circumstances.
Therefore it is important to take into
account all the possible circumstan-
ces that may arise during operation
of the machine.
The machine’s operator must have
constant, unobstructed visibility of
the work area. If this is not possible,
the operator must work with an as-
sistant.
1. Depending on the machine’s type, it will have
diverse safety devices and protectors. These are me-
ant to protect the machine and its operator, and they
must never be removed or altered. Never start up or
use the machine without all the safety devices and
protectors in place.
2. Also check the universal joint’s safety equipment
and joints.
3. Never insert any body part into the machine with the
engine running.
4. If any faults arise that may jeopardize occupational safety,
turn o the machine.
5. During operation, the machine’s operator is
responsible for safety in the whole work area. Work
may not be carried out in the presence of any factors
that jeopardize occupational safety.
6. Exercise extreme caution when hitching/unhitching the
machine from a tractor/trailer.
7. Look out for moving parts when the machine is in
operation.
8. Secure the machine against unauthorized and acciden-
tal operation (e.g. moving when parked) whenever
it is left unattended.
9. Never leave the machine running unattended.
10. Avoid causing fast, stroke-like loading.
11. Never exceed the given operating values.
12. All safety and warning signs on and in the machine must
be legible and intact.
13. The machine may not be operated by persons who are
unwell or under the inuence of drugs or alcohol.
WARNING
ATTENTION

FT910
MAINTENANCE
1. The machine may only be serviced and repaired
by professionals.
2. Electrical and hydraulic faults may only be repaired
by authorized professionals.
3. In cases requiring welding, contact the manu-
facturer.
4. When servicing the machine, place it on a level
surface and ensure that it cannot be moved.
5. Turn off the tractor engine and disconnect the
PTO drive shaft before beginning service or mainte-
nance actions.
6. Before any maintenance work, turn the main
power switch of the tractor to OFF.
7. Take out the key from the tractor’s ignition for the
duration of the servicing or maintenance. Check that
the power is o from the machine you are working
on.
8. Before disconnecting the hydraulic hoses from
tractor, ensure that the hydraulic system is
depressurized.
9. Observe the service intervals and annual safety
inspections.
10. All spare parts and equipment must fulll the manu-
facturer’s requirements. This can be guaranteed by
using original parts.
11. Put all safety devices back into place immediately
once servicing or maintenance is complete.
When lifting the machine, check that
the lifting/hoisting equipment is in
perfect working order. Check the
weight of the machine before lifting
it.
Choose lifting trajectories so that
they do not cause any danger.
Many countries have specific legislation on lifting,
hoisting cables and hoists. Always comply with local safety
regulations.
OILS AND LUBRICATION
1. Always use the oil types recommended by the
manufacturer. Other types of oil may cause faults or
improper operation of the equipment, which could
lead to serious damage to people or property.
2. Never mix dierent liquids or oils.
3. Always follow the manufacturer’s lubrication
instructions.
4. Use control equipment carefully until the hydraulic oil has
had time to reach its operating temperature.
SAFETY INSTRUCTIONS FOR HYDRAULIC
CIRCUITS
1. Work on hydraulic equipment may only be carried out by
professional hydraulic engineers.
2. Be cautious when using the equipment in cold
conditions.
3. Check the machine for leaks. Do not use the
machine if there is a leak from any system. Check
all hydraulic hoses – particularly those which are
bent during use – and replace any that are in poor
condition or have leaks. Ensure that all joins are tight
and that the lines are not damaged. Check that all
protective caps and ller caps are closed properly.
Check the hose sheathing for damage.
4. Check that all hose connectors, lengths and qualities
comply with applicable requirements. When replacing
or repairing hoses, use original parts or hoses and
connectors recommended by the manufacturer. Check
particularly that the pressure classes of the hoses
and connectors are suitable to the operating pressure
levels.
5. Check that all safety devices such as pressure relief val-
ves, etc., are in place and work properly. Familiarize
yourself with their use. Safety systems may never be
bypassed.
6. Check the main hydraulic parts daily, and always after
a fault. Replace any damaged parts immediately.
7. If a component is damaged, clean it before repairing it. Do
not use solvents when cleaning parts.
8. Do not attempt to carry out repairs that you are not fully
familiar with.
9. Never carry out repairs of the hydraulic circuit when the
system is pressurized. When pressurized, the oil spray
can penetrate the skin and cause mortal danger.
10. Never work below a device or component that is only
being held up by hydraulics. Use separate supports
when carrying out maintenance or repairs. Do not
disconnect cylinders or their valves until the machine
is well supported.
11. Most hydraulic oils do not evaporate easily. Risk factors
include hot oil, spills and oil mist (pressurized).
12. If oil gets into your eyes, rinse with plenty of water
and contact a doctor.
ATTENTION

FT9 11
13. Avoid prolonged or repeated oil contact with your skin.
14. If sprays or contact with the skin cannot be avoided, use
protective gloves, goggles and clothing as necessary.
Do not use oily clothing.
15. Avoid discharging hydraulic oil into the environment,
as it can pollute waterways and the groundwater. If
biodegradable oil is to be used, contact the manu-
facturer beforehand and have the suitability of your
equipment for the operation with biodegradable oil
conrmed by him before such oil is used.
16. Store the oil in sealed containers provided by the
manufacturer. Try to transfer the oil directly from its
container into the tank.
17. If the oil must be passed through other containers,
ensure that they are completely clean. Caps, funnels,
sieves and lling holes must also be clean.
18. Never store oil outdoors, as water could condense in it.
19. Always dispose of oil in a suitable container, never into
the environment!

FT912
TECHNICAL DATA FT9
Load capacity 9000 kg
Dead weight of the trailer 1300 kg
Max. permissible total weight of the trailer 10300 kg
Max. permissible towing speed 40 km / h
Max. permissible vertical load on the drawbar eye 1700 kg
Loading area 1,9 m2
Tyres 400/60-15,5
500/50-17
Recommended cranes CR40
Homologated gross vehicle mass (kg) for road use
25 km/h
40 km/h
TÛV
9000
9000
CEMAGREF
9300
-
Check the road legislation from your country. In some countries the trailer has to be
inspected regularly when used in road transportation.
IMPORTANT

FT9 13
1
10
9
87
6
5
4
3
2
11
MAIN COMPONENTS
1. Towing eye
2. Draw bar
3. Parking support
4. Frame
5. Screen
6. Bogie bolster
7. Bolster set
8. Stake
9. Tyre
10. Bogie beam
11. Hydraulic steering

FT914 14
16
5
4
3
2
The following plates and labels must be correctly attached to the machine. Missing safety plates / labels must be rep-
laced immediately.
STICKERS AND PLATES

FT9 15
16
5
4
3
2
1. Machine plate FT9 (200002495)
5. Sticker FT9 (200002520)
4. Switch o tractor and disconnect hydraulic hoses pri-
or to maintenance. (200000033)
2. Note! See manual for operation and maintenance.
(41014750)
3. Minimum distance (40146730)
6. Sticker FARMI Smart (200002514)

FT916
400/60-15,5 (500/50-17)
(2318)
(1818)
(569)
(2135)
(562)
(1211)
(606)
(873)
(1211)
(606)
1311
581
1186
1999 2334 / 2534 / 2734
3560 MAX
3732
5791
537
DIMENSIONS
DRAW BAR (GERMAN MODEL)DRAW BAR (STANDARD)
Tyres

FT9 17
ASSEMBLY
SAFETY
Read the assembly instructions be-
fore installing the trailer. Careless
assembly and non-compliance with
instructions may cause hazards to
users and damages to the machine.
The warranty is void for machines or components
which have been damaged due to non-compliance
with approved assembly and installation instructions.
Before beginning the assembly work, ensure that
there is no pressure in the hydraulic system.
Never connect or disconnect pressure hoses or
components when the hydraulic system is pressur-
ized.
INSTRUCTIONS FOR USE
SAFETY
Read the Instructions for use before
using the tractor / trailer combination.
Non-compliance with instructions can
cause machine breakage or user
injury.
Before starting the machine, ensure that it is in
working order. Check for any wear and tear or
damage. Repair any damages that affect the
machine’s operation immediately.
Never use the trailer for other purposes than those
for which it is designed.
CHECKS TO PERFORM BEFORE OPERATION
1. Check the pins, lockings, and tightness of nuts and
bolts of drawbar, screen, bolster set and bogie bol-
ster.
2. Check the oil level in the vehicle hydraulic system.
3. Ensure that the trailer is correctly coupled to the ve-
hicle, that the hoses and the hydraulic components
are correctly mounted and are funtioning.
4. Check the tyre pressures. If needed, increase or dec-
rease tyre pressure. Don’t exceed recommended
tyre pressures (400/60-15,5 3,6 bar, 500/50-17
3,3 bar).
5. Check the tightness of the wheel bolts. Tighten if ne-
cessary. Tightening torque 330 Nm.
DRIVING
1. Before driving make sure the brakes are disenga-
ged.
2. Braking heavily will wear or even damage the bra-
kes. Apply the brake steadily.
3. If you use a hydraulic steering, do not suddenly
overload the control cylinders.
4. Be careful not to turn over the vehicle or the forest
trailer.
ATTENTIONATTENTION

FT918
MOUNTING, DISMOUNTING AND
PARKING OF TRAILER/CRANE
COMBINATION
Please ensure the following before
mounting a trailer to a tractor.
• the trailer/crane combination must be in perfect con-
dition
• the maintenance and checking measures must be car-
ried out according to the maintenance instructions.
According to the instruction manual of the tractor, check
whether the max. permissible load of the pulling device
exceeds the permissible load of the trailer coupling ring
(as per the trailer’s technical data).
MOUNTING A TRAILER/CRANE COMBINATION TO A
TRACTOR
Please ensure that the pulling device locks-on when
mounting the trailer to the tractor.
1. Lift the parking support to the driving position.
2. Connect the hydraulic hoses of the hydraulic steering to
the tractor.
3. Connect the hydraulic hoses of the crane to the trac-
tor.
4. Make sure the support legs are in the transport po-
sition.
5. If the trailer is equipped with a brake, connect the brake’s
connections and hoses to the tractor. Before driving
with the machine, ensure correct functioning of the
brake.
6. Remove all locking elements placed in front of /behind the
tires. Please ensure that the combination can be freely
driven before starting the machine.
7. If trailer is equipped with a parking brake, disengage it.

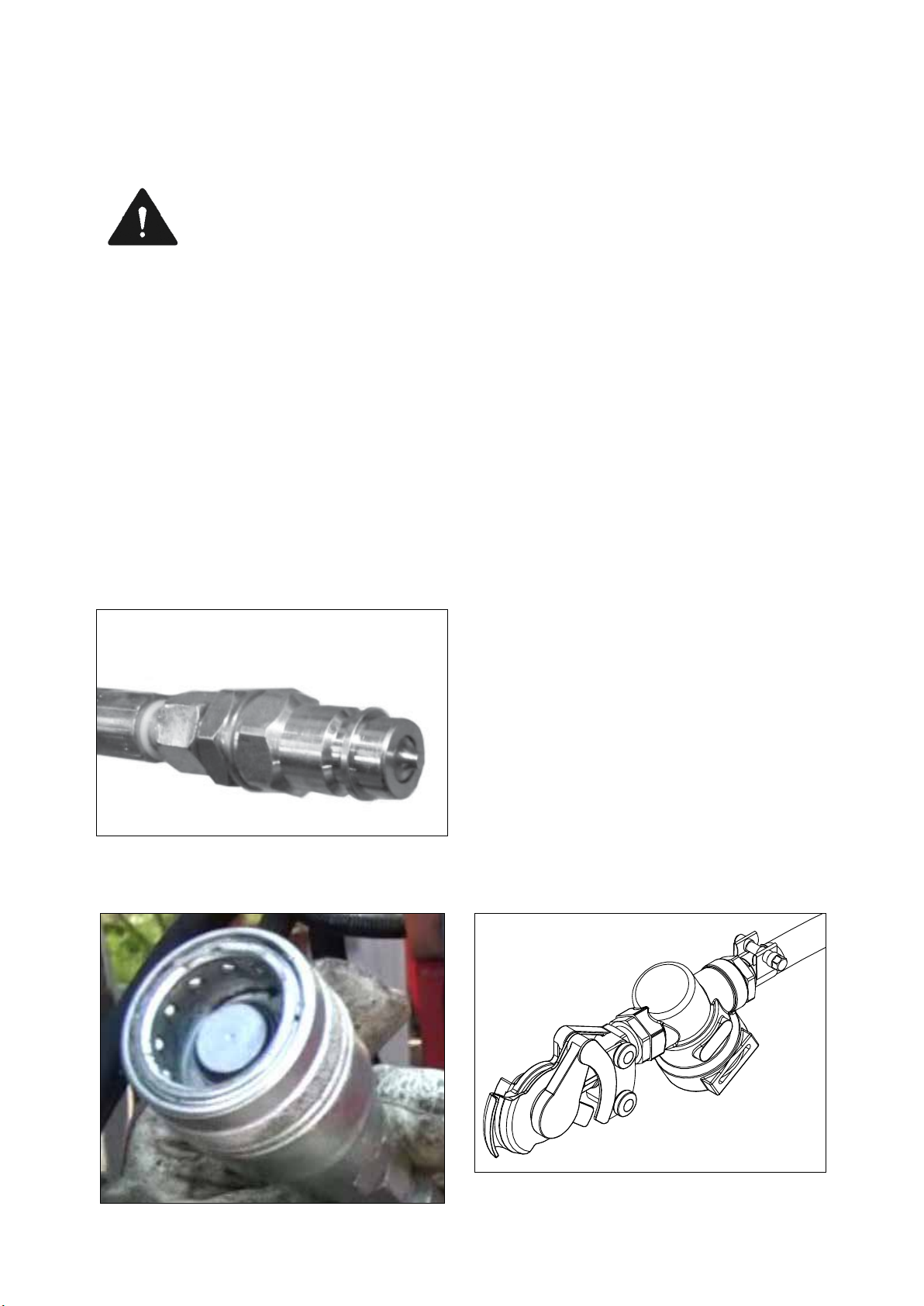

Hose coupling for hydraulic brake valve
Hose coupling for pneumatic brake
Hose coupling for brake with hydraulic one-way valve on
the tractor
IMPORTANT

FT9 19
HYDRAULIC STEERING
The trailer is equipped with hydraulic steering. The
hydraulic steering is composed of two double-acting
hydraulic cylinders and the associated hydraulic hoses.
The hydraulic pressure required for the cylinders is
generated by the tractor’s hydraulic system. The trac-
tor must have a double-acting multi-way valve for the
hydraulic steering. The maximum operating pressure is
200 bars. Under no circumstances may the the pressu-
re exceed the maximum permissible value.
Always bleed the hydraulic system before using the hyd-
raulic steering.
1. Attach the trailer to the tractor.
2. Remove all locking elements placed in front of / be-
hind the tires.
3. Make sure there is nobody in the danger zone of the
forest trailer/crane combination.
4. Connect the hoses of the hydraulic steering to the
tractor.
5. Open the multi-way valve slightly and with caution
to operate the hydraulic steering.
6. Slowly operate the steering from one limit stop to the
other to bleed the cylinders completely.
7. Bleeding has been accomplished when smooth stee-
ring movements are obtained and the steering res-
ponds directly to the control of the multi-way valve.
Connect hoses with quick couplings on two way hydraulic control valve of the tractor.
DISMOUNTING A TRAILER/CRANE COMBINATION
FROM A TRACTOR
Please ensure that the ground is level and stable before
dismounting and parking the trailer.
1. Put locking elements front of/behind the trailer’s tires in
order to avoid trailer movement during parking.
2. If trailer is equipped with a parking brake, engage it.
3. Disconnect the crane hydraulic hoses from the tractor.
4. Disconnect the brake connections and hoses from the
tractor.
5. Disconnect the hydraulic steering hoses from the tractor.
6. Lower the parking support to the parking position and
secure it.
7. Detach the trailer from the tractor.

FT920
INSTRUCTIONS FOR MOVING THE BOGIE
BOLSTER
1. Loosen the four (4) mounting screws of the bogie
bolster.
2. Lift up the mounting bracket behind the bogie bolster.
3. Move the bogie bolster to one of the three (3)
mounting points.
4. Place the mounting bracket to the hole in the frame.
5. Tighten the mounting screws of the bogie bolster to
a torque of 400 Nm.
INSTRUCTIONS FOR MOVING THE BOLSTER SET
1. Loosen the four (4) mounting screws of the bolster
set.
2. Move the bolster set to desired place.
3. Tighten the mounting screws of the bolster set to a
torque of 400 Nm.
