FatShark Fat shark User manual

Fat Shark 1 RC Vision Systems
ATTITUDE V2 FPV GOGGLE
WITH TRINITY HEAD TRACKING
USER MANUAL
Revision B 12/23/2013
For more product information, please visit:
www.fatshark.com
All Rights Reserved

Fat Shark 2 RC Vision Systems
Contents
Product contents .....................................................................................................3
Controls...................................................................................................................4
Trinity Head tracker.................................................................................................5
Downlink Overview (Camera, TX, Power)...............................................................6
Transmitter..........................................................................................................6
Camera................................................................................................................6
Power (via discharge filter supply).......................................................................7
AV in/out Port..........................................................................................................7
Recording Video..................................................................................................7
Using an external receiver:..................................................................................7
Accessories.............................................................................................................7
Pan/Tilt/Roll Mechanism......................................................................................7
1000mA Battery Pack..........................................................................................8
Diopter lens.........................................................................................................8
Adjustable Earphones .........................................................................................8
SpiroNET Circular Polarized Antenna .................................................................9
Tiny Telemetry From ImmersionRC ....................................................................9
Specifications........................................................................................................10
Operational advice ................................................................................................11
Warranty................................................................................................................11
Trouble shooting....................................................................................................12
Introduction
Congratulations on purchasing the Fat Shark AttitudeV2 FPV video goggles with integrated
NexWaveRF 5G8 wireless receiver and Trinity (3-axis pan/tilt/roll) head tracking technology.
To ensure your continued enjoyment, please take the time to thoroughly read through this
operating manual before using.
Product Compatibility
The AttitudeV2 has been designed to adhere to established video standards and is
compatible with any product also adhering to accepted video standards. Due to the high
number of different manufacturers and variation in quality, it’s impossible to for us to have
tested with every product combination and some troubleshooting may be required if
mix/matching components. The AttitudeV2 has been thoroughly tested with ImmersionRC
gear. For best results and no compatibility issues, Fat Shark recommends ImmersionRC
gear for your accessory products.
IMPORTANT!!!! Product Warning!!!!!
DO NOT LEAVE HEADSET EXPOSED TO DIRECT
SUNLIGHT. SUNLIGHT WILL MAGNIFY THROUGH THE
OPTICS AND BURN HOLES IN THE LCD COLOR FILTER
THIS WILL NOT BE COVERED BY WARRANTY. KEEP
GOGGLES IN PROTECTIVE CASE WHEN NOT IN USE

Fat Shark 3 RC Vision Systems

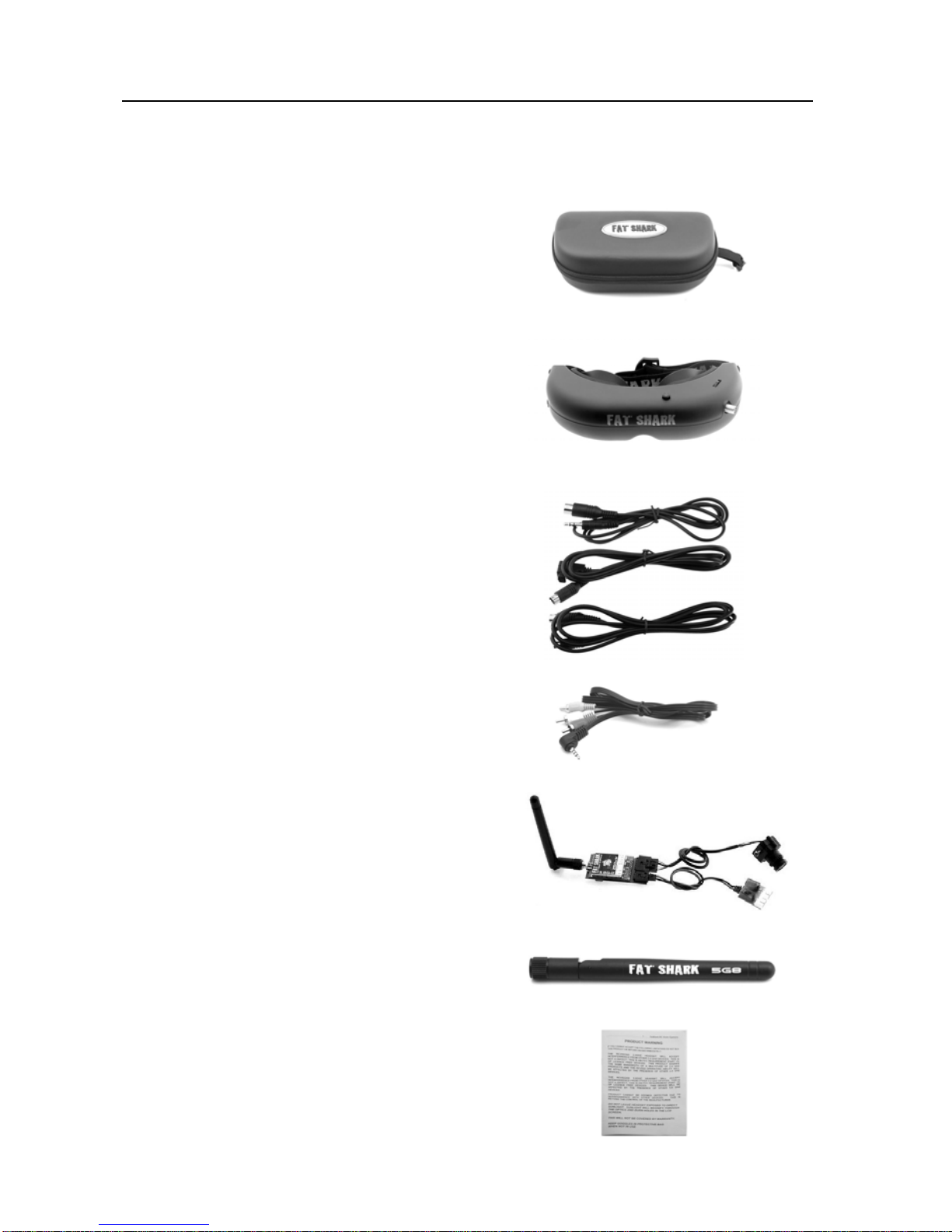

Product contents
Carry case
AttitudeV2 Headset
Data cables
- 3.5mm JR
- Futaba 6P
- ezUHF MiniDIN
AV cable
Downlink kit
- 250mW 5G8 TX
- 600TVL camera
- Filtered battery
2X 5G8 3dBi antenna
Manual

Fat Shark 4 RC Vision Systems
Controls Diagram
Controls
Brightness/contrast control: pressing left and right increases/decreases display contrast.
Press forward/back increases/decreases brightness.
RX power switch: The receiver module power is controlled by this switch. Turn off RX
module to avoid video conflict with video source via the AV cable.
Channel select: Rocking the channel select switch forward and back will cause the channel
to incrementally increase/decrease. Audio beep sounds on channel change. A long beep
sounds on channel top and bottom limits.
Note: Fat Shark only guarantees compatibility with Fat Shark or ImmersionRC transmitters.
CH1: 5740 MHz CH2: 5760 MHz CH3: 5780 MHz CH4: 5800 Mhz
CH5: 5820 MHz CH6: 5840 Mhz CH7: 5860 MHz
Head tracker menu/reset:
Activated by a vertical press on the channel rocker switch.
Low battery warning: Audio warning if input voltage drops below 6.8V
Volume control: There is no volume control - volume level is set at high. Please use with
adjustable earphone accessory for volume control.

Fat Shark 5 RC Vision Systems
Trinity Head tracker
For a complete and up to date list of compatible RC radios and their setup, a head tracking
sticky thread is maintained at www.FPVlab.com under SPONSORS GATE/FAT SHARK
Operation notes:
Head tracker initiates in pause mode. Head tracker reset button needs to be depressed and
held to start camera motion. Default range motion is normal. Your radio may support
extended motion but may result in errant behavior.
Menu navigation and settings:
Beep code Mode
1 short beep: P/T/R on ch 5/6/7
2 short beep: P/T/R on ch 6/7/8
3 short beep: Long beep then enter P/T only channel setting sub menu
1 short beep: P/T only on ch 5/6
2 short beep: P/T only on ch 5/7
3 short beep: P/T only on ch 5/8
4 short beep: P/T only on ch 6/7
5 short beep: P/T only on ch 6/8
6 short beep: P/T only on ch 7/8
No selection: exit menu
4 short beep: Long beep then enter reverse servo direction sub menu
1 short beep: reverse pan direction
2 short beep: reverse tilt direction
3 short beep: reverse roll direction
No selection: exit menu
1 long beep: adjust servo center point: press to gain manual control of the
camera with the headset. Adjust camera to desired center
position and press button to set new camera center. Note that
if your servos are not near the center point before adjusting, the
servo travel may be limited in one direction.
1 short beep: Long beep then enter pan ratio sub menu
1 short beep: ratio = 1:1
2 short beep: ratio = 1:1.5
No selection: exit menu
2 short beep: Long beep then enter tilt ratio sub menu
1 short beep: ratio = 1:1
2 short beep: ratio = 1:1.5
No selection: exit menu
3 short beep: auto pause on/off (if movement exceeds 90 degree, put HT in
pause mode)
4 short beep: Long beep then enter motion limits sub menu
1 short beep: standard range = 1.04 ms – 2.0ms (center =
1.52ms +/- 0.48)
2 short beep: extended range = 0.8ms–2.24ms (center=1.52ms +/- 0.72)
No selection: exit menu
5 short beep: Long beep then enter cycle time sub menu
1 short beep: standard cycle (8CH PPM, 20ms)
2 short beep: rapid cycle (3CH PPM, 8ms)
No selection: exit menu
6 short beep: Restore factory defaults
2 long beep: no selection made, automatically exits menu

Fat Shark 6 RC Vision Systems

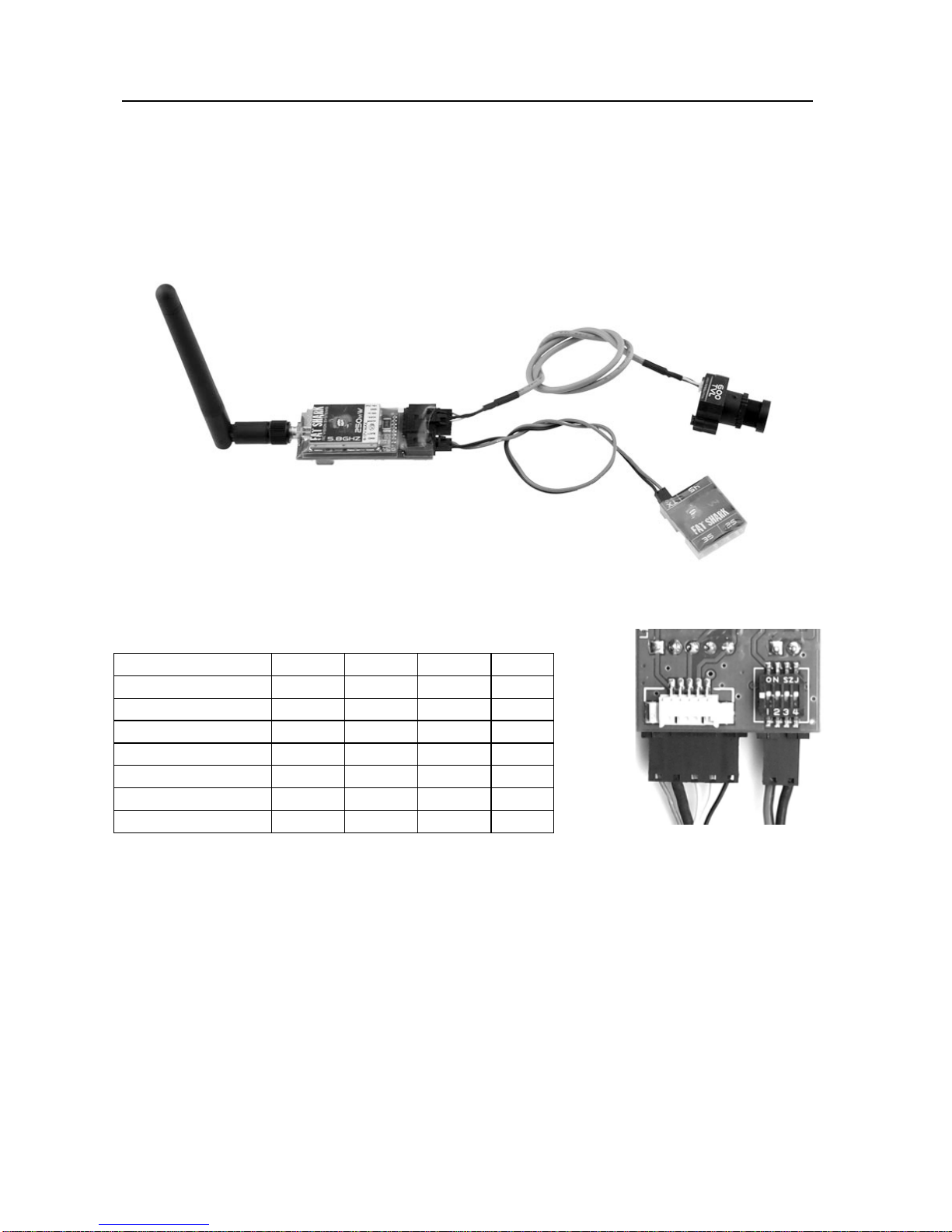

Downlink Overview (Camera, TX, Power)
Downlink system comes preassembled and tested for plug/play with your aircraft.
Simply connect the balance lead of your 2S, 3S or 4S (7.4V - 16V) RC battery to
provide power to your Fat Shark Downlink and you are ready to fly.
The handy balance lead filters RC servo and motor noise from your RC pack for a
crisp, clear image.
Transmitter
Channel select chart:
1 2 3 4
Ch1 5740 MHz On On On N/A
Ch2 5760 MHz Off On On N/A
Ch3 5780 MHz On Off On N/A
Ch4 5800 Mhz Off Off On N/A
Ch5 5820 MHz On On Off N/A
Ch6 5840 Mhz Off On Off N/A
Ch75860 MHz On Off Off N/A
WARNING: DO NOT POWER TRANSMITTER WITHOUT ANTENNA ATTACHED. NO
ANTENNA LOAD WILL DESTROY RF AMPLIFIER – NOT COVERED BY WARRANTY
Small white connector on back of transmitter is for ImmersionRC Tiny Telemetry.
See accessories.
Camera
2.8mm lens for wide angle 100 degree FOV; ideal for fixed camera piloting.
Camera is NTSC/PAL selectable (PAL default, remove jumper on back for NTSC).
Plugs camera directly into TX via included cable (pre assembled).

Fat Shark 7 RC Vision Systems
Power (via discharge filter supply)
The discharge filter supply allows you to power your downlink equipment from your
onboard RC pack. Connect as shown below:
AV in/out Port
RCA Connector: Yellow: Video, White: Audio
Left, Red: Audio Right
Recording Video
Connect AV cable to AV out port on right side of headset. Connect recording device to
cables and set up as per manufacturer directions.
Note: Cables pins are not all the same (see above chart), be sure to connect to headset
using the included cable.
Using an external receiver:
Use the AV cable to connect headset to the RCA AV port of external devices.
To share the base station power supply with your goggles, pick up a 3m Dominator AV cable
accessory from your retailer. Note; internal receiver must be shut off to properly display
external AV.
Accessories
Pan/Tilt/Roll Mechanism
Get the most out of your Trinity head tracker by
mounting your camera onto the pan/tilt/roll mechanism.
PTR mechanism includes mount for 600TVL CMOS
and Fat Shark CCD cameras. Pan axis servo is a true
180 degree metal gear servo for maximum travel
motion durability. Super high tolerance tooling and
servos ensures no slop or movement for steady camera
action.
Ground Video AudR AuL

Fat Shark 8 RC Vision Systems
1000mA Battery Pack
The Fat Shark dog bone shaped 1000mAh pack
seats securely in the headset strap pocket. The
battery cable extends out of the top of the pack to
avoid contact with head strap. Barrel connector cable
features high strand count wire for flexibility and long
life. Wire stress is minimized by the additional rubber
gasket around the cable exit. No special charger is
needed as balance leads have been added for
charging with standard RC chargers (battery includes
discharge lead adapter for advanced chargers).
Note: this battery can still be charged via the barrel
connector with the original Fat Shark headset battery
charger.
Diopter lens
For near sighted users, diopter lens insert sets are available that include -2, -4 and
-6 dpt. See below inserting location. Lens orientation is not critical.
Adjustable Earphones
For simplicity and minimalist controls, the AttitudeV2 does not have volume control.
Audio is outputting at
max volume and needs to
be adjusted to comfortable
level via adjustable
volume earphones.

Fat Shark 9 RC Vision Systems
SpiroNET Circular Polarized
Antenna
The best performance enhancement for your dollar.
SpiroNET circular polarized antennae are manufactured to
machine tolerances and final tested with top end RF
equipment for the best performing CP antenna on the
market.
CP antennae naturally reject multipathing (biggest cause of
5G8 video breakup) and have no mismatch polarization
when your aircraft banks – resulting in no rude range losses
during acrobatic flight.
Tiny Telemetry From ImmersionRC
Conventional OSDs offer a host of features, some of which you don’t need
if you’re just flying FPV around your local field or have a small and light
FPV plane that can’t really carry a full OSD. All you really want in those
cases is for your tracking antenna to point at the plane accurately and
have GPS positional data along with vital statistics such as battery voltage
and current consumption.
TinyTelemetry is a minimal GPS locator that sends EzTelemetry data for the
EzAntennaTracker down one of the audio channels on the audio/video transmitter.
The EzAntennaTracker will then track the plane and offer battery statistics on its
LCD display as well as other telemetry data such as positional info etc.
The new v2.0 EzAntennaTracker will also offer audible warnings for battery voltage
and total current consumption.
The Tiny Telemetry plugs into the transmitter’s dongle power supply located on the
back of the transmitter.

Fat Shark 10 RC Vision Systems
Specifications
Headset Specifications
Optics: FOV 35 degrees diagonal
Interpupillary (IPD) distance:
59 – 69 mm (adjustable)
Optional diopter lens inserts
available in -2, -4, -6 dp
Mechanical Ergonomic molded shape.
Rubber eye cups for ambient light
shielding
Weight: 150g
Adjustable headband
Audio: Stereo System: NTSC/PAL auto select (interlaced)
Two full color micro VGA LCD's
(640 X 480 dots), 922k pixels
User
Controls
Channel selection
Display adjustment
Head Tracker reset/menu nav
Head
Tracker
Magnetic, gyro, accelerometer
Trinity 9DOF, 3 axis head tracker
Electrical Power supply, 7-13V
(2S/3S supply)
Power consumption: 350mA
Receiver
CH1: 5740MHz CH2: 5760MHz
CH3: 5780MHz CH4: 5800Mhz
CH5: 5820MHz CH6: 5840Mhz
CH7: 5860 MHz
Antenna 5G8 3dBi dipole (circular
polarized compatible) Interface
3.5mm 4p AV in/out port
Power in port (barrel connector.
Center pin is +’ve, collar is GND)
3.5mm 3p Earphone port
PS/2 DIN data (HT) port
Transmitter Specifications (V3):
Electrical Power supply: 7 - 17 V
(2S/3S/4S supply)
Power consumption
310mA @7.4V
Power out (to camera)
5V, 350mA maximum
Transmitting power: 250mW
Antennae
External dipole (circular polarized
compatible)
RF CH1: 5740MHz CH2: 5760MHz
CH3: 5780MHz CH4: 5800Mhz
CH5: 5820MHz CH6: 5840Mhz
CH7: 5860 MHz
Mechanical:
55 X 26 X 11 mm
Weight: 22g (with antenna).
Camera Specifications:
Electrical Power supply: 3.5 - 5 V Power
consumption 60mA @5V
Lens 2.8mm IR coated
100°diagonal FOV (ideal for fixed
camera)
Imager
1/3” CMOS 600TVL
FPV tuned light handling
NTSC/ PAL selectable
(jumper on = PAL).
Mechanical:
Square: 21 X 21 X 12mm
Lens extrude: 15mm X 14mm
diameter
Weight: 15g

Fat Shark 11 RC Vision Systems
Operational advice
For best performance, select a channel that has the least amount of
interference. While the transmitter is turned OFF, turn on the video
headset and look at the screen as you check each channel. Clear
channels will have a consistent static background. Channels with
interference will have horizontal static lines.
Always perform a range test before flying. This includes AV and RC
controls. Some RC receivers can be affected by the proximity of other
electronic devices particularly the AV TX.
Try to space out your components as much as possible to avoid
interference to your RC control range (keep stuff away from RX)
Until experienced, practice flying in a familiar area to avoid becoming
disorientated.
Due to antenna characteristics, there is a “null” in line with antenna
direction. You may experience excessive video breakup when flying
overhead
5.8Ghz signal strength drops off very fast, stay safely within solid AV
range.
For maximum distance it is very important that a clear line of sight exists
between the transmitter and the video headset. 2 of the worst causes of
interference are human bodies and reinforced concrete.
Place your TX antenna in open area in a vertical orientation
Multipathing (reflections off buildings/ tall objects) causes signal
cancellation and result in broken video. Fly in open areas away from
buildings or other tall structures (i.e. barns, hills).
5.8Ghz AV with 2.4Ghz RC controllers: 2.4Ghz may cause harmonic
interference on Ch2 – Ch7 of the 5.8Ghz AV (Ch1 not affected). The
headset has been equipped with a high pass filter that will allow the
system to work with CE certified 2.4Ghz RC controllers. However, the
filtering may be insufficient to remove noise from overpowered non CE
certified controllers.
If you experience interference from your RC radio, change the AV channel
to channel 1.
Although you don’t require any license to operate this device, you are still
legally responsible for operating in a responsible manner.
Warranty
The system can be exchanged for a new unit within 30 days for any manufacturing
defects if returned in new condition. The video headset will be warranted for repair
for 2 years if no signs of excessive use. Buyer will be responsible for shipping
costs. If beyond the warranty period we will provide repair services.

Fat Shark 12 RC Vision Systems
Trouble shooting
If your problem can’t be solved here, please visit our support forum at www.FPVLAB.com
under SPONSORS GATE/ FAT SHARK RC VISION SYSTEMS. Any direct support enquires
will be first directed to this forum for the benefit of all customers
Observation Possible cause/solution
No image, display is completely
dark - No power supplied. Check power connections.
No image, display is glowing
dark grey - If using wireless module, turn on RX power on bottom of headset.
- If using AV in cable, check video source.
- Ensure TX is on and camera connections solid
- Ensure lens cap is removed from camera
- Trying to power a 12V camera with the 5V TX supply
(need to connect 12V camera direct to RC pack.
Complete white screen LCD driver has failed and needs to be replaced under
warranty. Contact your retailer.
Lots of interference lines
(horizontal lines) - Choose a cleaner channel.
Lots of interference lines
(horizontal lines) when using
5.8Ghz receiver
Check to see if cause is harmonic interference from
2.4Ghz RC controller (turn radio on/off).
- Use CH1 on TX/headset (Ch1 not affected by 2.4Ghz)
- check correct frequency antenna is used
Head tracker not working but
can hear beeps
(can enter and navigate beep
menu)
- Ensure headset is turned on before RC radio
- Review controller manual for correct settings
- Check servos are plugged into correspondingly selected
channels
Head tracker not working, and
no beeps (can’t enter nor
navigate beep menu)
- Cable was modified and resulted in voltage applied to
signal line (fried HT)
- Mated to an aftermarket channel mixer and wired wrong
resulting in voltage applied to signal line
- Incorrect installation of aftermarket UHF RC system
resulting in voltage applied to signal line .
Head tracker stops working
after short time Auto disengage function activated. Follow menu instructions to turn off.
Short range - Ensure 5.8Ghz antenna were installed
- Turn off transmitter and check for other sources of
interference
- Ensure transmitter has clear LOS to headset. Test in
wide open area, away from any obstructions
Short range (con’t) - Ensure that a compatible antenna is installed. Do not
use other manufacture antenna, they may be dual band
or may be reverse SMA (no center pin to connect to
receiver)
White dots on LCD display Goggles lens were left exposed to sun allowing magnified
sunlight to burn off LCD color filter.

www.fatshark.com

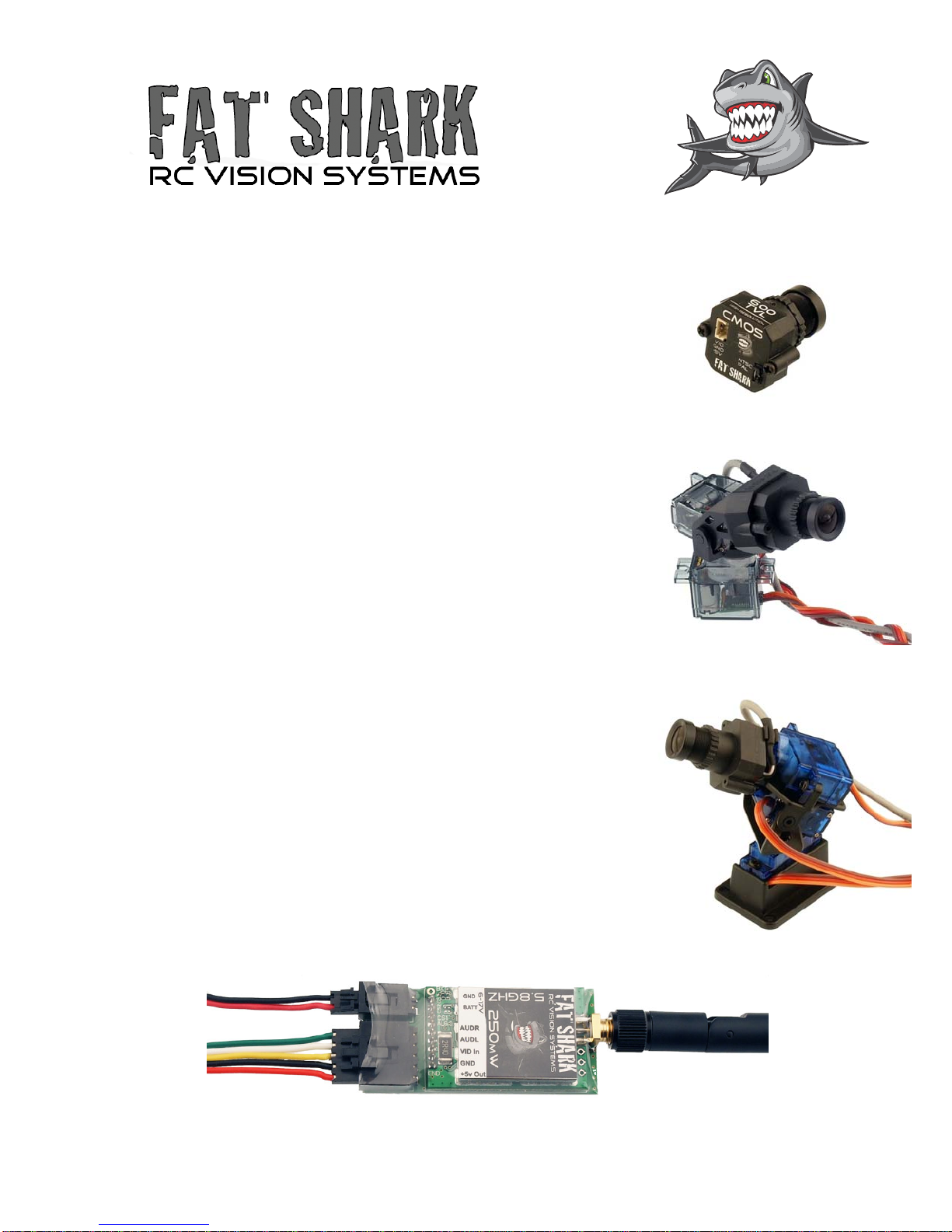

600TVL FPV TUNED CMOS CAMERA SPECIFICATION DOCUMENT REV B
Fixed version (no pan/tilt)
Electrical:
Power supply: 3.5-5V (powered off TX)
Power consumption: 60mA @5V)
Imager:
1/3” CMOS
FPV tuned light handling
NTSC or PAL (selectable; jumper on = PAL).
Lens:
2.8mm IR coated
100°diagonal FOV (ideal for fixed camera)
Operation:
-20 to 70C
Mechanical:
Square: 21 X 21 X 12mm
Lens extrude: 15mm X 14mm diameter
Weight: 15g
Packaging
Dimensions: bag 50 x 70 mm
Weight: (approximately 16g)
Pan/Tilt and Pan/Tilt/Roll version:
Electrical:
Same as above
Imager:
Same as above
Lens:
3.6mm IR coated
90°diagonal FOV (ideal for pan/tilt camera)
Operation:
Same as above
Packaging
Dimensions: 101 x 68 x 44 mm
Weight: 60g
5p Molex termination is plug/play with
Fat Shark and ImmersionRC TX’s (not included)
