Fayat Group DYNAPAC F2500C Installation guide

OPERATION & MAINTENANCE
Paver Finisher
F2500C / F2500CS
Type 890 / 891
05-0419
4812073969

www.dynapac.com

1
Table of contents
V Preface ..................................................................................... 1
1 General safety instructions ........................................................................ 2
1.1 Laws, guidelines, accident prevention regulations ..................................... 2
1.2 Safety signs, signal words ......................................................................... 3
"Danger"! ............................................................................................... 3
"Warning" ! ............................................................................................. 3
"Caution" ! .............................................................................................. 3
"Note" ! ................................................................................................... 3
1.3 Other supplementary information ............................................................... 3
1.4 Warnings .................................................................................................... 4
1.5 Prohibitive symbols .................................................................................... 6

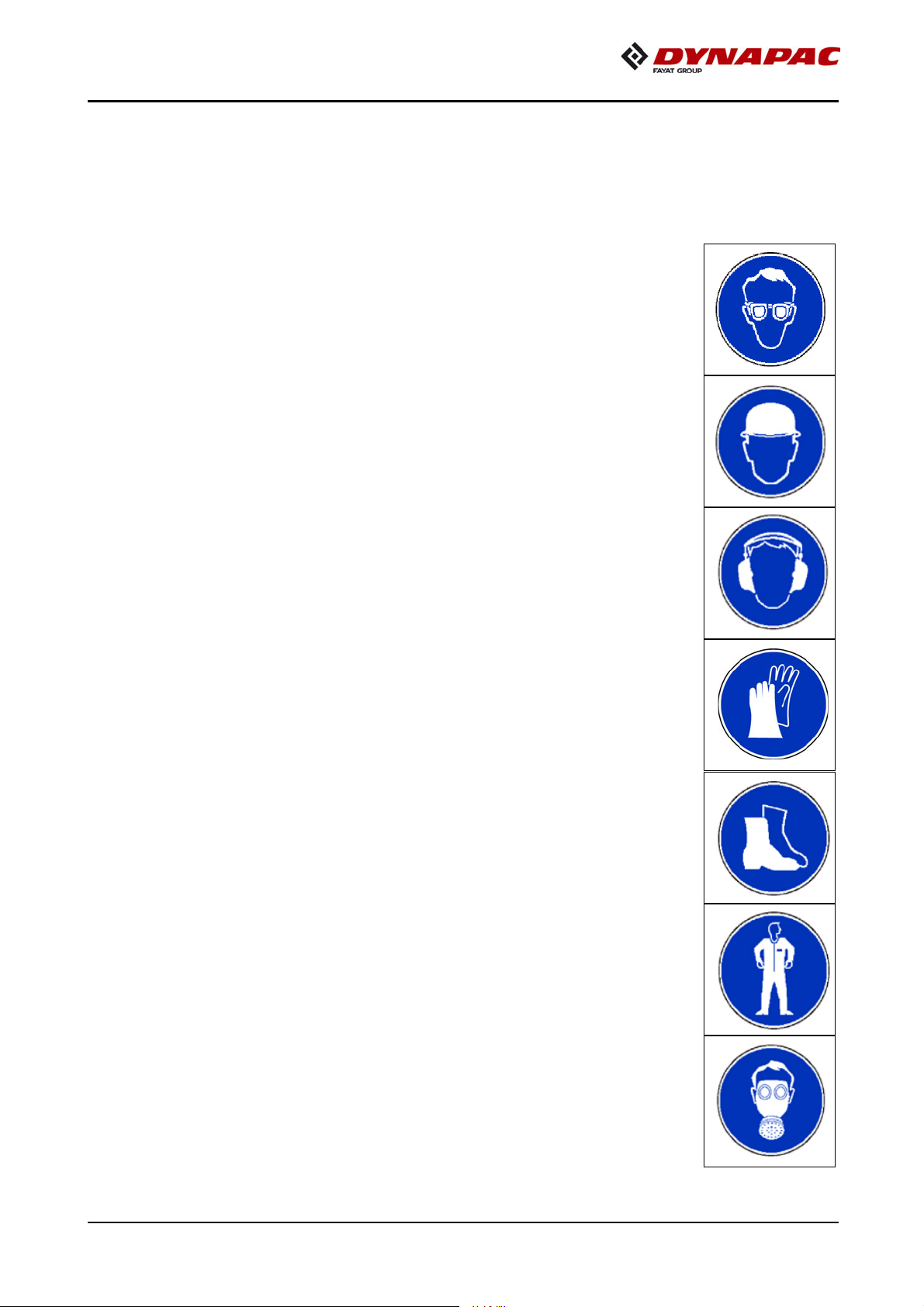

1.6 Protective equipment ................................................................................. 7

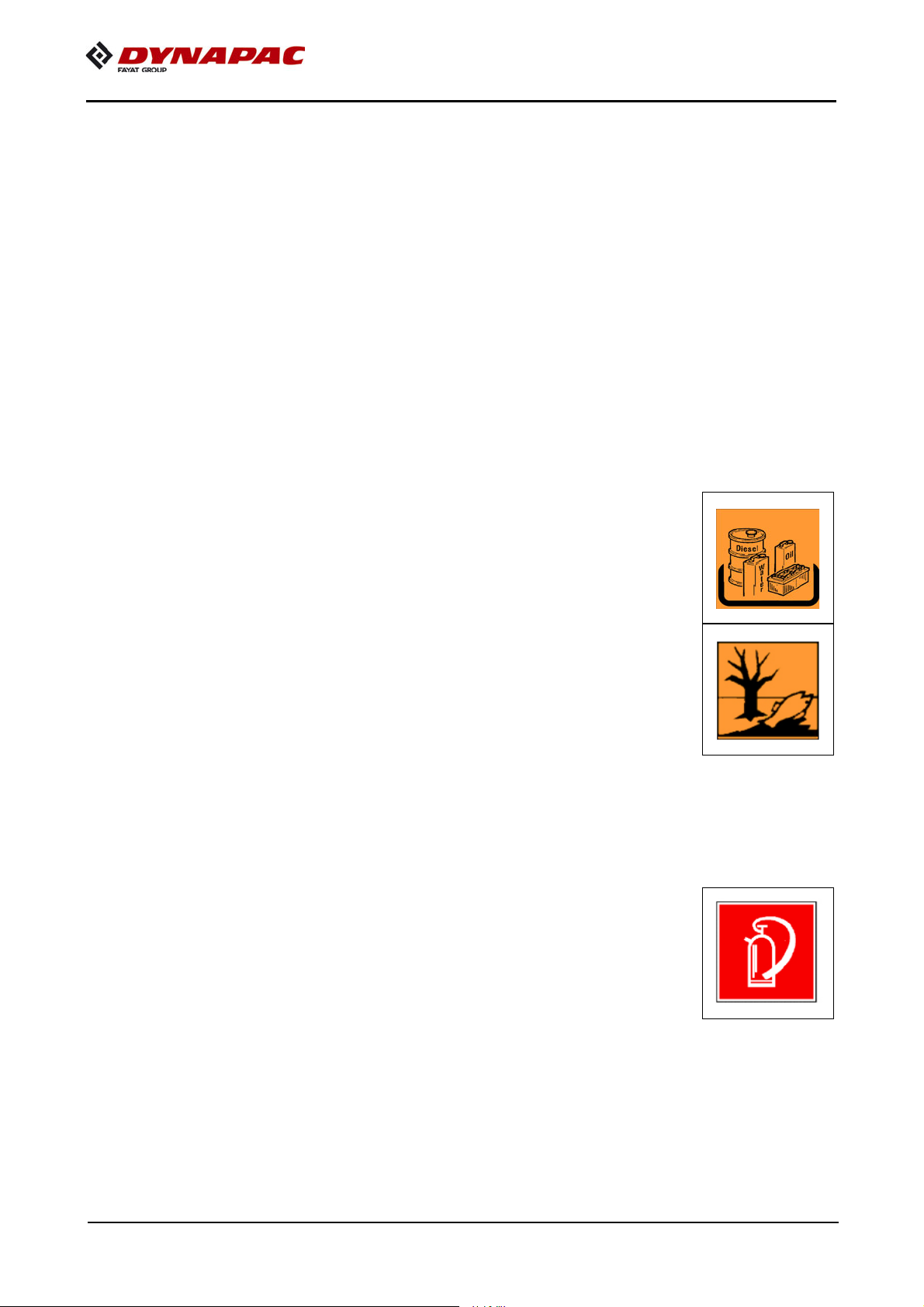

1.7 Environmental protection ........................................................................... 8
1.8 Fire prevention ........................................................................................... 8
1.9 Additional information ................................................................................ 9
2 CE identification and Declaration of Conformity ...................................... 10
3 Guarantee conditions ............................................................................... 10
4 Residual risks ........................................................................................... 11
5 Sensibly predictable incorrect usage ....................................................... 12
A Correct use and application ................................................... 1
B Vehicle description ................................................................. 1
1 Application ................................................................................................. 1
2 Description of assemblies and functions .................................................... 2
2.1 Vehicle ....................................................................................................... 3
Construction ........................................................................................... 3
3 Danger zones ............................................................................................. 7
4 Safety devices ............................................................................................ 8
5 Technical data, standard configuration .................................................... 10
5.1 Dimensions (all dimensions in mm) ......................................................... 10
5.2 Allowed angle of rise and slope ............................................................... 11
5.3 Permissible approach angle ..................................................................... 11
5.4 Weights F2500C (all weights in t) ............................................................ 12
5.5 Weights F2500CS (all weights in t) .......................................................... 12
5.6 Performance data F2500C ....................................................................... 13
5.7 Performance data F2500CS .................................................................... 14
5.8 Travel drive/traction unit ........................................................................... 15
5.9 Engine F2500C ........................................................................................ 15
5.10 Engine F2500CS ...................................................................................... 15
5.11 Hydraulic system ...................................................................................... 15
5.12 Material compartment (hopper) ................................................................ 16
5.13 Material transfer ....................................................................................... 16
5.14 Material distribution .................................................................................. 16
5.15 Screed lifting device ................................................................................. 17

2
5.16 Electrical system ......................................................................................17
5.17 Permissible temperature ranges ..............................................................17
6 Identification points ...................................................................................18
6.1 Warning signs ...........................................................................................21
6.2 Information signs ......................................................................................24
6.3 CE marking ...............................................................................................26
6.4 Instructive symbols, prohibitive symbols, warning symbols .....................27
6.5 Danger symbols .......................................................................................28
6.6 Further warnings and operating instructions ............................................29
6.7 Identification label for the paver finisher (41) ........................................31
6.8 Explanation of 17-digit PIN serial number ................................................32
6.9 Engine type plate ......................................................................................33
7 EN standards ............................................................................................34
7.1 Continuous sound pressure F2500C, Cummins QSB 6.7-C173 ..............34
7.2 Operating conditions during measurement ..............................................34
7.3 Continuous sound pressure F2500CS, Cummins QSB 6.7-C173 ............35
7.4 Operating conditions during measurement ..............................................35
7.5 Vibration acting on the entire body ...........................................................36
7.6 Vibrations acting on hands and arms .......................................................36
7.7 Electromagnetic compatibility (EMC) .......................................................36
C10 Transportation .........................................................................1
1 Safety regulations for transportation ..........................................................1
2 Transportation on low-bed trailers ..............................................................4
2.1 Preparations ...............................................................................................4
3 Securing the load .......................................................................................6
3.1 Prepare the low-bed trailer .........................................................................6
3.2 Driving onto the low-bed trailer ...................................................................7
3.3 Lashing equipment .....................................................................................8
3.4 Loading .......................................................................................................9
3.5 Preparing the vehicle ................................................................................10
4 Securing the load .....................................................................................11
4.1 Securing at the sides ................................................................................11
4.2 Securing at the front .................................................................................11
4.3 Securing at the rear - screed with side board ...........................................12
4.4 Securing at the rear - screed without side board ......................................13
Step 1: fasten lashing straps ................................................................13
Step 2: fasten lashing chains ...............................................................13
4.5 After transportation ...................................................................................14
Protective roof (o) .................................................................................15
5 Transportation ..........................................................................................17
5.1 Preparations .............................................................................................17
5.2 Driving mode ............................................................................................19
6 Loading by crane ......................................................................................20
7 Towing ......................................................................................................23
8 Safely parking the vehicle ........................................................................25
8.1 Lifting the vehicle with hydraulic lifts, lifting points ...................................26

3
D10 Operation ................................................................................. 1
1 Safety regulations ...................................................................................... 1
2 Controls ...................................................................................................... 3
2.1 Operating panel ......................................................................................... 3
2.2 Truck-Assist-System (o) ........................................................................... 34
3 Remote control ......................................................................................... 40
D30 Mode of operation................................................................... 1
1 Operating elements on the paver finisher .................................................. 1
1.1 Control elements on the operator's control station ..................................... 1
Protective roof (o) .................................................................................. 2
Ladder .................................................................................................... 4
Storage space ........................................................................................ 4
Control platform, moveable (o) .............................................................. 5
Control platform lock (o) ........................................................................ 6
Storage compartment ............................................................................ 6
Operating panel ..................................................................................... 7
Protective roof (o) .................................................................................. 8
Windscreen wiper .................................................................................. 9
Emergency actuation control platform, movable .................................. 10
Seat console ........................................................................................ 11
Driver's seat, type I ............................................................................. 12
Driver's seat, type II ............................................................................ 13
Fuse box .............................................................................................. 14
Batteries ............................................................................................... 15
Main battery switch .............................................................................. 15
Hopper transport safeguard ................................................................. 16
Screed lock, mechanical (o) ................................................................ 16
Screed lock, hydraulic (o) .................................................................... 17
Paving thickness indicator .................................................................. 18
Auger lighting (o) ................................................................................. 19
Engine compartment lighting (o) .......................................................... 19
LED working light (o) ........................................................................... 20
500 watt spotlight (o) ........................................................................... 21
Camera (o) ........................................................................................... 21
Auger height adjustment ratchet (o) .................................................... 22
Auger height displays .......................................................................... 22
Sensor rod / sensor rod extension ...................................................... 23
Manual separator fluid spray (o) .......................................................... 25
Separator fluid spraying system (o) ..................................................... 26
Conveyor limit switches - PLC version ................................................ 27
Conveyor limit switches - conventional version ................................... 28
Ultrasonic auger limit switches
(left and right) - PLC version ................................................................ 29
Ultrasonic auger limit switches
(left and right) - conventional version ................................................... 30
24 volt / 12 volt sockets (o) .................................................................. 31
Pressure control valve for screed charging/relieving ........................... 32

4
Pressure control valve for paving stop with relieving ...........................32
Manometer for screed charging/relieving .............................................32
Central lubricating system (o): .............................................................33
Track clearer, mechanical (o) ...............................................................34
Lane clearer, electric (o) ......................................................................35
Screed eccentric adjustment ................................................................36
Push roller crossbar, adjustable ...........................................................37
Push roller crossbar, hydraulically extendable (o) ...............................38
Push roller damping, hydraulic (o) .......................................................38
Fire extinguisher (o) .............................................................................39
First-aid kit (o) ......................................................................................39
Rotary beacon (o) ................................................................................40
Fuelling pump (o) .................................................................................41
Illuminated balloon (o) ..........................................................................42
Installation and operation .....................................................................44
Decommissioning .................................................................................45
Cleaning ...............................................................................................45
Service safety .......................................................................................45
Truck Assist (o) ....................................................................................46
Cool box (o) ..........................................................................................47
D40 Mode of operation ................................................................... 1
1 Preparing for operation ...............................................................................1
Required devices and aids .....................................................................1
Before starting work (in the morning or when starting paving) ...............3
Check list for the machine operator .......................................................3
1.1 Starting the paver finisher ..........................................................................6
Before starting the paver finisher ...........................................................6
"Normal" starting ....................................................................................6
External starting (starting aid) ................................................................8
After starting .........................................................................................11
Observe indicator lamps ......................................................................13
Engine coolant temperature check (1) .................................................13
Battery charge indicator (2) ..................................................................13
Oil pressure indicator lamp for the diesel engine (3) ............................13
1.2 Preparation for transportation ...................................................................15
Driving and stopping the paver finisher ................................................17
1.3 Preparations for paving ............................................................................18
Separator fluid ......................................................................................18
Screed heater system ..........................................................................18
Direction marks ....................................................................................19
Loading/conveying material .................................................................21
1.4 Starting for paving ....................................................................................23
1.5 Checks during paving ...............................................................................24
Paver function ......................................................................................24
Quality of the layer ...............................................................................24
1.6 Paving with "screed control at paver finisher stop"
and "screed charging/relieving" ................................................................25
General ................................................................................................25

5
Screed charging/relieving .................................................................... 27
Screed control with paver finisher stop / in paving operation
(screed stop / floating stop / floating paving) ....................................... 27
Screed control with paver finisher stop - floating stop with relief ......... 29
Adjusting the pressure ......................................................................... 29
Set pressure for screed charging or relieving ...................................... 29
Setting pressure for screed control with paver finisher stop -
floating stop with relief ......................................................................... 31
1.7 Interrupting/terminating operation ............................................................ 33
During breaks in paving (e.g. delay due to material trucks) ................. 33
During extended interruptions (e.g. lunch break) ................................. 33
When work is finished .......................................................................... 35
2 Malfunctions ............................................................................................. 36
2.1 Error code query for engine ..................................................................... 36
Output of numerical code ..................................................................... 38
2.2 Error codes .............................................................................................. 40
2.3 Problems during paving ........................................................................... 41
2.4 Malfunctions on the paver finisher or screed ........................................... 43
E10 Set-up and modification ......................................................... 1
1 Special notes on safety .............................................................................. 1
2 Distribution auger ....................................................................................... 2
2.1 Height adjustment ...................................................................................... 2
Grain sizes up to 16 mm ........................................................................ 2
Grain sizes > 16 mm .............................................................................. 2
2.2 Mechanical adjustment with ratchet (o) ..................................................... 3
2.3 Hydraulic adjustment (o) ............................................................................ 3
2.4 Height adjustment for large working widths / with brace ............................ 4
3 Auger extension ......................................................................................... 6
3.1 Mounting extension parts ........................................................................... 7
Mounting the material shaft and auger extension .................................. 7
Mounting the outer auger bearing .......................................................... 8
Mounting the auger end bearing ............................................................ 9
3.2 Auger extension chart .............................................................................. 10
Auger upgrading, working width 3.14 m .............................................. 12
Auger upgrading, working width 3.78 m .............................................. 12
Auger upgrading, working width 4.42 m .............................................. 12
Auger upgrading, working width 5.06 m .............................................. 13
Auger upgrading, working width 5.70 m .............................................. 13
Auger upgrading, working width 6.34 m .............................................. 14
Auger upgrading, working width 6.98 m .............................................. 15
Auger upgrading, working width 7.62 m .............................................. 16
Auger upgrading, working width 8.26 m .............................................. 17
Auger upgrading, working width 8.90 m .............................................. 18
3.3 Mounting the auger brace ........................................................................ 19
3.4 Aligning the auger .................................................................................... 21
3.5 Material shaft, hinged ............................................................................... 22
3.6 Hopper scraper ........................................................................................ 23
3.7 Crossbeam guide ..................................................................................... 24

6
4 Offsetting the screed ................................................................................25
5 Levelling ...................................................................................................26
5.1 Slope controller ........................................................................................26
5.2 Fitting the height sensing device ..............................................................27
5.3 Mounting the grade control system ..........................................................27
5.4 Setting up the sensor arm ........................................................................28
5.5 Big ski 9 m, big ski 13 m ..........................................................................29
Mounting the big ski bracket on the crossbeam ...................................31
Mounting the swivel arms .....................................................................32
Mounting the centre element ................................................................33
Extending the big ski ............................................................................34
Mounting the sensor bracket ................................................................35
Mounting and aligning the sensors ......................................................36
Mounting the distributor box .................................................................37
Connection diagram .............................................................................38
5.6 Levelling shoe 6m, 9m ............................................................................39
6 Automatic steering unit .............................................................................41
6.1 Mounting the automatic steering unit on the paver finisher ......................42
Mounting and aligning the sensor ........................................................43
Connecting the sensor .........................................................................43
Automatic steering unit operating instructions .....................................44
7 Emergency stop during feeder operation .................................................45
8 Auger temperature measurement (O) ......................................................46
9 MATTRACKER (O) ..................................................................................47
10 Limit switch ...............................................................................................48
10.1 Auger limit switches (left and right) - mount PLC version .........................48
10.2 Auger limit switches (left and right) -
mounting the conventional version ...........................................................49
11 Special accessories ..................................................................................50
11.1 Material bucket .........................................................................................50
Application ............................................................................................50
Description of assemblies and functions ..............................................51
Technical data ......................................................................................52
Dimensions, bucket MH2500 - short version .......................................52
Dimensions, bucket MH2550 - long version .........................................53
Weights ...............................................................................................54
Volume .................................................................................................54
12 Identification points ...................................................................................55
12.1 Information signs ......................................................................................56
12.2 Warning signs ...........................................................................................56
12.3 Further warnings and operating instructions ............................................56
12.4 Instructive symbols, prohibitive symbols, warning symbols .....................57
Load securing - bucket .........................................................................58
Prepare the low-bed trailer ...................................................................58
Lashing equipment ...............................................................................59
Lashing .................................................................................................60
Loading with the crane - MH2500 ........................................................62
Loading with the crane - MH2550 ........................................................63
Lash the bucket in the paver ................................................................65
Mode of operation ................................................................................67

7
Operation with a feeder with slewing belt ............................................ 68
Preparations for paving ........................................................................ 68
Separator fluid ..................................................................................... 68
Cleaning the bucket ............................................................................. 69
13 Screed ...................................................................................................... 70
13.1 Electrical connections side board - screed - Conventional version .......... 70
13.2 Electrical connections side board - screed PLC version .......................... 72
F10 Maintenance ............................................................................ 1
1 Notes regarding safety ............................................................................... 1
F20 Maintenance review ................................................................ 1
1 Maintenance review ................................................................................... 1
F30 Maintenance - conveyor ......................................................... 1
1 Maintenance - conveyor ............................................................................. 1
1.1 Maintenance intervals ................................................................................ 3
1.2 Points of maintenance ............................................................................... 4
Chain tension, conveyor (1) ................................................................... 4
Conveyor drive - drive chains (2) ........................................................... 6
Conveyor deflectors / conveyor plates (3) ............................................. 7
F40 Maintenance - auger assembly.............................................. 1
1 Maintenance - auger assembly .................................................................. 1
1.1 Maintenance intervals ................................................................................ 3
1.2 Points of maintenance ............................................................................... 5
Outer auger bearing (1) ......................................................................... 5
Auger planetary gear (2) ........................................................................ 6
Drive chains of the augers (3) ................................................................ 7
Auger box (4) ......................................................................................... 8
Seals and sealing rings (5) .................................................................... 9
Gearbox bolts Check tightening (6) ..................................................... 10
Mounting screws - Outer auger bearing Check tightening (7) ............. 11
Auger blade (8) .................................................................................... 12
F50 Maintenance - engine assembly Tier 3 (o) ............................ 1
1 Maintenance - engine assembly ................................................................ 1
1.1 Maintenance intervals ................................................................................ 3
1.2 Points of maintenance ............................................................................... 6
Engine fuel tank (1) ............................................................................... 6
Engine lube oil system (2) .................................................................... 7
Engine fuel system (3) ........................................................................ 10
Engine air filter (4) ............................................................................... 12
Engine cooling system (5) ................................................................... 14
Engine drive belt (6) ............................................................................. 16

8
F60 Maintenance - hydraulic system ............................................ 1
1 Maintenance - hydraulic system .................................................................1
1.1 Maintenance intervals ................................................................................4
1.2 Points of maintenance ................................................................................6
Hydraulic oil tank (1) ..............................................................................6
Suction/return flow hydraulic filter (2) .....................................................8
Bleeding the filter ...................................................................................9
Ventilation filter .......................................................................................9
High-pressure filter (3) .........................................................................10
Pump distribution gear (4) ....................................................................11
Bleeder ................................................................................................12
Hydraulic hoses (5) ..............................................................................13
Marking hydraulic hoses / storage period, period of use ......................15
Auxiliary flow filter (6) ...........................................................................16
F73 Maintenance - drive units .......................................................1
1 Maintenance - drive units ...........................................................................1
1.1 Maintenance intervals ................................................................................3
1.2 Maintenance points ....................................................................................6
Chain tension (1) ....................................................................................6
Bottom plates (2) ....................................................................................9
Rollers (3) .............................................................................................10
Planetary gear (4) ................................................................................11
Screw connections ...............................................................................13
F80 Maintenance - electrical system ............................................ 1
1 Maintenance - electrical system .................................................................1
1.1 Maintenance intervals ................................................................................3
1.2 Maintenance points ....................................................................................4
Batteries (1) ............................................................................................4
Recharging the batteries ........................................................................5
Alternator (2) ..........................................................................................6
Cleaning the alternator ...........................................................................7
Electrical fuses / relays (3) .....................................................................8
Fuses ....................................................................................................8
Relays in the engine compartment....................................................... 11
Relays in terminal box .........................................................................12
Relays in operating panel ....................................................................14
Relay in connection box under the operating platform .........................15
F90 Maintenance - lubricating points ........................................... 1
1 Maintenance - lubricating points .................................................................1
1.1 Maintenance intervals ................................................................................2
1.2 Points of maintenance ................................................................................3
Central lubrication system (1) ................................................................3
Bearing points (2) ...................................................................................7

9
F100 Tests, stopping ....................................................................... 1
1 Tests, checks, cleaning, stopping .............................................................. 1
1.1 Maintenance intervals ................................................................................ 2
2 General visual inspection ........................................................................... 3
3 Check that the bolts and nuts fit firmly ....................................................... 3
4 Inspection by an expert .............................................................................. 4
5 Cleaning ..................................................................................................... 5
5.1 Cleaning the hopper ................................................................................... 6
5.2 Cleaning the conveyor and auger .............................................................. 6
5.3 Cleaning optical or acoustic sensors ......................................................... 7
6 Preserving the paver finisher ..................................................................... 8
6.1 Shutdowns for up to 6 months ................................................................... 8
6.2 Shutdowns lasting from 6 months to 1 year ............................................... 8
6.3 Recommissioning the machine .................................................................. 8
6.4 Operating the vehicle in special climatic conditions or environments. ....... 9
7 Environmental protection, disposal .......................................................... 10
7.1 Environmental protection ......................................................................... 10
7.2 Disposal ................................................................................................... 10
8 Bolts - torques .......................................................................................... 11
8.1 Standard metric threads - strength class 8.8 / 10.9 / 12.9 ....................... 11
8.2 Fine metric threads - strength class 8.8 / 10.9 / 12.9 ............................... 12
F110 Lubricants and operating substances .................................. 1
1 Lubricants and operating substances ........................................................ 1
1.1 Capacities .................................................................................................. 3
2 Lubricant specifications .............................................................................. 4
2.1 Engine ........................................................................................................ 4
2.2 Cooling system .......................................................................................... 4
2.3 Hydraulic system ........................................................................................ 4
2.4 Pump distribution gear ............................................................................... 4
2.5 Drive unit planetary gear ............................................................................ 5
2.6 Auger drive planetary gear ......................................................................... 5
2.7 Auger box .................................................................................................. 5
2.8 Grease ...................................................................................................... 5
2.9 Separator emulsion ................................................................................... 6
2.10 Hydraulic oil ............................................................................................... 7

10

V 1
VPreface
Translation of the original operating instructions.
If the vehicle is to be operated safely, the information provided in these operating in-
structions will be required. The information is provided in a concise, clearly structured
form. The individual chapters are arranged in alphabetical order. and every chapter
starts with page 1. The individual pages are identified by the chapter letter and the
page number.
Example: Page B 2 is the second page of chapter B.
These operating instructions cover various vehicle options. Make sure that during op-
eration and maintenance work the description appropriate to the vehicle option is
used.
In the interest of continued development, the manufacturer reserves the right to make
changes to the vehicle (which will not, however, change the essential features of the
type of vehicle described) without updating the present operating instructions at the
same time.
Dynapac GmbH
Wardenburg
Ammerländer Strasse 93
D-26203 Wardenburg / Germany
Telephone: +49 / (0)4407 / 972-0
Fax: +49 / (0)4407 / 972-228
www.dynapac.com

V 2
1 General safety instructions
1.1 Laws, guidelines, accident prevention regulations
AThe locally applicable laws, guidelines and accident prevention regulations must al-
ways be observed, even if these are not expressly named here.
The user himself/herself is responsible for compliance with the resulting regulations
and measures!
AThe following warnings, prohibitive symbols and instructive symbols indicate dangers
for persons, the vehicle and the environment due to residual risks when operating the
vehicle.
AFailure to observe this information, prohibitions and instructions can result in life-
threatening injuries!
AThe "Guidelines for the Correct Use and Application of Paver Finishers" compiled by
Dynapac must also be observed!

V 3
1.2 Safety signs, signal words
In the safety instructions, the signal words "Danger", "Warning", "Caution", "Note" are
positioned in the coloured title block. They follow a certain hierarchy; in combination
with the warning symbol, they indicate the severity of the danger or the type of note.
"Danger"!
Danger of personal injury.
Indication of an immediately threatening danger that result in fatal or severe injuries
unless the corresponding actions are taken.
"Warning" !
Indication of a possible danger that can result in fatal or se-
vere injuries unless the corresponding actions are taken.
"Caution" !
Indication of a possible danger that result in moderate or mi-
nor injuries unless the corresponding actions are taken.
"Note" !
Indication of a possible drawback unless the corresponding
actions are taken, e.g. unwanted conditions or consequences can occur.
1.3 Other supplementary information
Other information and important explanations are identified by the following picto-
grams:
fPrecedes safety instructions that must be observed in order to prevent danger to per-
sonnel.
mPrecedes notes that must be observed to prevent damage to equipment.
APrecedes general notes and explanations.
DANGER
WARNING
CAUTION
NOTE

V 4
1.4 Warnings
Warning on a dangerous area or hazard!
Failure to observe the warnings can result in life-threatening inju-
ries!
Warning on danger of being pulled in!
mIn this working area/on this element there is a danger of being pulled
in by rotating or conveying elements!
Only carry out activities with elements switched off!
Warning on dangerous electrical voltage!
mAll maintenance and repair work on the screed's electrical system
must always be carried out by an electrician!
Warning on suspended loads!
mNever stand under suspended loads!
Warning on danger of crushing!
mThere is a danger of crushing when certain components are operat-
ed, or certain functions or vehicle movements are carried out.
Always make sure that there are no persons within the endangered
areas!
Warning on hand injuries!
Warning on hot surfaces or hot liquids!

V 5
Warning on danger of falling!
Warning on dangers posed by batteries!
Warning on hazardous or irritating substances!
Warning on substances which constitute a fire hazard!
Warning on gas bottles!

V 6
1.5 Prohibitive symbols
Opening/walking on/reaching in/carrying out/setting up are prohibit-
ed during operation or while the drive engine is running!
Do not start engine/drive!
Maintenance and repair work may only be carried out with the diesel
engine shut down!
Spraying with water is prohibited!
Extinguishing with water is prohibited!
Unauthorised maintenance is prohibited!
Only qualified experts may conduct maintenance!
AConsult the Dynapac Service Department
Fire!, naked flames and smoking are prohibited!
Do not switch!

V 7
1.6 Protective equipment
ALocally applicable regulations may require the wearing of various safety equipment!
Always observe these regulations!
Wear safety goggles to protect your eyes!
Wear suitable head protection!
Wear suitable hearing protection to protect your hearing!
Wear suitable safety gloves to protect your hands!
Wear safety shoes to protect your feet!
Always wear close-fitting work clothing!
Wear a warning vest to be seen in time to avoid accidents!
Wear respiratory equipment if breathing air is contaminated!

V 8
1.7 Environmental protection
AThe locally applicable laws, guidelines and accident prevention regulations for the
proper recycling and disposal of waste must always be observed, even if these are
not expressly named here.
Water-endangering substances like:
- Lubricants (oil, grease)
- Hydraulic oil
-Dieselfuel
- Coolant
- Cleaning liquids
must not get into the soil or sewer system during cleaning, maintenance and repair
work!
Substances must be caught, stored, transported and brought to pro-
fessional disposal sites in suitable containers!
Environmentally hazardous substance!
1.8 Fire prevention
ALocally applicable regulations may require suitable extinguishing agents to be carried
on the vehicle!
Always observe these regulations!
Fire extinguisher!
(optional equipment)
