Introduction
Thank you for purchasing this Fazley Kubo 10 combo guitar amplifier. Before you unpack the amp and any
included accessories, we recommend reading this manual in full so that you fully understanding all the
functions that this amplifier has to offer. f the Kubo 10 does not function as it should, or you have any
problems while using it, immediately switch it off and unplug it before contacting your retailer for further help
and information.
Box contents:
1x Fazley Kubo 10 combo guitar amplifier
1x Power supply (EU)
Check the amplifier and an included accessories
f you notice that the amplifier or any included accessories are defective or have been damaged in transit,
immediately contact your retailer.
Please note: The products seen in the images included in this manual may differ slightly from the product
received.
Contact:
Fazley Musical nstrument Products and Accessories
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products directly to the correspondence address above
If you need to return your product for a repair or refund, please contact your retailer and make an MA
request ( eturn Merchandise Authorisation)
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:

Safet Instructions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your dealer for more information.
- Ensure that the device is in good working condition and safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that need to be repaired or replaced by the user. Should maintenance
or repairs be necessary, they must be handled by a qualified technician.
Important information regarding health and safet :
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up, and any hardware or software that may be present should not be
modified.
- To achieve optimal performance, inputs on this device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with moisture, water and rain should always be avoided.
Do not place any objects containing liquids on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids, gasses
or objects.
- Disconnect this device from the power supply if it will not be used for a longer period of time, if maintenance
is necessary, or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector, as this could cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- n the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outdoor environment into a warm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device, which could lead to electric
shocks.
Guidelines and operation of this device:
- This device is intended for indoor use by adults.
- This device is not suitable for use by children, and should always be operated by an adult.
- This device should only be used in a suitable environment where no damage to the device can occur. Do
not use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present, or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impacts and collisions during use and transport. Do not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:
WARNING!
Keep this device awa from moisture, water and rain to avoid the chance of electric shocks.

- The user should be able to stop the device's power supply in case of emergencies. Therefore the power
adapter should be within reach at all times to be able to disconnect the power source.
- Please avoid that the power adapter can be covered by blankets, news papers, curtains or any other object.
Please keep a distance of at least 5 cm between the power adapter and other objects which may block air
circulation. Without ventilation, the power adapter may overheat and could cause permanent damage to the
product.
- Should the device not be used in the manner described in this user manual, damages or even injuries could
occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use
of this product.
Storage and transport:
- This product is designed for mobile use. t can be transported separately and without its original packaging
as long as it’s well-protected against shocks and collisions. For optimal protection and damage prevention,
it’s recommended to use a matching flight bag or flight case fitted with foam padding.
- This device is not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- f the device will not be used for a longer period of time, it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- nspect the device's housing frequently, and always just before use. Avoid operating the device if there are
large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. f the device is used frequently, the cleaning intervals should
increase.
S mbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Onl suitable for indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:

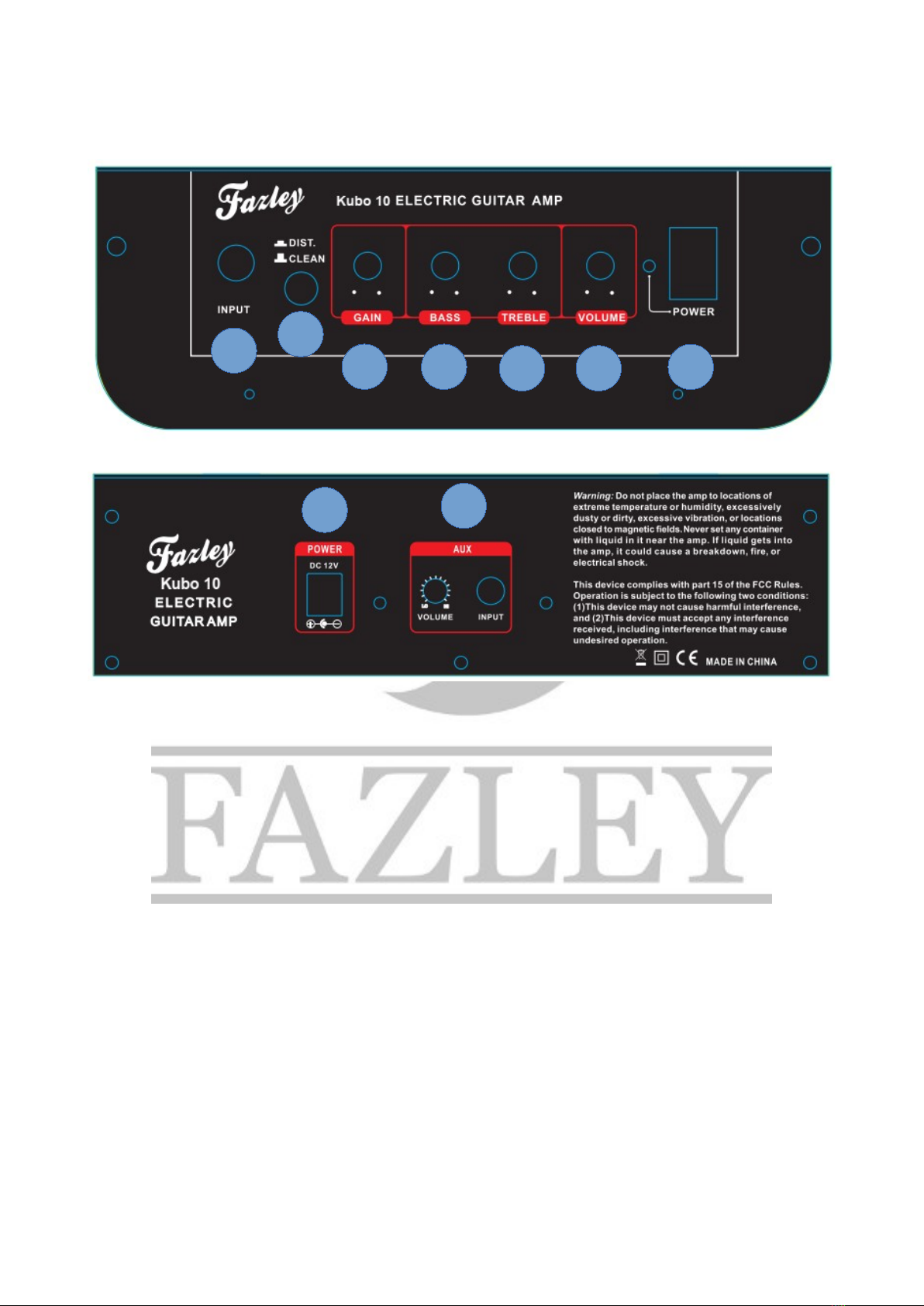

Controls and Connections Overview
1. Guitar nput (6.35mm Jack)
2. Distortion / Clean Channel Switch
3. Gain Control
4. Bass Tone Control
5. Treble Tone Control
6. Master Volume Control
7. On / Off Switch with LED ndicator
8. Power Supply Socket
9. 3.5mm TRS Mini-Jack AUX input for smartphones, laptops, tablets or other line-level devices, with volume
control
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:
13 45 6 7
2
89
1

Using this Combo Amplifier
To get the very best out of your Fazley Kubo 10 combo guitar amplifier, please follow the steps detailed
below.
Connecting up
To connect your electric guitar with this amplifier, you will need a standard instrument or guitar cable. This is
usually a 6.35mm TS jackplug cable, with either straight or angled plugs. Unfortunately, this type of cable is
designed in such a way that it will always cause a minor short circuit when connected to the input of the
amplier. This usually causes behavior like crackling noises, but can also harm your instrument and amplifier.
Therefore it’s important to follow the following steps when connecting your instrument to this (or any other)
amplifier.
Connect the wall adapter to the DC 12V input of the guitar amplifier.
Plug the power adapter into a suitable wall outlet, but do not turn on the amplifier yet.
Make sure that the POWER switch of the amp is not activated, the LED indicating the power status should
be OFF.
Connect the instrument cable to your instrument.
Connect the cable to the guitar input of the amplifier.
Now switch on the power of the amp, the LED will light up.
f you wish to disconnect the instrument from your amplifier after use, follow the steps in reversed order:
Make sure that the power of the amp is disconnected, the LED indicating power should be OFF.
Remove the guitar cable plug from the amplifier.
Remove the guitar cable plug from your instrument.
Remove the power adapter from the wall outlet.
Remove the power adapter from the DC 12V power input of the guitar amplifier.
Controls
Make sure that the controls are set to a normal level. Set the gain control and volume level to very low, and
the tone and bass tone controls to the middle, or 12 o’clock position. After the amplifier has been switched
on, these settings can be adjusted.
Select the channel you want to use. The Kubo 10 has a Clean channel and a Distortion channel. The Clean
channel reproduces the sound of your electric guitar as clearly and accurately as possible. The Distortion
channel adds an extra distortion effect to the sound of your electric guitar, making it sound raw. The level of
distortion can be controlled using the Gain control when the Distortion channel has been selected.
AUX Input
The Kubo 10 has been fitted with a mini-jack AUX input, making it possible to connect a smartphone, tablet,
or laptop. Essentially any device that sends a stereo line-signal via a 3.5mm mini-jack output can be
connected to the Kubo 10 and if it doesn’t have this kind of output, an adapter can be used. As such, media-
players can also be connected.
The Volume control fitted next to the AUX input can be used to set the level of the input signal so that the
perfect balance between the volume of your guitar and the sound of any connected external device can be
optimised.
Gain, Volume, Speaker
Once the other elements are set up, it’s possible to adjust and set the Gain and Volume. While both controls
seem to adjust the volume, this is not the case, The Gain control adds extra overdrive to the signal of your
electric guitar when the Distortion channel has been selected. The Master Volume controls the overall
volume of the sound coming out of the amplifier, no matter how the amplifier settings have been adjusted, or
which channel has been selected.
Please note that the Kubo 10 is designed for use as a practice amplifier and is not designed for live use. f
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:

the maximum volume of the Kubo 10 is reached, this can cause an overload which can drastically reduce the
lifespan of the amplifier. While the Kubo 10 will sound distorted when the Distortion channel has been
selected (and depending on the Gain level), clipping may occur when the volume is set to maximum.
When clipping occurs, it can cause unwanted noise and an extreme level of distortion that can put a
damaging amount of stress on the built-in speaker.
Two-Band Tone Controls
With the two-band tone controls (Bass and Treble), the amplified sound of the electric guitar can be tweaked
until you get the kind of tone you want. The Treble control sets the high frequencies of the sound, and the
Bass control sets the low frequencies. Experiment with the settings to find what you like, but it’s always a
good idea to try to keep tone controls turned as far down as possible. Be aware that when the Bass or Treble
controls are turned to a high level, this can cause distortion in those specific frequency ranges.
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:

Specifications
Features:
- compact practice combo guitar amplifier
- with a clean and a distortion channel (distortion channel with independent gain control)
- compact design, robust construction
- compatible with every model and type of electric guitar
- built-in 2-band tone controls
- AUX input with independent volume control
- independent headphone volume control
- power supply included
Technical Details:
- maximum output: 10 W
- speaker: 5 inch, 8 Ohm
- dimensions: 238 x 179 x 224 mm
- weight: 2.75 kg
Power Suppl :
- output voltage: 12 V, 1A DC (centre negative)
- supply voltage: 230 V AC, 50 Hz
Included Accessories:
- power supply
- 3.5 mm – 3.5 mm TRS mini-jack AUX cable
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 28-05-2020 RV Revision date + author initials:
