FAZLEY PBP-07 User manual

PBP-07
Pedal Power Supply with Built-in
Battery
User manual
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Introduction
Thank you for purchasing this Fazley Pedal Power Supply. We advise that you read this
user manual in its entirety before unpacking the contents of the box so that you are familiar
with all of the functionality that this product has to offer. Please be sure to check that all of
the parts and accessories listed below under 'box contents' are included in the package. In
the event that the PBP-07(-UK) does not function properly or if you have any issues while
operating it please remove the plug from the power socket and contact your dealer for
assistance.
Box contents:
– Fazley PBP-07(-UK) pedal power supply with built-in battery
– power adapter for use in EU (PBP-07 only)
– power adapter for use in UK (PBP-07-UK only)
– 6x output cable
– polarity changer cable
This user manual typically refers to the PBP-07. The PBP-07-UK is identical in e ery way
apart from the power supply.
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been
damaged or rendered defective while in transit please contact your dealer directly.
Please note that the pictures in this user manual ser e illustrati e purposes only and may
differ from the product you recei e.
Contact:
Fazley musical instrument products and accessories
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer
for an RMA request (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Sa ety instructions
Everyone involved with the installation operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the
device or the included accessories be damaged please contact your dealer for more
information.
- Ensure that the device is in good working condition and is safe to operate. Please follow
the advice and instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the
warranty.
This device does not contain any parts that need to be repaired or replaced by the user.
Should maintenance or repairs be necessary they must be handled by a qualified
technician.
Important in ormation regarding sa ety and health:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up and any hardware or software that may be present
should not be modified.
- To achieve optimal performance inputs on this device should not be fed with a signal
higher than necessary.
- The outputs on this device should not be overloaded.
- The device should only be used indoors; contact with water rain and moisture should
always be avoided. Do not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -
WARNING!
Keep this device away rom moisture, water and rain to avoid the chance
o electric shocks.

flammable fluids gasses or objects.
- Disconnect this device from the power supply if it will not be used for a longer period of
time if maintenance is necessary or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective
cables. Please contact your dealer if the included or necessary cables do not function
properly with this device.
- In the event that the device is exposed to extreme temperature changes (e.g. transported
through a cold outside environment into a warm indoor environment) it should not be
turned on until it has reached room temperature. This is necessary to prevent moisture from
forming in the device which could lead to electric shocks.
Guidelines and operation o this device:
- This device is intended for adult use only.
- This device is not suitable for use by children and should always be operated by an adult.
- This device may only be used in a suitable environment where no damage to the device
can occur. Do not use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present or where it reaches
temperature levels that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device while it is
in use. Avoid using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual damages or
even injuries could occur. Fazley cannot be held responsible for any injuries or damages
that occur as a result of improper use of this product.
Storage and transport:
- This product is designed for mobile use. It can be transported separately as long as it’s
well-protected against shocks and collisions.
- This device is not designed for permanent (24/7) use. The expected lifespan of the device
will not be affected by occasionally turning the device off. Disconnect the device or turn off
the power when it is not actively in use.
- If the device will not be used for a longer period of time it should be disconnected and
stored in a dust-free environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently and always just before use. Avoid operating the
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

device if there are large dents or cracks or if screws are missing. Do not use the device if
the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this
device. Contact your dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the
connectors are not secure.
Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the
power supply and wiping it down with a dry or slightly moist cloth. If the device is used
frequently the cleaning intervals should increase.
Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under
the WEEE (Waste Electrical and Electronic Equipment) directive. The
requirements of this directive apply to all manufacturers and producers of
electronic devices in the EU. Do not throw this product away with regular
rubbish. Please contact your local authority for more information about how to
recycle and dispose of these products in your region. By recycling this product
in the proper manner we can work together to ensure that we can continue to
enjoy these kinds of products and still protect the environment as much as
possible from pollution.
CE: The CE logo indicates that this product meets the European norms and
requirements to which it must legally conform.
Only suitable or indoor use: this product was only designed for indoor use.
The maximum environmental temperature must not exceed 40 degrees
Celsius (104 degrees Fahrenheit).
Battery instructions and warnings
Battery use and li espan
The Fazley PBP-07 is delivered with a built-in lithium-battery. This battery provides the
necessary voltage to power the device without the need to plug it into a mains socket. After
unpacking the pedal power supply it's recommended to test it with an effects pedal by first
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

plugging it into a mains socket and then using only the built-in battery. It is then strongly
recommended to fully charge the battery to ensure maximum lifespan.
Please bear in mind that this type of battery is not designed to be (almost) completely
discharged. Should the performance of the PBP-07 decrease connect it to the mains so the
battery can charge.
If the device has a low battery percentage and is stored for an extended period of time then
there is a chance that the battery performance may decrease.
The built-in battery of the PBP-07 can not be replaced by the user.
WARNING
Risk of explosion if the battery is not properly replaced.
Only replace the battery with one that is identical in type and specifications.
Do not expose batteries to intense heat from sunlight open fire etc.
Do not leave batteries out in an environment with extreme temperatures as this may cause
explosions or fluid or gas leaks.
Do not burnbatteries placethem in a hot oven cut or crush them. This could cause the
batteries to explode.
Do not expose batteries to extremely low pressure (high altitude) as this may cause
explosions or fluid or gas leaks.
Recycling
If the maximum lifespan of the battery has been reached and it no longer functions
(properly) it should be removed from the device.
Batteries can not be thrown away together with regular rubbish. They contain hazardous
chemicals that can harm the environment. When batteries are recycled properly they
become a valuable source of sustainable material. Contact your local authority about how
to dispose of batteries in an eco-friendly way.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

2
1
3
45
Device overview
1. input for power adapter
2. battery status LED
3. USB output max. 2 A
4. effects pedal outputs 1-4 max. 100 mA
5. effects pedal outputs 5-6 max. 500 mA
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Operating the device
The Fazley PBP-07 is a practical pedal power supply designed to power (guitar)effects
pedals. One central power supply unit like this one means each individual guitar pedal is
not required to have a separate power supply or mains socket.
The PBP-07 has a built-in battery which means your pedal board can function without being
plugged into a mains socket. This is practical for short performances that require a fast
setting up and breaking down time for example or when other power supplies are causing
problems on the audio signal due to unbalanced unprotected audio signals. Switching to
battery-powered mode solves these kinds of ground-loop problems.
Charging the battery
This device has a 2-colour LED that shows the battery status:
– solid red: the battery is being used to supply power
– flashing red: battery percentage under 30% charge the battery a.s.a.p
– solid green: battery is fully charged
– flashing green: battery is being charged
The battery can handle 500 full load cycles before showing a noticeable decrease in
functionality. This is a rough estimate the actual time may differ due to deep discharge for
example.
Installation
This pedal power supply can easily be mounted on or underneath a pedal board. Suitable
ways to mount this device are using hook-and-loop fastener strips tie-wraps or brackets
that might have been included with your pedal board.
When mounting this device to a pedal board it is important to ensure that the status LED
indicators are visible at all times. It is also important that it can be turned off and unplugged
at any time in case of emergencies.
Connecting the outputs
Install the pedal power supply unit in such a way that the included cables can be plugged in
without having any sharp (180-degree) bends as this will likely cause the cables to break
over time. The cables can be bound together using cable binders as long as they aren't
pulled too tightly.
The connection cables can easily be plugged into their corresponding socket. There are 6
outputs in total each with its own LED indicator. Output 1 through 4 can handle a maximum
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

load of 100 mA. Output 5 and 6 may not exceed a maximum load of 500 mA.
Simultaneous use o all outputs at ull capacity
In theory if all outputs are being utilised at their full maximum capacity at the same time
the power supply may not be able to provide the amount of power as indicated per output.
In practice however it does not often happen that all the outputs of this type of power
supply are used simultaneously at full capacity and is therefore unlikely to cause a problem.
USB port
This device is equipped with a USB connection that may not exceed a maximum load
capacity of 2A. It is designed for small accessories such as an LED lamp.
It is not designed for heavy loads like charging a telephone or tablet which can have a
negative influence on the performance of the pedal outputs. This is most likely noticeable
when the device functions in battery-powered mode and is not plugged into the mains.
Voltage, polarity and power
Always make sure that any device you connect to this power supply requires the same
voltage and make note of the minimum amount of power it requires to function properly. If
an effects pedal requires a minimum of 500 mA it can not be connected to an output of 100
mA as this will cause the output to overload.
The outputs on the PBP-07 are all centre-negative which means that the central conductor
of the cable's output plug is negative and the part you can see the barrel is positive. This is
also indicated per output on the pedal power supply unit itself and a similar indication is
probably on the effects pedal as well.
The included adapter cable is a so-called 'polarity changer'. It can be used to change the
polarity to centre-positive should the pedal you wish to connect require it.

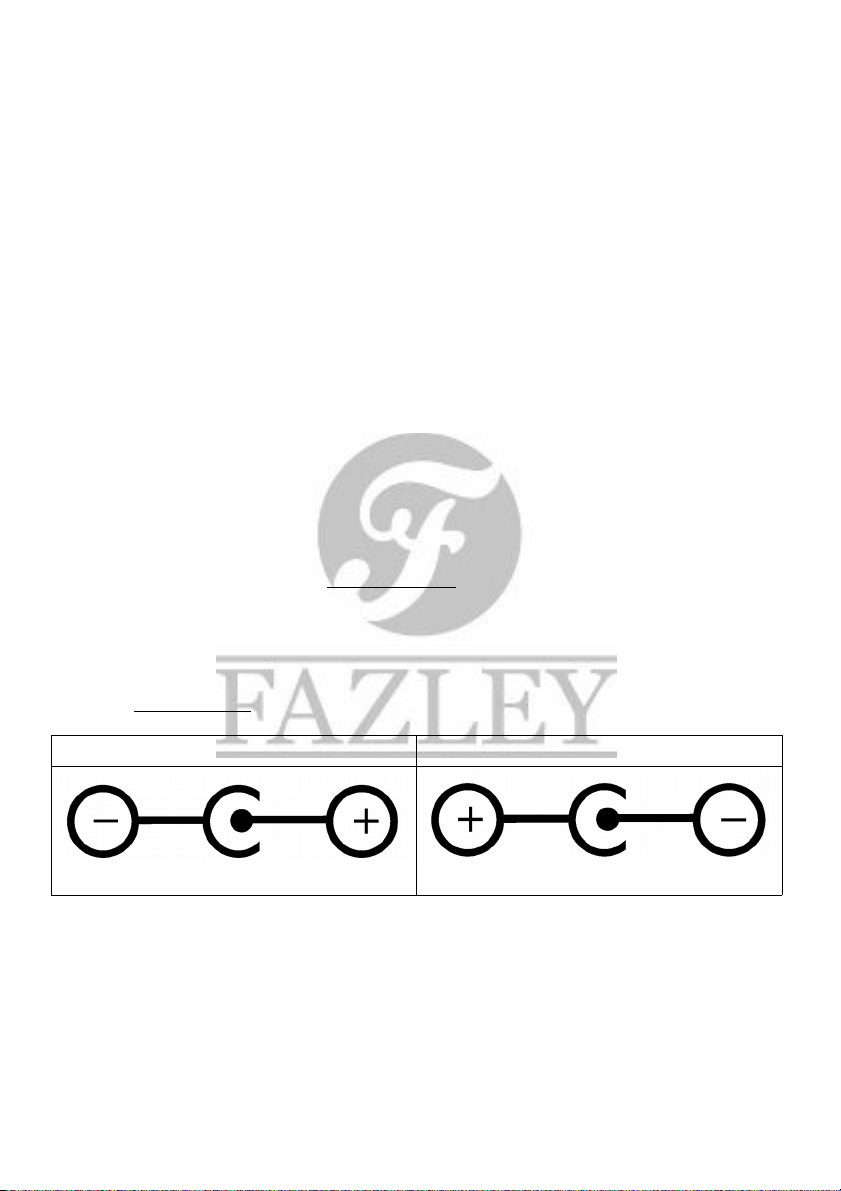

The polarity of a device is shown using the following diagrams:
Centre-positive Centre-negative
Inter erence
It is possible to connect many different effects pedals to this device which makes it difficult
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

to solve all possible interference issues with this user manual. Should you experience
unwanted interference the cause is usually a ground loop. To find out where the
interference is coming from it's recommended to alter the order of effects pedals in your
chain replace cables or remove certain pedals until you find the cause of the problem.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Solving pedal power supply problems
If you have a problem with your pedal power supply please consult the troubleshooting
section for possible solutions. If after consulting this section the problem remains
unresolved please contact your dealer for more information and/or help.
This troubleshooting section contains information on how to solve the most common pedal
power supply problems but it does not and cannot cover every eventuality. It is possible
that you won't find your problem cause and solution in this section due to differences
between various connecting devices.
Problem Possible cause Solution
Device will not turn on
pedals do not work
Power cable is not
connected properly
Make sure that the power
cable is connected properly
and plugged into an active
mains socket.
Mains socket not switched
on
Check that the mains socket
is active and switched on if
necessary.
Cable is defective If the cable appears to be
defective contact your
dealer.
Battery is empty Plug the pedal power supply
into an active mains socket
to see if the built-in battery is
empty and needs to be
charged.
LEDs do not light up The device is not switched
on
Connect the device to an
active main socket using the
included power adapter.
There is audible interference
(hum)
Disruptive pedal disruptive
cable
Change the cables and
pedals to find out where the
interference is coming from
and take appropriate action.
Pedal does not work Cable not connected Make sure the output cable
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

properly is connected properly to the
effects pedal. Exchange the
pedal and the cables to find
the cause of the problem.
Major decrease in battery
lifespan the device can no
longer be battery-powered
Battery is defective or has
reached its maximum
lifespan
If the maximum lifespan of
the battery has been
reached and it no longer
functions (properly) the
device should be inspected
or recycled.
Effects pedals do not work
(properly) or the sound is
distorted
Battery voltage is insufficient Make sure the connected
loads are not too heavy for
the battery (for example
when using the USB port)
and check the battery status.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Speci ications
- compact battery-powered pedal power supply
- built-in lithium-polymer battery
- multiple outputs
- easy to mount under or on a pedal board
- metal housing
- equipped with USB port for USB-powered products
- LED indicators
- power adapter included
included accessories:
- 6x connection cables for pedals
- polarity changer
Outputs:
- output 1 - 4: 9V DC 100 mA max.
- output 5 - 6: 9V DC 500 mA max.
- USB port: 5V DC 2000 mA max.
Technical data:
- type: PBP-07
- connected load power adapter to mains: 100 – 240V AC 50/60 Hz
- connected load power pedal power supply: 5V DC 2000 mA
- power consumption: 15 W
- starting current: 300 mA
- nominal power consumption: 150 – 60 mA
- DC outputs: 5.5 x 2.1 mm
- to be used in environmental temperature: 0 - 40 degrees Celsius
- centre-negative polarity for all pedal power outputs
- centre-positive polarity for the pedal power input
- short-circuit protection
- overload protection
Battery speci ications:
- built-in lithium-polymer battery capacity: 3.7V DC 6350 mAh
- lifespan: approx. 500 full load cycles before noticeable decrease in performance
- battery weight: 120 grams
- lifespan when only USB is used at full capacity: +/- 2.5 hours
- lifespan if pedal outputs are used at full capacity: +/- 2 hours
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -
