FAZLEY PBP-06 User manual

PBP-06
Pedal Power Supply
User manual
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Introduction
Thank you for purchasing this Fazley pedal power supply. We advise that you read this user
manual in its entirety before unpacking the contents of the box, so that you are familiar with
all of the functionality that this product has to offer. Please be sure to check that all of the
parts and accessories listed below under Box contents are included in the package. In the
event that the PBP-06 does not function properly, or if you have any issues while operating
it, please remove the plug from the power socket and contact your dealer for assistance.
Box contents:
– Fazley PBP-06 pedal power supply
– power cable IEC C13 to Schuko for use in the EU
– 8x output cable
– adapter cable to mini jack
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been
damaged or rendered defective while in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may
differ from the product you receive.
Contact:
Fazley musical instrument products and accessories
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer
for an RMA re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Sa ety instructions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the
device or the included accessories be damaged, please contact your dealer for more
information.
- Ensure that the device is in good working condition and is safe to operate. Please follow
the advice and instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the
warranty.
This device does not contain any parts that need to be repaired or replaced by the user.
Should maintenance or repairs be necessary, they must be handled by a qualified
technician.
Important in ormation regarding sa ety and health:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up, and any hardware or software that may be present
should not be modified.
- To achieve optimal performance, inputs on this device should not be fed with a signal
higher than necessary.
- The outputs on this device should not be overloaded.
- The device should only be used indoors; contact with water, rain and moisture should
always be avoided. Do not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -
WARNING!
Keep this device away rom moisture, water and rain to avoid the chance
o electric shocks.

flammable fluids, gasses or objects.
- Disconnect this device from the power supply if it will not be used for a longer period of
time, if maintenance is necessary, or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector, as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective
cables. Please contact your dealer if the included or necessary cables do not function
properly with this device.
- Only use this device with power from a grounded power source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported
through a cold outside environment into a warm indoor environment), it should not be
turned on until it has reached room temperature. This is necessary to prevent moisture from
forming in the device, which could lead to electric shocks.
Guidelines and operation o this device:
- This device is intended for adult use only.
- This device is not suitable for use by children, and should always be operated by an adult.
- This device may only be used in a suitable environment where no damage to the device
can occur. Do not use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present, or where it reaches
temperature levels that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device while it is
in use. Avoid using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual, damages or
even injuries could occur. Fazley cannot be held responsible for any injuries or damages
that occur as a result of improper use of this product.
Storage and transport:
- This product is designed for mobile use. It can be transported separately as long as it’s
well-protected against shocks and collisions.
- This device is not designed for permanent (24/7) use. The expected lifespan of the device
will not be affected by occasionally turning the device off. Disconnect the device or turn off
the power when it is not actively in use.
- If the device will not be used for a longer period of time, it should be disconnected and
stored in a dust-free environment.
- Do not expose the device to extreme temperature differences.
Housing
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

- Inspect the device s housing frequently, and always just before use. Avoid operating the
device if there are large dents or cracks, or if screws are missing. Do not use the device if
the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this
device. Contact your dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the
connectors are not secure.
Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the
power supply and wiping it down with a dry or slightly moist cloth. If the device is used
frequently, the cleaning intervals should increase.
Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under
the WEEE (Waste Electrical and Electronic Equipment) directive. The
requirements of this directive apply to all manufacturers and producers of
electronic devices in the EU. Do not throw this product away with regular
rubbish. Please contact your local authority for more information about how to
recycle and dispose of these products in your region. By recycling this product
in the proper manner, we can work together to ensure that we can continue to
enjoy these kinds of products and still protect the environment as much as
possible from pollution.
CE: The CE logo indicates that this product meets the European norms and
requirements to which it must legally conform.
Only suitable or indoor use: this product was only designed for indoor use.
The maximum environmental temperature must not exceed 40 degrees
Celsius (104 degrees Fahrenheit).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

2
1
34

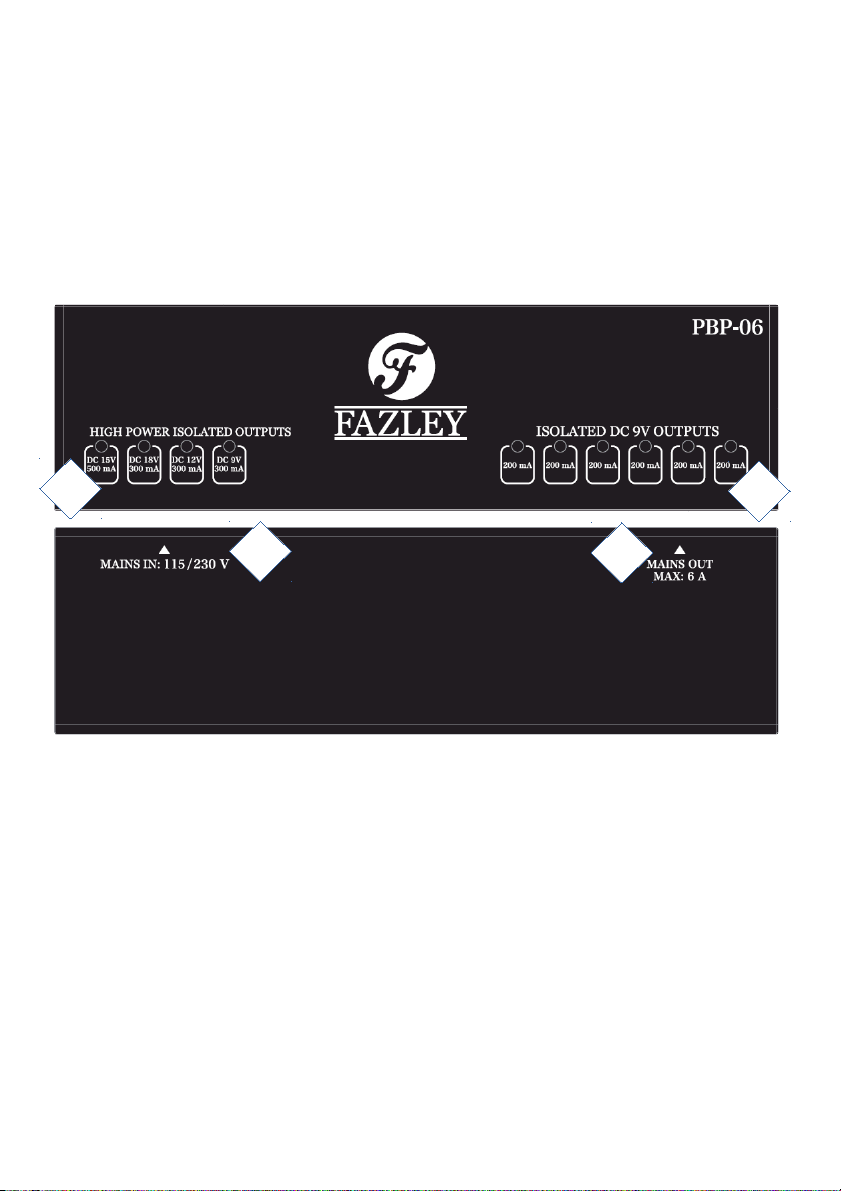

Device overview
1. high-power outputs (1x 500, 3x 300 mA)
2. low-power outputs (200 mA)
3. power input via IEC C14 and fuse holder
4. power output via IEC C13, 6A max.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Operating the device
The Fazley PBP-06 is a practical pedal power supply designed to power (guitar)effects
pedals. One central power supply unit like this one means each individual guitar pedal is
not required to have a separate power supply or mains socket.
Installation
This pedal power supply can easily be mounted on or underneath a pedal board. Suitable
ways to mount this device are using hook-and-loop fastener strips, tie-wraps or brackets
that might have been included with your pedal board.
When mounting this device to a pedal board, it is important to ensure that the status LED
indicators are visible at all times. It is also important that it can be turned off and unplugged
at any time in case of emergencies.
Connecting the outputs
Install the pedal power supply in such a way that the included cables can be plugged in
without having any sharp (180-degree) bends, as this will likely cause the cables to break
over time. The cables can be bound together using cable binders as long as they aren t
pulled too tightly.
The connection cables can easily be plugged into their corresponding socket. The outputs
on the left side of this device offer different voltage levels meant for special effects pedals
that require a voltage other than 9V DC. There is one 500mA output that offers 15V, and the
other connections may not exceed a load of maximum 300 mA.
On the right side of this device, you will find the regular 9V DC outputs, each with a
maximum output capacity of 200 mA. Each output is also equipped with an LED indicator.
Simultaneous use o all outputs at ull capacity
In theory, if all outputs are being utilised at their full maximum capacity at the same time,
the power supply may not be able to provide the amount of power as indicated per output.
In practice, however, it does not often happen that all the outputs of this type of power
supply are used simultaneously at full capacity and is therefore unlikely to cause a problem.
115 / 230V
This device can run on two different voltages. It has been configured in advance to run on
230V AC power, but it can also function on 115V AC power, which is common in some
countries. If you want to run this device on 115V AC power, bear in mind that you may need
a different connection cable than the one included with this product.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Voltage, polarity and power
Always make sure that any device you connect to this power supply requires the same
voltage and make note of the minimum amount of power it requires to function properly. If
an effects pedal requires a minimum of 500 mA, it can not be connected to an output of 100
mA, as this will cause the output to overload.
The outputs on the PBP-06 are all centre-negative, which means that the central conductor
of the cable s output plug is negative and the part you can see, the barrel, is positive. This is
also indicated per output on the pedal power supply unit itself, and a similar indication is
probably on the effects pedal as well.
The included adapter cable is a so-called polarity changer . It can be used to change the
polarity to centre-positive should the pedal you wish to connect require it.

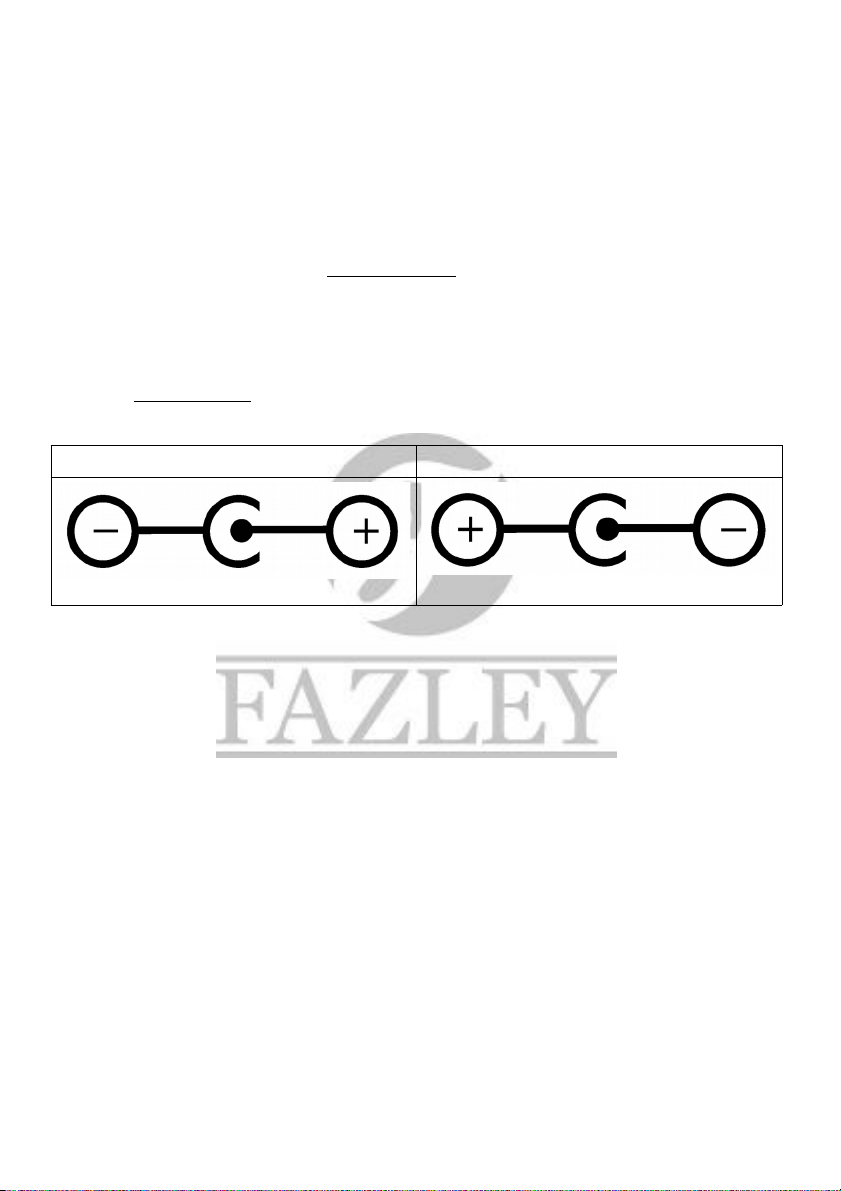

The polarity of a device is shown using the following diagrams:
Centre-positive Centre-negative
Inter erence
It is possible to connect many different effects pedals to this device, which makes it difficult
to solve all possible interference issues with this user manual. Should you experience
unwanted interference, the cause is usually a ground loop. To find out where the
interference is coming from, it s recommended to alter the order of effects pedals in your
chain, replace cables, or remove certain pedals until you find the cause of the problem.
Power output
The power output on the PBP-06 is fed directly from the input and protected by the same
fuse. It can be used to connect a guitar amplifier or peripheral equipment that can not be
powered by one of the low-voltage outputs. This output may not exceed a maximum load of
6A.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Solving pedal power supply problems
If you have a problem with your pedal power supply, please consult the troubleshooting
section for possible solutions. If, after consulting this section, the problem remains
unresolved, please contact your dealer for more information and/or help.
This troubleshooting section contains information on how to solve the most common pedal
power supply problems, but it does not and cannot cover every eventuality. It is possible
that you won t find your problem, cause and solution in this section due to differences
between various connecting devices.
Problem Possible cause Solution
Device will not turn on,
pedals do not work
Power cable is not
connected properly
Make sure that the power
cable is connected properly
and plugged into an active
mains socket.
Mains socket not switched
on
Check that the mains socket
is active and switched on, if
necessary.
Cable is defective If the cable appears to be
defective, contact your
dealer.
LEDs do not light up The device is not switched
on
Connect the device to an
active main socket using the
included power adapter.
There is audible interference
(hum)
Disruptive pedal, disruptive
cable
Change the cables and
pedals to find out where the
interference is coming from
and take appropriate action.
Pedal does not work Cable not connected
properly
Make sure the output cable
is connected properly to the
effects pedal. Exchange the
pedal and the cables to find
the cause of the problem.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -

Speci ications
- compact battery-powered pedal power supply
- multiple outputs
- easy to mount under or on a pedal board
- metal housing
- equipped with an output to supply other devices with power
- LED indicators
- built-in power transformer
included accessories:
- 8x connection cables for pedals
- adapter cable to mini jack
Outputs:
- output 1: 15V DC, 500 mA
- output 2: 18V DC, 300 mA
- output 3: 12V DC, 300 mA
- output 4: 9V DC, 300 mA
- output 5-10: 9V DC, 300 mA
- 230V DC link output, max. 6 A
Technical data:
- type: PBP-06
- input: 115 / 230V AC, 50/60 Hz
- power consumption: 55 W
- starting current: 1.2 A
- nominal power consumption: 480 / 240 mA
- fuse: F10AL 250V
- DC outputs: 5.5 x 2.1 mm
- to be used in environmental temperature: 0 - 40 degrees Celsius
- centre-negative polarity
- short-circuit protection
- overload protection
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:
08-03-2017 RV
Revision date and author's initials: -
