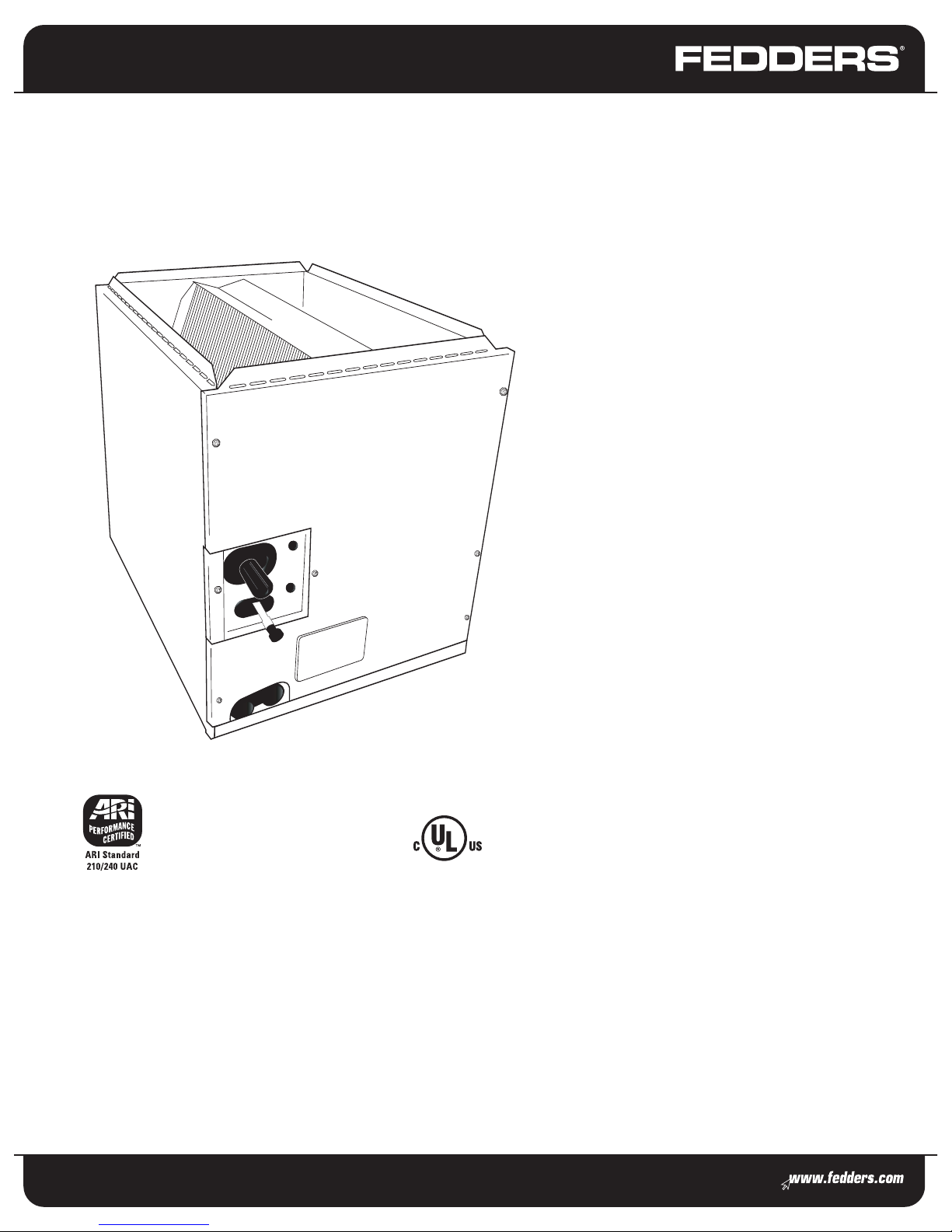

AC1A Series Cased A-Coil
Upflow/Downflow, 11⁄2thru 5 Tons
Fedders Cased Coils for use with the cool only
condensing unit. This reliable matching cased coil
was designed to compliment the Fedders full system.
The coils are available for use in R-22 systems. They
arehoused in a durable gauge painted cabinet and
fully insulated for quiet, efficient operation.
Performance:
Rated in accordance with ARI Standard 210/240
A-Coils offer low pressure drops to enhance system
performance and airflow characteristics
Quality Built:
Coils have sweat fitting refrigerant connections
Widths match flush with Fedders gas furnaces
Primary and secondary condensate drain
connections are 3/4" F.P.T. – Flush Mounted
Condensatedrain pan is constructed of high grade,
heat resistant, corrosion free material
Copper tube aluminum fin coil
All evaporators are factory leak-tested, dehydrated,
sealedand shipped with holding charge
Pressure taps on suction and liquid line
TXV is standard on all coils
R4.0 insulation value in case
All drain pans are compatible with UV lights
Limited5-year warranty
Serviceability:
Front panel is removable for easy service
and coil cleaning
Foil-Face insulation for easy cleaning
Rated in Accordance with ARI Standard 210/240.
Certification Applies Only When Used with
Proper Components as Listed with ARI.
Additional rating information can be found
at www.aridirectory.org
Residential & Light Commercial HVAC
Easy To Install:
All tubing exits through left hand side of front access panel
Split seam front access
Suction and discharge line extend past the outside of
the cabinet

Product Specifications
2
Specifications subject to change without notice.
COIL SPECIFICATIONS
MODEL
NUMBER
TYPE
AIR
FLOW*
FLUSH
FIT TO
FURNACE
WIDTH
CFM
RANGE
FACE
AREA
SQ. FT.
FINS
PER
INCH
TUBE
O.D.
NUMBER
OF
ROWS
NUMBER
OF
CIRCUITS
LINE
CONNECTIONS O.D.
LIQUID SUCTION
AC1A024A U, D 14.5, 16 600 - 900 4.00 14 3/8" 2 4 3/8" 3/4"
AC1A030A U, D 14.5, 16, 17.5, 20.5 800 – 1,250 3.11 14 3/8" 3 6 3/8" 7/8"
AC1A036A U, D 14.5, 16, 17.5, 20.5 1,000 – 1,400 4.00 14 3/8" 3 6 3/8" 7/8"
AC1A042A U, D 17.5, 20.5 1,300 – 1,500 4.89 12 3/8" 3 6 3/8" 7/8"
AC1A060A U, D 17.5, 20.5, 22 1,400 – 1,900 5.80 12 3/8" 3 6 3/8"17/8"2
MODEL
NUMBER
STATIC PRESSURE DROP THROUGH WET COIL & HOUSING (INCHES WATER COLUMN / CFM)
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900
AC1A024A 0.10 0.11 0.12 0.13
AC1A030A 0.15 0.17 0.19 0.21
AC1A036A 0.19 0.20 0.22 0.23 0.24
AC1A042A 0.15 0.17 0.18 0.21
AC1A060A 0.21 0.23 0.23
*U = Upflow Applications. D = Downflow Applications.
1=Requires a 1/2" - 3/8" reducer.
2=Requires a 1 1/8" - 3/8" reducer.
Airflow configurations (drawings showing different installation configurations)
This product is ARI certified when matched with other Fedders products.

Product Specifications
3
Specifications subject to change without notice.
CASED COIL DIMENSIONS IN INCHES
MODEL
NUMBER A B C D E F
SHIPPING
WEIGHT
(LBS)
SHIPPING DIMENSIONS
HEIGHT LENGTH WIDTH
AC1A024A14 14.5 20.0 21 3/4 NPT 13 20 42 22.8 24.2 16.4
AC1A024A16 16 18.5 21 3/4 NPT 14.5 20 43 21.3 24.2 17.9
AC1A030A14 14.5 20.0 21 3/4 NPT 13 20 44 22.8 24.2 16.4
AC1A030A16 16 18.5 21 3/4 NPT 14.5 20 45 21.3 24.2 17.9
AC1A030A17 17.5 18.5 21 3/4 NPT 16 20 46 21.3 24.2 19.4
AC1A030A20 20.5 18.5 21 3/4 NPT 19 20 51 21.3 24.2 22.4
AC1A036A14 14.5 20.5 21 3/4 NPT 13 20 51 22.8 24.2 16.4
AC1A036A16 16 18.5 21 3/4 NPT 14.5 20 52 22.8 24.2 17.9
AC1A036A17 17.5 18.5 21 3/4 NPT 16 20 52 21.3 24.2 19.4
AC1A036A20 20.5 18.5 21 3/4 NPT 19 20 53 21.3 24.2 22.4
AC1A042A17 17.5 23.5 21 3/4 NPT 16 20 55 26.3 24.2 19.4
AC1A042A20 20.5 23.5 21 3/4 NPT 19 20 58 26.3 24.2 22.4
AC1A060A17 17.5 22.5 24 3/4 NPT 16 23 65 25.7 27.2 19.4
AC1A060A20 20.5 22.5 24 3/4 NPT 19 23 67 25.7 27.2 22.4
AC1A060A22 22 22.5 24 3/4 NPT 20.5 23 69 25.7 27.2 23.9
F
E
3/4 NPT
DRAIN
3/4 NPT
DRAIN PLUGGED
B
C
D
A

Fedders Corporation
505 Martinsville Rd.
Liberty Corner, NJ 07938 USA
[phone]
Form No. F-Acoil-0407B
All product specifications reflect available information at the printing of this brochure.
Fedders reserves the right to revise or modify products and/or specifications without notice.
Copyright ©2007 Fedders North America, Inc. Fedders is a registered trademark of Fedders North America, Inc.
AC1A Series Cased A-Coil
A C 1 A 036 A 14 *A
Brand Coil
A=Fedders Coil
Case Designation
C=Cased Coil
Position
1=Upflow/Downflow
Design Series
A = ASeries
Nominal Capacity
024 = 18,000/24,000 BTUH [5.28/7.03 kW]
030 = 30,000 BTUH [8.79 kW]
036 = 36,000 BTUH [10.55 kW]
042 = 42,000 BTUH [12.31 kW]
048 = 48,000 BTUH [14.07 kW]
060 = 60,000 BTUH [17.5 kW]
Casing Width
14 = 14.5" Casing Width
16 = 16" Casing Width
17 = 17.5" Casing Width
20 = 20.5" Casing Width
22 = 22" Casing Width
Major Revision
A = First Revision
COIL NOMENCLATURE
