Installation and
Maintenance Manual
Model PS1000
Power Supply/Charger

Warranty – Seller warrants all goods for ve years on parts and 2-1/2 years on labor, under the following
conditions and exceptions: Seller warrants that all goods of Seller's manufacture will conform to any
descriptions thereof for specications which are expressly made a part of this sales contract and at the
time of sale by Seller such goods shall be commercially free from defects in material or workmanship.
Seller reserves the right at the Seller’s discretion to “Repair and Return” or “Replace” any item deemed
defective during the warranty period. This warranty does not cover travel expenses, the cost of specialized
equipment for gaining access to the product, or labor charges for removal and reinstallation of the product.
This warranty shall be ineffective and shall not apply to goods that have been subjected to misuse, neglect,
accident, damage, improper maintenance, or to goods altered or repaired by anyone other than Seller or its
authorized representative, or if ve years have elapsed from the date of shipment of the goods by Seller
with the following exceptions: lamps and strobe tubes are not covered under this warranty. Outdoor warn-
ing sirens and controllers manufactured by Federal Warning Systems are warranteed for two years on parts
and one year on labor. No agent, employee, representative or distributor of Seller has any authority to bind
the Seller to any representation, afrmation, or warranty concerning the goods and any such representation,
afrmation or warranty shall not be deemed to have become a part of the basics of the sales contract and
shall be unenforceable. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES OR MERCHANTABILITY, FITNESS FOR PURPOSE AND OF ANY OTHER
TYPE, WHETHER EXPRESS OR IMPLIED. These warranties shall not apply unless Seller shall be given
reasonable opportunity to investigate all claims for allegedly defective goods. Upon Seller's instruction a
sample only of allegedly defective goods shall be returned to Seller for its inspection and approval. The
basis of all claims for alleged defects in the goods not discoverable upon reasonable inspection thereof
pursuant to paragraph 8 hereof must be fully explained in writing and received by Seller within thirty days
after Buyer learns of the defect or such claim shall be deemed waived.
Federal Signal Corporation
Industrial Products
2645 Federal Signal Drive
University Park, IL 60484-3167
Phone: [phone] • [phone] • Fax: [phone]
www.federalsignal-indust.com • www.fs-isys.com

1
Contents
Safety Messages to Installation and Service Personnel of Federal Signal Products..................2
Product Specications.......................................................................................................................3
Installing and Maintaining the Model PS1000..................................................................................5
Mounting the Model PS1000 Enclosure.......................................................................................................... 5
Wiring the Model PS1000 ............................................................................................................................... 5
Maintaining the Model PS1000..........................................................................................................9
Obtaining Service, Parts, and Support...........................................................................................10
Repair Service .............................................................................................................................................. 10
Technical Assistance ...................................................................................................................................... 10
Replacement Parts ......................................................................................................................................... 10
Returning a Product for Credit ...................................................................................................................... 10

2
Safety Messages to Installation and Service Personnel
of Federal Signal Products
Peoples lives depend on your proper installation of our products. It is important to follow all instructions
shipped with the products. The selection of the mounting location for the device, its controls and routing of the
wiring is to be accomplished under the direction of the Facilities Engineer and the Safety Engineer. In addition,
listed below are some other important safety instructions and precautions you should follow:
• ThisunitmustbeinstalledbyaqualiedelectricianinaccordancewiththeNationalElectricalCode/
NFPA70/NFPA72/ANSIandwithalllocalcodesandauthoritieshavingjurisdiction.
• Readandunderstandallinstructionsbeforeinstallingoroperatingthisequipment.
• Consulttheauthorityhavingjurisdictioninyourarearegardingtheproperuseandinstallationofthis
product.
• Donotconnectthisproducttothesystemwhenpowerison.
• Afterinstallationandcompletionoftheinitialsystemtest,aprogramforperiodictestingofthisproduct
mustbeestablished.RefertoNFPA72G,localFireCodesandtheauthorityhavingjurisdictionforthis
information.
• ShowtheseinstructionstoyourSafetyEngineerandthenletheminasafeplaceandrefertothem
whenmaintainingand/orreinstallingtheunit.
Failuretofollowallsafetyprecautionsandinstructionsmayresultinpropertydamage,seriousinjury,ordeath.

3
Product Specications
TheModelPS1000isapowersupply/chargerthatconvertsanACinputtoa24Vdcregulatingoutput.Itis
intended for indoor use only.
Input
◆ PS1000: 115Vac/60Hz,4.4A
◆ PS1000-240: 230Vac/50-60Hz,2.2A
Output
◆ 24Vdc
◆ 8Asupplycurrentinanon-alarmconditionwith10Asupplycurrentduringthealarmforrealarm
applications
◆ 10Asupplycurrentforaccesscontrolapplications
◆Filtered and electronically regulated outputs
◆Short circuit and thermal overload protection
Battery Backup
◆ Built-inchargerforsealedlead-acidorgelbatteries.
◆ Automaticswitchovertostand-bybatterywhenACfails.
◆ 3.6Amaximumchargecurrent
◆Zero voltage drop when switched over to battery backup
Supervision
◆ ACfailsupervision(FormCcontacts)
◆ Lowbatterysupervision(FormCcontacts)
◆ Batterypresencesupervision(FormCcontacts)
Additional Features
◆ ACinputandDCoutputLEDindicators
◆Power supply, enclosure, cam lock, and battery leads
Agency Listings and Approvals (120 Vac Models Only)
◆ UL,CUL:
 ULFile#S4707,UL1481,ULListedStandardforSafetyforFireProtectiveSignalingSystems.
 UL294,ULListedforAccessControlSystemUnits
◆ CSA:“SignalEquipment”EvaluatedtoCSAStandardC22.2No.205-M1983
◆ CaliforniaStateFireMarshall
◆ FactoryMutualApproved

4
Standby Specications (Total Current)
Output 15 Min. of Standby,
5 Min. of Alarm
4 Hr. of Standby,
5 Min. of Alarm
24 Hr. of Standby,
5 Min. of Alarm
60 Hr. of Standby,
5 Min. of Alarm
24 Vdc,
12 Ah Battery
Standby = 8 A
Alarm = 10 A
Standby = 1.5 A
Alarm = 10 A
Standby = 200 mA
Alarm = 10 A
Standby = 100 mA
Alarm = 10 A
24 Vdc,
65 Ah Battery NA Standby = 8 A Alarm = 10 A
Standby = 1.5 A
Alarm = 10 A
Standby = 500 mA
Alarm = 10 A
1.285"
ENCLOSURE DIMENSIONS:
15.5" H x 12" W x 4.5" D
1.50" 4.50" 4.50" 1.50"
0.88" 1.25"9.88"
12"
0.94"
1.285"
15.50"
0.88"
4.50"
1.25"
1.50"4.50"
TOP
RIGHTLEFT
BOTTOM
4.50"
15.50"
3.38"
3.38"
2.25"
1.25"
4.50"
1.50" 4.50"
4.50"
15.50"
1.25"
2.13"
1.25"
4.50"
290A6461

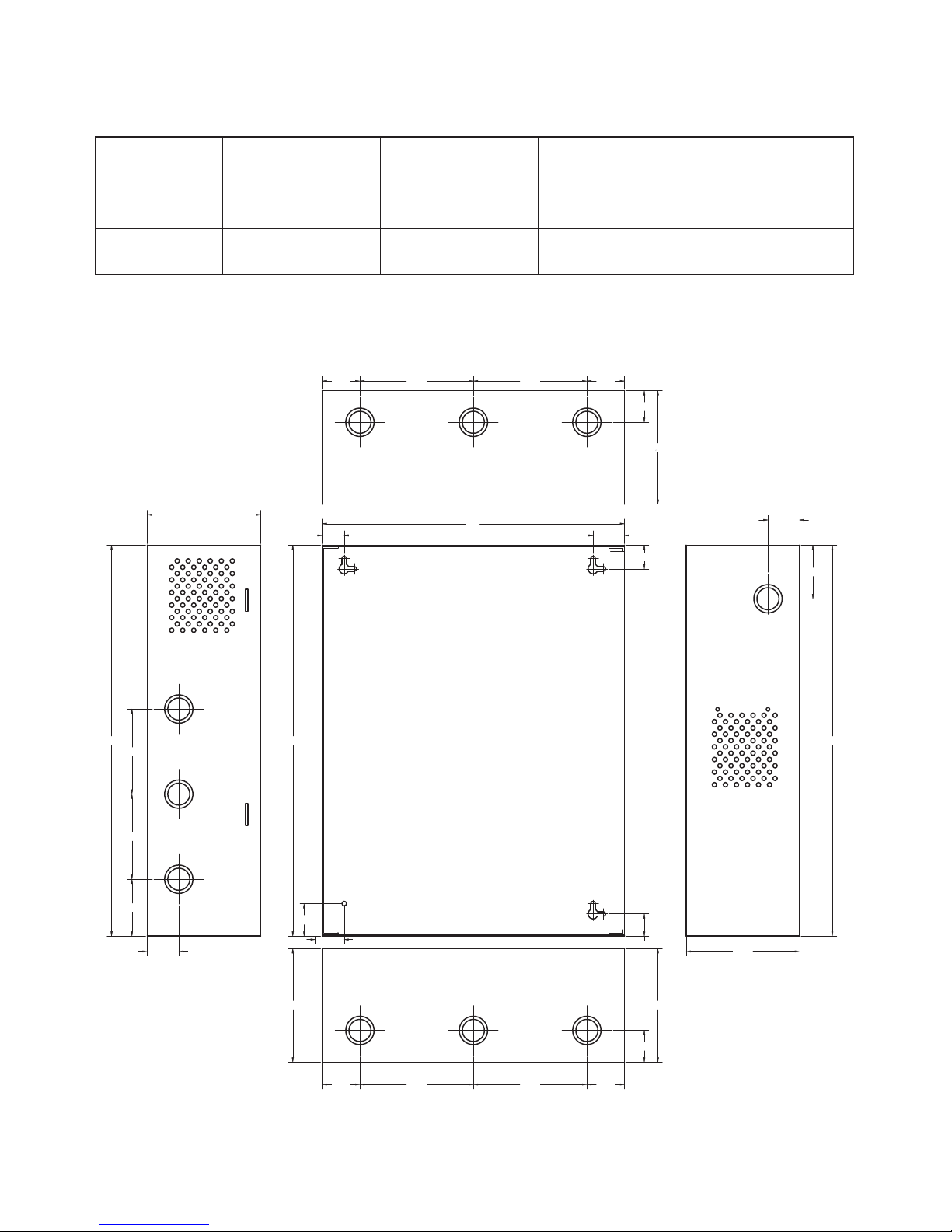

Figure 1 Enclosure dimensions

5
Installing and Maintaining the Model PS1000
InstallingtheModelPS1000requiresmountingtheenclosureandwiringthePS1000.Tocalculatebattery
capacity,alarmduration,andothervariables,use“Table3Battery-sizecalculationworksheet”onpage8.
For access control applications, standby batteries are optional. When standby batteries are not used, a loss of
ACresultsinthelossofoutputvoltage.Whenstandbybatteriesareused,theymustbelead-acidorgel.
Mounting the Model PS1000 Enclosure
Fortheenclosuredimensions,seeFigure1onpage4.
 SelectamountinglocationfortheModelPS1000.
Mark and drill holes in the wall to line up with the top two keyholes in the enclosure.
Install two upper fasteners and screws in the wall with the screw heads protruding.
Place the upper keyholes of the enclosure over the two upper screws.
Level and the enclosure and tighten the two upper screws.
Mark the position of the lower two holes and remove the enclosure.
 Drillthelowerholesandinstallthethreefasteners.
Place the upper keyholes of the enclosure over the two upper screws. Install the two lower screws and
make sure to tighten all screws.
Secure the enclosure to earth ground.
Wiring the Model PS1000
Foranillustrationoftheenclosurewiring,seeFigure2onpage5.Keepthepowerlimitedwiringatleast0.25"
awayfromnon-powerlimitedwiring,suchastheACinputwiresandbatterywires.
SHORT CIRCUIT—Do not expose the Model PS1000 to rain or moisture. Failure to
heed this warning may cause electrical shock or equipment damage.
EQUIPMENT DAMAGE—To avoid equipment damage, do not exceed a total output
rating of 10 A for each Model PS1000 installed.
TowiretheModelPS1000:
 Toavoiddamagetotheequipment,measuretheoutputvoltagebeforeconnectingtheModelPS1000.
Ensure that the enclosure is connected to earth ground.
 Use22AWGto18AWGwiringtoconnectACpowertotheterminalsmarkedL,G, N.
 Use14AWGorthickerforallpowerconnections(battery,DCoutput,ACinput).
NOTE:Keepthepowerlimitedwiringseparatefromnon-powerlimitedwiring(ACinput,battery
wires).Minimum0.25"spacingmustbeprovided.

6
 Connectthepowerdistributionmoduletoterminalsmarked– DC +.
 ConnecttheappropriatesignalingnoticationdevicestotheterminalsmarkedAC FAIL and BAT FAIL
(supervisoryrelayoutputs.
 WhentheModelPS1000isusedinrealarm,burglaralarm,oraccesscontrolapplications,theAC FAIL
relaymustbeusedtoprovideavisualindicationthatACpowerison.
 InsurethatthecoverissecuredwiththeprovidedKeyLock.
Table 1 Terminal identication for power supply board
Terminal Legend Function/Description
L, G, N Connect115Vactotheseterminals:LtoHot,NtoNeutral,Gto ground.
– DC + 24Vdcat8Acontinuous,10Ainalarmnon-powerlimitedoutput,10Acontinuous
when batteries are not used.
AC FAIL
NO, C, NC
IndicateslossofACpowerwhenconnectedtoanannunciator/alarmpanel.Therelays
arenormallyenergizedwhenACpowerispresent.Thecontactratingis1Aat28Vdc.
ACorbrownoutfailisreportedwithin1minuteofevent.
Todelayreportingforupto6hours,cuttheACdelayjumperandresetthepowerto
theModelPS1000.
BAT FAIL
NO, C, NC
Indicatesalowbatteryconditionwhenconnectedtoanannunciator/alarm.Therelayis
normallyenergizedwhenDCpowerispresent.Thecontactratingis1Aat28Vdc.
Aremovedbatteryisreportedwithin1minute.Batteryreconnectionisreportedwithin
1minute.Lowbatterythresholdisreportedatapproximately21Vdc.
+ BAT – Standbybatteryconnections.3.6Amaximumchargerate.
Table 2 LED diagnostics on the power supply board
Red (DC) Green (AC) Power Supply Status
ON
ON
OFF
OFF
ON
OFF
ON
OFF
Normal operating condition
Loss of AC. The standby battery is supplying power
No DC output
Loss of AC. Discharged or no standby battery. No DC output.

7
-- DC +
BAT FAIL
NO C NC NO C NC
+ BAT ---
DC
AC FAIL
L G
AC
10A
250V
15A
250V
INPUT
12
GREEN
LEAD
N
WIRE STRAP
FROM
ENCLOSURE
DOOR
REPLACE
FUSE COVER
BEFORE
ENERGIZING
POWER
DISTRIBUTION
MODULE(S)
115 Vac
POWER MAINS
NON-POWER
LIMITED CLASS I
BATTERY AND AC SUPERVISION
CIRCUIT (POWER LIMITED)
NON-POWER LIMITED
KEEP POWER LIMITED WIRING SEPARATED FROM NON-POWER LIMITED. USE 0.25" SPACING
BATTERY CONNECTION
(NON-POWER LIMITED)
DIVIDER
12 Vdc RECHARGEABLE
BATTERY (OPTIONAL)
12 Vdc RECHARGEABLE
BATTERY (OPTIONAL)
DOOR
290A6460
Figure 2 Enclosure wiring

8
Table 3 Battery-size calculation worksheet
A. Model PS1000 internal current consumption (standby) 0.05A
B. Load current consumption (standby) (standby) A
C. Standby time required (hours) H
D. Battery capacity required for standby (A + B) * CAh
E. Model PS1000 internal power consumption (alarm) 0.05A
F. Load current consumption (alarm) A
G. Alarm duration (hours, 15 min = 0.2 hour) (alarm) H
H. Battery capacity required for alarm (E + F) * GAh
I. Total calculated battery capacity D + H Ah
J. Battery capacity required I * 1.8 (safety factor) Ah
Notes: The Model PS1000 is designed to work with batteries up to 65 Ah.
Line I must not exceed 36 Ah. To keep Line I at or under 36 Ah, either reduce standby current consumption
(Line A) or the standby time (Line C).
.
To determine actual battery size, round line J to the nearest larger standard battery size,
(e.g., 3.5 Ah = 4.0 Ah).

9
Maintaining the Model PS1000
SHOCK AND FIRE HAZARDS—De-energize the Model PS1000 before servicing it. For
continued protection against the risk of electric shock and re hazard, replace the
fuses with fuses of the same type and rating.
Input fuse: 10 A, 250 V
Battery fuse: 15 A, 32 V
Output Voltage Test: Undernormalloadconditions,theDCoutputvoltageshouldbecheckedforproper
voltage level.
Battery Test:Undernormalloadconditions,checkthatthebatteryisfullycharged,checkthespecied
voltage both at the battery terminal and at the board terminals marked + BAT – to insure there is no break in
the battery connection wires.
Notes:Maximumchargingcurrentunderdischargesis3.6A. Expectedbatterylifeis5years,howeveritis
recommendedthatbatteriesarechangedwithin4years,ifneeded.

10
© 2012 Federal Signal Corporation
Obtaining Service, Parts, and Support
Federal Signal will service your product, provide technical assistance support. Please call the phone numbers
listedbelow.Forinstructionmanuals,pleasegotohttp://www.federalsignal-indust.com
Repair Service
ProductsreturnedforrepairrequireaReturnAuthorizationform.Toobtainservicefortheproduct,please
contacttheFederalSignalServiceDepartmentat708-534-4858or+18772893246.
Technical Assistance
Fortechnicalassistance,pleasecallTechnicalSupportat708-534-3424,extension5823or+18772893246.
Replacement Parts
Toorderreplacementparts,pleasecallFederalSignalCustomerSupportat708-534-4756or+18772893246.
Returning a Product for Credit
Productreturnsforcreditrequireareturnauthorizationfromyourlocaldistributorpriortoreturningthe
product to Federal Signal. Please contact your distributor for assistance.
Aproductisqualiedtobereturnedforcreditwhenthefollowingconditionsaremet:
• Productisresalableandintheoriginalcartons
• Producthasnotbeenpreviouslyinstalled
• Productisthecurrentrevision
• Producthasnotbeenpreviouslyrepaired
• Productisastandardproduct
• Productisnotaservicepart
Allreturnsaresubjecttoare-stockfee.
DefectiveproductsthatarereturnedwithinthewarrantyperiodwillberepairedorreplacedatFederalSignal’s
solediscretion.Defectiveproductsdonotincludethoseproductswithlampfailure.
Circumstancesotherthanthoselistedabovewillbeaddressedonacase-by-casebasis.
Federal Signal Corporation
Industrial Products
2645 Federal Signal Drive
University Park, IL 60484-3167
Phone: [phone] • [phone] • Fax: [phone]
www.federalsignal-indust.com • www.fs-isys.com
