Informer™Series
Tone Alert Receiver
You must program the Informer TAR with I-SW software version 3.6 or greater.
Installation and
Operation Manual
255334
Rev. E3 0416
Printed in U.S.A.
© Copyright 2016 Federal Signal Corporation

Limited Warranty
The Alerting and Notification Systems Division of Federal Signal Corporation (Federal)
warrants each new product to be free from defects in material and workmanship, under normal use
and service, for a period of two years on parts replacement and factory-performed labor (one year
for Informer, EAS, and Federal software products) from the date of delivery to the first user-
purchaser. Federal warrants every 2001-130, Equinox, Eclipse8 and 508-128 Siren (Top of pole
only) to be free from defects in material, per our standard warranty, under normal use and service
for a period of five years on parts replacement.
During this warranty period, the obligation of Federal is limited to repairing or replacing, as
Federal may elect, any part or parts of such product which after examination by Federal, are
determined to be defective in material and/or workmanship.
Federal will provide warranty for any unit, which is delivered, transported prepaid, to the Federal
factory or designated authorized warranty service center for examination and such examination
reveals a defect in material and/or workmanship.
This warranty does not cover travel expenses, the cost of specialized equipment for gaining access
to the product, or labor charges for removal and re-installation of the product. The Federal Signal
Corporation warranty shall not apply to components or accessories that have a separate warranty
by the original manufacturer, such as, but not limited to batteries.
Federal will provide on-site warranty service during the first 60-days after the completion of the
installation, when Federal has provided a turn-key installation including optimization and/or
commissioning services.
This warranty does not extend to any unit which has been subjected to abuse, misuse, improper
installation or which has been inadequately maintained, nor to units which have problems related
to service or modification at any facility other than the Federal factory or authorized warranty
service centers. Moreover, Federal shall have no liability with respect to defects arising in
Products through any cause other than ordinary use (such as, for example, accident, fire, lightning,
water damage, or other remaining acts of God).
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL FEDERAL BE LIABLE FOR ANY
LOSS OF PROFITS OR ANY INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT
OF ANY SUCH DEFECT IN MATERIAL WORKMANSHIP.
2645 Federal Signal Drive, University Park, IL 60484-3167
Phone: [phone]
Website: http://www.alertnotification.net

Informer Series Tone Alert Receiver
Contents
Safety Message........................................................................................................................ 1
Read and Understand ............................................................................................................ 1
Installation Considerations...................................................................................................... 1
Notices................................................................................................................................... 2
Servicing ................................................................................................................................ 2
Symbol Definition................................................................................................................ 3
General Description................................................................................................................. 4
Introduction to the Informer TAR............................................................................................. 4
Features................................................................................................................................. 4
Optional Features................................................................................................................... 5
Informer TAR Front Panel Layout........................................................................................... 6
Rear View Input/Output Definitions......................................................................................... 6
Specifications........................................................................................................................... 7
Installation Instructions..........................................................................................................11
Determine a Suitable Location...............................................................................................11

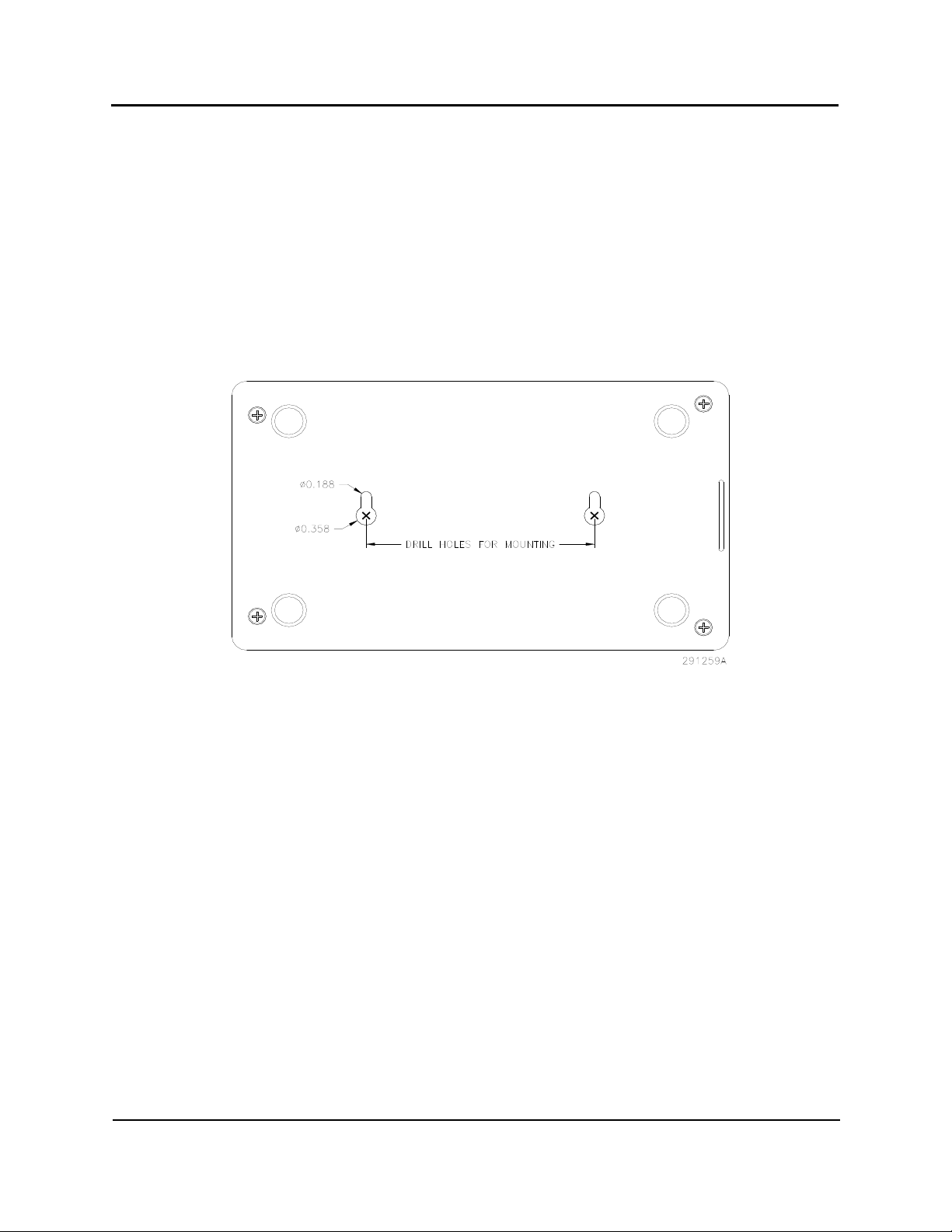

Wall Mounting........................................................................................................................12
Desk Mounting ......................................................................................................................12
Input/Output Connections......................................................................................................13
Operating Instructions............................................................................................................14
General Information...............................................................................................................14
Power Supply........................................................................................................................14
LED Indicators.......................................................................................................................15
Keypad..................................................................................................................................15
Adjusting the Volume.........................................................................................................15
Receiving an Alert Message..................................................................................................16
Receiving a Test Message ....................................................................................................16
Tone-Alert Radio Failure .......................................................................................................17
Dual Relay and 600 ohm Audio Output..................................................................................17
Relay Outputs....................................................................................................................17
600 Ohm Audio Output ......................................................................................................17
Monitoring Weather (NOAA Weather Radio and Channel Selection).....................................18
Testing.....................................................................................................................................18
Training....................................................................................................................................19
Using the Battery Switch .......................................................................................................19
Replacing the Battery............................................................................................................19

Informer Series Tone Alert Receiver
Replacement Parts..................................................................................................................21
Getting Service........................................................................................................................21
Index........................................................................................................................................22
Tables
Table 1 Electrical...........................................................................................................................................7
Table 2 Bandwidth Receivers 25/30 kHz......................................................................................................7
Table 3 Bandwidth Receivers 12.5 kHz........................................................................................................8
Table 4 Acoustic............................................................................................................................................8
Table 5 Dual Relay and 600 Ohm Audio ......................................................................................................8
Table 6 Signaling Formats............................................................................................................................9
Table 7 Environmental..................................................................................................................................9
Table 8 Physical..........................................................................................................................................10
Table 9 Input/Output Connections ..............................................................................................................13
Table 10 LED Indicators..............................................................................................................................15
Table 11 Informer TAR Buttons ..................................................................................................................16
Table 12 Replacement Part Numbers.........................................................................................................21
Figures

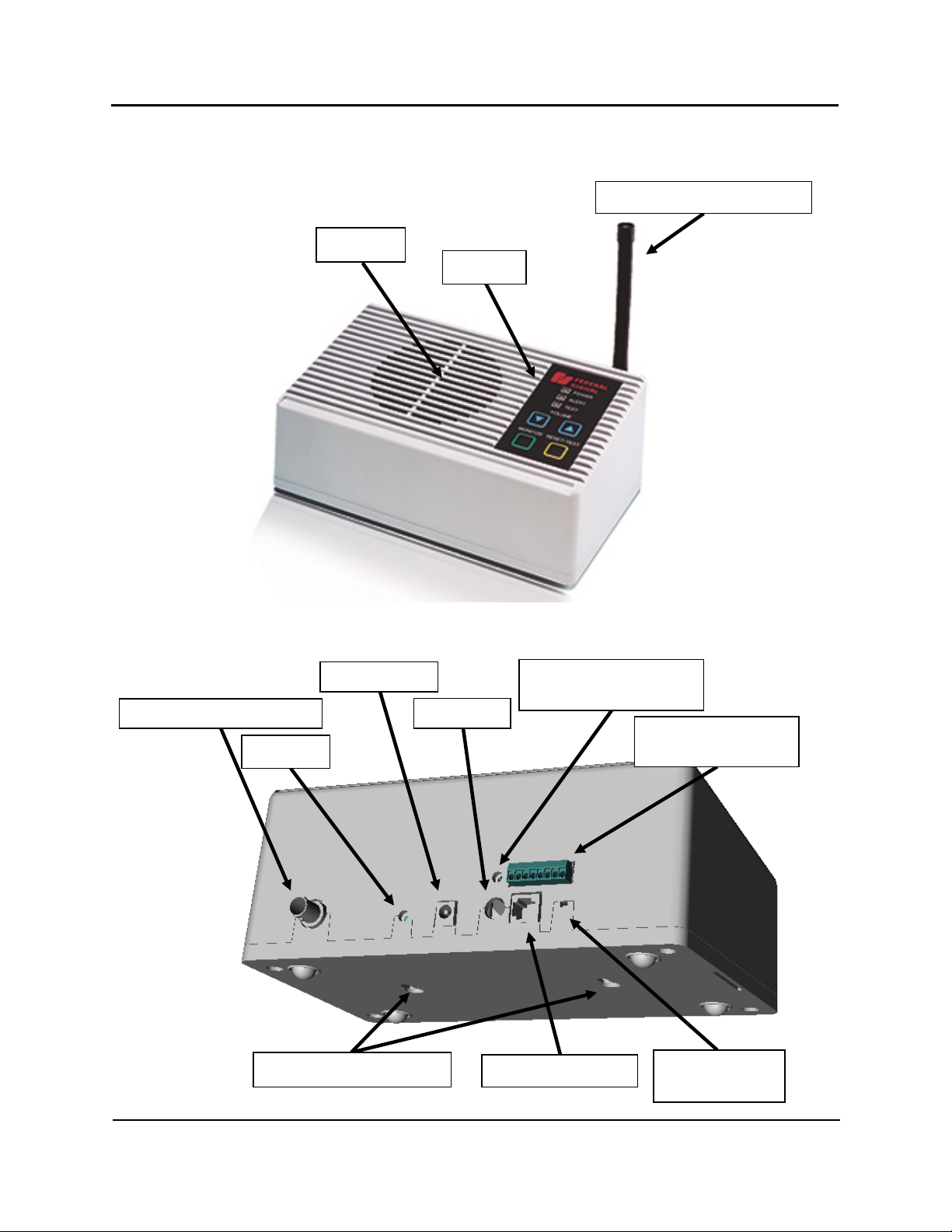

Figure 1 Informer TAR Rear View...............................................................................................................12

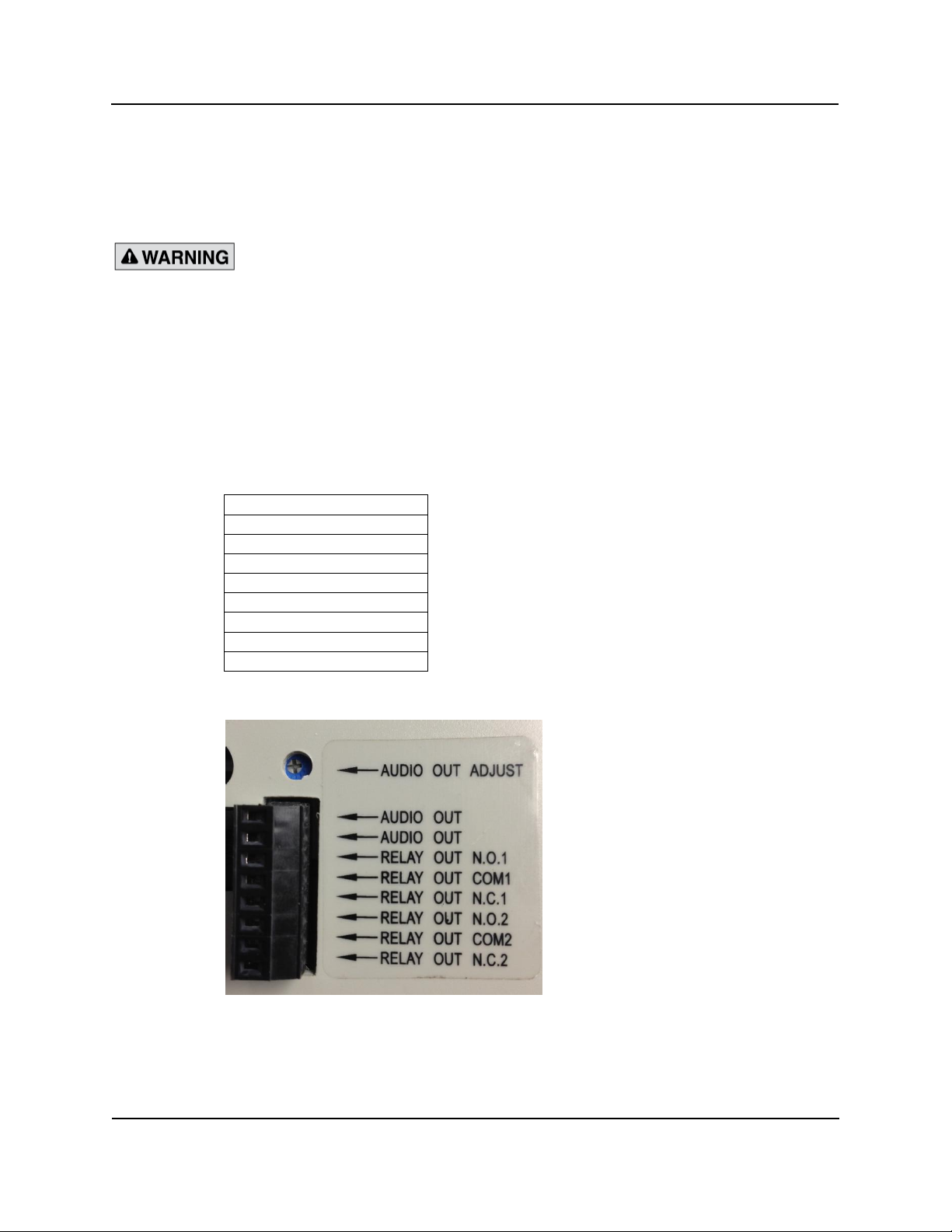

Figure 2 Back of Informer............................................................................................................................13
Figure 3 Informer TAR Keypad...................................................................................................................14

Informer Series Tone Alert Receiver
1
Safety Message
Safety Message
It is important to follow all instructions shipped with this product. This
device is to be installed by trained personnel who are thoroughly
familiar with the country electric codes and will follow these guidelines
as well as local codes.
Listed below are important safety instructions and precautions you should follow:
Read and Understand
Read and understand all instructions before installing or operating this product.
Adhere to all warnings and operating instructions.
Proper installation, placement, and testing are required to ensure the unit is able
to perform as intended. Perform installation, placement, and testing after the
installer has read and understood this manual.
Installation Considerations
Do not use near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool, rain, or similar
environments.
Mount to a wall only as specified in this manual.
Place away from heat sources; such as, radiators, heat registers, stoves, or other
accessories that produce heat.
Do not exceed maximum accessory relay output rating of 30 VDC, 5 Amps.
Connect the Informer TAR to a 9 VDC, 500 mA., Class 2 wall transformer as
provided with the unit. Contact your authorized service center if a replacement is
required.
Route power supply cords so they are not likely to be walked on or pinched by
items places upon or against them, pay particular attention to cords at plugs.
Locate an outdoor antenna away from power lines.
If an outside antenna is connected to the receiver, make sure the antenna system
is grounded in order to provide protection against voltage surges and built up
static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to the antenna-discharge unit, size of

2
Informer Series Tone Alert Receiver
Safety Message
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
Notices
Take care so that objects do not fall and liquids are not spilled into the enclosure
through openings.
Keep the Informer TAR at least six inches away from a listener’s ears whenever
the Informer TAR Power LED is on or blinking. The sound output of the
Informer TAR may cause hearing damage if the Informer TAR is activated too
close to the user.
Clean with a non-abrasive cleaner and a damp cloth. Do not apply solvents
directly onto the Informer TAR.
Retain instructions for future reference.
Service the Informer TAR by qualified service personnel when the following has
occurred to the Informer TAR:
Power supply cord has been damaged
Objects haven fallen onto, or liquid has been spilled into
Does not appear to operate normally
Exhibits a marked change in performance
Exposed to rain
Has been dropped
Enclosure is damaged
Servicing
To reduce the risk of electric shock, do not perform any servicing other
than what is contained in the operating instructions unless you are
qualified to do so. Refer all servicing to qualified service personnel.
Always test the Informer TAR before using after repairs have been
made.

Informer Series Tone Alert Receiver
3
Safety Message
Symbol Definition
Indicates to reduce the risk of fire, replace fuse as marked.

4
Informer Series Tone Alert Receiver
General Description
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
General Description
Introduction to the Informer TAR
The Informer Tone Alert Receiver (TAR) is an emergency alerting device available
in VHF and UHF bands from 150-170 MHz and 450-470 MHz. It is also capable of
decoding multiple formats (such as, single-tone, two-tone, DTMF and optionally
EAS or Federal Digital) at the same time. These features enable the Informer to be
easily integrated into virtually any new or existing warning system.
The Informer TAR is a robust radio receiver with a loud speaker output designed
specifically for warning applications. You can wall mount the unit or have it sit on a
desktop. The Informer TAR comes with an attached antenna that you can remove to
connect to an outside antenna. The Informer TAR has a built-in battery and charger to
provide reliable operation even in the event of an AC power failure.
You can pre-program the Informer TAR with up to four separate warning tones plus a
channel monitor function for live PA announcements. Two programmable relay
outputs and a 600 Ohm audio output are available. You can use these outputs to
control other equipment such as to tie into external PA systems.
You can program up to four separate RF channels into the Informer TAR. The
channels are easily selected from the built in membrane keypad. Each of the RF
frequencies must be within the allowable frequency spread for the RF band being
used. Refer to the “Specifications” section on page 7.
The Informer is completely programmable through a built-in RS232 serial port from
an easy to use Windows®-based software program. All data is stored in non-volatile
memory. Updates to the application software and user specific configuration data is
through the serial port.
The Informer series receivers meet all requirements defined by the Federal
Emergency Management Agency (FEMA) for the CSEPP programs.
Features
Available in two (2) frequencies bands: VHF 150-170 MHz and UHF
450-470 MHz
Long life rechargeable battery with built-in charger
Wide temperature operating range
Excellent RF sensitivity and selectivity
Fully programmable RF—No tuning required
Clean, low distortion of recovered audio
Loud +80 dBA output at 10 feet

Informer Series Tone Alert Receiver
5
General Description
Signal to Noise based squelch circuit, does not open receiver in high radio noise
environments that is, near computers etc.
Programmable for wide or narrow band.
Programmable RF, Single Tone, Two-Tone, DTMF, CTCSS, and CDCSS (DPL)
decoding
Re-programmable over RS232 port
Volume control, monitor and reset buttons with diagnostic LEDs
Ramp-up tones for Warble, Steady, Beep, and Hi-Lo (with firmware 2.3.0.1 or
later)
Optional Features
Programmable MSK decoder compatible with Federal’s Commander Software.
Programmable EAS decoder for decoding NOAA radio SAME code alerts.
600 Ohm audio output and two (2) SPDT relay outputs.
Windows®-based programming software
NOTE: The MSK and EAS decoders are not available simultaneously in the same
unit. All other options can be used together.

6
Informer Series Tone Alert Receiver
General Description
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Informer TAR Front Panel Layout
Rear View Input/Output Definitions
Wall Mount Keyholes (2)
Programming Port
Battery Switch
←OFF ON→
BNC Antenna Connector
Squelch
Power Input
Not Used
Audio Output Level
Adjustment (Optional)
600 ohm Audio and
Relay Outputs
BNC Antenna Connector
Speaker
Keypad

Informer Series Tone Alert Receiver
7
Specifications
Specifications
Table 1 Electrical
Antenna Impedance
50 Ohms
Antenna Type
Rubber duck with swivel BNC connector
Sensitivity –12 dB
SINAD
.35 for 12 dB SINAD per EIA-603, part 4.1.4
Decode Sensitivity
0.5 V
Operating Current
100 mA. Standby
<400 mA. Max
Battery Capacity
Internal sealed lead-acid, capable of running for six
(6) hours in standby mode with fifteen (15) minutes
of each hour generating siren beep audio at rated
audio output. (Based on Pulsed Tone audio.) Low
voltage cutoff set to 5.38 VDC +/- 0.1 VDC.
Operating Voltage
8 to 15 VDC, Unit supplied with a 9 VDC, 500 mA
power supply with a 120 VAC, 60 Hz primary Center
terminal is positive (+) on the DC connector
Hum and Noise
-37 dB when unsquelched,
-57 dB squelched relative to full quieting signal with
1 kHz tone at 60% rated system deviation at rated
audio out per EIA-603, part 4.1.11
Audio Output
1 Watt into 8 Ohms
Audio Distortion
< 5% at 85 dB output, with1 kHz tone
Audio Sensitivity
30% of rated system deviation, minimum deviation
to produce 85 dB audio output level with volume
control at full per EIA-603, part 4.1.1.7
Table 2 Bandwidth Receivers 25/30 kHz
Frequency Range (MHz)
150 –170
450 –470
Intermodulation Rejection
per EIA-603, part 4.1.9
-75
-70
Adjacent Channel Selectivity
per EIA-603, part 4.1.6
-75
-70
Spurious Response
and Image Rejection (dBm)
per EIA-603, part 4.1.8
-80
-75
Frequency spread allowable
without re-tuning (MHz)
150 –170
450 –470

8
Informer Series Tone Alert Receiver
Specifications
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Table 3 Bandwidth Receivers 12.5 kHz
Frequency Range (MHz)
150 –170
450 –470
Intermodulation Rejection
per EIA-603, part 4.1.9
-75
-70
Adjacent Channel Selectivity
per EIA-603, part 4.1.6
-70
-65
Spurious Response
and Image Rejection (dBm)
per EIA-603, part 4.1.8
-75
-70
Frequency spread allowable
without re-tuning (MHz)
150 –170
450 –470
Table 4 Acoustic
Message
Audio Output
Message Audio variable from 50 dBA to
85 dBA at 10 feet from the speaker on axis
User cannot disable Alert or message audio.
Alert Beep
Audio
Steady Tone = 1000 Hz
Pulsing Tone = 1000 Hz pulsed 100 ms ON, 100 ms OFF
Alternating Tone (Hi-Lo) = Alternating between 1000 Hz and
500 Hz tones. Each pulse lasts 100 ms.
Sweeping Tone (Warble) = 500 Hz rapidly ramped to 1000 Hz
Overall lengths are programmable.
Alert Beep Audio fixed at 85 dBA min. (not adjustable) at
10 feet from speaker. Firmware 2.3.0.1 or later provides ramp-
up of tones.
Table 5 Dual Relay and 600 Ohm Audio
Specifications
Two SPDT Relay Outputs,
5 Amps at 30 VDC
You can program relay outputs to cycle on and off, or come on continuously with the
on-time, off-time, and total-time being programmable.
Once activated, you can program the relay outputs to be reset manually. Reset after a
programmable number of seconds or reset after a programmable number seconds
after the carrier drops.
The 600 Ohm audio output responds as the speaker does, coming on with the speaker
and being reset or shutting off with the speaker. Its output level is adjustable from 0
to 2.5 Vp-p into 600 Ohms with 1 kHz tone at 60% rated system deviation.

Informer Series Tone Alert Receiver
9
Specifications
Table 6 Signaling Formats
Number of codes
Up to six (6) programmable activation codes
maximum
Two-Tone Sequential and
Single Tone
300 Hz - 3000 Hz for 25/30 kHz receivers
300 Hz - 2300 Hz for 12.5 kHz receivers
tolerance +/-1.5%
Minimum tone spacing = 5%
Minimum “A” tone length = .5 sec
Minimum “B” tone length = .25 sec
8 sec. maximum for all tones
Decode Sensitivity DTMF
</=20 dB SINAD
1 - 12 digits maximum,
minimum character length = 50 ms. (35 ms as
special)
Characters plus inter-character spacing not to
exceed 1000 ms.
Decode Sensitivity with
Optional MSK Decoder
</= 20 dB SINAD
1200,N,8,1, Synchronous,
1200 Hz mark tone
1800 Hz space tone.
EAS Decode Sensitivity with
Optional EAS/SAME Decoder
</= 20 dB SINAD.
520.83 (6250/12) bits per second, 2083.3 Hz
Mark tone.
1562.5 Hz Space tone, no Start, Stop, or
Parity bits.
7 bit ASCII, + 8th null bit (either 1 or 0), LSB
sent first
CTCSS/CDCSS (PL) Decode
Sensitivity
</= 12 dB SINAD
You can program a different PL code for each
RF frequency.
Decodes with Two-Tone codes >/= 400 Hz
only.
Tone Frequency Range 36.6 to 254.1 Hz
Tone Accuracy > .05 Hz
Tone Decode Bandwidth +/- 1.1%
Digital, Golay (23,12) 23 bit digital word
Digital Data Rate 134.4 Hz nominal
Decode Turn on Time < 250 ms.
Decode Turn off Time < 1.2 s.
Number of codes 60 - Tone, 83 Digital
Table 7 Environmental
Operating temp range
-30 to +60°C
Humidity range
0 - 98%, non-condensing

10
Informer Series Tone Alert Receiver
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Table 8 Physical
Size
3.325” x 8.69”x 5.0” (H x W x D)
Weight
2.5 lbs.
Color
PANTONE 421U
Material
Textured ABS Plastic
EMI/RFI
Complies with FCC Title, Part 15
Agency Compliance
Complies with UL 60065

Informer Series Tone Alert Receiver
11
Installation Instructions
Installation Instructions
Read and adhere to all safety warnings in this manual before installing
the Informer TAR.
To prevent injury, this apparatus must be securely attached to the wall
in accordance with the installation instructions.
Determine a Suitable Location
When choosing a location for the Informer TAR, consider the following criteria:
1. Place as far as possible from electrically noisy electronic devices to avoid
interference. Examples of noisy devices may include the following: microwave
ovens, motor driven devices, light ballasts, and electrical switching devices.
2. Conductive building materials can block radio waves from reaching the Informer
TAR. In some areas, you may require a larger antenna or an external antenna that
provides more signal. You can monitor radio reception by holding down the
MONITOR button until audio is heard from the speaker (if the monitor function
was programmed into the Informer TAR). Monitor the clarity of speech to ensure
it is clear and intelligible and does not cut in and out. Activate the unit from the
Informer TAR control station to verify it is programmed correctly and is
receiving the control signals.
3. Position to keep the unit at least six inches away from the listener’s ears to avoid
potential hearing damage.
4. Place in an area where you can hear the speaker when the unit is activated. You
can check the level of the warning tone by holding down the MONITOR and
RESET buttons together until you can hear the Alert beeps. It the coverage area is
large, you may require multiple TARs or external amplifiers and speakers to
provide adequate warning.
5. Do not use near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, near a swimming pool, rain or similar
environments.
6. Place within six feet of an AC power receptacle to eliminate the need for an
extension cord.
7. Place where it will not be inadvertently covered or moved. A permanent wall
mounting is recommended after you have found a suitable location.

12
Informer Series Tone Alert Receiver
Installation Instructions
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Wall Mounting
Wall mounting is the preferred mounting method for the Informer TAR. Before
mounting the unit, determine a suitable location considering the criteria listed
previous. The Informer TAR has two keyholes located on the bottom of the unit that
accepts #8 screws. Place the mounting screws horizontally level, approximately
6 inches above eye level and four (4) inches apart on center. Ensure the screws are
placed into material that can adequately support the weight of the Informer TAR. Use
a #8 wall anchor when mounting to drywall. Ensure that the screws are tightened
sufficiently to securely fasten the Informer against the wall.
Figure 1 Informer TAR Rear View
Mount the local rubber antenna vertically on top of the Informer TAR (not bent at
90°) so that the antenna is pointed toward the ceiling. If you require an external
antenna, have it installed by a qualified electrician in accordance with local and
national electrical codes.
Run the 9 VDC power supply against the wall and plugged into a 120 VAC, 60 Hz
outlet. Plug the low voltage end of the cord into the power jack located at the rear of
the Informer TAR. Route the cord to ensure it is protected against walking on,
tripping over or pinching the cord. Turn the battery switch to the on position. Refer to
the “Using the Battery Switch.”
Desk Mounting
Before installing the Informer TAR, determine a suitable location considering the
criteria listed previous. Bend the local rubber antenna at 90° so the antenna points
toward the ceiling. If you require an external antenna, it should be installed by a
qualified electrician in accordance with local and national electrical codes.
Run the 9 VDC power supply against the wall and plugged into a 120 VAC, 60 Hz
outlet. Plug the low voltage end of the cord into the power jack located at the rear of

Informer Series Tone Alert Receiver
13
Installation Instructions
the Informer TAR. Route the cord to ensure it is protected against walking on,
tripping over or pinching the cord. Turn the battery switch to the on position. Refer to
the “Using the Battery Switch.”
Input/Output Connections
Do not exceed the electrical ratings defined in the specifications for the
Input/Output connections.
The Informer has a 600-ohm balanced audio output and two SPDT relay outputs. A
removable eight (8) position connector is located on the back side of the Informer for
making electrical connections. The connector accepts 5 mm (3/16”) stripped wire,
18–26 AWG.
Make electrical connections to the Input/Output connector as follows:
Table 9 Input/Output Connections
Description
Audio Output
Audio Output
Relay 1 N.O. Contact
Relay 1 Common
Relay 1 N.C. Contact
Relay 2 N.O. Contact
Relay 2 Common
Relay 2 N.C. Contact
Figure 2 Back of Informer

14
Informer Series Tone Alert Receiver
Operating Instructions
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Operating Instructions
General Information
You must pre-program all the Informer TAR’s functions correctly and test before
placing into service.
The following sections describe the various features and functions of the Informer
TAR. Please refer to the following figure.
Figure 3 Informer TAR Keypad
Power Supply
Your Informer TAR comes with a power supply. Keep it plugged in at all times.
When the Informer is plugged in and receiving power, the Power LED displays a
steady green light. The Informer TAR also comes with a sealed valve regulated
rechargeable battery. The battery requires continuous charge in order to maintain its
effectiveness. In the event that AC power to the Informer TAR is lost, the green
Power LED on the unit begins to flash to indicate the use of battery power.
IMPORTANT: The Informer TAR should not be turned off; therefore, the unit must
remain connected to the power supply to avoid depleting the battery.
Connect the Informer TAR to a 9 VDC, 500 mA power supply, which is provided
with the unit. Allow the battery to charge for at least 24 hours initially and after a
complete discharge before relying on the battery backup feature.

Informer Series Tone Alert Receiver
15
Operating Instructions
LED Indicators
Table 10 LED Indicators
POWER
The Power LED lights steady green when the Informer TAR is receiving power from
the wall outlet. The Power LED flashes on when using battery power.
ALERT
The Alert LED flashes red when the Informer TAR receives an alert message. The
Informer TAR may also give a series of loud beeps and open the channel to provide
an alert message.
IMPORTANT: Immediately respond as instructed to an alert message.
The Alert LED continues to flash until you press the RESET/TEST button.
TEST
The yellow Test LED turns on to inform you that the Informer TAR has received a
Text message. The Test LED stays on until you press the RESET button.
If the Informer TAR detects a failure, the Test LED flashes once per second. If this
occurs, please contact your local distributor or service center for repair.
Keypad
The Informer TAR includes a four-button membrane keypad with a tactile feel and
three diagnostic LEDs.
Adjusting the Volume
The Informer provides the ability to control the sound volume of tone and voice
messages heard over the speaker. You cannot adjust the alert beep volume.
To adjust the volume, press the MONITOR button to listen to the radio channel.
Then, press the VOLUME (up arrow) button to increase the sound volume. Press
the VOLUME (down arrow) button to decrease the volume.
A beep is heard indicating the current volume level each time the VOLUME buttons
are pressed. Holding down either arrow allows you to “scroll” to the highest or lowest
volume levels.
If you do not hear any audio when you press the MONITOR button, there may be no
radio traffic currently being broadcast. If the MONITOR button is held down for over
five seconds, the radio squelch is opened and noise is heard over the speaker if no
radio traffic is present. Press the RESET button to return the Informer TAR to
standby mode.

16
Informer Series Tone Alert Receiver
Operating Instructions
MERGEFORMAT Configuring the
Informer-IPFORMAT General
Descriptionations
Table 11 Informer TAR Buttons
Volume Up
Button
Increases volume and beeps at the current volume level for alert messages
and for NOAA Weather Radio. Push to change or press and hold to scroll to
the highest or lowest volume setting. You cannot turn down the sound
completely.
Volume
Down Button
Decreases volume and beeps at the current volume level.
MONITOR
The MONITOR button plays radio traffic. To return to standby mode, push the
RESET/TEST button. To emit alert tone, hold down both the MONITOR and
the RESET/TEST buttons.
RESET/TEST
The RESET/TEST button changes the unit from monitor mode to standby
mode. After an alert message, press the RESET/TEST button to turn off the
blinking Alert LED.
Receiving an Alert Message
When the Informer receives a valid alert message, the red Alert LED begins to flash
and audio is heard over the speaker, unless you programmed the Test LED to turn on
for that message. You can program the Informer TAR to sound one of four tones.
You can program the unit to automatically enter monitor mode, which enables the
user to hear radio traffic over the Informer TAR. You can program the length of the
tone.
The Informer TAR receives all properly addressed alert messages sent over the radio
whether the unit is in monitor mode or standby mode. Instructional voice messages
typically follow the alert beeps to provide instructions for related emergencies in your
specific area. Immediately respond as instructed.
The Informer TAR automatically resets and returns to standby mode when the control
center sends a CANCEL command. The red Alert and yellow Test LED is also reset.
Avoid the use of the CANCEL command after an actual alert, so that the user is able
to acknowledge the Alert or Test LED manually.
New activation commands over-ride all previous functions in progress. You cannot
decode a new single-tone or a two-tone function while a siren tone is being generated
by the Informer.
Receiving a Test Message
If the Informer TAR was programmed with a Test function, the yellow Test LED
lights steady when a Test message is received. This light remains on until you press
the RESET button. The Alert LED does not light for any function that is programmed
to light the Test LED.
