Federal Signal Corporation Informer100 Speaker User manual

Signaling Standalone Manual
25500845
Rev. A0 0323
Printed in U.S.A.
© Copyright 2023 Federal Signal Corporation
Informer100 Speaker
Models IS-I-IP100ACX and IS-I-IP100DCX
High-Powered, Indoor/Outdoor, Audible Speaker
For use in hazardous locations

Limited Warranty
This product is subject to and covered by a limited warranty,
a copy of which can be found at www.fedsig.com/SSG-Warranty.
A copy of this limited warranty can also be obtained by written
request to Federal Signal Corporation, 2645 Federal Signal Drive,
University Park, IL 60484, email to [email protected] or
call [phone].
This limited warranty is in lieu of all other warranties, express or
implied, contractual or statutory, including, but not limited to the
warranty of merchantability, warranty of tness for a particular
purpose and any warranty against failure of its essential purpose.
2645 Federal Signal Drive
University Park, Illinois 60484
www.fedsig.com
Customer Support 1-800-344-4634 • [phone]
Technical Support 1-800-755-7621 • [phone]
All product names or trademarks are properties of their respective owners.

3
Signaling Standalone Manual
Federal Signal www.fedsig.com
Contents
Safety Messages......................................................................................................................................................5
Safety Messages to Installers.............................................................................................................................5
General Description ................................................................................................................................................8
Introduction.........................................................................................................................................................8
Features..............................................................................................................................................................8
Specications ........................................................................................................................................................10
Installation..............................................................................................................................................................12
Determine a Suitable Location..........................................................................................................................12
Wall Mounting ...................................................................................................................................................12
Attaching the Mounting Brackets to the Speaker Housing................................................................................13
Pole Mounting ..................................................................................................................................................15
Mounting with Omni Direction Bracket (2-3/8 in diameter pole)........................................................................17
Mounting without Bracket..................................................................................................................................18
Opening the Housing........................................................................................................................................18
Wiring Power to the Control Board ...................................................................................................................19
Wiring to the Relay Outputs..............................................................................................................................21
Wiring to the Alarm Initiation Input Connections ...............................................................................................21
Using Optional Visual Indicators.......................................................................................................................22
Ethernet Port.....................................................................................................................................................25
Putting the Informer100 Speaker into Standalone Mode..................................................................................25
Relay Outputs...................................................................................................................................................26
Closing the Housing..........................................................................................................................................26
Programming.........................................................................................................................................................27
Automatic Volume Level Control.......................................................................................................................27
Digital Inputs.....................................................................................................................................................27
WAV Files..........................................................................................................................................................27
Function Control Commands............................................................................................................................28
Conguring Informers Using the Web Interface................................................................................................28
Ordering Replacement Parts ............................................................................................................................50
Getting Service......................................................................................................................................................50
Appendix A Standard DV Messages....................................................................................................................51

4Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Tables
Table 1 Electrical ...................................................................................................................................................10
Table 2 Visual Indications (Located on internal control board.).......................................................................11
Table 3 Connectors and Jacks (Control board connectors) .............................................................................11
Table 4 Environmental and Physical ...................................................................................................................12
Table 5 Hazardous Location Ratings...................................................................................................................12
Table 6 IS-I-IP100DCX Visual Alerts.....................................................................................................................22
Table 7 IS-I-IP100ACX Visual Alerts.....................................................................................................................22
Table 8 Input and Output Conguration .............................................................................................................27
Table 9 Examples of Illegal WAV Files.................................................................................................................28
Table 10 Replacement Parts.................................................................................................................................50
Table 11 Standard DV Messages..........................................................................................................................51
Table 12 UTM Tones..............................................................................................................................................58
Figures
Figure 1 Informer100 Speaker with 255XL light....................................................................................................9

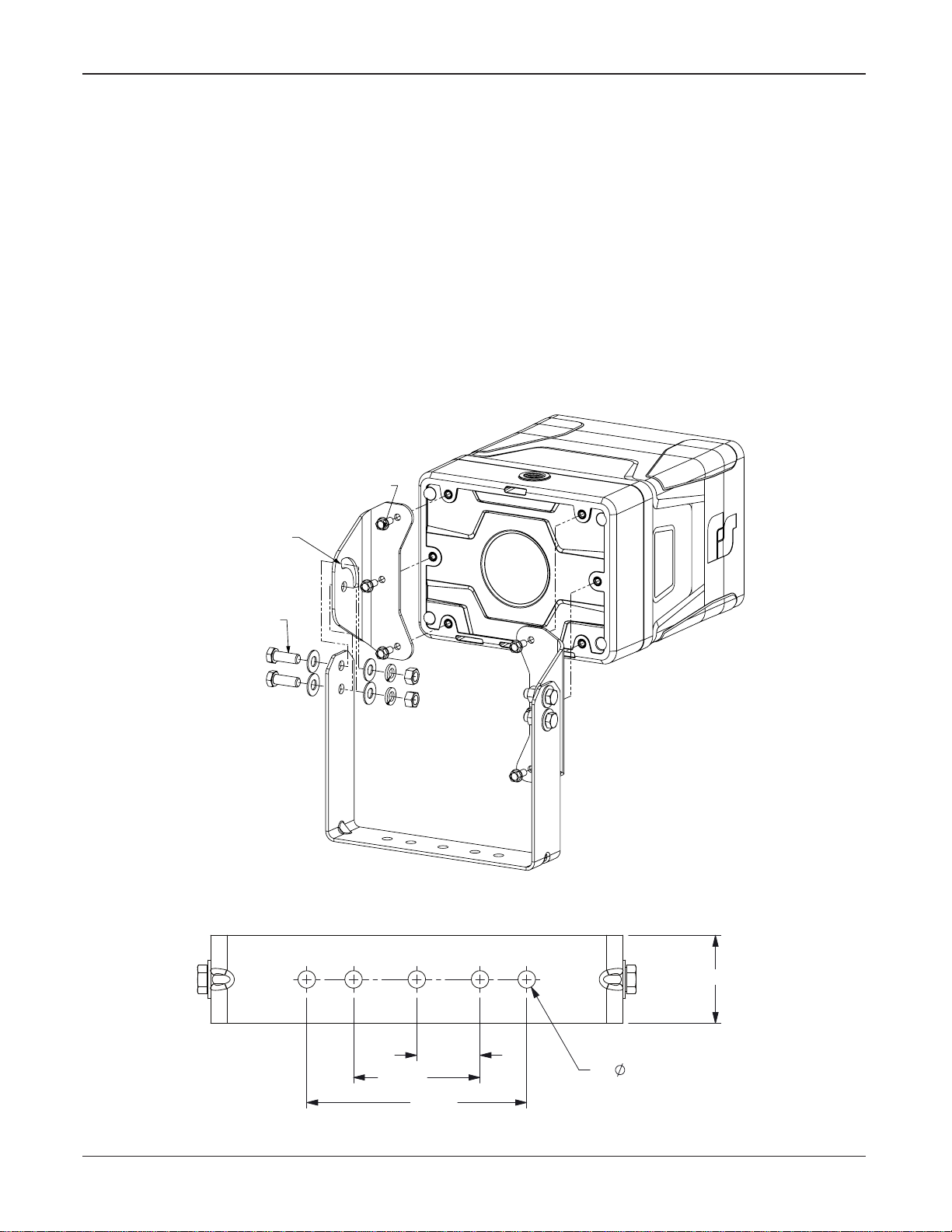

Figure 2 Bracket attached to speaker..................................................................................................................13

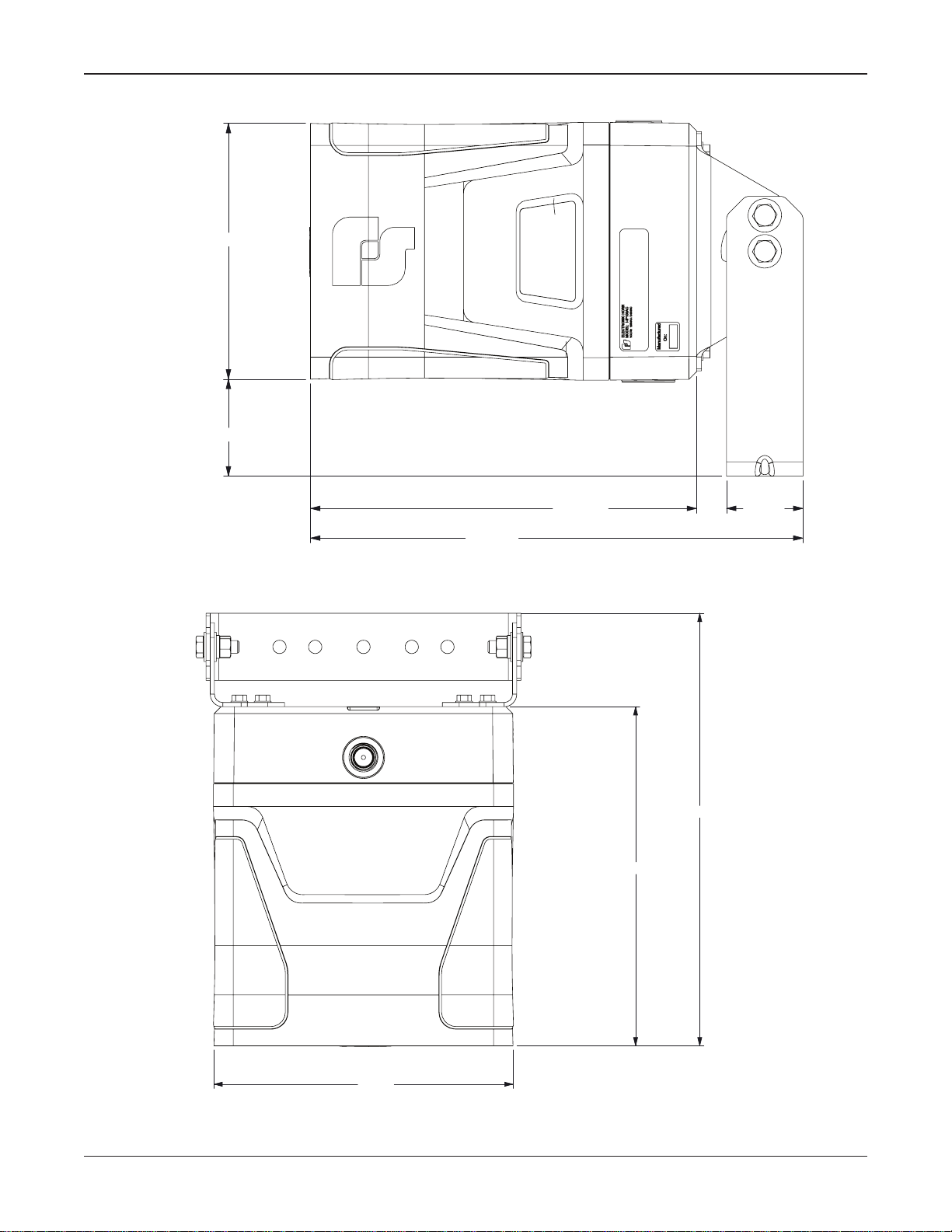

Figure 3 Width and height of bracket..................................................................................................................13
Figure 4 Depth and height with bracket..............................................................................................................14
Figure 5 Top view of speaker ...............................................................................................................................14
Figure 6 Ceiling mount..........................................................................................................................................15
Figure 7 Bracket IS-I-IP100-PMW.........................................................................................................................15

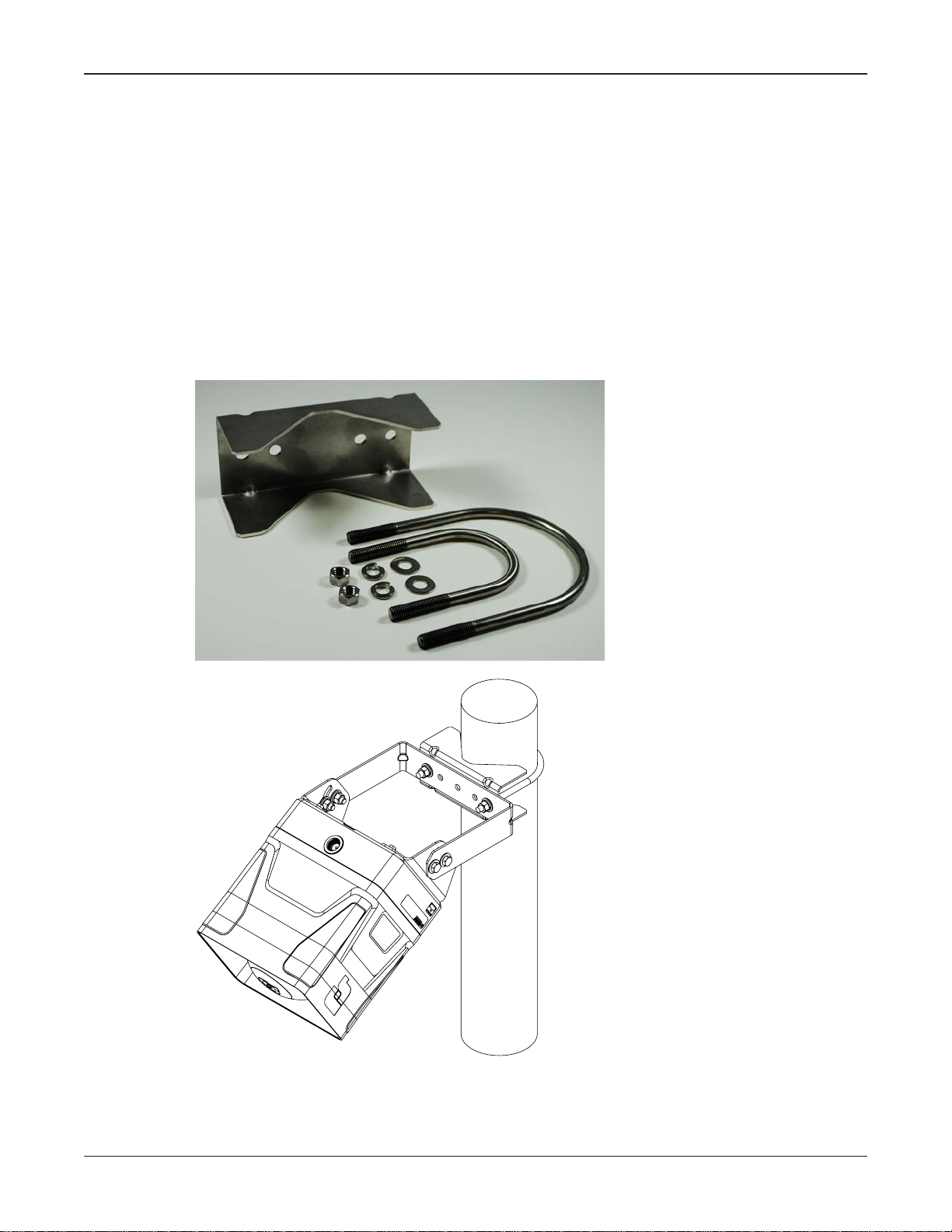

Figure 8 Bracket IS-I-IP100-PM.............................................................................................................................16

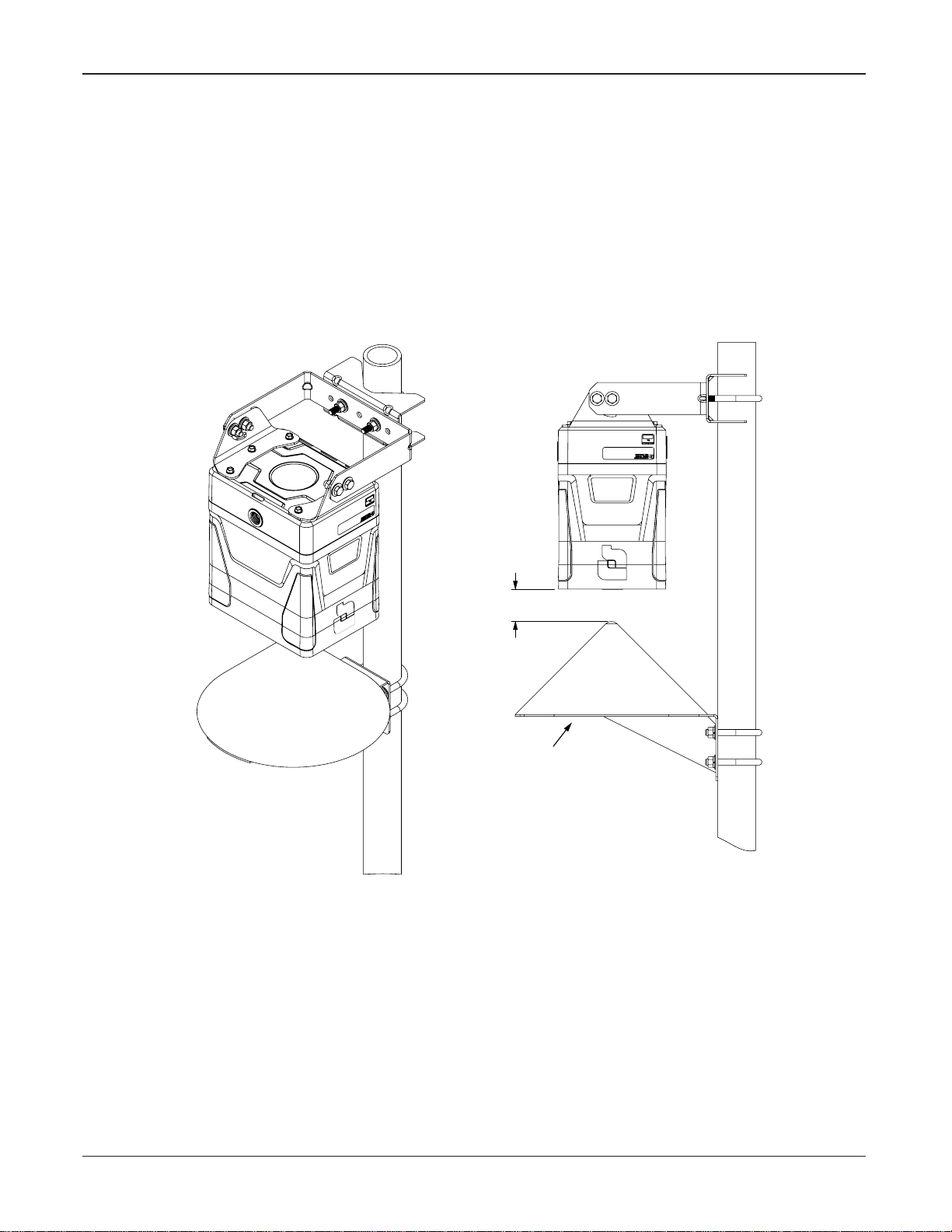

Figure 9 Bracket IS-I-IP100-OMNI.........................................................................................................................17
Figure 10 Surface mount hole center dimensions.............................................................................................18
Figure 11 Opening speaker...................................................................................................................................19
Figure 12 DC Controller Board.............................................................................................................................20
Figure 13 AC Controller Board ............................................................................................................................21
Figure 14 225XST-I/225XL Strobe with Informer100 Speaker............................................................................23

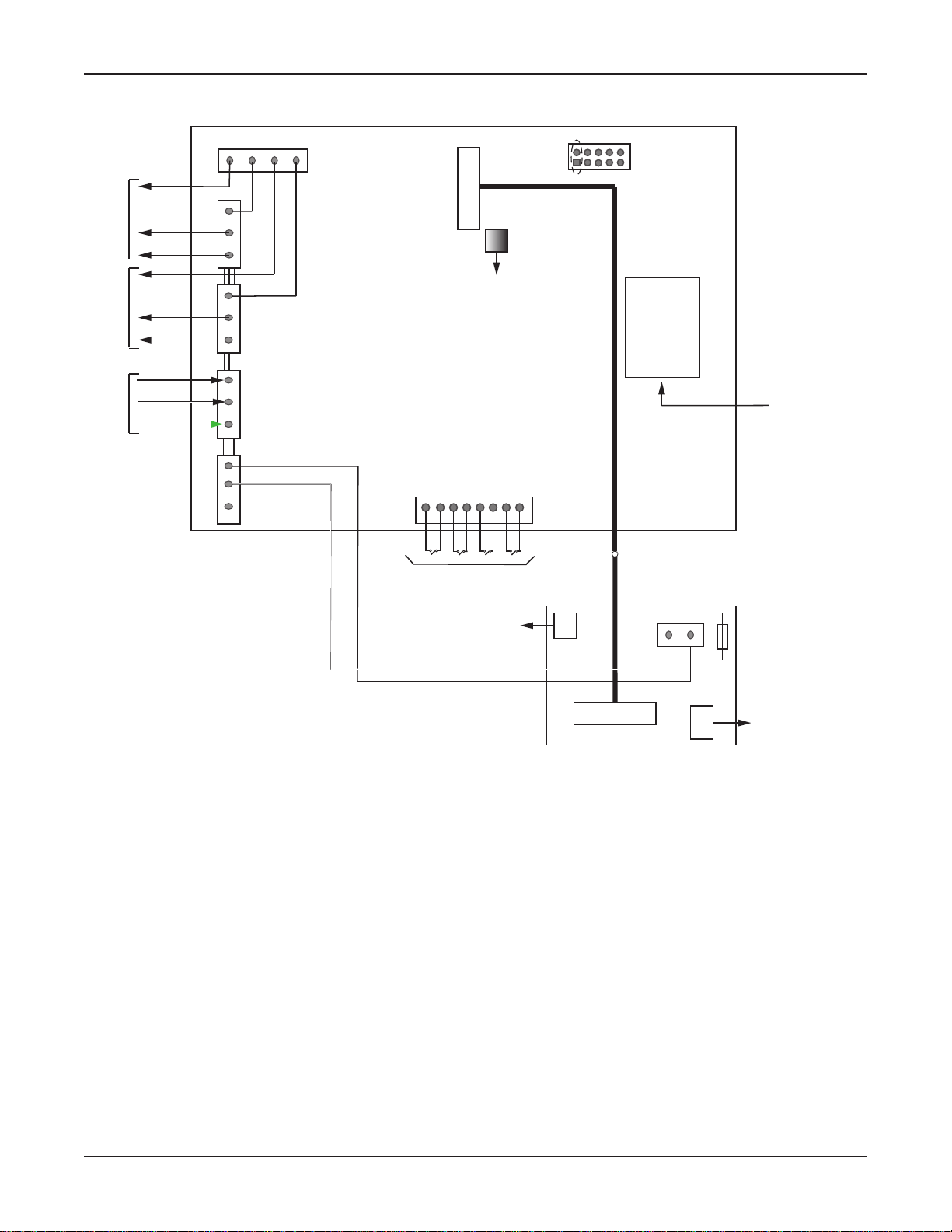

Figure 15 DC Controller Board with optional Strobe.........................................................................................24
Figure 16 AC Controller Board with optional Strobe.........................................................................................25

5
Safety Messages
Signaling Standalone Manual
Federal Signal www.fedsig.com
Safety Messages
It is important to follow all instructions shipped with this product. This device is to be
installed by trained personnel who are thoroughly familiar with the country electric codes
and will follow these guidelines as well as local codes.
Planning
• The sound output of the Informer100 Speaker is capable of causing permanent
hearing damage. To prevent excessive exposure, carefully plan placement, post
warnings, and restrict access to areas near sirens.
After installation, service, or maintenance, test the system to confirm that it is operating
properly. Test the system regularly to confirm that it will be operational in an emergency.
Safety Messages to Installers
People’s lives depend on your safe installation of our products. It is important to follow
all instructions shipped with this product. This device is to be installed by a trained
electrician who is thoroughly familiar with the National Electrical Code and/or Canadian
Electrical Code and will follow the NEC and/or CEC Guidelines as well as all local codes.
NEPA70, Chapter 5, “Special Occupancies,” must be followed.
The selection of the mounting location for this Informer100 Speaker, its controls, and the
routing of the wiring are to be accomplished under the direction of the Facilities Engineer
and the Safety Engineer. Listed below are some other important safety instructions and
precautions you should follow:
• Electrocution or severe personal injury can occur when performing various
installation and service functions such as making electrical connections, drilling
holes, or lifting equipment. Therefore, only experienced electricians should install
this product in accordance with national, state and any other electrical codes having
jurisdiction. Perform all work under the direction of the installation or service crew
safety foreman.
• Read and understand all instructions before installing, operating, or servicing this
equipment.
• All eective warning sounds may, in certain circumstances, cause permanent hearing
loss. Take appropriate precautions such as wearing hearing protection. Maximum
sound level exposure limits specified in OSHA 29 CFR 1910 should not be exceeded.
• For optimum sound distribution do not install this speaker where objects would block
any portion of the front of the Informer100 Speaker.
• Do not paint the Informer100 Speaker. No finish or coating is required. Paint may
obstruct the sound output, reducing the eectiveness of the horn.
• Establish a procedure to routinely check the signal system for proper activation and
operation.
• Any maintenance to the unit MUST be performed by a trained electrician in
accordance with NEC Guidelines and local codes.
• Never alter the unit in any manner.

6
Safety Messages
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
• The nameplate should NOT be obscured, as it contains cautionary and/or other
information of importance to maintenance personnel.
• After installation and completion of the initial system test, provide a copy of
these instructions to all personnel responsible for operation, periodic testing, and
maintenance of the equipment.
• File these instructions in a safe place and refer to them when maintaining and/or
reinstalling the device.
• This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D; Class II,
Division 2, Groups F and G; Class III or nonhazardous locations only.
• Substitution of any components may impair suitability for Division 2.
EXPLOSION HAZARD: Do not disconnect the equipment unless power has been
switched o or unless the area is known to be non-hazardous.
EXPLOSION HAZARD: Do not remove or replace fuse when energized.
Failure to follow all safety precautions and instructions may result in property damage,
serious injury, or death.
Installation and Service
• After installation or service, test the system to confirm that it is operating properly.
Test the system regularly to confirm that it will be operational in an emergency.
• If future service and operating personnel do not have these instructions to refer to,
the system may not provide the intended audible warning, and service personnel
may be exposed to death, permanent hearing loss, or other bodily injury. File these
instructions in a safe place and refer to them periodically. Give a copy of these
instructions to new recruits and trainees. Also give a copy to anyone who is going to
service or repair the Informer100 Speaker.
• To reduce the risk of electric shock, do not perform any servicing other than what
is contained in the operating instructions unless you are qualified to do so. Refer all
servicing to qualified service personnel. Always test the Informer100 Speaker before
using after repairs have been made.
Ethernet Wiring
• Unless shielded or run in conduit, Ethernet wiring must be at least six feet from bare
power wiring or lightning rods and associated wires, and at least six inches from
other wire (for example, antenna wires, doorbell wires, wires from transformers to
neon signs), steam or hot water pipes, and heating ducts.
• Do not place Ethernet wiring or connections in any conduit, outlet or junction box
containing high voltage electrical wiring.
• If using a cable gland, gland must be Listed. The Informer100 Speaker has 3/4-inch
and 1/2-inch NPT entry sizes.

7
Safety Messages
Signaling Standalone Manual
Federal Signal www.fedsig.com
Symbol Definition
_A _V Indicates to reduce the risk of fire, replace fuse as marked.
Pay careful attention to the notice located on the equipment.
Read and understand the information contained in this manual before
attempting to install or service the siren.

8
General Description
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
General Description
Introduction
The Informer100 Speaker is an indoor and outdoor 100-watt speaker that can be used in
hazardous (classified) locations. Use the Informer100 as a warning and alert device with
both audible and visual indicators. The audible capabilities include locally stored high-
quality, high-powered tones and voice. The visual indicators include the use of strobes,
lights and beacons. The Informer100 can be equipped with up to four local initiation
devices (switches) to activate the unit locally.
The Informer100 Speaker has an internal 100-watt amplifier/driver to deliver tone
warnings and intelligible voice messages from Informer100 stored memory.
The Informer100 allows connection of up to four external switches to activate predefined
alert events. The Informer100 can be programmed and configured as a standalone device
to only use the inputs to activate the Informer100. This may be useful if the location has
no network connectivity but where voice and tone alerts from locally activated inputs is
required.
The Informer100 includes two relay outputs for controlling strobes or other devices. The
Informer100 has a 1/2-inch NPT opening on the top of the speaker for simple installation
of pipe mount devices. The bottom of the speaker has three 3/4-inch NPT openings to
allow access to power, LAN, relay outputs, and activation inputs.
The Informer100 is designed for outdoor use and large indoor structures. It can be
powered from 120/240 Vac or 24 Vdc, depending on the model purchased. All wiring
interfaces are accessible via internal connectors and built-in NPT entrances for quick and
easy installation.
The Informer100 comes with an adjustable, stainless steel wall mount bracket that allows
the angle of the speaker to be adjusted. Optional pole mount brackets are available for
small and large diameter poles.
Features The Informer100 has the following features; some features require the use of the
Commander software system:
• High-powered outdoor or indoor IP-enabled speaker for audible and visual alerts
• Speaker rated at 120 dBa for tones and 114.5 dBa for voice at 10 feet
• Out-of-the-box standard programming. Changes to the configuration can be made
using our web interface found on www.fedsig.com.
• Out-of-the-box configuration (All modes are maintained and normally open)
• Tone 1 – NFPA Temporal Coded Slow Whoop
• Tone 2 – Alternating High-Low
• Tone 3 – Rapid Siren (Yelp)
• Tone 4 – Steady Horn (Euro-Toxic)

9
General Description
Signaling Standalone Manual
Federal Signal www.fedsig.com
• Seven standard built-in warning signals: Wail, Steady, Alternate Wail, Alternate Steady,
Pulsed Wail, Pulsed Steady, Auxiliary Chime
• Broadcasts prerecorded voice or tone files
• Deliver intelligible voice messages from locally pre-recorded files
• Pre-recorded files: 250 messages with 15 minutes of recording time
• Ambient noise level monitoring with automatic volume control
• Individually configured for volume and noise-level adjustments
• Wall or pole mount options
• Four local alarm initiation inputs to activate unit locally or standalone operation
Momentary mode: contact closure sounds alarm for programmed duration.
Continuous mode: sounds alarm for duration of closure.
• Two relay outputs to control strobes or other devices (See “Using Optional Visual
Indicators” on page 22.)
• 120/240 Vac or 24 Vdc powered (two models)
• Wide outdoor temperature operating range
• The lnformerl00 models are designed specifically for use in Class I, Division 2,
Groups A, B, C, D; Class II, Division 2, Groups F and G; and Class III locations as
defined in the National Electrical Code (NEC) ANSI/NFPA 70.
The following is a picture of the Informer100 Speaker shown with optional 225XL Warning
Light.
Figure 1 Informer100 Speaker with 255XL light

10
Specications
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Specications
Table 1 Electrical
Operating Voltages I-IP100ACX
Switch-selectable 120 or 240 Vac 120 Vac nom, 50/60 Hz or 240 Vac nom, 50/60 Hz
Operating Current I-IP100ACX 120 Vac; 26 mA Standby, 1.50 A during a function
240 Vac; 21 mA Standby, 820 mA during a function
Operating Voltages I-IP100DCX 24 Vdc
Operating Current I-IP100DCX 24 Vdc; 100 mA Standby, 5.15 A during a function
Relay Outputs 2 Aat 30 Vdc or 250 Vac, 25 A max inrush, N.O. dry
contacts
Ethernet Port IEEE 802.3, 10/100 Base-T connection
Alarm Initiating Inputs Four optically Isolated Inputs
Dry Contact closure < 1 kilohm
NOTE: The four optically isolatedAlarm Initiation Inputs
allow remote activation of tones and messages through
a volt-free, dry-contact closure.
The momentary contact closure must be a minimum of
500 ms.
Audio Storage Warning siren audio, seven factory installed tones: Wail,
Steady, Alternate Wail,Alternate Steady, Pulsed Wail,
Pulsed Steady, Auxiliary Chime
Prerecorded les—up to 250 messages with up to
15 minutes of recording time
Audio Data 8 bit 8 kHz mono WAV
Audio Frequency response 300 Hz to 3000 Hz, +1 to -3 dB per octave
Maximum Audio Output 100 watts, 120 dBa tones/114.5 dBa for voice at 10 feet

11
Specications
Signaling Standalone Manual
Federal Signal www.fedsig.com
The following indicators are for troubleshooting purposes only. These indicators are not
visible when the unit is closed.
Table 2 Visual Indications (Located on internal control board.)
POWER Green LED turns on when power is connected. D5
ISOLATED POWER Green LED turns on when Isolated power for inputs and relay outputs
is functioning. D6
CPU Flashing RED LED indicates the CPU is running its program. D18
NETWORK Green LED turns on when unit has made a connection to the
network. D27
LISTEN Red LED turns on when Commander is listening. Unit is sending
audio to Commander. D25
TALK Green LED turns on when Commander is talking. Unit is playing
audio being sent. D26
AMPOUTPUT
VOLTAGE Green LED turns on when amplier is active. Brightness indicates level of amplier output. D2
AMPLIFIER
OUTPUT CURRENT Green LED turns on when amplier is active. Brightness indicates level of amplier output. D8
ACTIVATION INPUT
#1 Red LED turns on when Activation input #1 is being activated. D12
ACTIVATION INPUT
#2 Red LED turns on when Activation input #2 is being activated. D14
ACTIVATION INPUT
#3 Red LED turns on when Activation input #3 is being activated. D16
ACTIVATION INPUT
#4 Red LED turns on when Activation input #4 is being activated. D17
Table 3 Connectors and Jacks (Control board connectors)
JP2 Serial Port for factory approved programming or for message board
display
JP3 Pin Jack Short pins 1 and 2 for standalone mode
JP4 Relay Outputs 1 and 2 Relay 1 Normally Open
3 and 4 Relay 2 Normally Open
JP5 Initiation inputs 1 and 2 – ISO Ground/Input 1
3 and 4 – ISO Ground/Input 2
5 and 6 – ISO Ground/Input 3
7 and 8 – ISO Ground/Input 4
NOTE: JP6, JP7, JP8 and JP9 are physically connected to provide
a distribution of AC or DC power. The combined load of all power
should not exceed 8 amperes AC/DC, 25A max inrush
JP6 and JP7
AC/DC Power
Distribution
1 – L1/Hot/(+) 24 Vdc
2 – L2/Neutral/(-) 24 Vdc Gnd
3 – Earth Ground
JP8
Input for AC/DC
Power Distribution
1 – L1/Hot/(+) 24 Vdc
2 – L2/Neutral/(-) 24 Vdc Gnd
3 – Earth Ground
JP9 Reserved for factory testing
JP10 Reserved for factory testing
JP11 Short to restore factory default settings

12
Installation
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Table 4 Environmental and Physical
Operating temp range -40°F to +104°F (-40°C to +40°C)
Humidity range 0-95%, non-condensing
Size
(Height x Width x Length) 7 x 9 x 10 inches (178 x 229 x 254 mm)
Weight
I-IP100DCX
I-IP100ACX
16.2 lb (7.35 kg)
19.2 lb (8.71 kg)
Table 5 Hazardous Location Ratings
T-CODE AT 40°C
CLASS I, DIV 2, GRPS A,B,C,D T5
CLASS II, DIV 2, GRPS F,G T6
CLASS III T6
Installation
Read and adhere to all safety warnings in this manual before installing the
Informer100 Speaker.
Electrocution or severe personal injury can occur when making electrical
connections, drilling holes, or lifting equipment. Therefore, experienced
electricians, in accordance with national and local electrical codes, acting under
the direction of the installation crew safety foreman, should perform installation.
Determine a Suitable Location
The Informer100 can be mounted on any relatively flat surface with the supplied mounting
brackets. The mounting surface must be capable of supporting the weight of the speaker.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D; Class II, Division
2, Groups F and G; Class III or nonhazardous locations only.
Wall Mounting
The Informer100 Speaker comes standard with a bracket for vertical wall or pole mount
with optional pole accessories. The standard mount can be flipped to allow ceiling mount.
To wall mount the Informer100 Speaker, do the following:
1. Find a suitable location to mount the speaker. Use industry- or company-preferred
practices when mounting hardware to structures.
2. Verify that the mounting is adequate to hold the weight of speaker, cables, and visual
devices, if equipped.
3. Refer to Figure 3 or use the U-shaped wall bracket as a template to scribe the
mounting hole locations.
4. Mount the Informer100 Speaker to the mounting surface with user-supplied hardware.
Federal Signal recommends 3/8 inch fasteners.

13
Installation
Signaling Standalone Manual
Federal Signal www.fedsig.com
5. Loosen the pivot bolts to provide the direction of the speaker.
Attaching the Mounting Brackets to the Speaker Housing
Do the following to attach the brackets:
1. The mounting brackets are attached to the speaker as shown below using the six
supplied 1/4-20 by 5/8-inch screws.
Note the orientation of the curved slots on the L-shaped brackets; this orientation is
important to allow the speaker to be pivoted downward.
2. Tighten the 1/4-20 by 5/8-inch screws to approximately 80 in-lb.
3. Attach the U-shaped wall bracket with four supplied sets of 3/8-16 by 1-inch bolts, flat
washers, lock washers, and nuts.
Figure 2 Bracket attached to speaker
1/4-20 x 5/8" screws (6)
3/8-16 x 1" bolts (4)
Note the orientation
of this curved slot
with respect to the
"FS" on the side of
the housing.
Figure 3 Width and height of bracket
2.00 in
5.00 in
2.88 in
1.44 in
5X
.397

14
Installation
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Figure 4 Depth and height with bracket
6.68 in
2.53 in
12.87 in
2.00 in10.09 in
Figure 5 Top view of speaker
10.09 in
12.87 in
8.90 in

15
Installation
Signaling Standalone Manual
Federal Signal www.fedsig.com
Figure 6 Ceiling mount
Pole Mounting
The Informer100 comes standard with a bracket for vertical wall or pole mount with
optional pole accessories.
Large Pole Mounting (6 in diameter or larger)
Use the following procedure if mounting the speaker with the optional IS-I-IP100-PMW
bracket:
1. Find a suitable location to mount the speaker. Use industry- or company-preferred
practices when mounting hardware to poles or other structures.
2. Attach the IS-I-IP100-PMW bracket to the pole using banding or use the pre-drilled
holes to bolt the bracket to the pole or structure.
3. Using the supplied flat washers, lock washers, and 3/8 inch nuts, mount the speaker
to the IS-I-IP100-PMW bracket as shown in Figure 2.
4. Use the side pivot bolts to allow adjustment of the speaker up and down to optimize
speaker eectiveness.
Figure 7 Bracket IS-I-IP100-PMW

16
Installation
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Small Pole Mounting (2-3/8 in or 4-1/2 in diameter poles)
Use the following procedure if mounting the speaker with the optional I-IP100-PM bracket:
1. Find a suitable location to mount the speaker. Use industry- or company-preferred
practices when mounting hardware to poles or other structures.
2. Remove the speaker U-shaped bracket; store the pivot/lock bolts.
3. Select the proper IS-I-IP100-PM U-bolt for the pole.
4. Attach the U-shaped bracket from the speaker to the pole using the IS-I-IP100-PM
U-bolt, bracket, nuts, and washers.
5. Attach the speaker and set the direction using the pivot and lock bolts.
Figure 8 Bracket IS-I-IP100-PM

17
Installation
Signaling Standalone Manual
Federal Signal www.fedsig.com
Mounting with Omni Direction Bracket (2-3/8 in diameter pole)
Use the IS-I-IP100-OMNI bracket to create an omni-directional speaker. The speaker is
mounted as described in the Small Pole Mount section with the omni bracket mounted at
a distance of 2.0 inches from the speaker.
Use the following procedure if mounting the speaker with the optional IS-I-IP100-OMNI
bracket:
1. Identify the location for the bracket.
2. Attach the bracket using the supplied U-bolts and hardware.
Figure 9 Bracket IS-I-IP100-OMNI
2.0 in
Omni Bracket

18
Installation
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Mounting without Bracket
You can mount the speaker directly to the mounting surface without the bracket. Use
installer-supplied 1/4-20 fasteners that are suitable for the mounting surface. Use
Figure10 for the hole center dimensions.
Figure 10 Surface mount hole center dimensions
5.20 in
2.60 in
3.00
6.00
7.39
C
L
C
L
(6) 1/4-20
0.5 in THREAD DEPTH
Opening the Housing
Tools required:
3/8-inch socket
6-inch extension
To open the housing, loosen the four cover screws while supporting the housing so it
does not fall. (The cover screws are retained in the housing.) The front of the unit is heavy,
but it is attached to the rear housing with a pivot hinge to allow ease of service. If the unit
requires service, replace the front housing, amplifier, and power supply (if equipped) as an
entire unit.

19
Installation
Signaling Standalone Manual
Federal Signal www.fedsig.com
Figure 11 Opening speaker
Cover Screws
Wiring Power to the Control Board
JP6, JP7, JP8 and JP9 are all connected in parallel. Federal Signal recommends using JP8
as the AC or DC input to allow room for wires coming in from the 3/4-inch NPT opening.
When power is supplied to JP8, it is connected through the PCB to the other three
connectors. If a connector is not being used, it is recommended to leave the connector
on the PCB. With I-IP100ACX units, JP9 is wired from the factory to the power supply PCB.
With the I-IP100DCX units, JP9 is wired to the amplifier PCB. Use JP6 and JP7 to wire
external lights or strobes through JP4, which is a normally open relay. Typical installation
would use voltage to be wired through the JP4 relays contacts.
NOTE: Current draw from JP6, JP7, and JP4 must not exceed 8.5 ampere AC or
5.0ampere DC Max Combined Load.
IS-I-IP100DCX 24Vdc Model
(+) 24 Vdc is connected to JP8 terminal 1 (24 Vdc).
24 Vdc GND is connected to JP8 terminal 2 (24 Vdc GND).
Earth Ground is connected to JP8 terminal 3 (GND).

20
Installation
Informer100 Speaker (Models IS-I-IP100ACX and IS-I-IP100DCX)
Federal Signal www.fedsig.com
Figure 12 DC Controller Board
GND
LAN Communications
DC
In
JP4
Relay 2
N.O. COM
Relay 1
N.O. COM
External Inputs
Momentary dry contact closures
See NOTE.
JP7
GND
JP8
JP9
+24 V
+24 V/L1/Hot
24 Vdc GND
GND
GND
JP1
JP2
Visual 2
Visual 1
Inter-board communications
(Factory wiring)
(Factory wiring)
JP6
-24 V/L2/NUE
24 Vdc GND
+24 V
-24 Vdc GND
+24 V
Serial Port
12 3 4
JP5
100 W Amp
To Driver
To Temperature
Sense
Fuse
JP3
Pins 1 & 2
IS-I-IP100ACX 120/240Vac Model
120 Vac—Hot is connected to JP8 terminal 1 (L1/Hot).
120 Vac—Neutral is connected to JP8 terminal 2 (L2/Neutral).
Earth Ground is connected to JP8 terminal 3 (GND).
240 Vac—L1 is connected to JP8 terminal 1 (L1/Hot).
240 Vac—L2 is connected to JP8 terminal 2 (L2/Neutral).
Earth Ground is connected to JP8 terminal 3 (GND).
