Model SST3-MV Electronic Siren
Installation and
Maintenance Instructions
français...............page 17
español...............página 32

Warranty – Seller warrants all goods for ve years on parts and 2-1/2
years on labor, under the following conditions and exceptions: Seller
warrants that all goods of Seller’s manufacture will conform to any
descriptions thereof for specications which are expressly made a part
of this sales contract and at the time of sale by Seller such goods shall
be commercially free from defects in material or workmanship. Seller
reserves the right at the Seller’s discretion to “Repair and Return”
or “Replace” any item deemed defective during the warranty period.
This warranty does not cover travel expenses, the cost of specialized
equipment for gaining access to the product, or labor charges for
removal and reinstallation of the product. This warranty shall be
ineffective and shall not apply to goods that have been subjected
to misuse, neglect, accident, damage, improper maintenance, or to
goods altered or repaired by anyone other than Seller or its authorized
representative, or if ve years have elapsed from the date of shipment
of the goods by Seller with the following exceptions: lamps and strobe
tubes are not covered under this warranty. Outdoor warning sirens and
controllers manufactured by Federal Warning Systems are warranteed
for two years on parts and one year on labor. No agent, employee,
representative or distributor of Seller has any authority to bind the
Seller to any representation, afrmation, or warranty concerning the
goods and any such representation, afrmation or warranty shall not
be deemed to have become a part of the basics of the sales contract
and shall be unenforceable. THE FOREGOING WARRANTIES
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
OR MERCHANTABILITY, FITNESS FOR PURPOSE AND OF
ANY OTHER TYPE, WHETHER EXPRESS OR IMPLIED. These
warranties shall not apply unless Seller shall be given reasonable
opportunity to investigate all claims for allegedly defective goods.
Upon Seller’s instruction a sample only of allegedly defective goods
shall be returned to Seller for its inspection and approval. The basis
of all claims for alleged defects in the goods not discoverable upon
reasonable inspection thereof pursuant to paragraph 8 hereof must be
fully explained in writing and received by Seller within thirty days
after Buyer learns of the defect or such claim shall be deemed waived.
2645 Federal Signal Drive • University Park, IL 60484-3167
www.fedsig.com
Customer Support:1 800-344-4634 • 1 708-534-4756
Technical Support:1 800-755-7621 • 1 708-587-3587

Model SST3-MV Siren 3
Contents
Safety Messages to Installers .......................................................... 5
Unpacking the Siren.......................................................................... 6
Overview of Model SST3-MV Siren .................................................. 6
Mounting the Siren............................................................................ 7
Weatherproof Mounting in the WB Box .................................. 8
Wall Mounting or Surface Mounting ....................................... 9
Concealed Conduit Mounting ................................................ 10
Connecting Power to the Siren ...................................................... 10
For AC Operation ................................................................... 12
For 24 Vdc Operation ............................................................. 13
Wiring for Remote Tone Activation................................................ 13
Wiring for Single Tone Activation at Power-Up ............................ 14
Getting Repair Service or Technical Assistance ......................... 14
Safety Message to Maintenance Personnel.................................. 15
Ordering Replacement Parts.......................................................... 15
Returning the Product for Credit ................................................... 16
FRANÇAIS.................................................................................17 - 31
ESPAÑOL ..................................................................................32 - 46

4
Model SST3-MV Siren
Contents
Figures
Figure 1 Mounting with the WB box................................................... 8
Figure 2 Mounting with an NB or NBL box ........................................9
Figure 3 Mounting with concealed conduit ...................................... 11
Figure 4 Settings on the siren PCB ................................................. 12
Tables
Table 1 Kit contents............................................................................ 7
Table 2 Specications ........................................................................ 7
Table 3 Replacement parts ..............................................................16

5
Installation and Maintenance Instructions
Model SST3-MV Siren
Safety Messages to Installers
It is important to follow all instructions shipped with this product.
This device is to be installed by a trained electrician who is
thoroughly familiar with the National Electric Code/Canadian
Electric Code and will follow the NEC/CEC Guidelines as well as
local codes.
The selection of mounting location for the device, its controls and
the routing of the wiring is to be accomplished under the direction
of the facilities engineer and the safety engineer. In addition, listed
below are some other important safety instructions and precautions
you should follow:
• Read and understand all instructions before installing or
operating this equipment.
• Do not connect this unit to the system when power is on.
• Optimum sound distribution will be severely reduced if any
objects are in front of the speaker. You should ensure that the
front of the speaker is clear of any obstructions.
• All effective warning speakers produce loud sounds which
may cause, in certain situations, permanent hearing loss. You
should take appropriate precautions such as wearing hearing
protection.
• All effective warning speakers produce loud sounds, which
may cause, in certain situations, permanent hearing loss. The
device should be installed far enough away from potential
listeners to limit their exposure while still maintaining its
effectiveness. The OSHA Code of Federal Regulations 1910.95
Noise Standard provides guidelines which may be used
regarding permissible noise exposure levels.
• Establish a procedure to routinely check the sound system for
proper activation and operation.

6
Installation and Maintenance Instructions
Model SST3-MV Siren
• Provide a copy of these instructions to the Safety Engineer,
operator(s), and maintenance personnel.
• File these instructions in a safe place and refer to them when
maintaining and/or reinstalling the device.
Failure to follow all safety precautions and instructions may result
in property damage, serious injury, or death.
Unpacking the Siren
After unpacking the Model SST3-MV, examine it for damage that
may have occurred in transit. If the siren has been damaged, do not
attempt to install or operate it. File a claim immediately with the
carrier, stating the extent of the damage.
Carefully check all envelopes, shipping labels, and tags before
removing or discarding them. If any parts are missing, please call
Federal Signal Customer Support at 708-534-4756 or 877-289-
3246. Disposal of all shipping materials must be carried out in
accordance with national and local codes and standards.
Overview of Model SST3-MV Siren
The Federal Signal Model SST3-MV is an electronic siren that
produces three different high-decibel tones. It features internal
amplication and the circuitry required to produce wail, yelp and
horn tones. Each tone is manually activated from a remote point.
The SST3-MV operates on 24 Vdc, 120 Vac, or 240 Vac. The
NEMA 3R (with backbox) housing is molded from impact-
resistant ASA (acrylic-styrene-acrylonitrile) plastic, making it
resistant to ultraviolet and ideal for indoor or outdoor use. The
omnidirectional swivel-mount system enables the output to be pointed
anywhere within a 360-degree half-sphere.
The Model SST3-MV can be used as a standalone, high-output
audible warning device in any application in which multiple tones are
needed, but voice paging is not required. Typical applications include
emergency warning, start and dismissal, re alarm, general alarm, and
evacuation.

7
Installation and Maintenance Instructions
Model SST3-MV Siren
Table 1 Kit contents
Qty. Description Part Number
1 Adapter K8476121-04
1Gasket, Adapter K847602952A
1 Connector Plug, 4-Position K140340
1 Connector Plug, Tone Selector K140389-04
Table 2 Specications
Operating Voltage: 120/240 Vac, 50/60 Hz, 24 Vdc
Operating Current:
Voltage Current
120 Vac 210 mA
240 Vac 120 mA
24 Vdc 600 mA
Sound Output: dB(A) at 10 ft on Axis dB(A) UL Rating
Wail 109.5 100
Yelp 111 100
Horn 107 94
Weight (approx.): 4.4 lb (2.173 kg)
Dimensions (HWD): 14.5 in x 12 in x 9 in
(36.83 mm x 30.48 mm x 22.86 mm)
Mounting the Siren
The Model SST3-MV can be attached to any relatively at
surface or to a variety of electrical wall boxes. A four-position
plug is supplied for electrical connection. In addition, two #8-
32 x 3-1/4 inch slotted machine-screws are included to attach
the unit to a four-inch square electrical box. After the mounting
method and location have been selected, follow the procedure in
the appropriate section below. For clarity, The speaker portion of
SST3-MV is not shown in the illustrations.
The speaker and its base assembly provides three degrees of
freedom, allowing the siren to be oriented for any coverage pattern
desired. The angle is adjusted with hand-tightened nuts that require
minimal torque to maintain the position of the siren.

8
Installation and Maintenance Instructions
Model SST3-MV Siren
When mounted outdoors, ensure that the rain guard on the swivel
base is oriented to protect the wire opening in the speaker from
falling rain.
SUFFICIENT SUPPORT FOR MOUNTING BOX—Always
provide sufcient support of the mounting boxes used to
mount the horn. Failure to do so may result in property
damage, serious injury or death.
Weatherproof Mounting in the WB Box
To mount the siren with the WB box:
1. See Figure 1. Insert the two #8-32 x 3-1/4 inch slotted pan-
head screws into the SST3-MV base at opposite corners.
2. Remove the white paper off the adapter gasket to expose
adhesive backing. Place the two adapter gaskets on either
sides of the adapter in grooves. Place the adapter with the
installed gaskets over the screws inserted in step 1.
3. Secure the SST3-MV base/adapter assembly in the WB box
with the pan-head screws as shown in Figure 1.

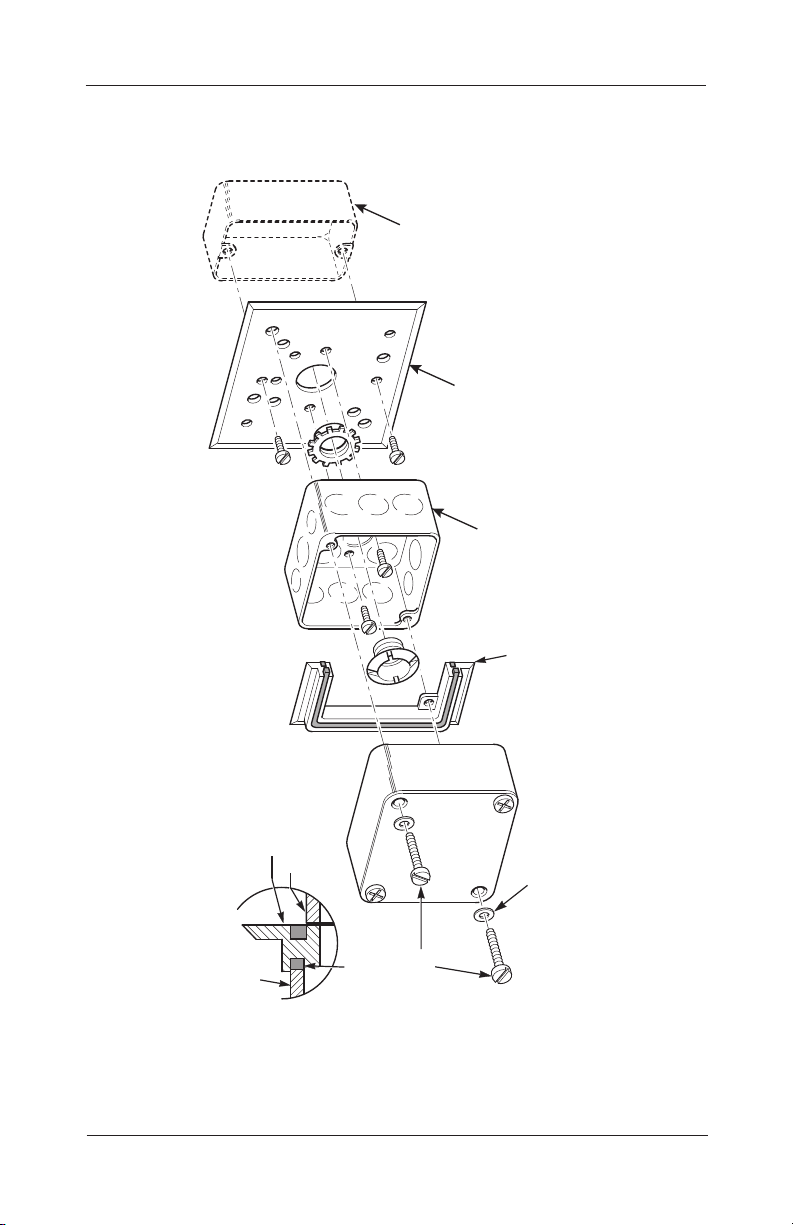

Figure 1 Mounting with the WB box
SST-MV
BASE
ASSEMBLY
SST-MV
WB
290A7367
SEALING WASHER (2): RUBBER SIDE OF
BOTH WASHERS MUST FACE TOWARD BASE
ASSEMBLED DETAIL
ADAPTER
GASKET
ADAPTER
GASKET
ADAPTER
(SECTIONAL VIEW)
WB GASKET
ADAPTER
WB JOINT
#8-32 X 3-1/4"
SCREWS (2)
ENGLISH

9
Installation and Maintenance Instructions
Model SST3-MV Siren
Wall Mounting or Surface Mounting
Mounting the SST3-MV on a wall or at surface in an NB or
NBL box requires the adapter, the adapter gasket, and the #8-32
x 3-1/4 inch pan-head screws as shown in Figure 2.
1. Insert the two #8-32 x 3-1/4 inch slotted round-head screws
into the SST3-MV base at opposite corners.
2. Remove the white paper off the adapter gasket to expose
adhesive backing. Place the two adapter gaskets on either
sides of the adapter in grooves. Place the adapter with the
installed gaskets over the screws inserted in step 1.
3. Secure the SST3-MV base/adapter assembly in the NB or
NBL box with the pan-head screws as shown in Figure 2.
Figure 2 Mounting with an NB or NBL box
SST-MV
BASE
ASSEMBLY
SST-MV
NB OR
NBL
290A7368
ENGLISH
ASSEMBLED DETAIL
GASKET
#8-32 X 3-1/4"
SCREWS (2)
SEALING WASHER (2): RUBBER SIDE OF
BOTH WASHERS MUST FACE TOWARD BASE
NB OR NBL BOX
ADAPTER
ADAPTER
GASKET
ADAPTER
(SECTIONAL
VIEW)
WALL

10
Installation and Maintenance Instructions
Model SST3-MV Siren
Concealed Conduit Mounting
The concealed-conduit mounting method is shown in the
Figure 3 on page 11. This mounting method is recommended
when an existing junction box or handy box will not
accommodate the Model SST3-MV. For this type of mounting
a Federal Signal Model NBL outlet box and an adapter plate
are required. A pair of #6-32 and #8-32 at-head screws are
included with the concealed mounting kit to secure the plate
to the existing box. Two #10-32 x 1/4 inch round-head screws
are supplied to attach the NBL box to the plate. An insulated
bushing is also supplied to protect electrical leads passing
through the center knockout of the NBL box.
Connecting Power to the Siren
SHOCK HAZARD—To avoid electrical shock hazards, do not
connect wires when power is applied. Failure to follow this
warning could cause serious injury or death.
PROPER WIRE GAUGE—Use only 12 to 18 AWG wire for
power connection. Strip no more than 0.25 inch of wire
insulation from the ends of the power leads.
Choose either AC or DC power operation. Do not try to operate
the siren by connecting both AC and DC power sources at the
same time.

11
Installation and Maintenance Instructions
Model SST3-MV Siren
Figure 3 Mounting with concealed conduit
SST-MV
BASE
ASSEMBLY
SST-MV
NBL
290A7369
SEALING WASHER (2): RUBBER SIDE OF
BOTH WASHERS MUST FACE TOWARD BASE
ADAPTER
GASKET
ADAPTER
(SECTIONAL VIEW)
#8-32 X 3-1/4" SCREWS (2)
ASSEMBLED DETAIL
NB OR NBL BOX
FEDERAL SIGNAL
ADAPTER PLATE
EXISTING
JUNCTION BOX
FEDERAL SIGNAL
NBL BOX
ENGLISH

12
Installation and Maintenance Instructions
Model SST3-MV Siren
For AC Operation
To connect AC power to the siren:
1. Make operating power to the siren is off.
2. See Figure 4. If the siren is to be operated from an AC
source, set the voltage selector switch SW1 on the siren
PCB to the desired source voltage.

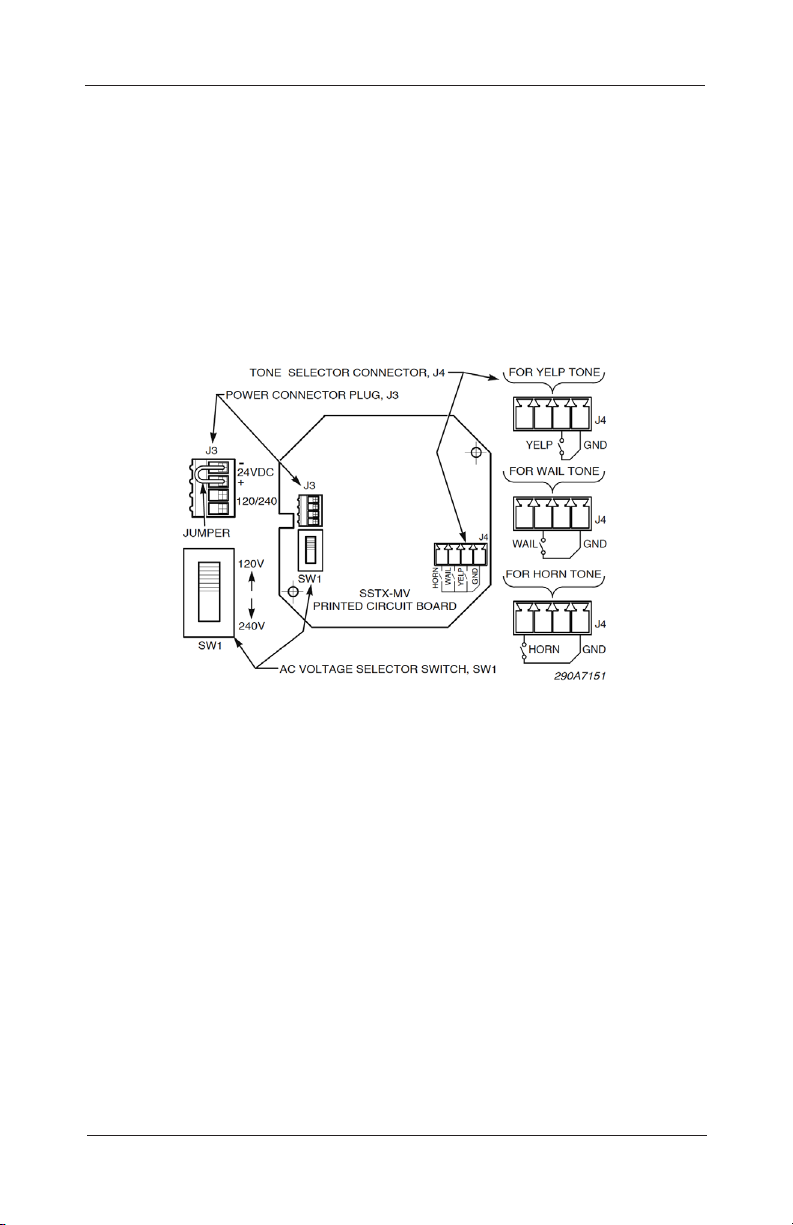

Figure 4 Settings on the siren PCB
3. Connect the AC power leads to the 120/240 Vac terminals
of the four-position connector plug supplied with the siren
by inserting the stripped ends of the wire into the connector
as far as they can travel. Make sure the supply lead
insulation is ush with the connector.
NOTE: If you are using stranded wire, be sure that there
are no loose strands outside the connector plug that could
touch the adjacent lead and cause a short circuit.
4. Plug the connector into the receptacle provided on the
printed circuit board.

13
Installation and Maintenance Instructions
Model SST3-MV Siren
For 24 Vdc Operation
To connect 24 Vdc power to the siren:
1. Make operating power to the siren is off.
2. See Figure 4 on page 12. For 24 Vdc operation, remove
the short-wire jumper (installed in “Wiring for Single Tone
Activation on Power-Up” on page 14.)
3. Connect the positive lead to the (+) terminal and negative
lead to the (-) terminal of the four-position connector.
Wiring for Remote Tone Activation
Make sure operating power to the siren is off.
See Figure 1 on page 8. Apply a dry-contact closure at J4 plug
between the ground (GND) terminal and one of the tone (WAIL,
YELP, HORN) terminals.
Use 18 AWG shielded twisted-pair wires. Strip no more than
0.25 inch of wire insulation from the ends of leads to connect dry-
contact terminals for the remotely-located tone activation between
GND and WAIL, YELP, or the HORN terminal of four-position
connector plug supplied with siren. Make sure the lead insulation
is ush with the connector. If you using stranded wire, be sure that
there are no loose strands outside the connector plug that could
touch adjacent lead and cause a short. Plug the connector into the
receptacle J4 on the printed circuit board.
The selected tone plays when the siren is powered up and the
remote activation contacts are closed.
For proper operation of the remote activating circuit, the total loop
resistance of the GND wire plus the resistance of the tone terminal
wire plus the dry-contact resistance of the circuit should not
exceed 1000 ohms.
By connecting a dry set of contacts for each of the three tones, any
one tone can be activated by closing the appropriate contact:

14
Installation and Maintenance Instructions
Model SST3-MV Siren
• If the contact closures are simultaneously applied to all tone
terminals, the HORN tone will override the other two tones.
• If the contact closures are applied to the HORN tone and any
other tone, HORN overrides the other tone.
• If the contact closures are applied to WAIL and YELP, the
WAIL tone overrides the YELP tone.
Wiring for Single Tone Activation at Power-Up
Make sure that operating power to the siren is off.
The siren can be operated by switching operating power (AC
or 24 Vdc) ON to the siren if a permanent short-wire jumper is
installed between GND and the desired tone terminal of the four-
position connector plug instead of the dry-contact closure.
Connect a 1-inch-long 22 AWG wire between GND and the
desired tone terminal of the four-position connector plug supplied
with the siren. Plug the connector into the J4 receptacle (see
Figure 1 on page 8) on the printed circuit board. Switching ON the
operating power will now activate the siren.
Getting Repair Service or Technical Assistance
Products returned for repair require a Return Authorization form
from your local distributor or from Federal Signal. To obtain
repair service or technical assistance from Federal Signal, call
708-534-4756 or 877-289-3246.
For instruction manuals and information on related products, visit:
http://www.federalsignal-indust.com.

15
Installation and Maintenance Instructions
Model SST3-MV Siren
Safety Message to Maintenance Personnel
Listed below are some important safety instructions and
precautions you should follow:
• Read and understand all instructions before performing any
maintenance to this unit.
• To reduce the risk of electrical shock or ignition of hazardous
atmospheres, do not perform maintenance/service on this
device when circuits are energized.
• Optimum sound distribution will be reduced if speaker
becomes clogged with a foreign substance. Periodic checks
should be performed to ensure foreign substances are not
packed into the speaker.
• Any maintenance to the unit MUST be performed by a trained
electrician in accordance with NEC Guidelines and local codes.
• Never alter the unit in any manner. Safety in hazardous
locations may be endangered if additional openings or
alterations are made in units specically designed for use in
these locations.
• The nameplate, which may contain cautionary or other
information of importance to maintenance personnel, should
not be obscured if exterior of housings used in hazardous
locations are painted.
Failure to follow all safety precautions and instructions may result
in property damage, serious injury, or death.
Ordering Replacement Parts
Typical spare parts are listed in Table 3 on page 16. To order
replacement parts, please call Federal Signal Customer Support at
708-534-4756 or 877-289-3246.

16
Installation and Maintenance Instructions
Model SST3-MV Siren
Table 3 Replacement parts
Description Part Number
Board Assembly K2005110
Connector Plug, 4-Position K140340
Adapter (Beige) K8476121
Gasket K8476121-04
Speaker Assembly K8504002
Returning the Product for Credit
Product returns for credit require a return authorization from your
local distributor prior to returning the product to Federal Signal.
Please contact your distributor for assistance.
A product is qualied to be returned for credit when the following
conditions are met:
• Product is resalable and in the original cartons
• Product has not been previously installed
• Product is the current revision
• Product has not been previously repaired
• Product is a standard product
• Product is not a service part
All returns are subject to a re-stock fee.
Defective products that are returned within the warranty period
will be repaired or replaced at Federal Signal’s sole discretion.
Defective products do not include those products with lamp
failure.
Circumstances other than those listed above will be addressed on a
case-by-case basis.

17
Sirène électronique SST3-MV
Contenu
Messages de sécurité destinés aux installateurs ....................... 21
Déballage de la sirène..................................................................... 22
Aperçu de la sirène SST3-MV ........................................................ 22
Installation de la sirène .................................................................. 24
Installation étanche sur une boîte WB .................................... 24
Installation sur une surface ou un mur ................................... 25
Installation sur un conduit dissimulé ..................................... 26
Branchement de l’alimentation à la sirène ................................... 28
Avec alimentation CA ............................................................ 28
Fonctionnement en 24 Vcc .................................................... 29
Câblage pour déclenchement à distance ..................................... 29
Câblage pour déclenchement d’une seule tonalité
et mise sous tension ...................................................................... 31
Service de réparation ou assistance technique .......................... 31
Message de sécurité destiné au personnel d’entretien .............. 31
Commander des pièces de rechange............................................ 32
Renvoi du produit pour obtention d’un crédit.............................. 33
2561620A
REV. A1 419
Imprimé aux États-Unis
FRANÇAIS

18
Sirène électronique SST3-MV
Contenu
Figures
Figure 1 Installation sur une boîte WB.............................................25
Figure 2 Installation sur une boîte NBL ou NBL...............................26
Figure 3 Installation sur un conduit dissimulé.................................. 27
Figure 4 Réglages sur la carte de circuits imprimés de la sirène ....29
Tableaux
Tableau 1 Contenu de l’ensemble ................................................... 23
Tableau 2 Caractéristiques techniques............................................23
Tableau 3 Pièces de rechange ........................................................ 32

19
Sirène électronique SST3-MV
Instructions d’installation et d’entretien
Messages de sécurité destinés aux installateurs
Bien suivre toutes les instructions fournies avec ce produit. Cet
appareil doit être installé par un électricien qualié qui connaît
parfaitement le Code national de l’électricité ou le Code canadien
de l’électricité et suivra leurs directives, ainsi que des codes
locaux.
La détermination d’un emplacement pour le montage de
l’appareil, ses commandes et l’acheminement du câblage doivent
être exécutés sous la direction de l’ingénieur des installations
et de l’ingénieur de la sécurité. De plus, d’autres précautions
et instructions importantes relatives à la sécurité et à observer
gurent dans la liste ci-dessous :
• Bien lire et comprendre toutes les instructions avant d’installer
ou d’utiliser cet appareil.
• Ne pas brancher cet appareil au système lorsque ce dernier est
sous tension.
• La répartition sonore sera considérablement réduite si des
objets se trouvent devant le haut-parleur. Faire en sorte que cet
emplacement soit dégagé.
• Tous les haut-parleurs d’avertissement efcaces produisent des
sons forts susceptibles, dans certaines situations, d’entraîner une
perte auditive permanente. Prendre les précautions qui s’imposent,
par exemple, en portant un dispositif de protection antibruit.
• Tous les haut-parleurs d’avertissement efcaces produisent des
sons forts susceptibles, dans certaines situations, d’entraîner
une perte auditive permanente. L’appareil doit être installé
sufsamment loin des auditeurs potentiels an de réduire le
risque d’exposition tout en restant efcace. La norme sur le
bruit (1910.95) du Code of Federal Regulations de l’OSHA
donne des directives pouvant servir de référence en matière de
degré acceptable d’exposition au bruit.

20
Sirène électronique SST3-MV
Instructions d’installation et d’entretien
• Établir une procédure de vérication régulière de l’activation et
du bon fonctionnement du système sonore.
• Remettre une copie de ces instructions à l’ingénieur de la
sécurité, aux opérateurs et au personnel d’entretien.
• Ranger ces instructions en lieu sûr et les consulter lors de
l’entretien ou de la réinstallation de l’appareil.
Le non-respect de toutes les précautions et instructions de sécurité
peut provoquer des dommages à la propriété, des blessures graves
voire la mort.
Déballage de la sirène
Après avoir déballé la sirène, l’inspecter pour vérier
qu’aucun dommage n’est survenu lors du transport. Si elle
est endommagée, ne pas essayer de l’installer ou de l’utiliser.
Déposer immédiatement une réclamation auprès du transporteur
en précisant l’étendue des dégâts. Vérier avec soin toutes les
enveloppes, étiquettes d’expédition et autres étiquettes avant
de les retirer ou de les détruire. En cas de pièces manquantes,
communiquer avec le Service à la clientèle de Federal Signal
au 708-534-4756 ou au 877-289-3246. La mise au rébus de tout
matériel de transport doit être effectuée conformément aux normes
et codes locaux et nationaux.
Aperçu de la sirène SST3-MV
Le modèle SST3-MV de Federal Signal est une sirène électronique
qui produit trois tonalités puissantes. Il est équipé d’un système
d’amplication interne et des circuits nécessaires pour produire
une tonalité plaintive, une tonalité glapissante et une tonalité
de corne d’appel. Chaque tonalité est activée manuellement à
distance.
La sirène SST3-MV fonctionne en 24 Vcc, 120 Vca ou 240 Vca.
Son boîtier NEMA 3R (avec boîtier de xation) est en plastique
ASA (acrylonitrile-styrène-acrylique) antichocs et résistant aux
UV, ce qui permet de l’utiliser à l’extérieur comme à l’intérieur.
