Models 2001TRBP,
2001TRBP-480, and 2001TRBP KIT
Transformer Rectier

Limited Warranty
This product is subject to and covered by a limited warranty,
a copy of which can be found at www.fedsig.com/SSG-Warranty.
A copy of this limited warranty can also be obtained by written
request to Federal Signal Corporation, 2645 Federal Signal Drive,
University Park, IL 60484, email to [email protected] or
call [phone].
This limited warranty is in lieu of all other warranties, express or
implied, contractual or statutory, including, but not limited to the
warranty of merchantability, warranty of tness for a particular
purpose and any warranty against failure of its essential purpose.
2645 Federal Signal Drive
University Park, Illinois 60484-3167
www.fedsig.com
Customer Support 800-548-7229 • [phone]
Technical Support 800-524-3021 • [phone]
All other product names or trademarks are properties of their respective owners.
All products indicated are trademarks of Federal Signal Corporation.

3
Description and Specications Manual
Contents
Safety Messages..................................................................................................................................... 4
General Description ............................................................................................................................... 6
Overview............................................................................................................................................. 6
Features ............................................................................................................................................. 7
Specications ......................................................................................................................................... 7
Unpacking the Kit................................................................................................................................... 8
Installation............................................................................................................................................... 8
Locating the Transformer.................................................................................................................... 9
Electrical Connections ........................................................................................................................ 9
Troubleshooting ....................................................................................................................................11
Getting Service ......................................................................................................................................11
Tables
Table 1 Electrical Requirements for the Transformer/Rectier.......................................................... 7
Table 2 Contactors ................................................................................................................................. 7
Table 3 Environmental ........................................................................................................................... 7
Table 4 Physical...................................................................................................................................... 7
Table 5 2001TRBP Kit Contents*........................................................................................................... 8
Table 6 2001TRBP and 2001TRBP-480 Contents................................................................................. 8
Figures
Figure 1 Models 2001TRBP and 2001TRBP-480 Transformer Rectier............................................. 6

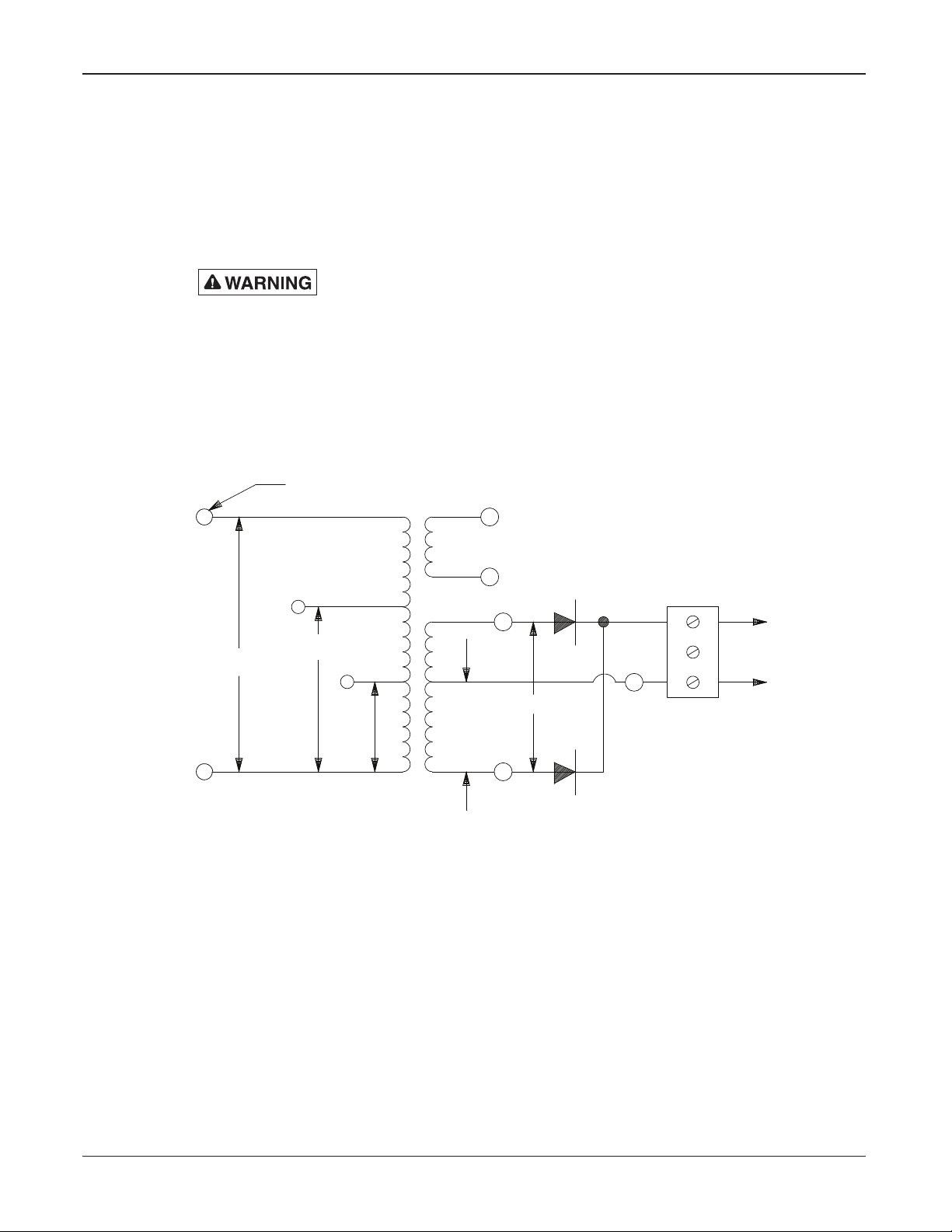

Figure 2 Schematic Diagram 2001TRBP .............................................................................................. 9
Figure 3 Schematic Diagram 2001TRBP-480 ..................................................................................... 10
Figure 4 Transformer Rectier Wiring to Control Cabinet................................................................ 10

4
Safety Messages
2001TRBP, 2001TRBP-480, and 2001TRBP Kit Transformer Rectier
Safety Messages
It is important to follow all instructions shipped with this product. This device
is to be installed by trained personnel who are thoroughly familiar with the
country electric codes and will follow these guidelines as well as local codes.
Listed below are important safety instructions and precautions you should follow:
Important Notice
Federal Signal reserves the right to make changes to devices and specications detailed in
the manual at any time in order to improve reliability, function or design. The information
in this manual has been carefully checked and is believed to be accurate; however, no
responsibility is assumed for any inaccuracies.
Publications
Federal Signal recommends the following publications from the Federal Emergency
Management Agency for assistance with planning an outdoor warning system:
• The “Outdoor Warning Guide” (CPG 1-17)
• “Civil Preparedness, Principles of Warning” (CPG 1-14)
• FEMA-REP-1, Appendix 3 (Nuclear Plant Guideline)
• FEMA-REP-10 (Nuclear Plant Guideline).
Planning
• If suitable warning equipment is not selected, the installation site for the siren
is not selected properly or the siren is not installed properly, it may not produce
the intended optimum audible warning. Follow Federal Emergency Management
Agency (FEMA) recommendations.
• If sirens are not activated in a timely manner when an emergency condition
exists, they cannot provide the intended audible warning. It is imperative that
knowledgeable people, who are provided with the necessary information, are
available at all times to authorize the activation of the sirens.
• When sirens are used out of doors, people indoors may not be able to hear the
warning signals. Separate warning devices or procedures may be needed to
effectively warn people indoors.
• The sound output of sirens is capable of causing permanent hearing damage. To
prevent excessive exposure, carefully plan siren placement, post warnings, and
restrict access to areas near sirens.
• Activating the sirens may not result in people taking the desired actions if those to
be warned are not properly trained about the meaning of siren sounds. Siren users
should follow FEMA recommendations and instruct those to be warned of correct
actions to be taken.

5
Safety Messages
Description and Specications Manual
• After installation, service, or maintenance, test the siren system to conrm
that it is operating properly. Test the system regularly to conrm that it will be
operational in an emergency.
• If future service and operating personnel do not have these instructions to refer
to, the siren system may not provide the intended audible warning and service
personnel may be exposed to death, permanent hearing loss, or other bodily
injury. File these instructions in a safe place and refer to them periodically. Give a
copy of these instructions to new recruits and trainees. Also give a copy to anyone
who is going to service or repair the siren.
Installation and Service
• Electrocution or severe personal injury can occur when performing various
installation and service functions such as making electrical connections, drilling
holes, or lifting equipment. Therefore only experienced electricians should install
this product in accordance with national, state and any other electrical codes
having jurisdiction. Perform all work under the direction of the installation or
service crew safety foreman.
• The sound output of sirens is capable of causing permanent hearing damage.
To prevent excessive exposure, carefully plan siren placement, post warnings
and restrict access to areas near the sirens. Sirens may be operated from remote
control points. Whenever possible, disconnect all siren power including batteries
before working near the siren.
• After installation or service, test the siren system to conrm that it is operating
properly. Test the system regularly to conrm that it will be operational in an
emergency.
• If future service personnel do not have these warnings and all other instructions
shipped with the equipment to refer to, the siren system may not provide the
intended audible warning and service personnel may be exposed to death,
permanent hearing loss, or other bodily injury. File these instructions in a safe
place and refer to them periodically. Give a copy of these instructions to new
recruits and trainees. Also, give a copy to anyone who is going to service or repair
the sirens.
Operation
Failure to understand the capabilities and limitations of your siren system could result in
permanent hearing loss, other serious injuries or death to persons too close to the sirens
when you activate them or to those you need to warn. Carefully read and thoroughly
understand all safety notices in this manual and all operations-related items in all
instruction manuals shipped with equipment. Thoroughly discuss all contingency plans
with those responsible for warning people in your community, company, or jurisdiction.
Read and understand the information contained in this manual before
attempting to install or service the siren.
Pay careful attention to the notice located on the equipment.

6
General Description
2001TRBP, 2001TRBP-480, and 2001TRBP Kit Transformer Rectier
General Description
Overview
The 2001TRBP is a high-power transformer rectier for powering outdoor warning
sirens. The 2001TRBP consists of an aluminum encased transformer with mounting
bracket. The 2001TRBP can be used as the only source of power for mechanical sirens
(AC operation). The 2001TRBP transformer operates from 208, 220, or 240 Vac, while
the 2001TRBP-480 operates from 416, 440, or 480 Vac. The transformer output is
46 Vdc at 130 A and 115 Vac at 10 A. The 46 Vdc is to power the mechanical siren and
the 115 Vac is used to power the siren control board, heaters, and chargers, if battery
equipped.
The 2001TRBP and 2001TRBP-480 includes a transfer relay contactor kit, which allows
primary operation from AC and battery backup when AC fails. The transfer relay kit
includes 48 Vdc contactor, buss bars, snubber and screws for attaching contactor to back
plate inside Federal Signal Control Cabinet.
Figure 1 Models 2001TRBP and 2001TRBP-480 Transformer Rectier
CONDUIT ENTRANCE PLATE
OLSUN ELECTRICS CORP.,RICHMOND,IL60071
OR BURN - TURN OFF ELECTRIC
HAZARD OF ELECTRIC SHOCK
WORK WITH THIS TRANSFORMER
POWER BEFORE PERFORMING ANY
DANGER-WARNING
BELOW 10.00 INCH DIMENSION LINE.
POLYESTER RESIN FILLER NOT TO EXCEED
HEAT SINK
120246F
BOTTOM COVER
TERMINAL
BLOCK
INTERNATIONAL RECTIFIER
POWER MODULE
FS# 115336A (RECTIFIER)
291083E
8.750
10.500
22.00
20.00
1.250
2.500
10.250

7
Specications
Description and Specications Manual
Features
The 2001TRBP and 2001TRBP-480 transformer rectier has the following features.
• High-powered transformer rectier for powering mechanical sirens from nominal
220 Vac (2001TRBP) or nominal 440 Vac (2001TRBP-480)
• Provides primary system power (46 Vdc) for DC sirens
• Provides 115 Vac for siren controller, chargers, and heaters
• Includes transfer relay contactors (Typically mounted in DCFCB or DCFCTBD
cabinets)
• Enclosed in a weather resistant NEMA 3R enclosure
Specications
Table 1 Electrical Requirements for the Transformer/Rectier
2001TRBP 2001TRBP-480
Input Voltage 208/220/240 Vac (+/- 10%),
50-60 Hz, single phase
416/440/480 Vac (+/- 10%),
50-60 Hz, single phase
Input Current 32/30/27 A 16/15/13.6 A
Output Voltage 115 Vac at 10 A
46 Vdc at 130 A
115 Vac at 10 A
46 Vdc at 130 A
Input Fusing 40 A, slow blow max 40 A, Slow-blow max
Continuous Full Output 30 minutes
Table 2 Contactors
Contact Rating 200 A at 48 Vdc
Coil 48 Vdc, 110 ohms
Contactor Fusing 200 A (fast)
Table 3 Environmental
Operating Temperature 30°C to +65°C / -22°F to 149°F
Humidity 0-98% Non-Condensing
Table 4 Physical
Dimensions
(H x W x D)
20 inches x 10.25 inches x 8.75 inches
51 cm x 26 cm x 22 cm
Weight 150 pounds (68 kg)

8
Unpacking the Kit
2001TRBP, 2001TRBP-480, and 2001TRBP Kit Transformer Rectier
Unpacking the Kit
Ensure that the parts listed are included in the package. If you are missing any parts,
contact Customer Support. See Getting Service.
Table 5 2001TRBP Kit Contents*
Description 2001TR Part
Number
Service Part
Number
48 Vdc Contactor 131A182C Q131A182C
Fused wire 1461132A
Snubber 20000216
Pan Head screw (2) 7011A069-08
Brass washer 70700520
2 position buss bar 8402109A
Buss bar rt angle 8402138A
*NOTE: The 2001TRBP Kit is for installations that already have an existing transformer.
Table 6 2001TRBP and 2001TRBP-480 Contents
Description 2001TRBP
includes
2001TRBP Service
Part Number
2001TRBP-480
includes
Transformer rectier 120246F-AL Q120246F-AL 120868A
48 Vdc Contactor 131A182C Q131A182C 131A182C
Fused wire 1461132A 1461132A
Snubber 20000216 20000216
Pan Head screw (2) 7011A069-08 7011A069-08
Brass washer 70700520 70700520
2 position buss bar 8402109A 8402109A
Buss bar rt angle 8402138A 8402138A
Diode Rectier 115336A Q115336A 115336A
Installation
Electrocution or severe personal injury can occur when making electrical
connections, drilling holes, or lifting equipment. Therefore, experienced
electricians in accordance with national and local electrical codes, acting
under the direction of the installation crew safety foreman, should perform
installation.
For electrical connections to controllers, see product manuals (that is, DCFCTBD).

9
Installation
Description and Specications Manual
Locating the Transformer
Mount the transformer assembly as close as possible to the control unit to keep cabling
distances as short as possible.
See Figure 1 and Table 4 for size and weight of the 2001TRBP transformer. Mount the
2001TRBP to a structure that can support the transformer.
Electrical Connections
Install the siren electrical system in compliance with local electrical codes
and NEC recommendations. Federal Signal also recommends that all user-
installed conduit connections enter from the bottom of the cabinet. Disconnect
all power and read all warnings at the beginning of this manual and before
making connections.
Figure 2 Schematic Diagram 2001TRBP
291161C
BLK
RED
POWER SOURCE
FUSED
H1
240 VAC
H4
H3
220 VAC
H2
208 VAC
X1
~100 VAC
~50 VAC
T1
X3
X2
46 VDC
-
+
X5
X4
115 VAC

10
Installation
2001TRBP, 2001TRBP-480, and 2001TRBP Kit Transformer Rectier
Figure 3 Schematic Diagram 2001TRBP-480
BLK
RED
POWER SOURCE
FUSED
H1
480 VAC
H4
H3
440 VAC
H2
416 VAC
X1
~100 VAC
~50 VAC
T1
X3
X2
46 VDC
-
+
X5
X4
115 VAC
Figure 4 Transformer Rectier Wiring to Control Cabinet
5421 3
10 10
F1F2
A A
2001TRBP and
2001TRBP-480

11
Troubleshooting
Description and Specications Manual
Troubleshooting
NOTE: It is normal for the 46 Vdc output of the transformer to have 20-30 Vrms of AC
ripple without load. With load the AC ripple signicantly decreases.
If the 46 Vdc output of the transformer is about half of 46 Vdc, typical cause is a
defective Diode Rectier or Transformer. Lightning or a power surge may have damaged
the Diode Rectier or Transformer.
1. Turn off AC power to the transformer. Verify AC power has been turned off.
2. Disconnect wires X1 and X3 from the Diode Rectier and carefully protect the
wires from shorting.
3. Connect voltmeter to X1 and X3. Turn on AC power and measure X1 and X3.
Should measure about 100 Vac.
4. Turn off AC power to the transformer. Verify AC power has been turned off.
5. Connect voltmeter to X1 and X2. Turn on AC power and measure X1 and X2.
Should measure about 50 Vac.
6. Turn off AC power to the transformer. Verify AC power has been turned off.
7. Connect voltmeter to X3 and X2. Turn on AC power and measure X3 and X2.
Should measure about 50 Vac.
If the voltages above are incorrect, the entire transformer part number Q120246F-AL,
will need to be replaced.
If the voltages above are correct, the Diode Rectier part number Q115336A, will need to
be replaced.
Getting Service
If you are experiencing any difculties, contact Federal Signal Customer Care at:
800-548-7229 or 708-534-3400 extension 7511 or Technical Support at: 800-524-3021
or 708-534-3400 extension 7329 or through e-mail at: [email protected]. For
instruction manuals and information on related products, visit: http://www.fedsig.com/

2645 Federal Signal Drive
University Park, Illinois 60484-3167
www.fedsig.com
Customer Support 800-548-7229 • [phone]
Technical Support 800-524-3021 • [phone]
