Federal VRSS Series Installation instructions

E3980
Rev A 11/23/2021
INSTALLATION & OPERATIONS INSTRUCTIONS
VRSS: Self-Contained & Remote Refrigerated Models
VNSS: Non-Refrigerated Displays
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES 215 Federal Ave Belleville, WI 53508
Toll Free 1(800) 356-4206 WI Phone [phone] Fax: [phone]

E3980 VRSS 2
(1) TABLE OF CONTENTS
(1) Table of Contents..................................................................................................2
(2) Introduction............................................................................................................3
2.1 Serial Number....................................................................................................3
(3) Warning Labels & Safety Instructions....................................................................4
(4) Feature Identification.............................................................................................5
(5) Base Component Layout.......................................................................................7
(6) PRIOR TO UNPACKING EQUIPMENT!................................................................8
(7) Installation instructions..........................................................................................9
7.1 Locating The Display Case ................................................................................9
7.2 Removing Case From Shipping Skid .................................................................9
7.3 Single Case Installation (Stand alone units).....................................................11
7.4 Installation for joined cases (Lineups)..............................................................12
(8) Shelf installation and removal..............................................................................15
8.1 Shelf brackets and supports.............................................................................15
(9) Electronic Temperature Control (Refrigerated units only)....................................19
(10) Initial Startup (Refrigerated units only) ................................................................22
(11) Cleaning Instructions...........................................................................................24
11.1 Daily Cleaning...............................................................................................24
11.2 Weekly Cleaning...........................................................................................25
11.3 Cleaning Condenser Coil (For non-reversing fan models only) ....................26
(12) Service ................................................................................................................27
(13) Sale & Disposal...................................................................................................28
(14) Electrical and refrigeration specs ........................................................................29
14.1 Cord Connected............................................................................................29
(15) Wiring Diagram....................................................................................................31
15.1 VRSS Self Contained....................................................................................31
15.2 VRSS Remote...............................................................................................31
15.3 VNSS............................................................................................................32
(16) VRSS Service Parts ............................................................................................33

E3980 VRSS 3
(2) INTRODUCTION
Thank you for purchasing a Federal Industries display case. This manual contains
important instructions for installing and servicing your new display case. A repair parts
list and wiring diagram are also included in the manual. Read all of these documents
carefully before installing or servicing your case.
NOTICE
Read this manual before installing your case. Keep this manual
and refer to it before doing any service on the equipment.
Failure to do so could result in personal injury or damage to
the case.
NOTICE
Installation and service of the electrical components in the
case must be performed by a licensed electrician.
The portions of this manual covering components contain
technical instructions intended only for persons qualified to
perform electrical work.
DANGER
Improper or faulty hookup of electrical components in the case
can result in severe injury or death.
All electrical wiring hookups must be done in accordance with
all applicable local, regional, or national standards.
2.1 SERIAL NUMBER
Record the model and serial numbers of the case for easy reference. Always refer to both
model and serial numbers in your correspondence with Federal regarding the case.
Case Model__________________________ Serial Number______________________
This manual cannot cover every installation, use, or service situation. If you need additional
information, call or write us:
WARRANTY/TECHNICAL SERVICE DEPARTMENT
Parts Town
1200 Greenbriar Dr.
Addison, IL 60101
Toll Free: [phone]
Email: [email protected]

E3980 VRSS 4
(3) WARNING LABELS & SAFETY INSTRUCTIONS
This is the safety-alert symbol. When you see this symbol on
your case or in the manual, be alert to the potential for
personal injury or damage to your equipment.
Be sure you understand all safety messages and always follow recommended
precautions and safe operating procedures.
NOTICE TO EMPLOYERS:
You must make sure that everyone who installs, uses, or
services your case is thoroughly familiar with all safety
information and procedures.
Important safety information is presented in this section and throughout the manual.
The following signal words are used in the warning and safety messages:
DANGER:
Severe injury or death will occur if you ignore the message.
WARNING:
Severe injury or death can occur if you ignore the message.
CAUTION:
Minor injury or damage to your case can occur if you ignore the
message.
NOTICE:
This is important installation, operation, or service information. If you
ignore the message, you may damage your case.
The warning and safety labels shown throughout this manual are placed on your
Federal Industries case at the factory. Follow all warning label instructions. If any
warning or safety labels become lost or damaged, call our customer service department
at [phone] for replacements.

E3980 VRSS 5
(4) FEATURE IDENTIFICATION
FRONT BASE PANEL/GRILLE
BOTTOM END
CORD AND PLUG
END GLASS
AIR DEFLECTOR
CONTROLS
END GLASS TRIM
AIR DEFLECTOR RETAINER
AIR DEFLECTOR RETAINER BRACKET
INTERIOR BACK PANEL
CANOPY
FRONT VALENCE
AIR DISCHARGE
AIR RETURN
BACK PANELS
END GLASS TRIM
REAR BASE PANEL/GRILLE

E3980 VRSS 6
CONTROLS
PRICE TAG MOLDING
PRICE TAG MOLDING

E3980 VRSS 7
(5) BASE COMPONENT LAYOUT
VRSS3678 and VRSS3660 Self contained model shown. Other self-contained models
are similar. Non-refrigerated units have no components in the base except power cord.
CONDENSER BAFFLE (TOP)
CONDENSER BAFFLE (SIDE)
DRAIN TRAP
DRAIN HOLE
FRONT OF UNIT
FLEXIBLE
REFRIGERATION
LINES
POWER CORD
CONDENSER FAN
CONDENSATE EVAPORATOR PAN
HOT GAS LOOP +ELECTRIC ASSIST

E3980 VRSS 8
(6) PRIOR TO UNPACKING EQUIPMENT!
Inspect for shipping damage.
You are responsible for filing all freight claims with the delivering truck line. Inspect
all cartons and crates for damage as soon as they arrive. If damage is noted to
shipping crates, cartons, or if a shortage is found, note this on the bill of lading (all
copies) prior to signing.
If damage is discovered when the case is uncrated, immediately call the delivering
truck line and follow-up the call with a written report indicating concealed damage
to your shipment. Ask for an immediate inspection of your concealed damaged
item. Crating material must be retained to show the inspector from the truck line.

E3980 VRSS 9
(7) INSTALLATION INSTRUCTIONS
7.1 LOCATING THE DISPLAY CASE
The case(s) should be located where it is not subjected to the direct rays of the sun,
heating ducts, grills, radiator, or ceiling fans, nor should it be located near open doors or
main door entrances. Also, avoid locations where there is excessive air movement or
air disturbances and avoid high humidity locations such as near cases with water
misting or fogging devices. Failure to locate this case as stated will reduce the
performance of your display and will affect temperature of interior of case and product.
If this case or cases are to be located against a wall there should be at least 6” between
the case and the wall to allow air circulation. Failure to give adequate space may cause
exterior surfaces to sweat.
7.2 REMOVING CASE FROM SHIPPING SKID
Be sure to leave shelf packaging material intact for this step.
First remove the base front and rear panels
REMOVE FRONT PANEL SCREW
THEN LIFT UP
ROTATE BOTTOM OF PANEL FORWARD
AND SLIDE OUT FROM BEHIND VALENCE
Two or more people should be involved in moving the unit from the pallet onto the
ground.
Remove the (4) 1/4” screws that secure the case to the skid. These screws are located
in the front and rear corners of the base rails. Base front and rear panels must be
removed to access these bolts.

E3980 VRSS 10
LAG BOLT
LOCATIONS
Once all the bolts are removed, slide the unit off the back of the shipping pallet, and tilt it
so the rear corner touches the ground. Then have someone move pallet out from under
the case and gently tilt the case forward until it touches the floor.
REMOVE CASE OFF OF FRONT OR BACK OF SKID ONLY
PULL SKID AWAY FROM CASE
AND GENTLY SET CASE ON FLOOR
Removing Packaging Material
Remove bubble wrap and packing material for all shelves and panel, brackets, etc.
If it is necessary to remove tape residue from plastic materials, use cleaning
compounds recommended in the cleaning section of this manual.
Lifting and Moving the Case
Caution:
Do not push or pull against the glass air deflector on front of
case. Doing so can cause the glass to break. Do not push or pull
on side glass or pull on base panel. Doing so will break glass or
pull out panel mounting screws. Care must be taken not to
damage the case when removing it from the skid or moving the
case.

E3980 VRSS 11
7.3 SINGLE CASE INSTALLATION (STAND ALONE UNITS)
Leveling the Case
It is important that the case is level. This will allow for proper drainage of condensate
water from evaporator coil. Once the case is placed in final location the case must be
level for proper drainage of defrost water to the condensate pump. A wrench is included
to aid in adjusting leg levelers.
Check the left-to-right level of the case along front of plastic air deflector retainer.
Check the front-to-rear level of the case along the interior ends of the case.
LEVEL CASE USING THESE SURFACES
Adjust the (4) outside leg levelers as needed to level the case in each direction.
NOTE: If necessary, use a wood or plastic shim under each leg leveler to avoid
scratching the tile floor.
Sealing Unit to The Floor
After the unit is positioned and the leg levelers are turned out, the unit needs to be
sealed to the floor for NSF approved installation.

E3980 VRSS 12
7.4 INSTALLATION FOR JOINED CASES (LINEUPS)
7.4.1 Join refrigerated to refrigerated
1. Remove all Shelves, display deck, interior back panel(s), exterior back(s),
front and rear base panel, and loosen honeycomb (see cleaning section for
honeycomb removal) material on the unfinished end to expose the holes used
to bolt units together.
2. Position the right or leftmost unit in the desired position for the lineup to start,
and level this case.
3. Push the 2nd case next to the 1st and line them up as closely as possible.
4. Adjust the leveling legs of the 2nd case until the units and joining holes align
with each other.

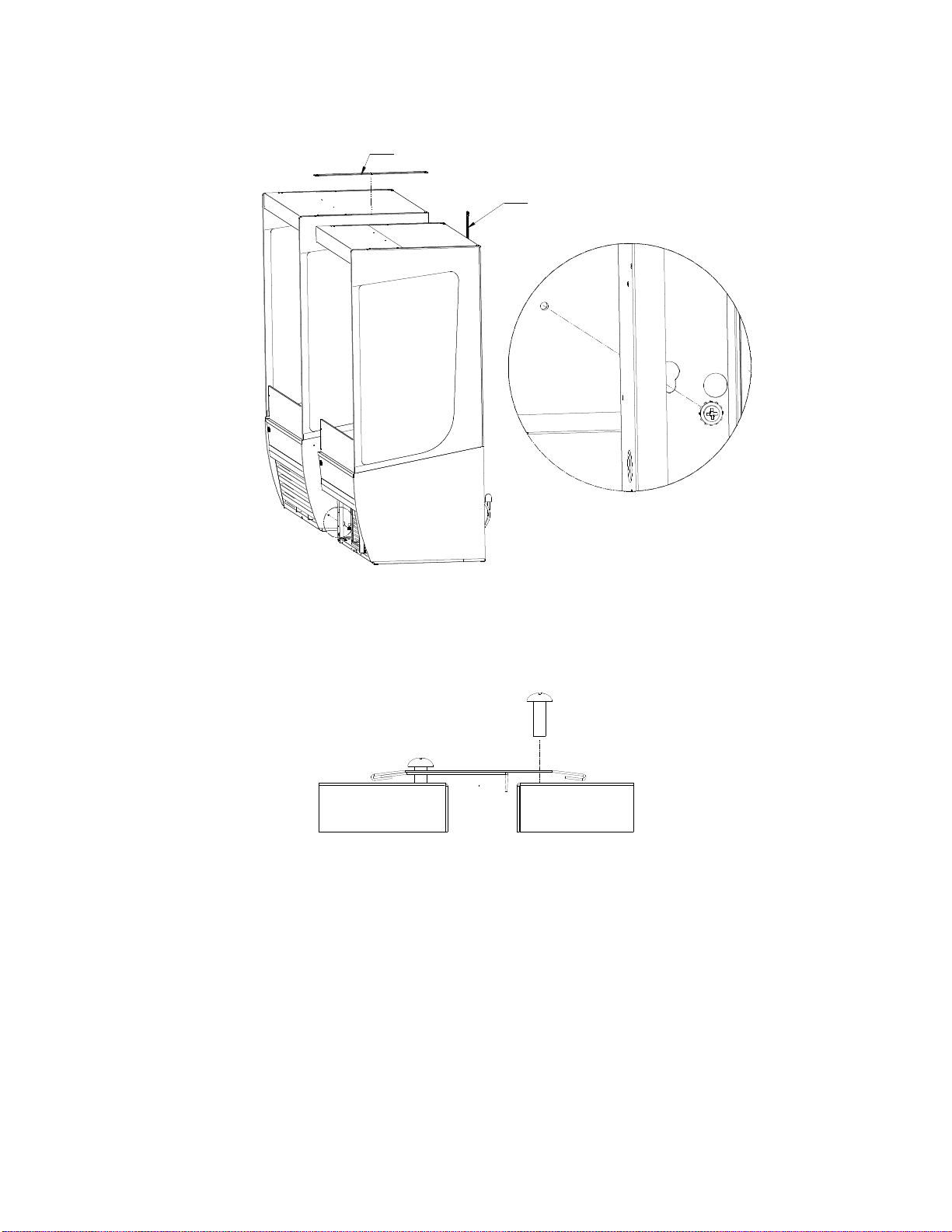

5. Using (7) holes noted below, bolt units together with the supplied hardware,
and attach joining trim to remove the gap between the decks in the joined
units. Re-use the screws in the uprights, and use the
JOINING HOLES

E3980 VRSS 13
JOINING TRIM
6. Replace all panels that were previously removed and re-insert honeycomb
7.4.2 Join units with glass divider, or join refrigerated to non-refrigerated
For this joining configuration, one unit will come with a lower end panel
preinstalled with glass. Five bolt holes will be exposed on the outside of this
panel and are the locations that will be used to join the units together. This kit
also comes with top and rear exterior trim, but no interior trim.
1. Remove all Shelves, display deck, interior back panel(s), exterior back(s), front
and rear base panel, and loosen honeycomb (see cleaning section for
honeycomb removal) material on the unfinished end to expose the holes used to
bolt units together.
2. Position the right or left most unit in the desired position for the lineup to start,
and level this case.
3. Push the 2nd case next to the 1st and line them up as closely as possible.
4. Adjust the leveling legs of the 2nd case until the bolt holes align with the mating
holes in the joining case.
5. Push the units together so that the through bolts go through the case to be
joined.
6. Using the hardware provided (1/4-20 screw, washer, lock washer), screw the 2nd
case with the unfinished end into the first case.

E3980 VRSS 14
A
DETAIL A
TOP JOIN TRIM
REAR JOIN TRIM
7. Finish the joining process loosening the glass trim on the case to slide the joining
trim over the existing trim and secure with the existing fasteners. Do this for both
the top trim and the rear trim.
FRONT VIEW
8. Replace any panels previously removed. Units are now joined.

E3980 VRSS 15
(8) SHELF INSTALLATION AND REMOVAL
8.1 SHELF BRACKETS AND SUPPORTS
NOTICE: Improper shelf configuration will cause
performance issues
VRSS 78in tall units have two different shelf depths. The lower two
shelves are longer, the upper two to three shelves are shorter. The
longer shelves must installed as the lowest shelves or the unit’s air
curtain will be disrupted and the unit will not maintain product
temperature.
Shelves are pre-installed in the factory. To change shelf positions, remove the shelf,
then shelf support, then brackets. Relocate the brackets to the desired shelf position.
The left bracket and right bracket must be at the same height. This can be ensured by
counting the position of the notch in the shelf standard. If you have shelf lights, the wire
running to the light must be unplugged prior to moving the shelves. Note how the wire is
run through the shelf support, and shelf.
A
DETAIL A
SUPPORT
BRACKET
PRICE TAG MOLDING
(NOT REMOVABLE)
SHELF (17IN)
SHELF (15IN)

E3980 VRSS 16

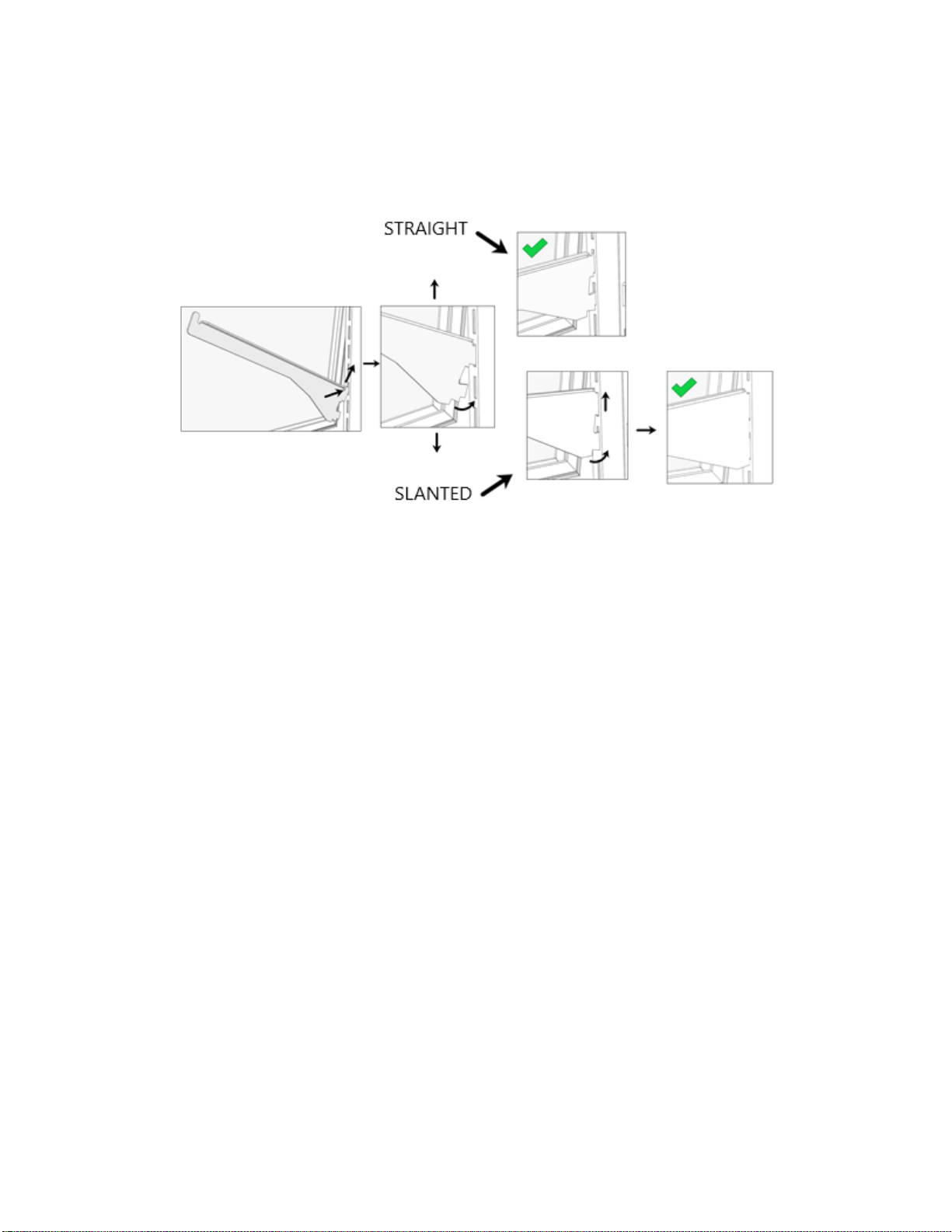

The diagram below illustrates how to straighten or angle the shelves. To angle the
bracket, be sure to have the top hook of the bracket in its slot and to pull up while
rotating down to the most extreme downward position. To angle the shelf, first angle
both brackets, and install the shelf as normal.

E3980 VRSS 17
(9) SECURITY NIGHT COVER (OPTIONAL)
1. Install the security cover into the preinstalled retaining brackets by first inserting
the bottom with the top of the cover tilted out.
2. Insert the bottom of the security cover into the lower u-clip retainer by rotating the
top of the assembly in toward the case, and dropping the cover down into place.
3. The top of the cover will sit against the upper retainer bracket.
4. Once the cover is in position, lock the latches using the key in both sides of the
security cover panel.

E3980 VRSS 18
When installing the security cover panel, ensure that the bottom of the panel is
seated in the lower u-clip, and that the latch fully engages behind the upper
retaining bracket.

E3980 VRSS 19

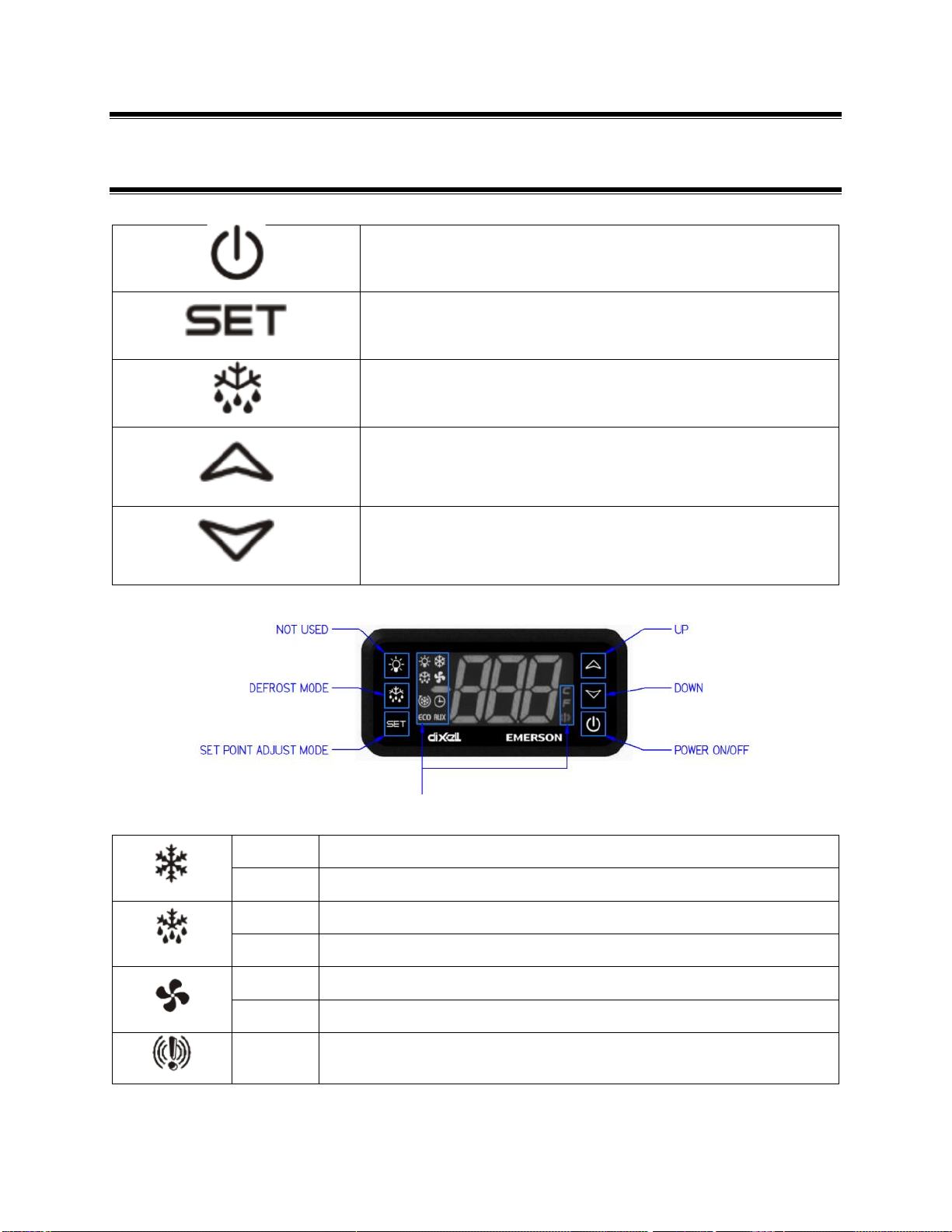

(10) ELECTRONIC TEMPERATURE CONTROL
(REFRIGERATED UNITS ONLY)
Power on/off: Press and hold to turn system on or off.
Set: Press and hold to enter the set point adjustment
menu.
Defrost: Press and hold to initiate a manual defrost.
Up: Change set points when in set point adjustment
menu. When not in set point menu, shows maximum
temperature of the display probe.
Down: Change set points when in set point adjustment
menu. When not in set point menu, shows minimum
temperature of the display probe.
Display indication symbols
On
Compressor on
Flashing
Minimum compressor off time in progress
On
Unit in defrost mode
Flashing
Defrost delay
On
Condenser fan running
Flashing
Minimum condenser fan off time in progress
On
Alarm occurring. See error code section below.

E3980 VRSS 20
On
Indicates temperature unit of measure.
Powering on control
To turn refrigeration control power on, press and hold “ ” for approx. three seconds.
When the control powers on, the display will read the cabinet probe temperature. The
compressor and condenser fan run indicators ( & ) will illuminate on the display,
meaning that the compressor and condenser fan are running. (Note: the control may
already be in the on mode when shipped from factory).
To turn refrigeration control power to off, press and hold “ ” for approx. three
seconds. When the control powers off the display will read “OFF”. When refrigeration
control is in the off-mode cabinet lights and evaporator fans will still operate, but the
compressor will not turn on causing the case to gradually reach room temperature.
Adjusting the set point
The set point is what determines how cold the display case will hold food and beverage.
To adjust the set point press the “ ” button. Then press “ ” button to increase the set
point number (colder) or press the “ ” button to decrease the set point number
(warmer). There are nine (9) available set points numbers, the higher the number of the
set point, the colder the display case will run, with setting “9” being the coldest and
setting “1” being the warmest. Once you have chosen your desired setting press the “
” button again to confirm your choice. The control cutout temperature for the selected
setpoint will briefly be displayed if the setpoint was changed.
Entering manual defrost mode
The control is programmed to automatically initiate a defrost by two different methods,
involving time and temperature, as outlined in the “Defrost Cycle” section (Pg.) of
“ELECTRONIC CONTROL PARAMETERS AND EXPLANATION OF OPERATION.”
While it is uncommon that the automatic defrost cycles would insufficiently defrost the
case, a Manual Defrost mode is available if this situation arises.
Note: The control will not allow the initiation of a manual defrost within 30 minutes of
completion of another defrost cycle, manual or automatic.
To initiate a manual defrost press and hold the “ ” button approx. three seconds. The
defrost is initiated when the defrost mode indicator illuminates on the display. The
control display will then return to reading the probe temperature. When the defrost
mode indicator turns off the defrost is complete and the compressor will turn back on
automatically and the compressor and condenser fan indicator will be shown ( & ).
