Feelgood 6104 User manual

U S E R G U I D E
F O R M A S S AG E
C H A I R
6104

CONTENT
GROUNDING INSTRUCTIONS...................................................1
ASSEMBLY INSTRUCTIONS.......................................................2
CONTROLLER......................................................................................3-4
PART NAME...........................................................................................5-6
SAFETY INSTRUCTIONS..............................................................7-8
SPECIFICATIONS...............................................................................9

01
G RO U N D I N G I N S T RU C T I O N S
This product must be grounded. Should it break down or malfunction,
grounding will provide a path of least resistance for electric current to
reduce the risk of electric shock.
This product is equipped with a cord that has an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly in accordance with all local codes
and ordinances.
DANGER: Improper connection of the equipment-grounding conductor
can result to a risk of electric shock. Check with a qualified electrician
or serviceman if you are in doubt on as to whether the product is properly
grounded or not. Do not modify the plug provided along with the product.
If the plug does not fit in the outlet, have a qualified electrician install a
proper outlet.

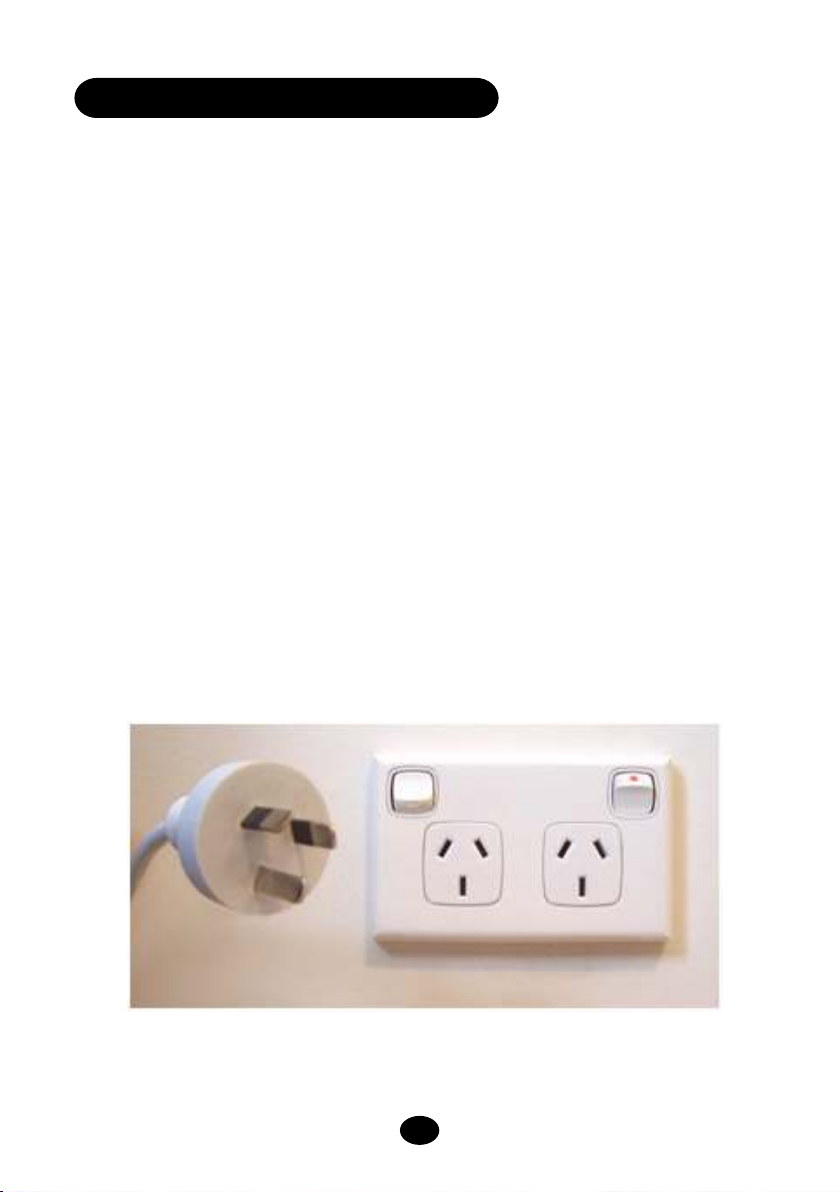

This product is for use on a nominal 240-volt circuit and has a grounding
plug that is similar to what is illustrated below. Please ensure that the
product is connected to an outlet that has the same configuration as
the plug.

02
ASSEM BLY I N STRU CTI ON S
Lift up and insert the prongs on the inner side of the armrest into holes
at the edge of the seat frame.

02
03

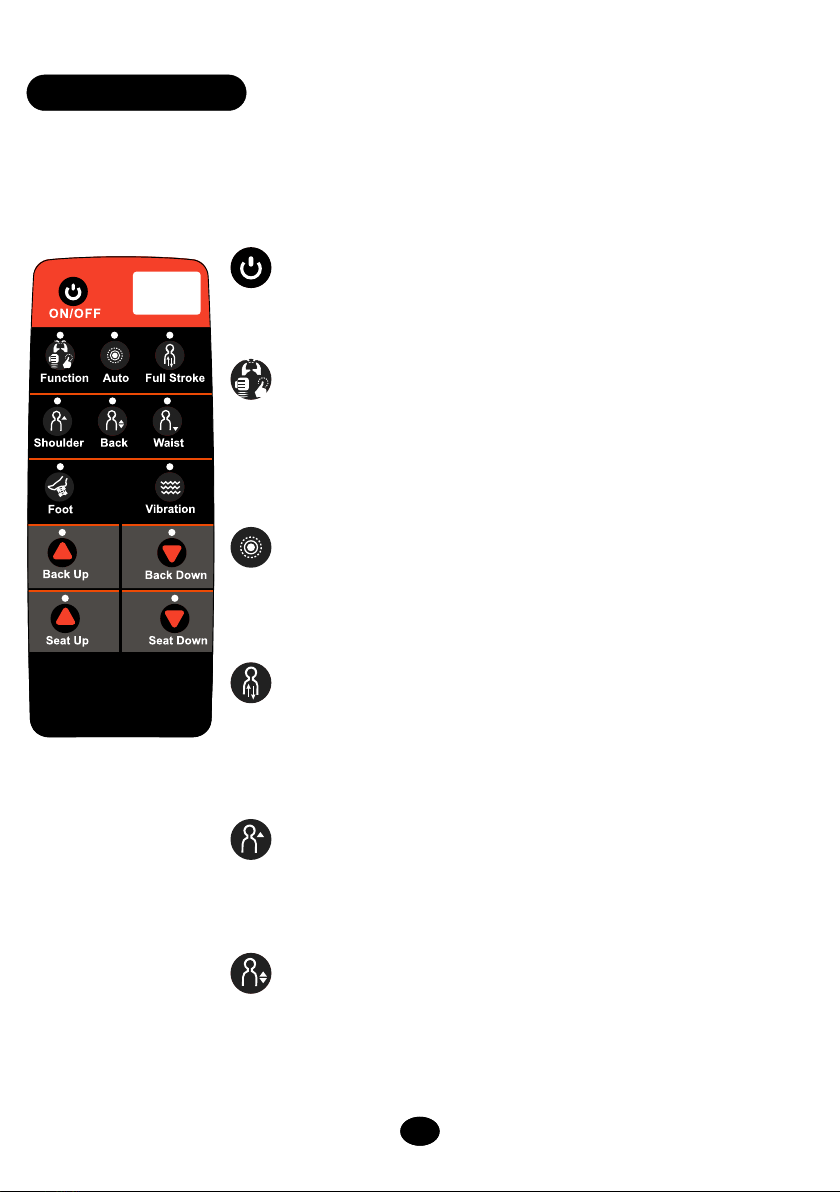

CONTROLLER
ATTENTION!
For your safety, please adjust the seat of the chair
only when all programs have completely stopped.
1.ON/OFF
2.Function
Press this key under “Manual” mode to choose
function out of kneading (red), rolling (yellow),
and tapping together (green).
3.Auto
4.Full Stroke
Auto full back is the default mode. Press this key to
switch to manual full back mode, all procedure will
be set up by yourself. Press this key again to switch
to auto full back mode.
5.Shoulder
6.Back
Press button to turn on power for 15 minutes auto
mode, press it again to turn off.
Press button to deactivate back-range-massage
and waist-range-massage with indicator turned off,
left with shoulder-range.
left with back-range.
Press during any operation mode will return to
auto-mode.
Press button again to activate manual mode.
Press button to deactivate shoulder-range-massage
and waist-range-massage with indicator turned off,

03 04
8.Foot
9.Vibration
Press botton to turn on vibration.
10.Back Up
Press this button to raise backrest and descend the footrest.
Press again to anchor at desired position.
11.Back Down
Press this button to descend backrest & raise the footrest.
Press again to anchor at desired position.
12.Seat Up
Press this button to lift up the chair seat.
13.Seat Down
Press this button to descend the chair seat.
7.Waist
Press button to deactivate shoulder-range-massage
and back-range-massage with indicator turned off,
left with waist-range.
Press button to turn on the foot massage.

05
PART NAME
10
11
01
02
03
04
59
36
35
33
30
44
58
57
34
37
44
39
40
55
41
32
42
54
51
53

06
5 0
50
45
49
4 7
47
38
46
46
43
65
63
27
9
09
13
14
29
54
51
53
21 19
06
5 0
75
69

07
Parts List
01 Back Pad
02 Back Plastic Cover
03 Back Shell with Fabric
04 Claws
06 Caster Wheel
07 Armrest, Left
08 Footrest / Calf Device
09 Locating Sleeve for Armrest
10 Prong
11 Armrest, Right
12 Posture Cable Loop
13 Segment(split)/Cotter Pin
14 Pin/Detent Pin
21 Power Supply Switch Box
27 Seat Cushion
29 Recline Kit
30 Bearing Bracket
32 U-groved Bar
33 Driving Shaft
34 Upper Limit Switch
35 Lubrication Box
36 Guide Wheel
46 Belt
47 Massage Arm
49 Massage Roller
50 Massage Unit
51 Remote Control
53 Wire-Remote Control
54 PCB Assembly - Remote
55 Transformer
57 Fixed Supporting Rollers
58 Spine Remedy Sliding Bracket
59 Bottom Bearing Bracket
63 Footrest Lifting Motor
65 Base Pad
67 Pillow
69 Tapping Motor
37 PCB
38 Pulley
39 Lower Limit Switch
40 Driving Motor
41 Chair-back Bottom Cover
42 Belt
43 Pulley
44 Signal Sensor
45 (Kneading) Motor
75 Lift Up Motor

Use the chair with basic precautions; lift back-pad prior to use in order
to check all materials are in good condition. If any material is found torn,
please unplug power and contact your local dealer for instructions and
replacement.
Improper connection of the equipment-grounding conductor can result
in risk of electric shock, check with qualified electrician or serviceman
if in doubt. Have the power outlet installed by qualified electrician if the
plug does not fit.
DO NOT modify the provided plug.
DO NOT wind any cords around remote control to prevent possible
electric shock or cause fire.
DO NOT allow children to use, play on or around it.
DO NOT stand on arm-rest, foot-rest or back-rest to avoid falling over.
DO NOT suddenly release hand while raising the foot-rest with hand.
DO NOT suddenly stand up during the process of lifting to avoid falling over.
SAFETY PRECAUTIONS
Attention:
DO NOT USE THE CHAIR IF THE FABRIC IS TORN OR IS NOT IN GOOD
CONDITION.
If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
EUT shall operate correctly in normal use under the following conditions:
A) An ambient temperature range of +10 to +40.
B) A relative humidity range of 30% to 75%.
C) An atmospheric range of 700 hpa to 1060 hpa.
SAFETY I N STRUCTI ON S
08

09
SPECI FI CATI ON S
SPEC.
Voltage
Massage Functions
Vibration Frequency
Lift up capacity
Reclining degrees
Max Time
Leatherette material
Description
240-Volt Circuit
kneading, rolling, and tap-kneading massage
4549-5050 rpm/min
160 Kgs
190°
Preset 15 minutes,
PVC
BEFORE USE
A. Place chair on flat and solid ground close to a power outlet with good grounding.
B. Follow user guide to assemble all parts and ensure complete setup.
C. Make sure power switch is at “OFF” position; the power switch is at the
back of the chair.
D. Keep wire away from heater; do not share power point(s) or extension
wire with another electrical appliance.
E. Avoid blocking airway; do not put any items on the chair.
We recommend you to wear loose and comfortable clothes, no collars,
no wristbands, and do not put any solid objects in pockets.
For those with any of the following conditions, please consult doctor before use:
1. Feeling sick or wounded
2. Heart disease patient
3. Cancer or Tumour patient
4. Pregnant or during menstrual period
5. Spinal cord abnormalities, bent or bone disease
6. Neural disease, paraplegic (apoplexy), cripple, weak, mental disorders
7. After meals or drastic sport
8. Children under 18 years old
9. Those with medical electronic devices implanted
10. Serious blood circulation disorder in the legs
