General information about this document
Language of the original instructions
German
Validity and product designations
These assembly instructions describe the following product variants and are only valid for these:
TST LGB in the length variants -A / -B / -C / -D / -E
The following characters are used in the functional description to point out the different danger zones and
useful hints.
ATTENTION
Indicates that a potential risk to persons exists,
if the procedure is not carried out as described.
Indicates information that is important for the
operation of the safety equipment or the door.
WARNING
Indicates a risk to safety device.
Indicates useful information that is relevant but not
essential for the use of the TST LGB.

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 6 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
Contents
1General description and intended use 7
2Safety information 8
3Length variants 9
4Installation 10
4.1 Dimensions of the light curtain ................................................................................................10
4.2 Safety instructions for installation...........................................................................................11
4.3 Mounting the light curtain.........................................................................................................11
5Electrical connection 14
5.1 Wire assignment of the light curtain........................................................................................14
5.2 Wiring diagrams for the wiring board RLGxA.........................................................................15
5.3 Connecting the RLGxA wiring board to the controller ..........................................................17
6Commissioning 19
6.1 Setup assistant...........................................................................................................................19
6.2 Light beam adjustment..............................................................................................................20
7Functions 21
7.1 Intelligent blanking ....................................................................................................................21
7.2 Manual blanking of light beams................................................................................................21
8Safety outputs 22
9Status indicator 24
10 Maintenance 24
11 Technical Data 25
12 Declaration of conformity 26

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 7 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
1 General description and intended use
The door-line light curtain TST LGB described below, is a protection device for power operated doors and
gates in the EN 12978 purposes, or a non-contact safety device (BWS Typ 2) in accordance with
EN 61496-2.
ATTENTION
When utilized in accordance with the assembly instructions, the TST LGB may be used as exclusive
safety device (protection level E) as indicated by EN 12453 on doors and gates with automatic opera-
tion and operation by not-instructed persons.
These assembly instructions describe the sole use of the TST LGB as exclusive protection device (protection
level E) on the door in the system with a door controllers of FEIG ELECTRONIC GmbH.
When applied in accordance with the intended use, the TST LGB monitors the range below the door`s edge
of motor-operated, industrial or commercial doors and thus protects persons and objects against the door
starting.
Motor Position encoder
TST
LGBE
TST LGBS Door
controller
Door
Figure 1: Light curtain in door system
The TST LGB transmission and receiving unit form a light curtain lattice system, as the TST LGB
sends IR impulses, which are received and assessed by the TST LGB receiver.
TST LGB transmitter and receiver are installed in opposite sides of the door frame.
An interface also connects the TST LGB receiver to the door controller and a position detector.
The interface of the door controller configures the parameters, diagnoses and tests the TST LGB.
On basis of position data returned by a position detector mounted onto the door’s shaft, the TST LGB can
determine the position of the door`s edge.
With the aid of this information, the door movement is extremely safe, precise and protected from being ma-
nipulated.

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 8 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
2 Safety information
ATTENTION
Failure to follow the safety instructions can lead to health risks, or even damage to the door system.
Observe the following important safety information as well as the installation and connection infor-
mation when the controller is being commissioned and/or operated.
In accordance with the EC Machinery Directive, only qualified personnel will be permitted to install or
attach the drive unit onto doors or drive units intended for doors. In this respect, the safety require-
ments of the entire door (machine) must match the options to meet these safety requirements of the control-
ler.
Inappropriate integration of the safety device into the door system –e.g. due to incorrect parameters or in-
stallation –pose substantial risks that the door will be operated without sufficient safety precautions.
Commissioning of this safety equipment is prohibited until it was properly attached to a door that
conforms to the EC Machinery Directive and for which an EC declaration of conformity in accordance
with Annex II of the Directive was obtained.
The following information describes standard applications that may not necessarily match the actual applica-
tion. The actual application is provided by the manufacturer of the door as part of the overall documentation
or as part of the operating instructions of the door.
Any assembly, installation, commissioning and maintenance work must be carried out by qualified
personnel. In particular, the following rules must be observed: VDE 0100, EN 50110, EN 60204, EN 60335
incl. part 103, fire prevention regulations, safety regulations and the relevant regulations that apply to indus-
trial doors (EN12453, EN12978) as well as machine safety (EN ISO 13849, EN 62061)
This device is not intended for use by persons (including children) with limited physical, sensory or mental
abilities or with a lack of experience and / or knowledge, unless they are supervised by a person responsible
for their safety or if they have received instructions regarding the use of the device. Children should be su-
pervised to ensure that they do not play with the device. Keep remote controls away from such persons.
The safety information in this document makes no claim to completeness. Please contact to your supplier if
you have any questions about the product.
The manufacturer has carefully checked this document for accuracy; however, no guarantee is offered with
regard to completeness and accuracy.
Figure 2: Name plate
At the end of the products life cycle, disposal is subject to statutory provisions.

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 9 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
3 Length variants
Type
Type
Type
Type
Type
to
to
to
to
to
at
at
at
at
at

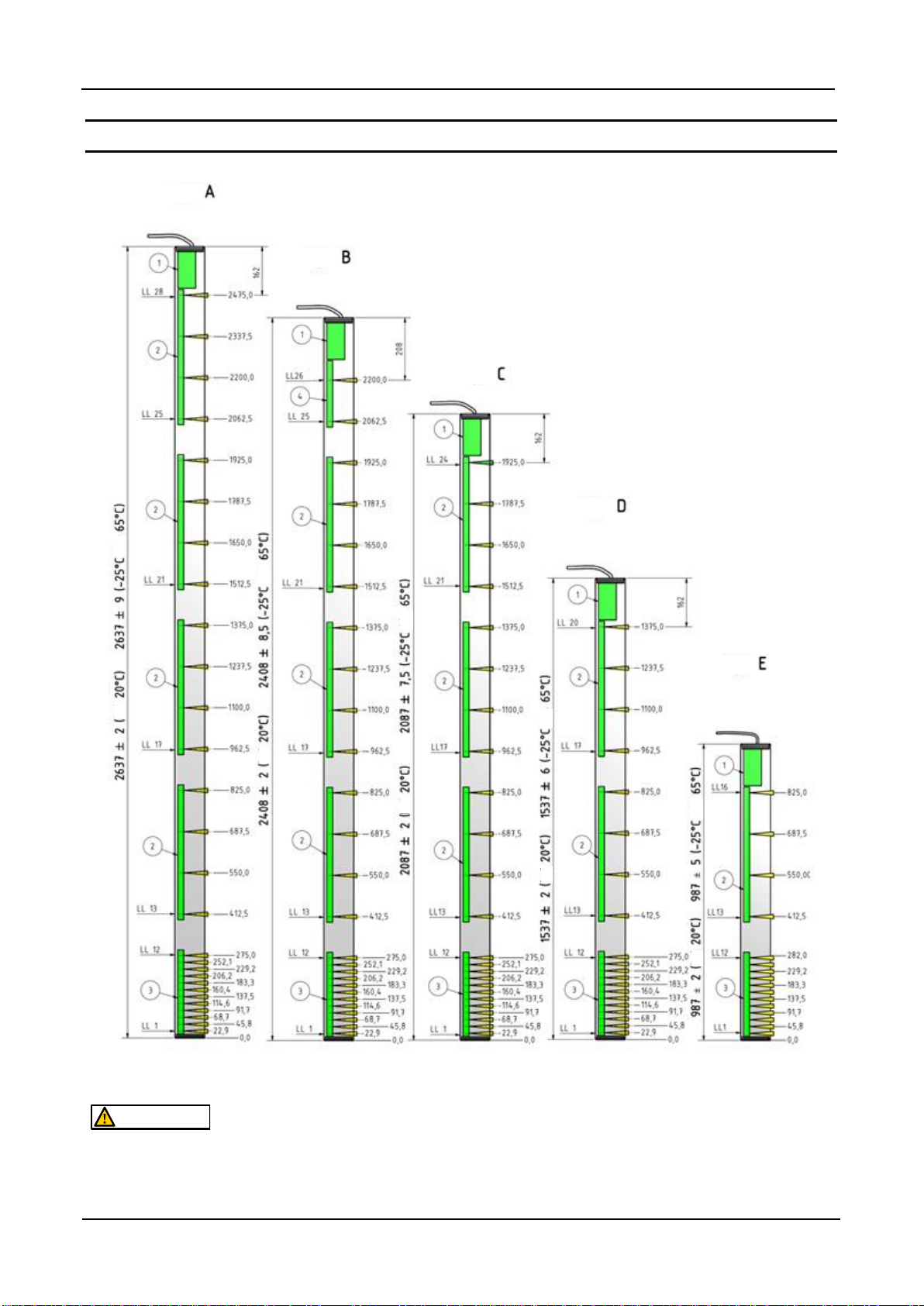

Figure 3: Length variants
ATTENTION
The TST LGB variants must be selected in such a way that up to 2.50 m of the headroom of the door
is supervised.

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 10 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
4 Installation
The following accessories are provided for mounting the light curtain:
Table 1: Available mounting accessories
Mounting kit TST KASK-LGB-A-A (consisting of the following articles)
Light curtain bracket set (8 pieces) LGxASK
Wiring board TST RLGxA-A
Connection cable for transmitter TST KKAB-M12A4-15
Connecting cable for receiver TST KKAB-M12A8-5
4.1 Dimensions of the light curtain
Mounting surface
Figure 4: Outside dimensions

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 11 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
4.2 Safety instructions for installation
ATTENTION
To utilize the unit as exclusive safety device for the door (protection level E) the TST LGB must be
installed at the center of the door frame.
The lower end of the TST LGB must be installed at floor level.
To operate correctly, transmitter and receivers must lie opposite each other without misalign-
ment and they shall not be rotated horizontally or vertically or be twisted in themselves.
For the assembly the profiles can be clamped. Avoid deformations by clamping. Clamping lo-
cations are necessary at least at the ends and spaced every 900 mm.
The light outlet plane is recognized by the protective foil and/or by slightly protruding edges.
The connecting cable must be located at the top.
The receiver side is to be installed on the side that is oriented away and protected from the sun
and/or against direct exposure to sun light.
It must be avoided that ambient light incident on the receiver.
Such as. an opposite-mounted transmitter of an additional light curtain.
The door`s closing edge at the transition between two neighbouring light beams must cover
both. Accordingly, the mask at the door panel must be 170 mm above the door`s edge and at
least 12 mm wide.
After installation, remove the protective plastic foil from the transmitters and receivers.
4.3 Mounting the light curtain
Requirements for assembly
The brackets are intended for use in sectional doors
Align the light curtain exactly along the side of the door panel
Align the brackets as linear as possible
Do not twist, bend or twist the light curtain
Use the supplied mounting accessories (see Table 1: Available mounting accessories)
Alternative screws: thread diameter 4 mm and flat head
Not permissible screws: countersunk screws
1. Drill holes in the door frame at the intended distances (see Table 2: Bracket positions in relation to
floor level).
Table 2: Bracket positions in relation to floor level
Type
Total length [mm]
L1 [mm]
L2 [mm]
L3 [mm]
L4 [mm]
LGB-A
2637
103
900
1700
2500
LGB-B
2405.5
103
800
1550
2250
LGB-C
2084
103
700
1350
1950
LGB-D
1537
103
750
1400
---
LGB-E
984
103
850
---
---

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 12 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
Figure 5: Bracket positions for light curtains

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 13 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
2. Most light curtains can be mounted directly along the door rail.
Figure 6: Door frame top view
Table 3: Door frame top view
Position
Designation
1
Door frame
2
Light curtain with bracket
3
Door rail
4
Door panel
3. Mount the brackets to the door frame using the screws provided.
4. Press the light curtain into the brackets.
Figure 7: Mounting the light curtain

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 14 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
5 Electrical connection
WARNING
Wiring shall only take place when the power has been removed.
To maintain EMC guidelines, the length of the power cables may not exceed 30 m.
Table 4: Recommended connectors
Receiver
Plug connector
M12, 8 pole coupling
Number of conductors
8
Conductor cross section
0.25 mm²
Transmitter
Plug connector
M12, 4 pole coupling
Number of conductors
4
Conductor cross section
0.25 mm²
5.1 Wire assignment of the light curtain
Pin 1 - brown
Pin 2 - white
Pin 3 - blue
Pin 4 - black Pin 1 - white
Pin 2 - brown
Pin 3 - yellow
Pin 4 - green
TST LGB
Receiver
Pin 5 - gray
Pin 6 - pink
Pin 7 - blue
Pin 8 - red
+24 V DC
GND
RS485 A RS485 B
OUT2 - Photo eye
OUT1- Safety edge
TST LGB
Transmitter
M12 /4 pole
Female
M12 /4 pole
Male
M12 /8 pole
Female
M12 /8 pole
Male
IMPORTANT!
Connect these two
wires

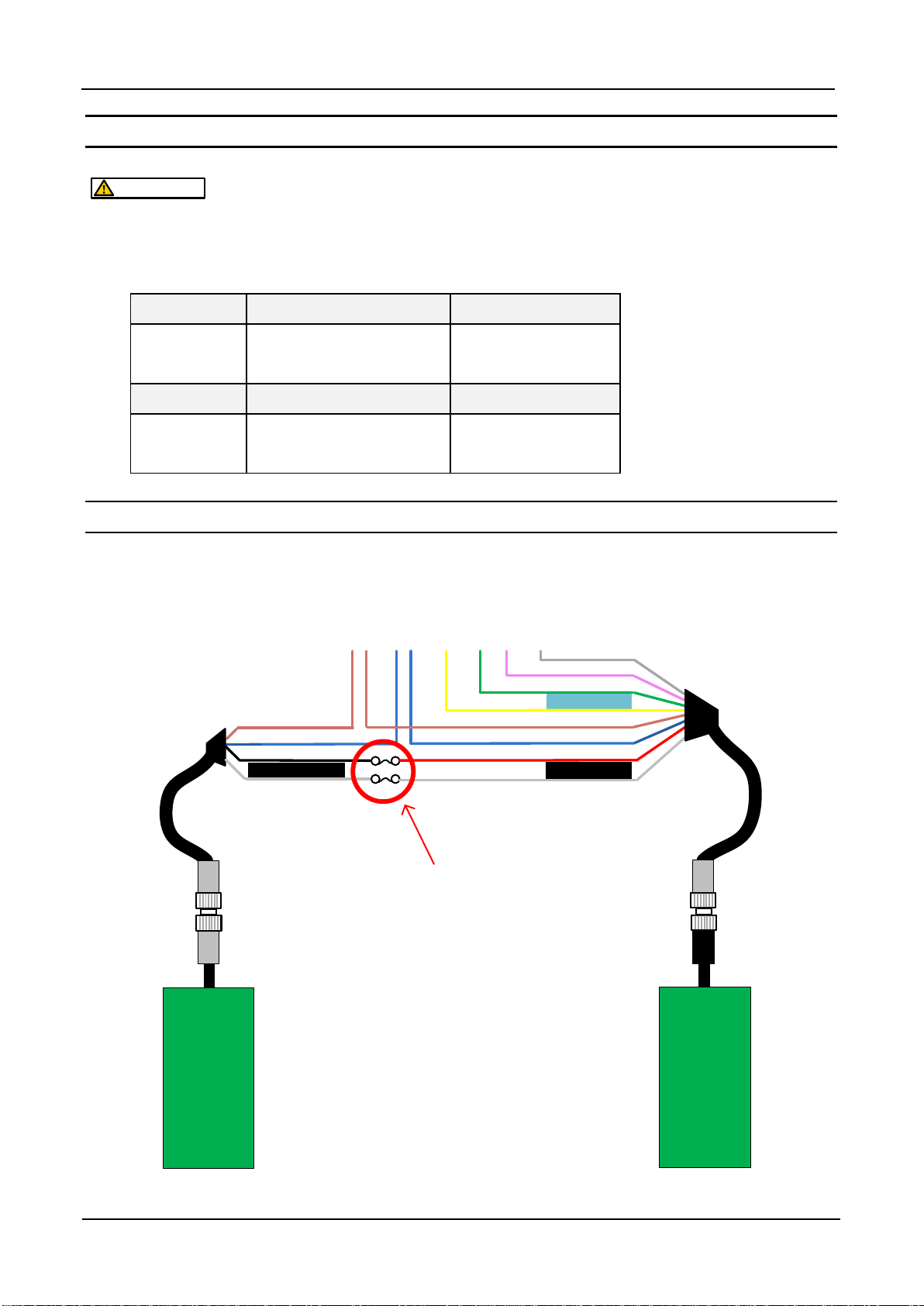

Figure 8: Wire assignment for the light curtain

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 15 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
5.2 Wiring diagrams for the wiring board RLGxA
Figure 9: Wiring diagram for the light curtain

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 16 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
Figure 10: Wiring diagram for position encoders

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 17 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
5.3 Connecting the RLGxA wiring board to the controller
The TST RLGxA wiring board is a connection distributor which facilitates the connection of the TST LGB light
curtain with the door controller. For this purpose, the red terminal block of the wiring board is plugged onto
the red pin strip of the controller board (connection for the position encoder).
The RLGxA wiring board is suitable for the following products:
Table 5: Use of the RLGxA wiring board
Product
Designation
Door controller
TST WU, TST FUZ2, TST FUxF
Light curtain
LGB
Position encoder
TST PD, TST PE [+ FSx], DES (GfA, Kostal)
ACHTUNG!
Read assembly instructions!
Observe the installation instructions of the devices used (door controller, sensors, etc.) and in particular the
safety instructions mentioned therein.
ACHTUNG!
The contacts can bend!
Remove the terminal blocks before wiring and tightening the connection screws!
31*
33*
32*
34*
35*
36*
36
A
B
75
43
73
35
34
31* 32* 33* 34* 35* 36*
73 A B 36
1.
2.
a
b
c
b

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 18 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
see chapter "Wiring diagrams for the wiring
board RLGxA", page 15

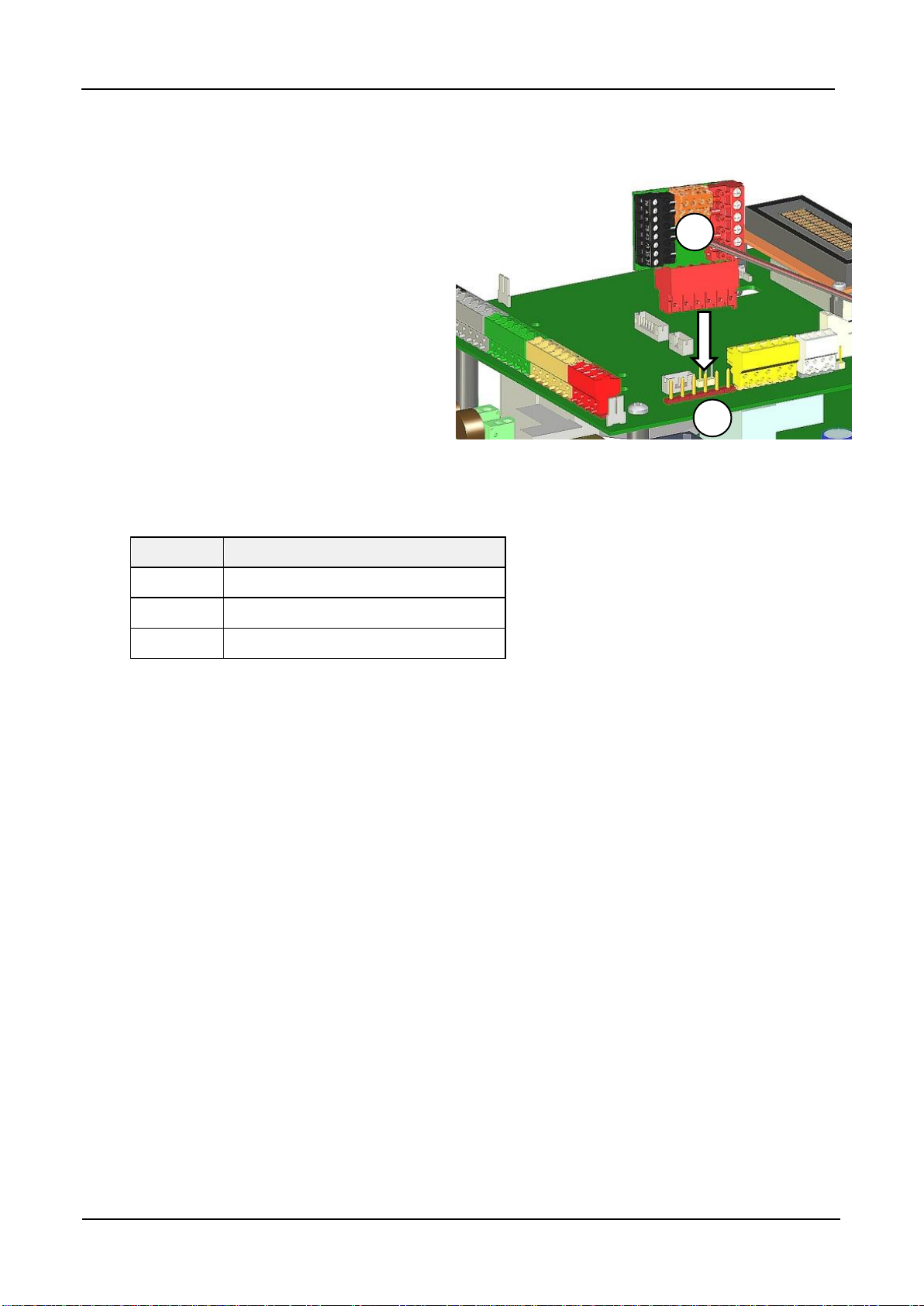

Figure 11: Connecting the wiring board
Table 6: Connecting the wiring board
Position
Designation
a
Pin strip for position encoder
b
Terminal block for position encoder
c
Wiring board RLGxA

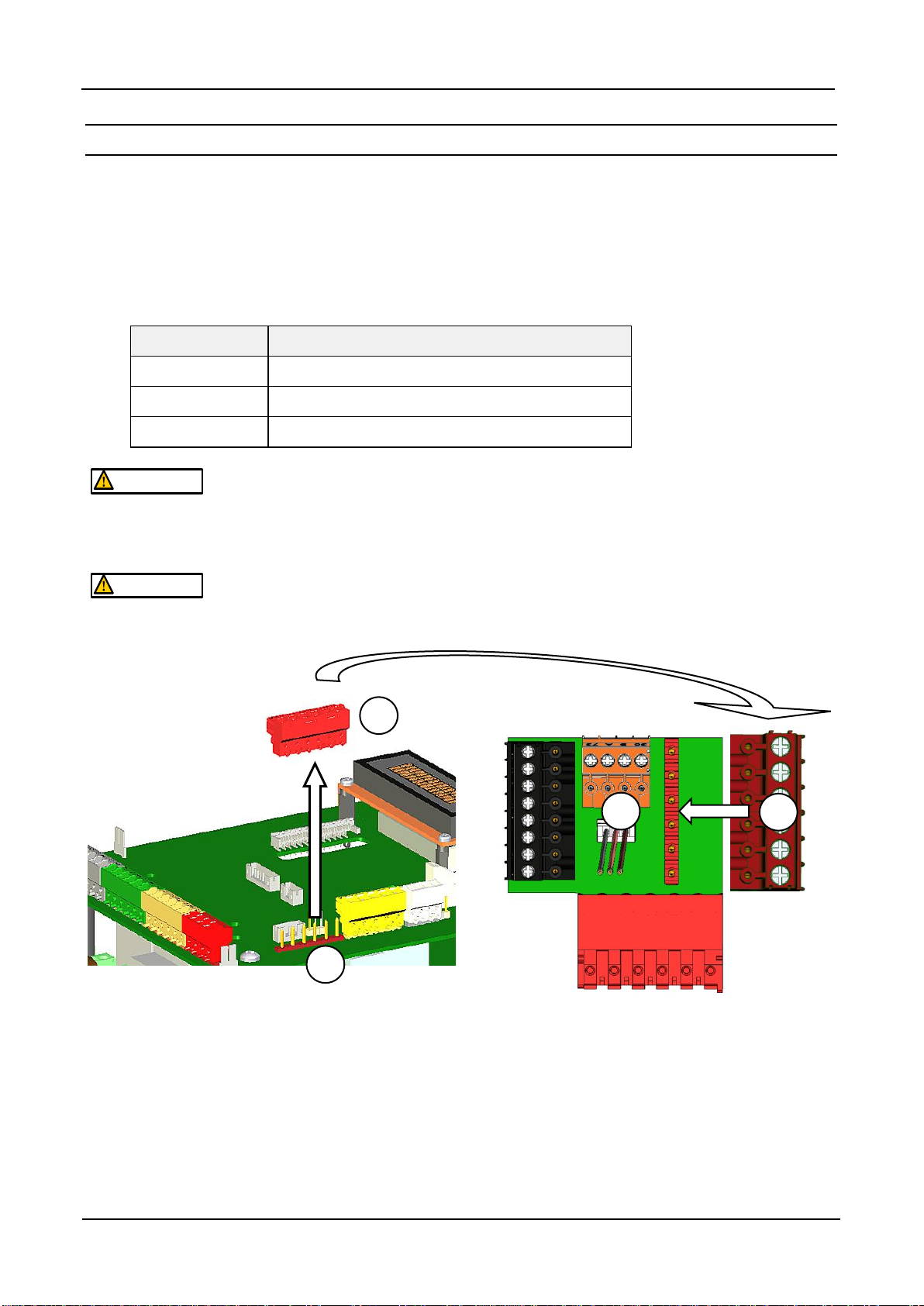

Connecting the wiring board:
1. Remove the terminal block for the position encoder (b) from the controller board (see point 1).
2. Connect the terminal block (b) to the wiring board (c) (see point 2).
3. Connect the light curtain and position encoder to the wiring board.
(see chapter "Wiring diagrams for the wiring board RLGxA", page 15).
4. Plug the wiring board (c) onto the pin strip (a) (see point 4).
4.
c
a
3.

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 19 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
6 Commissioning
Before the start-up of the safety device, the controller managing the door system must have been con-
figured. Observe the assembly instructions of the respective door controller or the Application Note
A.480 to configure the respective door controller with LGB.
WARNING
Before commissioning the controller, check that the electrical connections of the door controller
system.
6.1 Setup assistant
The setup assistant checks the correct alignment of the TST LGB units to each.
The Set-up assistant starts after reaching or storing the upper end position. From here, error messages of
the light curtain may prevent further commissioning of the door. In the event of an error, these must be elimi-
nated before continuing.
(Potential errors: incorrect wiring or objects within the range that may be secured).
For the duration of the set-up procedure, the monitored area must be free from objects. To mask
out the upper beams - see to 7.2 Manual blanking.
The alignment of the light curtain is determined by the beam signal quality.
If the beam signal quality is too low, the message F.601 is issued.
The error message may be acknowledged to continue the start-up despite bad beam signal quality. Howev-
er, an entry is made into the error memory.
An error free check of the signal quality is necessary, since otherwise false signals may be trig-
gered.
In order to indicate the beam signal quality in the door controller, the set-up assistant may be activated with
P.937 = 1. Parameter P.938 then offers an overview of the beam signal quality, divided into 3 ranges (top,
center, bottom):
3% 9 8 # 1 0 0 100 1 0 0%%
P : E
Top Center Bottom
L G x D i a g .

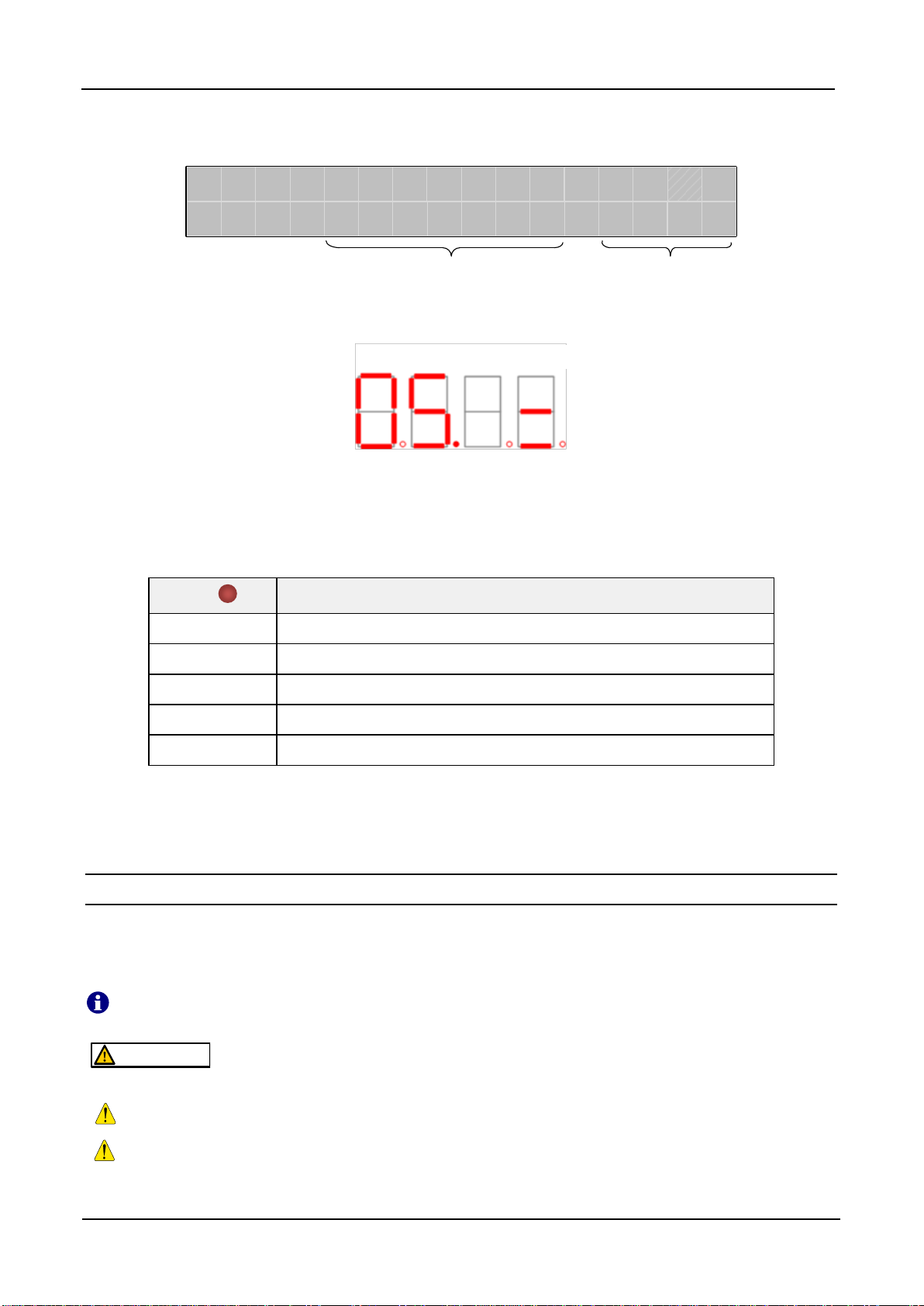

Figure 12: LCD display –three ranges
Top
100% Center
100% Bottom 100%
Figure 13: 7-segment display –three ranges

TST
Assembly instructions
LGB
FEIG ELECTRONIC GmbH
Page 20 of 26
TST_LGB_Assembly_instructions_rev5_EN.docx
With foil “Open / Closed”, the beam signal quality of each individual beam can be called within this parame-
ter:
3% 9 8 # B E A 0 5 28=
LP : G x D i a g . E
Signal quality
M
Beam 5
Figure 14: LCD display –individual light beam
Beam 5 75%
Figure 15: 7-segment display –individual light beam
In addition the LGB receiver displays the signal quality by LEDs:
Table 7: Reception quality of the light beams
LED red
State
off
All light beams are free and have good signal quality.
flashing (1 Hz)
All light beams are free but partially with bad signal quality.
flashing (5 Hz)
One light beam is occupied but otherwise good signal quality.
Flashing (10 Hz)
One light beam is occupied but otherwise bad signal quality.
on
Several light beams occupied.
In the case of improvement of the Light beam alignment between the TST LGB units the signal quality rises.
With good quality, the fault F 601 acknowledges itself automatically and the start up procedure may be con-
tinued.
6.2 Light beam adjustment
After successful alignment the light beam adjustment is performed during the calibration of the door end
positions automatically.
During the light beam adjustment, the TST LGB learns to recognize the reference positions of each light
beam. For this purpose, the door is closed slowly in automatic mode.
ATTENTION
The light beam adjustment must take place under the supervision of a trained mechanic.
During the adjustment, the monitored zone must be free.
If light curtain units are exchanged, a new light beam adjustment is requested.
