GEZE ECturn User manual

1
ECturn Translation of the original instructions
GB User manual

ECturn
2
Contents
1 Symbols and means of representation............................................................................................................3
2 Product liability ........................................................................................................................................................3
3 Safety instructions...................................................................................................................................................4
4 Terms............................................................................................................................................................................5
5 Structure.....................................................................................................................................................................6
6 Operation ...................................................................................................................................................................7
6.1 Functions .............................................................................................................................................................................................................7
6.2 Operating modes .............................................................................................................................................................................................7
6.3 Button programme switch TPS (optional)...............................................................................................................................................8
7 What to do if ... ?.......................................................................................................................................................9
8 Cleaning and maintenance............................................................................................................................... 10
9 Technical data.........................................................................................................................................................11

ECturn
3
Symbols and means of representation
Symbols and means of representation1
Warnings
In these instructions, warnings are used to warn against material damage and injuries.
Always read and observe these warnings.
X
Observe all the measures that are marked with the warning symbol and warning word.
X
Warning
symbol
Warning word Meaning
CAUTION Danger for persons.
Non-compliance can result in minor injuries.
Other symbols and means of representation
Important information and technical notes are emphasised in order to illustrate the correct operation.
Symbol Meaning
means "important note"
means "additional information"
X
Symbol for an action: Here you have to do something.
Observe the sequence if there are several action steps.
X
Product liability2
In accordance with the liability of the manufacturer for his products as dened in the German "Produkthaftungs-
gesetz" (Product Liability Act), the information contained in this brochure (product information and proper use,
misuse, product performance, product maintenance, obligations to provide information and instructions) is to be
observed. Non-compliance releases the manufacturer from his statutory liability.

ECturn
4
Safety instructions
Safety instructions3
Thoroughly read and abide by this user manual before commissioning the door. In addition, always observe the
following safety precautions:
The prescribed mounting, maintenance and repair work must be performed by properly trained personnelà
authorised by GEZE.
The country-specic laws and regulations are to be observed during safety-related tests.à
GEZE shall not be liable for injuries or damage resulting from unauthorised modication of the system.à
GEZE shall not be liable if products from other manufacturers are used with GEZE equipment.à
Only original GEZE parts may be used for repair and maintenance work as well.à
The connection to the power supply must be made by a professional electrician. Perform the power connec-à
tion and safety earth conductor test in accordance with DIN VDE 0100-610.
Exception: If the ECturn swing door drive is connected to the mains voltage by the mounted power plug, the
connection does not have to be carried out by a qualied electrician.
Use a customer-accessible 10-A automatic circuit-breaker as the line-side disconnecting device.à
Protect the programme switch against unauthorised access.à
If a battery is connected:à
Check the battery function once a month.à
Recycle defective batteries.à
If changes are carried out in the detection eld of the safety sensors (e.g. objects added or removed): Reteachà
the drive.
Observe the latest versions of guidelines, standards and country-specic regulations, in particular:à
BGR 232 "Guidelines for power-operated windows, doors and gates"à
DIN 18650 "Building hardware - Powered pedestrian doors"à
VDE 0100; Part 610 "Erection of low-voltage installations"à
Accident-prevention regulations, especially BGV A1 "General regulations" and BGV A2 "Electrical systemsà
and equipment".

ECturn
5
Terms
Terms4
Term Statement
Hinge side That side of the door at which the hinges from which the door leaf is suspended are located.
Usually that side of the door located in the opening direction.
Opposite hinge side That side of the door that lies opposite the hinge side. Usually that side of the door located in
the closing direction.
Contactor Button, switch or motion detector for actuating the door drive.
Actuation function in the "Automatic" operating mode.
The contactor does not have any function in the "Night"/"O" operating mode.
Contactor
authorised (KB)
Access control function (for example key-operated switch or card reader) used by authorised
persons to actuate the door drive.
The actuation function is active in the "Automatic" and "Night" operating modes.
Contactor with
switch function
Button for opening and closing the door. Actuation function only in the "Automatic" operating
mode. The door is opened automatically when the button is rst pressed and closed again au-
tomatically when the button is pressed the second time. The function can be activated during
commissioning by parameter conguration.
Push & Go When the door is pressed manually out of the closing position during an activated Push & Go
function in the "Automatic" operating mode, the door opens automatically as soon as a specic
adjustable opening angle is exceeded.
Safety sensor open
(SIO)
Presence detector (e.g. active infrared light sensor) for protecting the swinging range of the
door in the opening direction. As a rule the sensor is located on the hinge side of the door on
the door leaf.
Safety sensor close
(SIS)
Presence detector (for example active infrared light sensor) for protecting the swinging range
of the door in the closing direction. As a rule the sensor is located on the side opposite the
hinge on the door leaf.
Stop Self-locking switch with which immediate stopping of the door drive can be triggered in case
of danger. The drive remains in its current position until the user releases the stop switch again,
thus terminating the stop situation.
Electrical door
opener
Open-circuit door opener
Available as AC or DC door opener version. When the door drive is actuated, the door opener is
activated by the control unit of the door drive in as far as the door is in the closing position. The
door opener remains activated until the door has left the closing position.
Closed-circuit door opener
DC door opener version. The door opener is switched o when the door drive is activated, in as
far as the door is in the closing position. The door opener remains switched o until the door
has left the closing position.
Lock feedback The lock feedback function is a contact integrated in the door latch that is activated when the
door is locked mechanically by the tie bolt of the door lock. It signals to the control unit that the
door is locked mechanically and can therefore not be opened by the door drive. In this case the
control unit ignores the actuation commands of all the contactors.

ECturn
6
Structure
Structure5

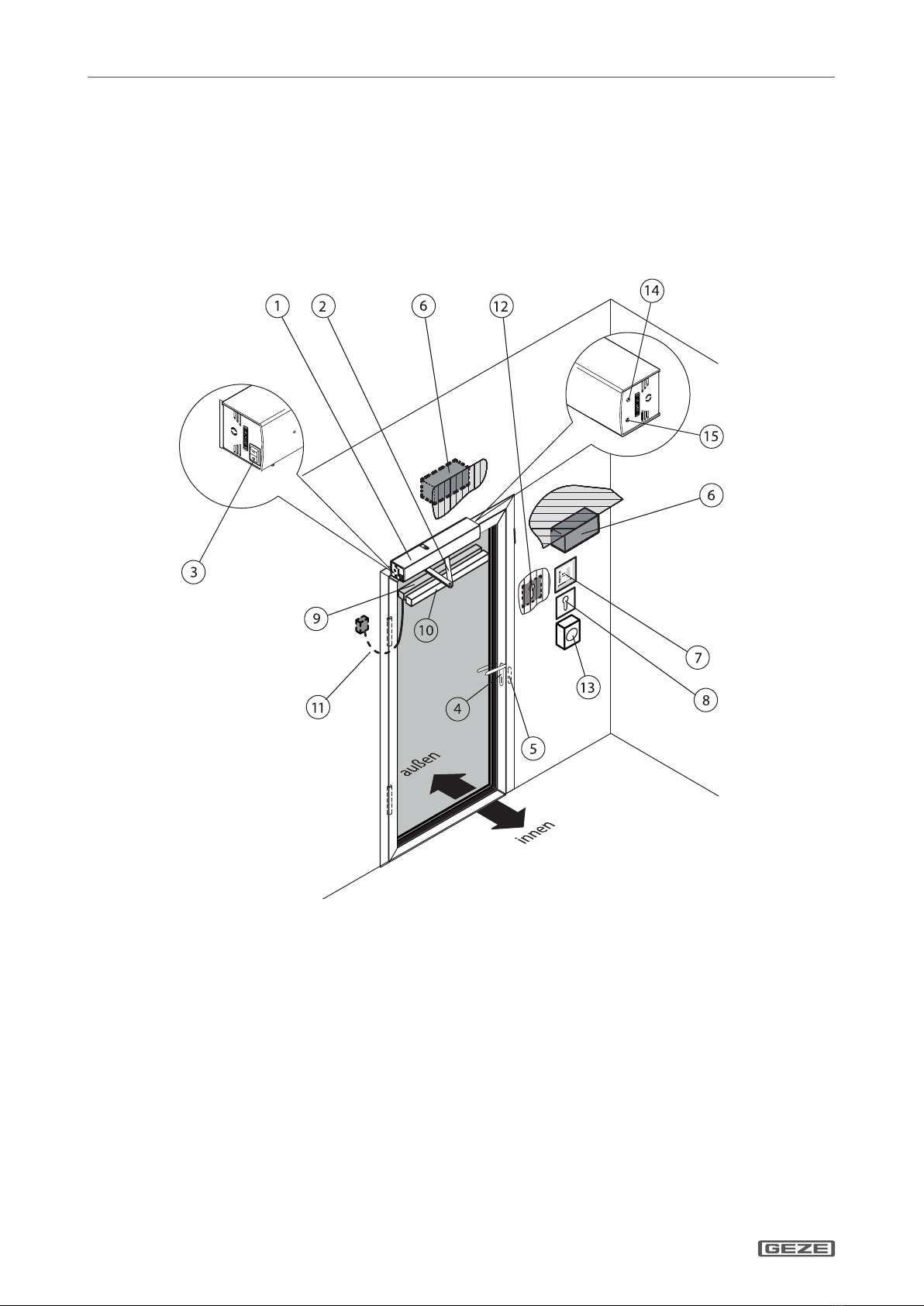

System parts and options
The door drive unit can be mounted in transom mounting at the lintel or in door panel mounting on the doorà
panel.
The door drive is available as a 1-leaf version.à
The operating elements are arranged dierently depending on the situation.à
For technical reasons, we cannot show all of the possibilities here.
Door drive unit1
Link arm or guide rail2
Internal programme switch3
Door handle with door lock4
Electrical door opener5
Contactor6
Button programme switch7
Key-operated switch: Enabling of button pro-8
gramme switch
Safety sensor open (SIO)9
Safety sensor close (SIS)10
Door transition cable11
Contactor authorised (KB)12
Stop switch13
Operating modes switch14
Operating mode LED15

ECturn
7
Operation
Operation6
Functions6.1
The set parameters of the drive functions may only be modied by properly trained persons.
Commissioning and the setting or modication of the door parameters as well as of some special drive functions
can be carried out by using the buttons S1, S2 and the 5 LEDs on the controller or with the display programme
switch (see wiring diagram ECturn, ID No. 134079).
Normal operation6.1.1
In normal door operation, the door is opened and closed automatically.
Special cases
In specic cases (e.g. special wiring, special function settings/parameters, special software) deviations from the
information given in this user manual may occur.
If this is the case, please ask the responsible service technician.
X
Functions in normal operation Result
A contactor (button, switch or motion detector)
is triggered.
Door opens, waits the hold-open time and then closes.
Safety sensor close (SIS) is is triggered when the door is
open (e.g. light sensor).
Door remains open.
Safety sensor close (SIS) is triggered while the door is
closing.
Door reopens immediately.
Safety sensor open (SIO) is triggered while door is open-
ing.
The door stops and remains in the position until the end
of actuation (door opens) or until the end of the hold-
open time (door closes).
Safety sensor open (SIO) is triggered when the door is
closed.
Door remains closed.
A person moves toward the opened door and a motion
detector is activated.
Door remains open.
A person moves toward the closing door and a motion
detector is activated.
Door reopens immediately.
Door contacts an obstruction when opening. Door stops, waits and attempts again to move to the open
position at a reduced speed. The door then closes again.
Door contacts an obstruction when closing. Door reopens immediately, waits the hold-open time and
then closes at a reduced speed.
Switch/button Function
Stop switch The door stops immediately (in every operating mode)
and holds the position until the stop switch is unlocked.
Contactor authorised (KB, e.g. outside key-operated
switch)
Door opens once and closes after the hold-open time. The
set operating mode is retained.
Battery operation in case of power failure6.1.2
If a battery is installed, the swing door drive remains operational after a power failure for a period of up to 15
minutes (depending on the charging state of the battery and frequency with which the door is used).
For setting of the swing door drive with battery operation after a power failure refer to the ECturn wiring dia-
gram (ID No. 134079).
Operating modes6.2
Operating mode Colour
Automatic Green
Night Red
Permanently open Blue
O No colour

ECturn
8
Operation
Button programme switch TPS (optional)6.3
Can be connected additionally to the internal programme switch.
Button programme switch TPS
At the button programme switch, the system operating mode is selected and
the corresponding programme is displayed.
The desired operating mode can be selected by pressing the and but-
tons.
The LED of the current operating state lights up.
The shop closing time switch is not assigned.
The button programme switch is accessible for everyone without a key-operat-
ed switch. If desired, an additional key-operated switch can be used for locking.
When using a key-operated switch: Enable by operating the key-operated
switch once briey.
Operation of the key programme switch is disabled by briey re-actuating the
key switch.
Operating mode Switches Description
Automatic Door opens and closes automatically. The contactors are active.
Permanently open Door remains open.
Night Door opens and closes only when actuated using the key-operated switch.
On / O Door is enabled and can be moved by hand.

ECturn
9
What to do if ... ?
What to do if ... ?7
Problem Cause Remedy
Door only opens and closes
slowly
Obstruction on the sliding
path
Remove obstruction and check door leaf for ease of movement.
X
Safety sensor close (SIS)
soiled
Clean the Safety sensor close.
X
Safety sensor close (SIS)
misaligned or defective
Notify a service technician.
X
Door opens and closes
constantly
Obstruction on the sliding
path
Remove obstruction and check door leaf for ease of movement.
X
Light beams or reections,
e.g. reective oor, falling
rain
Check detection eld of movement detector
X
Misaligned movement
detector
Check detection eld of movement detector
X
Door only opens a crack Obstruction on the sliding
path
Remove obstruction and check door leaf for ease of movement.
X
Door does not open Obstruction on the sliding
path
Remove obstruction and check door leaf for ease of movement.
X
Movement detector
misaligned or defective
(outside)
Check the movement detector. If necessary, notify a service
X
technician.
Stop activated Unlock the stop function.
X
"Night" operating mode Select a dierent operating mode.
X
Door locked mechanically Unlock the door.
X
Door opener does not
release
Notify a service technician.
X
Drive defective Notify a service technician.
X
Door does not close Safety sensor close (SIS)
soiled
Clean the Safety sensor close (SIS).
X
Safety sensor close (SIS)
misaligned or defective
Notify a service technician.
X
Obstruction on the sliding
path
Remove obstruction and check door leaf for ease of movement.
X
Movement detector controls
uninterruptedly
Check the movement detector. If necessary, notify a service
X
technician.
"Permanently open" operat-
ing mode
Select a dierent operating mode.
X
Current impulse button
function actuates
Terminate actuation by pressing the button once more.
X
Operating mode LED ashes
red, green or blue
Fault message Notify a service technician
X
Operating mode LED ashes
yellow (2x fast)
Initialisation after power
failure
Wait for initialisation drive.
X

ECturn
10
Cleaning and maintenance
Cleaning and maintenance8
CAUTION!
Danger of injury due to impact and crushing!
The mounting, maintenance and repair work must be performed by properly trained personnel authorised by
X
GEZE.
Disconnect the drive from the power supply before carrying out work.
X
Unplug the battery plug from the controller before carrying out work.
X
Secure door leaves against accidental movement before carrying out work.
X
Ensure that the drive cannot be activated via radio or Contactor authorised (KB).
X
Cleaning
Component Cleaning
Safety sensor close (SIS, e.g. light sensors) Wipe with a moist cloth.
X
Glass surfaces Wipe with a cold vinegar/water mixture; then dry.
X
Stainless surfaces Wipe with a non-scratching cloth.
X
Painted surfaces Wipe with water and soap.
X
Anodised surfaces Wipe with non-alkaline potassium soap (pH value 5.5…7)
X
Maintenance
The owner must ensure that the system functions properly.
GEZE oers maintenance contracts with the following services:
Inspect fastening elements for rm seatingà
Carry out miscellaneous adjustment workà
Carry out operational checksà
Check all the safety and control equipment of the door systemà
Lubricate all the moveable partsà
If maintenance is required, notify the service technician.
X
Inspection by trained professionals
In accordance with the "Guidelines for power-operated windows, doors and gates" (BGR 232 and GUV 16.10) Sec-
tion 6, power-operated doors must be inspected for safety by a trained professional before initial commissioning
and at least once a year.
