Feig Electronic ID PAD74-U User manual

IDENTIFICATION
M30521-1e-ID-B
INSTALLATION
ID PAD74-U
PAD Reader with USB Interface

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 2 of 15
NOTE
© Copyright by
FEIG ELECTRONIC GmbH
Industriestraße 1a
D-35781 Weilburg (Germany)
Tel.: [phone]
https://www.feig.de/en/
[e-mail]
With the edition of this document, all previous editions become void. Indications made in this manual may be changed
without previous notice.
Copying of this document and giving it to others and the use or communication of the contents thereof are forbidden
without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the
grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge.
FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual
and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts,
errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC GmbH does
not give any guarantee promise for perfect function in cross environments and does not give any guarantee for the
functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC GmbH calls explicit attention that devices which are subject of this document are not designed with
components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as
critical components in any life support systems whose failure to perform can reasonably be expected to cause significant
injury to human health. To avoid damage, injury or death the user or application designer must take reasonably prudent
steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this document and
makes no representation that they are free of patent infringement. FEIG ELECTRONIC GmbH does not convey any
license under its patent rights nor the rights of others.
All brand names, trademarks or logos are the property of their respective owners.

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 3 of 15
Safety Instructions
►The device may only be used for the intended purpose designed by for the manufacturer.
►The operation manual should be conveniently kept available at all times for each user.
►Unauthorized changes and the use of spare parts and additional devices which have not been sold or
recommended by the manufacturer may cause fire, electric shocks or injuries. Such unauthorized
measures shall exclude any liability by the manufacturer.
►The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the
device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in the
manual or automatically set parameters for a device or for an incorrect application of a device.
►Repairs may only be executed by the manufacturer.
►Installation, operation, and maintenance procedures should only be carried out by qualified personnel.
►Use of the device and its installation must be in accordance with national legal requirements and local
electrical codes.
►When working on devices the valid safety regulations must be observed.
►Before touching the device, the power supply must always be interrupted. Make sure that the device is
without voltage by measuring. The fading of an operation control (LED) is no indicator for an interrupted
power supply or the device being out of voltage!
►Special advice for wearers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a
minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in the
immediate proximity of the device’s antenna for any length of time.

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 4 of 15
Content
1ID PAD74-U PAD Reader with USB-Interface 5
1.1 Scope of delivery...............................................................................................................5
1.2 Available Software-Tools, USB drivers and Firmware....................................................6
1.3 Difference between ID PAD74-U and ID CPR74-CUSB....................................................6
2Dimension 7
3Installation 9
3.1 Table top mounting ...........................................................................................................9
3.2 Under table mounting........................................................................................................9
4Commissioning 12
4.1 DC Power supply.............................................................................................................12
4.2 LED Indication .................................................................................................................12
5Radio Approvals 13
5.1 Declaration of Conformity (CE), (UKCA)........................................................................ 13
6Technical Data 14
7Cleaning / Care 15

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 5 of 15
1 ID PAD74-U PAD Reader with USB-Interface
•The ID PAD74-U is an RFID PAD reader for contactless data exchange with passive transponders
and combines a reader and an antenna in one housing.
•The compact format allows the PAD74-U to be positioning "on" and "under" any
nonmetallic mounting or table top.
•It is suitable for many desktop applications in offices, industry or libraries (output and return).
The high processing speed and easy configuration allow ideal adaptation to the customer
application.
•There are three status LEDs (color green. blue. red) on the front side, which indicates the status of
the reader with antenna (see 4.2 LED Indication).
Features
Supported Standards
•ISO 15693
•ISO 18000-3 Mode1
Operating Frequency
•f = 13,56 MHz
Max. RF Transmitting
Power
•P = 400 mW
Antenna Connection
•fixed cable
•USB Interface
Protection Class
•IP30
Status LED
•LED (green, blue, red)
Table 1: Features
1.1 Scope of delivery
•ID PAD74-U PAD Reader with USB-Interface
•Document “Quickstart”

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 6 of 15
1.2 Available Software-Tools, USB drivers and Firmware
The service software and the corresponding USB driver (HF/UHF reader or FEIG ID driver) for personal
computers with Microsoft® Windows® operating systems, are available on the Feig homepage
under "Service -> Driver".
Further documents and software tools can be found under the link:
https://www.feig.de/en/login/
Login: CPR74
Password : FE900
NOTE:
•The Reader ID PAD74-U reports itself in ISOStart+ 2023 (version 11.08.xx or higher) as "ID CPR74".
•A firmware update tool and an xml firmware file are available for firmware updates.
1.3 Difference between ID PAD74-U and ID CPR74-CUSB
The reader module installed in the ID PAD74-U does not support all commands and functions that are available in the
reader module ID CPR74-CUSB.
(see Manual H60410-Xe-ID-B)
Since ISO 15693 and ISO 14443-A/B transponders are mainly used in the intended applications, the following
transponder drivers have been switched off in the reader configuration and cannot be activated.
Unavailable functions and transponder drivers:
•ISO 18000-3M3
NOTE:
•The ID PAD74-U rejects the activation of an invalid transponder driver" with the error message
"Parameter Range Error".
•The commands of the internal reader ID CPR74-CUSB belonging to the disabled transponder driver are not
available.
•In the factory default state, the provided antenna (ANT2) inside ID PAD74-U is activated.
The internal antenna installed on the reader module ID CPR74-CUSB can additionally be activated via the reader
configuration.

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 7 of 15
2 Dimension

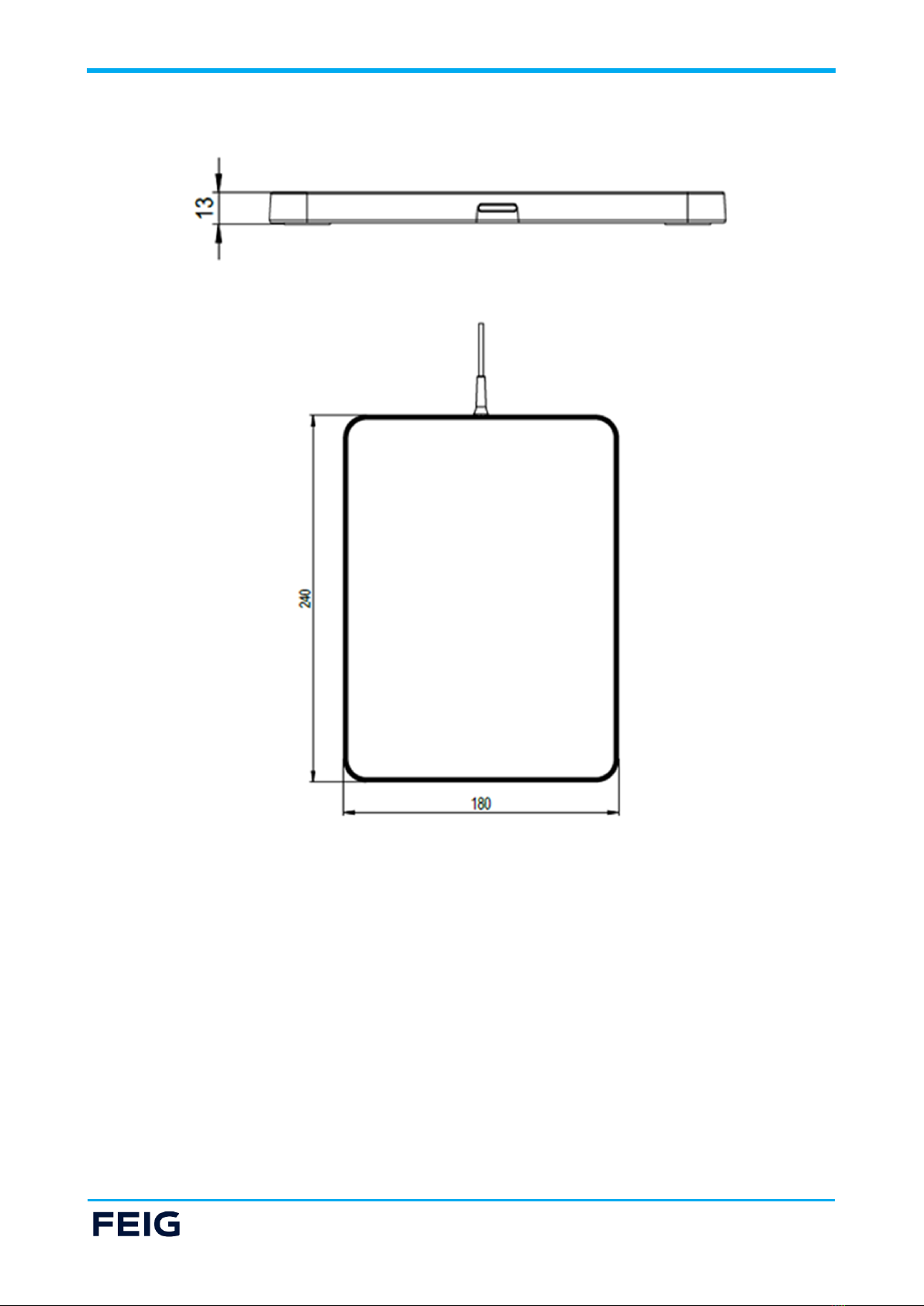

Figure 1: Front view
Figure 2: Top view with housing dimension

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 8 of 15

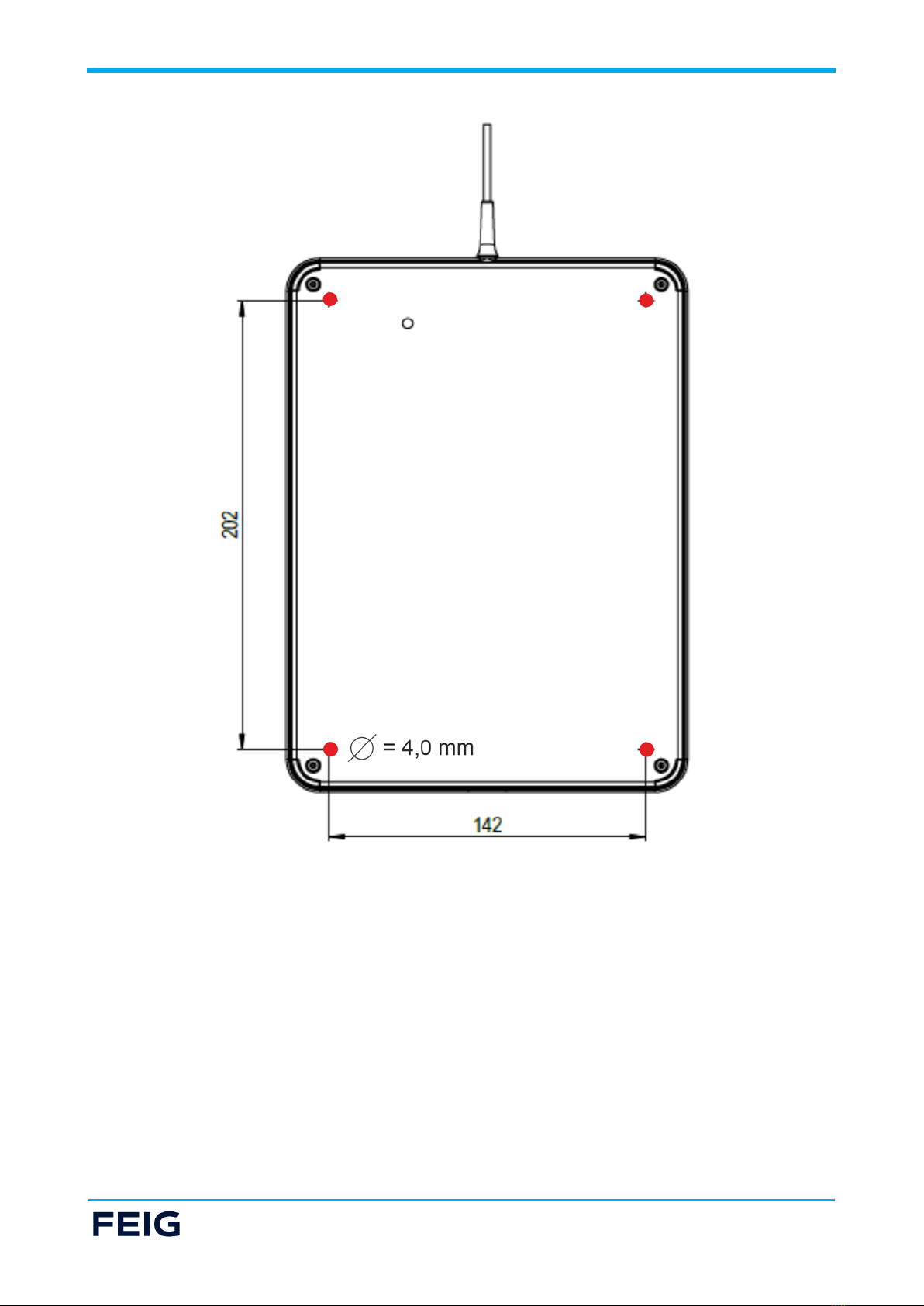

Figure 3: Drilling pattern under table mounting

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 9 of 15
3 Installation
•The PAD74-U is designed for operation on a non metallic, flat surface (e.g. table) or for
under table mounting (non metallic) indoors.
•Device connection via USB cable (2.3 m)
•The cable length must not be changed.
3.1 Table top mounting
•Positioning the device on the table top.
•The rubber feet on the bottom of the case prevent it from moving.
Figure 4: Table top mounting
3.2 Under table mounting
Please follow the instructions in the Table 2: "Instructions for under table mounting".
Figure 5: Under table mounting

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 10 of 15
•Remove rubber
feet
•Use drilling pattern,
(see Fig. 3)
•The predrilled
holes (2.0 mm) are
located under the
rubber feet.
Figure 6: Remove rubber feet
Figure 7: Predrilled holes (2.0 mm)
•Drill out factory
holes from 2.0 mm
to 4.0 mm
Figure 8: Drill out factory holes to 4.0 mm
•The under-table
mounting is carried
out via the rear of
the housing using
pan head screws
(max. M3 x 3.5
mm).
•The four pan head
screws must
penetrate the top of
the antenna.
Figure 9: Pan head screws (max. M3 x 3.5 mm)

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 11 of 15
•The antenna is
aligned with the top
(front foil side) facing
up and mounted.

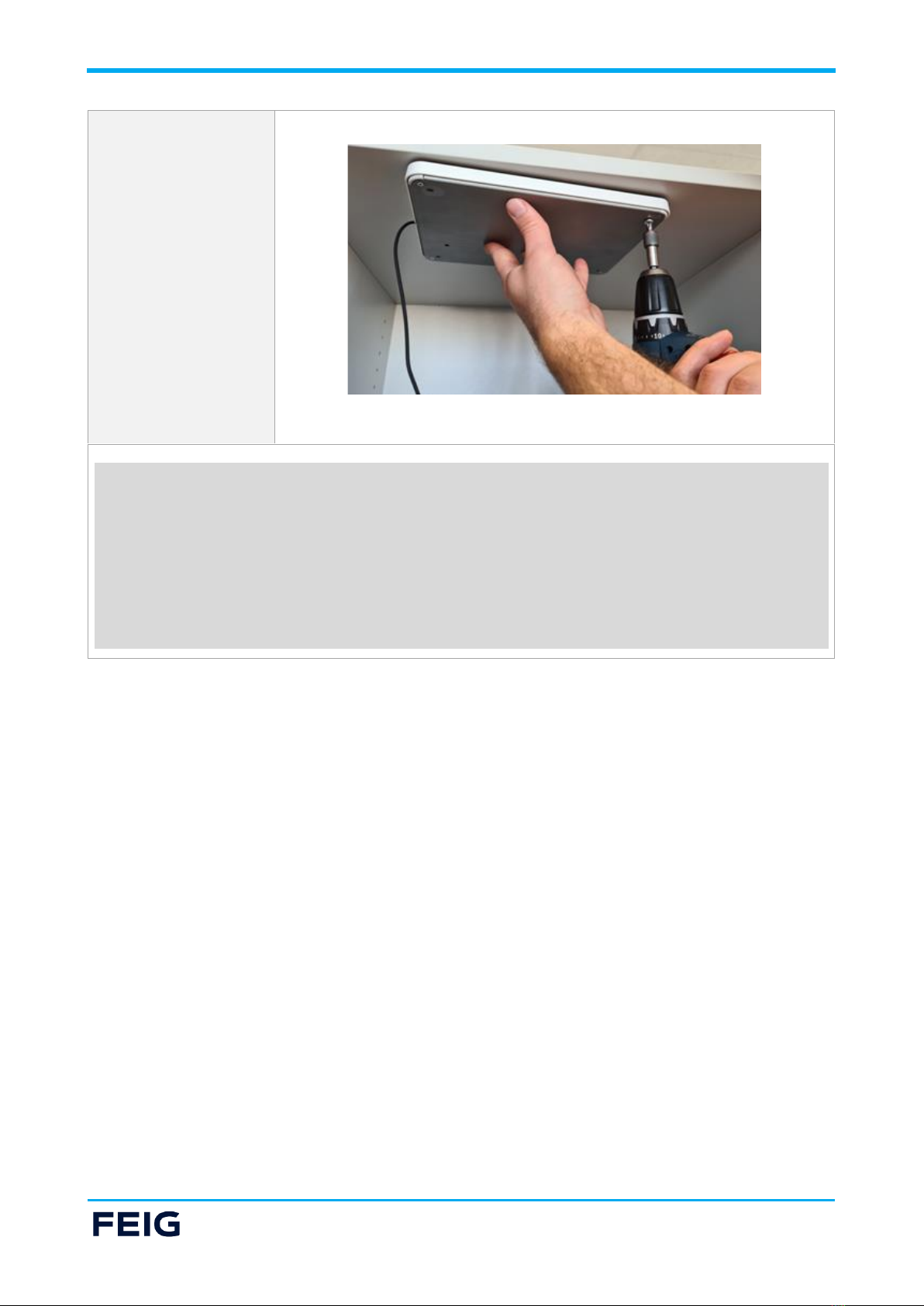

Figure 10: Under table mounting
NOTE:
•Before mounting, the rubber feet must be removed.
•Use drilling pattern
•Drilling holes at locations other than provided in drilling pattern, will destroy the electronics.
•Make sure that the surface of the tabletop is not damaged.
The length of the screws must be dimensioned according to the table top thickness.
•The table top must not be made of metal or magnetically materials.
•If the mounting/table top is too thick (wood, plastic), the reading range is reduced (ideally < 25 mm).
Table 2: Under table mounting

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 12 of 15
4 Commissioning
•Device connection via USB cable (2.3 m)
The cable length must not be changed.
•The device has no ON/OFF switch. All functions (status displays, transponder detection)
are displayed via the status LEDs (green, blue, red) and are available after the startup
process
(see 4.2 LED Indication)
•The standard reader configuration can be adapted to the application using the ISOStart
service software from version 11.07.xx or higher
•The service software can be found on the download area of
FEIG ELECTRONIC GmbH at https://www.feig.de/en/
4.1 DC Power supply
•U = 5 VDC
•Imax = 500 mA
•Via USB 2.0

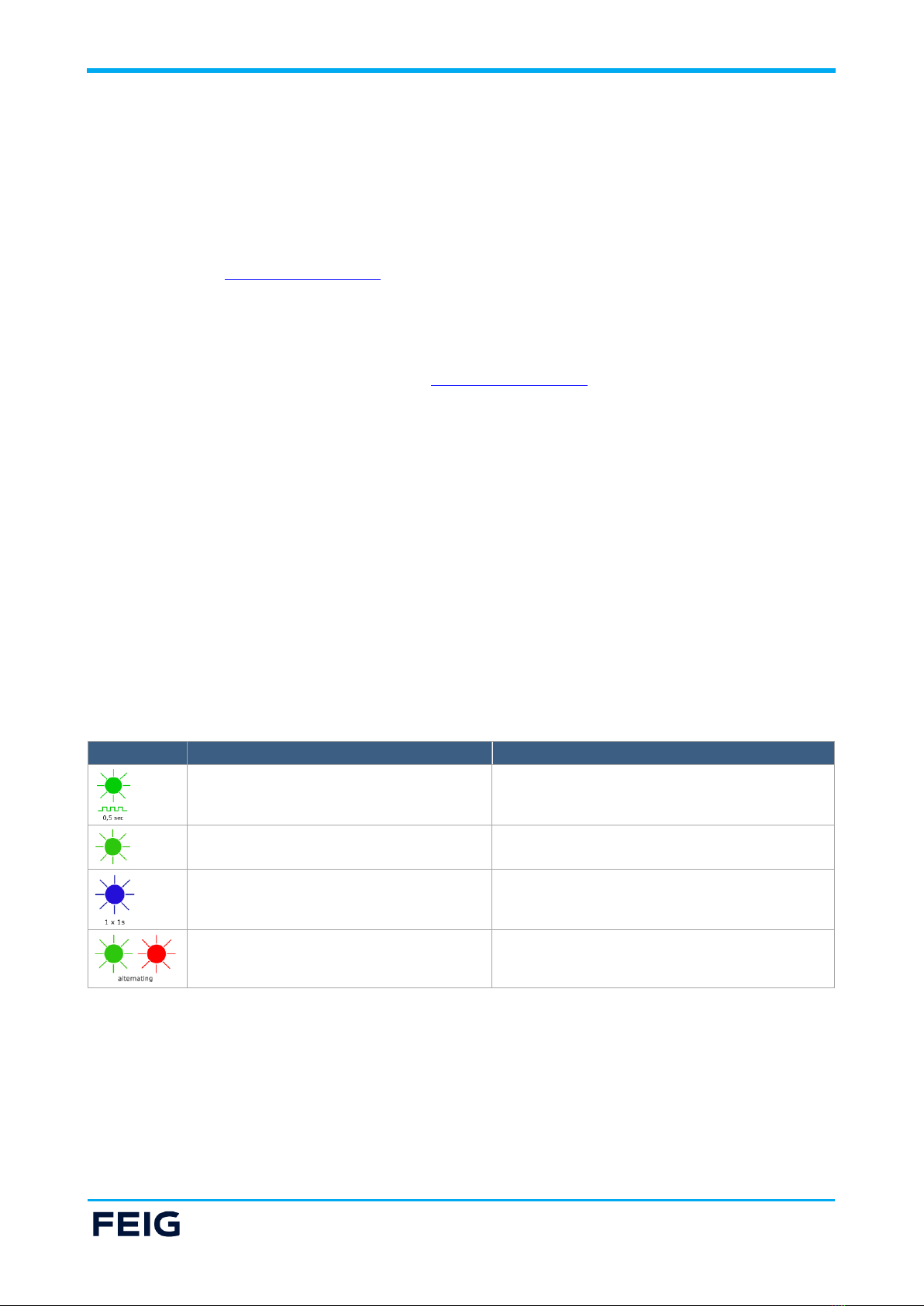

4.2 LED Indication
LED-Signal
Description
Green LED / RUN LED flashes
Reader is in Host-Mode
Green LED / RUN LED is on
Reader is in Scan-Mode
Blue LED is on (1 s)
Transponder detected
Green and red LED flashes alternately
ERROR message
Table 3: LED Indication

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 13 of 15
5 Radio Approvals
5.1 Declaration of Conformity (CE), (UKCA)
CE Declaration of Conformity
Hereby FEIG ELECTRONIC GmbH declares that the radio equipment type ID PAD240-U is in
compliance with directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://www.feig.de/en/service/eu-declarations-of-conformity/
UKCA Declaration of Conformity
Hereby FEIG ELECTRONIC GmbH declares that the radio equipment type
ID PAD240-U is in compliance with directive No. 1206 Radio Equipment Regulations 2017.
The full text of the UKCA declaration of conformity is available at the following internet address:
https://www.feig.de/en/service/ukca-declarations-of-conformity/

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 14 of 15
6 Technical Data
Mechanical Data
Wight:
approx. 0,5 kg
Dimension:
(L x W x H)
(240 x 180 x 13) mm3
(9,45 x 7,08 x 0,51) in3
Front cover:
Housing:
Insensitive surface
ABS
Protection class:
IP30
Color:
PAD
Upper side
RAL 9003 (white)
black
Electrical Data
Operating frequency:
13,56 MHz
Max. RF transmitting power:
P = 400 mW
Power supply:
5 V DC via USB
Max. Power consumption:
P = 2,5 W
Interface:
USB 2.0
LED Indicator:
3 x LEDs (green, blue, red)
Supported Transponder:
•ISO 15693
•ISO 14443-A/B
•NFC Tag Type 1-4
•ISO 18000-3 MODE 1
e. g. EM HF ISO Chips, Fujitsu HF ISO Chips, Infineon my-d, KSW
Sensor Chips, NXP ICODE SLI family, STM ISO Chips, TI Tag-it,
NXP MIFARE family, NFC Devices in Card Emulation Mode
(Tag Type 1…5)
Reader Mode :
ISO Host Mode
Scan Mode
Temperature range:
Operation
Storage
−25 °C bis +55 °C
(−13 °F up to 131 °F)
−25 °C bis +70 °C
(−13 °F up to 158 °F)
Relative air humidity:
5 % bis 95 %
(no condensing)
Standard conformity
Radio license:
Europe
UK
USA
Canada
EN 300 330
EN 300 330
FCC 47 CFR Part 15
IC RSS-GEN, RSS-210
EMC:
EN 301 489
Safety & Health:
EN 62368-1, EN 50364
Table 4: Technical Data

IDENTIFICATION
ID PAD74-U
INSTALLATION
Page 15 of 15
7 Cleaning / Care
Clean surfaces with clean, soft microfiber cloth and a solution of water with a little detergent.
NOTE:
•Using the wrong cleaning agents or cleaning cloths can damage the surface of the front foil.
•Do not use harsh, solvent-based or corrosive cleaning agents.
Document: Installation ID PAD74-U
Id-No. Document Version: M30521-1e-ID-B
Date: 01.09.2023
©Copyright
All brand names, product names or trademarks cited are the property of their respective owners.
FEIG ELECTRONIC GmbH
Industriestraße 1a
35781 Weilburg, Germany
Phone: [phone]
Homepage: https://www.feig.de/en/
Email: identification-sup[email protected]
