FeiYu Tech QING User manual

Intelligent Gimbal for Camera
Instructions
EN V1.0

2
Catalogue
1. Overview ………………………………………………………… 2
2. Start to Use ……………………………………………………… 4
2.1 Charging……………………………………………………………………… 4
2.2 Unlock/Lock ………………………………………………………………… 5
2.3 Battery Installation ………………………………………………………… 5
2.4 Camera Installation and Balance ………………………………………… 6
2.5 Power On/O󽗈 ……………………………………………………………… 8
3. Function & Operation …………………………………………… 9
3.1 Function/Modes Introduction …………………………………………… 9
3.2 Function Operation of Remote Control ………………………………… 12
3.3 Remote Control Touch Screen …………………………………………… 16
3.4 Modes Setting ……………………………………………………………… 17
3.5 Gimbal Initialization ………………………………………………………… 21
4. Accessories ……………………………………………………… 22
4.1 Brushless Follow Focus (AKF II) …………………………………………… 22
4.2 Wireless MIC Kit …………………………………………………………… 23
5. Speci󽗉cations …………………………………………………… 25
Compatible Cameras for Reference …………………………… 26
Disclaimer …………………………………………………………… 28

www.feiyu-tech.com 12
QING is a professional gimbal for DSLR/mirrorless camera. It is compatible with
popular DSLR camera on the market. It is available to install on the tripod or
other carrier to extend its shooting function.
It has a oversized touch screen on remote control, allows users to switch work
modes, control rotating direction and set up parameters on it directly and visibly.
Users can also control camera's follow focus and zooming after connecting
camera to QING via cable.
Suggestion
Feiyu Qing includes below information, please read
the information before using the gimbal:
1. Quick start guide
2. Online instruction
3. Tutorial
The tutorial videos can be watched at FeiyuTech o󽗋cial
website https://www.feiyu-tech.com/play/
or scan the QR code.

www.feiyu-tech.com 2

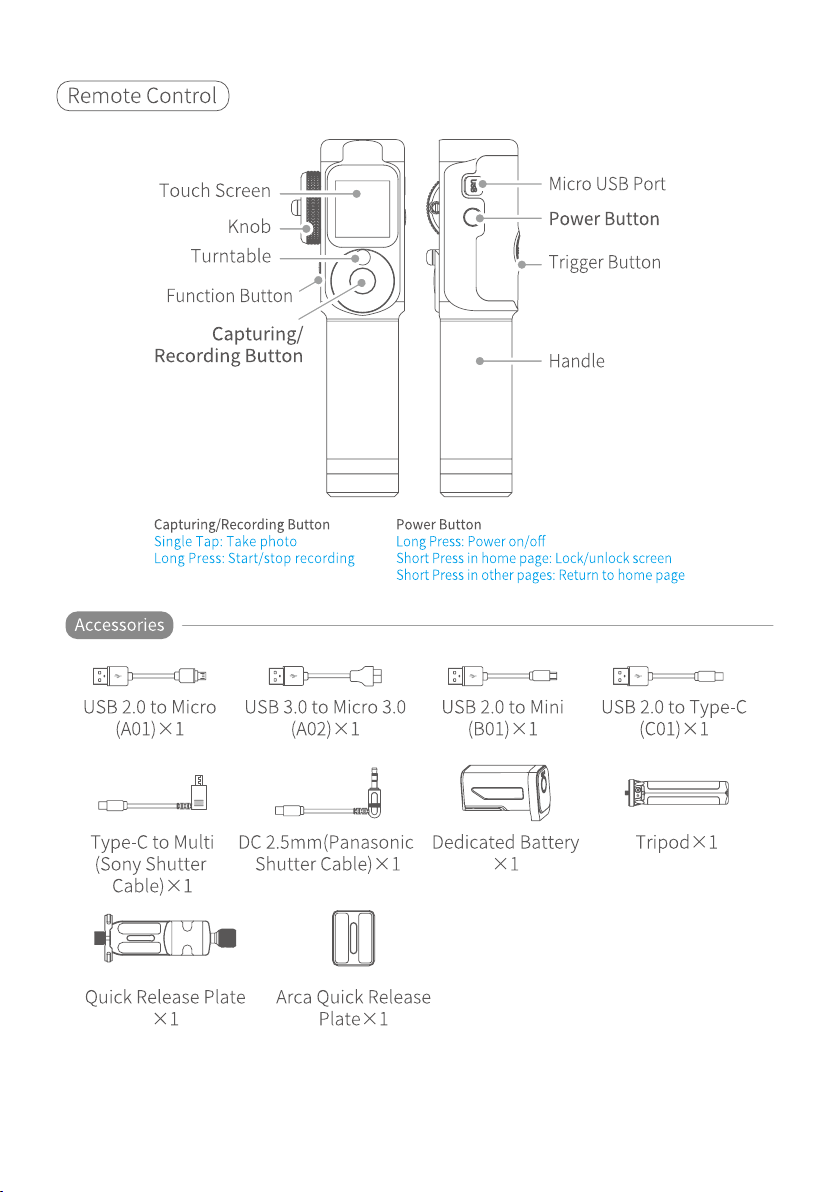

1. Overview
* The product is NOT included the camera.

www.feiyu-tech.com 32

www.feiyu-tech.com 4
2. Start to Use
TIPS
· Please install the camera and balance it before power on the gimbal.
· Please do not touch tilt motor and gears to avoid gripping.
· When the battery is low, please charge the battery.
· When not in use, power o󽗈 the gimbal and then remove the batteries.
2.1 Charging
Please fully charge the dedicated battery before power on the gimbal
for the 󽗉rst time.
Please choose the suitable charger when quickly charging.
2.1.1 Charging for the Gimbal
Using USB 2.0 to Type-C cable to charge the dedicated battery, support 5V/3A
input.
Battery Indicator: All the 3 indicators turn on when battery is full
Function Indicator:
quickly 󽗊ashing: Low battery and please charge in time
slowly 󽗊ashing: Pan mode
constant on: Lock mode

www.feiyu-tech.com 54
2.1.2 Charging for the Remote Control
Using USB 2.0 to Micro cable to charge the remote control, support 5V/3A input.
2.2 Unlock/Lock
There is a position lock on the tilt axis, which is convenient for locking the
position, installation, storage.
Unlock the gimbal before powering on it.
2.3 Battery Installation
Please fully charge the dedicated battery before power on the
gimbal for the 󽗉rst time.
Install the battery: Push the battery in along the slot ①, and after that, the battery
lock ② will rebound to prevent battery from falling.
Remove the battery: Unlock the battery lock ② and pull the battery out.

www.feiyu-tech.com 6
①
②
2.4 Camera Installation and Balance
TIPS
· Make sure the battery and memory card are loaded before camera
installation.
· Before balancing the gimbal, the lens cover should be removed from
the camera and the memory card needs to be inserted to the camera to
complete all the cable connections to ensure that the camera is ready for
shooting.
· During balancing the gimbal, make sure the camera is power o󽗈 and the
gimbal is turned o󽗈.
· If add accessories after the balance is completed, please re-balance.
In order to get ideal shooting, please balance the gimbal before using. And the
gimbal with perfect balance will have longer battery life.
Step 1: Keep the gimbal horizontal as the figure shows, then lock the position
lock ①.

www.feiyu-tech.com 76
Step 2: Mount camera on ARCA quick release plate ②, and tighten it.
Step 3: Install the ARCA quick release plate on the quick release plate, and tighten
the ARCA quick release plate safety lock ③. Install the lens holder ④ and tighten
the thumb screw ⑤ to hold the lens 󽗉rmly.
Step 4: Unlock the position lock ①, and loose the thumb screw ⑥. Slide the
slide arm ⑦ to balance, and tighten the thumb screw ⑥ after the balancing is
completed.
If the camera can stay stable after moving your hand away, which means
balanced.

www.feiyu-tech.com 8

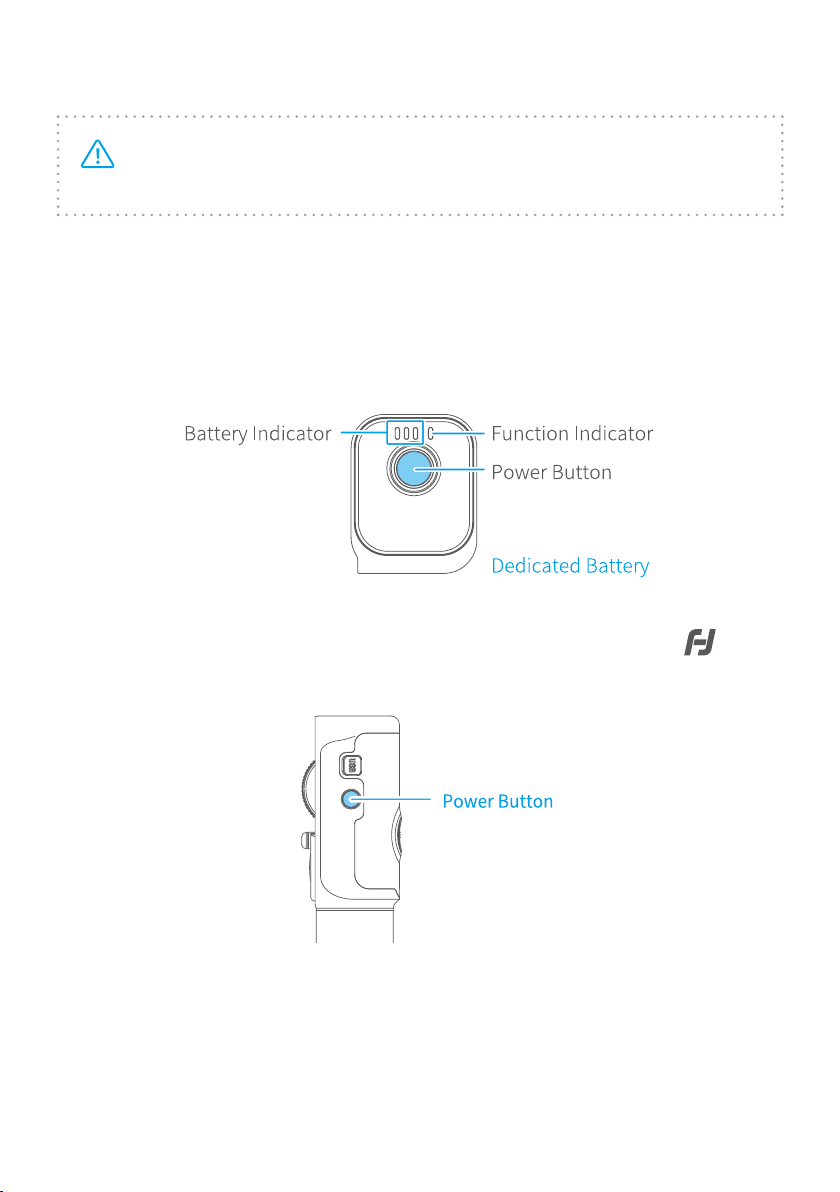

2.5 Power On/O󽗈
Please release the tilt motor lock before powering on.
Please do not touch tilt motor and gears to avoid gripping.
Steps:
(1) Gimbal:
Install the dedicated battery and long press the power button and release it when
the battery indicator and function indicator turn on together and hear the tone.
Long press again to power o󽗈.
(2) Remote Control:
Long press the power button, release it when the touch screen shows .
Long press again to power o󽗈.

www.feiyu-tech.com 98
3. Function & Operation
3.1 Function/Modes Introduction
① Pan Mode (Default mode)
When attached on the other equipment, the tilt direction is 󽗉xed, and the camera
direction moves according to the rotation of the equipment.
② Lock Mode
When attached on the other equipment, the tilt direction is fixed, the camera
direction doesn't move while rotating the equipment.
③ Reset
Reset to Pan mode, tilt and pan axis reset to initial position.

www.feiyu-tech.com 10
④ Time-lapse photography
User can set the start and stop shooting route on remote control, QING will auto
rotate according the setting. Refer to P17 3.4.1.
TIPS:
a. After click "Start" under time-lapse mode, gimbal will record all the movements
before it stop. Do not repeat unnecessary actions during time-lapse.
b. The parameter a/b fps indicates how long the video will be play under
the condition you set below. (Total duration and numbers of photos are
automatically calculated by the gimbal without setting).
c. Please set the parameter for pan/tilt/interval/stop time.
Interval time means the time that between two shooting. Stop time means the
exposure time while taking photos.

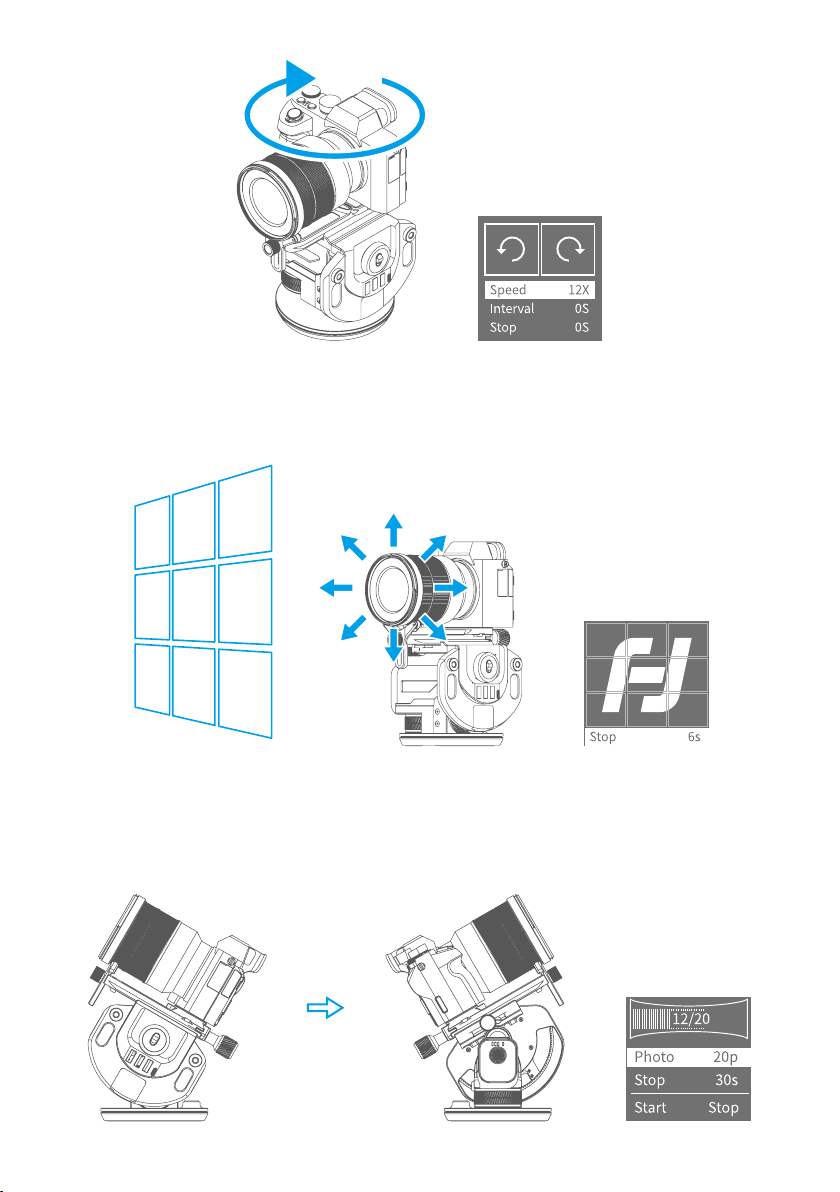

⑤ Fast rotate
The rotating speed/interval time/stop time can be set. QING will rotate according
to the setting parameter. No need to frequently manually set up during shooting.
Refer to P18 3.4.2.

www.feiyu-tech.com 1110
⑥ Wide Angle
For grand scenes or special scenes, the gimbal supports wide angle shooting ( 9
square panorama) can be assemble into 1 picture later on computer or Feiyu ON
App. Refer to P19 3.4.3.
⑦ Pan Shoot
Gimbal will rotate precisely (pan rotate 180°or 360° for panorama) and take
pictures according to the setting. Refer to P19 3.4.4.
Take 180° for instance:

www.feiyu-tech.com 12
To get more videography skills with gimbal and it's tutorial, please kindly visit
our o󽗋cial of Remote Control or download Feiyu ON App.
http://www.feiyu-tech.com

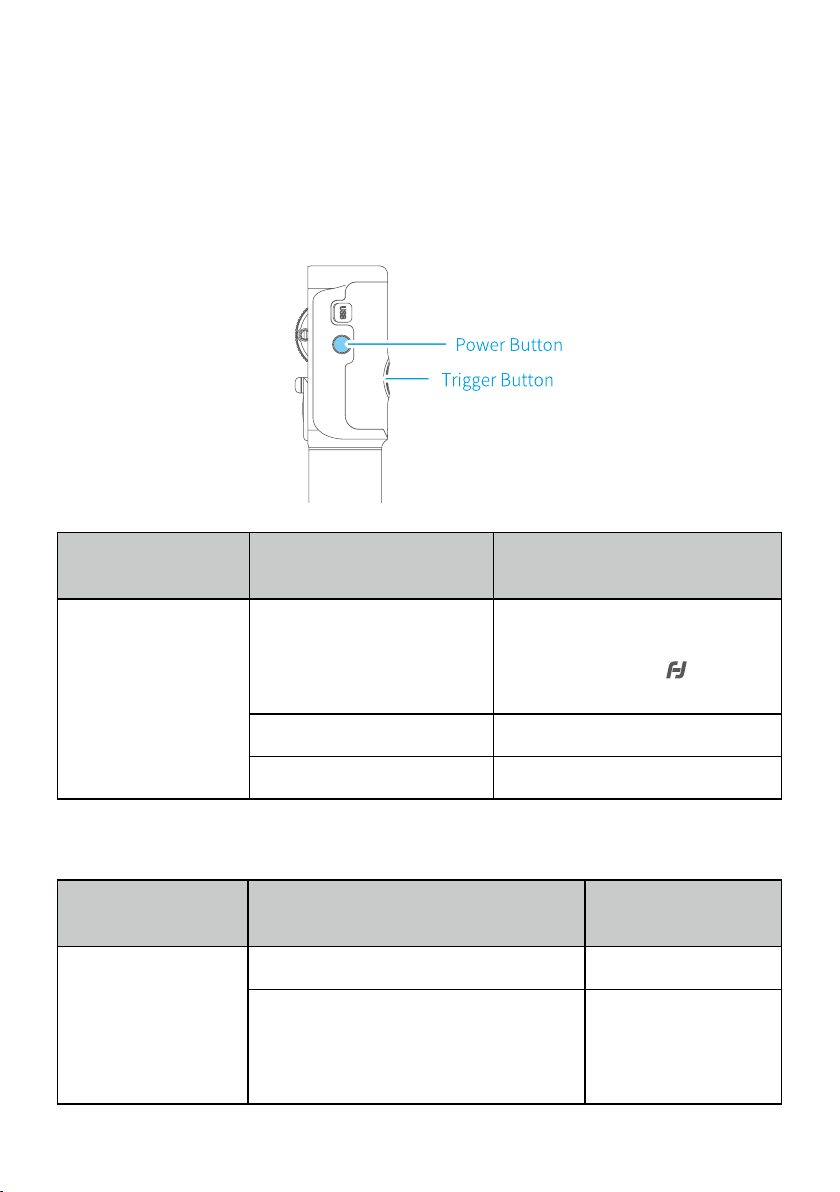

3.2 Function Operation of Remote Control
3.2.1 Power Button Operation
Function Button
Operation Function Instruction
Power Button
1. Remote control power
ON/OFF
Long press (Long press the
power button, and release
it when it shows " " on
display.
2. Lock/unlock screen Short press in home page
3. Return to home page Short press in other pages
3.2.2 Trigger Button Operation
Function Button
Operation Function Instruction
Trigger Button
Reset Double tap
Exit current setting state, the knob
and turntable can control pan and
tilt axis instead of adjusting the
parameter setting.
Single tap

www.feiyu-tech.com 1312
3.2.3 Turntable Operation
Function Button
Operation Function Instruction
Turntable
1.Control the movements
on pan axis Rotate the turntable
2. Adjust the parameter Rotate the turntable
3.2.4 Capturing/Recording Button Operation
After QING connecting control cable with camera，Remote Control can directly
control picture-taking , video recording, follow focus.
Function Button
Operation Function Instruction
Capturing/Recording
button(2-stage way,
half-way press and
fully press)
1. Focus ( Half-way press condition)Single
tap
2. Photo shooting (Fully press condition) Single tap
3. Video recording Long press for 3 seconds

www.feiyu-tech.com 14
3.2.5 Knob Operation
Function Button
Operation Function Instruction
Knob
1. Control the
movements on tilt axis
Rotate clockwise or anti-
clockwise
2. Select the setting Rotate clockwise or anti-
clockwise
3.2.6 Function Button Operation
Function Button
Operation Function Instruction
Function Button
Switch sensitivity: fast/low Single tap
Switch control object: tilt axis/optional
object* Double tap
*select electronic follow focus, electronic zoom, AKFⅡ in control object setting in
the second screen. After selecting, it can be switched to control in home page.

www.feiyu-tech.com 1514
3.2.7 Power Button Operation
Function Button
Operation Function Instruction
Power Button Power on/o󽗈 Long press and release
Customize initial position* Double tap
NOTE :
The battery should be installed before using.
The default angle for tilt and pan axis is 0°, user can customize the initial position
by rotate the turntable and knob. (To reset to default angle please rotate the
turntable and knob to the position the image shows below and double tap the
Power button).

www.feiyu-tech.com 16
3.3 Remote Control Touch Screen
3.3.1 Touch Screen
Display
icon Mode / Status Display icon Mode / Status
Gimbal Connected MODE Current Mode
Gimbal Disconnected HF Pan Mode
Battery Level of Remote
Control LK Lock Mode
USB Camera Connected Tilt Tilt Axis
USB Camera Disconnected Pan Pan Axis
Lock Status High Sensitivity
Unlocked Status Low Sensitivity
Battery Level Control-Brushless
Follow Focus
Control-Follow Focus Control-Gimbal Tilt Axis
Control-Zoom In/Out

www.feiyu-tech.com 1716

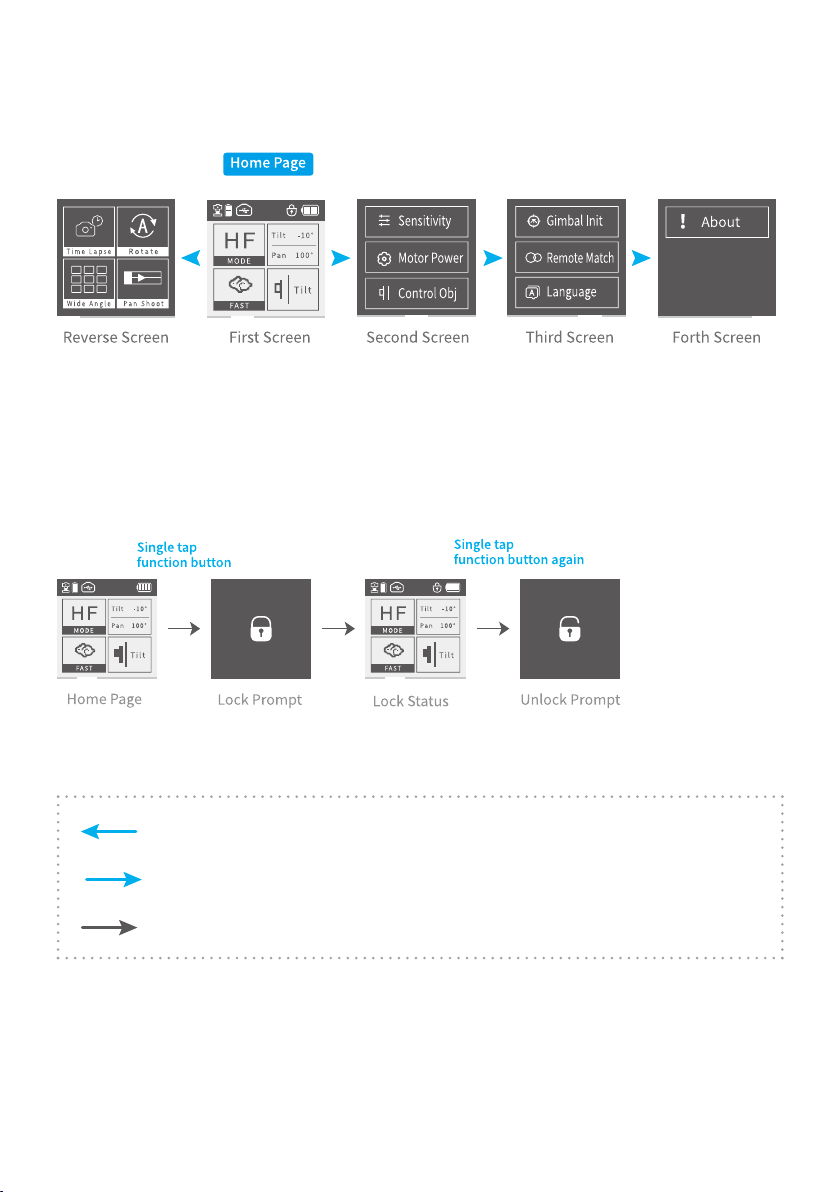

3.3.2 Display Screen Switching
Switch screen by sliding left and right.
3.3.3 Touch Screen Common Gesture Operation
Slide to left: Switch to left screen
Slide to right: Switch to right screen/back to previous page
Click: Check this option
3.3.4 Lock and Unlock
3.4 Modes Setting
Slide right to left
Slide left to right
Tap to select current menu
3.4.1 Time-lapse Photography Mode
(1) Slide to right to enter reverse screen, click to enter the time-lapse
photography interface, the interface has three options (time setting, path setting,
last con󽗉guration).

www.feiyu-tech.com 18
(2) For the first time, please set up all the time parameters at Time Set menu,
including movements time on pan, tilt axis, interval time and stop time for long
exposure of photography.
(3) Enter Rotate Set menu, use the knob and the turntable to control the path of
lens, record start and end points of path.
(4) Click Start to go to auto timelapse photography, the gimbal will show up
remaining time , current and total number of photos. Please wait for completion
by itself.
3.4.2 Fast Rotation Mode
(1) Slide to right to enter reverse screen, tag to enter the automatic rotation
mode.
(2) Adjust by the turntable:
① select the gear position of speed (There are 30 gears from 1 to30, the gear
position is indicated by "X", the higher the gear speed is, the faster the speed
② Set interval time/stop time (How often to take a photo and how long to
exposure for each photo).
