FeiYu Tech SCORP 2 User manual

Instructions V 1.0
Tutorial Videos

Catalogue
1. Overview ……………………………………………………………………………………………………… 1
2. Getting started ……………………………………………………………………………………………… 2
2.1 Charging ……………………………………………………………………………………………………………… 2
2.2 Adjust the gimbal to gimbal balancing position ……………………………………………………………… 2
2.3 Using support stand ……………………………………………………………………………………………… 3
3. Mounting the Camera ……………………………………………………………………………………… 3
3.1 Attach the quick release plate and camera backing base(Optional) ……………………………………… 3
3.2 Install lens holder (Optional) ……………………………………………………………………………………… 4
3.3 Mount camera on gimbal ………………………………………………………………………………………… 4
4. Gimbal Balancing …………………………………………………………………………………………… 5
4.1 Balancing the tilt axis ……………………………………………………………………………………………… 5
4.2 Balancing the roll axis ……………………………………………………………………………………………… 6
4.3 Balancing the pan axis …………………………………………………………………………………………… 7
4.4 Using the memory slider ………………………………………………………………………………………… 8
5. Power ON/ OFF& Wake up ………………………………………………………………………………… 8
5.1 Power ON/ OFF ……………………………………………………………………………………………………… 8
5.2 Lock/Unlock screen ………………………………………………………………………………………………… 9
5.3 Sleep/Wake up ……………………………………………………………………………………………………… 9
6. Function/Modes introduction …………………………………………………………………………… 9
6.1 Follow modes introduction ……………………………………………………………………………………… 10
6.2 Other function introduction ……………………………………………………………………………………… 10
7. App Connecting …………………………………………………………………………………………… 11
7.1 Connect with Feiyu SCORP App ………………………………………………………………………………… 11
7.2 Function introduction of App …………………………………………………………………………………… 11
8. Operation ………………………………………………………………………………………………… 15
8.1 Button operation …………………………………………………………………………………………………… 15
8.2 Touch screen operation …………………………………………………………………………………………… 18
8.3 Function operation ………………………………………………………………………………………………… 21
8.4 Control ports ………………………………………………………………………………………………………… 27
9. Speci󽗉cations …………………………………………………………………………………………… 28

Tutorial
·The tutorial videos can be watched at FeiyuTech o󽗋cial
website or scan the QR code.
https://www.feiyu-tech.com/play/
Download the App
Scan the QR code to download the app, or
search for "Feiyu SCORP" in the App Store or
Google Play.
* Requires iOS 11.0 or above, Android 6.0 or above.
iOS Android

- 1 -
1. Overview
* Not include camera.
[8]
[21]
[20]
[29]
[40]
[9]
[10]
[11]
[34][35]
[18][17] [19]
[1]
[7]
[13][14] [15]
[17]
[36]
[12]
[37]
[25]
[38]
[41]
[28]
[42]
[12]
[16]
[30]
[31]
[26]
[32]
[33]
[23]
[22]
[24]
[27] [39]
[2]
[43]
[3]
[4]
[5]
[6]
[1] Power button
[2] Touch screen
[3] Shutter button
[4] Mode button
[5] Joystick
[6] F1 button
[7] Kickstand
[8] Handle
[9] FPV button
[10] Knob function switching
button
[11] Multifunction knob
[12] Anti-drop lock for slider
[13] Slider
[14] Quick release plate lock
[15] Slider lock
[16] Vertical arm
[17] Anti-drop lock
[18] Quick release plate
[19] Camera backing base
[20] Slider
[21] Slider lock
[22] Slider arm lock knob
[23] Image transmission port
[24] Extension port 1
[25] Cross arm lock knob
[26] Cross arm
[27] Roll axis
[28] Roll lock
[29] F2 button
[30] Tilt lock
[31] Tilt axis
[32] Camera for tracking
module
[33] Indicator light for
tracking module
[34] Lens holder
[35] Lens holder screw
[36] Extension port 2
[37] Camera control port/
USB-C power output port ①
[38] Vertical arm lock knob
[39] Pan axis
[40] Pan lock
[41] A/B button
[42] Trigger button
[43] 1/4 inch thread hole
① Supports charging for shooting devices compatible with the USB power supply protocol.

- 2 -
2. Getting started
2.1 Charging
Please fully charge the battery before power on the gimbal for the 󽗉rst time.
Charging with USB-C cable, supports quick charge which charging power ≤ 18W.
2.2 Adjust the gimbal to gimbal balancing position
The gimbal is folded by default, please unlock all the three axes and adjust the
gimbal to gimbal balancing position, and then lock the three axes.
1
2
3
Gimbal folded position Gimbal balancing position

- 3 -
2.3 Using support stand
Users can unfold the built-in kickstand or install tripod to place the gimbal on a 󽗊at
surface.
Unfold the built-in kickstand Unfold the tripod
3. Mounting the Camera
Before mounting the camera, make sure the camera is ready for shooting (Install the
camera lens, and the lens cover should be removed, the memory card and battery
needs to be inserted to the camera, and battery is fully charged) , complete all the
steps which mentioned in chapter "2. Getting started" and the gimbal is adjusted to
gimbal balancing position. Make sure the gimbal is powered o󽗈 or in sleep mode
before mounting the camera.
3.1 Attach the quick release plate and camera backing
base(Optional)
Attach the quick release plate to camera by tightening the screw.
User can choose to attach the camera backing base if needed ( For example, when
using a long or heavy lens). Attach the camera backing base to camera, then attach it
to quick release plate by tightening 2 screws.

- 4 -
Attach with quick release plate only Attach with camera backing base and quick
release plate
3.2 Install lens holder (Optional)
Install the lens holder on the quick release plate if needed, the rubber of the lens
holder must be directly under the lens. It is recommended to use the lens holder
when using a long or heavy lens.
3.3 Mount camera on gimbal
Unlock ①, slide ② into the slot, lock ①, loosen ③, slide ④ into the slot as
indicated, adjust the camera forward and backward until roughly balanced, then
tighten ③.

- 5 -
2
1
4
31
It is recommended to push the camera against the tilt axis. Unlock ① to move the
camera left or right according to camera's width to adjust, then lock ① .
1
1
4. Gimbal Balancing
Please balance the gimbal before shooting. Make sure the
camera and lens are ready for shooting, and the gimbal
is powered o󽗈 or in sleep mode before balancing. It is
recommended to hold up the camera 󽗉rst, then move the
slide arm, cross arm and vertical arm. Tutorial Videos
4.1 Balancing the tilt axis
4.1.1 Balancing the vertical tilt
a. Unlock the tilt lock ① , and loosen the slide arm lock ②.
b. Rotate the tilt axis so that the camera lens is pointing upward. Check the direction

- 6 -
which the lens tilts to.
c. If the lens tilts to one side, then the camera is that side heavy, move the slide
arm ③ to the opposite direction, until the camera is steady pointing upward.
d. Tighten the slide arm lock ② while holding the camera.
3
2
1
4.1.2 Adjust depth for the tilt axis
a. Rotate the tilt axis so that the camera lens is pointing forward. Check the direction
which the lens tilts to.
b. If the lens tilts to one side, then the camera is that side heavy, unlock the quick
release plate lock ① and then move the quick release plate to the opposite direction,
until the camera is steady pointing forward.
c. Lock the quick release plate lock ① while holding the camera.
The tilt axis is balanced when the camera is steady while tilted up or down by 45° .
2
1
4.2 Balancing the roll axis
a. Unlock the roll lock ① , check the direction which the camera tilts to.

- 7 -
b. If the camera tilts to one side, then the camera is that side heavy, loosen the cross
arm lock knob ②and then move the cross arm to the opposite direction, until the
camera can stay still and horizontal to the ground.
c. Tighten the cross arm lock knob ②.
The roll axis is balanced when the camera can stay still and horizontal to the ground.
3
2
1

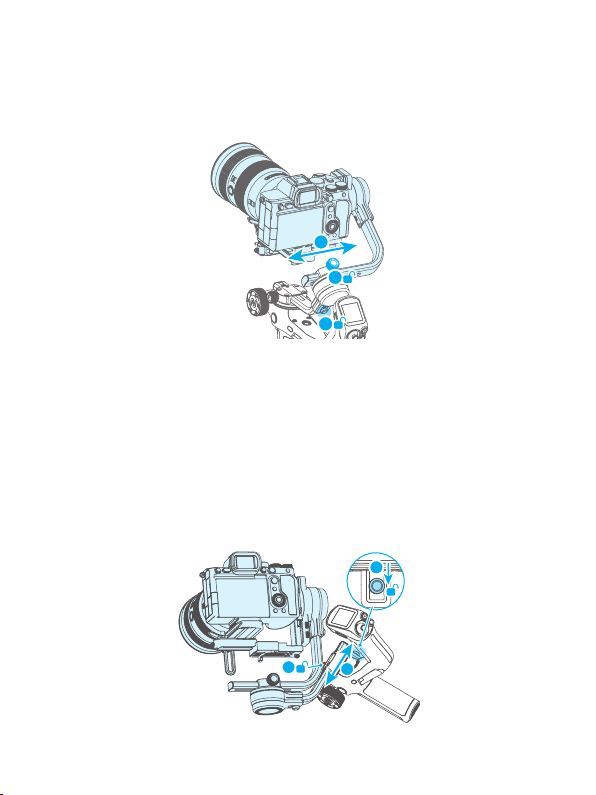

4.3 Balancing the pan axis
a. Unlock the pan lock ①. Hold the tripod, and tilt the gimbal forward until it is
horizontal to the ground.
b. If the camera tilts to one side, then the camera is that side heavy, loosen the
vertical arm lock knob ② and then move the vertical arm ③ to the opposite
direction, until the camera can stay still and horizontal to the ground.
c. Tighten the vertical arm lock knob ②.
The pan axis is balanced when the camera can stay still and horizontal to the ground.
3
1
2

- 8 -
4.4 Using the memory slider
Feiyu SCORP come with the memory slider which can make balancing easier. After
balancing the gimbal, move the memory slider to the hole in axis, and make the
red dot on the memory slider exposing from the hole, in order to mark the current
position.
Next time, If the objects which users mount on are the same, users can just move the
axis to the position which can make the red dot exposing from the hole to make the
gimbal balanced.
↑ Memory slider
←The position of memory sliders
5. Power ON/ OFF& Wake up

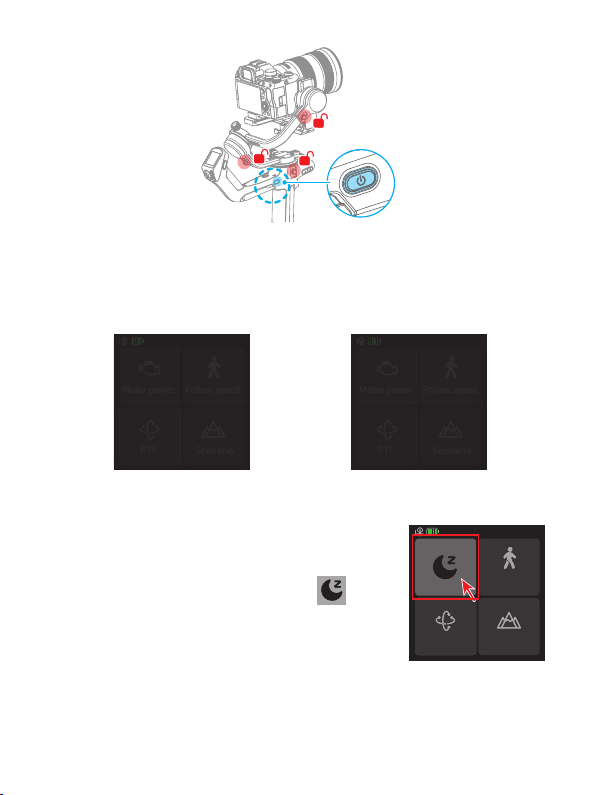

5.1 Power ON/ OFF
(1) Before power on the gimbal, make sure you have balanced gimbal, and
unlocked all the three axes.
(2) If you haven't unlocked all the 3 axes, gimbal will enter sleep mode to
protect itself. Please single tap power button to wake up gimbal after
unlocked all the 3 axes.
! Please set motor power 󽗉rst after powering on gimbal for the 󽗉rst time or after
changing a new camera/lens. (Please refer to chapter 8.3.1)
Long press the power button and release it when you hear the beep sound to power
on/ o󽗈.

- 9 -
5.2 Lock/Unlock screen
Lock screen: Single tap F2 button to lock screen.
Unlock screen: Single tap F2 button again to unlock the screen.
Motor power
PTF
Follow speed
Scenario
Screen locked.Press F2
button to unlock
Motor power
PTF
Follow speed
Scenario
Screen unlock
Lock screen Unlock screen
5.3 Sleep/Wake up
Sleep: Double tap power button to enter sleep mode.
Wake up: Single tap power button or tap the icon
on the screen in sleep mode to wake up gimbal.
PTF
Follow speed
Scenario
6. Function/Modes introduction

- 10 -
6.1 Follow modes introduction
① PF (Default mode)
Pan follow, only the pan axis follows the movement of user's hand.
② PTF
Pan and tilt follow, where both the pan and tilt axes follow the movement of user's
hand, but roll axis does not.
③ FPV
Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand.
④ Lock
All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of
the camera 󽗉xed.
⑤ FFW
Flash follow, where all 3 axes follow the movement of user's hand in high follow
speed.
① PF ② PTF ③ FPV
④ Lock ⑤ FFW
6.2 Other function introduction

- 11 -
Auto rotation (Please refer to chapter 8.3.5)
Camera will auto rotate to shoot according to the rotation speed and direction that
set by users. It can be used to achieve the image rotating scene which been used
frequently in movie Inception.
Portrait mode (Please refer to chapter 8.3.7)
Enter portrait mode for recording portrait video or live streaming.
Sel󽗉e mode (Please refer to chapter 8.3.9)
The camera turns 180° horizontally, sel󽗉e shooting is available.
Track video
Record track video according to the waypoints which has been set.
Manual lock
Manually move camera to desired position, and hold for half a second. New tilt
/pan positions are automatically saved.
7. App Connecting
7.1 Connect with Feiyu SCORP App
(1)Turn on the gimbal
(2)Turn on the smartphone Bluetooth, run Feiyu SCORP App, tap the top of the home
page to connect gimbal.
After the connection succeed, it's easy to control gimbal via App, including control
the pan and tilt axis angle with the virtual joystick, switch modes, set motor power/
camera parameters/follow speed, set other functions, parameters, and update
󽗉rmware.
7.2 Function introduction of App

- 12 -
Device battery
Joystick
settings
transmission
device
Current device
FY-XXXXXXXX
100%
100%
Scenario
Device battery
Current device
FY-XXXXXXXX
Button
settings
Knob
settings
Follow speedMotor power
Camera settings
Device Skill Me
Horizon
calibration More
[1]
[2] [11]
[12]
[14]
[20]
[21]
[22]
[18]
[15]
[3]
[6]
[8]
[17]
[25]
[26]
[23]
[13]
[16]
[24]
[19]
[4]
[5]
[7]
[10]
[9]
[1] Gimbal control access
Display the product name and device battery of current connecting gimbal, tap to
enter gimbal operation interface, which allows user to use virtual joystick to control
gimbal, switch follow modes, recenter gimbal, adjust horizontal angle manually.
When not connected to gimbal, prompt user to connect with gimbal.
[2] Disconnect device
Tap to disconnect current connecting device.
[3] Scenarios
Provide auto rotation (can be used to achieve the image rotating scene which been
used frequently in movie Inception), panorama, timelapse (Motionlapse/Static
timelapse/Hyperlapse) , track video and other usage scenarios for user.
[4] Button settings
Set the function when press and hold the trigger button.
Set auto focus time, attitude change time for A/B button.

- 13 -
[5] Knob settings
Set the control object for multifunction knob, can be set as control axes, control
electronic focus, control focus motor.
Set damp, speed, smooth and sound for multifunction knob in "More".
[6] Motor power settings
Adjust tilt, roll, pan axes motor power manually or use auto tune function to tune the
motor power automatically (Recommended).
Please set motor power 󽗉rst after power on gimbal for the 󽗉rst time or after
change a new camera/lens.
[7] Follow speed
Select di󽗈erent preset gimbal follow speed pro󽗉les: Slow/Med/Fast, or custom follow
speed and dead zone.
[8] Camera settings
Can set camera aperture, shutter speed and ISO parameters after connecting with
camera.
[9] Horizon calibration
Calibrate the gimbal with the auto calibration function(Recommended) or adjust it
manually (When not in FPV or FFW mode).
[10] More
Set boot silent, disable sel󽗉e, manual lock, check 󽗉rmware information and update
󽗉rmware, restore the default settings.
[11] Back
Tap to return to home page.
[12] Connect with image transmission device
Tap to connect image transmission device.
[13] Joystick settings
Can set the joystick speed for controlling pan/tilt axis, and joystick as pan axis/tilt

- 14 -
axis inverted.
[14] Recenter
Tap to recenter the gimbal.
[15] Flash follow(FFW)
Tap to enter Flash follow.
[16] Portrait mode
Tap to enter portrait mode.
[17] Sel󽗉e mode
Tap to enter sel󽗉e mode.
[18] Adjust horizontal angle
Slide the slider to control roll axis to adjust the current horizontal angle.
[19] Virtual joystick
Use virtual joystick to control pan and tilt axis.
[20] Lock mode
Tap to enter lock mode.
[21] Shutter
Tap to take photo in photo mode.
Tap to start/stop recording in video mode.
[22] Switch between photo/video mode
Tap to switch between switch between photo/video mode
[23] Pan follow (PF)
Tap to enter pan follow (PF) mode.
[24] Pan and tilt follow (PTF)
Tap to enter pan and tilt follow (PTF) mode.

- 15 -
[25] FPV
Tap to enter FPV mode.
[26] Motion sensing mode
Tap to enter motion sensing mode which can control the pan and tilt axis to follow
the movement of smartphone, can not switch follow modes in motion sensing mode
(PF/PTF/FPV/Lock).
8. Operation
8.1 Button operation
8.1.1 Power button
Long press: Power on/o󽗈
Single tap: Wake up (In sleep mode)/Battery level
display (When powered o󽗈)
Double tap: Enter sleep mode
8.1.2 Mode button
Single tap: PF mode(Default) /PTF/FPV (Switch in
turn)
Tap 󽗉ve times: Horizon calibration

- 16 -
8.1.3 Trigger button
Double tap: Recenter
Triple tap: Enter/Exit sel󽗉e mode (Pan axis turn
180° )
Press and hold: PTF (Release to exit)
You can custom the function via App
8.1.4 Joystick
Push: Control the movement of the tilt and pan
axes.
8.1.5 Shutter button*
Press half way: Focus
Single tap (Fully): Start/stop recording
Long press (Fully): Take photo
8.1.6 FPV button
Single tap: Enter/Exit FPV mode
8.1.7 F1 button
Double tap: Enter/Exit portrait mode
Triple Tap: AI power on/o󽗈
Long Press: Enter/Exit AI Tracking (With AI Power
enabled)

- 17 -
8.1.8 F2 button（Home button）
Single tap:
(1) Lock/Unlock screen (In home page)
(2) Return to home page (In other pages)
Double tap: Enter FFW mode
Long Press: Enter motor power auto tuning
8.1.9 A/B button
Long press: Mark the current position as A/B
Single tap: Return to the position A/B that you
have marked
Can be used to mark axes/focus position.
8.1.10 Knob function switching button
Single tap:(1) Switch the control object while
controlling the movement of the 3 axes (Tilt/
Pan/Roll)
(2) When in electronic focus/zoom control state,
single tap to switch between electronic focus
and electronic zoom
Long press:Switch the control options of
Multifunction knob in turn (The movement of
the 3 axes/Electronic focus/Focus motor)
8.1.11 Multifunction knob
Turn:
(1) Control the movement of the roll, tilt and pan
axes.
(2) Control focus/zoom.
(3) Contol focus motor.
(4) Adjust the parameter in the touch screen.
Set current control option as option (1) or (2) or (3)
through long press the knob function switching button or
swipe up in home page.
