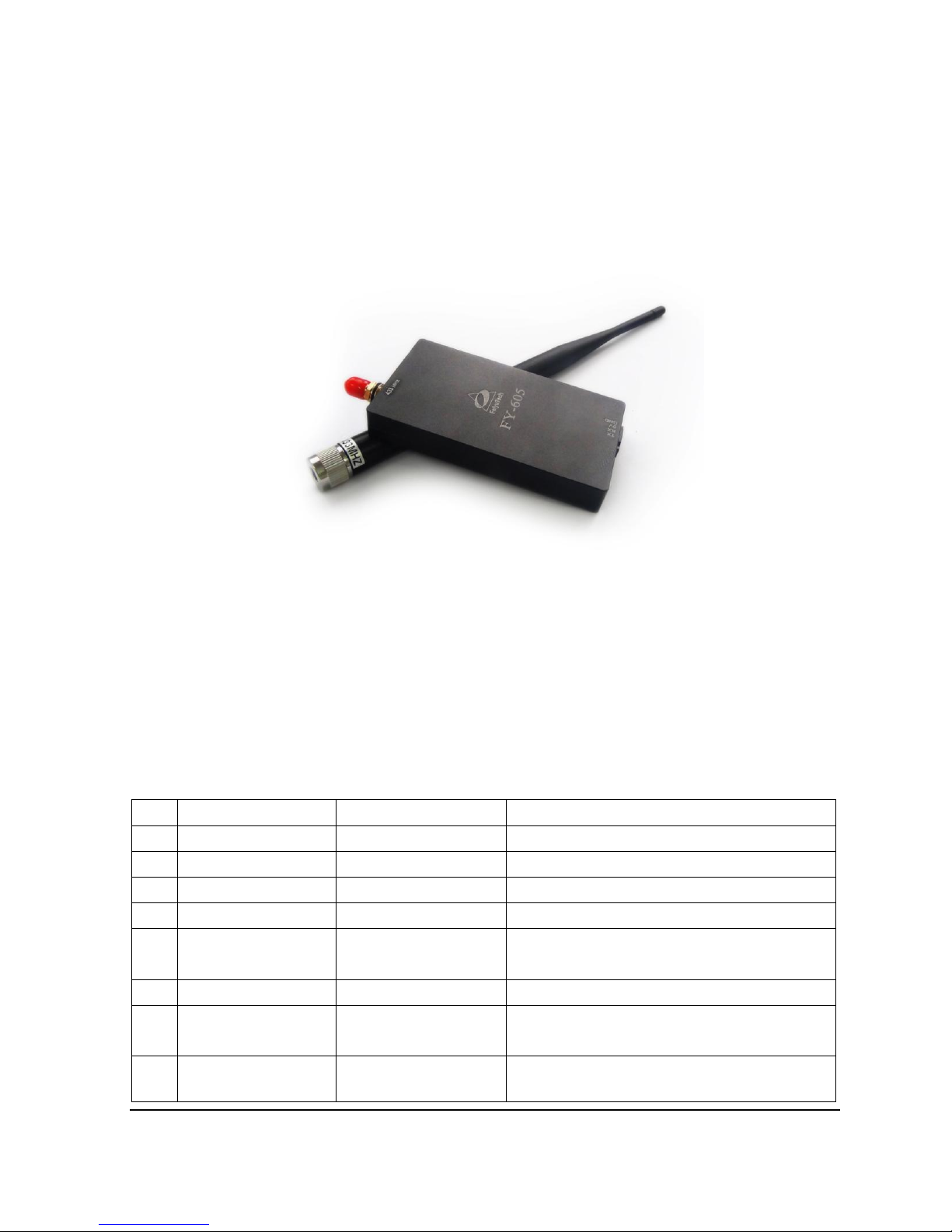

FY-605 Data Radio
User’s Manual
Dear Customers,
Thank you for purchasing the FY-605 data radio from FeiYu Tech.
In order to achieve full potential and safe operation of this product, please carefully read this
manual prior to installation.
1. Parameter Table
Index
Standard values
Remark
1
Transmission Power
2000mW
2
Receiving sensitivity
-123dbm
3
Work voltage
DC5V
DC 5V Power, Current > 2A
4
Transmitting current
<1.5A
5
Minimum Sleeping
current
< 1mA
6
Carrier Frequency
433MHz
ISM frequency range
7
The conversion time
for transceiver
<20ms
8
Transmission
5Km~15Km
Within the range of visibility, place the
antenna higher than 3m.

FeiyuTech FY-605 Data Radio User’s Manual
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: [e-mail]
Page 2
distance
9
Transparent data
transmission
Transparent data
interface is offered,
which can be fit for
nonstandard user
protocol
Any false data generated in the air can be
filtrated automatically (What has been
received is exactly what has been
transmitted)
10
Baud rate
19200bps
FY-605 provides various baud rate 1200,
2400, 4800, 9600, 19200 and 38400bps.
11
Data buffer
512 bytes
When the RF baud rate is bigger than the
COM baud rate, it can transmit unlimited
data at one time, and when the RF baud rate
is smaller than or was equal to the COM baud
rate, may transmit 512 bytes data.
12
Size
91mm*48mm*13 mm
2、Application Of FY-605
* AMR Automatic Meter Reading;
* Wireless alarm and security systems;
* Wireless conference voting system;
* Sports training & competition;
* Wireless dishes ordering;
* Electronic bus station and intelligent traffic;
* RF transmitter wireless electronic display screen and queuing machine;
* Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection
system
3、Power Supply
5V is the standard power supply.
The user can share power with other equipment, but should select the high quality power
supply with desirable ripple factor. In addition, the reliable grounding must be used if there is
other device in the system equipment. In case of failure to connect with the earth, it can form its

FeiyuTech FY-605 Data Radio User’s Manual
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: [e-mail]
Page 3
own grounding but it must be absolutely separated from the municipal electric supply.
4、FY-605 Interface Definition
FY-605 is TTL level, interface default baud rate:19200bps .
Interface verify：None verification

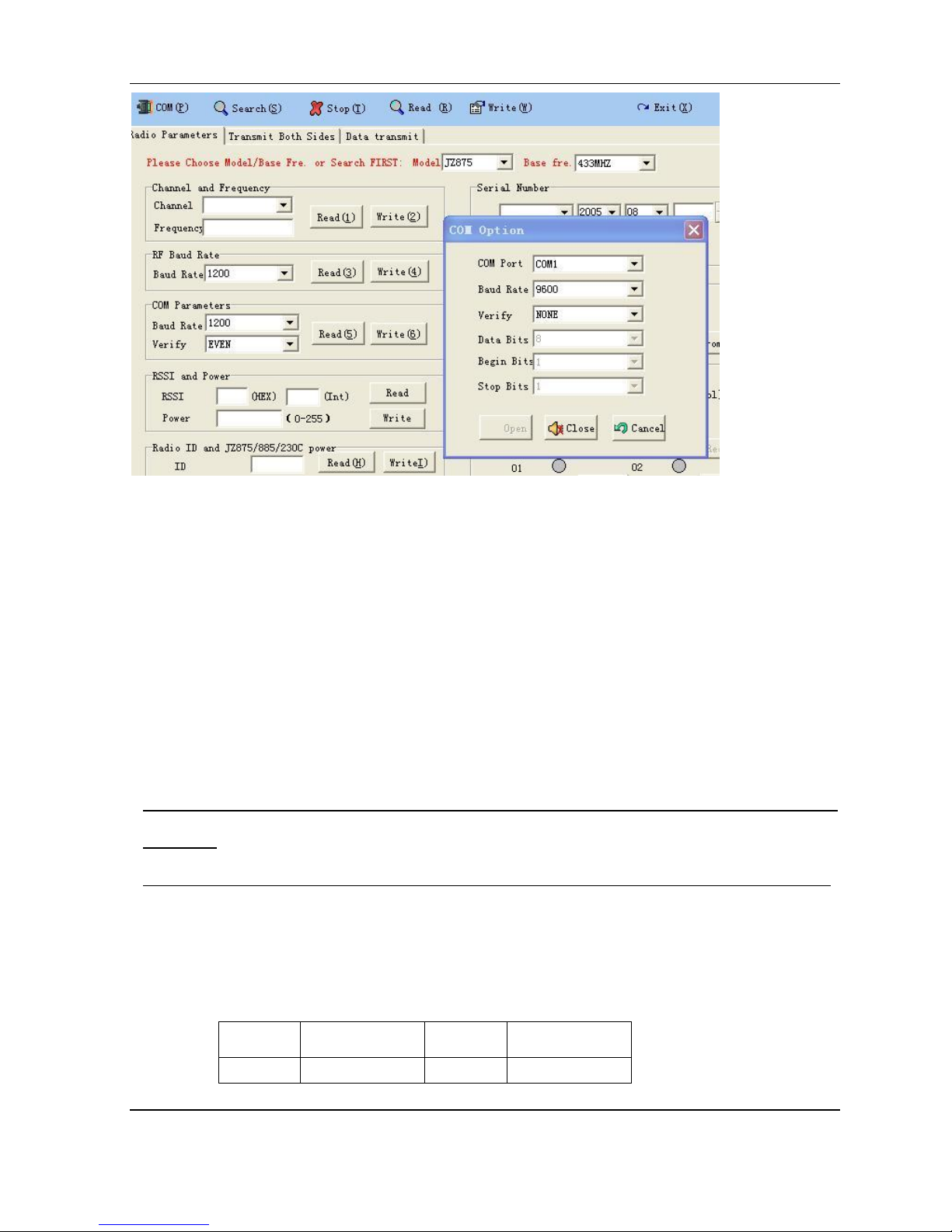

5、How To Use The Software To Search The Radio And Change The
Parameters
433MHZ
GND
5V
RX
TX
FY-605
Data in
Data out
GND
5V
SMA antenna
interface
LED indicator
Red-transmit
Green-receive

FeiyuTech FY-605 Data Radio User’s Manual
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: [e-mail]
Page 4
A. Connect FY-605 with the Computer and power, and choose the COM ports.
B. Search the radio, when search it successfully (the software will clew it), then we can read
and write the parameters.
C. To change parameters, you can choose the parameters you want to set, re-read after set it
ok, then you can know whether the parameters is you want.
The default COM and RF baud rate is 19200bps.When the RF baud rate is bigger than the
COM baud rate, it can transmit unlimited data at one time, and when the RF baud rate is
smaller than or was equal to the COM baud rate, may transmit 512 bytes data.
Note:
1. Two modules communicate or more modules, their frequency and RF baud rate should be
the same.
2. Module communicate with User’s Equipment, Their COM parameters should be the same.
The following table is FY-605’s channel and frequency:
Channel
Frequency
Channel
Frequency
1
430.2000MHZ
9
458.5250MHZ

FeiyuTech FY-605 Data Radio User’s Manual
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: [e-mail]
Page 5
2
431.4288MHZ
10
459.1250MHZ
3
431.7360MHZ
11
459.5250MHZ
4
430.5072MHZ
12
460.1250MHZ
5
434.6940MHZ
13
460.5250MHZ
6
434.2332MHZ
14
461.1250MHZ
7
433.1580MHZ
15
461.5250MHZ
8
433.9260MHZ
16
462.1250MHZ
6、The Conversion Between Transceiver Modules
It needs 1 ms time delay after the user’s equipment received the data and then transferred
the send data.
7、Transmitting From A Module, Received By B Module
When transmitting data, the user should consider the time delay, in order to ensure the
reliability of wireless communication; we joined the FEC (wrong before) and other coding rules.
In that case, the communication delay is related to baud rate, the following is details:

FeiyuTech FY-605 Data Radio User’s Manual
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: [e-mail]
Page 6
COM baud rate
(Bps)
Time tsl
(ms)
RF baud rate
(Bps)
Time ts1
(Ms)
38400
11
4800
43
19200
15
2400
83
9600
25
1200
140
8、Interoperable Models
FY-605 can communicate with all the FY-602 series models. Please kindly pay attention to
the following points when transmitting:
A. Select all the modules the same channels.
B. All the modules with the same RF baud rate.
C. Connect the power supply and interface well.
9、Lamp Description Of Normal Working
The module has a two-color work lights; the red lamp glitters twice when connect the power
supply, the red lamp glitters when transmitting data, and the green lamp glitters when receiving
data.
——END——
Note: We reserve the right to change this manual at any time! And the newest edition will
be shown on our website www.feiyu-tech.com.
